0-12 — CYLINDER BLOCK (#58200) — 83 parça

163 215 2 4 214

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	06	1	0909-
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	06	1	0909-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	0909-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	0909-
163	COVER ASM; C/BL SKIRT EURO3 SPECIFICATION(NT3)	8-97601-248-0	01	1	0909-1412
163	COVER ASM; C/BL SKIRT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-97601-248-0	01	1	1501-
214	BOLT; NOISE COVER EURO3 SPECIFICATION(NT3) M10X16 FLANGE	0-28151-016-0	02	1	0909-1412
214	BOLT; NOISE COVER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) M10X16 FLANGE	0-28151-016-0	02	1	1501-
215	WASHER; PL,NOISE COVER EURO3 SPECIFICATION(NT3) ID=10.5 OD=32	0-91614-810-0	01	1	0909-1412
215	WASHER; PL,NOISE COVER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) ID=10.5 OD=32	0-91614-810-0	01	1	1501-

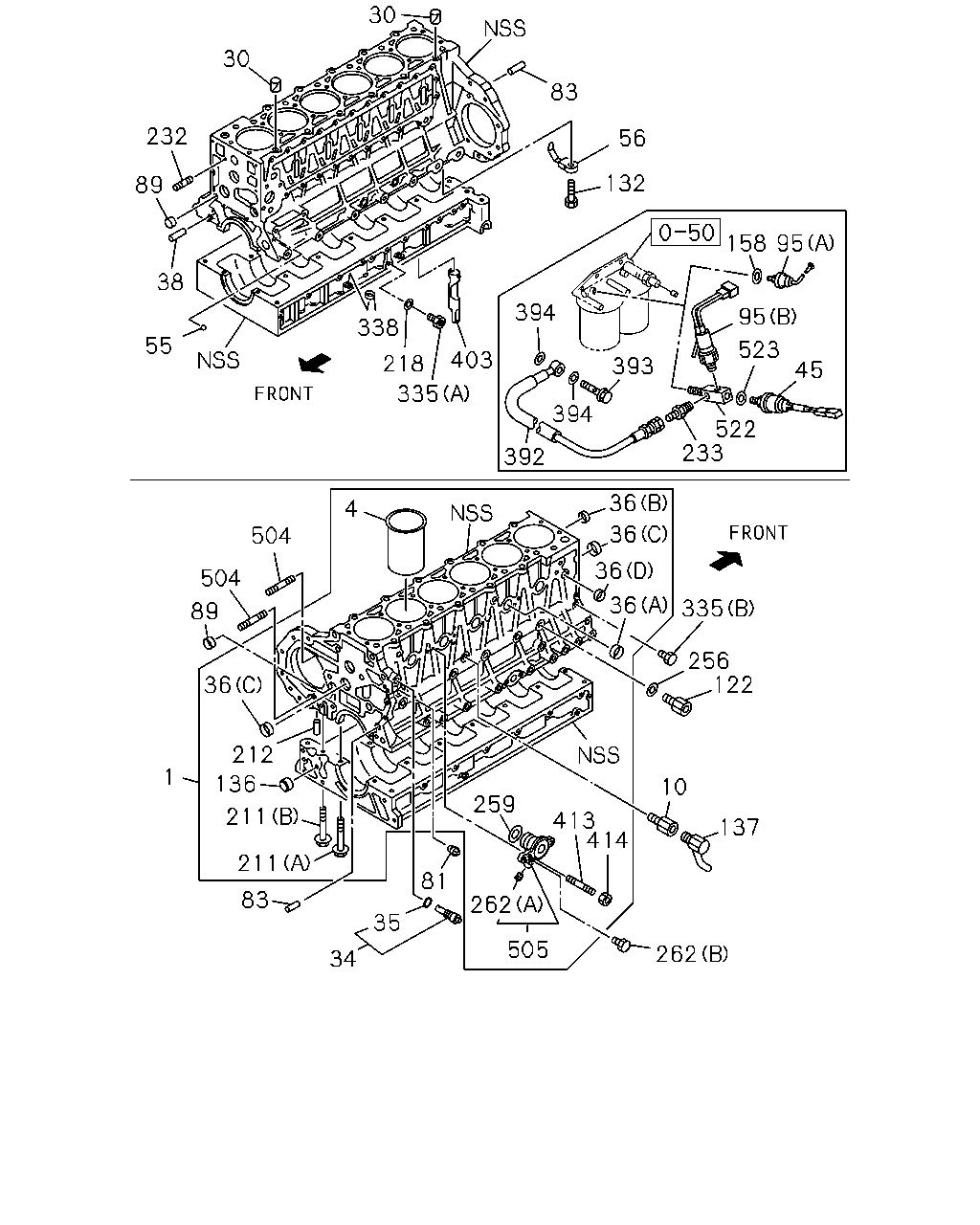

30 30 232 89 38 55 338 403 335 218 394 393 132 56 83 394 392 233 522 45 523 95 158 95 4 504 504 89 36 212 136 1 211 211 83 35 259 81 262 414 413 137 10 122 256 335 36 36 36 36 505 262 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL EURO2 SPECIFICATION(NT2)	8-98206-966-0	01	1	1210-
1	BLOCK ASM; CYL EURO3 SPECIFICATION(NT3)	8-97618-664-3	01	1	0909-1209
1	BLOCK ASM; CYL EURO3 SPECIFICATION(NT3)	8-98206-967-0	01	1	1210-1412
1	BLOCK ASM; CYL EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-98206-967-0	01	1	1501-
1	BLOCK ASM; CYL EURO2 SPECIFICATION(NT2)	8-97618-663-3	01	1	0909-1209
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	0909-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	0909-
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	0909-
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0909-
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0909-
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0909-
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	0909-
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0909-
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0909-
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0909-
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0909-
45	SWITCH; OIL PRESSURE EURO3 SPECIFICATION(NT3)	8-98057-620-0	01	1	0909-1412
45	SWITCH; OIL PRESSURE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-98057-620-0	01	1	1501-
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	0909-
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0909-1007
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-
81	PLUG; WATER JACKET PT3/8	8-94397-338-0	01	1	0909-
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0909-
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	0909-
95	PRESSURE UNIT; OIL EURO2 SPECIFICATION(NT2) (A)	1-83151-041-0	01	1	0909-
95	PRESSURE UNIT; OIL EURO3 SPECIFICATION(NT3) (B)	1-82410-170-1	01	1	0909-1412
95	PRESSURE UNIT; OIL EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B)	1-82410-170-1	01	1	1501-
122	ADAPTER; OIL PRESSURE SWITCH EURO2 SPECIFICATION(NT2)	8-97603-667-0	01	1	0909-
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0909-
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0909-
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0909-
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) ID=10.2 OD=15.2	1-09630-083-0	01	1	0909-
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0909-
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0909-
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0909-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	01	1	0909-1312
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	8-98251-344-0	01	1	1401-
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0909-
233	STUD; BODY TO STEP MOTOR EURO3 SPECIFICATION(NT3) M16 & PT1/4 STRAIGHT	1-09660-129-0	01	1	0909-1412
233	STUD; BODY TO STEP MOTOR EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) M16 & PT1/4 STRAIGHT	1-09660-129-0	01	1	1501-
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) ID=14.2 OD=25	1-09630-141-0	01	1	0909-
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	0909-
262	PLUG; ADAPTER EURO3 SPECIFICATION(NT3) (A)	1-13163-002-0	01	1	1101-1412
262	PLUG; ADAPTER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A)	1-13163-002-0	01	1	1501-
262	PLUG; ADAPTER EURO3 SPECIFICATION(NT3) (B) M14	8-94399-225-0	01	1	1101-1412
262	PLUG; ADAPTER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) M14	8-94399-225-0	01	1	1501-
262	PLUG; ADAPTER EURO2 SPECIFICATION(NT2) (A) M14X14	9-09862-156-0	01	1	0909-
335	PLUG; C/BL,SIDE EURO3 SPECIFICATION(NT3) (B) M14X16.5	8-97329-617-0	03	1	0909-1412
335	PLUG; C/BL,SIDE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) M14X16.5	8-97329-617-0	03	1	1501-
335	PLUG; C/BL,SIDE (A) M12X10	5-13265-001-0	01	1	0909-
335	PLUG; C/BL,SIDE EURO2 SPECIFICATION(NT2) (B) M14X16.5	8-97329-617-0	02	1	0909-
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0909-
392	HOSE; FLEX,OIL PRESS UNIT EURO3 SPECIFICATION(NT3)	8-98057-711-0	01	1	0909-1412
392	HOSE; FLEX,OIL PRESS UNIT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-98057-711-0	01	1	1501-
393	BOLT; EYE,FLEX HOSE EURO3 SPECIFICATION(NT3) M14X30 EYE-BOLT	8-98037-827-0	01	1	0909-1412
393	BOLT; EYE,FLEX HOSE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) M14X30 EYE-BOLT	8-98037-827-0	01	1	1501-
394	GASKET; EYE BOLT EURO3 SPECIFICATION(NT3) ID=14.2 OD=19.2	1-09630-085-0	02	1	0909-1312
394	GASKET; EYE BOLT EURO3 SPECIFICATION(NT3) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1412
394	GASKET; EYE BOLT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) ID=14.2 OD=19.2	8-98251-345-0	02	1	1501-
403	GUIDE; GALLERY	8-94395-351-1	01	1	0909-
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	02	1	0909-
414	NUT; ADAPTER M8 FLANGE	0-91180-208-0	02	1	0909-
504	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0909-
505	ADAPTER; WATER FEED EURO3 SPECIFICATION(NT3)	8-97607-409-0	01	1	0909-1012
505	ADAPTER; WATER FEED EURO3 SPECIFICATION(NT3)	8-98145-412-1	01	1	1101-1412
505	ADAPTER; WATER FEED EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-98145-412-1	01	1	1501-
505	ADAPTER; WATER FEED EURO2 SPECIFICATION(NT2)	8-97611-854-0	01	1	0909-
522	UNION EURO3 SPECIFICATION(NT3) M10 & PT1/4 & PT1/8 STRAIGHT	8-98052-976-0	01	1	0909-1412
522	UNION EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) M10 & PT1/4 & PT1/8 STRAIGHT	8-98052-976-0	01	1	1501-
523	GASKET EURO3 SPECIFICATION(NT3) ID=10.2 OD=15.2	1-09630-083-0	01	1	0909-1412
523	GASKET EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) ID=10.2 OD=15.2	1-09630-083-0	01	1	1501-

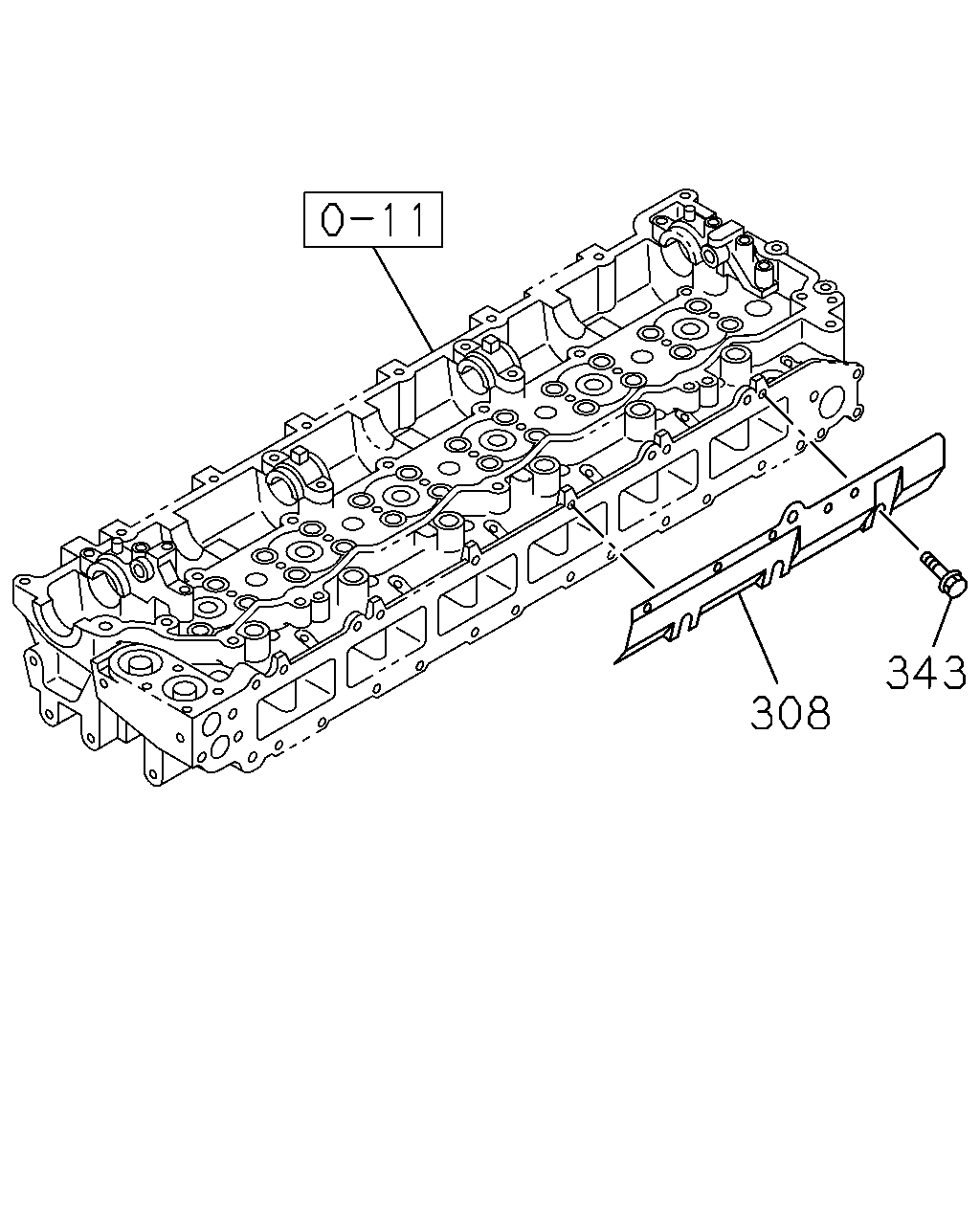

308 343

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	308	PROTECTOR; HEAT,HD COVER EURO2 SPECIFICATION(NT2)	8-94390-997-0	01	1	0909-
	343	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION(NT2) M8X12 FLANGE	0-28050-812-0	03	1	0909-
