4-36 — POWER STEERING CONTROL; ENGINE SIDE (#5820) — 45 parça

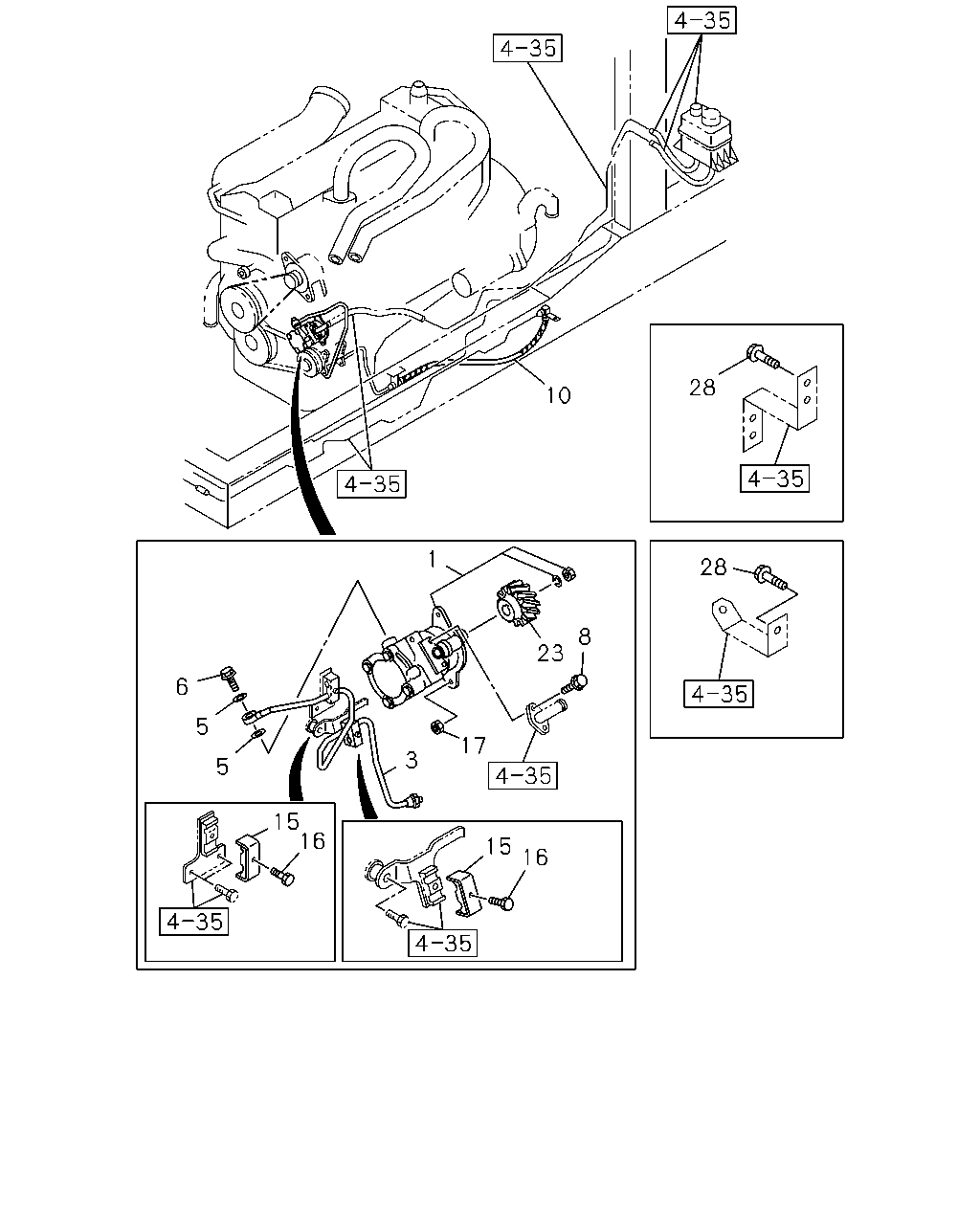

çizim 42517
28 10 1 28 8 23 6 5 17 3 5 15 16 15 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-447-0 01 1 9603-9603 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-447-0 01 1 9605-9904 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-C(55L) STRG VARIABLE CONTROL<TFY> 		1-19500-563-2 01 1 9905- ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-N(54L),6WA1 TC-S(56L),6WG1 TC-C(72L),V TYPE ENG<91L> 		1-19500-447-2 01 1 9905- ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-C(55L) EXC. STRG VARIABLE CONTROL<TFY> 		1-19500-447-2 01 1 9905- ● ●
3 PIPE; OIL,CHARGE,P/S
L TYPE ENG<90L> 		1-13313-640-0 01 1 9603-9604 ● ●
3 PIPE; OIL,CHARGE,P/S
L TYPE ENG<90L> 		1-13313-637-1 01 1 9605- ● ●
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). L TYPE ENG<90L> ID=18.2 OD=24.4 		1-09630-087-0 02 1 9603- ● ●
6 BOLT; EYE,P/S PIPE
L TYPE ENG<90L> M18X36 		1-09675-174-0 01 1 9603- ● ●
8 BOLT; OIL PIPE
L TYPE ENG<90L> M8X16 FLANGE 		0-28080-816-0 02 1 9603- ● ●
8 BOLT; OIL PIPE
V TYPE ENG<91L> M8X12 FLANGE 		0-28080-812-0 02 1 9603- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L TYPE ENG<90L> L=430 		0-09671-430-0 01 1 9603- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
V TYPE ENG<91L> L=510 		1-09364-893-0 01 1 9603-9810 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
V TYPE ENG<91L> L=510 		1-09365-044-0 01 1 9811- ● ●
15 CLIP; OIL PIPE SUCTION
L TYPE ENG<90L> 		1-09701-195-2 02 1 9603- ● ●
16 BOLT; STAY,P/S OIL PUMP
L TYPE ENG<90L> M6X35 FLANGE 		0-28680-635-0 02 1 9603- ● ●
16 BOLT; STAY,P/S OIL PUMP
V TYPE ENG<91L> M8X14 FLANGE 		0-28080-814-0 01 1 9603- ● ●
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91150-110-0 02 1 9603- ● ●
23 GEAR; OIL PUMP
L TYPE ENG<90L> Z=20 		1-19581-023-2 01 1 9603-9910 ● ●
23 GEAR; OIL PUMP
L TYPE ENG<90L> Z=20 		1-19581-038-0 01 1 9911- ● ●
23 GEAR; OIL PUMP
V TYPE ENG<91L> Z=20 		1-19581-011-1 01 1 9603- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X30 FLANGE 		0-28680-830-0 02 1 9607- ●
28 BOLT; BRKT,FLEX HOSE,P/S
V TYPE ENG<91L> M8X30 FLANGE 		0-28680-830-0 01 1 9905- ●

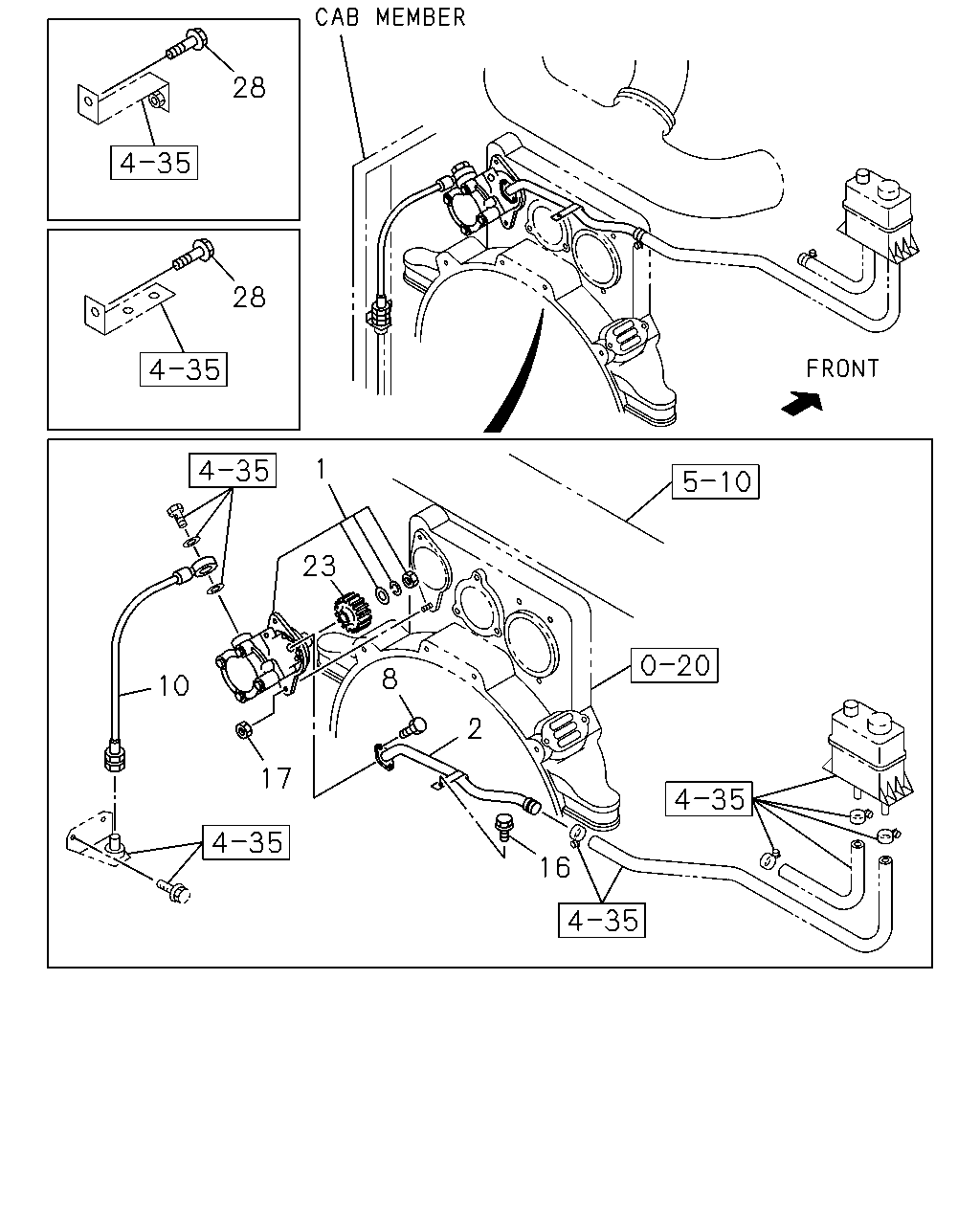

çizim 42781
28 28 1 23 8 10 2 17 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-447-0 01 1 9603-9603 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-447-0 01 1 9605-9904 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-C(55L) STRG VARIABLE CONTROL<TFY> 		1-19500-563-2 01 1 9905- ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-N(54L),6WA1 TC-S(56L),6WG1 TC-C(72L),V TYPE ENG<91L> 		1-19500-447-2 01 1 9905- ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-C(55L) EXC. STRG VARIABLE CONTROL<TFY> 		1-19500-447-2 01 1 9905- ● ●
2 PIPE ASM; OIL,SUCTION
V TYPE ENG<91L> 		1-13313-568-0 01 1 9603-9608 ● ●
2 PIPE ASM; OIL,SUCTION
V TYPE ENG<91L> 		1-13313-692-0 01 1 9609- ● ●
8 BOLT; OIL PIPE
L TYPE ENG<90L> M8X16 FLANGE 		0-28080-816-0 02 1 9603- ● ●
8 BOLT; OIL PIPE
V TYPE ENG<91L> M8X12 FLANGE 		0-28080-812-0 02 1 9603- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L TYPE ENG<90L> L=430 		0-09671-430-0 01 1 9603- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
V TYPE ENG<91L> L=510 		1-09364-893-0 01 1 9603-9810 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
V TYPE ENG<91L> L=510 		1-09365-044-0 01 1 9811- ● ●
16 BOLT; STAY,P/S OIL PUMP
L TYPE ENG<90L> M6X35 FLANGE 		0-28680-635-0 02 1 9603- ● ●
16 BOLT; STAY,P/S OIL PUMP
V TYPE ENG<91L> M8X14 FLANGE 		0-28080-814-0 01 1 9603- ● ●
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91150-110-0 02 1 9603- ● ●
23 GEAR; OIL PUMP
L TYPE ENG<90L> Z=20 		1-19581-023-2 01 1 9603-9910 ● ●
23 GEAR; OIL PUMP
L TYPE ENG<90L> Z=20 		1-19581-038-0 01 1 9911- ● ●
23 GEAR; OIL PUMP
V TYPE ENG<91L> Z=20 		1-19581-011-1 01 1 9603- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X30 FLANGE 		0-28680-830-0 02 1 9607- ●
28 BOLT; BRKT,FLEX HOSE,P/S
V TYPE ENG<91L> M8X30 FLANGE 		0-28680-830-0 01 1 9905- ●
