Isuzu WW
▶
BUSES
▶
LT
▶
11206 - LT134 LHD EURO2/3/5
▶
0 - Engine, Emission, Engine Electrical
▶
0-11 - CYLINDER HEAD
▶
0-11 — CYLINDER HEAD
(#58199) — 53 parça
◀

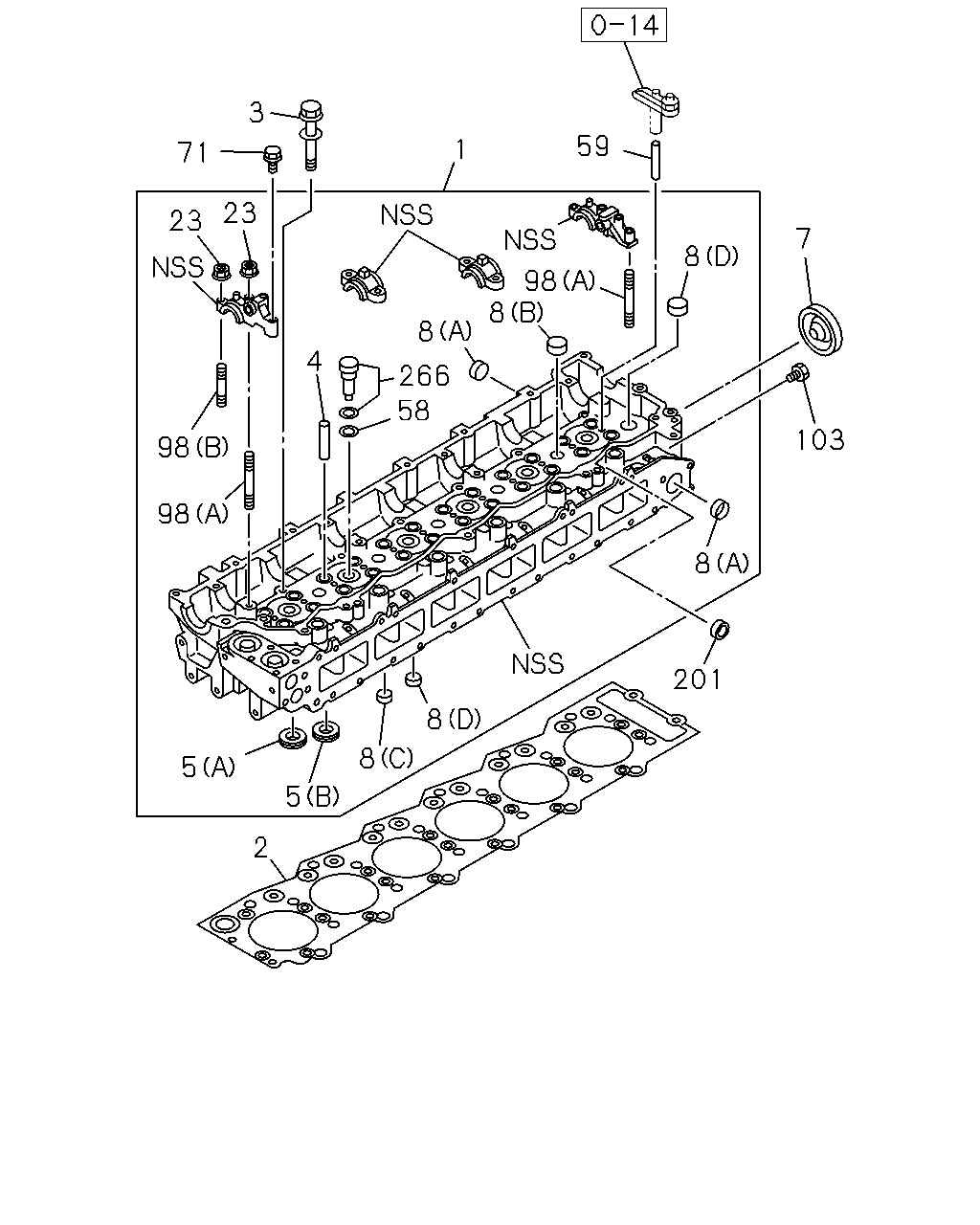

[011A] CYL HEAD COMPONENT (22 parça)

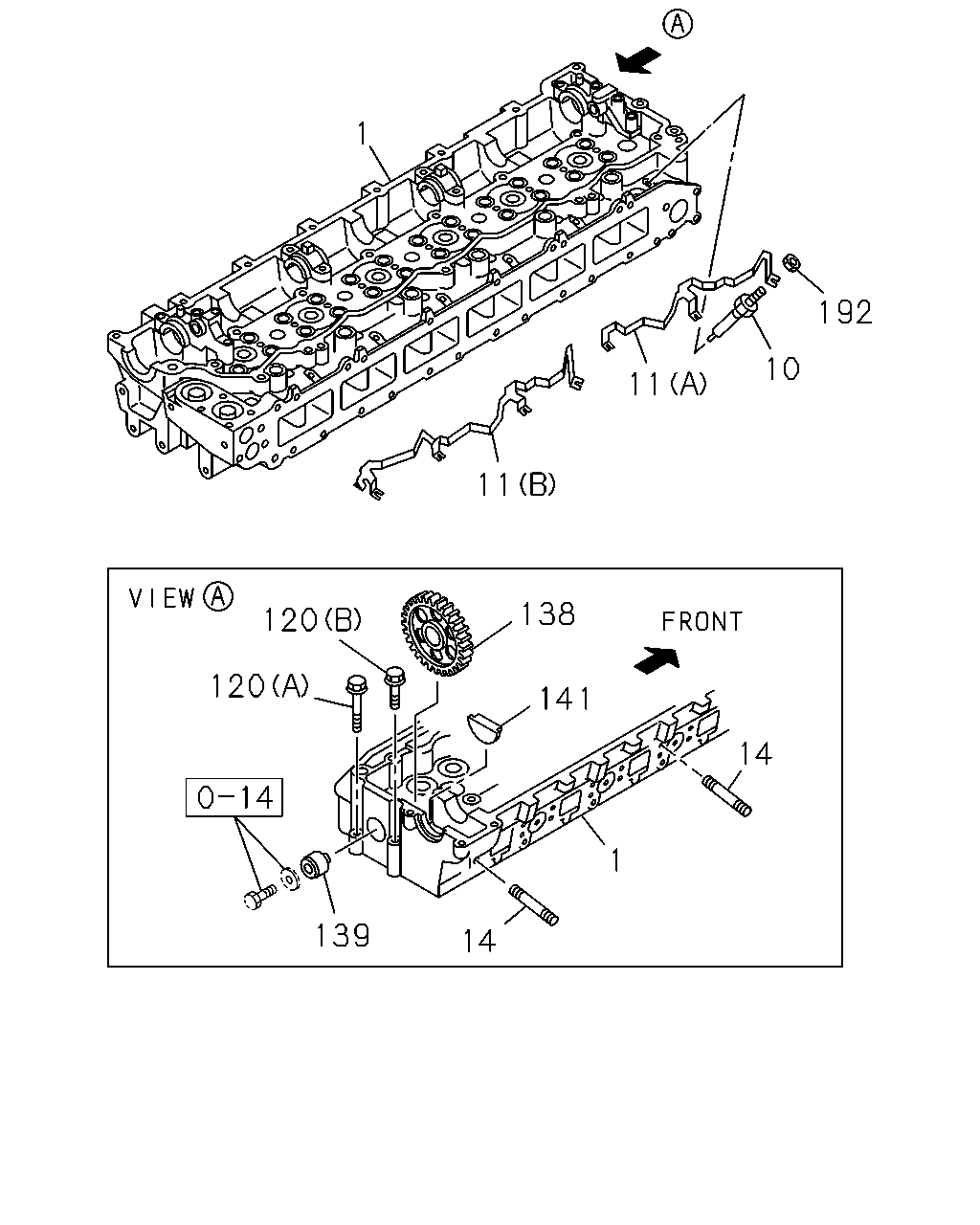

[011A] GLOW PLUG,IDLE GEAR (17 parça)

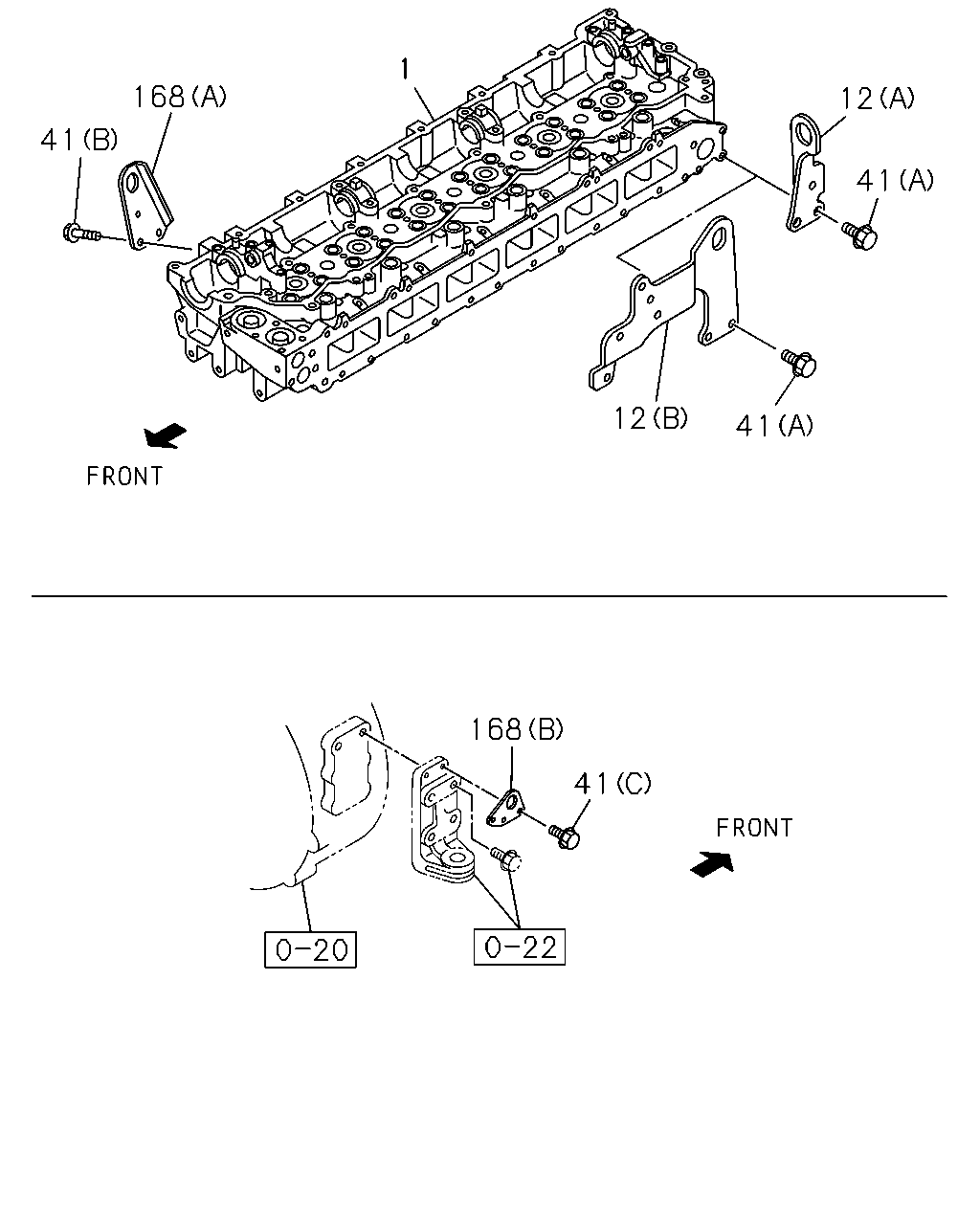

[011A] ENG HANGER FIXING (14 parça)
▶
201
2
5
5
8
8
98
98
23
23
71
3
7
8
59
1
98
8
8
266
103
8
58
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-97604-903-7
01
1
0909-1305
1
HEAD ASM; CYL
8-98243-824-0
01
1
1306-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97601-819-5
01
1
0909-
3
BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE
8-97077-638-0
26
1
0909-1407
3
BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE
8-98260-005-0
26
1
1408-
4
GUIDE; VLV
L=57
8-97376-719-2
24
1
0909-
5
SEAT; VLV INSERT
(A) INLET ID=32 OD=38
8-98028-874-0
12
1
0909-
5
SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38
8-98028-875-0
12
1
0909-
7
CUP; SEALING,CYL HEAD
OD=51
8-97096-826-0
01
1
0909-
8
CUP; SEALING,WATER JACKET
(A) OD=32
1-09600-012-2
07
1
0909-
8
CUP; SEALING,WATER JACKET
(B) OD=25
1-09600-016-0
06
1
0909-
8
CUP; SEALING,WATER JACKET
(C) OD=16
5-11129-006-0
07
1
0909-
8
CUP; SEALING,WATER JACKET
(D) OD=20
9-11129-128-0
11
1
0909-
23
NUT; CAM BRKT
M8 FLANGE
0-91180-208-0
08
1
0909-
58
GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4
8-97604-916-0
06
1
0909-
59
GUIDE; BRIDGE
8-97381-603-1
12
1
0909-
71
BOLT; CAM BRKT
M8X35 FLANGE
0-28050-835-0
02
1
0909-
98
STUD; CAM BRKT
(A) M8X54 L=79
8-94322-512-2
02
1
0909-
98
STUD; CAM BRKT
(B) M8X41 L=66
8-94322-513-2
06
1
0909-
103
PLUG; HD
M8X10
8-98003-416-0
01
1
0909-
201
GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30
1-09639-034-0
06
1
0909-
266
SLEEVE ASM; NOZZLE HOLDER
8-98018-462-0
06
1
0909-
1
11
11
10
192
138
120
120
141
14
1
14
139
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-97604-903-7
01
1
0909-1305
1
HEAD ASM; CYL
8-98243-824-0
01
1
1306-
10
PLUG; GLOW
NGK
8-94390-777-6
06
1
0909-
11
CONNECTOR; GLOW PLUG
(B)
8-98040-648-0
01
1
0909-
11
CONNECTOR; GLOW PLUG
(A)
8-98040-649-0
01
1
0909-
14
STUD; EXH MANIF
M10X60 L=75
8-94397-286-0
12
1
0909-
120
BOLT; CYL HD TO HSG
(A) M10X73
8-94399-554-0
01
1
0909-
120
BOLT; CYL HD TO HSG
(B) M10X43
8-94399-555-0
01
1
0909-
138
GEAR; IDLE
EURO3 SPECIFICATION(NT3) Z=41
8-98058-321-1
01
1
0909-1412
138
GEAR; IDLE
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) Z=41
8-98058-321-1
01
1
1501-
138
GEAR; IDLE
EURO2 SPECIFICATION(NT2) Z=41
8-97606-929-0
01
1
0909-
139
SHAFT; IDLE GEAR
EURO3 SPECIFICATION(NT3)
8-97606-990-1
01
1
0909-1412
139
SHAFT; IDLE GEAR
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)
8-97606-990-1
01
1
1501-
139
SHAFT; IDLE GEAR
EURO2 SPECIFICATION(NT2)
8-97186-398-1
01
1
0909-
141
PLUG; RUBBER,CYL HD
8-94399-605-0
02
1
0909-1005
141
PLUG; RUBBER,CYL HD
8-98163-813-0
02
1
1006-
192
NUT; GLOW PLUG
M4 FLANGE
8-97368-853-0
06
1
0909-
1
12
41
41
12
41
168
168
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-97604-903-7
01
1
0909-1305
1
HEAD ASM; CYL
8-98243-824-0
01
1
1306-
12
HANGER; ENG,RR
EURO5 SPECIFICATION(NT5) (B)
8-98088-059-0
01
1
1501-
12
HANGER; ENG,RR
(A)
8-94392-081-1
01
1
0909-1412
12
HANGER; ENG,RR
EXC. EURO5 SPECIFICATION(NT5) (A)
8-94392-081-1
01
1
1501-
41
BOLT; ENG HANGER
EURO5 SPECIFICATION(NT5) (A) M10X20 FLANGE
0-28151-020-0
03
1
1501-
41
BOLT; ENG HANGER
(A) M10X20 FLANGE
0-28151-020-0
02
1
0909-1412
41
BOLT; ENG HANGER
EXC. EURO5 SPECIFICATION(NT5) (A) M10X20 FLANGE
0-28151-020-0
02
1
1501-
41
BOLT; ENG HANGER
(B) M10X25 FLANGE
0-28751-025-0
02
1
0909-
41
BOLT; ENG HANGER
(C) M12X25 FLANGE
0-28751-225-0
02
1
0909-
168
HANGER; ENG,FRT
EURO3 SPECIFICATION(NT3) (A)
8-98043-134-0
01
1
0909-1412
168
HANGER; ENG,FRT
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A)
8-98043-134-0
01
1
1501-
168
HANGER; ENG,FRT
(B)
8-94394-398-1
01
1
0909-
168
HANGER; ENG,FRT
EURO2 SPECIFICATION(NT2) (A)
8-94394-071-2
01
1
0909-
