◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXM ▶ 11144 - FXM EXC.EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#58179) — 151 parça

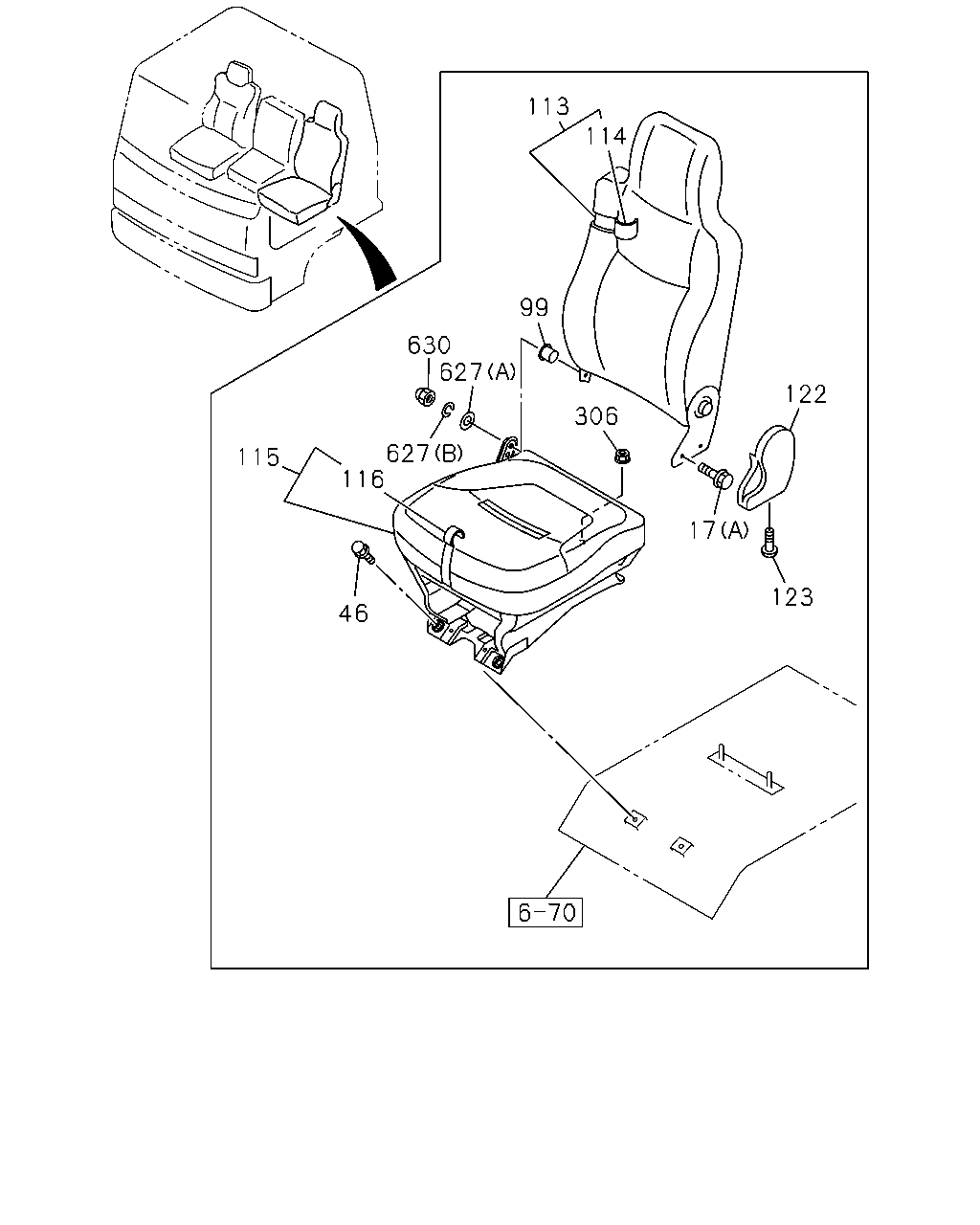

çizim 161222
113 99 630 627 115 46 116 123 17 306 122 114 627
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; RECLINING
(B) 		8-98097-974-0 02 1 0801-
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 04 1 0801-1203
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1204-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0801-
99 BUSHING; SEAT BACK 8-98063-219-0 01 1 0801-1009
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1010-
113 BACK ASM; SEAT
DARK GRAY 		8-97409-969-0 01 1 0801-0902
113 BACK ASM; SEAT
DARK GRAY 		8-97416-221-0 01 1 0903-1009
113 BACK ASM; SEAT
DARK GRAY 		8-97421-422-0 01 1 1010-
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97411-914-0 01 1 0801-0902
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97416-223-0 01 1 0903-1009
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-424-0 01 1 1010-
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97409-968-0 01 1 0801-0902
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97416-225-0 01 1 0903-1009
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-418-1 01 1 1010-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97411-913-0 01 1 0801-0902
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97416-227-0 01 1 0903-1009
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-420-0 01 1 1010-
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 0801-
123 SCREW; COVER,RECLINING 8-98070-026-0 01 1 0801-
306 NUT; SEAT ADJ
M10 FLANGE 		0-91180-110-0 02 1 0801-
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 0801-
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 0801-
627 WASHER; FRT SEAT
(C) 		8-98099-007-0 02 1 0801-1003
630 NUT; CAP
M8 		8-98063-225-0 01 1 0801-

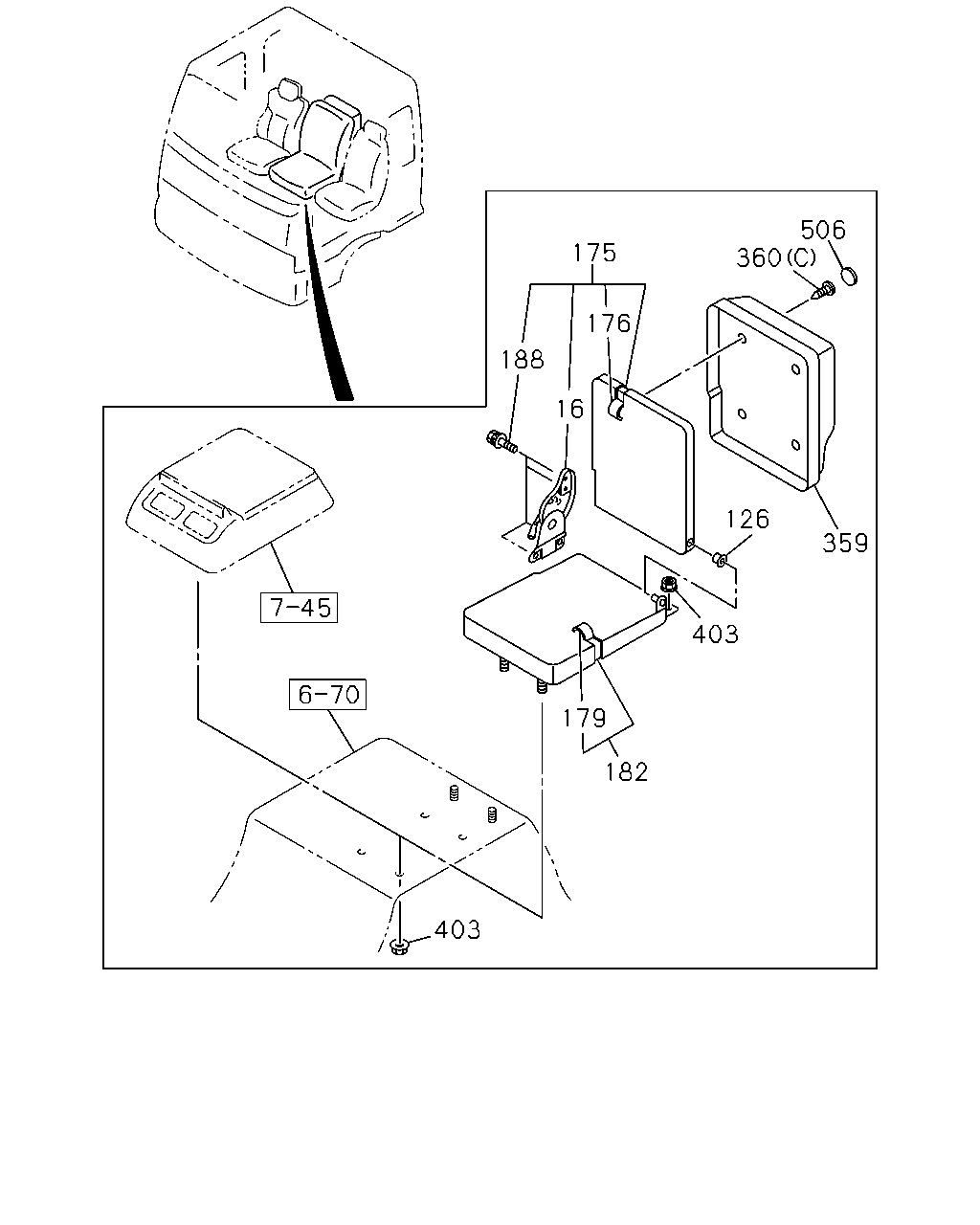

çizim 161228
175 360 506 176 188 126 359 403 16 179 182 403
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
CENTER SEAT(SA1) 		1-75418-062-1 01 1 0801-
126 BUSHING; HINGE,RECLINING
CENTER SEAT(SA1) 		8-97854-900-0 01 1 0801-
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97409-984-0 01 1 0801-0902
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97416-233-0 01 1 0903-1009
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97421-434-1 01 1 1010-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) DARK GRAY 		8-97409-985-0 01 1 0801-0902
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) DARK GRAY 		8-97416-234-0 01 1 0903-1009
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) DARK GRAY 		8-97421-435-1 01 1 1010-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) DARK GRAY 		8-97409-983-0 01 1 0801-0902
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) DARK GRAY 		8-97416-237-0 01 1 0903-1009
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) DARK GRAY 		8-97421-432-1 01 1 1010-
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97409-982-0 01 1 0801-0902
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97416-235-0 01 1 0903-1009
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97421-430-3 01 1 1010-
188 BOLT; BACK TO CUSHION
CENTER SEAT(SA1) M10X16 FLANGE 		1-75198-053-0 04 1 0801-
359 BOX; PARCEL
CENTER SEAT(SA1) GRAY 		8-97409-977-2 01 1 0801-1006
359 BOX; PARCEL
CENTER SEAT(SA1) GRAY 		8-97417-261-0 01 1 1007-
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0801-1009
360 SCREW; PARCEL
CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010-
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 0801-
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0801-1110
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5 		8-98062-663-0 04 1 1111-
360 SCREW; PARCEL
CENTER SEAT(SA1) (D) M5X20 		9-09829-324-1 02 1 0801-1009
403 NUT; CENTER SEAT
CENTER SEAT(SA1) M8 FLANGE 		0-91180-108-0 04 1 0801-
506 CAP; PARCEL BOX
CENTER SEAT(SA1) GRAY 		8-97409-980-1 04 1 0801-1006
506 CAP; PARCEL BOX
CENTER SEAT(SA1) GRAY 		8-97409-980-1 02 1 1007-

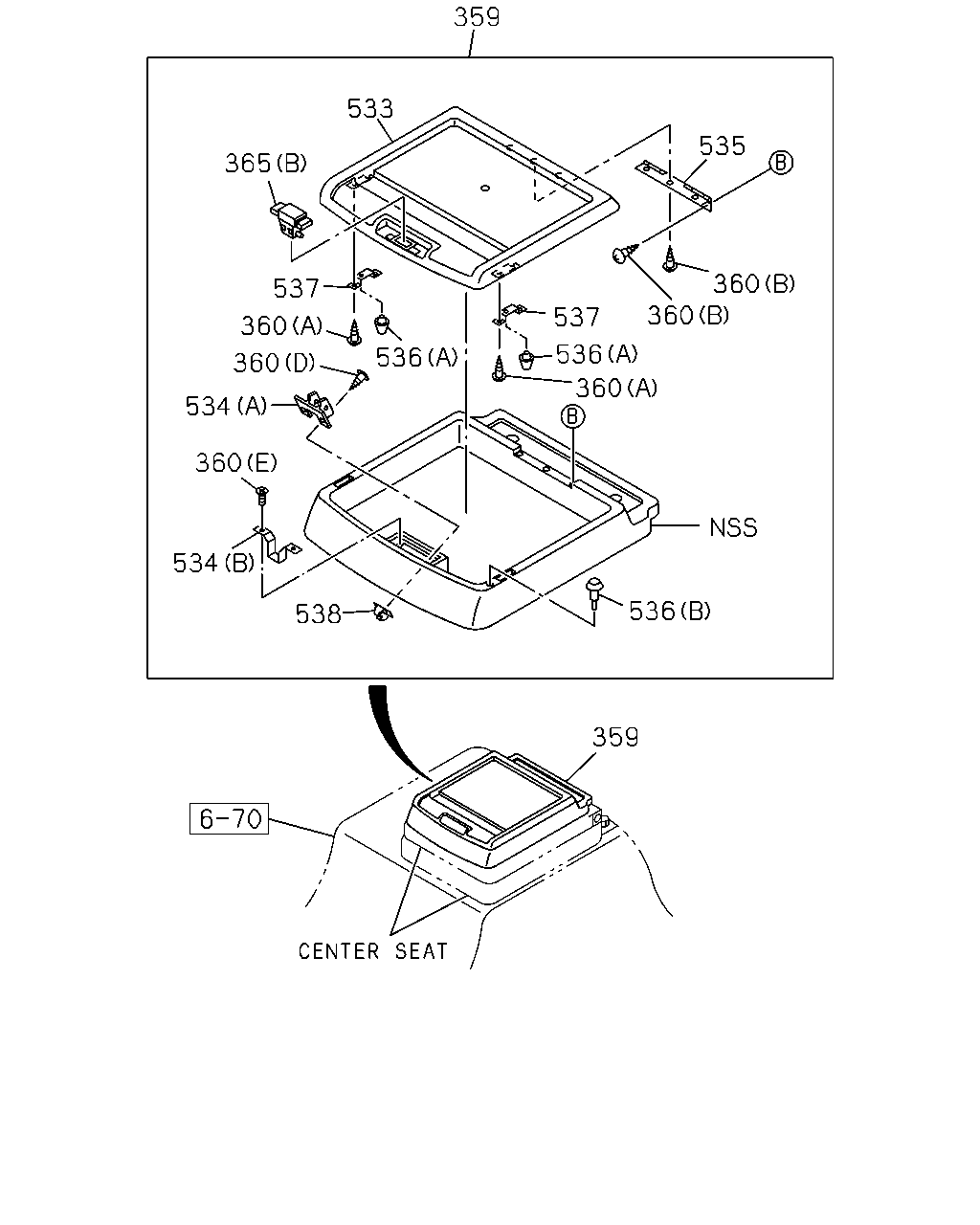

çizim 161239
535 360 360 537 536 360 536 359 533 365 537 360 360 534 360 534 538 359 536
BalonParca AdiParca NoAdetTipApplied Date
359 BOX; PARCEL
CENTER SEAT(SA1) GRAY 		8-97409-977-2 01 1 0801-1006
359 BOX; PARCEL
CENTER SEAT(SA1) GRAY 		8-97417-261-0 01 1 1007-
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0801-1009
360 SCREW; PARCEL
CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010-
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 0801-
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0801-1110
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5 		8-98062-663-0 04 1 1111-
360 SCREW; PARCEL
CENTER SEAT(SA1) (D) M5X20 		9-09829-324-1 02 1 0801-1009
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 0801-
365 LOCK ASM; SEAT
CENTER SEAT(SA1) (B) 		1-72538-312-0 01 1 0801-
533 LID; PARCEL BOX
CENTER SEAT(SA1) GRAY 		8-97409-979-1 01 1 0801-1006
533 LID; PARCEL BOX
CENTER SEAT(SA1) GRAY 		8-97417-263-0 01 1 1007-
534 STRIKER; PARCEL BOX
CENTER SEAT(SA1) (A) 		1-72538-181-0 01 1 0801-1009
534 STRIKER; PARCEL BOX
CENTER SEAT(SA1) (B) 		1-72538-190-0 01 1 1010-
535 HINGE; PARCEL BOX
CENTER SEAT(SA1) 		1-72447-391-1 01 1 0801-
536 RUBBER; CUSHION
CENTER SEAT(SA1) (A) 		5-09983-002-1 02 1 0801-1009
536 RUBBER; CUSHION
CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1010-
537 BRACKET; RUBBER
CENTER SEAT(SA1) 		1-72548-057-1 02 1 0801-1009
538 GROMMET; SCREW
CENTER SEAT(SA1) 		1-09983-165-0 02 1 0801-1009

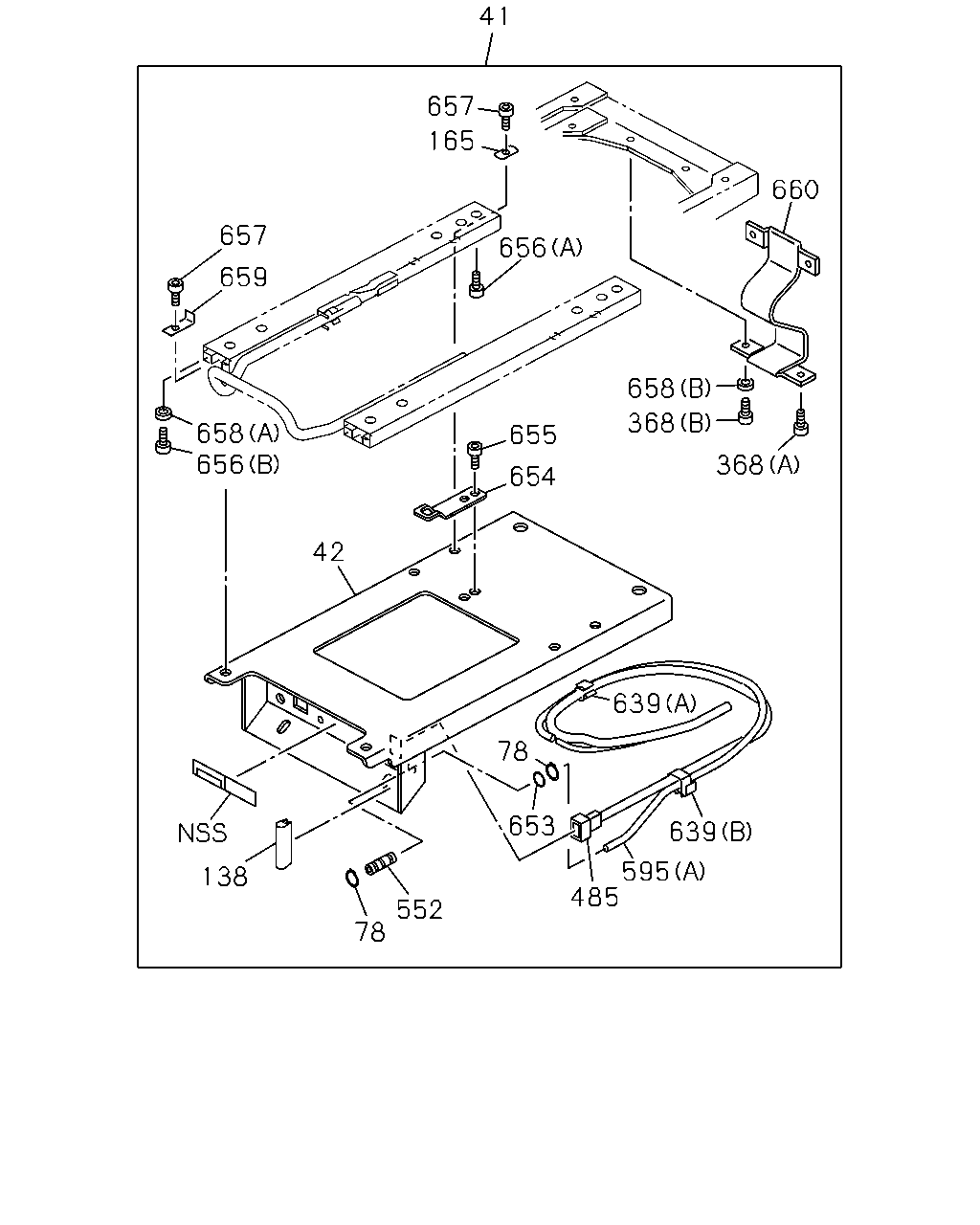

çizim 161253
485 639 595 653 78 552 78 138 639 42 656 658 659 657 654 655 368 658 368 660 165 657 41 656
BalonParca AdiParca NoAdetTipApplied Date
41 SEAT ASM; DRIVER 8-98046-984-2 01 1 0801-1212
41 SEAT ASM; DRIVER 8-98195-063-0 01 1 1301-
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 0801-
78 RING; SNAP 8-98101-900-0 02 1 0801-
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 0801-
165 WASHER; PL 1-75590-086-0 04 1 0801-
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 0801-
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 0801-
485 HARNESS; FRT SEAT 8-98106-360-0 01 1 0801-
552 CONNECTOR 8-98101-902-0 01 1 0801-
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 0801-
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 0801-
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 0801-
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 0801-
653 GASKET 8-98101-901-0 01 1 0801-
654 HOOK; STOPPER 8-98106-352-0 01 1 0801-
655 BOLT; HOOK 8-98106-353-0 02 1 0801-
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 0801-
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 0801-
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 0801-
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 0801-
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 0801-
659 STOPPER 8-98106-356-0 02 1 0801-
660 BELT; TETHER 8-98106-357-0 01 1 0801-

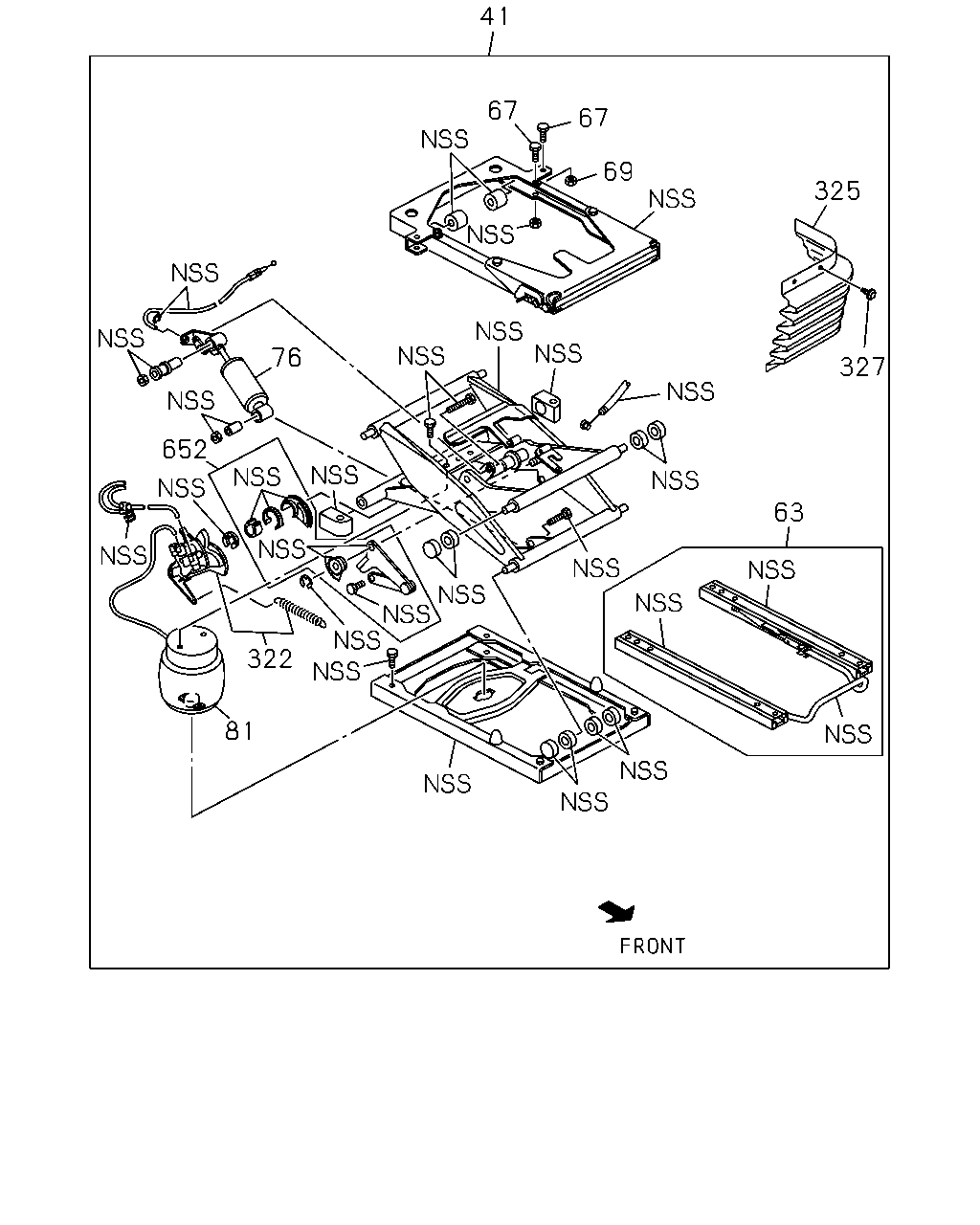

çizim 161324
41 67 67 69 325 327 76 63 81 652 322
BalonParca AdiParca NoAdetTipApplied Date
41 SEAT ASM; DRIVER 8-98046-984-2 01 1 0801-1212
41 SEAT ASM; DRIVER 8-98195-063-0 01 1 1301-
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 0801-
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 0801-
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 0801-
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 0801-
81 SPRING; AIR 8-98098-000-0 01 1 0801-
322 VALVE; AIR SPRING 8-98098-001-0 01 1 0801-
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 0801-
327 CLIP; COVER 8-98098-004-0 01 1 0801-
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 0801-

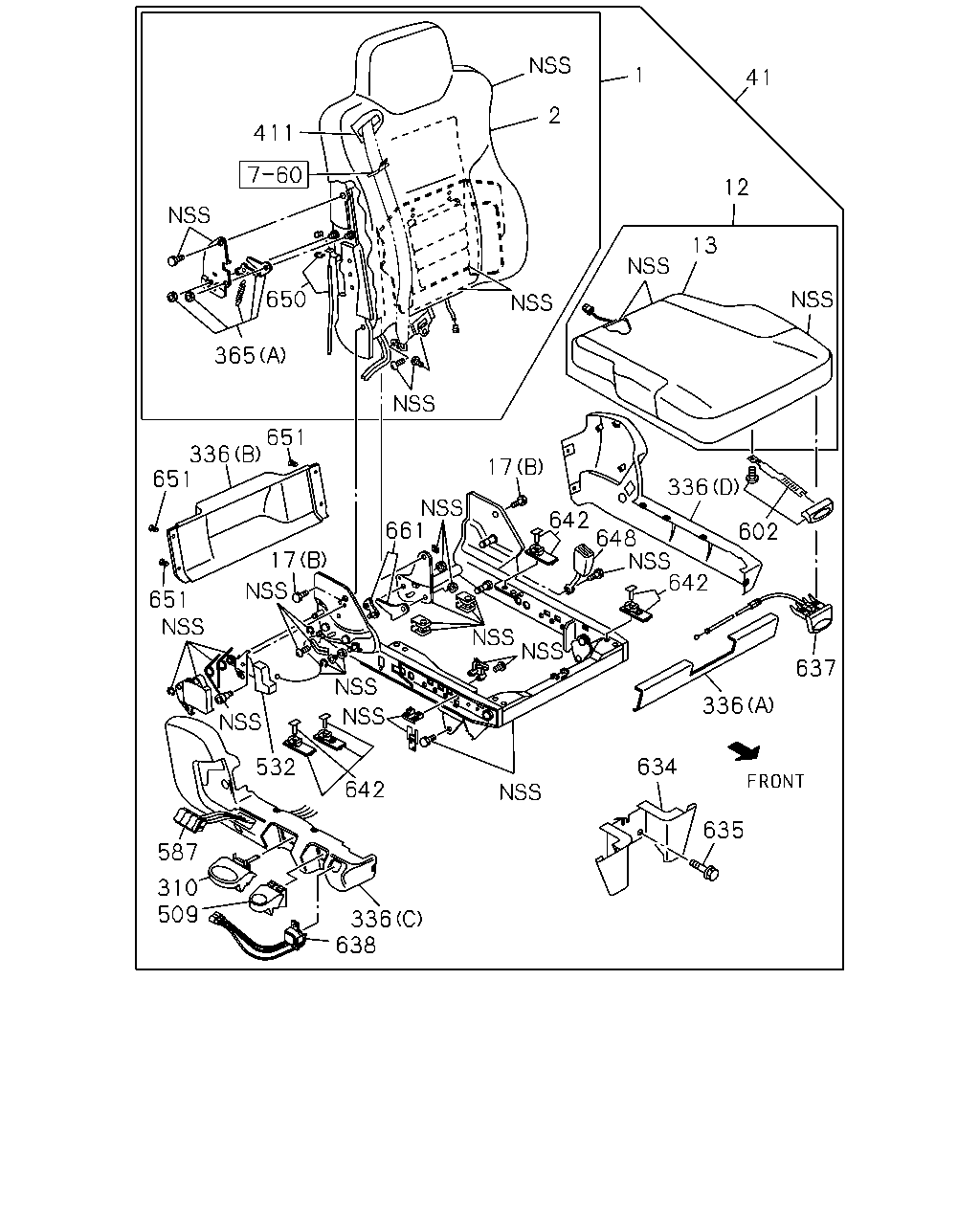

çizim 161326
41 1 12 13 2 602 336 642 637 336 634 635 642 532 651 17 651 336 651 365 650 411 587 336 638 310 509 648 642 661 17
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT 8-98097-964-0 01 1 0801-
2 COVER; TRIM,FRT SEAT,BACK 8-98097-966-0 01 1 0801-1212
2 COVER; TRIM,FRT SEAT,BACK 8-98232-353-0 01 1 1301-
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 0801-
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 0801-
17 BOLT; RECLINING
(B) 		8-98097-974-0 02 1 0801-
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 04 1 0801-1203
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1204-
41 SEAT ASM; DRIVER 8-98046-984-2 01 1 0801-1212
41 SEAT ASM; DRIVER 8-98195-063-0 01 1 1301-
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 0801-
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 0801-
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 0801-
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 0801-
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 0801-
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 0801-
365 LOCK ASM; SEAT
CENTER SEAT(SA1) (B) 		1-72538-312-0 01 1 0801-
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 0801-
509 LEVER; DAMPER 8-98097-988-0 01 1 0801-
532 LEVER ASM; TILT 8-98097-982-0 01 1 0801-
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 0801-
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 0801-
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 0801-
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 0801-
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 0801-
638 VALVE; LOWERING 8-98097-994-0 01 1 0801-
642 SLIDER; CUSHION 8-98192-932-0 04 1 0801-
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 0801-
650 CABLE 8-98097-973-0 01 1 0801-1212
650 CABLE 8-98232-354-0 01 1 1301-
651 RIVET 8-98194-075-0 04 1 0801-
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 0801-

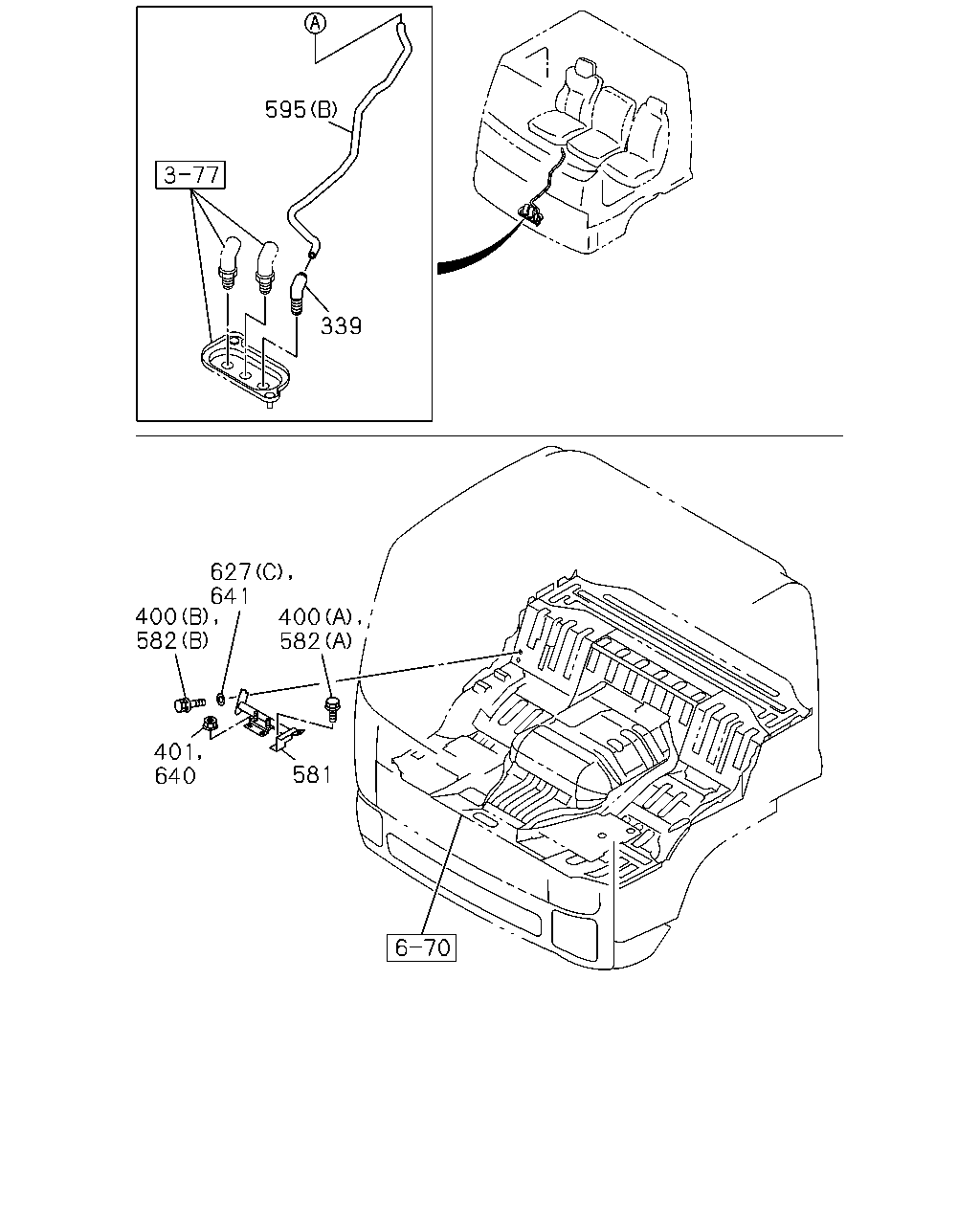

çizim 320121
595 339 627 641 400 582 400 582 401 640 581
BalonParca AdiParca NoAdetTipApplied Date
339 UNION; DRIVER SEAT 8-98014-971-0 01 1 0801-
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1004-
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 1004-
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 1004-
581 PIPE; SEAT 8-97589-692-3 01 1 0801-
582 BOLT; PIPE,SEAT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0801-1003
582 BOLT; PIPE,SEAT
(B) 		8-98098-996-0 02 1 0801-1003
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 0801-
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 0801-
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 0801-
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 0801-
627 WASHER; FRT SEAT
(C) 		8-98099-007-0 02 1 0801-1003
640 NUT
M10 FLANGE 		0-91180-110-0 02 1 0801-1003
641 WASHER; SUPPORT 8-98099-007-0 02 1 1004-
