Isuzu WW
▶
TRUCKS
▶
FXM
▶
11144 - FXM EXC.EURO5
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-45 - CONSOLE BOX
▶

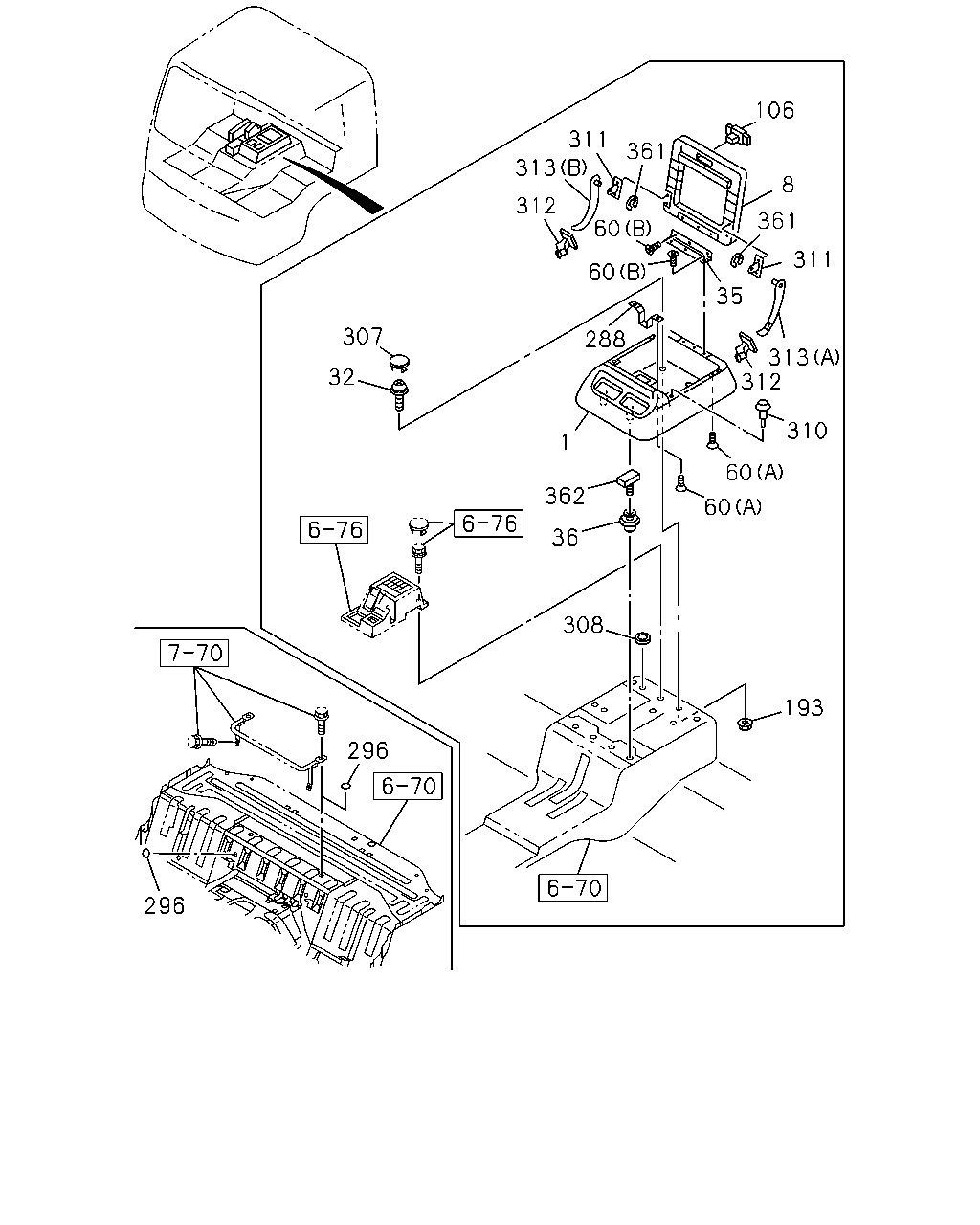

7-45 — CONSOLE BOX
(#58178) — 23 parça
106
311
361
313
8
312
361
60
60
311
35
307
288
313
312
32
310
1
60
362
60
36
308
193
296
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BOX; PARCEL
CENTER SEAT DELETE(SP9) GRAY
8-97408-710-0
01
1
0801-
8
LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) GRAY
8-97408-712-0
01
1
0801-
32
SCREW; PARCEL BOX
CENTER SEAT DELETE(SP9) M6X16
0-38050-616-0
02
1
0801-
35
HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9)
1-72538-182-1
01
1
0801-
36
FASTENER; CENTER CONSOLE
CENTER SEAT DELETE(SP9)
1-09984-190-0
02
1
0801-0901
36
FASTENER; CENTER CONSOLE
CENTER SEAT DELETE(SP9) EXC. ECE R29<EFE>
1-09984-190-0
02
1
0902-1101
60
SCREW; BOX
CENTER SEAT DELETE(SP9) (A) M5X14 TAPPING CK-HEAD
0-70040-514-0
06
1
0801-
60
SCREW; BOX
CENTER SEAT DELETE(SP9) (B) M5X14
8-94279-325-0
04
1
0801-
106
LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9)
1-72538-312-0
01
1
0801-
193
NUT; PARCEL BOX
ECE R29<EFE> CENTER SEAT DELETE(SP9) M8 FLANGE
0-91180-108-0
02
1
0902-1101
193
NUT; PARCEL BOX
CENTER SEAT DELETE(SP9) M8 FLANGE
0-91180-108-0
02
1
1102-
288
STOPPER; LID,CONSOLE
CENTER SEAT DELETE(SP9)
1-72538-190-0
01
1
0801-
296
SEAL
EXC. MATTRESS SLEEPER CAB<E40> OD=25 BLACK
1-76798-019-0
04
1
0902-
307
COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) GRAY
8-97407-951-0
02
1
0801-
308
GROMMET
OD=35
8-94122-971-0
01
1
0801-
310
CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9)
1-72538-187-0
02
1
0801-
311
HOLDER; CONSOLE
CENTER SEAT DELETE(SP9)
1-72538-188-2
02
1
0801-
312
STOPPER; CONSOLE
CENTER SEAT DELETE(SP9)
1-72538-186-1
02
1
0801-
313
ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (A)
1-72538-184-3
01
1
0801-
313
ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (B)
1-72538-185-3
01
1
0801-
361
RING; SNAP
CENTER SEAT DELETE(SP9) ID=5
9-09185-405-0
02
1
0801-
362
STUD; CONSOLE BOX
ECE R29<EFE> CENTER SEAT DELETE(SP9)
1-72538-308-0
02
1
0902-1101
362
STUD; CONSOLE BOX
CENTER SEAT DELETE(SP9)
1-72538-308-0
02
1
1102-
