◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXM ▶ 11144 - FXM EXC.EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#58172) — 14 parça
çizim 161230
160 49 35 228
BalonParca AdiParca NoAdetTipApplied Date
35 PLATE; CAUTION,CAB 8-98017-667-1 01 1 0801-
49 PLATE; CAUTION,FUSE BOX 8-98076-221-0 01 1 0801-
160 PLATE; CAUTION,TOWING 1-85888-737-1 01 1 0801-
228 PLATE; CAUTION,AIR DRYER 1-85887-934-0 01 1 0801-1001

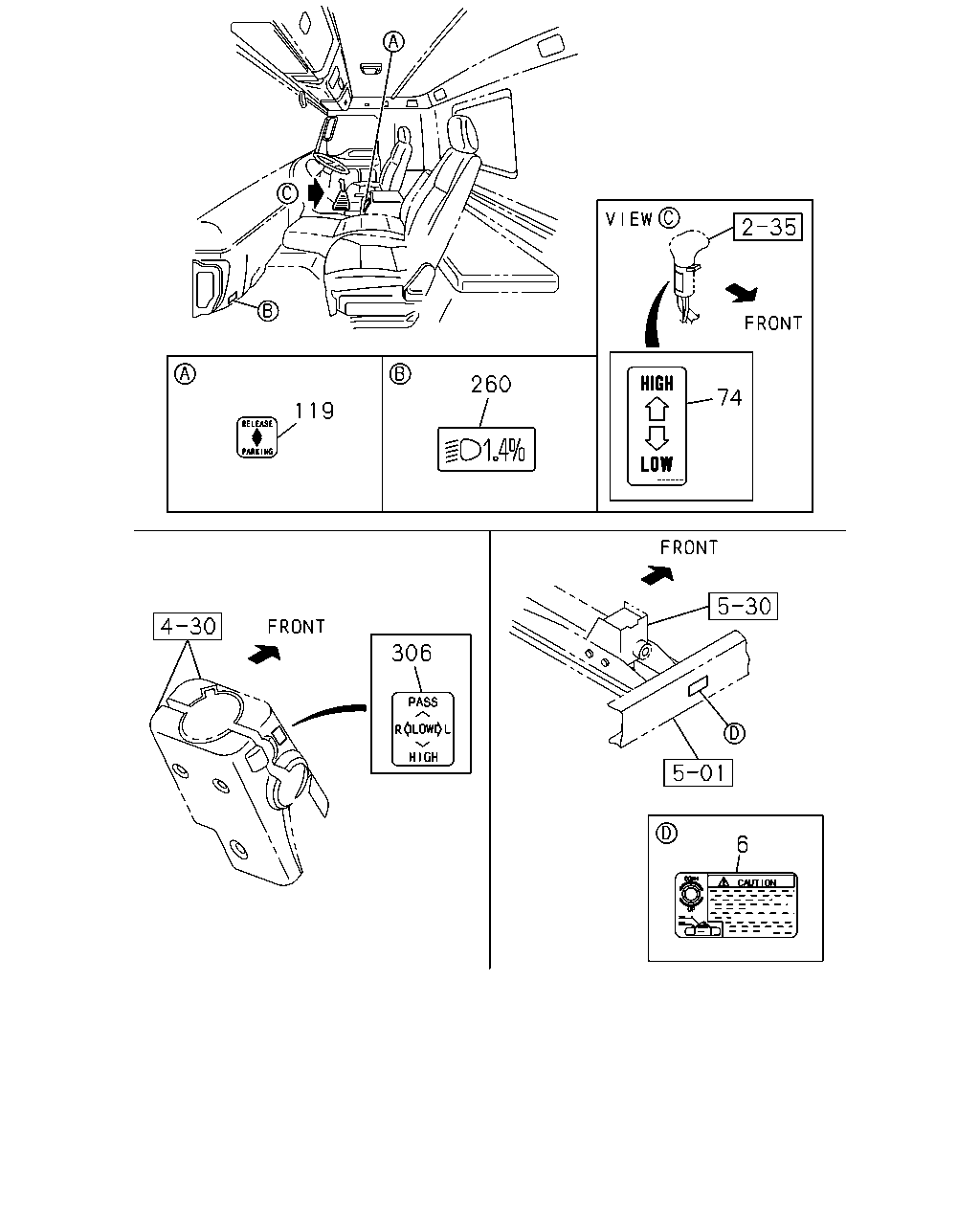

çizim 161256
260 74 119 306 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		8-98082-437-0 01 1 0801-
74 PLATE; CAUTION,CHANGE LEV 1-85881-736-1 01 1 0801-0805
74 PLATE; CAUTION,CHANGE LEV 8-98118-493-0 01 1 0806-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0801-
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 0801-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0801-
çizim 161327
4 4 181
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 0801-
4 LABEL; ENG MAINTENANCE
(A) 		8-97618-112-1 01 1 0801-1004
4 LABEL; ENG MAINTENANCE
(A) 		8-98164-931-1 01 1 1005-
181 PLATE; CAUTION,AIR CLEANER 1-85886-796-1 01 1 0801-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
