Isuzu WW
▶
TRUCKS
▶
FXM
▶
11144 - FXM EXC.EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

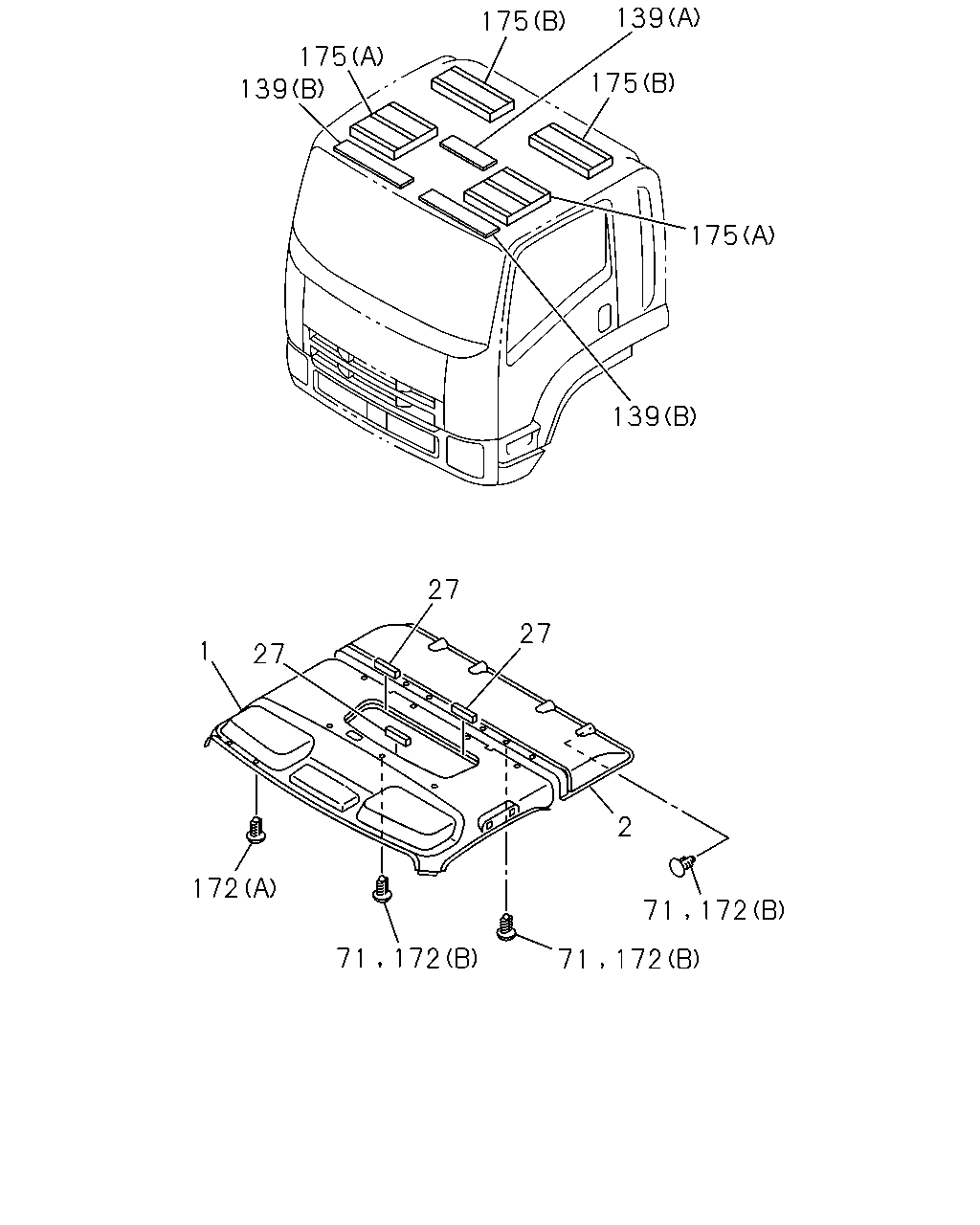

6-66 - HEAD LINING AND TRIM
▶
6-66 — HEAD LINING AND TRIM
(#58162) — 17 parça
139
175
175
139
175
175
139
27
27
1
27
2
172
71
172
71
172
71
172
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97407-438-4
01
1
0801-0811
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97416-360-0
01
1
0812-1306
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97426-741-0
01
1
1307-
1
LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97407-436-4
01
1
0801-0811
1
LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97416-359-0
01
1
0812-1306
1
LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97426-740-0
01
1
1307-
2
LINING; HD,ROOF RR
DARK GRAY
8-97407-455-5
01
1
0801-
27
INSULATION; ROOF
8-98046-638-2
03
1
0801-
71
FASTENER; HD LINING
DARK GRAY
8-97405-282-0
07
1
1102-
139
SEAL; ROOF
(B)
8-98076-274-0
02
1
0801-1009
139
SEAL; ROOF
(B)
8-98169-116-0
02
1
1010-
139
SEAL; ROOF
(A)
8-98076-275-0
02
1
0801-0911
139
SEAL; ROOF
(A)
8-98076-275-0
01
1
0912-1101
172
RETAINER; HEAD LINING
(B) DARK GRAY
8-97405-282-0
07
1
0801-1101
172
RETAINER; HEAD LINING
(A) DARK GRAY
8-97411-875-0
12
1
0801-
175
CUSHION; HEAD LINING
(A)
8-98030-965-2
02
1
0801-
175
CUSHION; HEAD LINING
(B)
8-98082-685-1
02
1
0801-
