Isuzu WW
▶
TRUCKS
▶
FXM
▶
11144 - FXM EXC.EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-35 - FRONT DOOR TRIM
▶

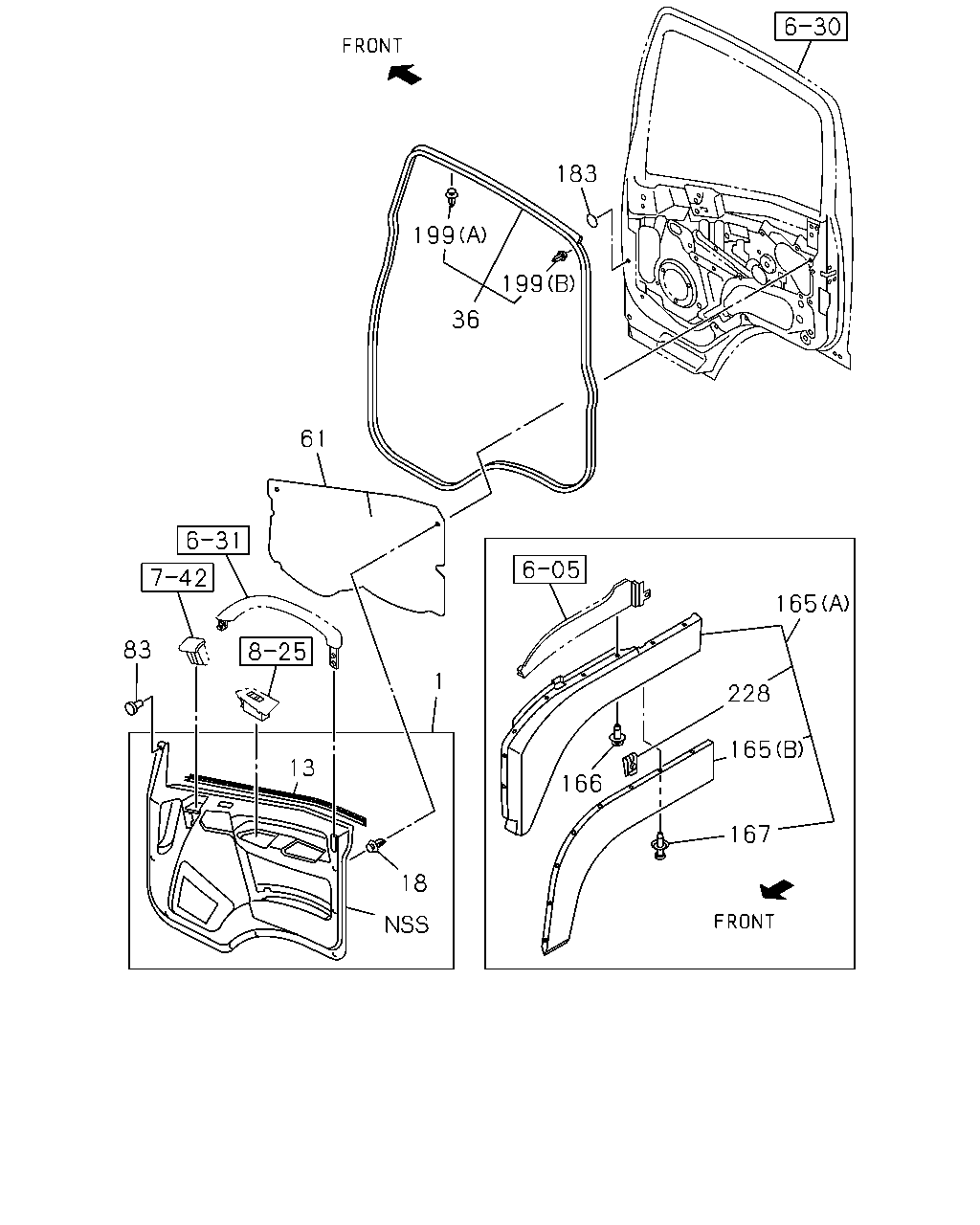

6-35 — FRONT DOOR TRIM
(#58158) — 22 parça
183
199
199
36
61
165
83
1
228
165
13
166
167
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAD; TRIM,FRT DOOR
GRAY
8-97405-304-6
01
1
0801-
1
PAD; TRIM,FRT DOOR
GRAY
8-97405-306-6
01
1
0801-
13
SEAL; DOOR TRIM
8-98029-201-1
01
1
0801-
13
SEAL; DOOR TRIM
8-98029-202-1
01
1
0801-
18
CLIP; DOOR PAD
8-98004-025-0
14
1
0801-
36
SEAL; DOOR,MAIN,CAB SIDE
8-98029-198-3
01
1
0801-1009
36
SEAL; DOOR,MAIN,CAB SIDE
8-98077-429-0
01
1
1010-
36
SEAL; DOOR,MAIN,CAB SIDE
8-98029-199-3
01
1
0801-
61
SEAL; WATER,DOOR PAD
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>
8-98029-394-2
01
1
0801-
61
SEAL; WATER,DOOR PAD
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>
8-98029-395-2
01
1
0801-
61
SEAL; WATER,DOOR PAD
EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>
8-98029-396-0
02
1
0801-
83
CLIP; DOOR TRIM
GRAY
8-97405-308-0
02
1
0801-
165
LINER; DOOR LWR
(A)
8-97617-148-2
01
1
0801-
165
LINER; DOOR LWR
(A)
8-97617-149-2
01
1
0801-
165
LINER; DOOR LWR
(B)
8-98057-719-1
01
1
0801-
165
LINER; DOOR LWR
(B)
8-98057-720-1
01
1
0801-
166
PLUG; HOLE
D8X13.5
1-09987-248-1
09
1
0801-
167
CLIP; LINER
D8X13.5
1-09987-248-1
17
1
0801-
183
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
02
1
0801-
199
CLIP; SEAL
(A) NATURAL
8-98062-270-0
80
1
0801-
199
CLIP; SEAL
(B) RED
8-98062-271-0
02
1
0801-
228
NUT; SPIRE
8-94334-769-0
04
1
0801-
