6-05 — FRONT PANEL (#58152) — 200 parça

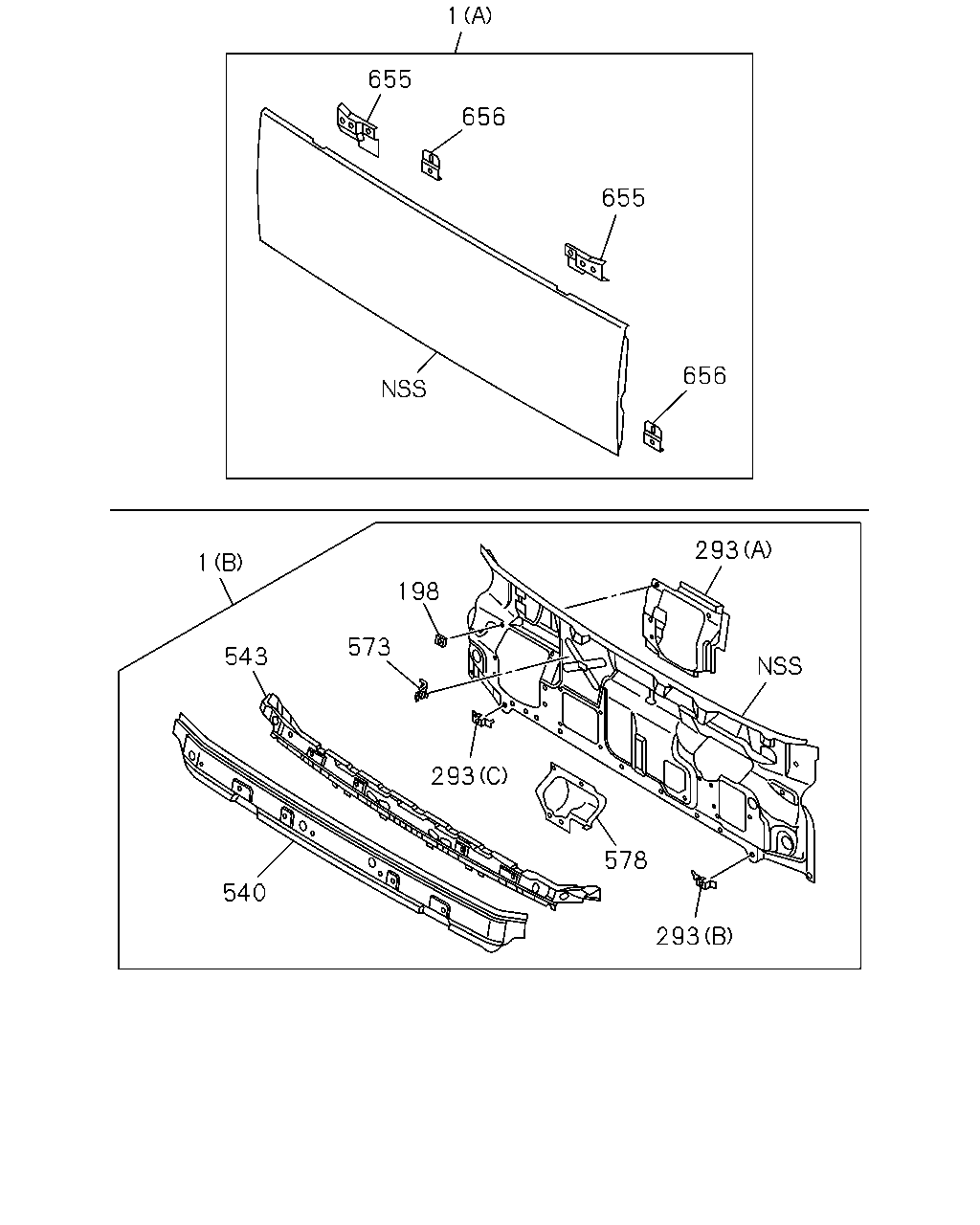

çizim 161252
1 655 656 655 656 293 1 198 573 543 293 578 540 293
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 0801-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 0801-
198 NUT; PANEL
M6 		9-09114-086-0 02 1 0801-
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 0801-
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 0801-
293 BRACKET; PANEL
(C) 		8-98008-126-1 01 1 0801-
540 PANEL; FRONT,OUTER 8-97585-966-2 01 1 0801-
543 CLOSING; FRT MTG RAIL 8-97585-990-4 01 1 0801-
573 BRACKET; SUPPORT 8-98017-700-2 01 1 0801-
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 0801-
655 PATCH; HINGE 8-98031-263-0 01 1 0801-
655 PATCH; HINGE 8-98031-264-0 01 1 0801-
656 PATCH; STRIKER 8-98031-265-0 02 1 0801-

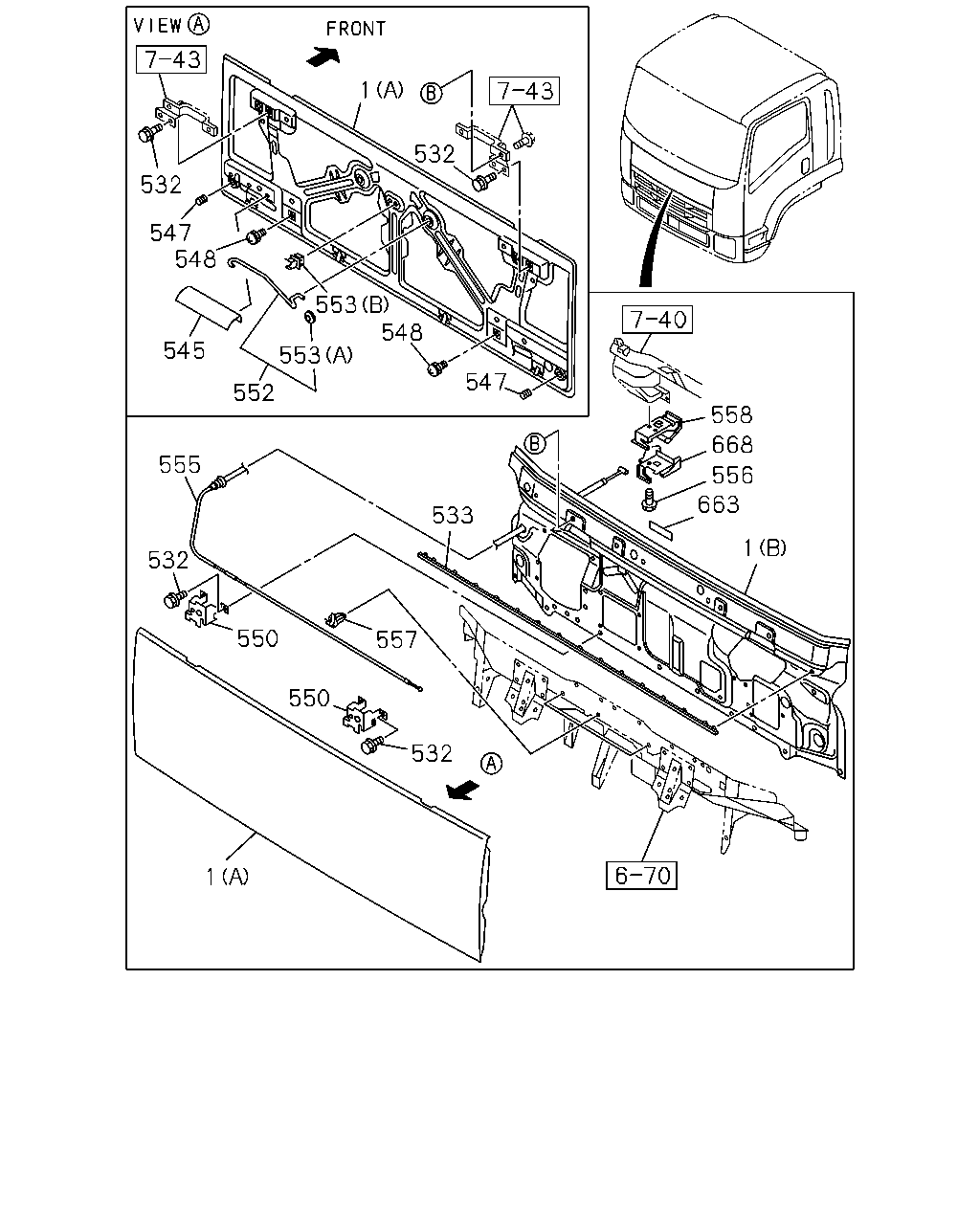

çizim 161262
1 532 532 547 548 553 548 545 553 547 552 558 668 555 556 663 533 1 532 550 557 550 532 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 0801-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 0801-
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 0801-
533 SEAL; FRT PANEL 8-98096-289-0 01 1 0801-
545 SEAL; FRT LID 8-98036-584-0 01 1 0801-0910
545 SEAL; FRT LID 8-98123-265-0 01 1 0911-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 0801-
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 0801-
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 0801-
552 STAY; FRT LID 8-98089-838-0 01 1 0801-
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 0801-
553 CLIP; STAY
(A) 		8-98071-399-0 01 1 0801-
555 CABLE; FRT LID 8-98036-574-1 01 1 0801-
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 0801-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 0801-
558 LEVER; FRT LID 1-79338-007-1 01 1 0801-
663 TAPE; PROTECT
175X11 		8-98070-054-1 01 1 0801-0910
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 0801-

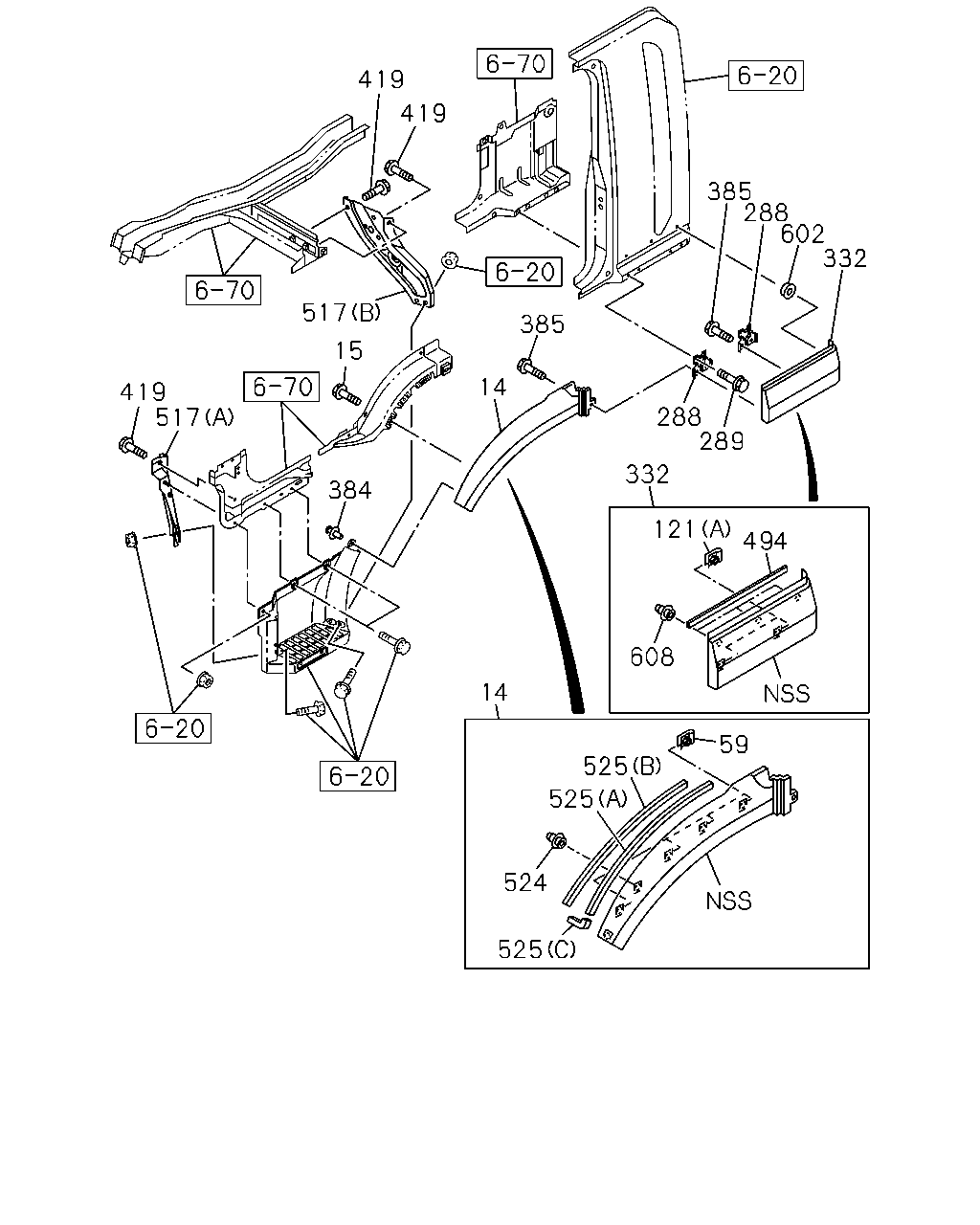

çizim 161264
419 419 385 288 602 332 517 385 15 14 419 517 288 289 332 384 121 494 608 14 59 525 525 524 525
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 0801-
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 0801-
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 0801-
59 GROMMET; SCREW 8-94279-723-0 02 1 0801-
59 GROMMET; SCREW 8-94279-723-0 08 1 0801-
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 0801-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0801-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 0801-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 0801-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 0801-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 0801-
288 BRACKET; FENDER SKIRT 8-98059-770-1 04 1 0801-
289 BOLT; FENDER SKIRT BRKT
M6X16 FLANGE 		0-28650-616-0 08 1 0801-
332 FENDER; RR
BODY COLOR CARDINAL RED(736) RED 		8-97411-304-2 01 1 0908-
332 FENDER; RR
BODY COLOR CARDINAL RED(736) RED 		8-97411-310-2 01 1 0908-
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-305-2 01 1 0908-
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-311-2 01 1 0908-
332 FENDER; RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-602-2 01 1 0908-
332 FENDER; RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-612-2 01 1 0908-
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-308-2 01 1 0908-
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-314-2 01 1 0908-
332 FENDER; RR
BODY COLOR OMAHA ORANGE(906) 		8-97411-306-2 01 1 0908-1011
332 FENDER; RR
BODY COLOR OMAHA ORANGE(906) 		8-97411-312-2 01 1 0908-1011
332 FENDER; RR
BODY COLOR FIRE RED(915) RED 		8-97411-307-2 01 1 0908-
332 FENDER; RR
BODY COLOR FIRE RED(915) RED 		8-97411-313-2 01 1 0908-
332 FENDER; RR
BODY COLOR ARC WHITE(729) WHITE 		8-97407-506-2 01 1 0801-
332 FENDER; RR
BODY COLOR ARC WHITE(729) WHITE 		8-97407-507-2 01 1 0801-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 0801-
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 0801-
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 0801-
494 FINISHER; FENDER 8-98041-172-1 01 1 0801-
494 FINISHER; FENDER 8-98072-723-0 01 1 0801-
517 SUPPORT; STEP PANEL
(A) 		8-98037-335-1 01 1 0801-
517 SUPPORT; STEP PANEL
(A) 		8-98037-336-1 01 1 0801-
517 SUPPORT; STEP PANEL
(B) 		8-98037-350-2 01 1 0801-
517 SUPPORT; STEP PANEL
(B) 		8-98037-351-2 01 1 0801-
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 0801-
525 SEAL; FENDER
(A) 		8-98061-760-0 02 1 0801-
525 SEAL; FENDER
(B) 		8-98061-761-0 02 1 0801-
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 0801-
602 RETAINER; COVER
ID=5.4 OD=6.8 		1-09989-021-0 06 1 0801-1302
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 06 1 1303-
608 CLIP
D5.4X8 		1-09983-154-0 06 1 0801-

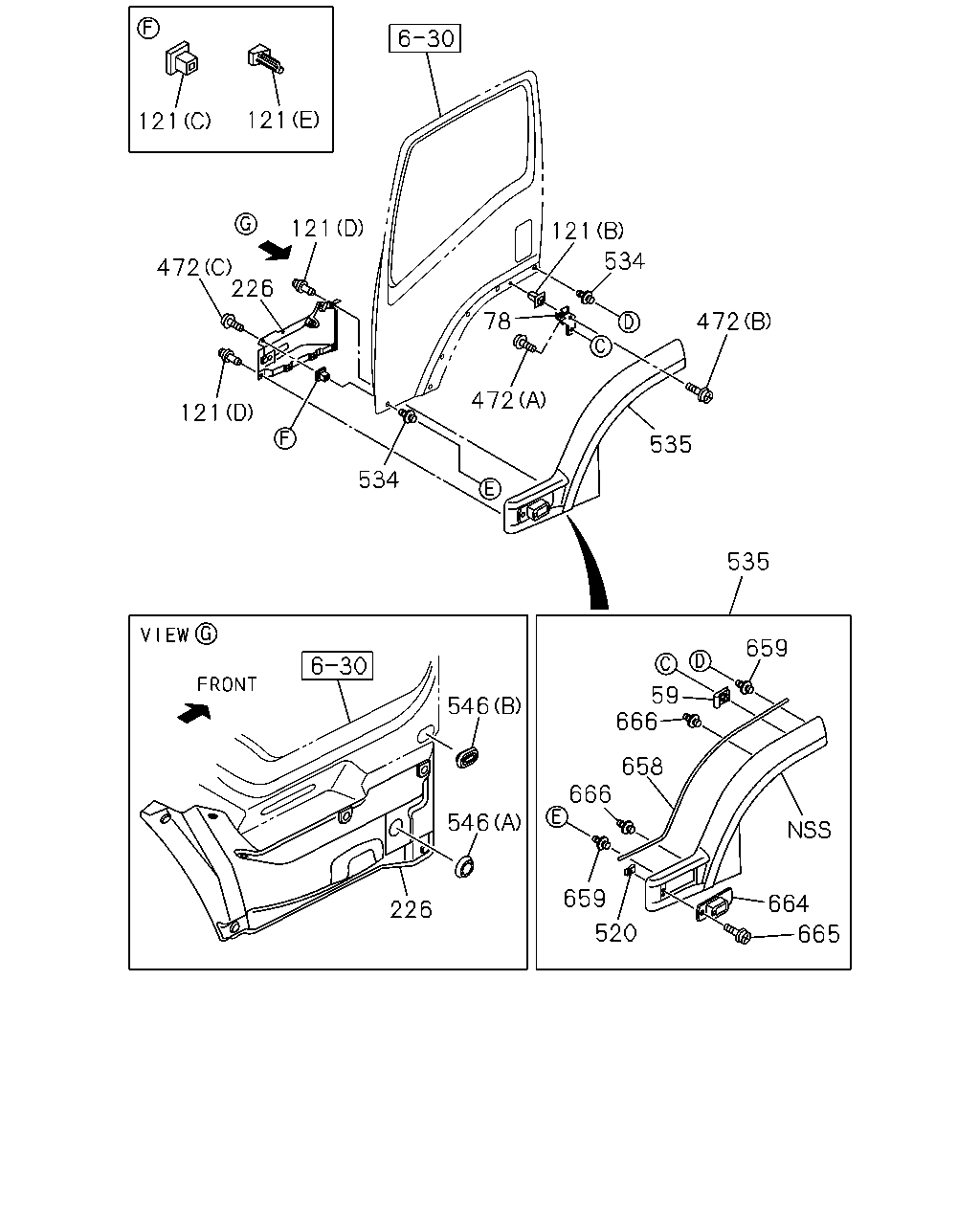

çizim 161317
121 121 121 121 534 472 226 78 472 472 121 535 534 535 659 59 666 546 658 666 546 659 664 226 520 665
BalonParca AdiParca NoAdetTipApplied Date
59 GROMMET; SCREW 8-94279-723-0 02 1 0801-
59 GROMMET; SCREW 8-94279-723-0 08 1 0801-
78 BRACKET; FENDER 8-98041-165-1 01 1 0801-
78 BRACKET; FENDER 8-98041-166-1 01 1 0801-
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 0801-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0801-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 0801-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 0801-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 0801-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 0801-
226 PROTECTOR; FRT 8-98037-714-2 01 1 0801-
226 PROTECTOR; FRT 8-98037-715-2 01 1 0801-
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 0801-
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 0801-
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 0801-
520 NUT; FENDER 8-94279-501-0 02 1 0801-
534 FASTENER
ID=5.4 OD=6.8 		1-09989-021-0 12 1 0801-1302
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1303-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) RED 		8-97418-309-1 01 1 0908-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) RED 		8-97418-323-1 01 1 0908-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97418-314-1 01 1 0908-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97418-328-1 01 1 0908-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97418-315-1 01 1 0908-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97418-329-1 01 1 0908-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97418-366-1 01 1 0908-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97418-369-1 01 1 0908-
535 FENDER; BLISTER
BODY COLOR OMAHA ORANGE(906) 		8-97418-367-1 01 1 0908-1011
535 FENDER; BLISTER
BODY COLOR OMAHA ORANGE(906) 		8-97418-370-1 01 1 0908-1011
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) RED 		8-97418-368-1 01 1 0908-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) RED 		8-97418-371-1 01 1 0908-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE 		8-97415-393-1 01 1 0801-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE 		8-97415-394-1 01 1 0801-
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 0801-
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 0801-
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 0801-
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 0801-
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 0801-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) RED 		8-97415-621-0 01 1 0908-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) RED 		8-97421-471-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) RED 		8-97415-627-0 01 1 0908-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) RED 		8-97421-637-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97415-622-0 01 1 0908-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97421-473-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97415-628-0 01 1 0908-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97421-640-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97418-028-0 01 1 0908-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97421-615-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97418-061-0 01 1 0908-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97421-626-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97415-623-0 01 1 0908-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97421-475-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97415-629-0 01 1 0908-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97421-479-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR OMAHA ORANGE(906) 		8-97418-393-0 01 1 0908-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR OMAHA ORANGE(906) 		8-97421-642-0 01 1 1008-1011
664 BASE; DOOR,SIDE TURN
BODY COLOR OMAHA ORANGE(906) 		8-97418-395-0 01 1 0908-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR OMAHA ORANGE(906) 		8-97421-644-0 01 1 1008-1011
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) RED 		8-97415-624-0 01 1 0908-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) RED 		8-97421-477-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) RED 		8-97415-630-0 01 1 0908-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) RED 		8-97421-481-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97413-142-0 01 1 0801-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97421-469-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97413-143-0 01 1 0801-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97421-597-0 01 1 1008-
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 0801-
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 0801-

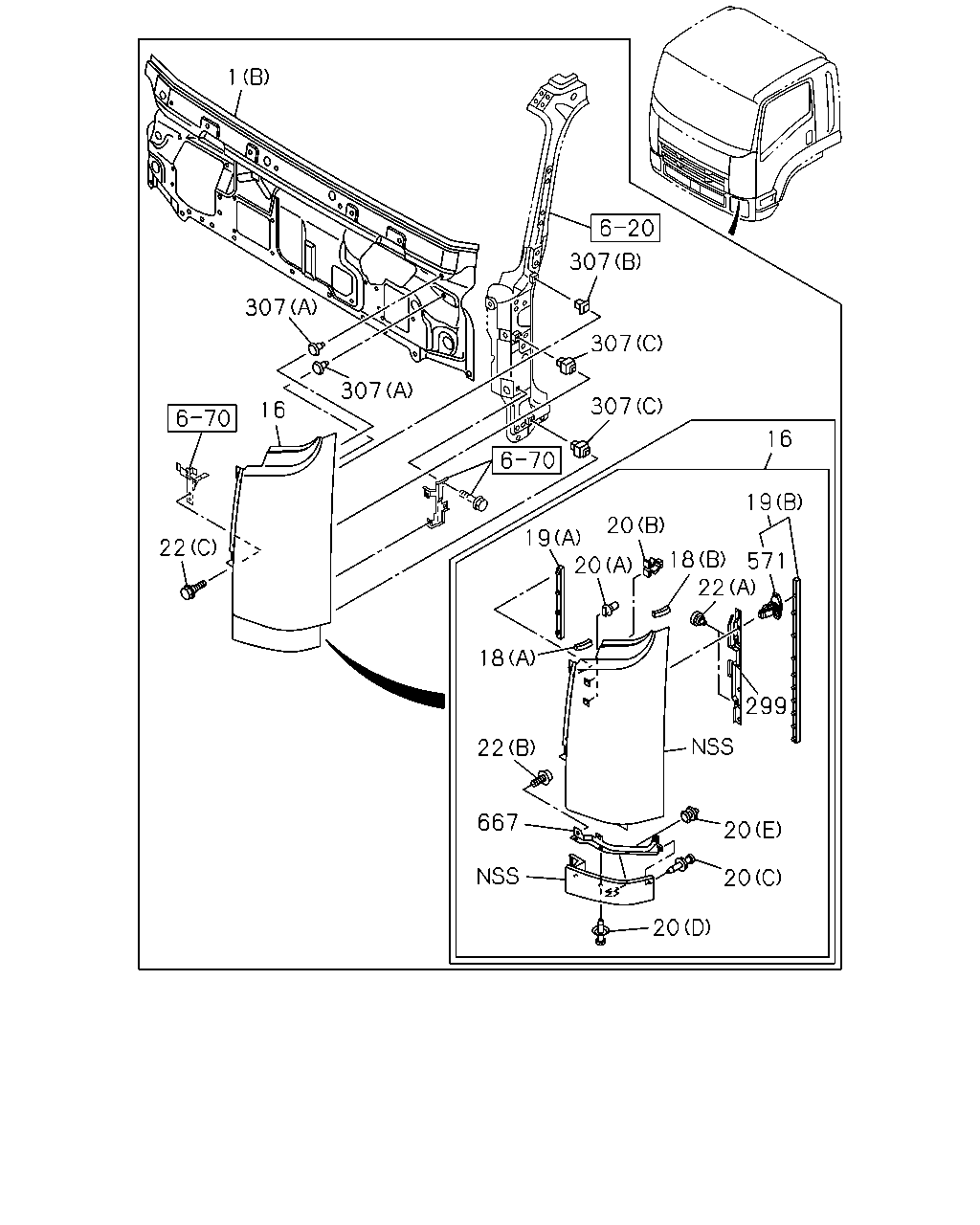

çizim 161339
1 307 307 307 307 307 16 16 19 20 19 20 22 18 22 571 18 299 22 667 20 20 20
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 0801-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 0801-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97418-354-2 01 1 0908-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97418-360-2 01 1 0908-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97418-355-2 01 1 0908-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97418-361-2 01 1 0908-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97418-356-2 01 1 0908-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97418-362-2 01 1 0908-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97418-357-2 01 1 0908-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97418-363-2 01 1 0908-
16 PANEL; FRONT,SIDE
BODY COLOR OMAHA ORANGE(906) 		8-97418-358-2 01 1 0908-1011
16 PANEL; FRONT,SIDE
BODY COLOR OMAHA ORANGE(906) 		8-97418-364-2 01 1 0908-1011
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97418-359-2 01 1 0908-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97418-365-2 01 1 0908-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97413-087-2 01 1 0801-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97413-088-2 01 1 0801-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 02 1 0801-1203
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1204-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1204-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 02 1 0801-1203
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1204-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1204-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 0801-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 0801-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 0801-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 0801-
20 CLIP; FRT PANEL SIDE
(D) D8X13.5 		1-09987-248-1 04 1 0801-1203
20 CLIP; FRT PANEL SIDE
(D) D8X13.5 		1-09987-248-1 02 1 1204-
20 CLIP; FRT PANEL SIDE
(D) D8X13.5 		1-09987-248-1 02 1 1204-
20 CLIP; FRT PANEL SIDE
(C) 		8-97013-997-0 02 1 0801-1203
20 CLIP; FRT PANEL SIDE
(C) 		8-97013-997-0 01 1 1204-
20 CLIP; FRT PANEL SIDE
(C) 		8-97013-997-0 01 1 1204-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 04 1 0801-1203
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1204-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1204-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 02 1 0801-1203
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1204-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1204-
20 CLIP; FRT PANEL SIDE
(E) H=15.3 		8-97804-778-0 02 1 0801-1203
20 CLIP; FRT PANEL SIDE
(E) H=15.3 		8-97804-778-0 01 1 1204-
20 CLIP; FRT PANEL SIDE
(E) H=15.3 		8-97804-778-0 01 1 1204-
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 0801-1203
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1204-
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1204-
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0801-1203
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1204-
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1204-
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98061-108-0 06 1 0801-1505
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98314-627-0 06 1 1506-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 0801-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 0801-
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 0801-
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 0801-
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 0801-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0801-1203
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1204-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1204-
667 STAY; EXT,SIDE PANEL 8-98054-091-1 01 1 0801-
667 STAY; EXT,SIDE PANEL 8-98054-092-1 01 1 0801-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
