◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXM ▶ 11144 - FXM EXC.EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#58150) — 46 parça

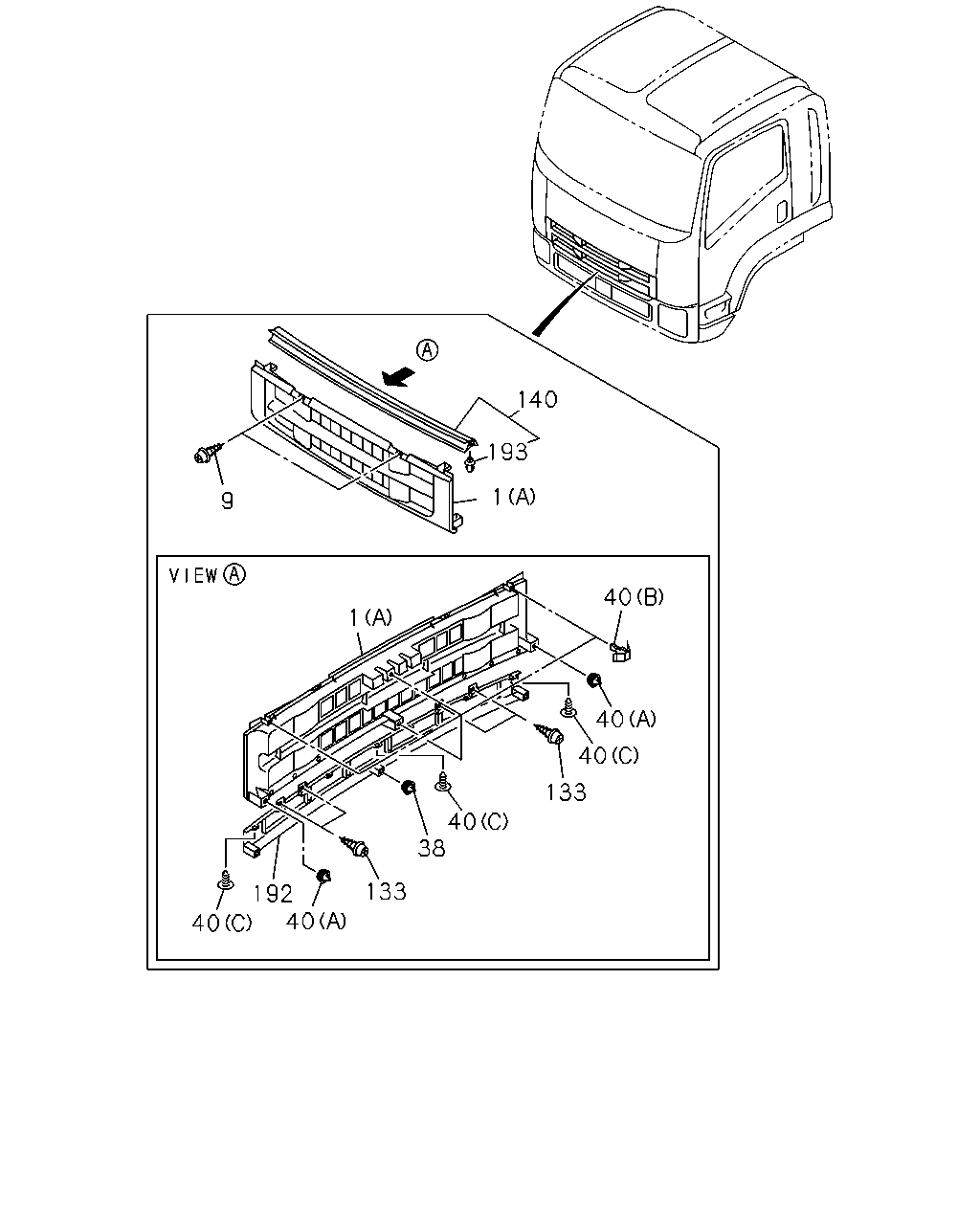

çizim 161227
140 193 1 9 40 1 40 40 133 40 38 133 192 40 40
BalonParca AdiParca NoAdetTipApplied Date
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) (B) RED 		8-97418-347-0 01 1 0908-
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) (B) BEIGE 		8-97418-348-0 01 1 0908-
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) (B) BLUE 		8-97418-349-0 01 1 0908-
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) (B) YELLOW 		8-97418-350-0 01 1 0908-
1 GRILLE; RAD
BODY COLOR OMAHA ORANGE(906) (B) 		8-97418-351-0 01 1 0908-1011
1 GRILLE; RAD
BODY COLOR FIRE RED(915) (B) RED 		8-97418-352-0 01 1 0908-
1 GRILLE; RAD
(A) WHITE 		8-97407-868-6 01 1 0801-0805
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) (B) WHITE 		8-97416-184-0 01 1 0806-
9 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 0801-
38 CLIP; GRILLE
H=15.3 		8-97804-778-0 01 1 0801-
40 CLIP; RAD GRILLE
(C) D8X13.5 		1-09987-248-1 07 1 0801-
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 04 1 0801-
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 0801-
133 SCREW; COVER
T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 04 1 0801-
140 SEAL; RAD GRILLE 8-98060-340-0 01 1 0801-
192 EXTENSION; RAD GRILLE
BODY COLOR CARDINAL RED(736) RED 		8-97418-373-0 01 1 0908-
192 EXTENSION; RAD GRILLE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97418-374-0 01 1 0908-
192 EXTENSION; RAD GRILLE
BODY COLOR MARINE BLUE(890) BLUE 		8-97418-375-0 01 1 0908-
192 EXTENSION; RAD GRILLE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97418-376-0 01 1 0908-
192 EXTENSION; RAD GRILLE
BODY COLOR OMAHA ORANGE(906) 		8-97418-377-0 01 1 0908-1011
192 EXTENSION; RAD GRILLE
BODY COLOR FIRE RED(915) RED 		8-97418-378-0 01 1 0908-
192 EXTENSION; RAD GRILLE
BODY COLOR ARC WHITE(729) WHITE 		8-97413-103-0 01 1 0801-
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 0801-

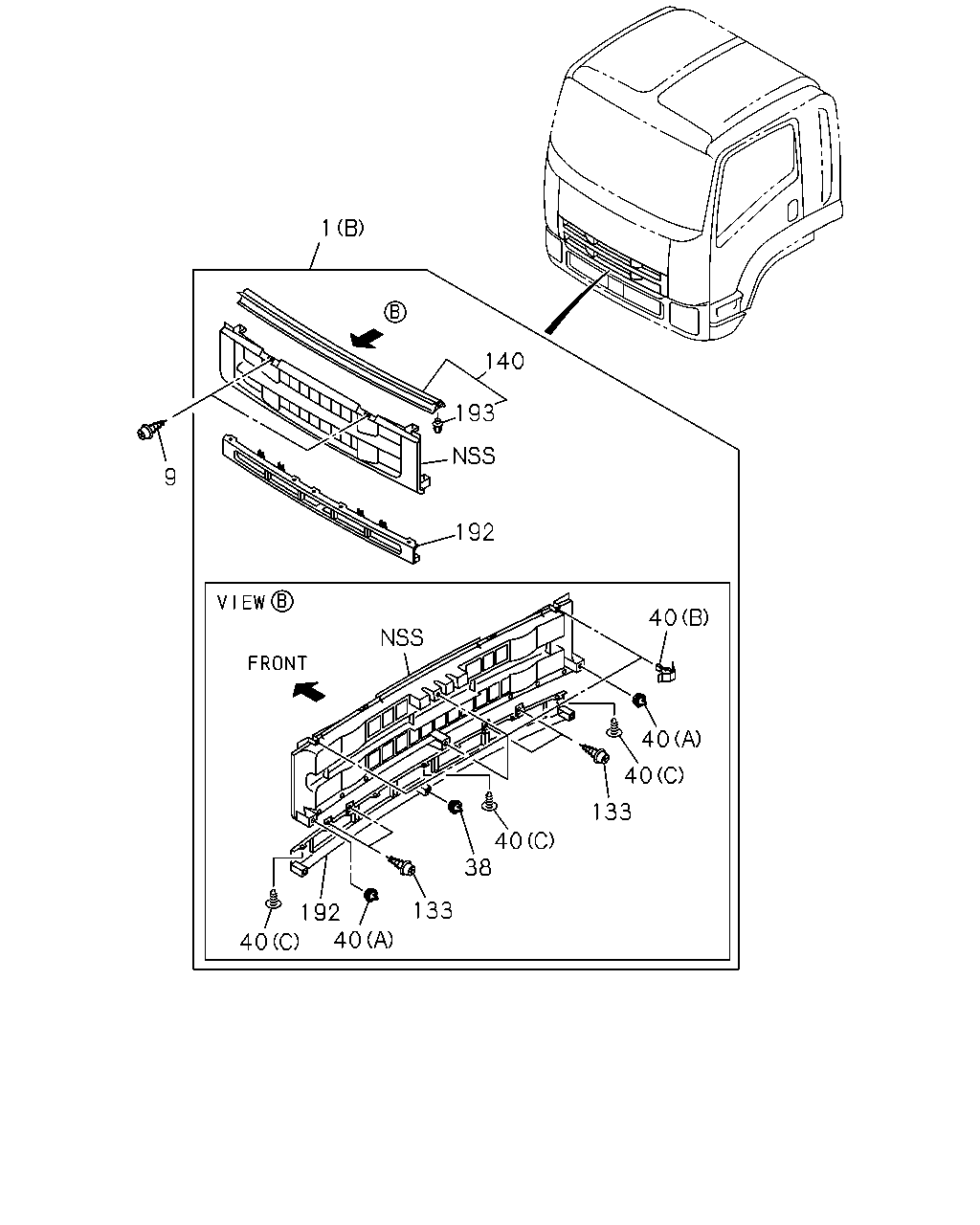

çizim 161350
1 140 193 9 192 40 40 40 133 40 38 133 192 40 40
BalonParca AdiParca NoAdetTipApplied Date
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) (B) RED 		8-97418-347-0 01 1 0908-
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) (B) BEIGE 		8-97418-348-0 01 1 0908-
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) (B) BLUE 		8-97418-349-0 01 1 0908-
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) (B) YELLOW 		8-97418-350-0 01 1 0908-
1 GRILLE; RAD
BODY COLOR OMAHA ORANGE(906) (B) 		8-97418-351-0 01 1 0908-1011
1 GRILLE; RAD
BODY COLOR FIRE RED(915) (B) RED 		8-97418-352-0 01 1 0908-
1 GRILLE; RAD
(A) WHITE 		8-97407-868-6 01 1 0801-0805
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) (B) WHITE 		8-97416-184-0 01 1 0806-
9 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 0801-
38 CLIP; GRILLE
H=15.3 		8-97804-778-0 01 1 0801-
40 CLIP; RAD GRILLE
(C) D8X13.5 		1-09987-248-1 07 1 0801-
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 04 1 0801-
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 0801-
133 SCREW; COVER
T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 04 1 0801-
140 SEAL; RAD GRILLE 8-98060-340-0 01 1 0801-
192 EXTENSION; RAD GRILLE
BODY COLOR CARDINAL RED(736) RED 		8-97418-373-0 01 1 0908-
192 EXTENSION; RAD GRILLE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97418-374-0 01 1 0908-
192 EXTENSION; RAD GRILLE
BODY COLOR MARINE BLUE(890) BLUE 		8-97418-375-0 01 1 0908-
192 EXTENSION; RAD GRILLE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97418-376-0 01 1 0908-
192 EXTENSION; RAD GRILLE
BODY COLOR OMAHA ORANGE(906) 		8-97418-377-0 01 1 0908-1011
192 EXTENSION; RAD GRILLE
BODY COLOR FIRE RED(915) RED 		8-97418-378-0 01 1 0908-
192 EXTENSION; RAD GRILLE
BODY COLOR ARC WHITE(729) WHITE 		8-97413-103-0 01 1 0801-
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 0801-
