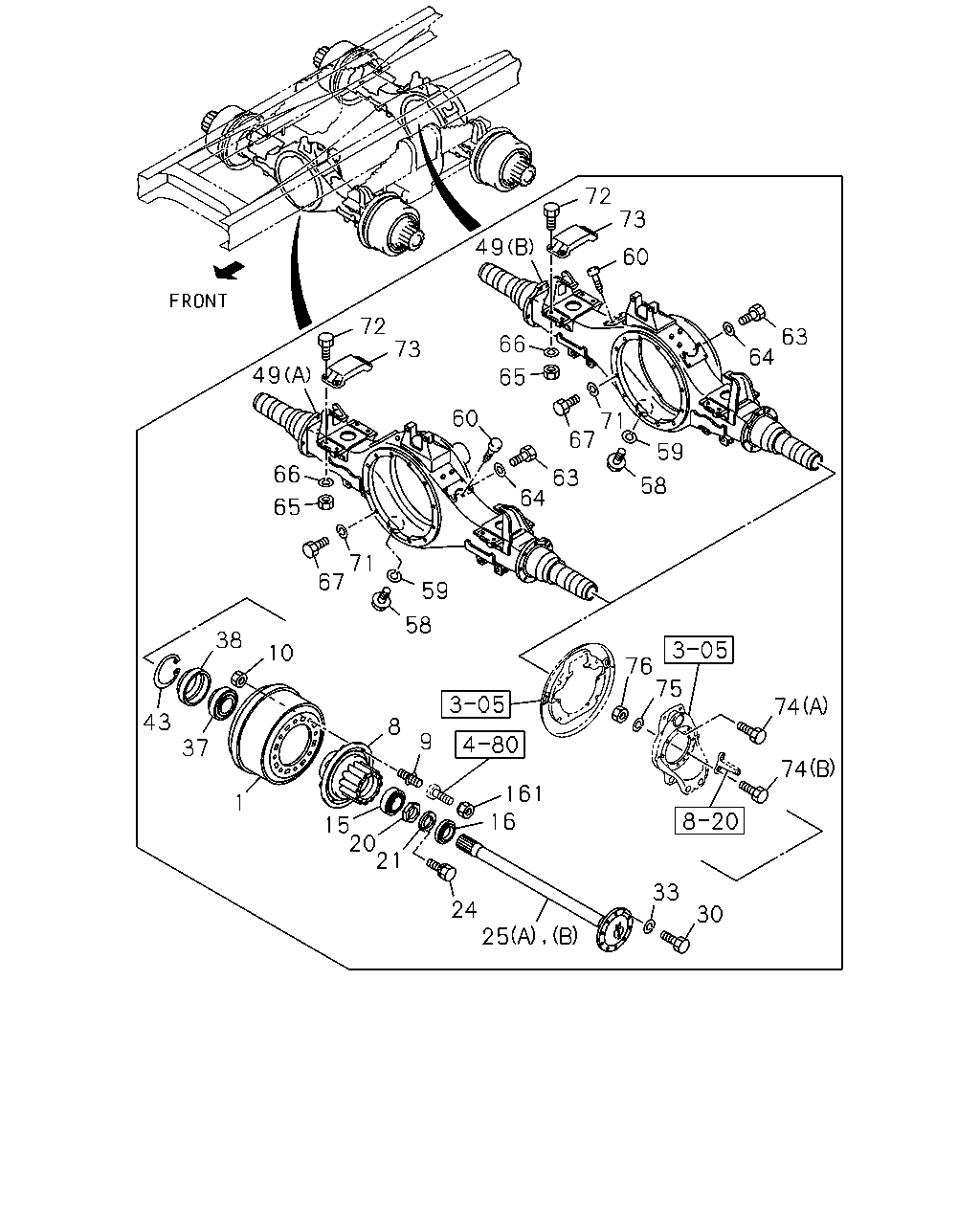

1 |
DRUM; BRK,RR
WHEEL 8STUD 7.50VX20 165-13<Q62>
|
1-42315-194-4 |
02 |
1 |
9603-9904 |
● |
|
| |
1 |
DRUM; BRK,RR
WHEEL 8STUD 7.50VX20 165-13<Q62>
|
1-42315-194-4 |
02 |
1 |
9603-9904 |
● |
|
| |
1 |
DRUM; BRK,RR
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>
|
1-42315-194-4 |
02 |
1 |
9905- |
● |
● |
| |
1 |
DRUM; BRK,RR
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>
|
1-42315-194-4 |
02 |
1 |
9905- |
● |
● |
| |
1 |
DRUM; BRK,RR
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>
|
1-42315-220-4 |
02 |
1 |
9603-9904 |
● |
|
| |
1 |
DRUM; BRK,RR
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>
|
1-42315-220-4 |
02 |
1 |
9603-9904 |
● |
|
| |
1 |
DRUM; BRK,RR
|
1-42315-220-4 |
02 |
1 |
9603-9904 |
|
● |
| |
1 |
DRUM; BRK,RR
|
1-42315-220-4 |
02 |
1 |
9603-9904 |
|
● |
| |
1 |
DRUM; BRK,RR
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD
7.50VX20 165-13<Q62>
|
1-42315-220-4 |
02 |
1 |
9905- |
● |
● |
| |
1 |
DRUM; BRK,RR
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD
7.50VX20 165-13<Q62>
|
1-42315-220-4 |
02 |
1 |
9905- |
● |
● |
| |
8 |
HUB; RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL
8STUD 7.50VX20 165-13<Q62>
|
1-42331-143-0 |
02 |
1 |
9712-9904 |
● |
|
| |
8 |
HUB; RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL
8STUD 7.50VX20 165-13<Q62>
|
1-42331-143-0 |
02 |
1 |
9712-9904 |
● |
|
| |
8 |
HUB; RR AXLE
|
1-42331-143-0 |
02 |
1 |
9712-9904 |
|
● |
| |
8 |
HUB; RR AXLE
|
1-42331-143-0 |
02 |
1 |
9712-9904 |
|
● |
| |
8 |
HUB; RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL
8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>,DISC WHEEL AL<SDM>
|
1-42331-143-0 |
02 |
1 |
9905- |
● |
● |
| |
8 |
HUB; RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL
8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>,DISC WHEEL AL<SDM>
|
1-42331-143-0 |
02 |
1 |
9905- |
● |
● |
| |
8 |
HUB; RR AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62>
|
1-42311-104-0 |
02 |
1 |
9603-9904 |
● |
|
| |
8 |
HUB; RR AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62>
|
1-42311-104-0 |
02 |
1 |
9603-9904 |
● |
|
| |
8 |
HUB; RR AXLE
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>
|
1-42311-104-0 |
02 |
1 |
9905- |
● |
● |
| |
8 |
HUB; RR AXLE
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>
|
1-42311-104-0 |
02 |
1 |
9905- |
● |
● |
| |
8 |
HUB; RR AXLE
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>
|
1-42311-085-0 |
02 |
1 |
9603-9711 |
● |
|
| |
8 |
HUB; RR AXLE
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>
|
1-42311-085-0 |
02 |
1 |
9603-9711 |
● |
|
| |
8 |
HUB; RR AXLE
|
1-42311-085-0 |
02 |
1 |
9603-9711 |
|
● |
| |
8 |
HUB; RR AXLE
|
1-42311-085-0 |
02 |
1 |
9603-9711 |
|
● |
| |
8 |
HUB; RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>
|
1-42311-085-0 |
02 |
1 |
9712-9904 |
● |
|
| |
8 |
HUB; RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>
|
1-42311-085-0 |
02 |
1 |
9712-9904 |
● |
|
| |
8 |
HUB; RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD
7.50VX20 165-13<Q62>
|
1-42311-085-0 |
02 |
1 |
9905- |
● |
● |
| |
8 |
HUB; RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD
7.50VX20 165-13<Q62>
|
1-42311-085-0 |
02 |
1 |
9905- |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>
M22X59.8,M22X53.5 RH THREAD
|
1-42337-012-0 |
20 |
1 |
9603-9904 |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>
M22X59.8,M22X53.5 RH THREAD
|
1-42337-012-0 |
20 |
1 |
9603-9904 |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD
7.50VX20 165-13<Q62>
M22X59.8,M22X53.5 RH THREAD
|
1-42337-012-0 |
20 |
1 |
9905- |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD
7.50VX20 165-13<Q62>
M22X59.8,M22X53.5 RH THREAD
|
1-42337-012-0 |
20 |
1 |
9905- |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL
8STUD 7.50VX20 165-13<Q62>
M22X51.5,M22X53.5 RH THREAD
|
1-42331-136-0 |
20 |
1 |
9603-9711 |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL
8STUD 7.50VX20 165-13<Q62>
M22X51.5,M22X53.5 RH THREAD
|
1-42331-136-0 |
20 |
1 |
9603-9711 |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
M22X51.5,M22X53.5 RH THREAD
|
1-42331-136-0 |
20 |
1 |
9603-9711 |
|
● |
| |
9 |
PIN; WHEEL,RR AXLE
M22X51.5,M22X53.5 RH THREAD
|
1-42331-136-0 |
20 |
1 |
9603-9711 |
|
● |
| |
9 |
PIN; WHEEL,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL
8STUD 7.50VX20 165-13<Q62>
M22X57,M22X53.5 RH THREAD
|
1-42337-055-0 |
20 |
1 |
9712-9904 |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL
8STUD 7.50VX20 165-13<Q62>
M22X57,M22X53.5 RH THREAD
|
1-42337-055-0 |
20 |
1 |
9712-9904 |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
M22X57,M22X53.5 RH THREAD
|
1-42337-055-0 |
20 |
1 |
9712-9904 |
|
● |
| |
9 |
PIN; WHEEL,RR AXLE
M22X57,M22X53.5 RH THREAD
|
1-42337-055-0 |
20 |
1 |
9712-9904 |
|
● |
| |
9 |
PIN; WHEEL,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL AL<SDM>
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD
7.50VX20 165-13<Q62>
M22X79.8,M22X53.5 RH THREAD
|
1-42337-027-0 |
20 |
1 |
9905- |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL AL<SDM>
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD
7.50VX20 165-13<Q62>
M22X79.8,M22X53.5 RH THREAD
|
1-42337-027-0 |
20 |
1 |
9905- |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62>
M20X34.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-110-0 |
08 |
1 |
9603-9904 |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62>
M20X34.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-110-0 |
08 |
1 |
9603-9904 |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>
M20X34.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-110-2 |
08 |
1 |
9905- |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>
M20X34.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-110-2 |
08 |
1 |
9905- |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62>
M20X34.5,M22X51.5 RH THREAD
|
1-42331-110-0 |
08 |
1 |
9603-9904 |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62>
M20X34.5,M22X51.5 RH THREAD
|
1-42331-110-0 |
08 |
1 |
9603-9904 |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>
M20X34.5,M22X51.5 RH THREAD
|
1-42331-110-2 |
08 |
1 |
9905- |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>
M20X34.5,M22X51.5 RH THREAD
|
1-42331-110-2 |
08 |
1 |
9905- |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL
8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>,DISC WHEEL AL<SDM>
M22X57,M22X53.5 RH THREAD
|
1-42337-055-1 |
20 |
1 |
9905- |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL
8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>,DISC WHEEL AL<SDM>
M22X57,M22X53.5 RH THREAD
|
1-42337-055-1 |
20 |
1 |
9905- |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62>
M22
|
9-09110-522-0 |
16 |
1 |
9603-9609 |
● |
|
| |
10 |
NUT; WHEEL PIN,RR AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62>
M22
|
9-09110-522-0 |
16 |
1 |
9603-9609 |
● |
|
| |
10 |
NUT; WHEEL PIN,RR AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62>
M22 FLANGE
|
1-09440-055-0 |
16 |
1 |
9610-9904 |
● |
|
| |
10 |
NUT; WHEEL PIN,RR AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62>
M22 FLANGE
|
1-09440-055-0 |
16 |
1 |
9610-9904 |
● |
|
| |
10 |
NUT; WHEEL PIN,RR AXLE
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>
M22
|
1-09400-071-0 |
20 |
1 |
9603-9904 |
● |
|
| |
10 |
NUT; WHEEL PIN,RR AXLE
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>
M22
|
1-09400-071-0 |
20 |
1 |
9603-9904 |
● |
|
| |
10 |
NUT; WHEEL PIN,RR AXLE
M22
|
1-09400-071-0 |
20 |
1 |
9603-9904 |
|
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
M22
|
1-09400-071-0 |
20 |
1 |
9603-9904 |
|
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
9905- |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
9905- |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD
7.50VX20 165-13<Q62>
M22
|
1-09400-071-0 |
20 |
1 |
9905- |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD
7.50VX20 165-13<Q62>
M22
|
1-09400-071-0 |
20 |
1 |
9905- |
● |
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
NSK
|
1-09812-079-0 |
02 |
1 |
9603-9809 |
● |
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
NSK
|
1-09812-079-0 |
02 |
1 |
9603-9809 |
● |
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
JTEKT
|
1-09812-232-0 |
02 |
1 |
9810- |
● |
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
JTEKT
|
1-09812-232-0 |
02 |
1 |
9810- |
● |
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
NACHI
|
1-09812-166-0 |
02 |
1 |
9603-9809 |
● |
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
NACHI
|
1-09812-166-0 |
02 |
1 |
9603-9809 |
● |
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
NOK
|
1-09625-226-1 |
02 |
1 |
9603-0102 |
● |
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
NOK
|
1-09625-226-1 |
02 |
1 |
9603-0102 |
● |
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
TKK
|
1-09625-444-0 |
02 |
1 |
9603- |
● |
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
TKK
|
1-09625-444-0 |
02 |
1 |
9603- |
● |
● |
| |
20 |
NUT; BRG,RR HUB
M88
|
9-09843-062-2 |
02 |
1 |
9603- |
● |
● |
| |
20 |
NUT; BRG,RR HUB
M88
|
9-09843-062-2 |
02 |
1 |
9603- |
● |
● |
| |
21 |
WASHER; LK,BRG NUT
ID=88
|
9-09854-112-0 |
02 |
1 |
9603- |
● |
● |
| |
21 |
WASHER; LK,BRG NUT
ID=88
|
9-09854-112-0 |
02 |
1 |
9603- |
● |
● |
| |
24 |
BOLT; LK WASHER
M6X16 W/LK WASHER
|
0-50040-616-0 |
06 |
1 |
9603-9701 |
● |
● |
| |
24 |
BOLT; LK WASHER
M6X16 W/LK WASHER
|
0-50040-616-0 |
06 |
1 |
9603-9701 |
● |
● |
| |
24 |
BOLT; LK WASHER
M6X16 FLANGE
|
0-28680-616-0 |
06 |
1 |
9702- |
● |
● |
| |
24 |
BOLT; LK WASHER
M6X16 FLANGE
|
0-28680-616-0 |
06 |
1 |
9702- |
● |
● |
| |

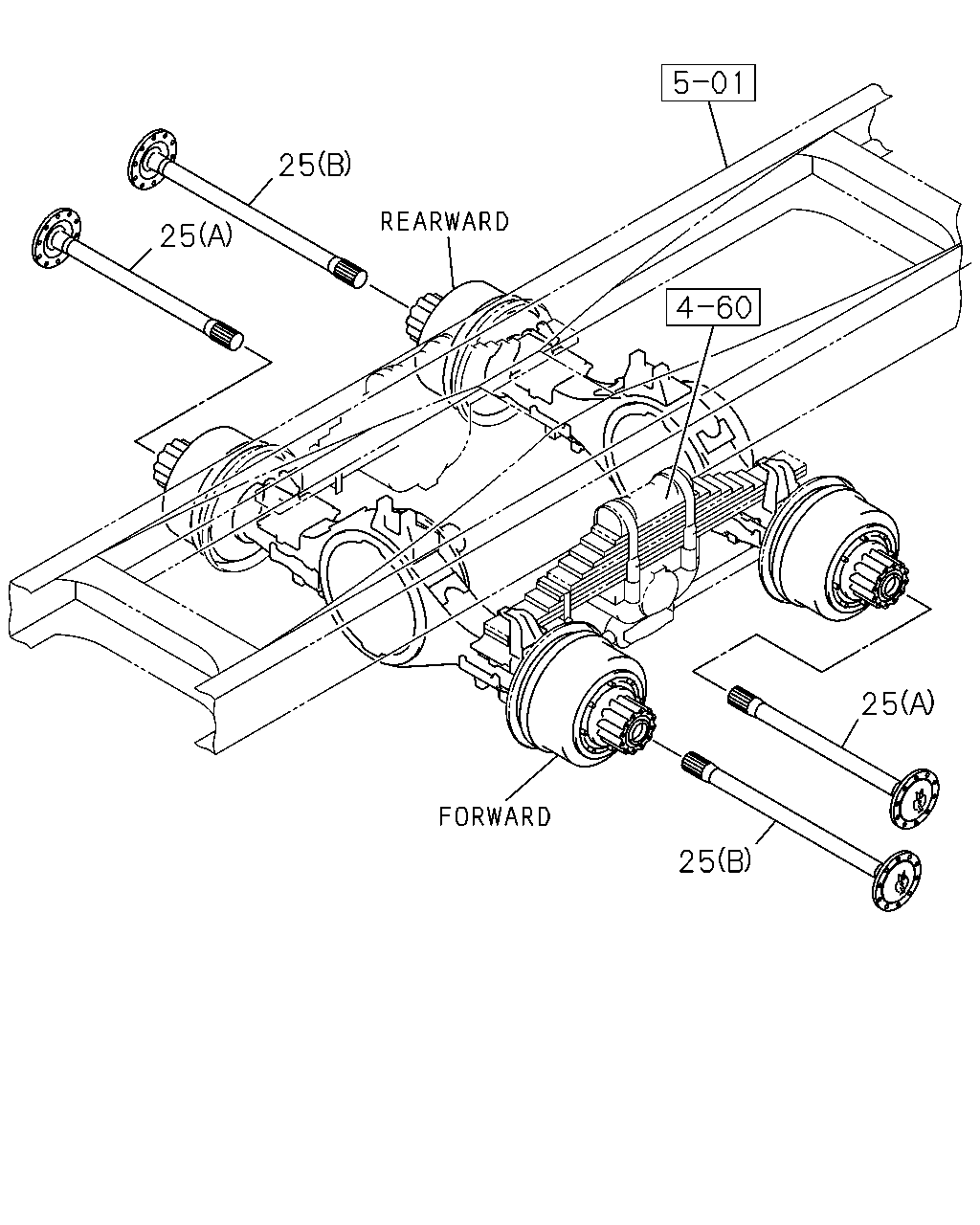

25 |
SHAFT; AXLE,RR
(A)
L=976
|
1-42171-356-0 |
01 |
1 |
9603- |
● |
● |
| |
25 |
SHAFT; AXLE,RR
(A)
L=976
|
1-42171-356-0 |
01 |
1 |
9603- |
● |
● |
| |
25 |
SHAFT; AXLE,RR
(B)
L=1106
|
1-42171-357-0 |
01 |
1 |
9603- |
● |
● |
| |
25 |
SHAFT; AXLE,RR
(B)
L=1106
|
1-42171-357-0 |
01 |
1 |
9603- |
● |
● |
| |
30 |
BOLT; HUB TO AXLE SHAFT
M14X58
|
1-09000-582-0 |
20 |
1 |
9603- |
● |
● |
| |
30 |
BOLT; HUB TO AXLE SHAFT
M14X58
|
1-09000-582-0 |
20 |
1 |
9603- |
● |
● |
| |
33 |
WASHER; AXLE SHAFT
ID=14.2
|
9-09150-814-0 |
20 |
1 |
9603- |
● |
● |
| |
33 |
WASHER; AXLE SHAFT
ID=14.2
|
9-09150-814-0 |
20 |
1 |
9603- |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
NSK
|
1-09812-077-0 |
02 |
1 |
9603-9809 |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
NSK
|
1-09812-077-0 |
02 |
1 |
9603-9809 |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
JTEKT
|
1-09812-233-0 |
02 |
1 |
9810- |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
JTEKT
|
1-09812-233-0 |
02 |
1 |
9810- |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
NACHI
|
1-09812-165-0 |
02 |
1 |
9603-9809 |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
NACHI
|
1-09812-165-0 |
02 |
1 |
9603-9809 |
● |
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
NOK
|
1-09625-265-0 |
02 |
1 |
9603- |
● |
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
NOK
|
1-09625-265-0 |
02 |
1 |
9603- |
● |
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
TKK
|
1-09625-350-0 |
02 |
1 |
9603- |
● |
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
TKK
|
1-09625-350-0 |
02 |
1 |
9603- |
● |
● |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
OD=179
|
1-09587-057-0 |
02 |
1 |
9603- |
● |
● |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
OD=179
|
1-09587-057-0 |
02 |
1 |
9603- |
● |
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8
17.5"(W4A)
INTERNATIONAL STANDARD ISO 10STUD<B3V>
P115 PROP SHAFT<C5X>
EXC. REAR AXLE RT260<C2B>,WHEEL 8STUD 7.50VX20
165-13<Q62>
(A)
|
1-42160-106-0 |
01 |
1 |
9603-9706 |
● |
|
| |
49 |
CASE; RR AXLE
REAR AXLE RT210<C2A>
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
(A)
|
1-42160-106-0 |
01 |
1 |
9707-9912 |
● |
|
| |
49 |
CASE; RR AXLE
REAR AXLE RT210<C2A>
INTERNATIONAL STANDARD ISO 10STUD<B3V>
(A)
|
1-42160-106-0 |
01 |
1 |
9707-9912 |
|
● |
| |
49 |
CASE; RR AXLE
REAR AXLE RT210<C2A>
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
(A)
|
1-42160-933-1 |
01 |
1 |
0001- |
● |
|
| |
49 |
CASE; RR AXLE
REAR AXLE RT210<C2A>
INTERNATIONAL STANDARD ISO 10STUD<B3V>
(A)
|
1-42160-933-1 |
01 |
1 |
0001- |
|
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8
17.5"(W4A)
EXC. REAR AXLE RT260<C2B>,WHEEL 8STUD 7.50VX20
165-13<Q62>
(B)
|
1-42160-124-1 |
01 |
1 |
9603-9904 |
● |
|
| |
49 |
CASE; RR AXLE
(B)
|
1-42160-124-1 |
01 |
1 |
9603-9904 |
|
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8
17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B)
REAR AXLE RT260<C2B>
P115 PROP SHAFT<C5X>
WHEEL 8STUD 7.50VX20 165-13<Q62>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
(A)
|
1-42160-120-0 |
01 |
1 |
9603-9702 |
● |
|
| |
49 |
CASE; RR AXLE
REAR AXLE RT260<C2B>
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
(A)
|
1-42160-120-0 |
01 |
1 |
9703-9904 |
● |
|
| |
49 |
CASE; RR AXLE
REAR AXLE RT260<C2B>
(A)
|
1-42160-120-0 |
01 |
1 |
9703-9904 |
|
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8
17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B)
REAR AXLE RT260<C2B>
WHEEL 8STUD 7.50VX20 165-13<Q62>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
(B)
|
1-42160-121-1 |
01 |
1 |
9603-9702 |
● |
|
| |
49 |
CASE; RR AXLE
REAR AXLE RT260<C2B>
(B)
|
1-42160-121-1 |
01 |
1 |
9703-9904 |
● |
● |
| |
49 |
CASE; RR AXLE
REAR AXLE RT210<C2A>
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
(A)
|
1-42160-551-0 |
01 |
1 |
9905-9912 |
● |
|
| |
49 |
CASE; RR AXLE
REAR AXLE RT210<C2A>
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
(A)
|
1-42160-939-1 |
01 |
1 |
0001- |
● |
|
| |
49 |
CASE; RR AXLE
REAR AXLE RT210<C2A>
INTERNATIONAL STANDARD ISO 10STUD<B3V>
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
(A)
|
1-42160-550-0 |
01 |
1 |
9707-9912 |
● |
|
| |
49 |
CASE; RR AXLE
REAR AXLE RT210<C2A>
INTERNATIONAL STANDARD ISO 10STUD<B3V>
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
(A)
|
1-42160-938-1 |
01 |
1 |
0001- |
● |
|
| |
49 |
CASE; RR AXLE
REAR AXLE RT210<C2A>
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
(A)
|
1-42190-216-0 |
01 |
1 |
0007-0007 |
● |
|
| |
49 |
CASE; RR AXLE
REAR AXLE RT210<C2A>
INTERNATIONAL STANDARD ISO 10STUD<B3V>
(A)
|
1-42190-216-0 |
01 |
1 |
0007-0007 |
|
● |
| |
49 |
CASE; RR AXLE
REAR AXLE RT260<C2B>
(B)
|
1-42160-121-1 |
01 |
1 |
9905-9912 |
● |
● |
| |
49 |
CASE; RR AXLE
REAR AXLE RT260<C2B>
(B)
|
1-42160-978-1 |
01 |
1 |
0001- |
● |
● |
| |
49 |
CASE; RR AXLE
REAR AXLE RT260<C2B>
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
(A)
|
1-42160-716-0 |
01 |
1 |
9905-9912 |
● |
|
| |
49 |
CASE; RR AXLE
REAR AXLE RT260<C2B>
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
(A)
|
1-42160-940-1 |
01 |
1 |
0001- |
● |
|
| |
49 |
CASE; RR AXLE
REAR AXLE RT260<C2B>
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
(A)
|
1-42160-120-0 |
01 |
1 |
9905-9912 |
● |
|
| |
49 |
CASE; RR AXLE
REAR AXLE RT260<C2B>
(A)
|
1-42160-120-0 |
01 |
1 |
9905-9912 |
|
● |
| |
49 |
CASE; RR AXLE
REAR AXLE RT260<C2B>
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
(A)
|
1-42160-935-1 |
01 |
1 |
0001- |
● |
|
| |
49 |
CASE; RR AXLE
REAR AXLE RT260<C2B>
(A)
|
1-42160-935-1 |
01 |
1 |
0001- |
|
● |
| |
49 |
CASE; RR AXLE
REAR AXLE RT210<C2A>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,BRAKE
SYSTEM RETARDER HEAVY DUTY<TCC>
(A)
|
1-42160-107-0 |
01 |
1 |
9906-9912 |
● |
|
| |
49 |
CASE; RR AXLE
REAR AXLE RT210<C2A>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
(A)
|
1-42160-107-0 |
01 |
1 |
9906-9912 |
|
● |
| |
49 |
CASE; RR AXLE
REAR AXLE RT210<C2A>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,BRAKE
SYSTEM RETARDER HEAVY DUTY<TCC>
(A)
|
1-42160-934-1 |
01 |
1 |
0001- |
● |
|
| |
49 |
CASE; RR AXLE
REAR AXLE RT210<C2A>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
(A)
|
1-42160-934-1 |
01 |
1 |
0001- |
|
● |
| |
49 |
CASE; RR AXLE
REAR AXLE RT210<C2A>
(B)
|
1-42160-124-1 |
01 |
1 |
9905-9912 |
● |
● |
| |
49 |
CASE; RR AXLE
REAR AXLE RT210<C2A>
(B)
|
1-42160-979-1 |
01 |
1 |
0001- |
● |
● |
| |
58 |
PLUG; DRAIN,AXLE CASE
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
9603- |
● |
● |
| |
58 |
PLUG; DRAIN,AXLE CASE
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
9603- |
● |
● |
| |
59 |
GASKET; DRAIN PLUG
ID=26.8
|
9-09920-605-0 |
01 |
1 |
9603- |
● |
● |
| |
59 |
GASKET; DRAIN PLUG
ID=26.8
|
9-09920-605-0 |
01 |
1 |
9603- |
● |
● |
| |
60 |
BREATHER; RR AXLE CASE
|
1-09893-011-1 |
02 |
1 |
9603- |
● |
● |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE
|
1-09604-022-0 |
01 |
1 |
9603- |
● |
● |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE
|
1-09604-022-0 |
01 |
1 |
9603- |
● |
● |
| |
64 |
GASKET; OIL FILLER,AXLE CASE
ID=26.8
|
9-09920-605-0 |
01 |
1 |
9603- |
● |
● |
| |
64 |
GASKET; OIL FILLER,AXLE CASE
ID=26.8
|
9-09920-605-0 |
01 |
1 |
9603- |
● |
● |
| |
65 |
NUT
M14
|
9-99110-514-0 |
08 |
1 |
9603- |
● |
● |
| |
65 |
NUT
M14
|
9-99110-514-0 |
08 |
1 |
9603- |
● |
● |
| |
66 |
WASHER; LK
ID=14.2
|
9-09150-814-0 |
08 |
1 |
9603- |
● |
● |
| |
66 |
WASHER; LK
ID=14.2
|
9-09150-814-0 |
08 |
1 |
9603- |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
M16X70
|
9-91066-670-0 |
04 |
1 |
9603- |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
M16X40
|
9-92061-640-0 |
08 |
1 |
9603- |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
M16X40
|
9-92061-640-0 |
07 |
1 |
9603- |
● |
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
ID=16.2
|
9-09150-816-0 |
12 |
1 |
9603- |
● |
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
ID=16.2
|
9-09150-816-0 |
12 |
1 |
9603- |
● |
● |
| |
72 |
BOLT; PAD FIX
M14X45
|
9-92061-445-0 |
08 |
1 |
9603- |
● |
● |
| |
73 |
PAD; RR SPR CONTACT
|
1-42124-101-0 |
02 |
1 |
9603- |
● |
● |
| |
73 |
PAD; RR SPR CONTACT
|
1-42124-101-0 |
02 |
1 |
9603- |
● |
● |
| |
74 |
BOLT; RR BRK ASM SETTING
(A)
M14X50
|
1-09040-066-0 |
14 |
1 |
9603- |
● |
● |
| |
74 |
BOLT; RR BRK ASM SETTING
(A)
M14X50
|
1-09040-066-0 |
14 |
1 |
9603- |
● |
● |
| |
74 |
BOLT; RR BRK ASM SETTING
(B)
M14X60
|
1-09040-084-0 |
02 |
1 |
9603- |
● |
● |
| |
74 |
BOLT; RR BRK ASM SETTING
(B)
M14X60
|
1-09040-084-0 |
02 |
1 |
9603- |
● |
● |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
|
9-09150-814-0 |
16 |
1 |
9603- |
● |
● |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
|
9-09150-814-0 |
16 |
1 |
9603- |
● |
● |
| |
76 |
NUT; RR BRK ASM SETTING
M14
|
9-99110-514-0 |
16 |
1 |
9603- |
● |
● |
| |
76 |
NUT; RR BRK ASM SETTING
M14
|
9-99110-514-0 |
16 |
1 |
9603- |
● |
● |
| |
161 |
RING; SPRING,REAR WHEEL
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL
8STUD 7.50VX20 165-13<Q62>
|
1-42339-025-1 |
40 |
1 |
9603-9704 |
● |
|
| |
161 |
RING; SPRING,REAR WHEEL
|
1-42339-025-1 |
40 |
1 |
9603-9704 |
|
● |
