6-75 — MAT AND CARPET (#58137) — 75 parça

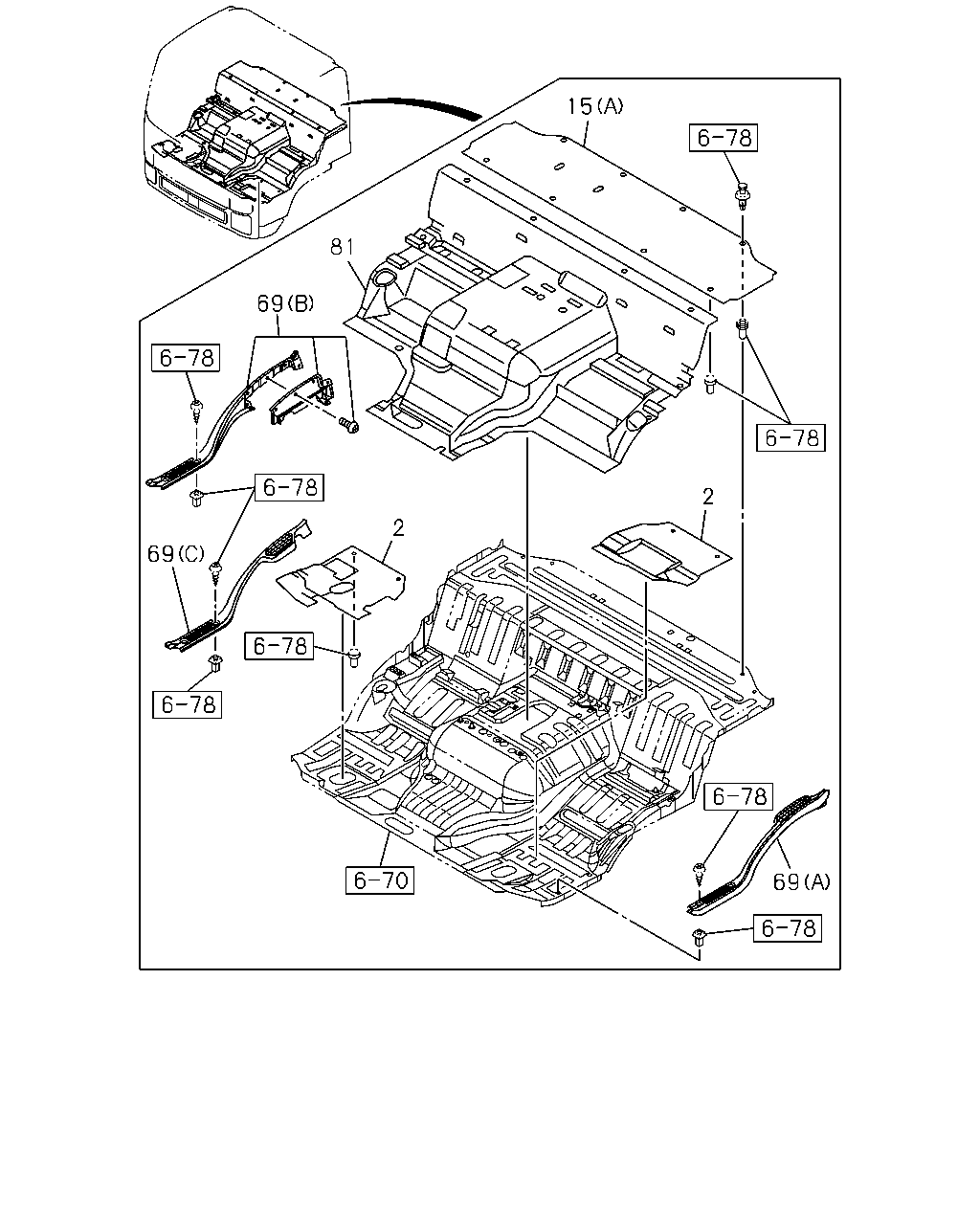

15 81 69 2 2 69 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-746-3	01	1	0710-0711	●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-746-3	01	1	0712-0905	●
2	MAT; FLOOR GRAY	8-97407-746-3	01	1	0712-0905		●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-747-1	01	1	0710-0711	●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-747-1	01	1	0712-0905	●
2	MAT; FLOOR GRAY	8-97407-747-1	01	1	0712-0905		●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-746-5	01	1	0907-1003	●
2	MAT; FLOOR GRAY	8-97407-746-5	01	1	0907-1003		●
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-746-5	01	1	1004-	●
2	MAT; FLOOR GRAY	8-97407-746-5	01	1	1004-		●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-747-2	01	1	0907-1003	●
2	MAT; FLOOR GRAY	8-97407-747-2	01	1	0907-1003		●
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-747-2	01	1	1004-	●
2	MAT; FLOOR GRAY	8-97407-747-2	01	1	1004-		●
2	MAT; FLOOR EXC. FLOOR COVER<6WX> GRAY	8-97407-750-4	01	1	0710-1003	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-750-4	01	1	1004-1005	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-947-0	01	1	1006-	●
2	MAT; FLOOR EXC. FLOOR COVER<6WX> GRAY	8-97407-751-1	01	1	0710-1003	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-751-1	01	1	1004-1005	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-949-0	01	1	1006-	●
15	MAT; FLOOR REAR FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> (A) DARK GRAY	8-97418-951-0	01	1	1004-	●
15	MAT; FLOOR REAR FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> (A) GRAY	8-97407-404-1	01	1	0710-	●
15	MAT; FLOOR REAR EXC. MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> (A) GRAY	8-97407-397-0	01	1	0710-1003	●
15	MAT; FLOOR REAR EXC. FLOOR COVER VAR.2<EFK>,MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> (A) GRAY	8-97407-397-0	01	1	1004-1005	●
15	MAT; FLOOR REAR (B) GRAY	8-97411-643-1	01	1	0712-		●
15	MAT; FLOOR REAR (C) GRAY	8-97411-642-1	01	1	0712-		●
15	MAT; FLOOR REAR (C) GRAY	8-97411-641-1	01	1	0712-		●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (A) GRAY	8-97407-413-1	01	1	0710-0711	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (A) GRAY	8-97407-413-1	01	1	0712-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (B) GRAY	8-97407-414-2	01	1	0710-0711	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (B) GRAY	8-97407-414-2	01	1	0712-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE EXC. DUMP CONTROL LEVER<RC4> (C) GRAY	8-97407-412-1	01	1	0710-0711	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE EXC. DUMP CONTROL LEVER<RC4> (C) GRAY	8-97407-412-1	01	1	0712-	●	●
81	MAT; FLOOR,CENTER FLOOR COVER<6WX> GRAY	8-97411-647-3	01	1	0710-1003	●
81	MAT; FLOOR,CENTER FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97411-647-3	01	1	1004-	●
81	MAT; FLOOR,CENTER GRAY	8-97411-645-1	01	1	0712-		●

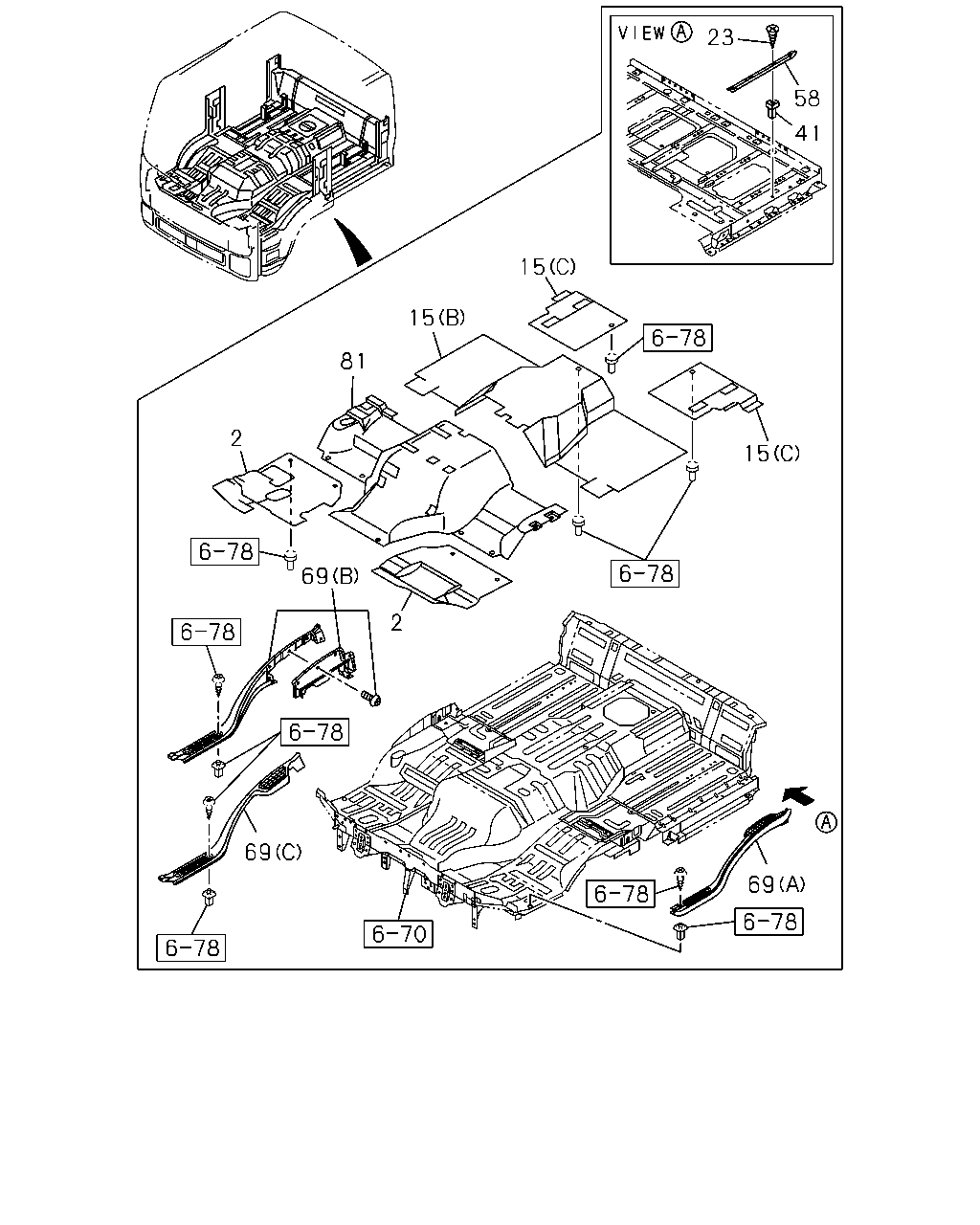

23 58 41 15 15 81 2 15 69 2 69 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-746-3	01	1	0710-0711	●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-746-3	01	1	0712-0905	●
2	MAT; FLOOR GRAY	8-97407-746-3	01	1	0712-0905		●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-747-1	01	1	0710-0711	●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-747-1	01	1	0712-0905	●
2	MAT; FLOOR GRAY	8-97407-747-1	01	1	0712-0905		●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-746-5	01	1	0907-1003	●
2	MAT; FLOOR GRAY	8-97407-746-5	01	1	0907-1003		●
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-746-5	01	1	1004-	●
2	MAT; FLOOR GRAY	8-97407-746-5	01	1	1004-		●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-747-2	01	1	0907-1003	●
2	MAT; FLOOR GRAY	8-97407-747-2	01	1	0907-1003		●
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-747-2	01	1	1004-	●
2	MAT; FLOOR GRAY	8-97407-747-2	01	1	1004-		●
2	MAT; FLOOR EXC. FLOOR COVER<6WX> GRAY	8-97407-750-4	01	1	0710-1003	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-750-4	01	1	1004-1005	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-947-0	01	1	1006-	●
2	MAT; FLOOR EXC. FLOOR COVER<6WX> GRAY	8-97407-751-1	01	1	0710-1003	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-751-1	01	1	1004-1005	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-949-0	01	1	1006-	●
15	MAT; FLOOR REAR FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> (A) DARK GRAY	8-97418-951-0	01	1	1004-	●
15	MAT; FLOOR REAR FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> (A) GRAY	8-97407-404-1	01	1	0710-	●
15	MAT; FLOOR REAR EXC. MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> (A) GRAY	8-97407-397-0	01	1	0710-1003	●
15	MAT; FLOOR REAR EXC. FLOOR COVER VAR.2<EFK>,MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> (A) GRAY	8-97407-397-0	01	1	1004-1005	●
15	MAT; FLOOR REAR (B) GRAY	8-97411-643-1	01	1	0712-		●
15	MAT; FLOOR REAR (C) GRAY	8-97411-642-1	01	1	0712-		●
15	MAT; FLOOR REAR (C) GRAY	8-97411-641-1	01	1	0712-		●
23	SCREW; SILL PLATE M5X16 TAPPING	0-72180-516-0	08	1	0712-		●
41	GROMMET; SCREW,SILL PLATE D=7.8X7.8 L=18 NATURAL	8-94279-043-0	08	1	0712-		●
58	PLATE; GUARD,RR FLOOR MAT GRAY	8-97405-981-1	02	1	0712-		●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (A) GRAY	8-97407-413-1	01	1	0710-0711	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (A) GRAY	8-97407-413-1	01	1	0712-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (B) GRAY	8-97407-414-2	01	1	0710-0711	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (B) GRAY	8-97407-414-2	01	1	0712-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE EXC. DUMP CONTROL LEVER<RC4> (C) GRAY	8-97407-412-1	01	1	0710-0711	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE EXC. DUMP CONTROL LEVER<RC4> (C) GRAY	8-97407-412-1	01	1	0712-	●	●
81	MAT; FLOOR,CENTER FLOOR COVER<6WX> GRAY	8-97411-647-3	01	1	0710-1003	●
81	MAT; FLOOR,CENTER FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97411-647-3	01	1	1004-	●
81	MAT; FLOOR,CENTER GRAY	8-97411-645-1	01	1	0712-		●
