6-60 — ROOF PANEL (#58134) — 57 parça

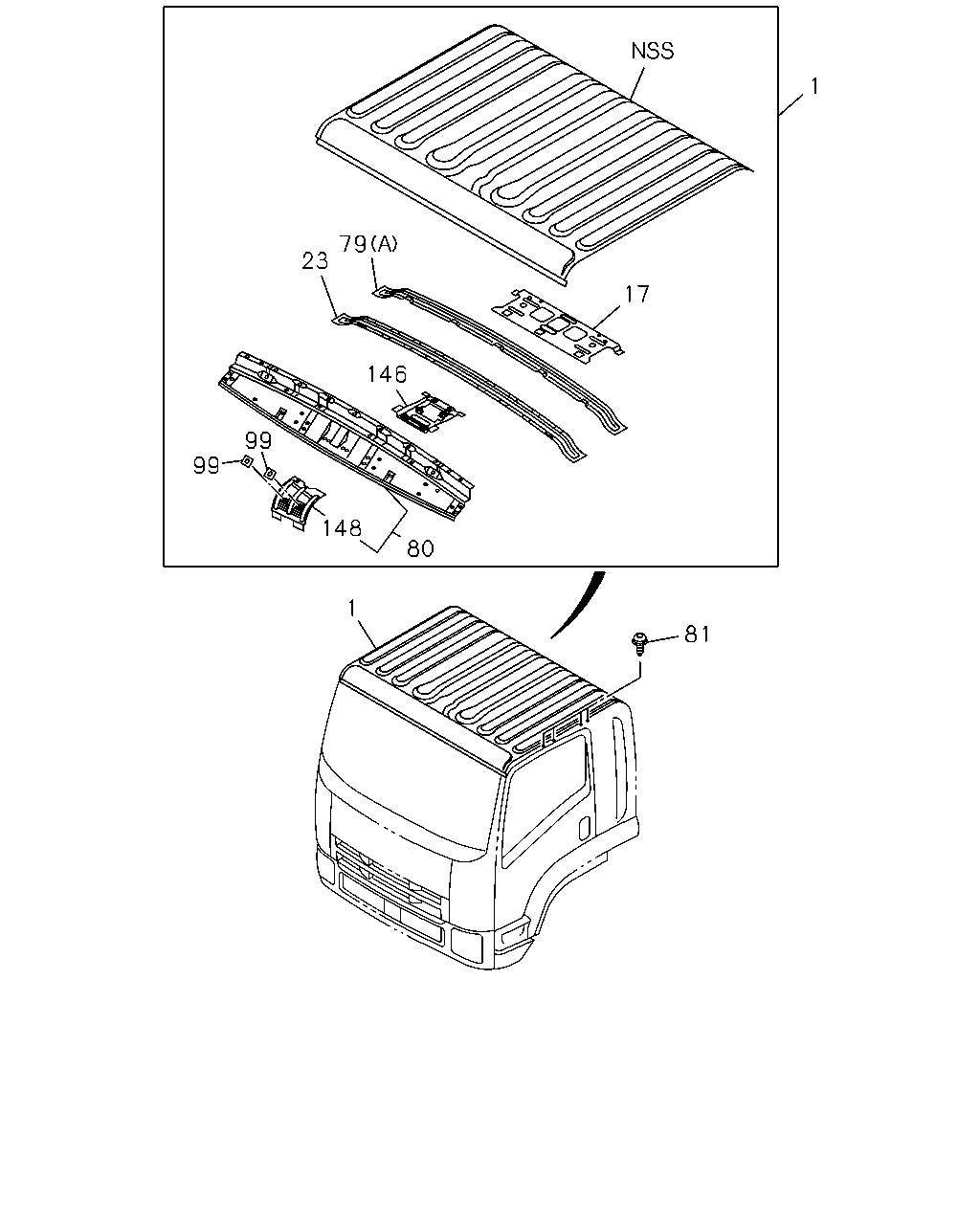

çizim 146885
1 79 23 17 146 99 99 148 80 1 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97584-177-6 01 1 0710-1308 ●
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98196-922-0 01 1 1309- ●
1 PANEL; ROOF
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-97584-498-5 01 1 0710-1308 ●
1 PANEL; ROOF
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98246-475-0 01 1 1309- ●
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97411-038-5 01 1 0712-1308 ●
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98246-486-0 01 1 1309- ●
1 PANEL; ROOF
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-97619-940-5 01 1 0712-1308 ●
1 PANEL; ROOF
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98246-487-0 01 1 1309- ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 0710-0711 ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 0712- ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-316-0 01 1 0710-0711 ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-316-0 01 1 0712- ● ●
79 REINFORCEMENT; ROOF PANEL,RR
(A) 		8-97584-200-1 01 1 0710-0711 ●
79 REINFORCEMENT; ROOF PANEL,RR
(A) 		8-97584-200-1 01 1 0712- ● ●
79 REINFORCEMENT; ROOF PANEL,RR
(B) 		8-97411-041-1 02 1 0712- ●
80 PANEL; HEADER,ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97584-192-3 01 1 0710-0711 ●
80 PANEL; HEADER,ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97584-192-3 01 1 0712-1308 ● ●
80 PANEL; HEADER,ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98196-921-0 01 1 1309- ● ●
81 BOLT; ROOF
M8X15.5 HEX SOCKET 		8-98028-744-0 08 1 0710-0711 ●
81 BOLT; ROOF
M8X15.5 HEX SOCKET 		8-98028-744-0 08 1 0712-0910 ● ●
81 BOLT; ROOF
M8X15.5 HEX SOCKET 		8-98141-874-0 08 1 0911- ● ●
99 SEAL; BODY,METAL
O/SIDE MIRROR UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-1 02 1 0710-0711 ●
99 SEAL; BODY,METAL
O/SIDE MIRROR UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 0712- ● ●
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 0710- ●
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 02 1 0712- ●
148 REINFORCEMENT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97411-015-1 01 1 0710-0711 ●
148 REINFORCEMENT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97411-015-1 01 1 0712- ● ●

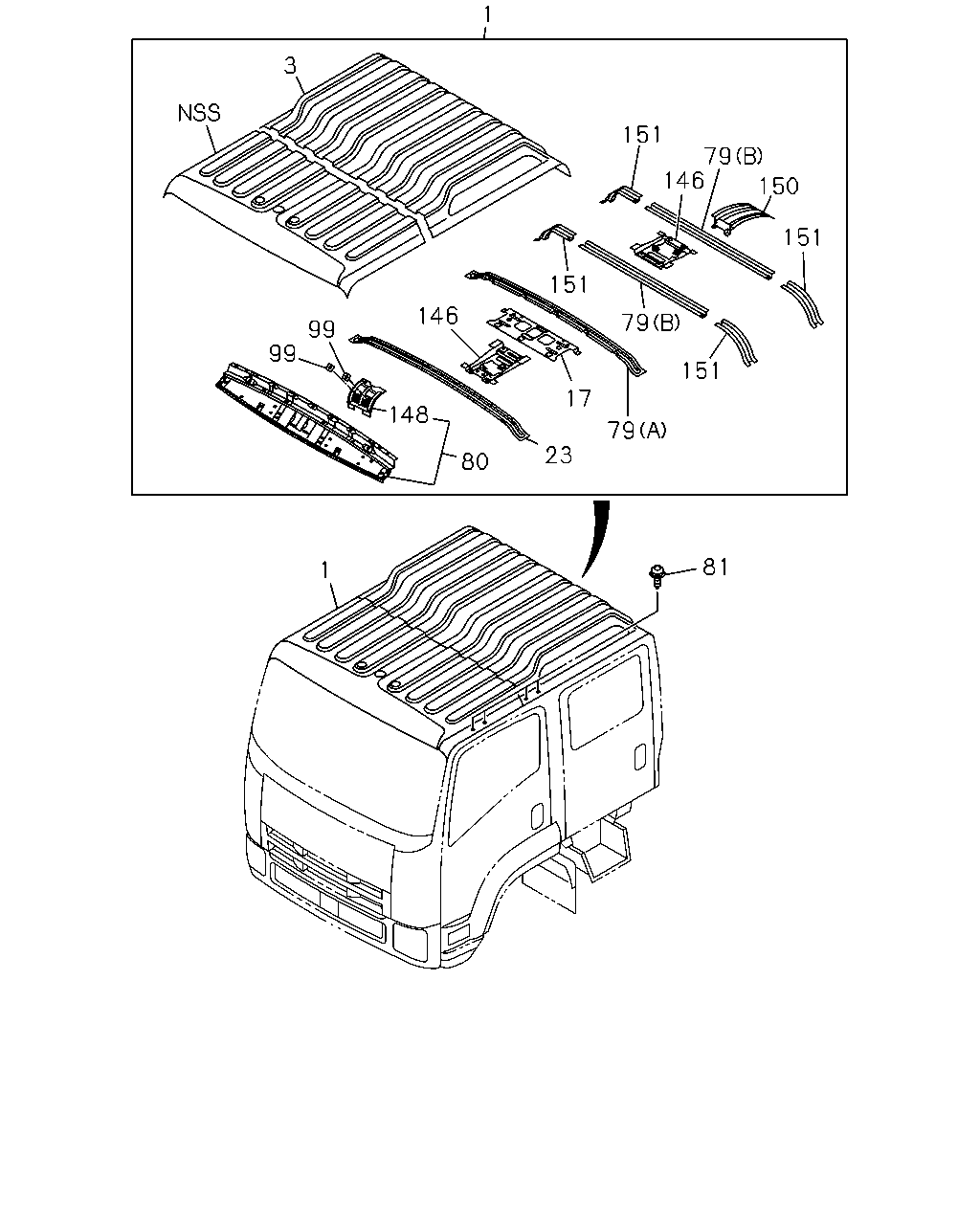

çizim 146897
1 3 151 79 146 150 151 151 146 79 99 99 151 17 148 79 23 80 81 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97584-177-6 01 1 0710-1308 ●
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98196-922-0 01 1 1309- ●
1 PANEL; ROOF
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-97584-498-5 01 1 0710-1308 ●
1 PANEL; ROOF
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98246-475-0 01 1 1309- ●
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97411-038-5 01 1 0712-1308 ●
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98246-486-0 01 1 1309- ●
1 PANEL; ROOF
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-97619-940-5 01 1 0712-1308 ●
1 PANEL; ROOF
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98246-487-0 01 1 1309- ●
3 PANEL; ROOF,RR 8-97618-730-0 01 1 0712- ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 0710-0711 ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 0712- ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-316-0 01 1 0710-0711 ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-316-0 01 1 0712- ● ●
79 REINFORCEMENT; ROOF PANEL,RR
(A) 		8-97584-200-1 01 1 0710-0711 ●
79 REINFORCEMENT; ROOF PANEL,RR
(A) 		8-97584-200-1 01 1 0712- ● ●
79 REINFORCEMENT; ROOF PANEL,RR
(B) 		8-97411-041-1 02 1 0712- ●
80 PANEL; HEADER,ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97584-192-3 01 1 0710-0711 ●
80 PANEL; HEADER,ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97584-192-3 01 1 0712-1308 ● ●
80 PANEL; HEADER,ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98196-921-0 01 1 1309- ● ●
81 BOLT; ROOF
M8X15.5 HEX SOCKET 		8-98028-744-0 08 1 0710-0711 ●
81 BOLT; ROOF
M8X15.5 HEX SOCKET 		8-98028-744-0 08 1 0712-0910 ● ●
81 BOLT; ROOF
M8X15.5 HEX SOCKET 		8-98141-874-0 08 1 0911- ● ●
99 SEAL; BODY,METAL
O/SIDE MIRROR UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-1 02 1 0710-0711 ●
99 SEAL; BODY,METAL
O/SIDE MIRROR UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 0712- ● ●
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 0710- ●
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 02 1 0712- ●
148 REINFORCEMENT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97411-015-1 01 1 0710-0711 ●
148 REINFORCEMENT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97411-015-1 01 1 0712- ● ●
150 REINFORCEMENT; ROOF BACK 8-98085-374-0 01 1 0712- ●
151 REINFORCEMENT; ROOF PANEL,SIDE 8-98008-023-0 04 1 0712- ●
