◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11420 - FTR(AUST)EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#58128) — 46 parça

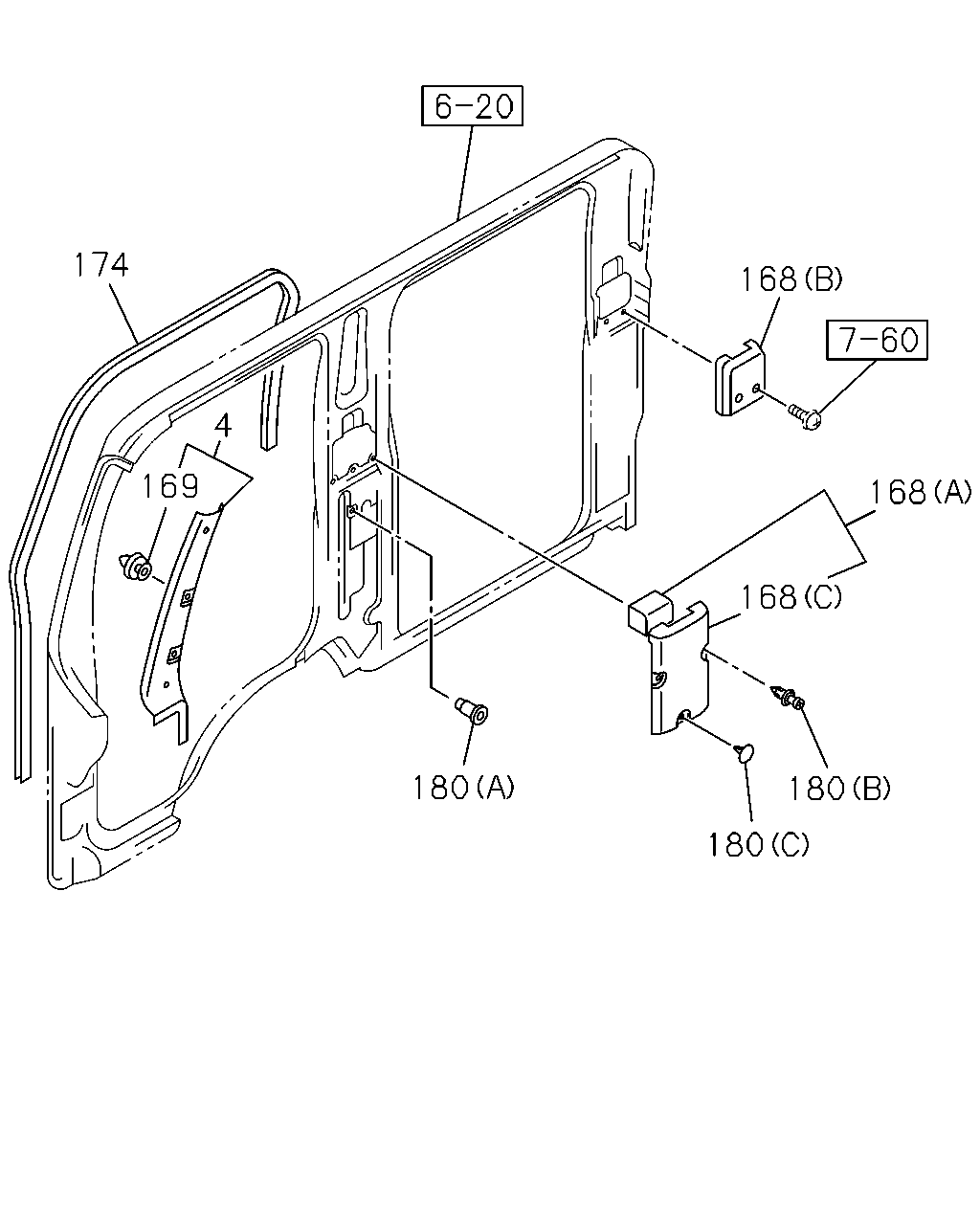

çizim 146872
174 168 4 169 168 168 180 180 180
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 0710-0711 ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 0712- ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 0710-0711 ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 0712- ● ●
168 COVER; SEAT BELT RETRACTOR
(C) GRAY 		8-97405-191-2 01 1 0712- ●
168 COVER; SEAT BELT RETRACTOR
(B) GRAY 		8-97405-192-3 02 1 0712- ●
168 COVER; SEAT BELT RETRACTOR
(A) GRAY 		8-97413-008-1 01 1 0712- ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 0710-0711 ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 0712- ● ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97412-918-1 01 1 0710-0912 ●
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1001- ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97412-917-1 01 1 0710-0912 ●
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1001- ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97407-357-2 01 1 0712-0912 ●
174 FINISHER; BODY SIDE 8-98154-668-0 01 1 1001- ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97407-356-2 01 1 0712-0912 ●
174 FINISHER; BODY SIDE 8-98154-667-0 01 1 1001- ●
180 FASTENER; COVER
(A) 		8-97319-495-0 02 1 0712- ●
180 FASTENER; COVER
(B) GRAY 		8-97405-246-0 04 1 0712- ●
180 FASTENER; COVER
(C) GRAY 		8-97405-247-0 02 1 0712- ●

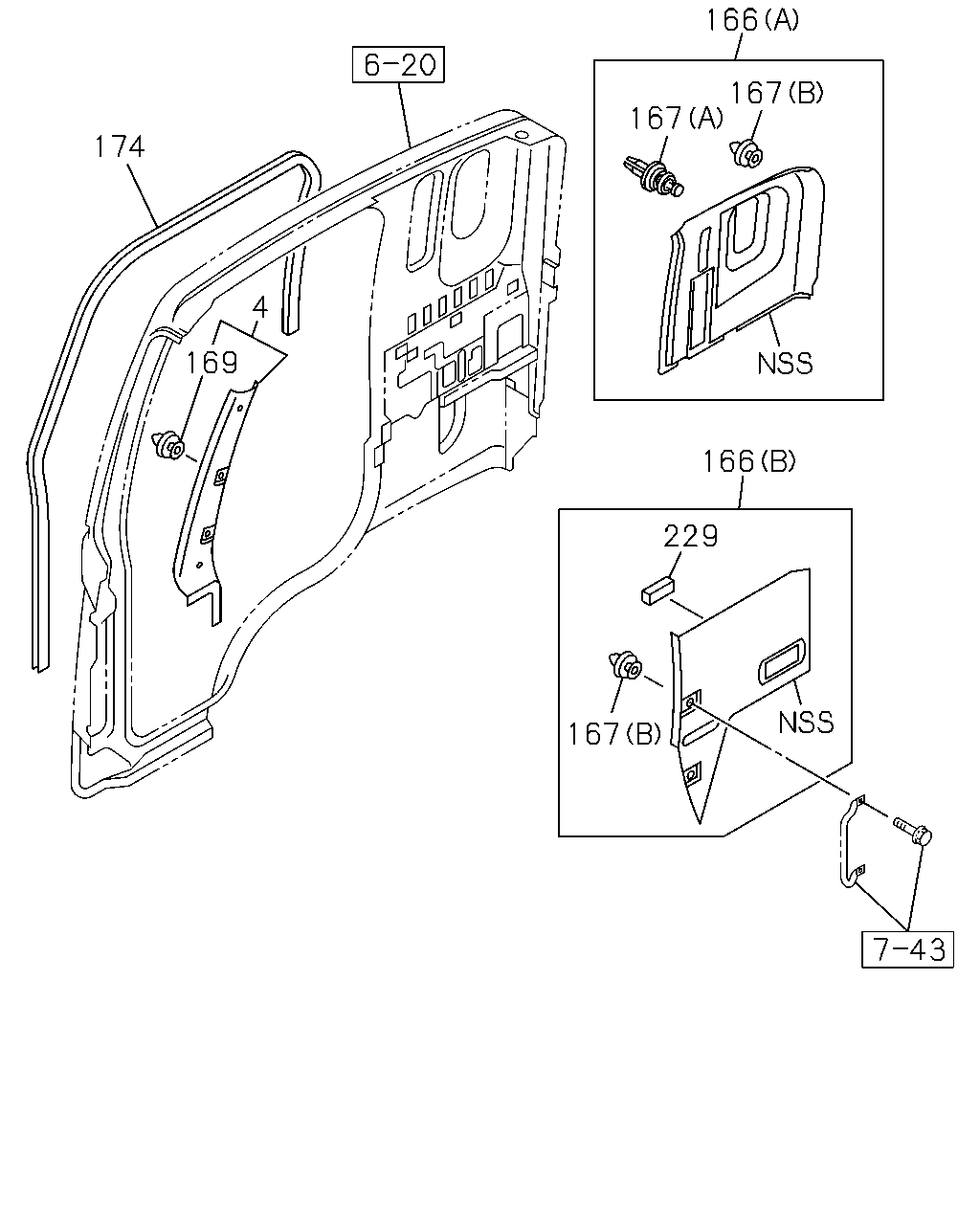

çizim 146913
166 167 167 174 4 169 166 229 167
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 0710-0711 ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 0712- ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 0710-0711 ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 0712- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-460-1 01 1 0710- ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97407-462-1 01 1 0710-0804 ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-651-0 01 1 0805- ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97409-800-1 01 1 0710-0804 ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-652-0 01 1 0805- ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97414-300-0 01 1 0710- ●
167 CLIP; TRIM,RR PILLAR
(A) DARK GRAY 		8-97412-726-0 02 1 0710-0804 ●
167 CLIP; TRIM,RR PILLAR
(B) 		8-98059-610-0 08 1 0710- ●
167 CLIP; TRIM,RR PILLAR
(B) 		8-98059-610-0 04 1 0710- ●
167 CLIP; TRIM,RR PILLAR
(B) 		8-98059-610-0 04 1 0710- ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 0710-0711 ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 0712- ● ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97412-918-1 01 1 0710-0912 ●
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1001- ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97412-917-1 01 1 0710-0912 ●
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1001- ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97407-357-2 01 1 0712-0912 ●
174 FINISHER; BODY SIDE 8-98154-668-0 01 1 1001- ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97407-356-2 01 1 0712-0912 ●
174 FINISHER; BODY SIDE 8-98154-667-0 01 1 1001- ●
229 SEAL 8-98080-972-0 02 1 0710- ●
229 SEAL 8-98092-662-0 01 1 0710- ●
