6-30 — FRONT DOOR AND HINGE (#58124) — 30 parça

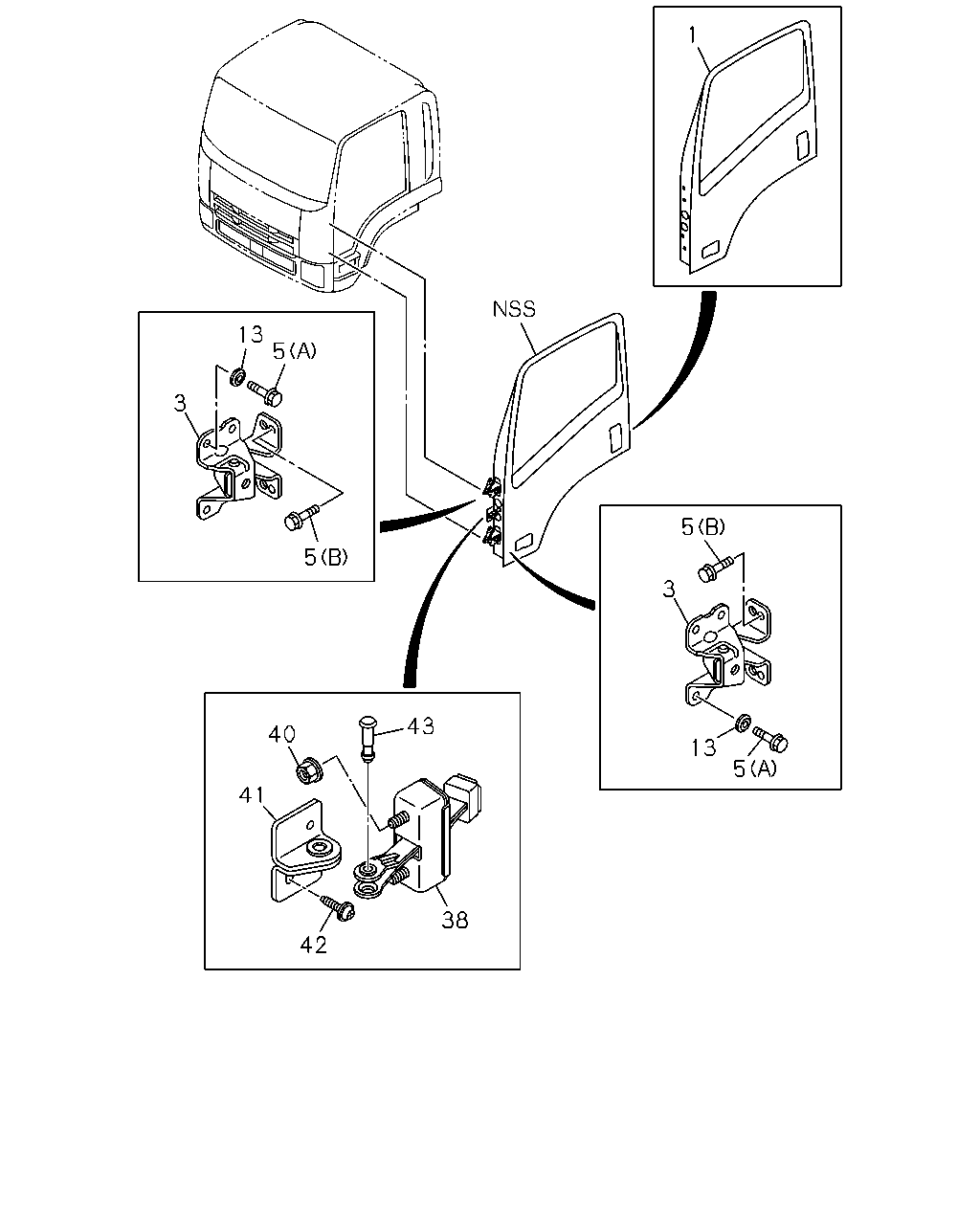

çizim 146878
1 13 5 3 5 5 3 43 40 13 5 41 38 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 DOOR ASM; FRT,WO/TRIM 8-98060-798-1 01 1 0710-0711 ●
1 DOOR ASM; FRT,WO/TRIM 8-98060-798-1 01 1 0712-1012 ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98171-231-0 01 1 1101-1409 ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98260-598-0 01 1 1410- ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98060-797-1 01 1 0710-0711 ●
1 DOOR ASM; FRT,WO/TRIM 8-98060-797-1 01 1 0712-1012 ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98171-223-0 01 1 1101-1409 ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98260-597-0 01 1 1410- ● ●
3 HINGE; DOOR FRT 8-98038-293-0 04 1 0710-0711 ●
3 HINGE; DOOR FRT 8-98038-293-0 04 1 0712-1104 ● ●
3 HINGE; DOOR FRT 8-98191-302-0 04 1 1105- ● ●
5 BOLT; HINGE
(B) M8X23 FLANGE 		8-98029-440-0 08 1 0710-0711 ●
5 BOLT; HINGE
(B) M8X23 FLANGE 		8-98029-440-0 08 1 0712- ● ●
5 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 24 1 0710-0711 ●
5 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 24 1 0712-0712 ● ●
5 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 12 1 0801- ● ●
5 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 12 1 0801- ● ●
13 WASHER; HINGE
ID=8.1 W/SEAL 		8-97890-584-1 04 1 0710-0711 ●
13 WASHER; HINGE
ID=8.1 W/SEAL 		8-97890-584-1 04 1 0712- ● ●
38 CHECKER ASM; DOOR 8-98031-730-4 02 1 0710-0711 ●
38 CHECKER ASM; DOOR 8-98031-730-6 02 1 0712- ● ●
40 NUT; CHECKER
M8 FLANGE 		8-98029-441-0 04 1 0710-0711 ●
40 NUT; CHECKER
M8 FLANGE 		8-98029-441-0 04 1 0712-1012 ● ●
40 NUT; CHECKER
M8 W/DISHED WASHER 		8-97329-625-0 04 1 1101- ● ●
41 BRACKET; CHECKER 8-98029-290-3 02 1 0710-0711 ●
41 BRACKET; CHECKER 8-98029-290-3 02 1 0712- ● ●
42 BOLT; BRKT
SCREW M6X20 W/PL WASHER 		8-98032-159-2 04 1 0710-0711 ●
42 BOLT; BRKT
SCREW M6X20 W/PL WASHER 		8-98032-159-2 04 1 0712- ● ●
43 PIN 8-98037-152-2 02 1 0710-0711 ●
43 PIN 8-98037-152-2 02 1 0712- ● ●
