◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11420 - FTR(AUST)EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#58123) — 261 parça

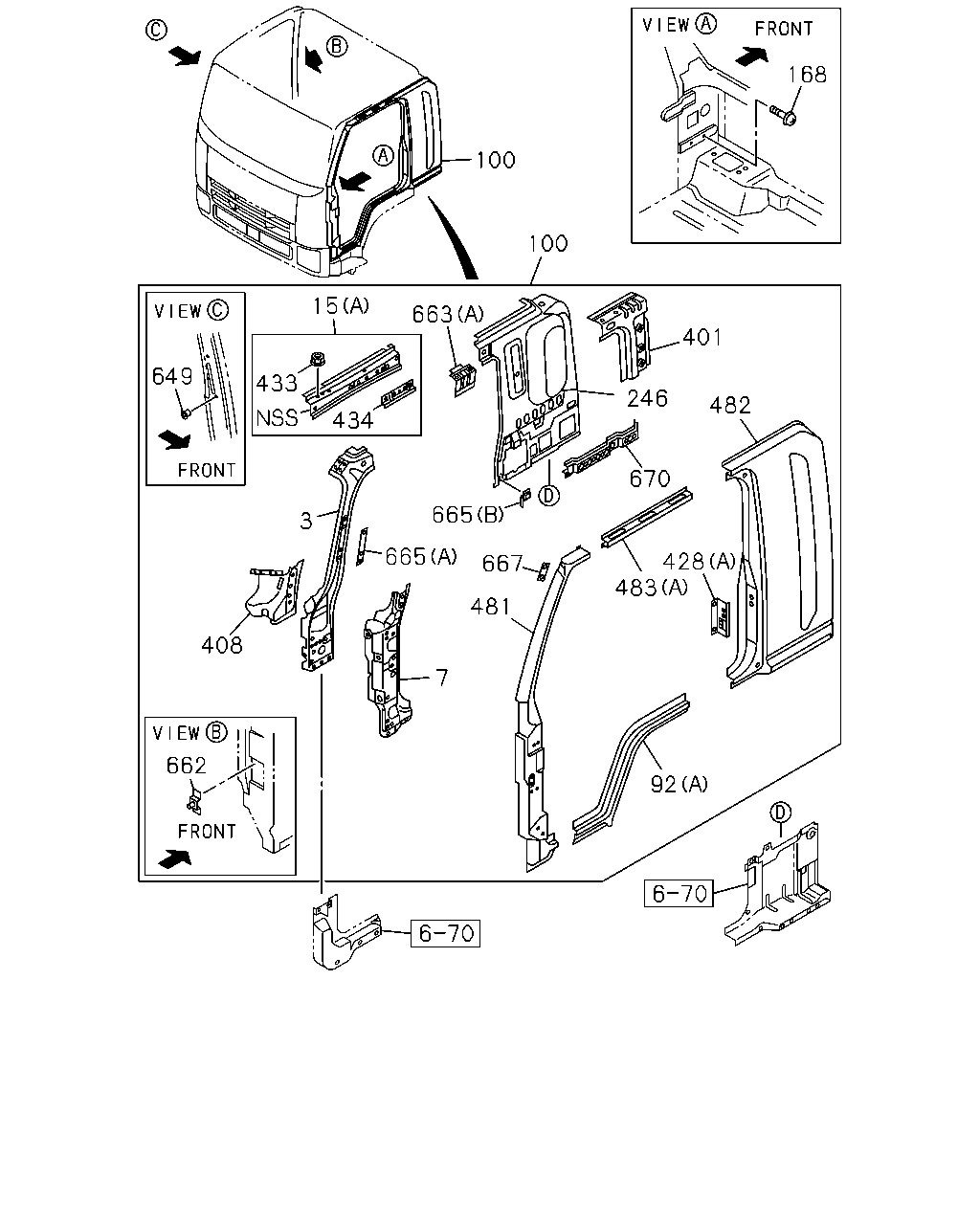

çizim 146870
168 100 100 15 663 401 649 433 246 434 482 670 665 3 665 428 483 667 481 408 7 662 92
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0710-0711 ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0712- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0710-0711 ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0712- ● ●
7 REINFORCEMENT; HINGE 8-97585-244-2 01 1 0710-0711 ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 0712- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-2 01 1 0710-0711 ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 0712- ● ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-293-2 01 1 0710- ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-292-2 01 1 0710- ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97583-740-1 01 1 0712- ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97583-739-1 01 1 0712- ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 0710-0711 ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 0712- ● ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 0710-0711 ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 0712- ● ●
92 PANEL; SIDE SILL,CAB
(B) 		8-98069-113-0 02 1 0712- ●
100 PANEL ASM; BODY SIDE 8-98088-579-2 01 1 0710-0901 ●
100 PANEL ASM; BODY SIDE 8-97586-063-5 01 1 0902- ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98088-590-3 01 1 0710-0901 ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97586-079-7 01 1 0902- ●
100 PANEL ASM; BODY SIDE
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98088-587-3 01 1 0710-0901 ●
100 PANEL ASM; BODY SIDE
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-97586-071-6 01 1 0902- ●
168 BOLT; BODY SIDE PANEL
M6X16 		0-38050-616-0 08 1 0710-0711 ●
168 BOLT; BODY SIDE PANEL
M6X16 		0-38050-616-0 08 1 0712-0802 ● ●
168 BOLT; BODY SIDE PANEL
M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0803- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 0710- ●
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 0710- ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 0710- ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 0710- ●
408 GUSSET; PILLAR 8-97586-194-1 01 1 0710-0711 ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 0712- ● ●
408 GUSSET; PILLAR 8-97586-193-2 01 1 0710-0711 ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 0712- ● ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-261-4 01 1 0710- ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-260-4 01 1 0710- ●
428 REINFORCEMENT; DOOR STRIKER
(C) 		8-97851-446-1 01 1 0712- ●
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-549-0 01 1 0712- ●
428 REINFORCEMENT; DOOR STRIKER
(C) 		8-97851-445-1 01 1 0712- ●
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-548-0 01 1 0712- ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 0710-0711 ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 0712- ● ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 0710-0711 ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 0712- ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 0710-0711 ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 0712- ● ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0710-0711 ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0712- ● ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98092-915-0 01 1 0710-0711 ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98092-915-0 01 1 0712- ● ●
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98072-714-1 01 1 0710-0711 ●
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98072-714-1 01 1 0712- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 0710-0807 ●
482 PANEL; SIDE RR PILLAR 8-98092-925-0 01 1 0808-0901 ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 0902- ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 0710-0807 ●
482 PANEL; SIDE RR PILLAR 8-98092-923-0 01 1 0808-0901 ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 0902- ●
482 PANEL; SIDE RR PILLAR 8-98097-238-0 01 1 0712- ●
482 PANEL; SIDE RR PILLAR 8-98097-237-0 01 1 0712- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 0710- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 0710- ●
483 PANEL; SIDE CANTRAIL
(C) 		8-98069-095-0 02 1 0712- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 0712- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 0712- ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 0710-0711 ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 0712- ● ●
662 BRACKET; DUCT 8-97584-611-1 01 1 0710- ●
663 BRACKET; AIR
(A) 		8-97585-208-2 01 1 0710-0711 ●
663 BRACKET; AIR
(A) 		8-97585-208-2 01 1 0712- ● ●
663 BRACKET; AIR
(A) 		8-97585-207-2 01 1 0710-0711 ●
663 BRACKET; AIR
(A) 		8-97585-207-2 01 1 0712- ● ●
663 BRACKET; AIR
(B) 		8-98020-643-1 02 1 0712- ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 0710-0711 ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 0712- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 0710- ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98005-264-0 01 1 0710-0711 ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98005-264-0 01 1 0712-0806 ● ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98109-948-0 01 1 0807- ● ●
670 STIFFENER; PANEL,SIDE 8-98015-044-1 02 1 0710- ●

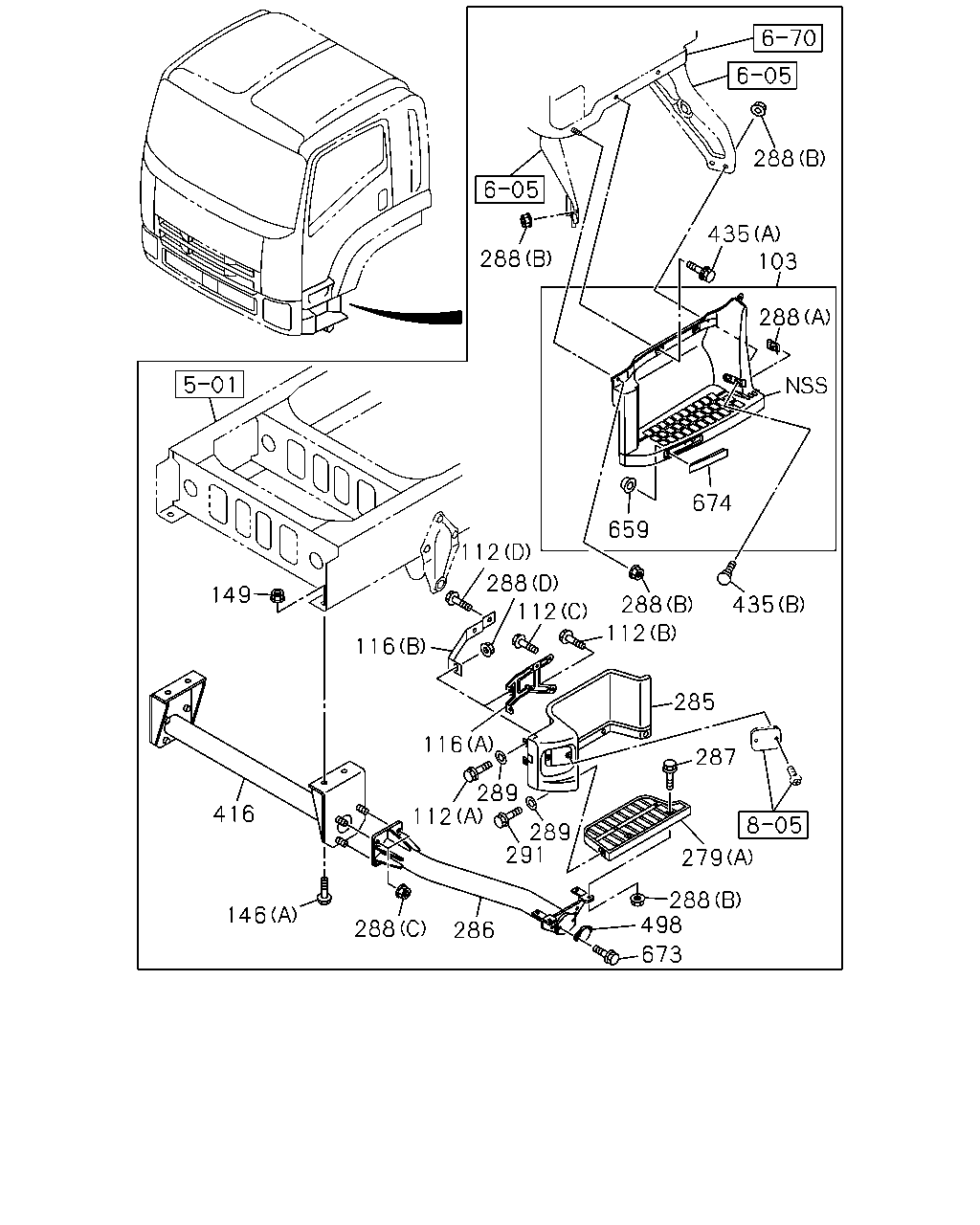

çizim 146873
288 435 103 288 288 674 659 112 288 112 149 435 288 112 116 285 116 287 289 416 112 289 291 279 288 498 146 288 286 673
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP 8-98069-977-2 01 1 0710-0711 ●
103 PLATE; STEP 8-98069-977-2 01 1 0712- ● ●
103 PLATE; STEP 8-98069-976-2 01 1 0710-0711 ●
103 PLATE; STEP 8-98069-976-2 01 1 0712- ● ●
112 BOLT; 1ST STEP
(A) M6X16 FLANGE 		0-28050-616-0 04 1 0710-0711 ●
112 BOLT; 1ST STEP
(A) M6X16 FLANGE 		0-28050-616-0 04 1 0712-1112 ● ●
112 BOLT; 1ST STEP
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1201- ● ●
112 BOLT; 1ST STEP
(B) M6X25 FLANGE 		0-28050-625-0 02 1 0710-0711 ●
112 BOLT; 1ST STEP
(B) M6X25 FLANGE 		0-28050-625-0 02 1 0712-1112 ● ●
112 BOLT; 1ST STEP
(D) M8X12 FLANGE 		0-28050-812-0 04 1 1201- ● ●
112 BOLT; 1ST STEP
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0710-0711 ●
112 BOLT; 1ST STEP
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0712-1112 ● ●
112 BOLT; 1ST STEP
(B) M6X20 FLANGE 		0-28050-620-0 02 1 1201- ● ●
116 STAY; 1ST STEP,FRT
(A) 		8-98062-133-1 01 1 0710-0711 ●
116 STAY; 1ST STEP,FRT
(A) 		8-98062-133-1 01 1 0712-1112 ● ●
116 STAY; 1ST STEP,FRT
(B) 		8-98196-756-0 02 1 1201- ● ●
116 STAY; 1ST STEP,FRT
(A) 		8-98062-134-1 01 1 0710-0711 ●
116 STAY; 1ST STEP,FRT
(A) 		8-98062-134-1 01 1 0712-1112 ● ●
146 BOLT; STEP BRKT
(A) M14X45 FLANGE 		0-28851-445-0 04 1 0710-0711 ●
146 BOLT; STEP BRKT
(A) M14X45 FLANGE 		0-28851-445-0 04 1 0712- ● ●
146 BOLT; STEP BRKT
(B) M8X25 FLANGE 		0-28650-825-0 08 1 0712- ●
149 NUT; STEP BRKT
M14 FLANGE 		0-91180-214-0 04 1 0710-0711 ●
149 NUT; STEP BRKT
M14 FLANGE 		0-91180-214-0 04 1 0712- ● ●
279 BOARD; STEP 1ST
(A) 		1-53414-181-0 01 1 0710-0711 ●
279 BOARD; STEP 1ST
(A) 		1-53414-181-0 01 1 0712- ● ●
279 BOARD; STEP 1ST
(A) 		1-53414-180-0 01 1 0710-0711 ●
279 BOARD; STEP 1ST
(A) 		1-53414-180-0 01 1 0712- ● ●
279 BOARD; STEP 1ST
(B) 		8-98058-394-3 01 1 0712- ●
279 BOARD; STEP 1ST
(B) 		8-98058-389-3 01 1 0712- ●
285 PLATE; STEP,1ST STEP 8-98017-535-2 01 1 0710-0711 ●
285 PLATE; STEP,1ST STEP 8-98017-535-3 01 1 0712- ● ●
285 PLATE; STEP,1ST STEP 8-98017-536-2 01 1 0710-0711 ●
285 PLATE; STEP,1ST STEP 8-98017-536-3 01 1 0712- ● ●
286 STEP ASM; 1ST 8-98082-430-1 01 1 0710-0711 ●
286 STEP ASM; 1ST 8-98082-430-2 01 1 0712- ● ●
286 STEP ASM; 1ST 8-98082-431-1 01 1 0710-0711 ●
286 STEP ASM; 1ST 8-98082-431-2 01 1 0712- ● ●
287 BOLT; BOARD STEP
M8X40 FLANGE 		0-28650-840-0 08 1 0710-0711 ●
287 BOLT; BOARD STEP
M8X40 FLANGE 		0-28650-840-0 08 1 0712-1107 ● ●
287 BOLT; BOARD STEP
M8X35 FLANGE 		0-28650-835-0 08 1 1108- ● ●
288 NUT; STEP
(D) M6 FLANGE 		0-91180-106-0 02 1 1201- ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1201- ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 18 1 0710-0711 ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 18 1 0712-1112 ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 08 1 1201- ● ●
288 NUT; STEP
(C) M12 FLANGE 		0-91180-212-0 06 1 0710-0711 ●
288 NUT; STEP
(C) M12 FLANGE 		0-91180-212-0 06 1 0712- ● ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 0710-0711 ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 0712- ● ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 10 1 0710-0711 ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 10 1 0712- ● ●
291 BOLT; STEP PLATE
M6X12 FLANGE 		0-28050-612-0 06 1 0710-0711 ●
291 BOLT; STEP PLATE
M6X12 FLANGE 		0-28050-612-0 06 1 0712- ● ●
416 BRACKET; ASSIST STEP 8-98053-542-2 01 1 0710-0711 ●
416 BRACKET; ASSIST STEP 8-98053-542-4 01 1 0712- ● ●
435 BOLT; RR STEP
(B) M8X16 		8-98049-538-1 08 1 0710-0711 ●
435 BOLT; RR STEP
(B) M8X16 		8-98049-538-1 08 1 0712-0907 ● ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 0908- ● ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0710-0711 ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0712- ● ●
498 REFLECTOR 1-82290-011-1 02 1 0710-0711 ●
498 REFLECTOR 1-82290-011-1 02 1 0712- ● ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 0710-0711 ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 0712- ● ●
673 BOLT; REFLECTOR
M5X16 W/LK&PL WASHER 		8-94198-538-0 04 1 0710-0711 ●
673 BOLT; REFLECTOR
M5X16 W/LK&PL WASHER 		8-94198-538-0 04 1 0712- ● ●
674 COVER; REFLECTOR 8-98092-734-0 01 1 0710-0711 ●
674 COVER; REFLECTOR 8-98092-734-0 01 1 0712- ● ●
674 COVER; REFLECTOR 8-98092-733-0 01 1 0710-0711 ●
674 COVER; REFLECTOR 8-98092-733-0 01 1 0712- ● ●

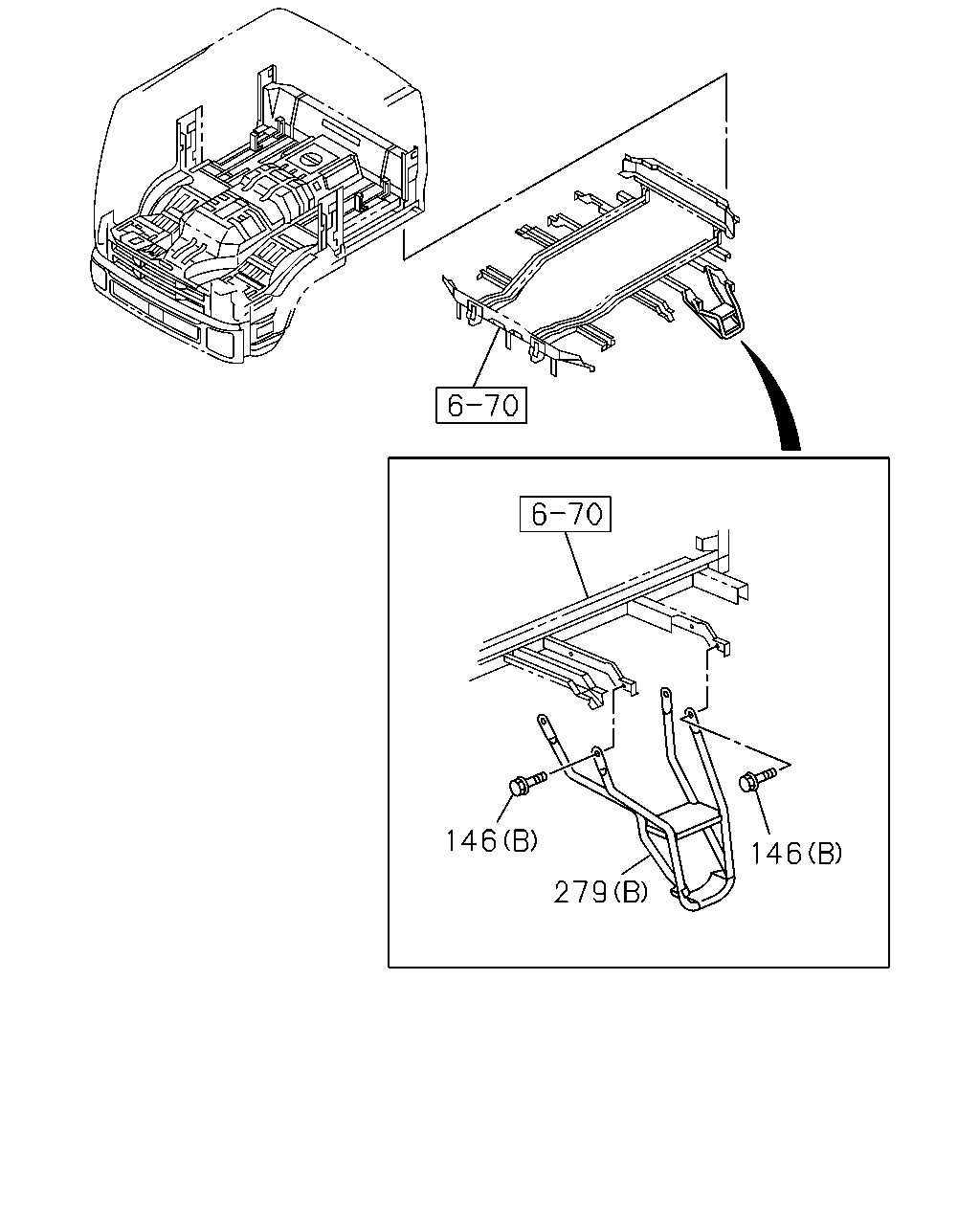

çizim 146880
146 146 279
BalonParca AdiParca NoAdetTipApplied Date A B
146 BOLT; STEP BRKT
(A) M14X45 FLANGE 		0-28851-445-0 04 1 0710-0711 ●
146 BOLT; STEP BRKT
(A) M14X45 FLANGE 		0-28851-445-0 04 1 0712- ● ●
146 BOLT; STEP BRKT
(B) M8X25 FLANGE 		0-28650-825-0 08 1 0712- ●
279 BOARD; STEP 1ST
(A) 		1-53414-181-0 01 1 0710-0711 ●
279 BOARD; STEP 1ST
(A) 		1-53414-181-0 01 1 0712- ● ●
279 BOARD; STEP 1ST
(A) 		1-53414-180-0 01 1 0710-0711 ●
279 BOARD; STEP 1ST
(A) 		1-53414-180-0 01 1 0712- ● ●
279 BOARD; STEP 1ST
(B) 		8-98058-394-3 01 1 0712- ●
279 BOARD; STEP 1ST
(B) 		8-98058-389-3 01 1 0712- ●

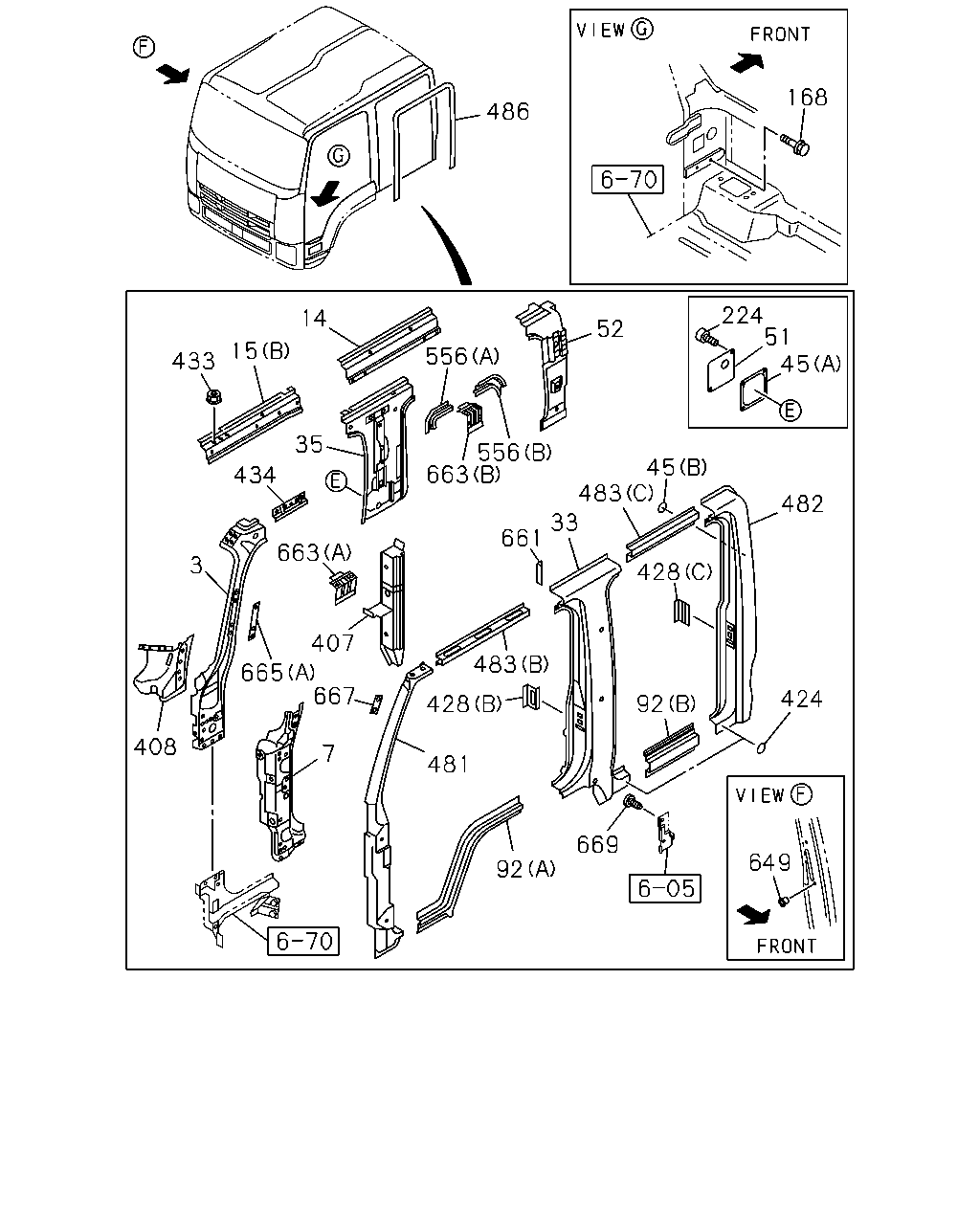

çizim 146896
168 486 224 51 45 14 52 15 556 433 35 556 663 45 483 434 482 33 661 663 3 428 407 483 665 667 424 92 428 408 7 481 669 649 92
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0710-0711 ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0712- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0710-0711 ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0712- ● ●
7 REINFORCEMENT; HINGE 8-97585-244-2 01 1 0710-0711 ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 0712- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-2 01 1 0710-0711 ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 0712- ● ●
14 PANEL; REINF,SIDE DRIP 8-97583-706-2 02 1 0712- ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-293-2 01 1 0710- ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-292-2 01 1 0710- ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97583-740-1 01 1 0712- ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97583-739-1 01 1 0712- ●
33 PANEL; CENTER PILLAR,OUTER 8-98097-245-0 01 1 0712-0901 ●
33 PANEL; CENTER PILLAR,OUTER 8-98069-091-0 01 1 0902- ●
33 PANEL; CENTER PILLAR,OUTER 8-98097-244-0 01 1 0712-0901 ●
33 PANEL; CENTER PILLAR,OUTER 8-98069-090-0 01 1 0902- ●
35 PANEL; CENTER PILLAR,INNER 8-98080-456-2 01 1 0712- ●
35 PANEL; CENTER PILLAR,INNER 8-98080-457-2 01 1 0712- ●
45 SEAL; B-C POST
(A) 		8-97853-731-2 02 1 0712- ●
45 SEAL; B-C POST
BODY COLOR ARC WHITE(729) (B) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0712-0905 ●
45 SEAL; B-C POST
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) (B) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0906- ●
45 SEAL; B-C POST
BODY COLOR FT ORANGE(609),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0712-0905 ●
45 SEAL; B-C POST
BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944) ,BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0906-0906 ●
45 SEAL; B-C POST
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0906- ●
51 COVER; HOLE,B-C POST 8-94273-658-0 02 1 0712- ●
52 PANEL; D-POST UPR 8-98062-006-1 01 1 0712- ●
52 PANEL; D-POST UPR 8-98062-005-1 01 1 0712- ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 0710-0711 ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 0712- ● ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 0710-0711 ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 0712- ● ●
92 PANEL; SIDE SILL,CAB
(B) 		8-98069-113-0 02 1 0712- ●
168 BOLT; BODY SIDE PANEL
M6X16 		0-38050-616-0 08 1 0710-0711 ●
168 BOLT; BODY SIDE PANEL
M6X16 		0-38050-616-0 08 1 0712-0802 ● ●
168 BOLT; BODY SIDE PANEL
M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0803- ● ●
224 SCREW; COVER
M5X16 HEX SOCKET 		0-72380-516-0 04 1 0712- ●
407 PILLAR; HINGE,RR DOOR 8-98089-274-1 01 1 0712-0901 ●
407 PILLAR; HINGE,RR DOOR 8-97410-824-2 01 1 0902- ●
407 PILLAR; HINGE,RR DOOR 8-97410-822-2 01 1 0712- ●
408 GUSSET; PILLAR 8-97586-194-1 01 1 0710-0711 ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 0712- ● ●
408 GUSSET; PILLAR 8-97586-193-2 01 1 0710-0711 ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 0712- ● ●
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0712-0905 ●
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0906- ●
424 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0712-0905 ●
424 SEAL; CLOSING
BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944) ,BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0906-0906 ●
424 SEAL; CLOSING
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0906- ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-261-4 01 1 0710- ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-260-4 01 1 0710- ●
428 REINFORCEMENT; DOOR STRIKER
(C) 		8-97851-446-1 01 1 0712- ●
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-549-0 01 1 0712- ●
428 REINFORCEMENT; DOOR STRIKER
(C) 		8-97851-445-1 01 1 0712- ●
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-548-0 01 1 0712- ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 0710-0711 ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 0712- ● ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 0710-0711 ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 0712- ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 0710-0711 ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 0712- ● ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0710-0711 ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0712- ● ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98092-915-0 01 1 0710-0711 ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98092-915-0 01 1 0712- ● ●
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98072-714-1 01 1 0710-0711 ●
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98072-714-1 01 1 0712- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 0710-0807 ●
482 PANEL; SIDE RR PILLAR 8-98092-925-0 01 1 0808-0901 ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 0902- ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 0710-0807 ●
482 PANEL; SIDE RR PILLAR 8-98092-923-0 01 1 0808-0901 ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 0902- ●
482 PANEL; SIDE RR PILLAR 8-98097-238-0 01 1 0712- ●
482 PANEL; SIDE RR PILLAR 8-98097-237-0 01 1 0712- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 0710- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 0710- ●
483 PANEL; SIDE CANTRAIL
(C) 		8-98069-095-0 02 1 0712- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 0712- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 0712- ●
486 SEAL; BODY SIDE
DARK GRAY 		8-97405-303-2 02 1 0712-0912 ●
486 SEAL; BODY SIDE 8-98154-664-0 02 1 1001- ●
556 PATCH; ROOF SIDE
(A) 		8-98024-391-0 01 1 0712- ●
556 PATCH; ROOF SIDE
(B) 		8-98024-393-0 01 1 0712- ●
556 PATCH; ROOF SIDE
(A) 		8-98024-390-0 01 1 0712- ●
556 PATCH; ROOF SIDE
(B) 		8-98024-392-0 01 1 0712- ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 0710-0711 ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 0712- ● ●
661 BRACKET; SIDE PANEL 8-98012-623-1 01 1 0712- ●
661 BRACKET; SIDE PANEL 8-98012-621-1 01 1 0712- ●
663 BRACKET; AIR
(A) 		8-97585-208-2 01 1 0710-0711 ●
663 BRACKET; AIR
(A) 		8-97585-208-2 01 1 0712- ● ●
663 BRACKET; AIR
(A) 		8-97585-207-2 01 1 0710-0711 ●
663 BRACKET; AIR
(A) 		8-97585-207-2 01 1 0712- ● ●
663 BRACKET; AIR
(B) 		8-98020-643-1 02 1 0712- ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 0710-0711 ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 0712- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 0710- ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98005-264-0 01 1 0710-0711 ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98005-264-0 01 1 0712-0806 ● ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98109-948-0 01 1 0807- ● ●
669 STUD; FENDER
M6X12 		8-98013-112-0 02 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
