◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11420 - FTR(AUST)EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#58121) — 571 parça

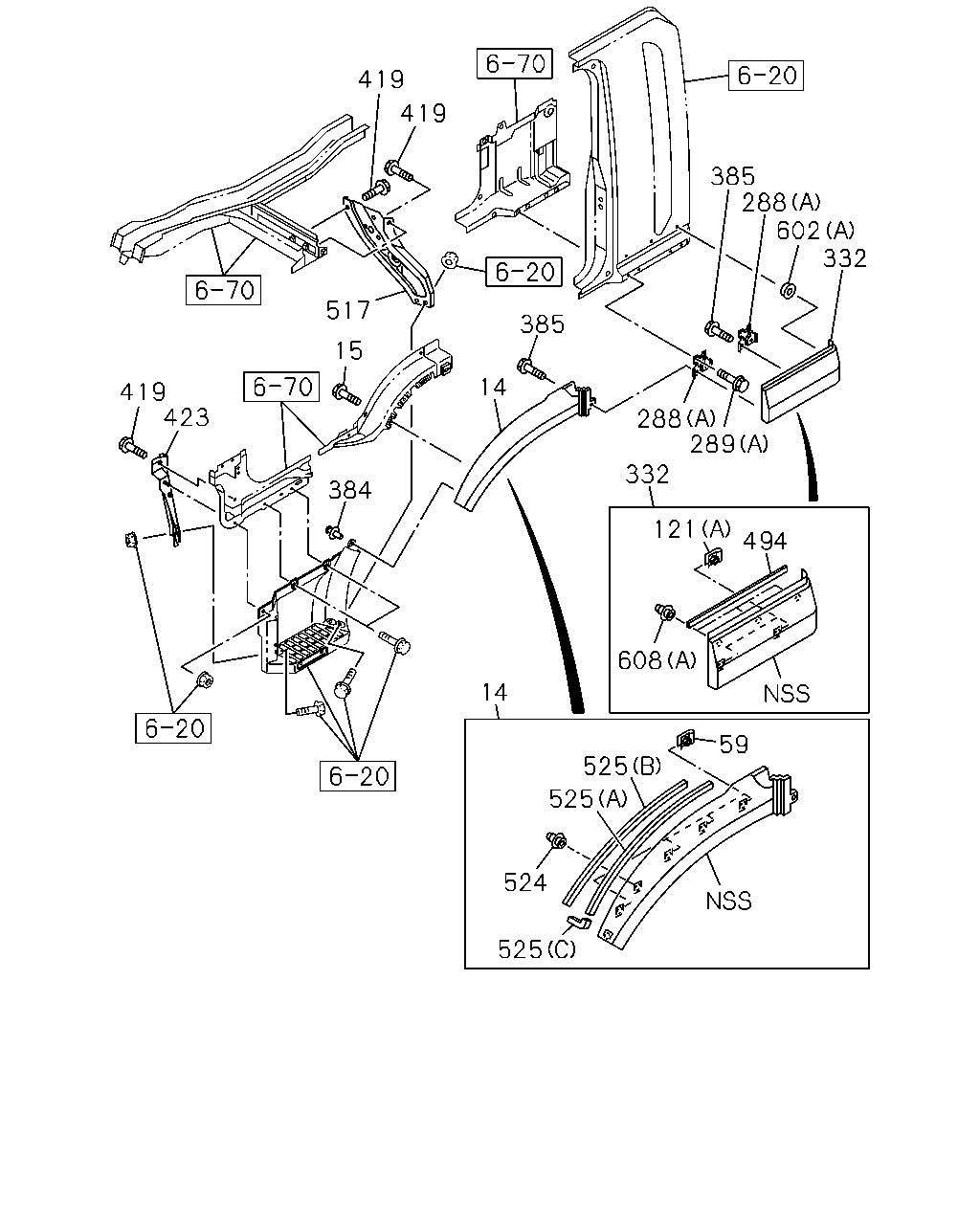

çizim 146871
525 524 525 59 525 608 121 494 332 14 14 385 288 385 332 289 602 288 419 419 384 15 517 423 419
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 0710-0711 ●
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 0712- ● ●
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 0710-0711 ●
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 0712- ● ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 0710-0711 ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 0712- ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 0710-0711 ●
59 GROMMET; SCREW 8-94279-723-0 02 1 0712- ● ●
59 GROMMET; SCREW 8-94279-723-0 08 1 0710-0711 ●
59 GROMMET; SCREW 8-94279-723-0 08 1 0712- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0710-0711 ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0712- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 0710- ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 0710-0711 ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 0712- ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 0710-0711 ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 0712- ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 0710-0711 ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 0712- ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 0710-0711 ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 0712- ● ●
288 BRACKET; FENDER SKIRT
(A) 		8-98041-162-1 04 1 0710- ●
288 BRACKET; FENDER SKIRT
(B) 		8-98019-871-3 01 1 0712- ●
288 BRACKET; FENDER SKIRT
(B) 		8-98019-870-3 01 1 0712- ●
289 BOLT; FENDER SKIRT BRKT
(A) M6X16 FLANGE 		0-28650-616-0 08 1 0710- ●
289 BOLT; FENDER SKIRT BRKT
(B) M6X20 W/PL WASHER 		8-98059-504-0 02 1 0712- ●
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-606-2 01 1 0906- ●
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-596-2 01 1 0906- ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-507-2 01 1 0710- ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-506-2 01 1 0710- ●
332 FENDER; RR
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> YELLOW 		8-97417-755-2 01 1 0906-0906 ●
332 FENDER; RR
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> YELLOW 		8-97417-754-2 01 1 0906-0906 ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-310-2 01 1 0710- ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-304-2 01 1 0710- ●
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-609-2 01 1 0906- ●
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-599-2 01 1 0906- ●
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-313-2 01 1 0710- ●
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-307-2 01 1 0710- ●
332 FENDER; RR
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97411-819-2 01 1 0710- ●
332 FENDER; RR
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97411-818-2 01 1 0710- ●
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-608-2 01 1 0906- ●
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-598-2 01 1 0906- ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-314-2 01 1 0710- ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-308-2 01 1 0710- ●
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-615-2 01 1 0906- ●
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-605-2 01 1 0906- ●
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-613-2 01 1 0906- ●
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-603-2 01 1 0906- ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-612-2 01 1 0906- ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-602-2 01 1 0906- ●
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-675-2 01 1 0906- ●
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-674-2 01 1 0906- ●
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-607-2 01 1 0906- ●
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-597-2 01 1 0906- ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-311-2 01 1 0710- ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-305-2 01 1 0710- ●
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-315-2 01 1 0710- ●
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-309-2 01 1 0710- ●
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-611-2 01 1 0906- ●
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-601-2 01 1 0906- ●
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-610-2 01 1 0906- ●
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-600-2 01 1 0906- ●
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-435-2 01 1 0710- ●
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-434-2 01 1 0710- ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 0710-0711 ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 0712- ● ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 0710- ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 02 1 0712- ●
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 0710-0711 ●
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 0712- ● ●
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 0710-0711 ●
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 0712- ● ●
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 0710-0711 ●
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 0712- ● ●
494 FINISHER; FENDER 8-98072-723-0 01 1 0710- ● ●
494 FINISHER; FENDER 8-98041-172-1 01 1 0710- ● ●
517 SUPPORT; STEP PANEL 8-98037-351-2 01 1 0710-0711 ●
517 SUPPORT; STEP PANEL 8-98037-351-2 01 1 0712- ● ●
517 SUPPORT; STEP PANEL 8-98037-350-2 01 1 0710-0711 ●
517 SUPPORT; STEP PANEL 8-98037-350-2 01 1 0712- ● ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 0710-0711 ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 0712- ● ●
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 0710-0711 ●
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 0712- ● ●
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 0710-0711 ●
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 0712- ● ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 0710-0711 ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 0712- ● ●
602 RETAINER; COVER
(A) ID=5.4 OD=6.8 		1-09989-021-0 06 1 0710-1302 ●
602 RETAINER; COVER
(A) ID=5.4 OD=6.8 		8-98241-984-0 06 1 1303- ●
602 RETAINER; COVER
(B) D=10X10 L=8 M6 		1-09983-119-0 02 1 0712- ●
608 CLIP
(B) 		8-98282-490-0 02 1 1408- ● ●
608 CLIP
(A) D5.4X8 		1-09983-154-0 06 1 0710- ● ●

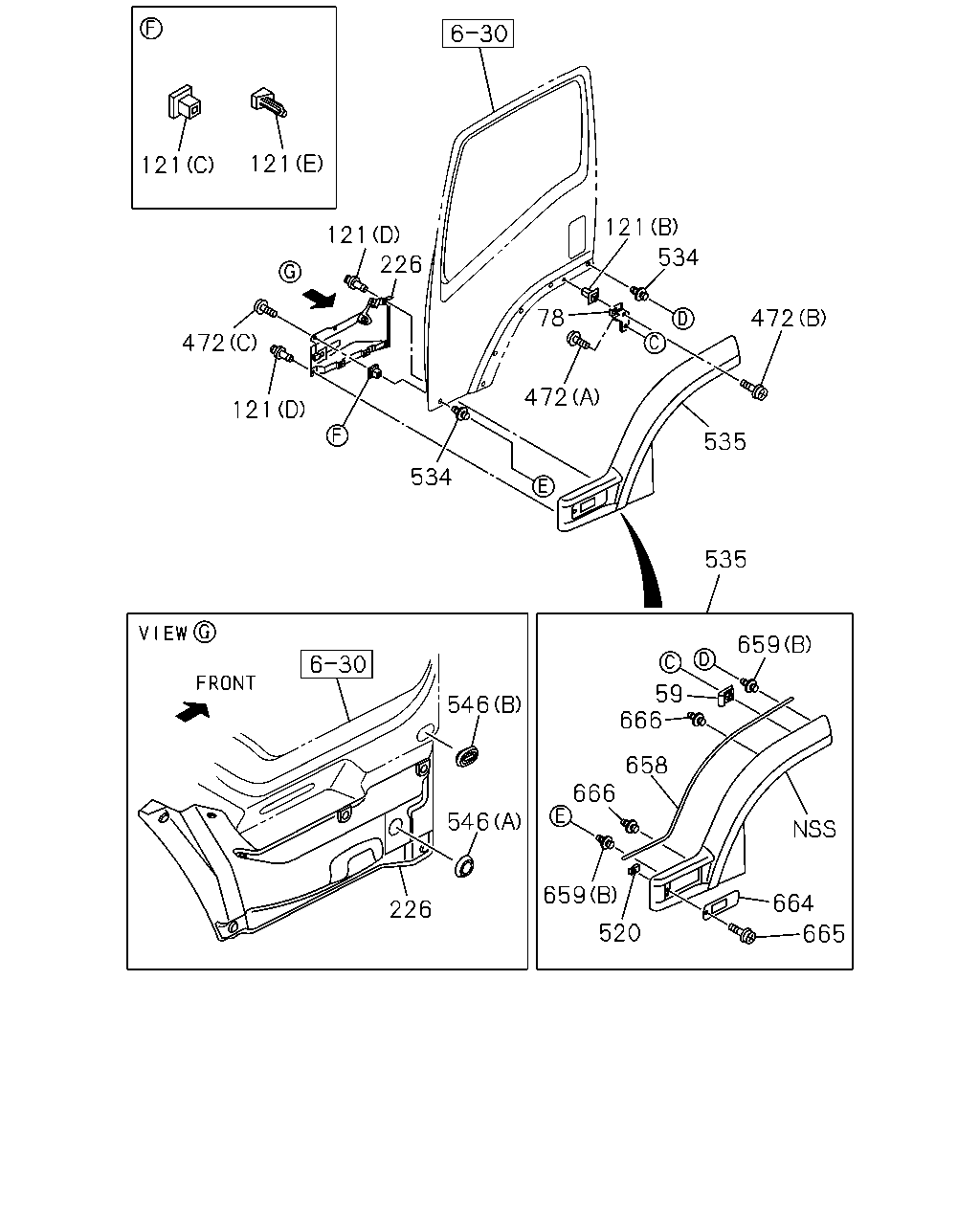

çizim 146876
121 121 121 121 534 226 78 472 472 472 121 535 534 535 659 59 666 546 658 666 546 659 664 226 520 665
BalonParca AdiParca NoAdetTipApplied Date A B
59 GROMMET; SCREW 8-94279-723-0 02 1 0710-0711 ●
59 GROMMET; SCREW 8-94279-723-0 02 1 0712- ● ●
59 GROMMET; SCREW 8-94279-723-0 08 1 0710-0711 ●
59 GROMMET; SCREW 8-94279-723-0 08 1 0712- ● ●
78 BRACKET; FENDER 8-98041-166-1 01 1 0710-0711 ●
78 BRACKET; FENDER 8-98041-166-1 01 1 0712- ● ●
78 BRACKET; FENDER 8-98041-165-1 01 1 0710-0711 ●
78 BRACKET; FENDER 8-98041-165-1 01 1 0712- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0710-0711 ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0712- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 0710- ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 0710-0711 ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 0712- ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 0710-0711 ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 0712- ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 0710-0711 ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 0712- ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 0710-0711 ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 0712- ● ●
226 PROTECTOR; FRT 8-98037-715-2 01 1 0710-0711 ●
226 PROTECTOR; FRT 8-98037-715-2 01 1 0712- ● ●
226 PROTECTOR; FRT 8-98037-714-2 01 1 0710-0711 ●
226 PROTECTOR; FRT 8-98037-714-2 01 1 0712- ● ●
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 0710-0711 ●
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 0712- ● ●
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 0710-0711 ●
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 0712- ● ●
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 0710-0711 ●
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 0712- ● ●
520 NUT; FENDER 8-94279-501-0 02 1 0710-0711 ●
520 NUT; FENDER 8-94279-501-0 02 1 0712- ● ●
534 FASTENER
ID=5.4 OD=6.8 		1-09989-021-0 12 1 0710-0711 ●
534 FASTENER
ID=5.4 OD=6.8 		1-09989-021-0 12 1 0712-1302 ● ●
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1303- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97408-248-3 01 1 0710-0711 ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97408-248-3 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-384-1 01 1 0801- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97408-247-3 01 1 0710-0711 ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97408-247-3 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-364-1 01 1 0801- ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-719-3 01 1 0710-0711 ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-719-3 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-381-1 01 1 0801- ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-714-3 01 1 0710-0711 ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-714-3 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-361-1 01 1 0801- ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-722-3 01 1 0710-0711 ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-722-3 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-382-1 01 1 0801- ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-717-3 01 1 0710-0711 ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-717-3 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-362-1 01 1 0801- ● ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97411-837-3 01 1 0710-0711 ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97411-837-3 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97415-383-1 01 1 0801- ● ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97411-836-3 01 1 0710-0711 ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97411-836-3 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97415-363-1 01 1 0801- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-721-3 01 1 0710-0711 ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-721-3 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-387-1 01 1 0801- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-716-3 01 1 0710-0711 ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-716-3 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-367-1 01 1 0801- ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-720-3 01 1 0710-0711 ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-720-3 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-391-1 01 1 0801- ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-715-3 01 1 0710-0711 ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-715-3 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-371-1 01 1 0801- ● ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-723-3 01 1 0710-0711 ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-723-3 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-375-1 01 1 0801- ● ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-718-3 01 1 0710-0711 ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-718-3 01 1 0712-0712 ● ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-355-1 01 1 0801- ● ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98038-444-3 01 1 0710-0711 ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98038-444-3 01 1 0712-0712 ● ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> 		8-98106-503-0 01 1 0801- ● ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98038-443-3 01 1 0710-0711 ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98038-443-3 01 1 0712-0712 ● ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> 		8-98106-502-0 01 1 0801- ● ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97415-379-1 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97415-359-1 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> YELLOW 		8-97417-773-0 01 1 0906-0906 ● ●
535 FENDER; BLISTER
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> YELLOW 		8-97417-772-0 01 1 0906-0906 ● ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97415-374-1 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97415-354-1 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97415-380-1 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97415-360-1 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97415-376-1 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97415-356-1 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97415-389-1 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97415-369-1 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97415-392-1 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97415-372-1 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-745-1 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-744-1 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97415-373-1 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97415-353-1 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97415-390-1 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97415-370-1 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-377-1 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-357-1 01 1 0906- ● ●
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 0710-0711 ●
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 0712- ● ●
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 0710-0711 ●
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 0712- ● ●
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 0710-0711 ●
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 0712- ● ●
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 0710-0711 ●
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 0712- ● ●

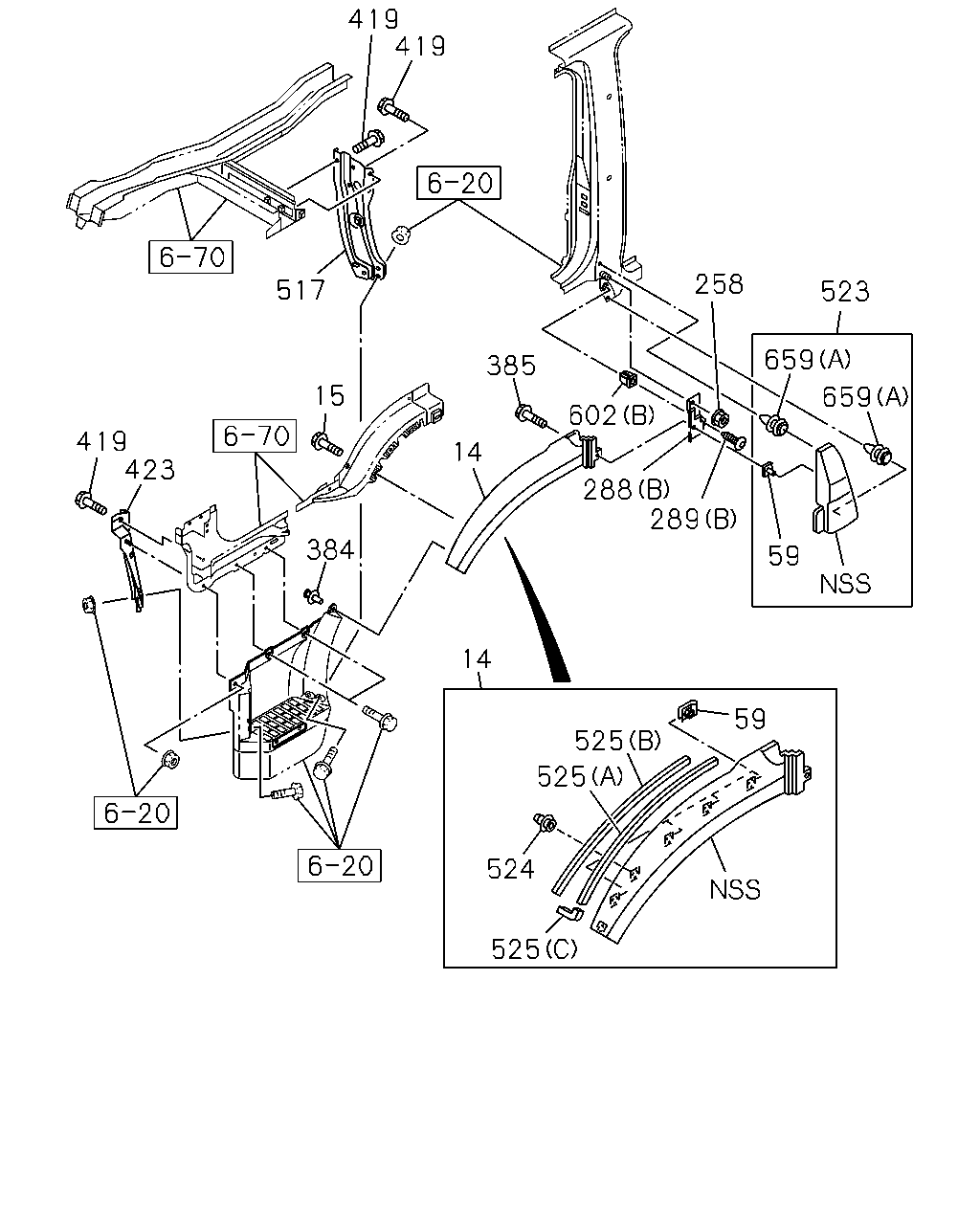

659 CLIP; FENDER
(B) D5.4X8 		1-09983-154-0 08 1 0710-0711 ●
659 CLIP; FENDER
(B) D5.4X8 		1-09983-154-0 08 1 0712- ● ●
659 CLIP; FENDER
(A) OD=8.5 GRAY 		8-97893-482-0 04 1 0712-0905 ●
659 CLIP; FENDER
(A) OD=8.5 GRAY 		8-97893-482-0 04 1 0906- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97409-219-1 01 1 0710-0711 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97409-219-1 01 1 0712-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-497-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97409-218-1 01 1 0710-0711 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97409-218-1 01 1 0712-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-485-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-454-1 01 1 0710-0711 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-454-1 01 1 0712-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-499-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-448-1 01 1 0710-0711 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-448-1 01 1 0712-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-487-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-457-1 01 1 0710-0711 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-457-1 01 1 0712-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-503-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-451-1 01 1 0710-0711 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-451-1 01 1 0712-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-491-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97411-456-1 01 1 0710-0711 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97411-456-1 01 1 0712-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97421-553-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97411-450-1 01 1 0710-0711 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97411-450-1 01 1 0712-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97421-525-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-458-1 01 1 0710-0711 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-458-1 01 1 0712-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-505-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-452-1 01 1 0710-0711 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-452-1 01 1 0712-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-493-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-455-1 01 1 0710-0711 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-455-1 01 1 0712-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-501-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-449-1 01 1 0710-0711 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-449-1 01 1 0712-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-489-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-459-1 01 1 0710-0711 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-459-1 01 1 0712-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97421-507-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-453-1 01 1 0710-0711 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-453-1 01 1 0712-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97421-495-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-146-1 01 1 0710-0711 ●
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-146-1 01 1 0712- ● ●
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-145-1 01 1 0710-0711 ●
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-145-1 01 1 0712- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-898-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97421-549-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-878-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97421-521-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> YELLOW 		8-97417-948-1 01 1 0906-0906 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> YELLOW 		8-97417-946-1 01 1 0906-0906 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-901-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97421-539-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-881-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97421-511-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-900-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97421-551-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-880-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97421-523-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-907-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97421-543-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-887-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97421-515-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-905-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97421-559-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-885-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97421-531-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-904-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-563-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-884-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-535-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-936-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97421-607-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-943-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97421-605-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-899-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97421-537-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-879-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97421-509-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-903-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97421-596-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-883-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97421-533-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-902-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-547-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-882-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-519-0 01 1 1008- ● ●
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 0710-0711 ●
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 0712- ● ●
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 0710-0711 ●
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 0712- ● ●
çizim 146890
419 419 258 517 523 659 385 15 659 602 419 423 14 288 289 384 59 14 59 525 525 524 525
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 0710-0711 ●
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 0712- ● ●
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 0710-0711 ●
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 0712- ● ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 0710-0711 ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 0712- ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 0710-0711 ●
59 GROMMET; SCREW 8-94279-723-0 02 1 0712- ● ●
59 GROMMET; SCREW 8-94279-723-0 08 1 0710-0711 ●
59 GROMMET; SCREW 8-94279-723-0 08 1 0712- ● ●
258 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 0712- ●
288 BRACKET; FENDER SKIRT
(A) 		8-98041-162-1 04 1 0710- ●
288 BRACKET; FENDER SKIRT
(B) 		8-98019-871-3 01 1 0712- ●
288 BRACKET; FENDER SKIRT
(B) 		8-98019-870-3 01 1 0712- ●
289 BOLT; FENDER SKIRT BRKT
(A) M6X16 FLANGE 		0-28650-616-0 08 1 0710- ●
289 BOLT; FENDER SKIRT BRKT
(B) M6X20 W/PL WASHER 		8-98059-504-0 02 1 0712- ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 0710-0711 ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 0712- ● ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 0710- ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 02 1 0712- ●
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 0710-0711 ●
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 0712- ● ●
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 0710-0711 ●
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 0712- ● ●
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 0710-0711 ●
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 0712- ● ●
517 SUPPORT; STEP PANEL 8-98037-351-2 01 1 0710-0711 ●
517 SUPPORT; STEP PANEL 8-98037-351-2 01 1 0712- ● ●
517 SUPPORT; STEP PANEL 8-98037-350-2 01 1 0710-0711 ●
517 SUPPORT; STEP PANEL 8-98037-350-2 01 1 0712- ● ●
523 COVER; FENDER RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-447-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-679-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR ARC WHITE(729) WHITE 		8-97413-124-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR ARC WHITE(729) WHITE 		8-97413-117-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR BRIGHT YELLOW(538) YELLOW 		8-97417-767-1 01 1 0906-0906 ●
523 COVER; FENDER RR
BODY COLOR BRIGHT YELLOW(538) YELLOW 		8-97417-766-1 01 1 0906-0906 ●
523 COVER; FENDER RR
BODY COLOR CARDINAL RED(736) RED 		8-97413-121-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR CARDINAL RED(736) RED 		8-97413-114-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-450-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-682-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR FIRE RED(915) RED 		8-97413-122-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR FIRE RED(915) RED 		8-97413-115-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR FT ORANGE(609) BEIGE 		8-97413-123-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR FT ORANGE(609) BEIGE 		8-97413-116-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-449-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-681-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97413-125-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97413-118-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR GREEN(989) GREEN 		8-97413-456-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR GREEN(989) GREEN 		8-97413-688-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-454-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-686-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-453-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-685-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-739-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-738-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-448-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-680-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97413-126-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97413-119-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97413-120-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97413-113-1 01 1 0712- ●
523 COVER; FENDER RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-452-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-684-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-451-1 01 1 0906- ●
523 COVER; FENDER RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-683-1 01 1 0906- ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 0710-0711 ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 0712- ● ●
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 0710-0711 ●
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 0712- ● ●
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 0710-0711 ●
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 0712- ● ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 0710-0711 ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 0712- ● ●
602 RETAINER; COVER
(A) ID=5.4 OD=6.8 		1-09989-021-0 06 1 0710-1302 ●
602 RETAINER; COVER
(A) ID=5.4 OD=6.8 		8-98241-984-0 06 1 1303- ●
602 RETAINER; COVER
(B) D=10X10 L=8 M6 		1-09983-119-0 02 1 0712- ●
659 CLIP; FENDER
(B) D5.4X8 		1-09983-154-0 08 1 0710-0711 ●
659 CLIP; FENDER
(B) D5.4X8 		1-09983-154-0 08 1 0712- ● ●
659 CLIP; FENDER
(A) OD=8.5 GRAY 		8-97893-482-0 04 1 0712-0905 ●
659 CLIP; FENDER
(A) OD=8.5 GRAY 		8-97893-482-0 04 1 0906- ● ●

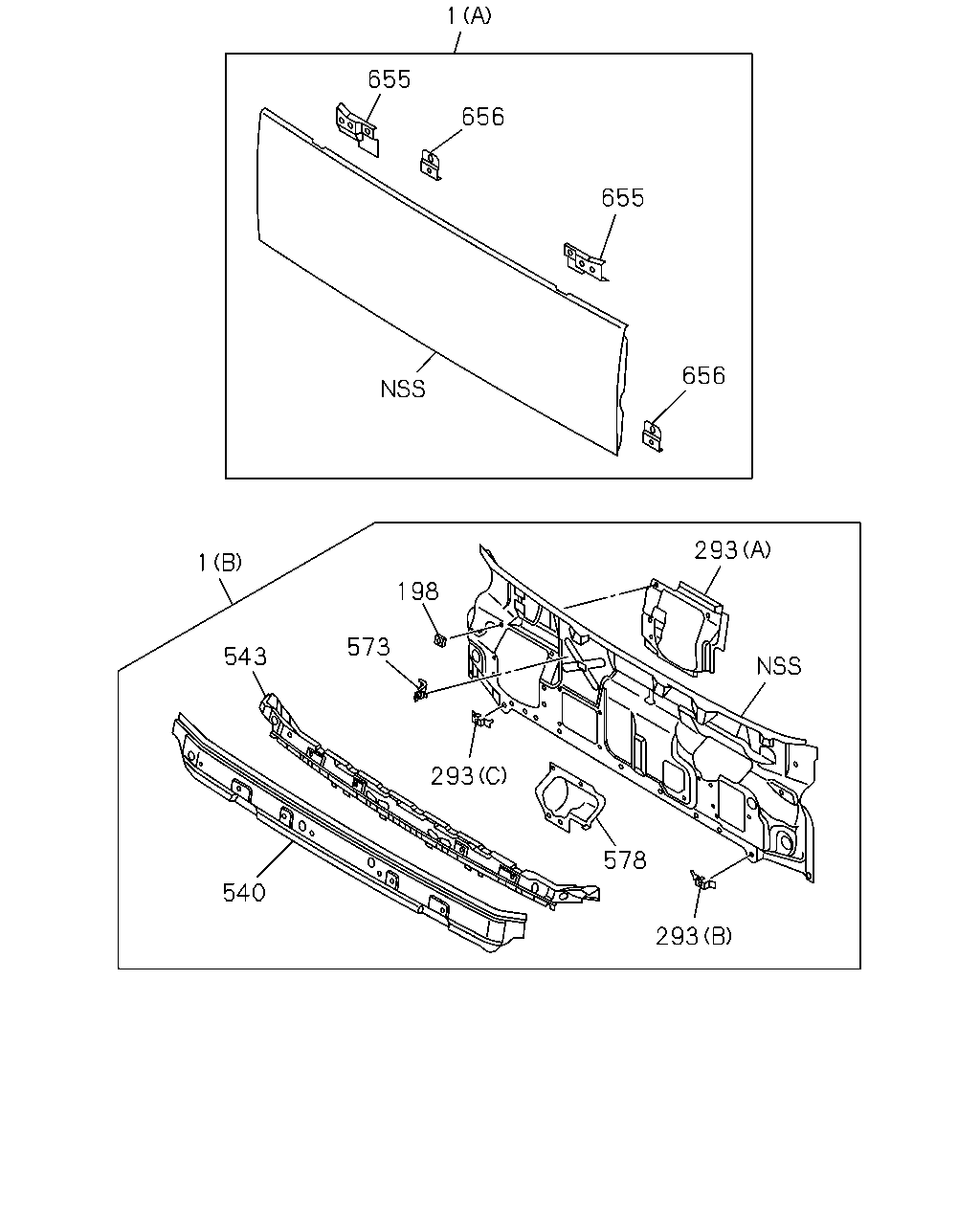

çizim 147092
1 655 656 655 656 293 1 198 573 543 293 578 540 293
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 0710-0711 ●
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 0712- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 0710-0711 ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 0712- ● ●
198 NUT; PANEL
M6 		9-09114-086-0 02 1 0710-0711 ●
198 NUT; PANEL
M6 		9-09114-086-0 02 1 0712- ● ●
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 0710-0711 ●
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 0712- ● ●
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 0710-0711 ●
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 0712- ● ●
293 BRACKET; PANEL
(C) 		8-98008-126-1 01 1 0710-0711 ●
293 BRACKET; PANEL
(C) 		8-98008-126-1 01 1 0712- ● ●
540 PANEL; FRONT,OUTER 8-97585-966-2 01 1 0710-0711 ●
540 PANEL; FRONT,OUTER 8-97585-966-2 01 1 0712- ● ●
543 CLOSING; FRT MTG RAIL 8-97585-990-4 01 1 0710-0711 ●
543 CLOSING; FRT MTG RAIL 8-97585-990-4 01 1 0712- ● ●
573 BRACKET; SUPPORT 8-98017-700-2 01 1 0710-0711 ●
573 BRACKET; SUPPORT 8-98017-700-2 01 1 0712- ● ●
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 0710-0711 ●
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 0712- ● ●
655 PATCH; HINGE 8-98031-263-0 01 1 0710-0711 ●
655 PATCH; HINGE 8-98031-263-0 01 1 0712- ● ●
655 PATCH; HINGE 8-98031-264-0 01 1 0710-0711 ●
655 PATCH; HINGE 8-98031-264-0 01 1 0712- ● ●
656 PATCH; STRIKER 8-98031-265-0 02 1 0710-0711 ●
656 PATCH; STRIKER 8-98031-265-0 02 1 0712- ● ●

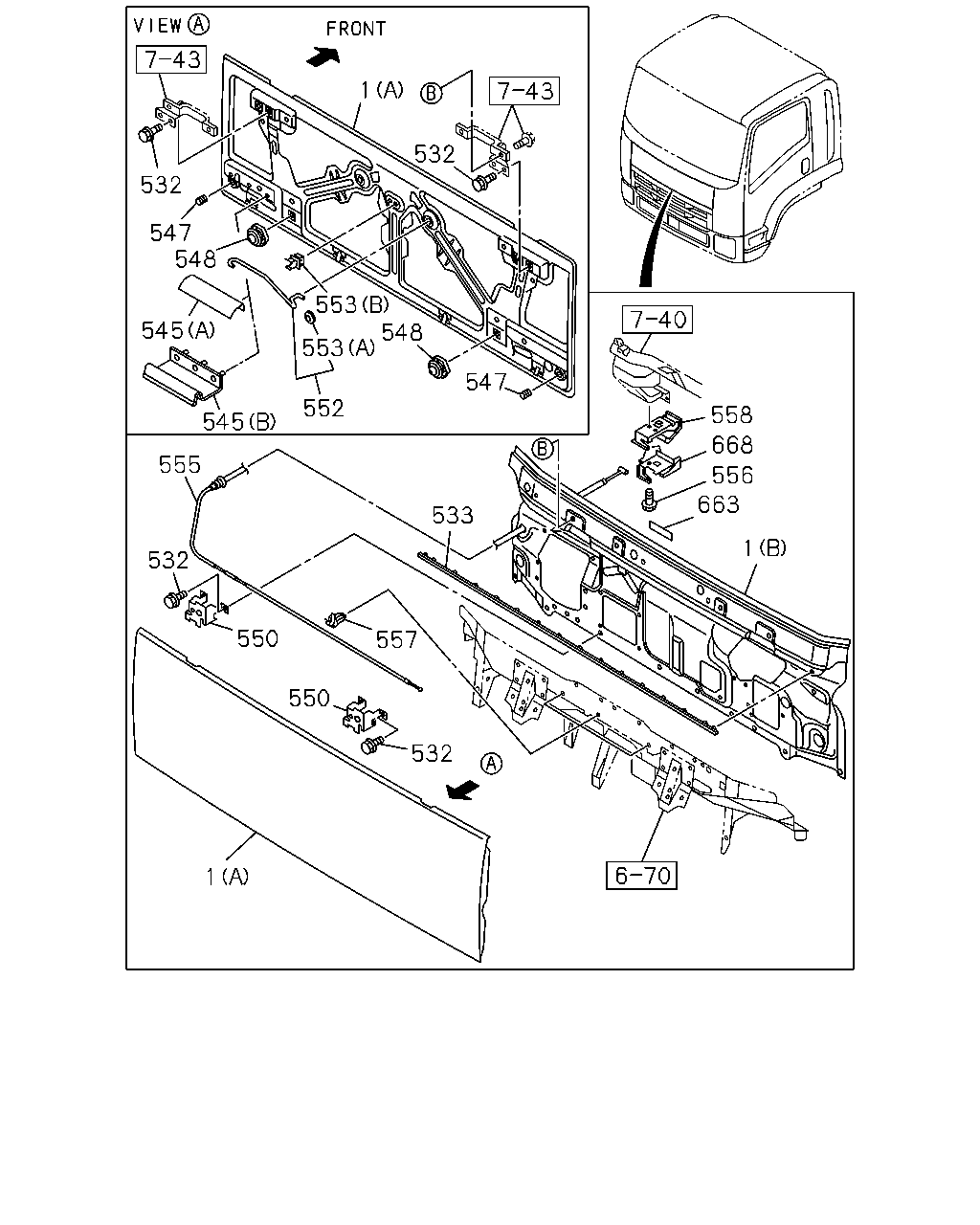

çizim 147098
1 532 532 547 548 553 548 545 553 547 552 558 545 668 555 556 663 533 1 532 550 557 550 532 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 0710-0711 ●
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 0712- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 0710-0711 ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 0712- ● ●
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 0710-0711 ●
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 0712- ● ●
533 SEAL; FRT PANEL 8-98096-289-0 01 1 0710-0711 ●
533 SEAL; FRT PANEL 8-98096-289-0 01 1 0712- ● ●
545 SEAL; FRT LID
(A) 		8-98036-584-0 01 1 0710-0711 ●
545 SEAL; FRT LID
(A) 		8-98036-584-0 01 1 0712-0910 ● ●
545 SEAL; FRT LID
(B) 		8-98123-265-0 01 1 0911- ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 0710-0711 ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 0712- ● ●
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 0710-0711 ●
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 0712- ● ●
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 0710-0711 ●
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 0712- ● ●
552 STAY; FRT LID 8-98089-838-0 01 1 0710-0711 ●
552 STAY; FRT LID 8-98089-838-0 01 1 0712- ● ●
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 0710-0711 ●
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 0712- ● ●
553 CLIP; STAY
(A) 		8-98071-399-0 01 1 0710-0711 ●
553 CLIP; STAY
(A) 		8-98071-399-0 01 1 0712- ● ●
555 CABLE; FRT LID 8-98036-574-1 01 1 0710-0711 ●
555 CABLE; FRT LID 8-98036-574-1 01 1 0712- ● ●
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 0710-0711 ●
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 0712- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 0710-0711 ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 0712- ● ●
558 LEVER; FRT LID 1-79338-007-0 01 1 0710-0711 ●
558 LEVER; FRT LID 1-79338-007-0 01 1 0712- ● ●
663 TAPE; PROTECT
175X11 		8-98070-054-1 01 1 0710-0711 ●
663 TAPE; PROTECT
175X11 		8-98070-054-1 01 1 0712-0910 ● ●
668 COVER; LEVER,FRT LID 8-98076-339-0 01 1 0710-0711 ●
668 COVER; LEVER,FRT LID 8-98076-339-0 01 1 0712- ● ●

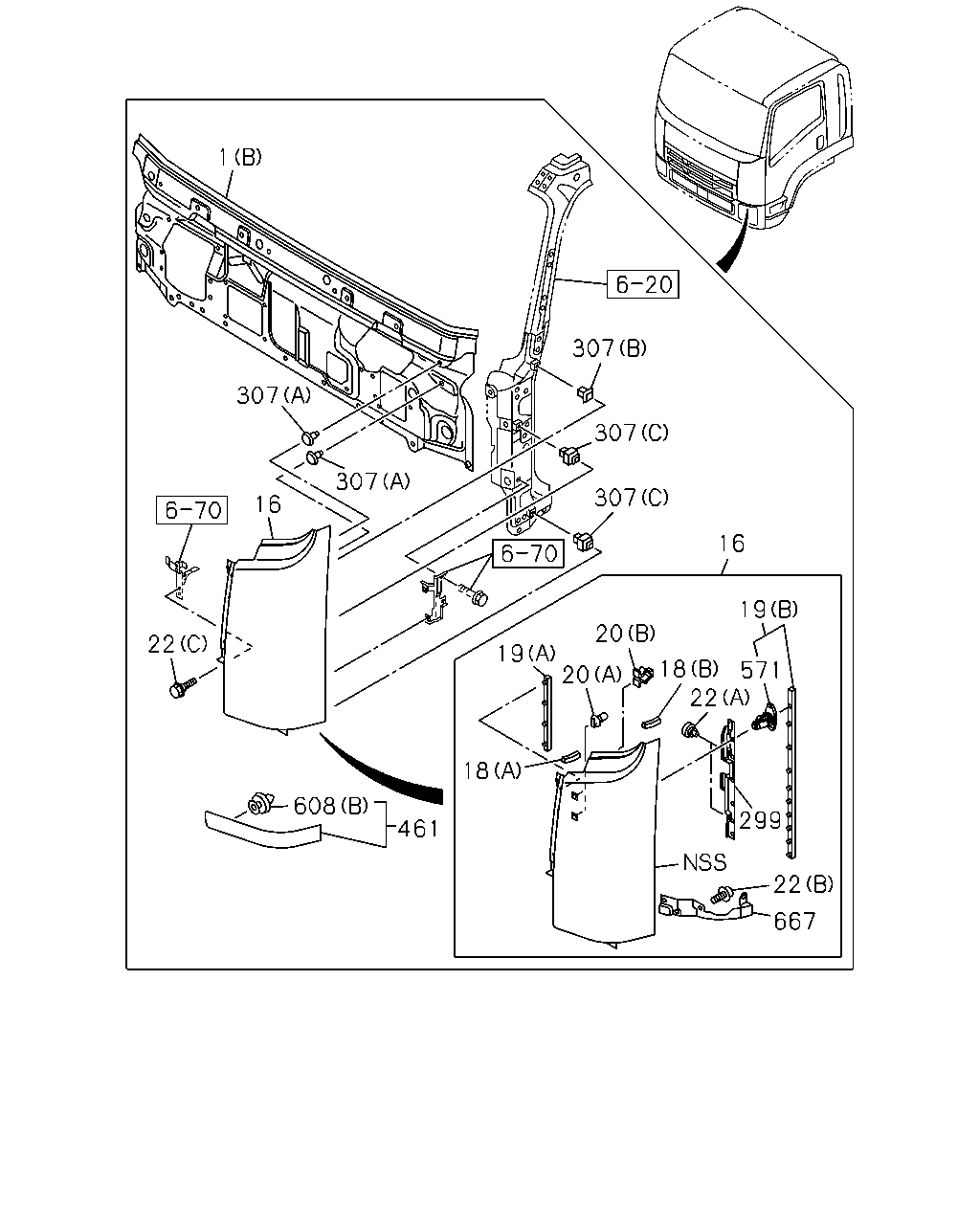

çizim 147099
667 22 299 22 18 571 19 20 20 19 18 307 307 307 461 608 22 16 307 307 1 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 0710-0711 ●
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 0712- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 0710-0711 ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 0712- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97409-902-4 01 1 0710-0711 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97409-902-4 01 1 0712- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97408-246-4 01 1 0710-0711 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97408-246-4 01 1 0712- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-739-4 01 1 0710-0711 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-739-4 01 1 0712- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-734-4 01 1 0710-0711 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-734-4 01 1 0712- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-742-4 01 1 0710-0711 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-742-4 01 1 0712- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-737-4 01 1 0710-0711 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-737-4 01 1 0712- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) BEIGE 		8-97411-835-4 01 1 0710-0711 ●
16 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) BEIGE 		8-97411-835-4 01 1 0712- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) BEIGE 		8-97411-834-4 01 1 0710-0711 ●
16 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) BEIGE 		8-97411-834-4 01 1 0712- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-741-4 01 1 0710-0711 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-741-4 01 1 0712- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-736-4 01 1 0710-0711 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-736-4 01 1 0712- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-740-4 01 1 0710-0711 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-740-4 01 1 0712- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-735-4 01 1 0710-0711 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-735-4 01 1 0712- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-743-4 01 1 0710-0711 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-743-4 01 1 0712- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-738-4 01 1 0710-0711 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-738-4 01 1 0712- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97417-664-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97413-769-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538) YELLOW 		8-97417-753-4 01 1 0906-0906 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538) YELLOW 		8-97417-752-4 01 1 0906-0906 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97417-667-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97413-772-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97417-666-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97413-771-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97417-673-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97413-778-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-671-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-776-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97417-670-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-775-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-672-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-663-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BLUE 		8-97417-665-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BLUE 		8-97413-770-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97417-669-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-774-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97417-668-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-773-4 01 1 0906- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 02 1 0710-0711 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 02 1 0712-0905 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 02 1 0906-0906 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLORWOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINEBLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BOD Y COLOR POLAR WHITE(982),BODY COLOR GREEN(989), BODY COLOR TRANS BLUE(999) (B) 		8-98038-608-0 02 1 0906- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 02 1 0710-0711 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 02 1 0712-0905 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 02 1 0906-0906 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLORWOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINEBLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BOD Y COLOR POLAR WHITE(982),BODY COLOR GREEN(989), BODY COLOR TRANS BLUE(999) (A) 		8-98043-511-1 02 1 0906- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 0710-0711 ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 0712-0905 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 0906-0906 ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLORWOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINEBLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BOD Y COLOR POLAR WHITE(982),BODY COLOR GREEN(989), BODY COLOR TRANS BLUE(999) (A) 		8-98036-581-0 01 1 0906- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 0710-0711 ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 0712-0905 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 0906-0906 ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLORWOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINEBLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BOD Y COLOR POLAR WHITE(982),BODY COLOR GREEN(989), BODY COLOR TRANS BLUE(999) (B) 		8-98041-359-2 01 1 0906- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 0710-0711 ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 0712-0905 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 0906-0906 ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLORWOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINEBLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BOD Y COLOR POLAR WHITE(982),BODY COLOR GREEN(989), BODY COLOR TRANS BLUE(999) (A) 		8-98036-580-0 01 1 0906- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 0710-0711 ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 0712-0905 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 0906-0906 ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLORWOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINEBLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BOD Y COLOR POLAR WHITE(982),BODY COLOR GREEN(989), BODY COLOR TRANS BLUE(999) (B) 		8-98041-358-2 01 1 0906- ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 04 1 0710-0711 ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 04 1 0712-0905 ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 04 1 0906-0906 ● ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLORWOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINEBLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BOD Y COLOR POLAR WHITE(982),BODY COLOR GREEN(989), BODY COLOR TRANS BLUE(999) (A) 		8-97410-739-0 04 1 0906- ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 02 1 0710-0711 ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 02 1 0712-0905 ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 02 1 0906-0906 ● ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLORWOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINEBLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BOD Y COLOR POLAR WHITE(982),BODY COLOR GREEN(989), BODY COLOR TRANS BLUE(999) (B) 		8-97410-740-2 02 1 0906- ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING 		0-72180-516-0 06 1 0710-0711 ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING 		0-72180-516-0 06 1 0712-0905 ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING 		0-72180-516-0 06 1 0906-0906 ● ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLORWOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINEBLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BOD Y COLOR POLAR WHITE(982),BODY COLOR GREEN(989), BODY COLOR TRANS BLUE(999) (B) M5X16 TAPPING 		0-72180-516-0 06 1 0906- ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0710-0711 ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0712-0905 ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0906-0906 ● ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLORWOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINEBLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BOD Y COLOR POLAR WHITE(982),BODY COLOR GREEN(989), BODY COLOR TRANS BLUE(999) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0906- ● ●
22 SCREW; FRT PANEL SIDE
(C) M6X16 FLANGE 		8-98061-108-0 06 1 0710-0711 ●
22 SCREW; FRT PANEL SIDE
(C) M6X16 FLANGE 		8-98061-108-0 06 1 0712- ● ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 0710-0711 ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 0712-0905 ● ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 0906-0906 ● ●
299 COVER; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLORWOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINEBLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BOD Y COLOR POLAR WHITE(982),BODY COLOR GREEN(989), BODY COLOR TRANS BLUE(999) 		8-98034-814-1 01 1 0906- ● ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 0710-0711 ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 0712-0905 ● ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 0906-0906 ● ●
299 COVER; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLORWOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINEBLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BOD Y COLOR POLAR WHITE(982),BODY COLOR GREEN(989), BODY COLOR TRANS BLUE(999) 		8-98034-813-1 01 1 0906- ● ●
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 0710-0711 ●
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 0712- ● ●
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 0710-0711 ●
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 0712- ● ●
307 GROMMET; FRT PANEL
(A) 		8-98034-363-1 04 1 0710-0711 ●
307 GROMMET; FRT PANEL
(A) 		8-98034-363-1 04 1 0712- ● ●
461 PANEL; FRT SIDE 8-98058-164-1 01 1 0710-0711 ●
461 PANEL; FRT SIDE 8-98058-164-2 01 1 0712- ● ●
461 PANEL; FRT SIDE 8-98058-163-1 01 1 0710-0711 ●
461 PANEL; FRT SIDE 8-98058-163-2 01 1 0712- ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0710-0711 ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0712-0905 ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0906-0906 ● ●
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLORWOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINEBLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BOD Y COLOR POLAR WHITE(982),BODY COLOR GREEN(989), BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 20 1 0906- ● ●
608 CLIP
(B) 		8-98282-490-0 02 1 1408- ● ●
608 CLIP
(A) D5.4X8 		1-09983-154-0 06 1 0710- ● ●
667 STAY; EXT,SIDE PANEL 8-98063-344-0 01 1 0710-0711 ●
667 STAY; EXT,SIDE PANEL 8-98063-344-0 01 1 0712-0905 ● ●
667 STAY; EXT,SIDE PANEL 8-98063-344-0 01 1 0906-0906 ● ●
667 STAY; EXT,SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLORWOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINEBLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BOD Y COLOR POLAR WHITE(982),BODY COLOR GREEN(989), BODY COLOR TRANS BLUE(999) 		8-98063-344-0 01 1 0906- ● ●
667 STAY; EXT,SIDE PANEL 8-98063-343-0 01 1 0710-0711 ●
667 STAY; EXT,SIDE PANEL 8-98063-343-0 01 1 0712-0905 ● ●
667 STAY; EXT,SIDE PANEL 8-98063-343-0 01 1 0906-0906 ● ●
667 STAY; EXT,SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLORWOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINEBLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BOD Y COLOR POLAR WHITE(982),BODY COLOR GREEN(989), BODY COLOR TRANS BLUE(999) 		8-98063-343-0 01 1 0906- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
