Sayfa 6-04 - Isuzu EPC

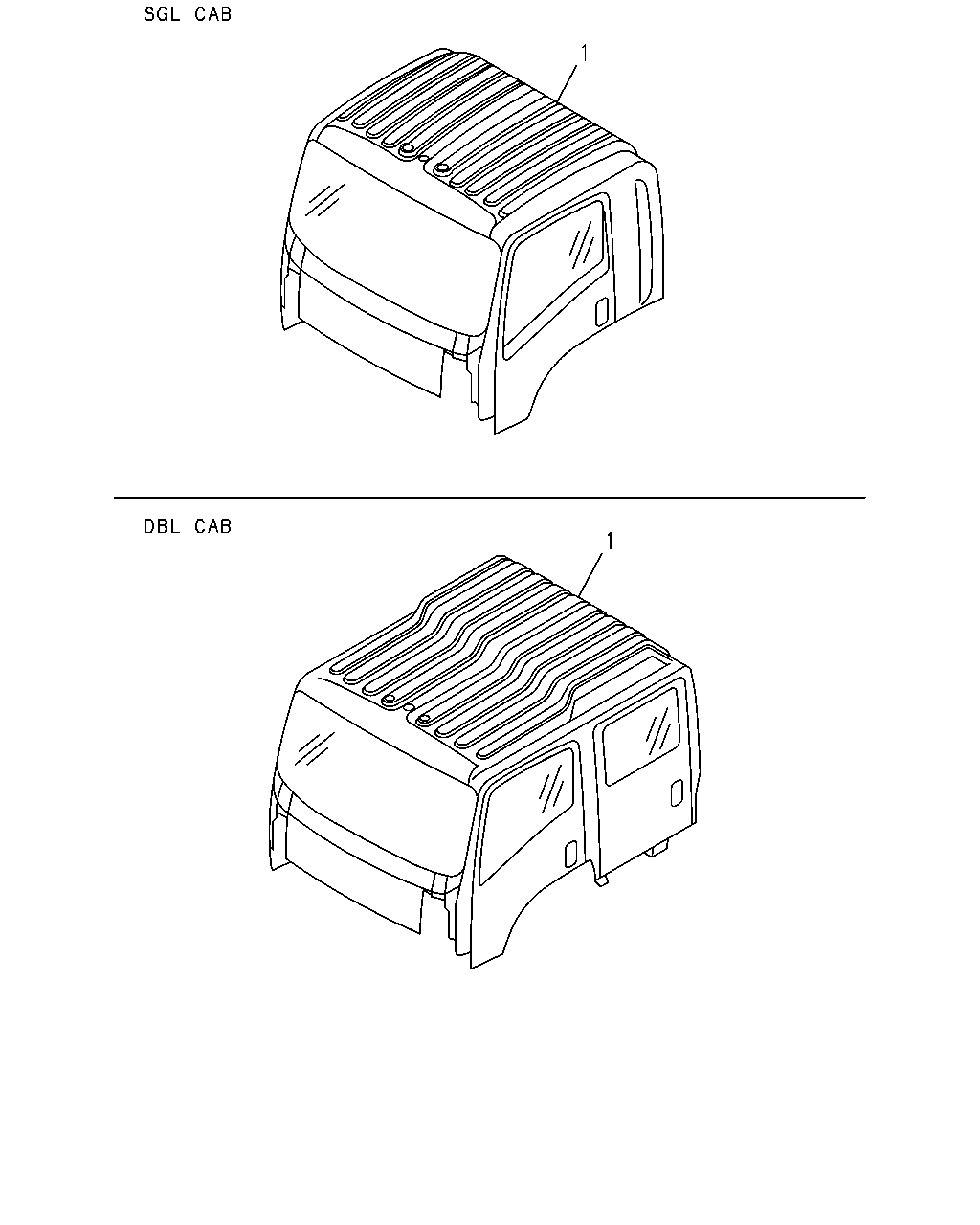

6-04 — CAB ASM (#58120) — 2 parça

1 1

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) INTERIOR FULL TRIM<WM3> 2-SPEAKER SYSTEM BASE<U95> FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> IMMOBILIZER SYSTEM<7KC> POWER WINDOW FRT DOOR<A32> LAMPS TWO ROOF MARKER<TEC> MZX6P M/T(RSW) EXC. COUNTRY NEW ZEALAND(CX6),ROUND CURTAIN RAIL<EDH>,O/SIDE MIRROR UNDER VIEW<RR9>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-61087-348-0	01	1	0710-	●
	1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) 2-SPEAKER SYSTEM BASE<U95> FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> IMMOBILIZER SYSTEM<7KC> POWER WINDOW FRT&REAR DOOR<A31> LAMPS TWO ROOF MARKER<TEC> MZX6P M/T(RSW) EXC. O/SIDE MIRROR UNDER VIEW<RR9>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-61087-353-0	01	1	0712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
