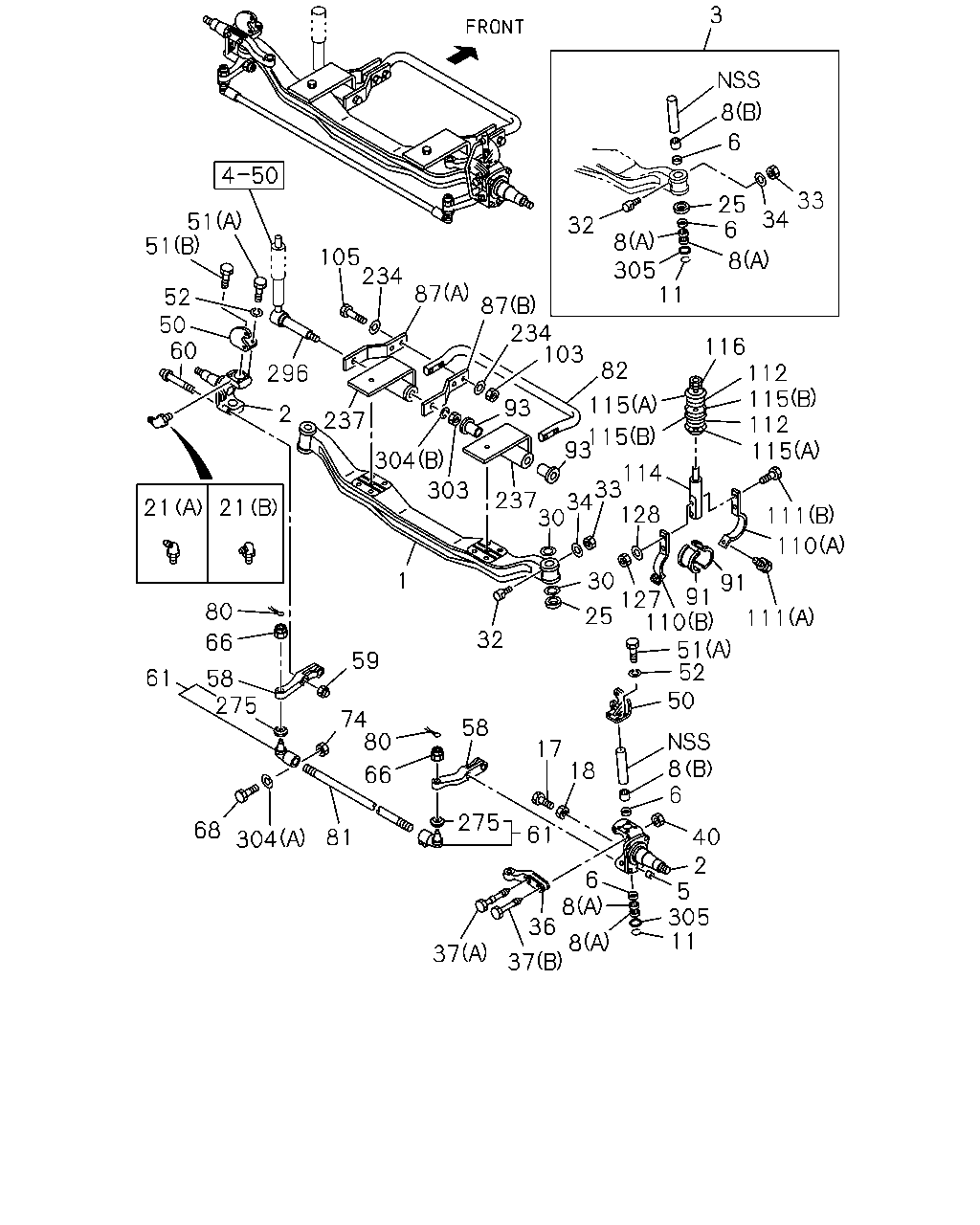

4-10 — FRONT AXLE (#5812) — 90 parça

3 8 6 33 34 25 6 51 32 8 305 11 51 105 234 8 87 52 50 60 87 234 103 116 112 115 112 115 82 296 93 115 2 237 115 93 304 114 33 30 128 303 21 21 111 110 30 127 91 110 51 52 50 1 91 80 25 111 32 66 59 61 58 275 74 80 58 8 6 17 18 66 275 68 61 40 2 5 305 11 81 304 6 8 36 8 37 37 34 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-107-5	01	1	9603-	●	●
2	KNUCKLE; FRT AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-43131-079-0	01	1	9603-9904	●
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	9603-9904		●
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	9905-	●	●
2	KNUCKLE; FRT AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-43132-079-0	01	1	9603-9904	●
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	9603-9904		●
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	9905-	●	●
3	KING PIN SET	1-87830-738-4	02	1	9603-	●	●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	9603-	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	9603-	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	9603-	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	9603-	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9603-	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	9603-	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9603-	●	●
21	NIPPLE; GREASE,KING PIN (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9603-9704	●	●
21	NIPPLE; GREASE,KING PIN (A),(B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9705-	●	●
21	NIPPLE; GREASE,KING PIN (B) PT1/8 ELBOW	9-09031-210-0	02	1	9603-9704	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	9603-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9603-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9603-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9603-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9603-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9603-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9603-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9603-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9603-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9603-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9603-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9603-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9603-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9603-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9603-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9603-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	9603-	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9603-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9603-	●	●
36	ARM; KNUCKLE	1-43133-063-3	01	1	9603-	●	●
37	BOLT; KNUCKLE ARM (B) M22X179	1-09000-578-1	01	1	9603-	●	●
37	BOLT; KNUCKLE ARM (A) M22X167	9-09806-847-3	01	1	9603-	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9603-	●	●
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	9603-	●	●
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	9603-	●	●
51	BOLT; POWER CHAMBER BRKT (A) M12X60	0-10806-260-0	02	1	9603-0004	●	●
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28081-260-0	02	1	0005-	●	●
51	BOLT; POWER CHAMBER BRKT (B) M12X28	0-20801-228-0	06	1	9603-0004	●	●
51	BOLT; POWER CHAMBER BRKT (B) M12X25 FLANGE	0-28681-225-0	06	1	0005-	●	●
52	WASHER; LK,POWER CHAMBER BRKT ID=12.2	9-09150-512-0	08	1	9603-0004	●	●
58	ARM; TIE ROD	1-43135-042-3	01	1	9603-	●	●
58	ARM; TIE ROD	1-43134-042-3	01	1	9603-	●	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	9603-	●	●
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	9603-	●	●
61	ROD END; TIE ROD	1-43150-737-1	01	1	9603-9812	●	●
61	ROD END; TIE ROD	1-43150-802-0	01	1	9901-	●	●
61	ROD END; TIE ROD	1-43150-736-1	01	1	9603-9812	●	●
61	ROD END; TIE ROD	1-43150-801-0	01	1	9901-	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9603-	●	●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	9603-	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9603-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9603-	●	●
81	ROD; TIE	1-43151-118-0	01	1	9603-	●	●
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-134-0	01	1	9603-	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	1-51781-083-0	02	1	9603-9709	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	1-51781-084-0	02	1	9603-9709	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	1-51781-083-1	02	1	9710-	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	1-51781-084-1	02	1	9710-	●	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	9603-	●	●
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-1	04	1	9603-	●	●
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	9-99110-514-0	04	1	9603-	●	●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	9-91061-470-0	04	1	9603-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	9603-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	9603-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20801-230-0	02	1	9603-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20801-250-0	04	1	9603-	●	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-039-0	04	1	9603-	●	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-072-2	02	1	9603-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.5	9-51631-040-0	04	1	9603-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=20.8	9-51631-041-0	04	1	9603-	●	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	9-99111-414-0	04	1	9603-	●	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	9-99110-412-0	06	1	9603-	●	●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	9-09150-512-0	06	1	9603-	●	●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	08	1	9603-	●	●
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	9603-	●	●
275	BOOT; ROD END,TIE	1-43159-078-0	02	1	9603-9812	●	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	9901-	●	●
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	1-51682-145-2	02	1	9603-	●	●
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	9-99110-520-0	02	1	9603-	●	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	9603-	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	9603-	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	9603-	●	●
