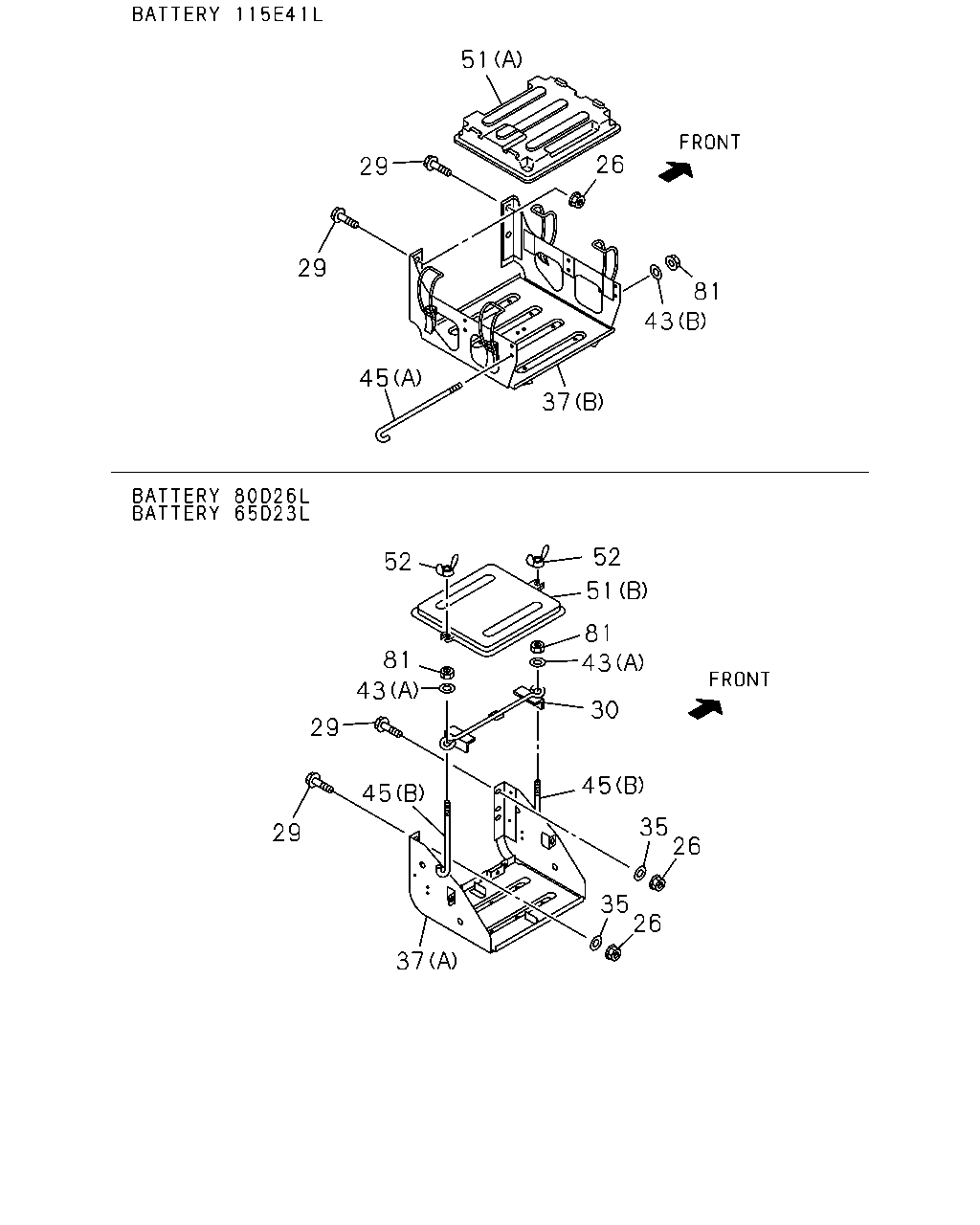

5-20 — BATTERY CARRIER (#58116) — 26 parça

51 26 29 29 81 43 45 37 52 52 51 81 43 81 43 30 29 45 45 35 26 29 35 26 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0710-0711	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0712-0809	●	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	0710-0711	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	0712-	●	●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	0710-0711	●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	0712-	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0710-0711	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0712-0712	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	0712-	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	0710-0710	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	0710-0711	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	0712-	●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0710-0711	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0712-	●	●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (B) ID=8.4 OD=16	0-91610-508-0	02	1	0710-0710	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22	0-91614-708-0	02	1	0710-0711	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22	0-91614-708-0	02	1	0712-	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A)	8-97134-740-0	02	1	0710-0710	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	9-53616-615-0	02	1	0710-0711	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	9-53616-615-0	02	1	0712-	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	0710-0710	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	0710-0711	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	0712-	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	0710-0711	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	0712-	●	●
81	NUT; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 FLANGE	0-91180-108-0	02	1	0806-	●	●
