Sayfa 5-15 - Isuzu EPC

5-15 — CAB MOUNTING; CAB SIDE (#58113) — 262 parça

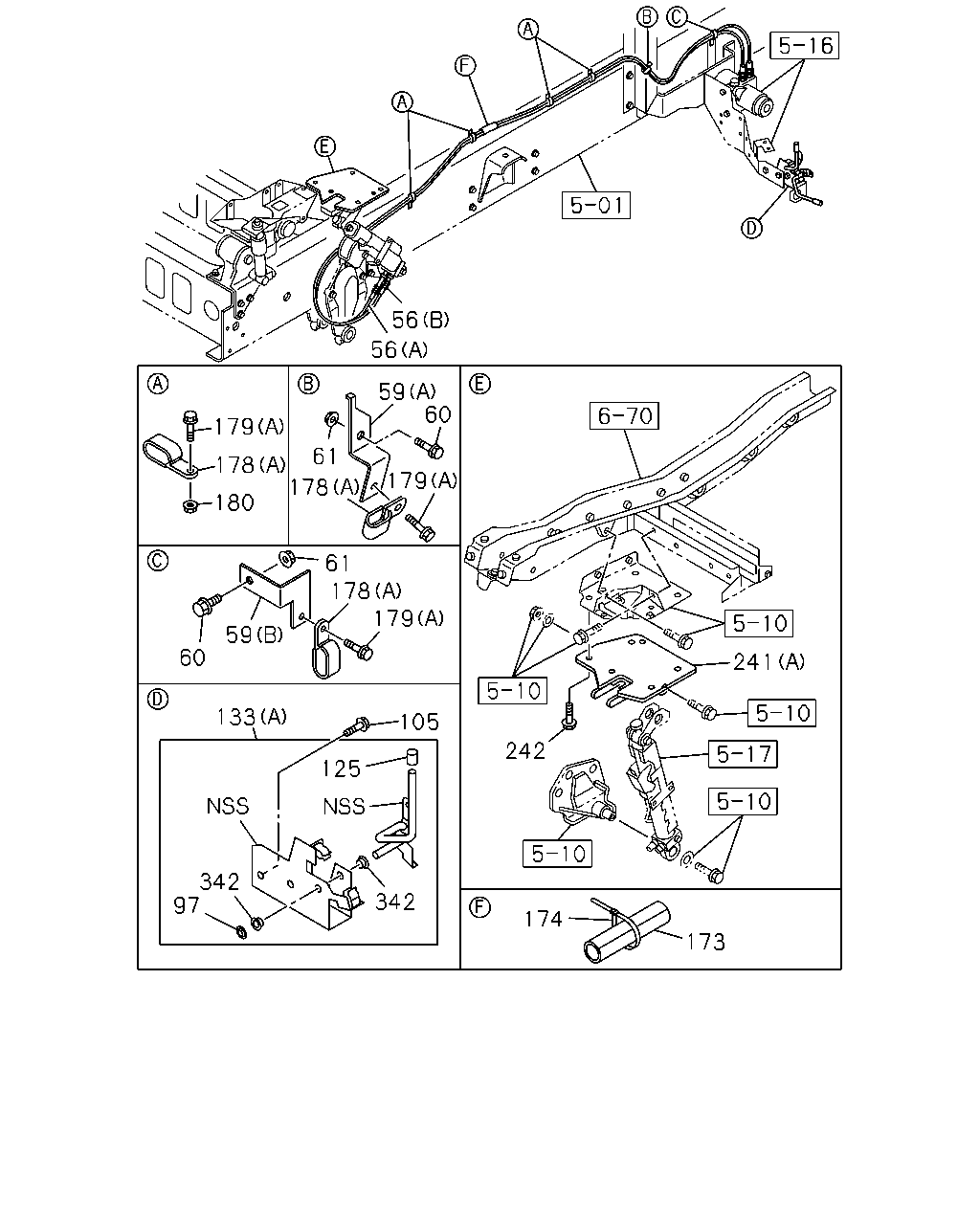

56 56 59 60 179 61 178 178 179 180 61 178 179 59 60 241 133 105 242 125 342 97 42 174 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	PIN; SPLIT,STAY OD=3.7 L=25	0-81124-025-0	01	1	0712-	●
56	HOSE; FLEX,OIL PIPE (A)	8-98022-487-2	01	1	0710-		●
56	HOSE; FLEX,OIL PIPE (B)	8-98087-331-1	01	1	0710-		●
56	HOSE; FLEX,OIL PIPE (E) L=1710	8-98044-009-2	01	1	0712-	●
56	HOSE; FLEX,OIL PIPE (D) L=1060	8-98044-010-2	01	1	0712-	●
56	HOSE; FLEX,OIL PIPE (C) L=2490	8-98044-008-2	01	1	0712-	●
56	HOSE; FLEX,OIL PIPE (F) L=1270	8-98044-011-2	01	1	0712-	●
59	BRACKET; CLIP (A)	8-98083-608-1	01	1	0710-		●
59	BRACKET; CLIP (B)	8-98083-609-0	01	1	0710-0803		●
59	BRACKET; CLIP (B)	8-98083-609-0	01	1	0804-	●	●
60	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0710-0803		●
60	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0804-0812	●	●
60	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0901-		●
60	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0901-	●
61	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0804		●
97	NUT; CAB STAY PIN ID=9.9 PUSH NUT	8-97022-566-0	01	1	0710-0711		●
97	NUT; CAB STAY PIN ID=9.9 PUSH NUT	8-97022-566-0	01	1	0712-	●	●
105	BOLT; CAB STAY M8X16 FLANGE	0-28050-816-0	02	1	0710-0711		●
105	BOLT; CAB STAY M8X16 FLANGE	0-28050-816-0	02	1	0712-	●	●
125	GRIP; HAND LEVER,CAB LOCK ID=9.0	8-94207-303-0	01	1	0710-0711		●
125	GRIP; HAND LEVER,CAB LOCK ID=9.0	8-94207-303-0	01	1	0712-	●	●
133	LOCK ASM; CAB (A)	8-97608-198-0	01	1	0710-0711		●
133	LOCK ASM; CAB (A)	8-97608-198-0	01	1	0712-	●	●
133	LOCK ASM; CAB (C)	8-98094-285-1	01	1	0710-0711		●
133	LOCK ASM; CAB (C)	8-98094-285-2	01	1	0712-	●	●
133	LOCK ASM; CAB (B)	8-98061-489-0	01	1	0710-0711		●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	0712-	●	●
173	SLEEVE; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	01	1	0710-0812		●
173	SLEEVE; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	01	1	0901-		●
173	SLEEVE; RUBBER,FLEX HOSE EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=17 OD=21 L=40	1-09337-012-0	01	1	0901-	●
173	SLEEVE; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	03	1	0804-0812	●
173	SLEEVE; RUBBER,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=17 OD=21 L=40	1-09337-012-0	03	1	0901-	●
174	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	0710-		●
174	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	03	1	0712-0803	●
174	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	05	1	0804-0812	●
174	CLIP; BAND,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-031-1	05	1	0901-	●
174	CLIP; BAND,FLEX HOSE L=250	5-09707-030-1	02	1	0804-	●
174	CLIP; BAND,FLEX HOSE EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-031-1	03	1	0901-	●
178	CLIP; FLEX HOSE (A) ID=11X2 L=20	0-95325-035-0	07	1	0710-0711		●
178	CLIP; FLEX HOSE (A) ID=11X2 L=20	0-95325-035-0	07	1	0712-0804	●	●
178	CLIP; FLEX HOSE (A) ID=11X2 L=20	0-95325-035-0	07	1	0805-		●
178	CLIP; FLEX HOSE (B) ID=11X2 H=35 L=20	1-09700-847-0	02	1	0712-0804	●
178	CLIP; FLEX HOSE (B) M13X2 H=20 L=60	1-09701-280-0	02	1	0805-	●
178	CLIP; FLEX HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0804-	●
178	CLIP; FLEX HOSE (B) ID=14X2 H=85 L=30	1-09701-062-0	01	1	0804-	●
178	CLIP; FLEX HOSE (A) ID=9X2 L=20	0-95324-835-0	04	1	0805-	●
179	BOLT; CLIP,FLEX HOSE (A) M8X20 FLANGE	0-28650-820-0	06	1	0710-		●
179	BOLT; CLIP,FLEX HOSE (A) M8X30 FLANGE	0-28650-830-0	03	1	0710-		●
179	BOLT; CLIP,FLEX HOSE (B) M8X20 FLANGE	0-28050-820-0	09	1	0712-0803	●
179	BOLT; CLIP,FLEX HOSE (B) M8X20 FLANGE	0-28050-820-0	10	1	0804-0812	●
179	BOLT; CLIP,FLEX HOSE (B) M8X20 FLANGE	0-28050-820-0	08	1	0901-	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0710-0711		●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0712-0803	●	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0804-0812	●	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0804-0812	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0901-	●	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0805-		●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0712-0803	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0901-	●
241	BRACKET; POWER CYL UPR,CAB TILT (A)	8-98022-417-1	01	1	0710-		●
241	BRACKET; POWER CYL UPR,CAB TILT (B)	8-98095-154-0	01	1	0712-	●
241	BRACKET; POWER CYL UPR,CAB TILT (B)	8-98095-153-0	01	1	0712-	●
242	BOLT; POWER CYL BRKT,CAB TILT M10X30 FLANGE	0-28651-030-0	05	1	0710-0710		●
242	BOLT; POWER CYL BRKT,CAB TILT M10X30 FLANGE	0-28661-030-0	05	1	0710-		●
242	BOLT; POWER CYL BRKT,CAB TILT M10X30 FLANGE	0-28661-030-0	08	1	0712-	●
342	BUSHING; LEVER,CAB LOCK T=6 OD=17.5	9-33659-249-0	02	1	0710-0711		●
342	BUSHING; LEVER,CAB LOCK T=6 OD=17.5	9-33659-249-0	02	1	0712-	●	●

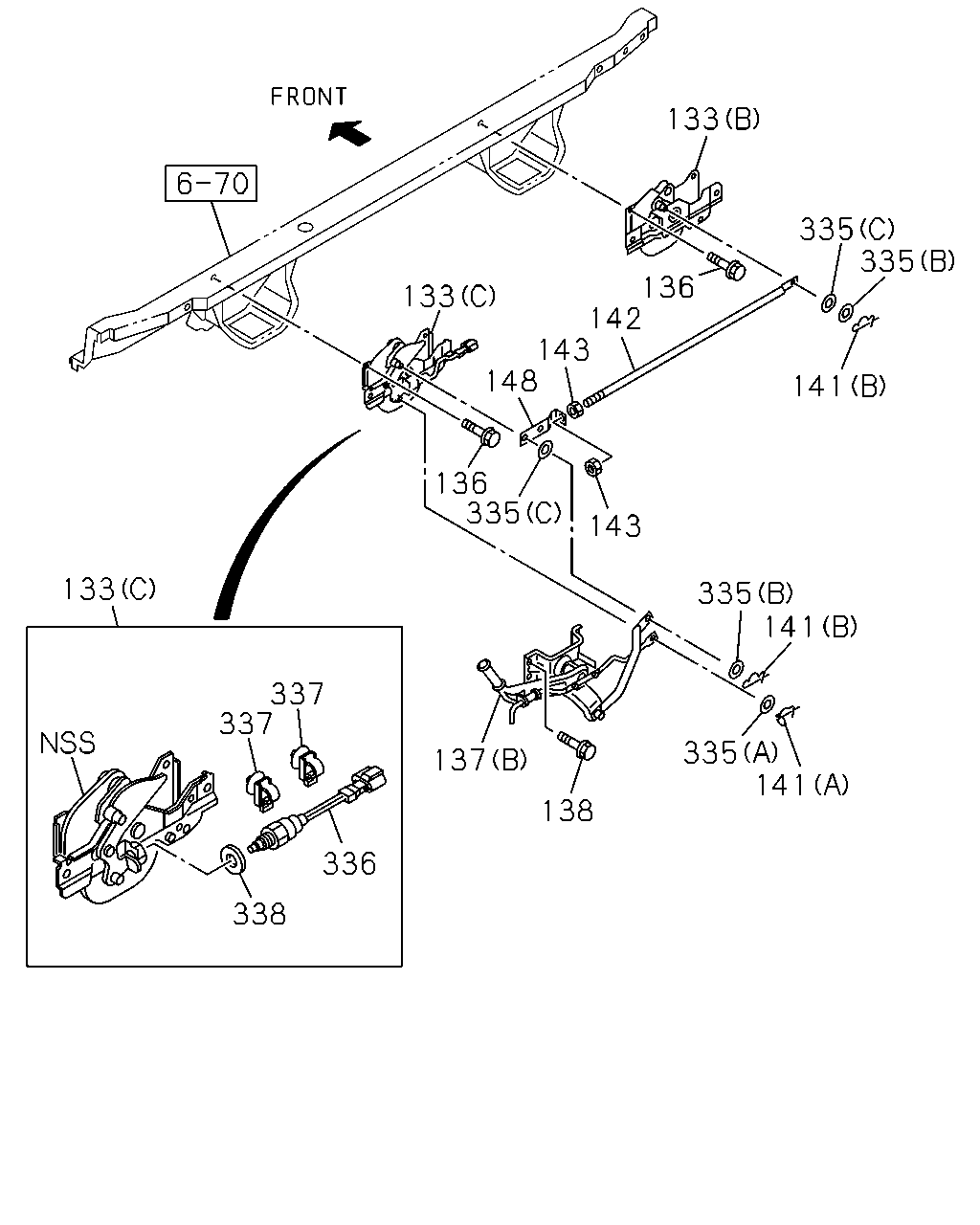

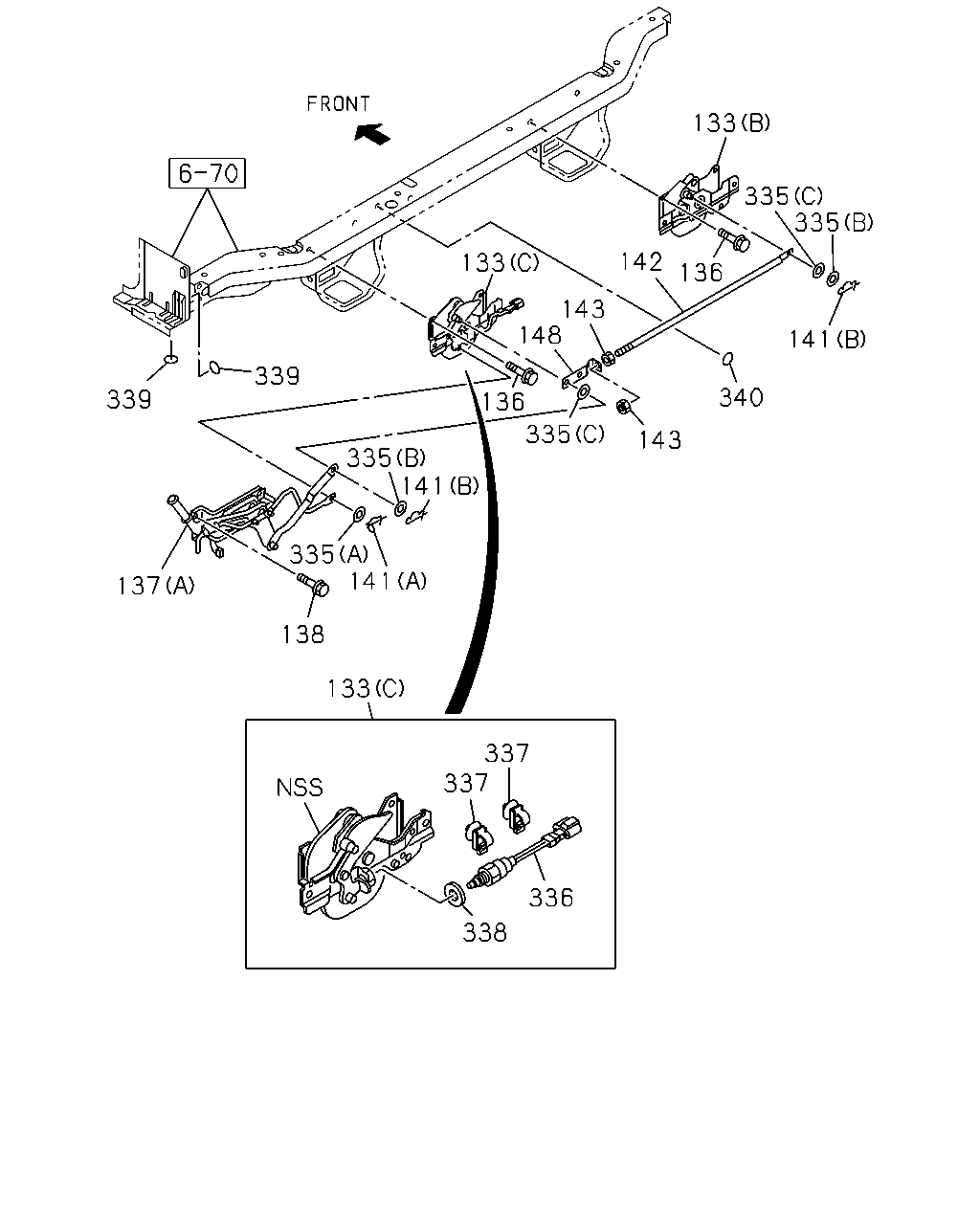

133 335 335 142 133 136 143 148 141 339 340 339 136 335 143 335 141 335 141 137 138 133 337 337 336 338

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
133	LOCK ASM; CAB (A)	8-97608-198-0	01	1	0710-0711		●
133	LOCK ASM; CAB (A)	8-97608-198-0	01	1	0712-	●	●
133	LOCK ASM; CAB (C)	8-98094-285-1	01	1	0710-0711		●
133	LOCK ASM; CAB (C)	8-98094-285-2	01	1	0712-	●	●
133	LOCK ASM; CAB (B)	8-98061-489-0	01	1	0710-0711		●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	0712-	●	●
136	BOLT; CAB LK M8X20 FLANGE	0-28650-820-0	08	1	0710-0711		●
136	BOLT; CAB LK M8X20 FLANGE	0-28650-820-0	08	1	0712-	●	●
137	CONTROL UNIT; CAB LOCK (A)	8-97587-592-5	01	1	0710-		●
137	CONTROL UNIT; CAB LOCK (B)	8-98057-301-4	01	1	0712-	●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE	0-28650-820-0	04	1	0710-0711		●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE	0-28650-820-0	04	1	0712-	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	0710-0711		●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	0712-	●	●
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	0710-0711		●
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	0712-	●	●
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	0710-0711		●
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	0712-	●	●
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	0710-0711		●
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	0712-	●	●
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	0710-0711		●
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	0712-	●	●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16	0-91610-508-0	01	1	0710-0711		●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16	0-91610-508-0	01	1	0712-	●	●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	0710-0711		●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	0712-	●	●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	02	1	0710-0711		●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	02	1	0712-	●	●
336	SWITCH; CAB LOCK	8-98091-155-1	01	1	0710-0711		●
336	SWITCH; CAB LOCK	8-98091-155-1	01	1	0712-	●	●
337	CLIP; CAB LOCK L=155	8-97173-307-0	02	1	0710-0711		●
337	CLIP; CAB LOCK L=155	8-97173-307-0	02	1	0712-1008	●	●
338	WASHER; CAB LOCK ID=17 OD=30	0-91610-516-0	01	1	0710-0711		●
338	WASHER; CAB LOCK ID=17 OD=30	0-91610-516-0	01	1	0712-	●	●
339	SEAL; TILT HANDLE OD=25 BLACK	1-76798-019-0	04	1	0710-		●
340	SEAL; HOLE OD=25 BLACK	1-76798-019-0	02	1	0710-		●

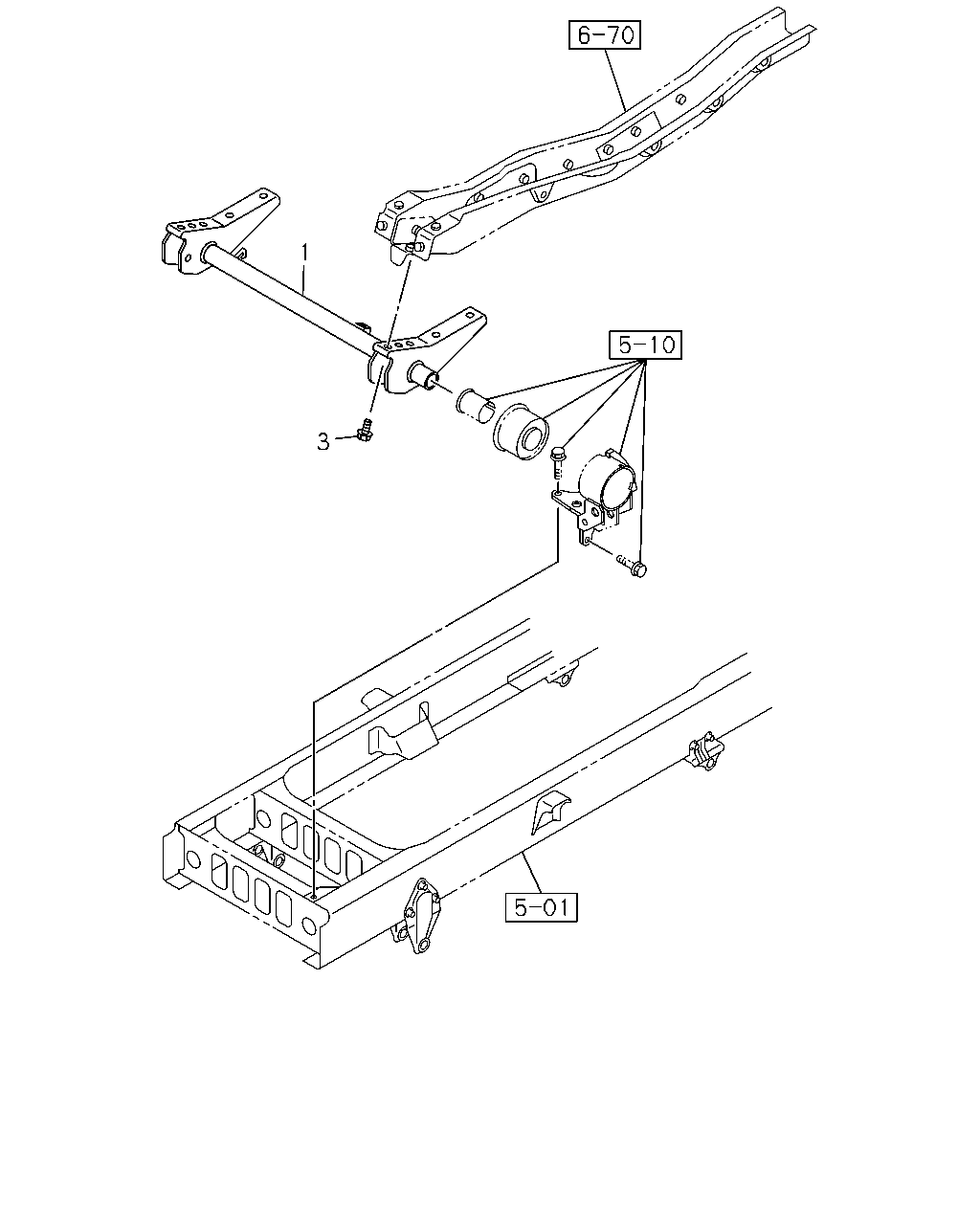

1 3

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	LEVER; TORSION BAR	8-98010-764-1	01	1	0712-	●
	3	BOLT; LEVER M12X42 FLANGE	8-98090-287-1	08	1	0712-	●

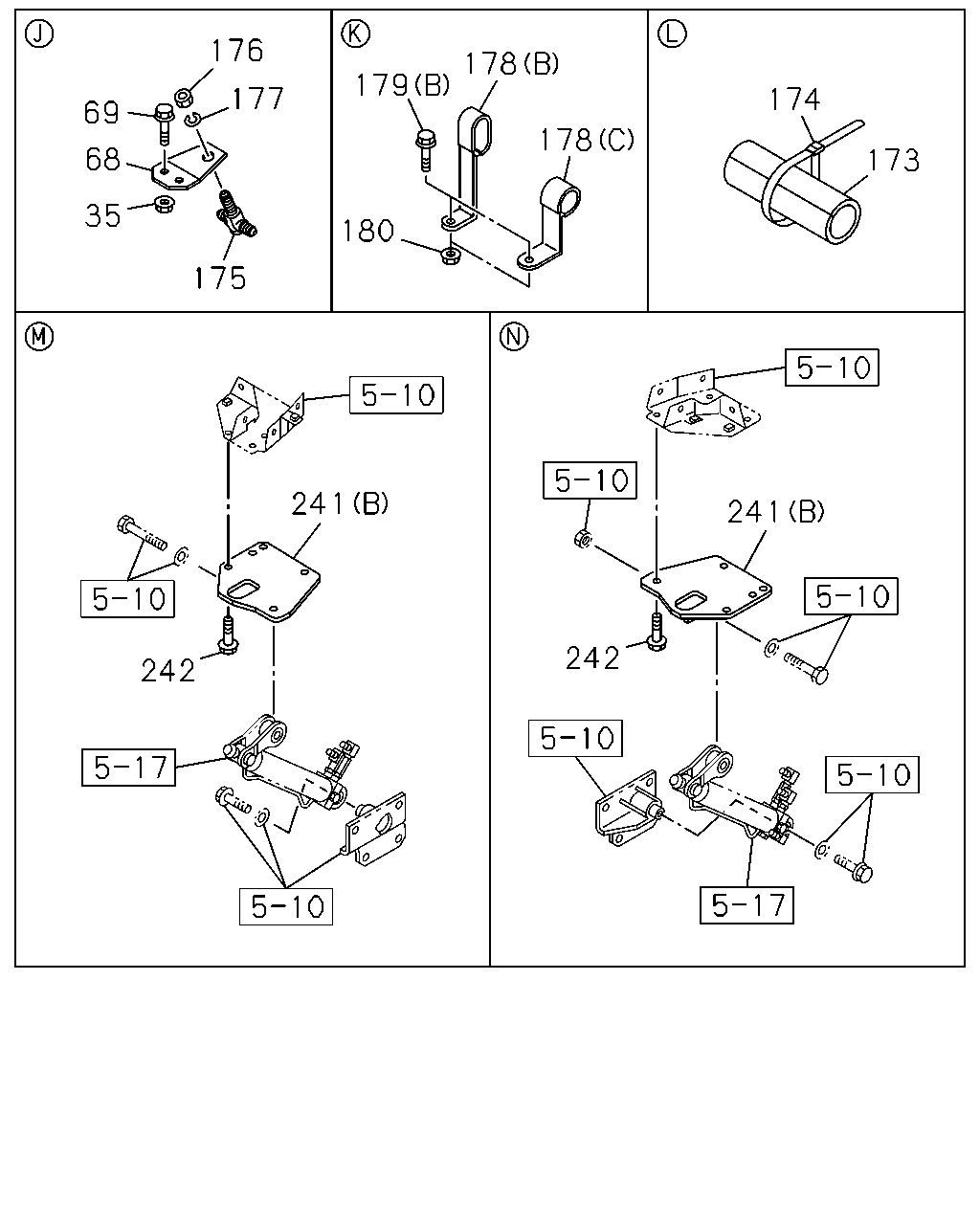

176 178 179 177 174 69 178 68 173 35 180 175 241 241 242 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
35	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0901-	●
68	BRACKET; UNION	8-98044-029-1	01	1	0712-	●
69	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0901-	●
173	SLEEVE; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	01	1	0710-0812		●
173	SLEEVE; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	01	1	0901-		●
173	SLEEVE; RUBBER,FLEX HOSE EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=17 OD=21 L=40	1-09337-012-0	01	1	0901-	●
173	SLEEVE; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	03	1	0804-0812	●
173	SLEEVE; RUBBER,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=17 OD=21 L=40	1-09337-012-0	03	1	0901-	●
174	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	0710-		●
174	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	03	1	0712-0803	●
174	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	05	1	0804-0812	●
174	CLIP; BAND,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-031-1	05	1	0901-	●
174	CLIP; BAND,FLEX HOSE L=250	5-09707-030-1	02	1	0804-	●
174	CLIP; BAND,FLEX HOSE EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-031-1	03	1	0901-	●
175	UNION; FLEX HOSE M12 L=69	0-92138-506-0	01	1	0712-	●
176	NUT; UNION M12	9-09840-280-0	01	1	0712-	●
177	WASHER; LK,UNION	1-09985-189-0	01	1	0712-	●
178	CLIP; FLEX HOSE (A) ID=11X2 L=20	0-95325-035-0	07	1	0710-0711		●
178	CLIP; FLEX HOSE (A) ID=11X2 L=20	0-95325-035-0	07	1	0712-0804	●	●
178	CLIP; FLEX HOSE (A) ID=11X2 L=20	0-95325-035-0	07	1	0805-		●
178	CLIP; FLEX HOSE (B) ID=11X2 H=35 L=20	1-09700-847-0	02	1	0712-0804	●
178	CLIP; FLEX HOSE (B) M13X2 H=20 L=60	1-09701-280-0	02	1	0805-	●
178	CLIP; FLEX HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0804-	●
178	CLIP; FLEX HOSE (B) ID=14X2 H=85 L=30	1-09701-062-0	01	1	0804-	●
178	CLIP; FLEX HOSE (A) ID=9X2 L=20	0-95324-835-0	04	1	0805-	●
179	BOLT; CLIP,FLEX HOSE (A) M8X20 FLANGE	0-28650-820-0	06	1	0710-		●
179	BOLT; CLIP,FLEX HOSE (A) M8X30 FLANGE	0-28650-830-0	03	1	0710-		●
179	BOLT; CLIP,FLEX HOSE (B) M8X20 FLANGE	0-28050-820-0	09	1	0712-0803	●
179	BOLT; CLIP,FLEX HOSE (B) M8X20 FLANGE	0-28050-820-0	10	1	0804-0812	●
179	BOLT; CLIP,FLEX HOSE (B) M8X20 FLANGE	0-28050-820-0	08	1	0901-	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0710-0711		●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0712-0803	●	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0804-0812	●	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0804-0812	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0901-	●	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0805-		●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0712-0803	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0901-	●
241	BRACKET; POWER CYL UPR,CAB TILT (A)	8-98022-417-1	01	1	0710-		●
241	BRACKET; POWER CYL UPR,CAB TILT (B)	8-98095-154-0	01	1	0712-	●
241	BRACKET; POWER CYL UPR,CAB TILT (B)	8-98095-153-0	01	1	0712-	●
242	BOLT; POWER CYL BRKT,CAB TILT M10X30 FLANGE	0-28651-030-0	05	1	0710-0710		●
242	BOLT; POWER CYL BRKT,CAB TILT M10X30 FLANGE	0-28661-030-0	05	1	0710-		●
242	BOLT; POWER CYL BRKT,CAB TILT M10X30 FLANGE	0-28661-030-0	08	1	0712-	●

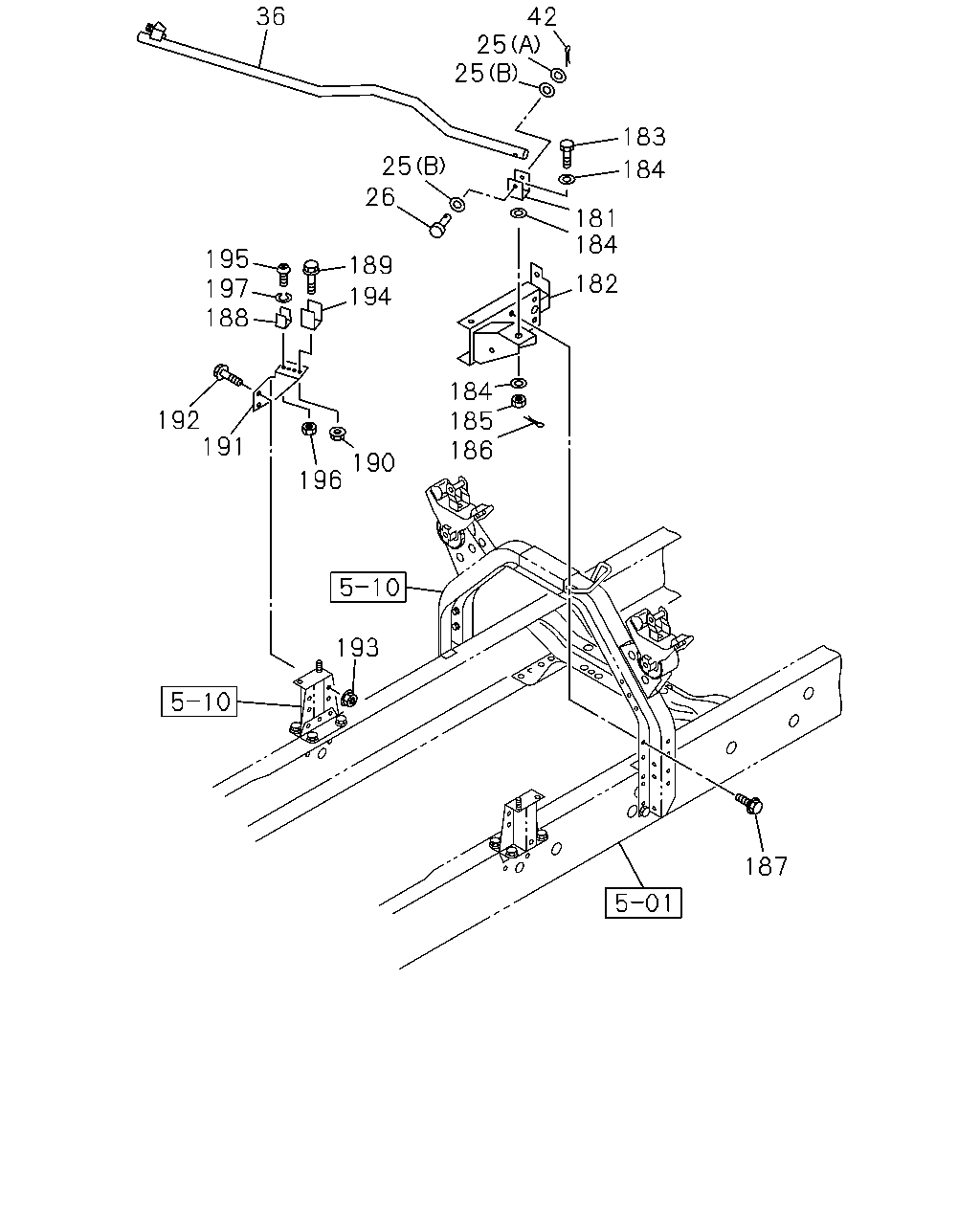

36 42 25 25 183 25 26 184 181 184 195 197 188 189 182 194 184 185 186 192 191 190 196 193 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
25	WASHER; PL,STAY (A) ID=15	0-91610-514-0	01	1	0712-	●
25	WASHER; PL,STAY (B) ID=15 OD=30	9-09164-614-0	02	1	0712-1010	●
25	WASHER; PL,STAY (B) ID=15	0-91614-614-0	02	1	1011-	●
26	PIN; STAY OD=14 L=62	0-82354-462-0	01	1	0712-	●
36	STAY; OIL TILT	8-98057-730-1	01	1	0712-	●
42	PIN; SPLIT,STAY OD=3.7 L=25	0-81124-025-0	01	1	0712-	●
181	BRACKET; STAY,OIL TILT	1-53719-018-1	01	1	0712-	●
182	BRACKET; STAY BRKT,OIL TILT	8-98100-304-1	01	1	0712-	●
183	BOLT; BRKT M16X40 W/PIN HOLE	1-09042-043-0	01	1	0712-	●
184	WASHER; PL,BRKT ID=17 OD=30	0-91610-516-0	03	1	0712-	●
185	NUT; BRKT M16 SLOTTED	0-91116-516-0	01	1	0712-1010	●
185	NUT; BRKT M16 SLOTTED	8-98049-689-0	01	1	1011-	●
186	PIN; BRKT OD=3.7 L=25	0-81124-025-0	01	1	0712-	●
187	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	04	1	0712-	●
188	CLIP; STAY,OIL TILT	1-09709-114-0	01	1	0712-	●
189	BOLT; CLIP M6X12 FLANGE	0-28050-612-0	02	1	0712-	●
190	NUT; CLIP M6 FLANGE	0-91180-106-0	02	1	0712-	●
191	BRACKET; CLIP,STAY	8-98050-969-1	01	1	0712-	●
192	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-	●
193	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●
194	GUIDE; STAY	1-53719-020-0	01	1	0712-	●
195	SCREW; GUIDE M4X12	0-34218-412-0	02	1	0712-	●
196	NUT; GUIDE M4	9-99110-404-0	02	1	0712-	●
197	WASHER; LK,GUIDE ID=4.1	0-91510-504-0	02	1	0712-	●

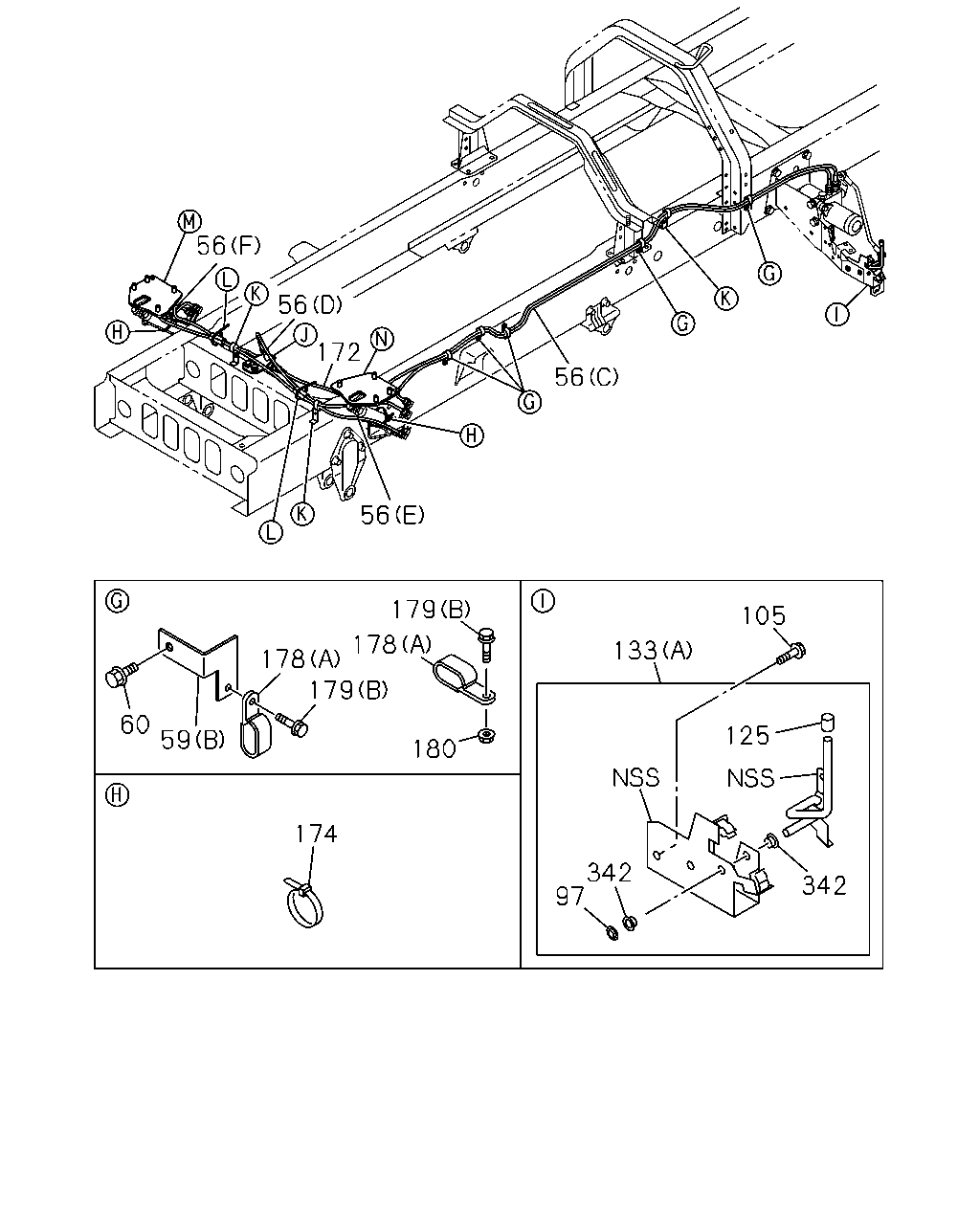

56 56 172 56 56 179 105 178 133 178 179 60 125 59 180 174 342 97 342

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
56	HOSE; FLEX,OIL PIPE (A)	8-98022-487-2	01	1	0710-		●
56	HOSE; FLEX,OIL PIPE (B)	8-98087-331-1	01	1	0710-		●
56	HOSE; FLEX,OIL PIPE (E) L=1710	8-98044-009-2	01	1	0712-	●
56	HOSE; FLEX,OIL PIPE (D) L=1060	8-98044-010-2	01	1	0712-	●
56	HOSE; FLEX,OIL PIPE (C) L=2490	8-98044-008-2	01	1	0712-	●
56	HOSE; FLEX,OIL PIPE (F) L=1270	8-98044-011-2	01	1	0712-	●
59	BRACKET; CLIP (A)	8-98083-608-1	01	1	0710-		●
59	BRACKET; CLIP (B)	8-98083-609-0	01	1	0710-0803		●
59	BRACKET; CLIP (B)	8-98083-609-0	01	1	0804-	●	●
60	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0710-0803		●
60	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0804-0812	●	●
60	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0901-		●
60	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0901-	●
97	NUT; CAB STAY PIN ID=9.9 PUSH NUT	8-97022-566-0	01	1	0710-0711		●
97	NUT; CAB STAY PIN ID=9.9 PUSH NUT	8-97022-566-0	01	1	0712-	●	●
105	BOLT; CAB STAY M8X16 FLANGE	0-28050-816-0	02	1	0710-0711		●
105	BOLT; CAB STAY M8X16 FLANGE	0-28050-816-0	02	1	0712-	●	●
125	GRIP; HAND LEVER,CAB LOCK ID=9.0	8-94207-303-0	01	1	0710-0711		●
125	GRIP; HAND LEVER,CAB LOCK ID=9.0	8-94207-303-0	01	1	0712-	●	●
133	LOCK ASM; CAB (A)	8-97608-198-0	01	1	0710-0711		●
133	LOCK ASM; CAB (A)	8-97608-198-0	01	1	0712-	●	●
133	LOCK ASM; CAB (C)	8-98094-285-1	01	1	0710-0711		●
133	LOCK ASM; CAB (C)	8-98094-285-2	01	1	0712-	●	●
133	LOCK ASM; CAB (B)	8-98061-489-0	01	1	0710-0711		●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	0712-	●	●
172	HOSE; FLEX,OIL TILT L=3010	8-98044-012-2	01	1	0712-	●
174	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	0710-		●
174	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	03	1	0712-0803	●
174	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	05	1	0804-0812	●
174	CLIP; BAND,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-031-1	05	1	0901-	●
174	CLIP; BAND,FLEX HOSE L=250	5-09707-030-1	02	1	0804-	●
174	CLIP; BAND,FLEX HOSE EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-031-1	03	1	0901-	●
178	CLIP; FLEX HOSE (A) ID=11X2 L=20	0-95325-035-0	07	1	0710-0711		●
178	CLIP; FLEX HOSE (A) ID=11X2 L=20	0-95325-035-0	07	1	0712-0804	●	●
178	CLIP; FLEX HOSE (A) ID=11X2 L=20	0-95325-035-0	07	1	0805-		●
178	CLIP; FLEX HOSE (B) ID=11X2 H=35 L=20	1-09700-847-0	02	1	0712-0804	●
178	CLIP; FLEX HOSE (B) M13X2 H=20 L=60	1-09701-280-0	02	1	0805-	●
178	CLIP; FLEX HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0804-	●
178	CLIP; FLEX HOSE (B) ID=14X2 H=85 L=30	1-09701-062-0	01	1	0804-	●
178	CLIP; FLEX HOSE (A) ID=9X2 L=20	0-95324-835-0	04	1	0805-	●
179	BOLT; CLIP,FLEX HOSE (A) M8X20 FLANGE	0-28650-820-0	06	1	0710-		●
179	BOLT; CLIP,FLEX HOSE (A) M8X30 FLANGE	0-28650-830-0	03	1	0710-		●
179	BOLT; CLIP,FLEX HOSE (B) M8X20 FLANGE	0-28050-820-0	09	1	0712-0803	●
179	BOLT; CLIP,FLEX HOSE (B) M8X20 FLANGE	0-28050-820-0	10	1	0804-0812	●
179	BOLT; CLIP,FLEX HOSE (B) M8X20 FLANGE	0-28050-820-0	08	1	0901-	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0710-0711		●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0712-0803	●	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0804-0812	●	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0804-0812	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0901-	●	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0805-		●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0712-0803	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0901-	●
342	BUSHING; LEVER,CAB LOCK T=6 OD=17.5	9-33659-249-0	02	1	0710-0711		●
342	BUSHING; LEVER,CAB LOCK T=6 OD=17.5	9-33659-249-0	02	1	0712-	●	●

133 335 335 136 142 143 148 133 141 136 335 143 133 335 141 337 337 335 141 137 138 336 338

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
133	LOCK ASM; CAB (A)	8-97608-198-0	01	1	0710-0711		●
133	LOCK ASM; CAB (A)	8-97608-198-0	01	1	0712-	●	●
133	LOCK ASM; CAB (C)	8-98094-285-1	01	1	0710-0711		●
133	LOCK ASM; CAB (C)	8-98094-285-2	01	1	0712-	●	●
133	LOCK ASM; CAB (B)	8-98061-489-0	01	1	0710-0711		●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	0712-	●	●
136	BOLT; CAB LK M8X20 FLANGE	0-28650-820-0	08	1	0710-0711		●
136	BOLT; CAB LK M8X20 FLANGE	0-28650-820-0	08	1	0712-	●	●
137	CONTROL UNIT; CAB LOCK (A)	8-97587-592-5	01	1	0710-		●
137	CONTROL UNIT; CAB LOCK (B)	8-98057-301-4	01	1	0712-	●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE	0-28650-820-0	04	1	0710-0711		●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE	0-28650-820-0	04	1	0712-	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	0710-0711		●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	0712-	●	●
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	0710-0711		●
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	0712-	●	●
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	0710-0711		●
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	0712-	●	●
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	0710-0711		●
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	0712-	●	●
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	0710-0711		●
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	0712-	●	●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16	0-91610-508-0	01	1	0710-0711		●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16	0-91610-508-0	01	1	0712-	●	●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	0710-0711		●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	0712-	●	●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	02	1	0710-0711		●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	02	1	0712-	●	●
336	SWITCH; CAB LOCK	8-98091-155-1	01	1	0710-0711		●
336	SWITCH; CAB LOCK	8-98091-155-1	01	1	0712-	●	●
337	CLIP; CAB LOCK L=155	8-97173-307-0	02	1	0710-0711		●
337	CLIP; CAB LOCK L=155	8-97173-307-0	02	1	0712-1008	●	●
338	WASHER; CAB LOCK ID=17 OD=30	0-91610-516-0	01	1	0710-0711		●
338	WASHER; CAB LOCK ID=17 OD=30	0-91610-516-0	01	1	0712-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
