5-01 — FRAME AND OTHER PARTS (#58111) — 143 parça

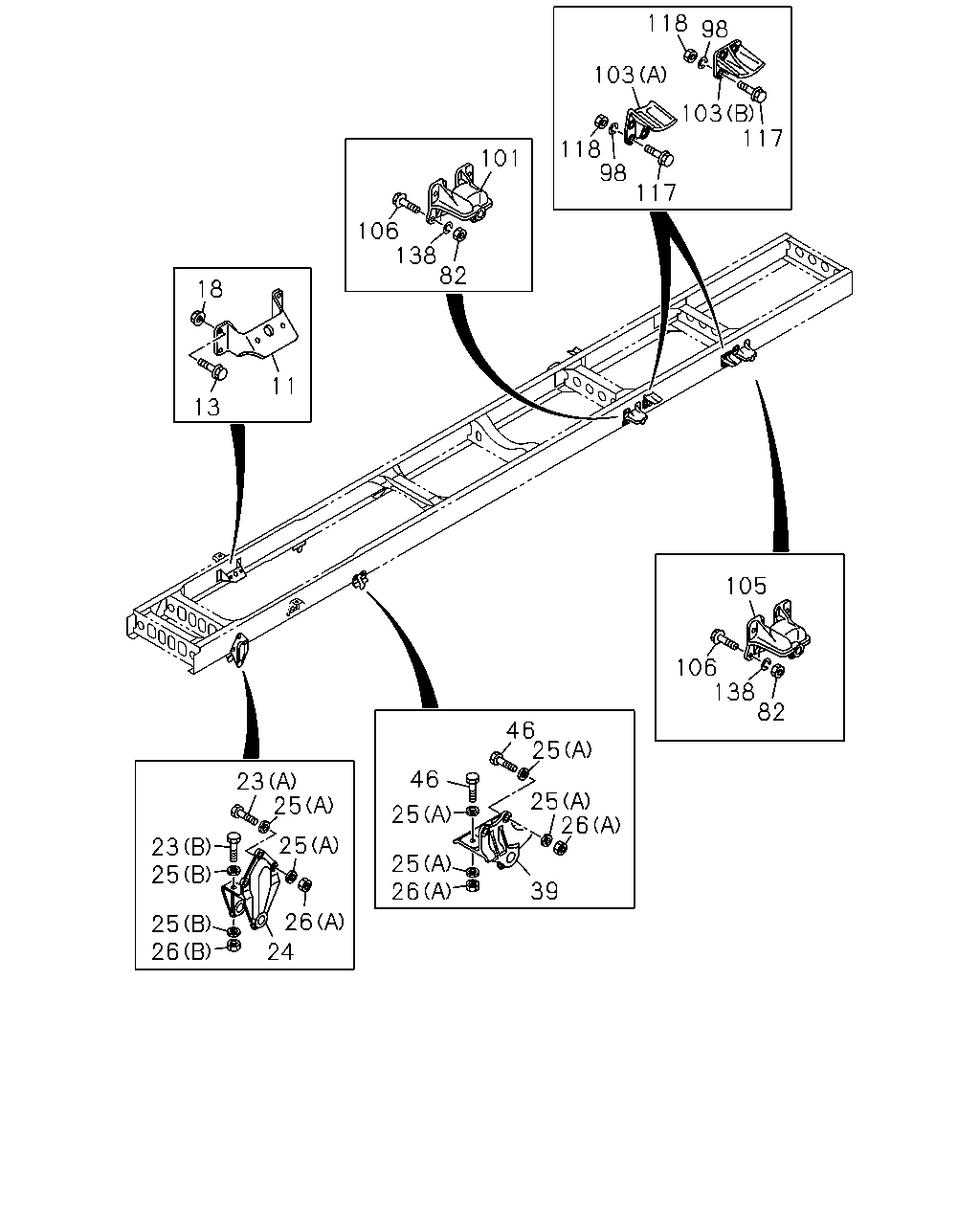

çizim 147070
118 98 103 103 117 118 98 101 117 106 138 82 18 11 13 105 106 138 82 46 25 46 23 25 25 25 26 25 23 25 25 26 39 26 25 26 24
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 BRACKET; ENG MTG 8-97619-549-0 02 1 0710-0711 ● ●
11 BRACKET; ENG MTG 8-97619-549-0 02 1 0712-0907 ● ● ●
11 BRACKET; ENG MTG 8-97619-549-0 02 1 0908- ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0710-0711 ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0712-0907 ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0908- ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0710-0711 ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0712-0907 ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0908- ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 0710-0711 ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 0712-0907 ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 0908- ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 0710-0711 ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 0712-0907 ● ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 0908- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 0710-0711 ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 0712-0907 ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 0908- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 0710-0711 ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 0712-0907 ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 0908- ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 0710-0711 ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 0712-0907 ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 0908- ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-0 28 1 0710-0711 ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-0 28 1 0712-0907 ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 0908- ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0710-0711 ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0712-0907 ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0908- ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0710-0711 ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0712-0907 ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0908- ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 0710-0711 ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 0712-0907 ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 0908- ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 0710-0711 ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 0712-0907 ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 0908- ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 0710-0711 ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 0712-0907 ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 0908- ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 20 1 0710-0711 ● ●
82 NUT; BRKT
M14 		0-91110-514-0 20 1 0712-0907 ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 20 1 0908- ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 0710-0711 ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 0712-0907 ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 0908- ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 0710-0711 ● ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 0712-0907 ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 0908- ● ● ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 0710-0711 ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 0712-0907 ● ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 0908- ● ● ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 0710-0711 ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 0712-0907 ● ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 0908- ● ● ● ●
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 0710-0711 ● ●
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 0712-0907 ● ● ●
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 0908- ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 20 1 0710-0711 ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 20 1 0712-0907 ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 20 1 0908- ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0710-0711 ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0712-0907 ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0908- ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0710-0711 ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0712-0907 ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0908- ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 20 1 0710-0711 ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 20 1 0712-0907 ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 20 1 0908- ● ● ● ●

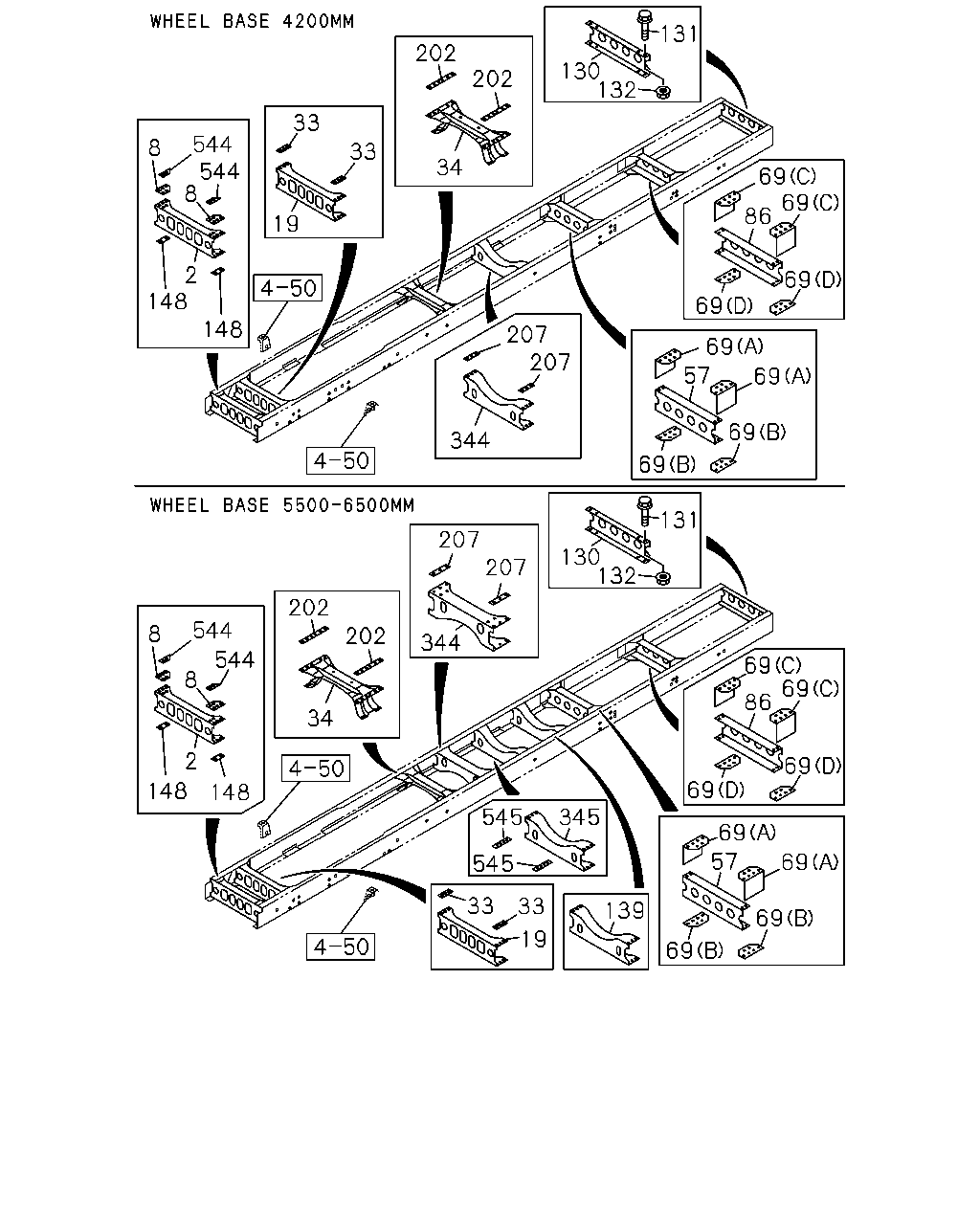

çizim 147081
131 130 132 202 202 33 544 544 8 8 33 34 69 69 86 19 69 2 148 69 148 207 207 69 57 69 69 344 69 131 130 132 207 207 202 544 8 202 344 544 69 69 86 8 34 69 2 69 148 148 545 345 69 57 545 69 69 33 33 139 19 69
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 8-97610-852-2 01 1 0710-0711 ● ●
2 MEMBER; CROSS,1ST 8-97610-852-5 01 1 0712-0907 ● ● ●
2 MEMBER; CROSS,1ST 8-97610-852-6 01 1 0908- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 0710-0711 ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 0712-0907 ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 0908- ● ● ● ●
19 MEMBER; CROSS,2ND 8-97610-853-1 01 1 0710-0711 ● ●
19 MEMBER; CROSS,2ND 8-97610-853-3 01 1 0712-0907 ● ● ●
19 MEMBER; CROSS,2ND 8-97610-853-4 01 1 0908- ● ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 0710-0711 ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 0712-0907 ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 0908- ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0710-0711 ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0712-0907 ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0908- ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97610-858-3 01 1 0710-0711 ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97610-858-5 01 1 0712-0907 ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97610-858-5 01 1 0908- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97610-865-0 02 1 0710-0711 ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97610-865-0 02 1 0712-0907 ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97610-865-0 02 1 0908- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97610-866-0 02 1 0710-0711 ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97610-866-0 02 1 0712-0907 ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97610-866-0 02 1 0908- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-264-0 01 1 0710-0711 ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-264-0 01 1 0712-0907 ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-264-0 01 1 0908- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-265-0 01 1 0710-0711 ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-265-1 01 1 0712-0907 ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-265-1 01 1 0908- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-266-1 01 1 0710-0711 ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-266-1 01 1 0712-0907 ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-266-1 01 1 0908- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-267-1 01 1 0710-0711 ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-267-1 01 1 0712-0907 ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-267-1 01 1 0908- ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97610-858-3 01 1 0710-0711 ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97610-858-5 01 1 0712-0907 ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97610-858-5 01 1 0908- ● ● ● ●
130 MEMBER; CROSS,END 8-97610-869-0 01 1 0710-0711 ● ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 0712-0907 ● ● ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 0908- ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 0710-0711 ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 0712-0907 ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 0908- ● ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 0710-0711 ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 0712-0907 ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 0908- ● ● ● ●
139 MEMBER; CROSS,6TH 8-97611-238-1 01 1 0710- ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0710-0711 ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0712-0907 ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0908- ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 0710-0711 ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 0712-0907 ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 0908- ● ● ● ●
207 SPACER; 4TH C/MBR 8-97611-245-0 02 1 0911- ●
207 SPACER; 4TH C/MBR 8-97611-244-0 02 1 0710-0711 ● ●
207 SPACER; 4TH C/MBR 8-97611-244-0 02 1 0712-0910 ● ● ●
207 SPACER; 4TH C/MBR 8-97611-244-0 02 1 0911- ● ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 0710-0711 ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 0712-0907 ● ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 0908- ● ● ● ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 0710-0711 ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 0712-0907 ● ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 0908- ● ● ●
544 PLATE; CAB FRT MTG 8-97611-030-0 02 1 0710-0711 ● ●
544 PLATE; CAB FRT MTG 8-97611-030-0 02 1 0712-0907 ● ● ●
544 PLATE; CAB FRT MTG 8-97611-030-0 02 1 0908- ● ● ● ●
545 SPACER; 5TH C/MBR 8-97611-245-0 02 1 0710-0711 ●
545 SPACER; 5TH C/MBR 8-97611-245-0 02 1 0712-0907 ● ●
545 SPACER; 5TH C/MBR 8-97611-245-0 02 1 0908- ● ● ●
