4-01 — PROPELLER SHAFT (#5811) — 235 parça

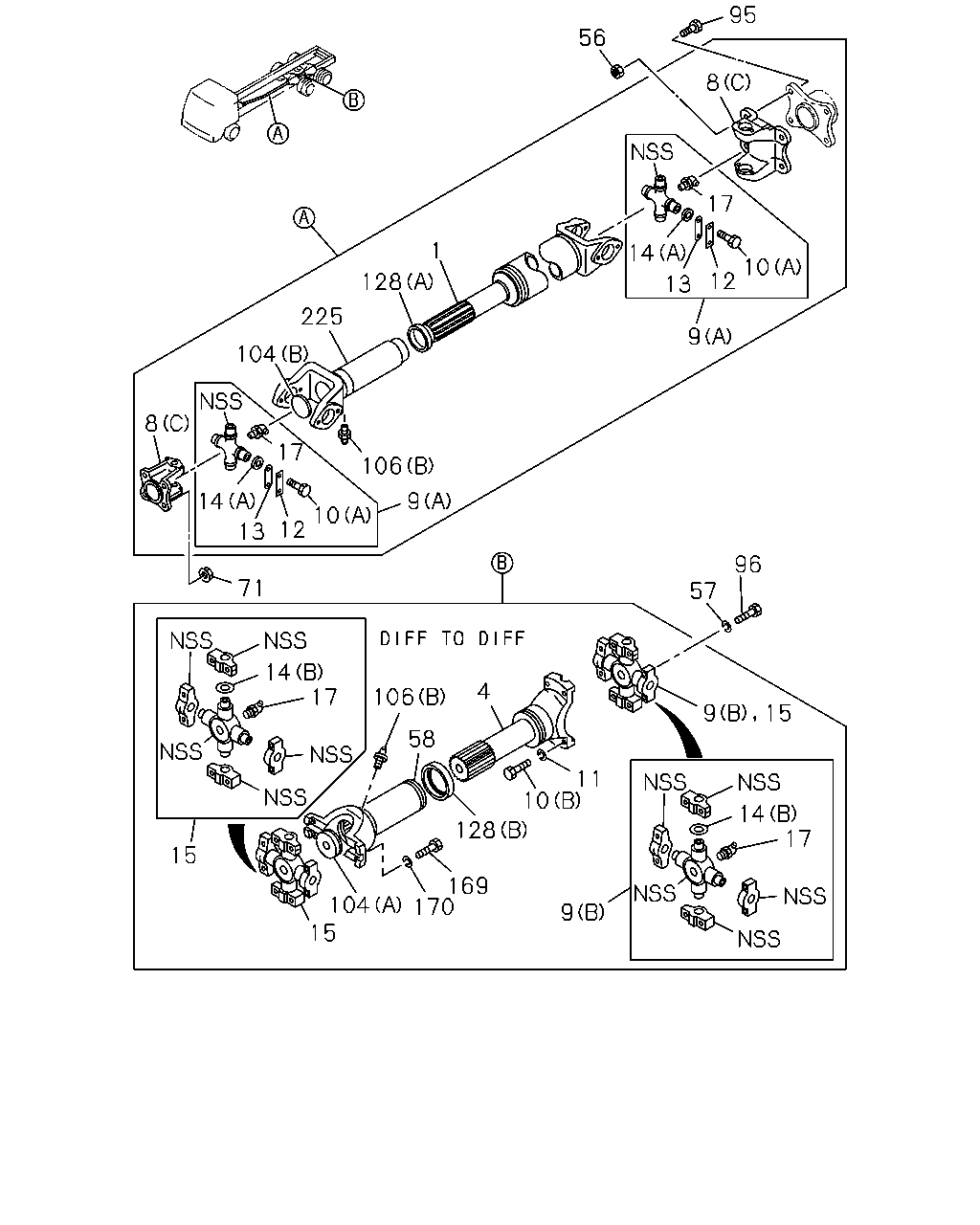

çizim 8451
95 56 8 17 1 14 10 12 128 13 225 9 104 8 17 106 14 9 10 12 13 96 71 57 14 17 4 106 9 15 58 11 10 14 17 128 15 169 170 104 15 9
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S) P130 PROP SHAFT<BEE> L=980 		1-37124-788-0 01 1 9905-9905
1 SHAFT; PROP
6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) P130 PROP SHAFT<BEE> L=980 		1-37124-788-0 01 1 9906-9908
1 SHAFT; PROP
6WG1 TC-C(72L) P130 PROP SHAFT<BEE> L=980 		1-37124-788-1 01 1 9909-
1 SHAFT; PROP
P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) MJA7U M/T(X6G) 6WA1 TC-S(56L) L=650 		1-37124-075-0 01 1 9603-9904
1 SHAFT; PROP
P115 PROP SHAFT<C5X> L TYPE ENG<90L> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) MJA7U M/T(X6G) L=650 		1-37124-075-0 01 1 9905-
1 SHAFT; PROP
P115 PROP SHAFT<C5X> MJA7U M/T(X6G) 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=690 		1-37124-048-0 01 1 9603-9904
1 SHAFT; PROP
P90 PROP SHAFT<C5T> L=952 		1-37124-181-0 01 1 9603-
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> 6WA1 TC-S(56L) L=660 		1-37124-178-0 01 1 9603-9904
1 SHAFT; PROP
P115 PROP SHAFT<C5X> L TYPE ENG<90L> ZF M/T<X9E> L=660 		1-37124-178-0 01 1 9905-
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6A M/T(X6V) L=1025 		1-37124-174-0 01 1 9603-9904
1 SHAFT; PROP
P115 PROP SHAFT<C5X> V TYPE ENG<91L> MJA6A M/T(X6V) L=1025 		1-37124-174-0 01 1 9905-
1 SHAFT; PROP
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> L=890 		1-37124-047-0 01 1 9603-9904
1 SHAFT; PROP
P115 PROP SHAFT<C5X> V TYPE ENG<91L> ZF M/T<X9E> L=890 		1-37124-047-0 01 1 9905-
1 SHAFT; PROP
SHORT CHASSIS&RHD(EXZ5MC) TRANSMISSION-FULLER RTLO147 13 OD(Y2P) P115 PROP SHAFT<C5X> 6WA1 TC-S(56L) L=705 		1-37124-179-0 01 1 9603-9706
1 SHAFT; PROP
SHORT CHASSIS&RHD(EXZ5MC) TRANSMISSION-FULLER RTLO147 13 OD(Y2P) P115 PROP SHAFT<C5X> 6WA1 TC-S(56L),6WG1 TC-N(71L) L=705 		1-37124-179-0 01 1 9707-9802
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTLO147 13 OD(Y2P) P115 PROP SHAFT<C5X> L=705 		1-37124-179-0 01 1 9803-9904
1 SHAFT; PROP
P115 PROP SHAFT<C5X> FULLER M/T<X9B> L=715 		1-37124-519-0 01 1 9905-9905
1 SHAFT; PROP
SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> P115 PROP SHAFT<C5X> FULLER M/T<X9B> L=715 		1-37124-519-0 01 1 9906-
4 SHAFT; PROP
L=348 		1-37171-104-0 01 1 9603-9609
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 9610-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> FULLER M/T<X9B> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-069-2 02 1 9905-9905
8 YOKE; FLANGE,PROP SHAFT
SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> P115 PROP SHAFT<C5X> FULLER M/T<X9B> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-069-2 02 1 9906-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> ISUZU M/T<X9A>,FULLER M/T<X9B> (A) 		1-37211-068-1 02 1 9603-9706
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> ISUZU M/T<X9A>,FULLER M/T<X9B> P90 PROP SHAFT<C5T> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 02 1 9707-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> ZF M/T<X9E> (A) 		1-37211-068-1 01 1 9603-9706
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> ZF M/T<X9E> (A) 		1-37211-068-1 01 1 9707-9905
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> FULLER M/T<X9B> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 01 1 9707-9905
8 YOKE; FLANGE,PROP SHAFT
SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> P115 PROP SHAFT<C5X> FULLER M/T<X9B> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 01 1 9906-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> ZF M/T<X9E> (A) 		1-37211-068-1 01 1 9906-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> ZF M/T<X9E> (B) 		1-37211-069-2 01 1 9603-9706
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> ZF M/T<X9E> (B) 		1-37211-069-2 01 1 9707-9905
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> FULLER M/T<X9B> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-069-2 01 1 9707-9905
8 YOKE; FLANGE,PROP SHAFT
SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> P115 PROP SHAFT<C5X> FULLER M/T<X9B> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-069-2 01 1 9906-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> ZF M/T<X9E> (B) 		1-37211-069-2 01 1 9906-
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 02 1 9603-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-079-0 AR 1 9603-9701
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 AR 1 9702-
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37300-093-0 AR 1 9603-
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37300-091-0 AR 1 9603-
10 BOLT; UJT
(A) M10X20 		9-02061-020-0 AR 1 9603-9904
10 BOLT; UJT
P90 PROP SHAFT<C5T>,P115 PROP SHAFT<C5X> (A) M10X20 		9-02061-020-0 AR 1 9905-
10 BOLT; UJT
(B) M12X45 		9-91066-245-0 04 1 9603-
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 AR 1 9603-
12 PLATE; LK,FRT UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-009-0 AR 1 9603-
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37356-008-0 AR 1 9603-
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37355-021-0 AR 1 9603-
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-020-0 AR 1 9603-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 AR 1 9603-
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 AR 1 9603-
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (A) 		1-37249-131-0 AR 1 9603-
15 UNIVERSAL CENTER 1-37300-079-0 01 1 9603-9701
15 UNIVERSAL CENTER 1-37300-100-1 01 1 9702-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 9603-
56 NUT; YOKE
P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 08 1 9603-9706
56 NUT; YOKE
P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M16 FLANGE 		1-09449-065-0 08 1 9707-
56 NUT; YOKE
P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14 FLANGE 		1-09440-048-0 04 1 9707-9904
56 NUT; YOKE
P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> M14 FLANGE 		1-09440-048-0 04 1 9905-
56 NUT; YOKE
EXC. P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 9603-9904
56 NUT; YOKE
EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 9905-
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 9603-
58 FLANGE; SPLINED
L=264 		1-37245-157-1 01 1 9603-9701
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 9702-
71 NUT; YOKE
P115 PROP SHAFT<C5X> FULLER M/T<X9B>,ZF M/T<X9E> M14 FLANGE 		1-09440-048-0 04 1 9603-9904
71 NUT; YOKE
P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> FULLER M/T<X9B>,ZF M/T<X9E> M14 FLANGE 		1-09440-048-0 04 1 9905-
71 NUT; YOKE
P115 PROP SHAFT<C5X> ISUZU M/T<X9A> M16 FLANGE 		1-09449-065-0 08 1 9603-
71 NUT; YOKE
EXC. P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 9603-9904
71 NUT; YOKE
EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 9905-
95 BOLT; YOKE,FINAL
P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 08 1 9603-
95 BOLT; YOKE,FINAL
EXC. P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 04 1 9603-9904
95 BOLT; YOKE,FINAL
EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 04 1 9905-
95 BOLT; YOKE,FINAL
SHORT CHASSIS&RHD(EXZ5MC) P130 PROP SHAFT<BEE> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14X50 		1-09000-645-0 04 1 9905-
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 9603-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-049-0 01 1 9603-
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> (A) 		1-09600-049-0 01 1 9603-
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT<C5T> (B) 		1-09600-067-0 01 1 9603-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9603-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9603-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9603-
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 9603-
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 9603-
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> (A) 		1-37247-019-0 01 1 9603-
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 9603-
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		9-09150-612-0 04 1 9603-
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT<C5X> L=345 		1-37241-107-1 01 1 9603-
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> L=332 		1-37241-103-1 01 1 9603-

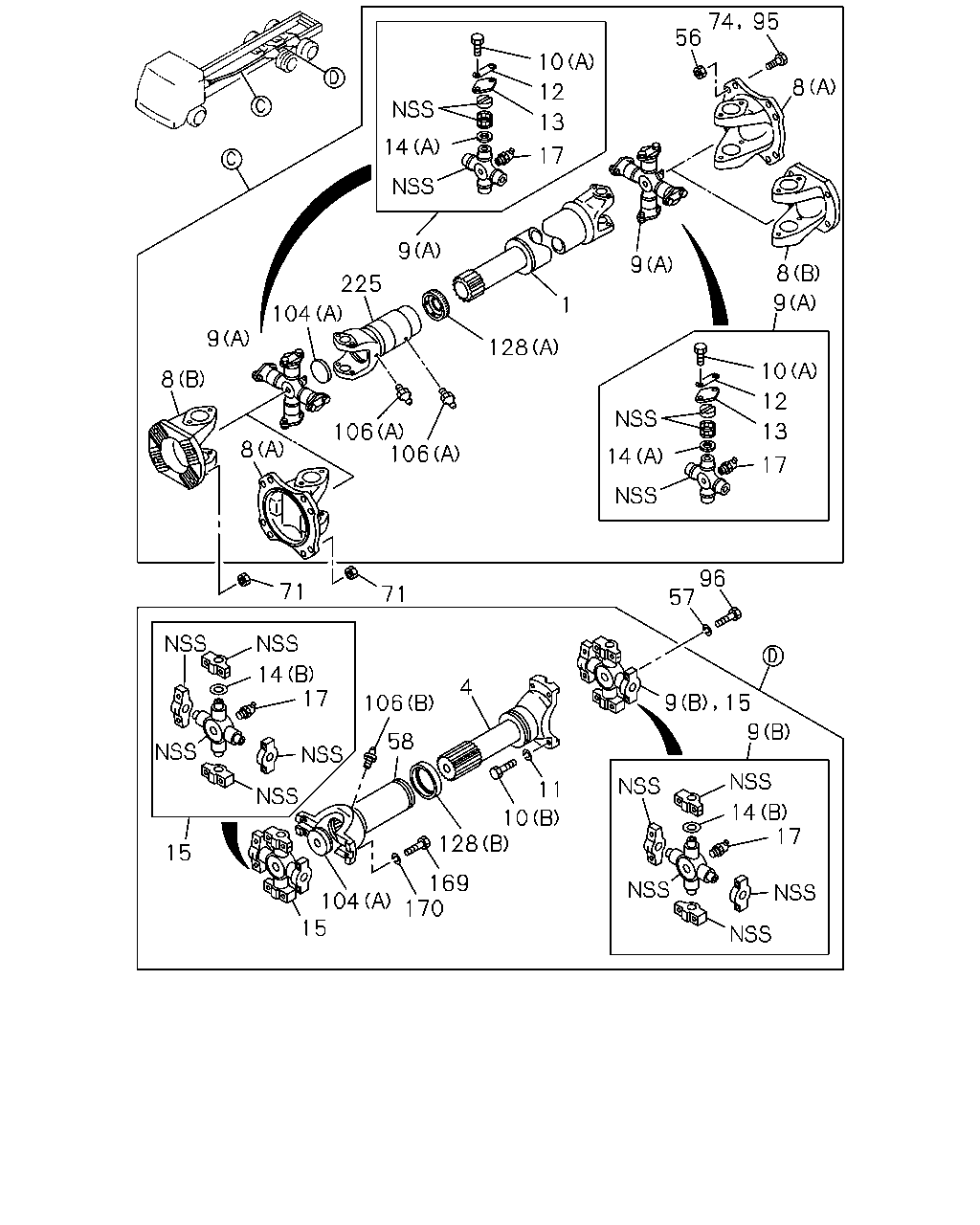

çizim 8565
74 56 95 10 8 12 13 14 17 9 9 8 225 9 1 104 9 128 10 8 12 13 106 106 8 14 17 96 57 71 71 14 17 4 9 15 106 9 58 11 14 17 10 128 15 169 170 104 15
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S) P130 PROP SHAFT<BEE> L=980 		1-37124-788-0 01 1 9905-9905
1 SHAFT; PROP
6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) P130 PROP SHAFT<BEE> L=980 		1-37124-788-0 01 1 9906-9908
1 SHAFT; PROP
6WG1 TC-C(72L) P130 PROP SHAFT<BEE> L=980 		1-37124-788-1 01 1 9909-
1 SHAFT; PROP
P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) MJA7U M/T(X6G) 6WA1 TC-S(56L) L=650 		1-37124-075-0 01 1 9603-9904
1 SHAFT; PROP
P115 PROP SHAFT<C5X> L TYPE ENG<90L> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) MJA7U M/T(X6G) L=650 		1-37124-075-0 01 1 9905-
1 SHAFT; PROP
P115 PROP SHAFT<C5X> MJA7U M/T(X6G) 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=690 		1-37124-048-0 01 1 9603-9904
1 SHAFT; PROP
P90 PROP SHAFT<C5T> L=952 		1-37124-181-0 01 1 9603-
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> 6WA1 TC-S(56L) L=660 		1-37124-178-0 01 1 9603-9904
1 SHAFT; PROP
P115 PROP SHAFT<C5X> L TYPE ENG<90L> ZF M/T<X9E> L=660 		1-37124-178-0 01 1 9905-
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6A M/T(X6V) L=1025 		1-37124-174-0 01 1 9603-9904
1 SHAFT; PROP
P115 PROP SHAFT<C5X> V TYPE ENG<91L> MJA6A M/T(X6V) L=1025 		1-37124-174-0 01 1 9905-
1 SHAFT; PROP
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> L=890 		1-37124-047-0 01 1 9603-9904
1 SHAFT; PROP
P115 PROP SHAFT<C5X> V TYPE ENG<91L> ZF M/T<X9E> L=890 		1-37124-047-0 01 1 9905-
1 SHAFT; PROP
SHORT CHASSIS&RHD(EXZ5MC) TRANSMISSION-FULLER RTLO147 13 OD(Y2P) P115 PROP SHAFT<C5X> 6WA1 TC-S(56L) L=705 		1-37124-179-0 01 1 9603-9706
1 SHAFT; PROP
SHORT CHASSIS&RHD(EXZ5MC) TRANSMISSION-FULLER RTLO147 13 OD(Y2P) P115 PROP SHAFT<C5X> 6WA1 TC-S(56L),6WG1 TC-N(71L) L=705 		1-37124-179-0 01 1 9707-9802
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTLO147 13 OD(Y2P) P115 PROP SHAFT<C5X> L=705 		1-37124-179-0 01 1 9803-9904
1 SHAFT; PROP
P115 PROP SHAFT<C5X> FULLER M/T<X9B> L=715 		1-37124-519-0 01 1 9905-9905
1 SHAFT; PROP
SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> P115 PROP SHAFT<C5X> FULLER M/T<X9B> L=715 		1-37124-519-0 01 1 9906-
4 SHAFT; PROP
L=348 		1-37171-104-0 01 1 9603-9609
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 9610-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> FULLER M/T<X9B> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-069-2 02 1 9905-9905
8 YOKE; FLANGE,PROP SHAFT
SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> P115 PROP SHAFT<C5X> FULLER M/T<X9B> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-069-2 02 1 9906-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> ISUZU M/T<X9A>,FULLER M/T<X9B> (A) 		1-37211-068-1 02 1 9603-9706
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> ISUZU M/T<X9A>,FULLER M/T<X9B> P90 PROP SHAFT<C5T> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 02 1 9707-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> ZF M/T<X9E> (A) 		1-37211-068-1 01 1 9603-9706
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> ZF M/T<X9E> (A) 		1-37211-068-1 01 1 9707-9905
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> FULLER M/T<X9B> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 01 1 9707-9905
8 YOKE; FLANGE,PROP SHAFT
SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> P115 PROP SHAFT<C5X> FULLER M/T<X9B> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 01 1 9906-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> ZF M/T<X9E> (A) 		1-37211-068-1 01 1 9906-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> ZF M/T<X9E> (B) 		1-37211-069-2 01 1 9603-9706
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> ZF M/T<X9E> (B) 		1-37211-069-2 01 1 9707-9905
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> FULLER M/T<X9B> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-069-2 01 1 9707-9905
8 YOKE; FLANGE,PROP SHAFT
SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> P115 PROP SHAFT<C5X> FULLER M/T<X9B> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-37211-069-2 01 1 9906-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> ZF M/T<X9E> (B) 		1-37211-069-2 01 1 9906-
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 02 1 9603-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-079-0 AR 1 9603-9701
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 AR 1 9702-
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37300-093-0 AR 1 9603-
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37300-091-0 AR 1 9603-
10 BOLT; UJT
(A) M10X20 		9-02061-020-0 AR 1 9603-9904
10 BOLT; UJT
P90 PROP SHAFT<C5T>,P115 PROP SHAFT<C5X> (A) M10X20 		9-02061-020-0 AR 1 9905-
10 BOLT; UJT
(B) M12X45 		9-91066-245-0 04 1 9603-
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 AR 1 9603-
12 PLATE; LK,FRT UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-009-0 AR 1 9603-
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37356-008-0 AR 1 9603-
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37355-021-0 AR 1 9603-
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-020-0 AR 1 9603-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 AR 1 9603-
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 AR 1 9603-
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (A) 		1-37249-131-0 AR 1 9603-
15 UNIVERSAL CENTER 1-37300-079-0 01 1 9603-9701
15 UNIVERSAL CENTER 1-37300-100-1 01 1 9702-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 9603-
56 NUT; YOKE
P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 08 1 9603-9706
56 NUT; YOKE
P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M16 FLANGE 		1-09449-065-0 08 1 9707-
56 NUT; YOKE
P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14 FLANGE 		1-09440-048-0 04 1 9707-9904
56 NUT; YOKE
P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> M14 FLANGE 		1-09440-048-0 04 1 9905-
56 NUT; YOKE
EXC. P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 9603-9904
56 NUT; YOKE
EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 9905-
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 9603-
58 FLANGE; SPLINED
L=264 		1-37245-157-1 01 1 9603-9701
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 9702-
71 NUT; YOKE
P115 PROP SHAFT<C5X> FULLER M/T<X9B>,ZF M/T<X9E> M14 FLANGE 		1-09440-048-0 04 1 9603-9904
71 NUT; YOKE
P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> FULLER M/T<X9B>,ZF M/T<X9E> M14 FLANGE 		1-09440-048-0 04 1 9905-
71 NUT; YOKE
P115 PROP SHAFT<C5X> ISUZU M/T<X9A> M16 FLANGE 		1-09449-065-0 08 1 9603-
71 NUT; YOKE
EXC. P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 9603-9904
71 NUT; YOKE
EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 9905-
74 BOLT; YOKE,TRANS
SHORT CHASSIS&RHD(EXZ5MC) P115 PROP SHAFT<C5X> FULLER M/T<X9B> M16X48 		1-09000-383-0 08 1 9606-9904
95 BOLT; YOKE,FINAL
P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 08 1 9603-
95 BOLT; YOKE,FINAL
EXC. P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 04 1 9603-9904
95 BOLT; YOKE,FINAL
EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 04 1 9905-
95 BOLT; YOKE,FINAL
SHORT CHASSIS&RHD(EXZ5MC) P130 PROP SHAFT<BEE> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14X50 		1-09000-645-0 04 1 9905-
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 9603-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-049-0 01 1 9603-
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> (A) 		1-09600-049-0 01 1 9603-
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT<C5T> (B) 		1-09600-067-0 01 1 9603-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9603-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9603-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9603-
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 9603-
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 9603-
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> (A) 		1-37247-019-0 01 1 9603-
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 9603-
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		9-09150-612-0 04 1 9603-
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT<C5X> L=345 		1-37241-107-1 01 1 9603-
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> L=332 		1-37241-103-1 01 1 9603-

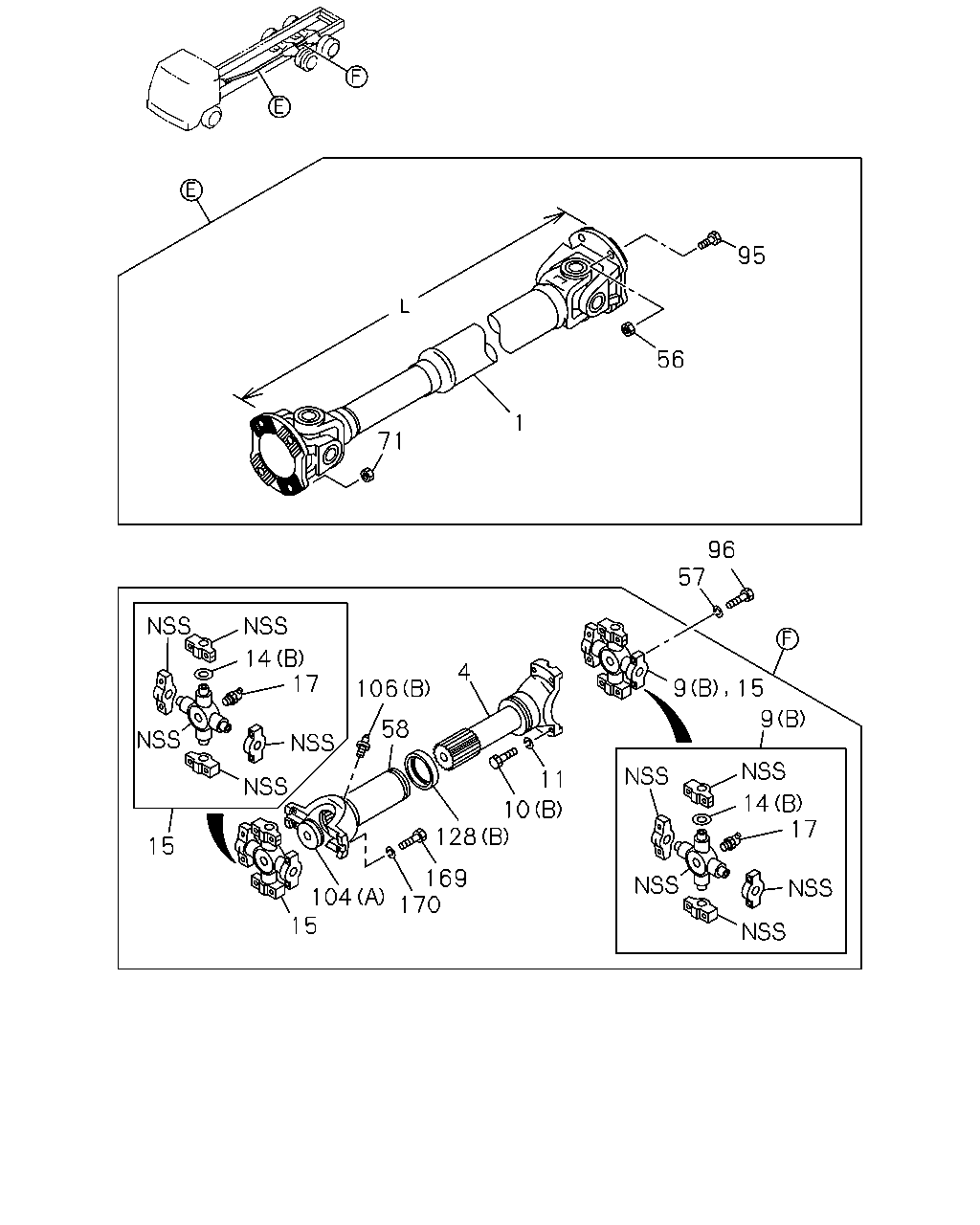

çizim 40867
95 56 1 71 96 57 14 17 4 9 15 106 9 58 11 14 17 10 128 15 169 170 104 15
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S) P130 PROP SHAFT<BEE> L=980 		1-37124-788-0 01 1 9905-9905
1 SHAFT; PROP
6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) P130 PROP SHAFT<BEE> L=980 		1-37124-788-0 01 1 9906-9908
1 SHAFT; PROP
6WG1 TC-C(72L) P130 PROP SHAFT<BEE> L=980 		1-37124-788-1 01 1 9909-
1 SHAFT; PROP
P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) MJA7U M/T(X6G) 6WA1 TC-S(56L) L=650 		1-37124-075-0 01 1 9603-9904
1 SHAFT; PROP
P115 PROP SHAFT<C5X> L TYPE ENG<90L> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) MJA7U M/T(X6G) L=650 		1-37124-075-0 01 1 9905-
1 SHAFT; PROP
P115 PROP SHAFT<C5X> MJA7U M/T(X6G) 6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=690 		1-37124-048-0 01 1 9603-9904
1 SHAFT; PROP
P90 PROP SHAFT<C5T> L=952 		1-37124-181-0 01 1 9603-
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> 6WA1 TC-S(56L) L=660 		1-37124-178-0 01 1 9603-9904
1 SHAFT; PROP
P115 PROP SHAFT<C5X> L TYPE ENG<90L> ZF M/T<X9E> L=660 		1-37124-178-0 01 1 9905-
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6A M/T(X6V) L=1025 		1-37124-174-0 01 1 9603-9904
1 SHAFT; PROP
P115 PROP SHAFT<C5X> V TYPE ENG<91L> MJA6A M/T(X6V) L=1025 		1-37124-174-0 01 1 9905-
1 SHAFT; PROP
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> L=890 		1-37124-047-0 01 1 9603-9904
1 SHAFT; PROP
P115 PROP SHAFT<C5X> V TYPE ENG<91L> ZF M/T<X9E> L=890 		1-37124-047-0 01 1 9905-
1 SHAFT; PROP
SHORT CHASSIS&RHD(EXZ5MC) TRANSMISSION-FULLER RTLO147 13 OD(Y2P) P115 PROP SHAFT<C5X> 6WA1 TC-S(56L) L=705 		1-37124-179-0 01 1 9603-9706
1 SHAFT; PROP
SHORT CHASSIS&RHD(EXZ5MC) TRANSMISSION-FULLER RTLO147 13 OD(Y2P) P115 PROP SHAFT<C5X> 6WA1 TC-S(56L),6WG1 TC-N(71L) L=705 		1-37124-179-0 01 1 9707-9802
1 SHAFT; PROP
6WA1 TC-S(56L),6WG1 TC-N(71L) TRANSMISSION-FULLER RTLO147 13 OD(Y2P) P115 PROP SHAFT<C5X> L=705 		1-37124-179-0 01 1 9803-9904
1 SHAFT; PROP
P115 PROP SHAFT<C5X> FULLER M/T<X9B> L=715 		1-37124-519-0 01 1 9905-9905
1 SHAFT; PROP
SHORT CHASSIS&RHD(EXZ5MC) L TYPE ENG<90L> P115 PROP SHAFT<C5X> FULLER M/T<X9B> L=715 		1-37124-519-0 01 1 9906-
4 SHAFT; PROP
L=348 		1-37171-104-0 01 1 9603-9609
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 9610-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-079-0 AR 1 9603-9701
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 AR 1 9702-
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37300-093-0 AR 1 9603-
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37300-091-0 AR 1 9603-
10 BOLT; UJT
(A) M10X20 		9-02061-020-0 AR 1 9603-9904
10 BOLT; UJT
P90 PROP SHAFT<C5T>,P115 PROP SHAFT<C5X> (A) M10X20 		9-02061-020-0 AR 1 9905-
10 BOLT; UJT
(B) M12X45 		9-91066-245-0 04 1 9603-
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 AR 1 9603-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 AR 1 9603-
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 AR 1 9603-
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (A) 		1-37249-131-0 AR 1 9603-
15 UNIVERSAL CENTER 1-37300-079-0 01 1 9603-9701
15 UNIVERSAL CENTER 1-37300-100-1 01 1 9702-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 9603-
56 NUT; YOKE
P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 08 1 9603-9706
56 NUT; YOKE
P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M16 FLANGE 		1-09449-065-0 08 1 9707-
56 NUT; YOKE
P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14 FLANGE 		1-09440-048-0 04 1 9707-9904
56 NUT; YOKE
P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> M14 FLANGE 		1-09440-048-0 04 1 9905-
56 NUT; YOKE
EXC. P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 9603-9904
56 NUT; YOKE
EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 9905-
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 9603-
58 FLANGE; SPLINED
L=264 		1-37245-157-1 01 1 9603-9701
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 9702-
71 NUT; YOKE
P115 PROP SHAFT<C5X> FULLER M/T<X9B>,ZF M/T<X9E> M14 FLANGE 		1-09440-048-0 04 1 9603-9904
71 NUT; YOKE
P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> FULLER M/T<X9B>,ZF M/T<X9E> M14 FLANGE 		1-09440-048-0 04 1 9905-
71 NUT; YOKE
P115 PROP SHAFT<C5X> ISUZU M/T<X9A> M16 FLANGE 		1-09449-065-0 08 1 9603-
71 NUT; YOKE
EXC. P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 9603-9904
71 NUT; YOKE
EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 9905-
95 BOLT; YOKE,FINAL
P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 08 1 9603-
95 BOLT; YOKE,FINAL
EXC. P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 04 1 9603-9904
95 BOLT; YOKE,FINAL
EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 04 1 9905-
95 BOLT; YOKE,FINAL
SHORT CHASSIS&RHD(EXZ5MC) P130 PROP SHAFT<BEE> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14X50 		1-09000-645-0 04 1 9905-
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 9603-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-049-0 01 1 9603-
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> (A) 		1-09600-049-0 01 1 9603-
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT<C5T> (B) 		1-09600-067-0 01 1 9603-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9603-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9603-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9603-
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 9603-
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 9603-
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> (A) 		1-37247-019-0 01 1 9603-
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 9603-
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		9-09150-612-0 04 1 9603-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
