◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11420 - FTR(AUST)EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#58106) — 80 parça

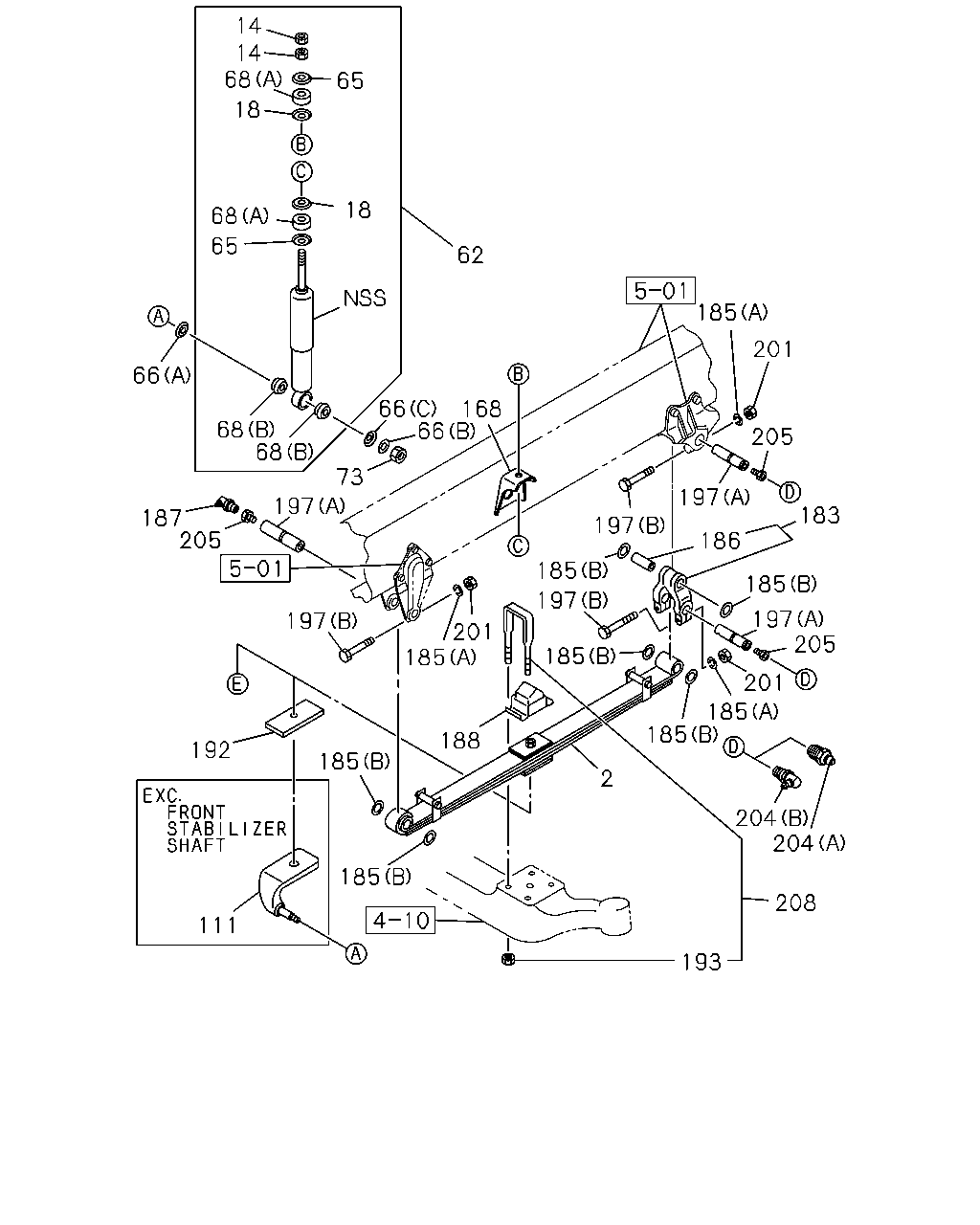

çizim 147057
14 14 68 65 18 18 68 65 62 185 201 66 66 168 66 205 68 68 73 183 197 197 187 205 197 186 185 185 197 197 205 197 201 185 185 201 185 185 188 192 185 2 204 204 185 208 111 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 		8-98023-053-0 02 1 0710-0711 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 		8-98023-053-0 02 1 0712-1302 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 3-LEAF 		8-98023-053-0 02 1 1303- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 		8-98069-483-0 02 1 0710-0711 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 		8-98069-483-0 02 1 0712-1302 ● ●
14 NUT; S/ABS,UPR
M12 		8-98010-412-0 04 1 0710-0711 ●
14 NUT; S/ABS,UPR
M12 		8-98010-412-0 04 1 0712- ● ●
18 WASHER; CENTERING,S/ABS
ID=16.8 		1-51631-022-0 04 1 0710-0711 ●
18 WASHER; CENTERING,S/ABS
ID=16.8 		1-51631-022-0 04 1 0712- ● ●
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> 		8-98021-302-0 02 1 0710-0711 ●
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> 		8-98021-302-0 02 1 0712- ● ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		8-98063-368-0 02 1 0710-0711 ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		8-98063-368-0 02 1 0712- ● ●
65 WASHER; S/ABS
ID=14.5 		9-51631-051-0 04 1 0710-0711 ●
65 WASHER; S/ABS
ID=14.5 		9-51631-051-0 04 1 0712- ● ●
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 0710-0711 ●
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 0712- ● ●
66 WASHER; LK,S/ABS SETTING
(A) ID=23 		1-51631-019-0 02 1 0710-0711 ●
66 WASHER; LK,S/ABS SETTING
(A) ID=23 		1-51631-019-0 02 1 0712- ● ●
66 WASHER; LK,S/ABS SETTING
(C) ID=17 		1-51631-020-0 02 1 0710-0711 ●
66 WASHER; LK,S/ABS SETTING
(C) ID=17 		1-51631-020-0 02 1 0712- ● ●
68 BUSHING; S/ABS
(B) 		1-51631-009-1 04 1 0710-0711 ●
68 BUSHING; S/ABS
(B) 		1-51631-009-1 04 1 0712- ● ●
68 BUSHING; S/ABS
(A) 		9-51631-050-0 04 1 0710-0711 ●
68 BUSHING; S/ABS
(A) 		9-51631-050-0 04 1 0712- ● ●
73 NUT; BRKT,SHOCK
M16 		0-91110-516-0 02 1 0710-0711 ●
73 NUT; BRKT,SHOCK
M16 		0-91110-516-0 02 1 0712- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-667-2 01 1 0710-0711 ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-667-2 01 1 0712-1004 ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98123-348-0 01 1 1005- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-666-2 01 1 0710-0711 ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-666-2 01 1 0712-1004 ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98123-347-0 01 1 1005- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 0710-0711 ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 0712- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0710-0711 ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0712- ● ●
185 WASHER; LK,PIN
(A) ID=12.2 		0-91510-612-0 12 1 0710-0711 ●
185 WASHER; LK,PIN
(A) ID=12.2 		0-91510-612-0 12 1 0712- ● ●
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 0710-0711 ●
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 0712- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0710-0711 ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0712-0902 ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0710-0711 ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0712- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-125-1 02 1 0710-0711 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-125-1 02 1 0712- ● ●
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 AR 1 0710-0711 ●
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 AR 1 0712-0811 ● ●
192 PIECE; DIST
EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 AR 1 0812- ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0710-0711 ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0712-1206 ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ●
197 PIN; FRT SPR,FRT
(B) M12X80 		0-10856-280-0 12 1 0710-0711 ●
197 PIN; FRT SPR,FRT
(B) M12X80 		0-10856-280-0 12 1 0712- ● ●
197 PIN; FRT SPR,FRT
(A) 		1-51161-031-0 06 1 0710-0711 ●
197 PIN; FRT SPR,FRT
(A) 		1-51161-031-0 06 1 0712- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0710-0711 ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0712- ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0710-0711 ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0712- ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0711 ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0712- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0710-0711 ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0712- ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-1 04 1 0710-0711 ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-1 04 1 0712-1206 ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1207-1302 ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1303- ● ●
çizim 147064
140 138 377 377 137 377 140 137 377 138
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		8-98012-957-0 02 1 0710-0711 ●
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		8-98012-957-0 02 1 0712-0912 ● ●
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		8-98128-356-1 02 1 1001- ● ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M14 		0-91110-514-0 06 1 0710-0711 ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M14 		0-91110-514-0 06 1 0712- ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M14X45 		9-92061-445-0 06 1 0710-0711 ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M14X45 		9-92061-445-0 06 1 0712- ● ●
377 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> ID=15 		9-09651-069-0 12 1 0710-0711 ●
377 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> ID=15 		9-09651-069-0 12 1 0712-0910 ● ●
377 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 12 1 0911- ● ●
