◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11420 - FTR(AUST)EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#58094) — 1006 parça

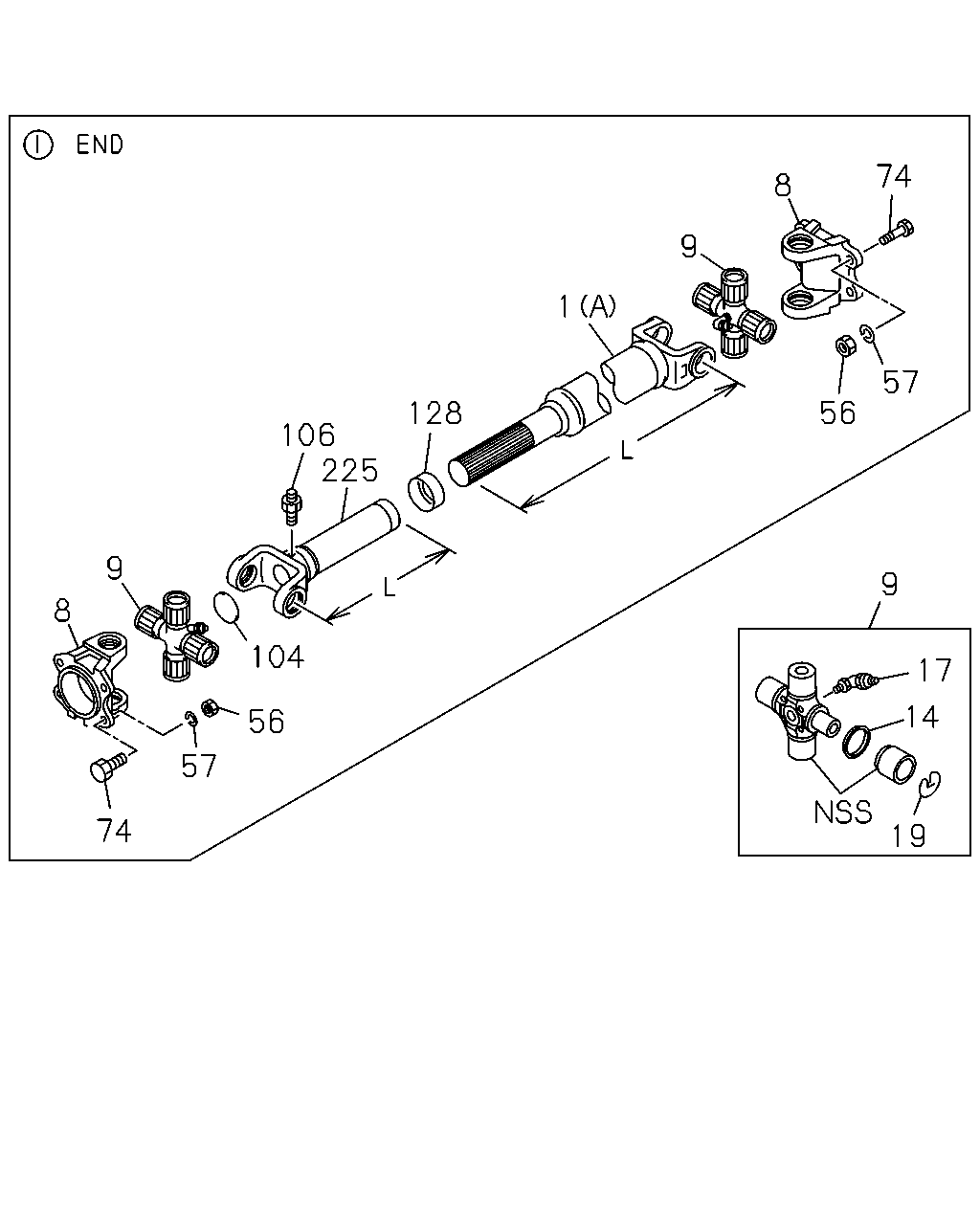

çizim 147024
74 8 9 1 57 56 128 106 225 9 9 8 104 17 14 56 57 74 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(A) L=1226 		8-98091-125-0 01 1 0710- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=969 		1-37153-526-0 01 1 0806- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=859 		8-98091-089-0 01 1 0710-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=859 		8-98091-089-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=859 		8-98091-089-0 01 1 0907- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=786 		1-37153-236-0 01 1 0710-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=786 		1-37153-236-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=786 		1-37153-236-0 01 1 0907- ●
1 SHAFT; PROP
(D) L=1084 		8-98091-088-0 01 1 0710- ●
1 SHAFT; PROP
(C) L=1079 		8-98091-099-0 01 1 0710- ●
1 SHAFT; PROP
(A) L=1301 		8-98091-126-0 01 1 0710- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=839 		8-98091-095-0 01 1 0806- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=736 		1-37153-247-0 01 1 0710-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=736 		1-37153-247-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=736 		1-37153-247-0 01 1 0907- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=656 		1-37153-130-0 01 1 0710-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=656 		1-37153-130-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=656 		1-37153-130-0 01 1 0907- ●
1 SHAFT; PROP
(C) L=1234 		8-98091-091-0 01 1 0712-0907 ●
1 SHAFT; PROP
(C) L=1234 		8-98091-091-0 01 1 0908- ● ●
1 SHAFT; PROP
(A) L=1351 		8-98091-128-0 01 1 0712-0907 ●
1 SHAFT; PROP
(A) L=1351 		8-98091-128-0 01 1 0908- ● ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=1339 		8-98119-468-0 01 1 0806- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1229 		8-98091-101-0 01 1 0712-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1229 		8-98091-101-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1229 		8-98091-101-0 01 1 0907- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1149 		8-98091-100-0 01 1 0712-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1149 		8-98091-100-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1149 		8-98091-100-0 01 1 0907- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=839 		8-98069-569-0 01 1 0908- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=729 		8-98069-567-0 01 1 0908- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=654 		8-98090-947-0 01 1 0908- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0710-0907 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0908- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0710-0711 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0712-0907 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0908- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0908- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 04 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 03 1 0712-0907 ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-0 01 1 0908- ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND,3RD 		1-37300-102-1 AR 1 0710-0711 ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND,3RD 		1-37300-102-1 AR 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0712-0805 ●
9 JOURNAL ASM; PROP SHAFT
MLD6W M/T(Y2C) 		1-37300-102-1 AR 1 0806-0905 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0806-0905 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0906-0907 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0906-0907 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0908- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
DBL CAB(FG**W*) 		1-37300-102-1 AR 1 0908- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0908- ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND,3RD 		1-37300-102-1 AR 1 0712- ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND,3RD 		1-37300-102-1 AR 1 0712- ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-0 02 1 0710-0711 ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-0 02 1 0712-0907 ● ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-0 02 1 0908- ● ● ● ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 0908- ●
14 COVER; DUST,SPIDER
1ST 		1-37319-012-0 04 1 0710-0711 ● ●
14 COVER; DUST,SPIDER
1ST 		1-37319-012-0 04 1 0712- ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0710-0711 ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0712-0907 ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0908- ● ● ● ●
14 COVER; DUST,SPIDER
2ND,3RD 		1-37319-012-0 08 1 0710- ●
14 COVER; DUST,SPIDER
2ND 		1-37319-012-0 04 1 0712-0907 ●
14 COVER; DUST,SPIDER
2ND 		1-37319-012-0 04 1 0908- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0710-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0908- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0711 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0712-0907 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0908- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0908- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 04 1 0710- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 0712-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0710-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0908- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0710-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0908- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0710-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0908- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0712-0907 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0712-0907 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0712-0907 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 16 1 0710- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 16 1 0710- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 16 1 0710- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 0712-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 0712-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 0712-0907 ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0710-0711 ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0712-0906 ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0907- ● ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 0710- ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0710-0711 ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0712-0906 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0907- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0710- ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0710-0711 ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0712-0906 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0907- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0710-0711 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0710-0711 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0712-0907 ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0712-0907 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0908- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0908- ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0710-0711 ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0712-0907 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0908- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 0710-0711 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 0712-0907 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 0908- ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0710-0711 ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0712-0907 ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0908- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 0710-0711 ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 0712-0907 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 0908- ● ● ● ●

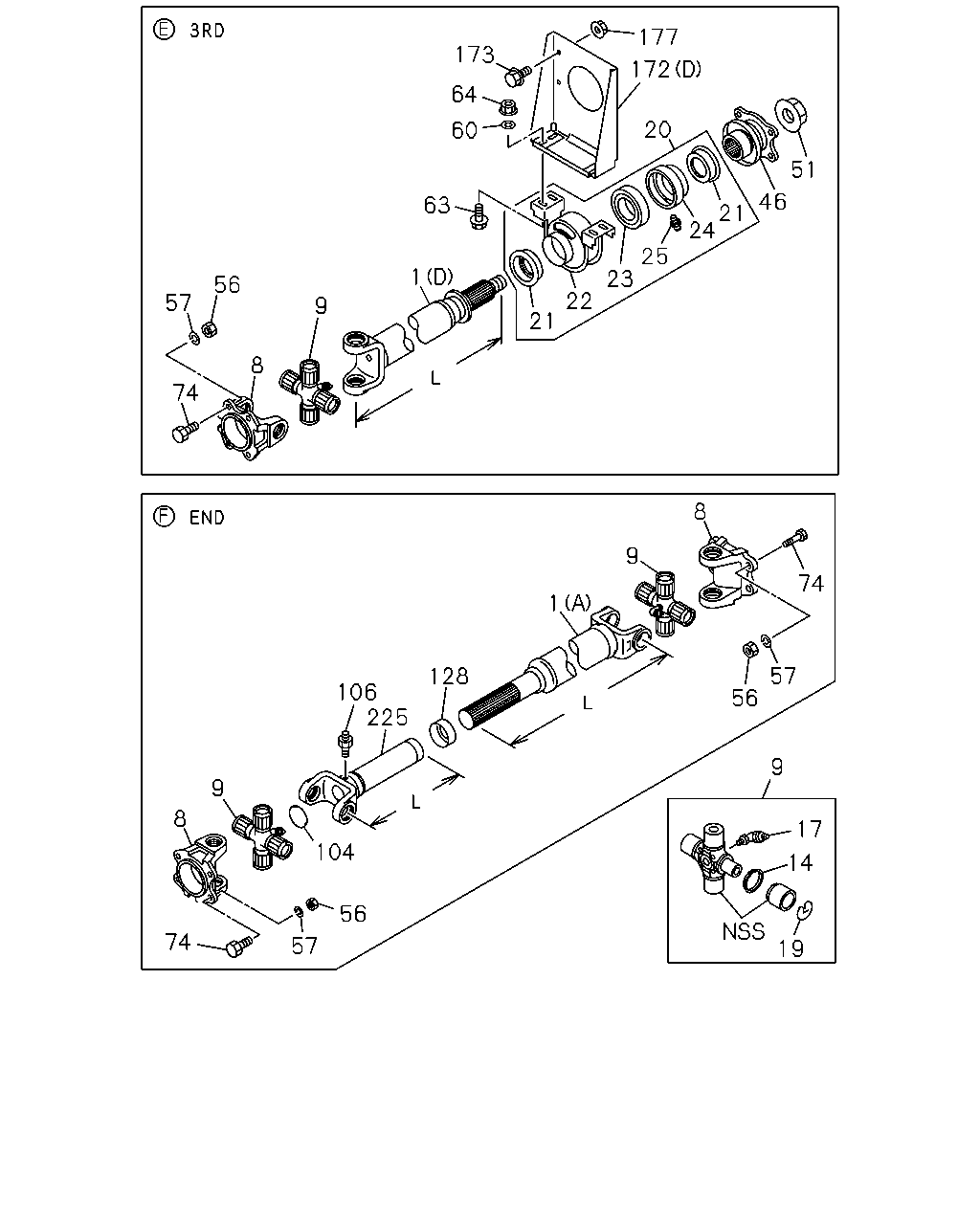

çizim 147027
177 173 172 64 20 60 51 46 63 21 24 25 23 1 56 22 57 9 21 8 74 8 9 74 1 57 128 106 225 56 9 9 8 17 104 14 56 74 57 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(A) L=1226 		8-98091-125-0 01 1 0710- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=969 		1-37153-526-0 01 1 0806- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=859 		8-98091-089-0 01 1 0710-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=859 		8-98091-089-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=859 		8-98091-089-0 01 1 0907- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=786 		1-37153-236-0 01 1 0710-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=786 		1-37153-236-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=786 		1-37153-236-0 01 1 0907- ●
1 SHAFT; PROP
(D) L=1084 		8-98091-088-0 01 1 0710- ●
1 SHAFT; PROP
(C) L=1079 		8-98091-099-0 01 1 0710- ●
1 SHAFT; PROP
(A) L=1301 		8-98091-126-0 01 1 0710- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=839 		8-98091-095-0 01 1 0806- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=736 		1-37153-247-0 01 1 0710-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=736 		1-37153-247-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=736 		1-37153-247-0 01 1 0907- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=656 		1-37153-130-0 01 1 0710-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=656 		1-37153-130-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=656 		1-37153-130-0 01 1 0907- ●
1 SHAFT; PROP
(C) L=1234 		8-98091-091-0 01 1 0712-0907 ●
1 SHAFT; PROP
(C) L=1234 		8-98091-091-0 01 1 0908- ● ●
1 SHAFT; PROP
(A) L=1351 		8-98091-128-0 01 1 0712-0907 ●
1 SHAFT; PROP
(A) L=1351 		8-98091-128-0 01 1 0908- ● ●

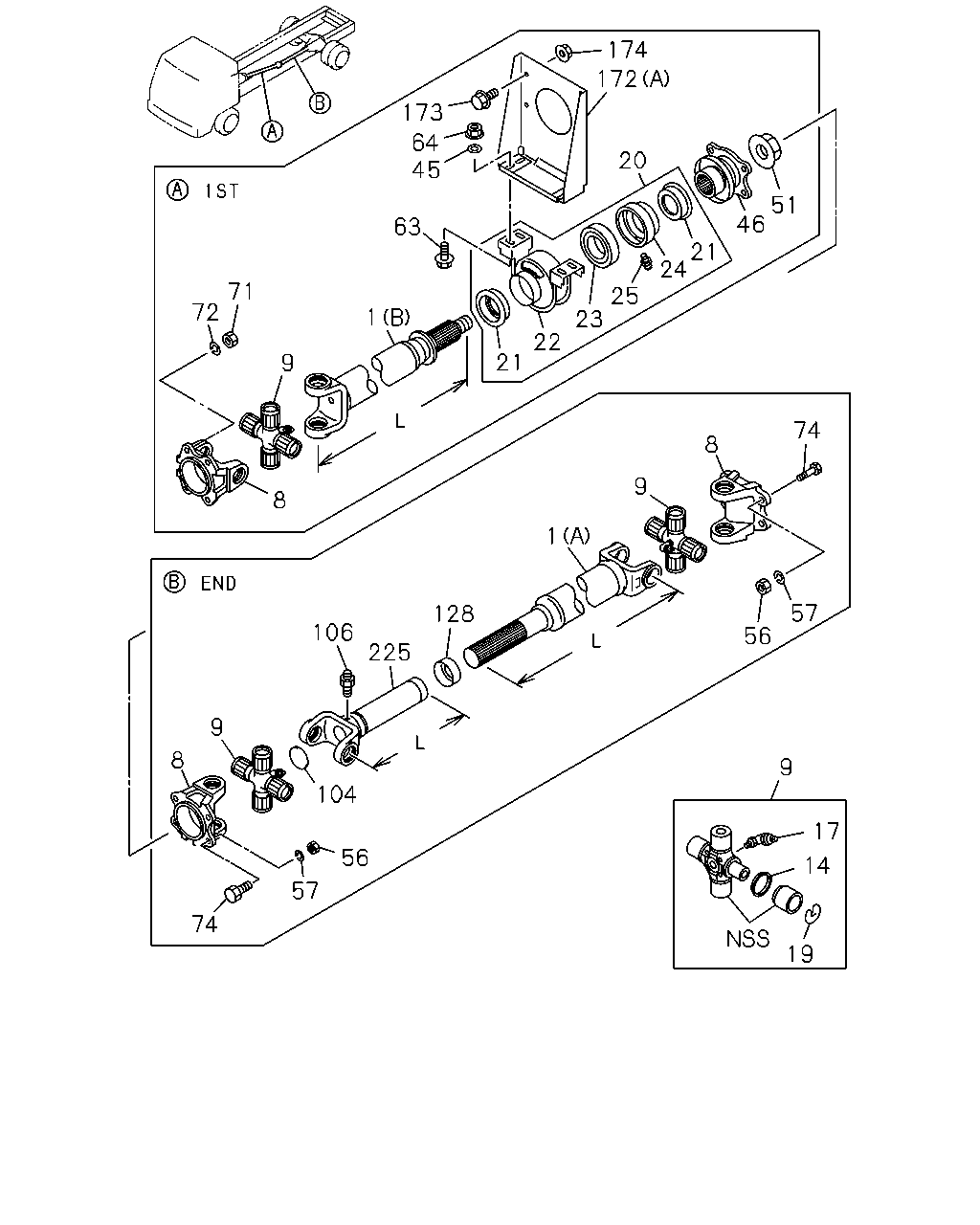

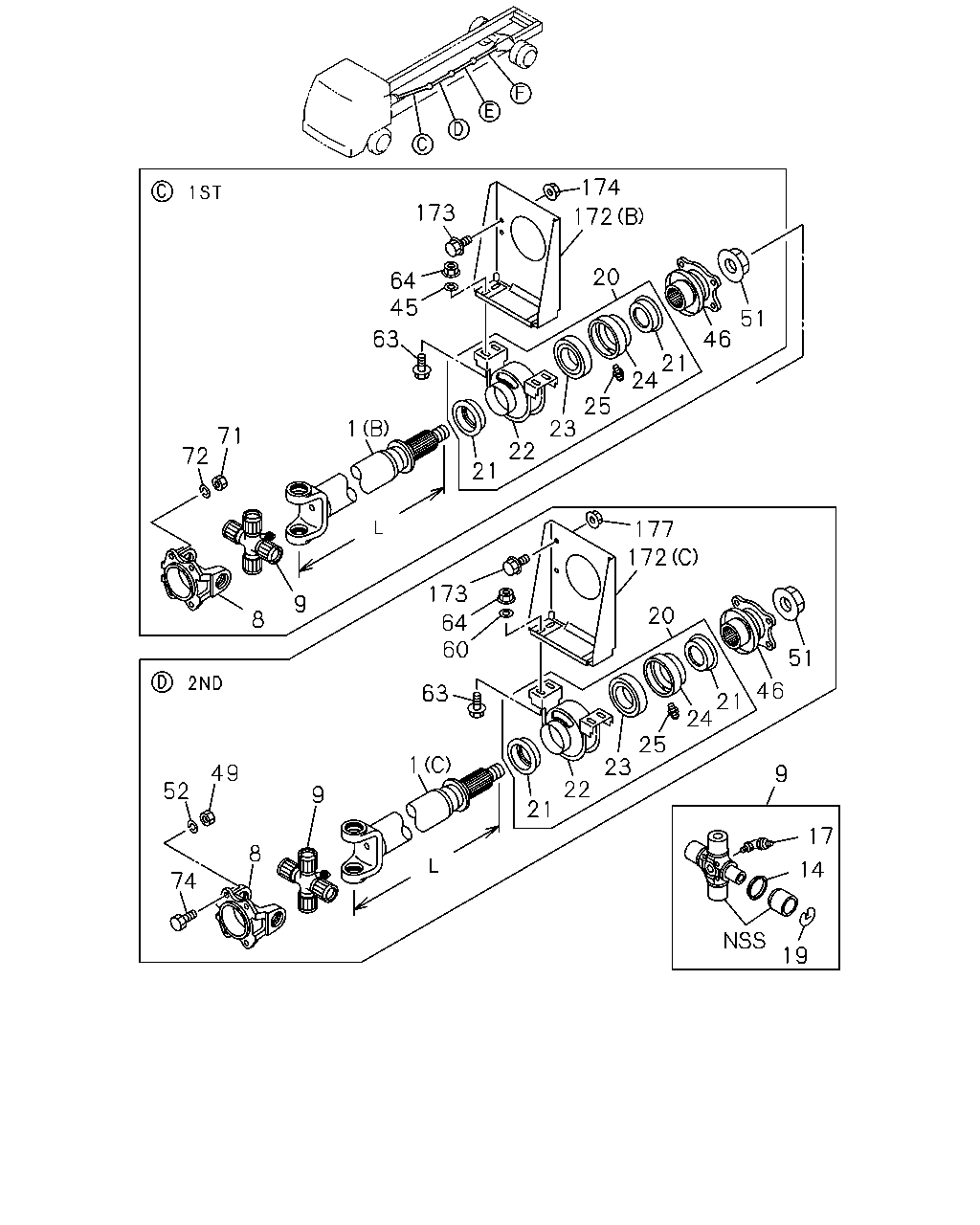

1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=1339 		8-98119-468-0 01 1 0806- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1229 		8-98091-101-0 01 1 0712-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1229 		8-98091-101-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1229 		8-98091-101-0 01 1 0907- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1149 		8-98091-100-0 01 1 0712-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1149 		8-98091-100-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1149 		8-98091-100-0 01 1 0907- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=839 		8-98069-569-0 01 1 0908- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=729 		8-98069-567-0 01 1 0908- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=654 		8-98090-947-0 01 1 0908- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0710-0907 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0908- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0710-0711 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0712-0907 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0908- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0908- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 04 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 03 1 0712-0907 ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-0 01 1 0908- ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND,3RD 		1-37300-102-1 AR 1 0710-0711 ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND,3RD 		1-37300-102-1 AR 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0712-0805 ●
9 JOURNAL ASM; PROP SHAFT
MLD6W M/T(Y2C) 		1-37300-102-1 AR 1 0806-0905 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0806-0905 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0906-0907 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0906-0907 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0908- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
DBL CAB(FG**W*) 		1-37300-102-1 AR 1 0908- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0908- ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND,3RD 		1-37300-102-1 AR 1 0712- ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND,3RD 		1-37300-102-1 AR 1 0712- ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-0 02 1 0710-0711 ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-0 02 1 0712-0907 ● ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-0 02 1 0908- ● ● ● ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 0908- ●
14 COVER; DUST,SPIDER
1ST 		1-37319-012-0 04 1 0710-0711 ● ●
14 COVER; DUST,SPIDER
1ST 		1-37319-012-0 04 1 0712- ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0710-0711 ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0712-0907 ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0908- ● ● ● ●
14 COVER; DUST,SPIDER
2ND,3RD 		1-37319-012-0 08 1 0710- ●
14 COVER; DUST,SPIDER
2ND 		1-37319-012-0 04 1 0712-0907 ●
14 COVER; DUST,SPIDER
2ND 		1-37319-012-0 04 1 0908- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0710-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0908- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0711 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0712-0907 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0908- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0908- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 04 1 0710- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 0712-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0710-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0908- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0710-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0908- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0710-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0908- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0712-0907 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0712-0907 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0712-0907 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 16 1 0710- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 16 1 0710- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 16 1 0710- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 0712-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 0712-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 0712-0907 ●
20 BEARING ASM; CTR,PROP SHAFT
2ND,3RD 		1-37510-105-0 02 1 0710- ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		1-37510-105-0 01 1 0710-0711 ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		1-37510-105-0 01 1 0712- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		8-98020-881-0 01 1 0908- ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		1-37510-105-0 01 1 0712-0907 ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		1-37510-105-0 01 1 0908- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0710-0711 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0712-0907 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0712-0907 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0908- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0908- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 04 1 0710- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0710-0711 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0712-0907 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0712-0907 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0908- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0908- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 02 1 0710- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0710-0711 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0712-0907 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0712-0907 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0908- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0908- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 02 1 0710- ●
24 RETAINER; CENTER BRG,1ST
2ND,3RD 		1-37529-068-0 02 1 0710- ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-068-0 01 1 0710-0711 ● ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-068-0 01 1 0712- ● ● ●
24 RETAINER; CENTER BRG,1ST
1ST 		8-98020-882-0 01 1 0908- ●
24 RETAINER; CENTER BRG,1ST
2ND 		1-37529-068-0 01 1 0712-0907 ●
24 RETAINER; CENTER BRG,1ST
2ND 		1-37529-068-0 01 1 0908- ● ●
25 NIPPLE; GREASE,CENTER BRG
2ND,3RD MT6 STRAIGHT 		1-09380-006-0 02 1 0710- ●
25 NIPPLE; GREASE,CENTER BRG
1ST MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0711 ● ●
25 NIPPLE; GREASE,CENTER BRG
1ST MT6 STRAIGHT 		1-09380-006-0 01 1 0712- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
1ST 		8-98020-889-0 01 1 0908- ●
25 NIPPLE; GREASE,CENTER BRG
2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0712-0907 ●
25 NIPPLE; GREASE,CENTER BRG
2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0908- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND,3RD 		1-37245-071-0 02 1 0710- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-071-0 01 1 0710-0711 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-071-0 01 1 0712- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		8-98020-815-0 01 1 0908- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		1-37245-071-0 01 1 0712-0907 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		1-37245-071-0 01 1 0908- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0710-0711 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0712-0907 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0712-0907 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0908- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0908- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 02 1 0710- ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0710-0711 ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0712-0906 ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0907- ● ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 0710- ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0710-0711 ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0712-0906 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0907- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0710- ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0710-0711 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0710-0711 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0712-0907 ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0712-0907 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0908- ● ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0908- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0711 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0711 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0711 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0712-0907 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0712-0907 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0712-0907 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0908- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0908- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0908- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712-0907 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712-0907 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712-0907 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0908- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0908- ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0908- ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0710-0711 ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0712-0906 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0907- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0710-0711 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0710-0711 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0712-0907 ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0712-0907 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0908- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0908- ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0710-0711 ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0712-0907 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0908- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 0710-0711 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 0712-0907 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 0908- ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0710-0711 ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0712-0907 ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0908- ● ● ● ●
172 BRACKET; CENTER BRG
(A) 		8-98084-678-0 01 1 0710- ●
172 BRACKET; CENTER BRG
(C) 		1-37515-074-1 01 1 0710- ●
172 BRACKET; CENTER BRG
(F) 		1-37515-101-0 01 1 0909- ●
172 BRACKET; CENTER BRG
(D) 		1-37515-102-0 01 1 0710- ●
172 BRACKET; CENTER BRG
(E) 		1-37515-102-0 01 1 0712-0907 ●
172 BRACKET; CENTER BRG
(E) 		1-37515-102-0 01 1 0908- ● ●
172 BRACKET; CENTER BRG
(B) 		1-37515-135-0 01 1 0710- ●
172 BRACKET; CENTER BRG
(F) 		1-37515-135-0 01 1 0712- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0710-0711 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0710-0711 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0710-0711 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0712-0907 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0712-0907 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0712-0907 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0908- ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0908- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0908- ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0712-0907 ● ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0712-0907 ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0908- ● ● ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0908- ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 0710-0711 ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 0712-0907 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 0908- ● ● ● ●
çizim 147030
174 172 173 64 45 20 51 63 46 21 24 25 23 1 71 72 22 21 177 172 173 20 9 64 60 8 51 46 63 21 24 25 23 1 49 22 52 9 9 21 17 8 74 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(A) L=1226 		8-98091-125-0 01 1 0710- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=969 		1-37153-526-0 01 1 0806- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=859 		8-98091-089-0 01 1 0710-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=859 		8-98091-089-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=859 		8-98091-089-0 01 1 0907- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=786 		1-37153-236-0 01 1 0710-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=786 		1-37153-236-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=786 		1-37153-236-0 01 1 0907- ●
1 SHAFT; PROP
(D) L=1084 		8-98091-088-0 01 1 0710- ●
1 SHAFT; PROP
(C) L=1079 		8-98091-099-0 01 1 0710- ●
1 SHAFT; PROP
(A) L=1301 		8-98091-126-0 01 1 0710- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=839 		8-98091-095-0 01 1 0806- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=736 		1-37153-247-0 01 1 0710-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=736 		1-37153-247-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=736 		1-37153-247-0 01 1 0907- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=656 		1-37153-130-0 01 1 0710-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=656 		1-37153-130-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=656 		1-37153-130-0 01 1 0907- ●
1 SHAFT; PROP
(C) L=1234 		8-98091-091-0 01 1 0712-0907 ●
1 SHAFT; PROP
(C) L=1234 		8-98091-091-0 01 1 0908- ● ●
1 SHAFT; PROP
(A) L=1351 		8-98091-128-0 01 1 0712-0907 ●
1 SHAFT; PROP
(A) L=1351 		8-98091-128-0 01 1 0908- ● ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=1339 		8-98119-468-0 01 1 0806- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1229 		8-98091-101-0 01 1 0712-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1229 		8-98091-101-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1229 		8-98091-101-0 01 1 0907- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1149 		8-98091-100-0 01 1 0712-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1149 		8-98091-100-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1149 		8-98091-100-0 01 1 0907- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=839 		8-98069-569-0 01 1 0908- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=729 		8-98069-567-0 01 1 0908- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=654 		8-98090-947-0 01 1 0908- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0710-0907 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0908- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0710-0711 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0712-0907 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0908- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0908- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 04 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 03 1 0712-0907 ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-0 01 1 0908- ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND,3RD 		1-37300-102-1 AR 1 0710-0711 ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND,3RD 		1-37300-102-1 AR 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0712-0805 ●
9 JOURNAL ASM; PROP SHAFT
MLD6W M/T(Y2C) 		1-37300-102-1 AR 1 0806-0905 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0806-0905 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0906-0907 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0906-0907 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0908- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
DBL CAB(FG**W*) 		1-37300-102-1 AR 1 0908- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0908- ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND,3RD 		1-37300-102-1 AR 1 0712- ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND,3RD 		1-37300-102-1 AR 1 0712- ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-0 02 1 0710-0711 ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-0 02 1 0712-0907 ● ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-0 02 1 0908- ● ● ● ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 0908- ●
14 COVER; DUST,SPIDER
1ST 		1-37319-012-0 04 1 0710-0711 ● ●
14 COVER; DUST,SPIDER
1ST 		1-37319-012-0 04 1 0712- ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0710-0711 ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0712-0907 ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0908- ● ● ● ●
14 COVER; DUST,SPIDER
2ND,3RD 		1-37319-012-0 08 1 0710- ●
14 COVER; DUST,SPIDER
2ND 		1-37319-012-0 04 1 0712-0907 ●
14 COVER; DUST,SPIDER
2ND 		1-37319-012-0 04 1 0908- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0710-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0908- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0711 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0712-0907 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0908- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0908- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 04 1 0710- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 0712-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0710-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0908- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0710-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0908- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0710-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0908- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0712-0907 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0712-0907 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0712-0907 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 16 1 0710- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 16 1 0710- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 16 1 0710- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 0712-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 0712-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 0712-0907 ●
20 BEARING ASM; CTR,PROP SHAFT
2ND,3RD 		1-37510-105-0 02 1 0710- ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		1-37510-105-0 01 1 0710-0711 ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		1-37510-105-0 01 1 0712- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		8-98020-881-0 01 1 0908- ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		1-37510-105-0 01 1 0712-0907 ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		1-37510-105-0 01 1 0908- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0710-0711 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0712-0907 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0712-0907 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0908- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0908- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 04 1 0710- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0710-0711 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0712-0907 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0712-0907 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0908- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0908- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 02 1 0710- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0710-0711 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0712-0907 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0712-0907 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0908- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0908- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 02 1 0710- ●
24 RETAINER; CENTER BRG,1ST
2ND,3RD 		1-37529-068-0 02 1 0710- ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-068-0 01 1 0710-0711 ● ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-068-0 01 1 0712- ● ● ●
24 RETAINER; CENTER BRG,1ST
1ST 		8-98020-882-0 01 1 0908- ●
24 RETAINER; CENTER BRG,1ST
2ND 		1-37529-068-0 01 1 0712-0907 ●
24 RETAINER; CENTER BRG,1ST
2ND 		1-37529-068-0 01 1 0908- ● ●
25 NIPPLE; GREASE,CENTER BRG
2ND,3RD MT6 STRAIGHT 		1-09380-006-0 02 1 0710- ●
25 NIPPLE; GREASE,CENTER BRG
1ST MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0711 ● ●
25 NIPPLE; GREASE,CENTER BRG
1ST MT6 STRAIGHT 		1-09380-006-0 01 1 0712- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
1ST 		8-98020-889-0 01 1 0908- ●
25 NIPPLE; GREASE,CENTER BRG
2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0712-0907 ●
25 NIPPLE; GREASE,CENTER BRG
2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0908- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0710-0711 ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0712-0906 ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0907- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND,3RD 		1-37245-071-0 02 1 0710- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-071-0 01 1 0710-0711 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-071-0 01 1 0712- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		8-98020-815-0 01 1 0908- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		1-37245-071-0 01 1 0712-0907 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		1-37245-071-0 01 1 0908- ● ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 0710-0711 ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 0712-0907 ● ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 0908- ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0710-0711 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0712-0907 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0712-0907 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0908- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0908- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 02 1 0710- ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0710-0711 ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0712-0907 ● ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0908- ● ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0710-0711 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0710-0711 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0712-0907 ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0712-0907 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0908- ● ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0908- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0711 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0711 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0711 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0712-0907 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0712-0907 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0712-0907 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0908- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0908- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0908- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712-0907 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712-0907 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712-0907 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0908- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0908- ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0908- ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0710-0711 ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0712-0906 ● ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0907- ● ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0710-0711 ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0712-0906 ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0907- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0710-0711 ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0712-0906 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0907- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0710-0711 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0710-0711 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0712-0907 ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0712-0907 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0908- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0908- ●
172 BRACKET; CENTER BRG
(A) 		8-98084-678-0 01 1 0710- ●
172 BRACKET; CENTER BRG
(C) 		1-37515-074-1 01 1 0710- ●
172 BRACKET; CENTER BRG
(F) 		1-37515-101-0 01 1 0909- ●
172 BRACKET; CENTER BRG
(D) 		1-37515-102-0 01 1 0710- ●
172 BRACKET; CENTER BRG
(E) 		1-37515-102-0 01 1 0712-0907 ●
172 BRACKET; CENTER BRG
(E) 		1-37515-102-0 01 1 0908- ● ●
172 BRACKET; CENTER BRG
(B) 		1-37515-135-0 01 1 0710- ●
172 BRACKET; CENTER BRG
(F) 		1-37515-135-0 01 1 0712- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0710-0711 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0710-0711 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0710-0711 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0712-0907 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0712-0907 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0712-0907 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0908- ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0908- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0908- ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712-0907 ● ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0908- ● ● ● ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0712-0907 ● ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0712-0907 ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0908- ● ● ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0908- ●
çizim 147033
174 173 172 20 64 45 51 46 63 21 24 25 23 1 71 72 22 21 177 172 173 9 20 8 64 60 51 46 63 21 24 25 23 1 49 9 22 52 9 21 17 8 14 74 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(A) L=1226 		8-98091-125-0 01 1 0710- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=969 		1-37153-526-0 01 1 0806- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=859 		8-98091-089-0 01 1 0710-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=859 		8-98091-089-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=859 		8-98091-089-0 01 1 0907- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=786 		1-37153-236-0 01 1 0710-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=786 		1-37153-236-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=786 		1-37153-236-0 01 1 0907- ●
1 SHAFT; PROP
(D) L=1084 		8-98091-088-0 01 1 0710- ●
1 SHAFT; PROP
(C) L=1079 		8-98091-099-0 01 1 0710- ●
1 SHAFT; PROP
(A) L=1301 		8-98091-126-0 01 1 0710- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=839 		8-98091-095-0 01 1 0806- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=736 		1-37153-247-0 01 1 0710-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=736 		1-37153-247-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=736 		1-37153-247-0 01 1 0907- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=656 		1-37153-130-0 01 1 0710-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=656 		1-37153-130-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=656 		1-37153-130-0 01 1 0907- ●
1 SHAFT; PROP
(C) L=1234 		8-98091-091-0 01 1 0712-0907 ●
1 SHAFT; PROP
(C) L=1234 		8-98091-091-0 01 1 0908- ● ●
1 SHAFT; PROP
(A) L=1351 		8-98091-128-0 01 1 0712-0907 ●
1 SHAFT; PROP
(A) L=1351 		8-98091-128-0 01 1 0908- ● ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=1339 		8-98119-468-0 01 1 0806- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1229 		8-98091-101-0 01 1 0712-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1229 		8-98091-101-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1229 		8-98091-101-0 01 1 0907- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1149 		8-98091-100-0 01 1 0712-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1149 		8-98091-100-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1149 		8-98091-100-0 01 1 0907- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=839 		8-98069-569-0 01 1 0908- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=729 		8-98069-567-0 01 1 0908- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=654 		8-98090-947-0 01 1 0908- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0710-0907 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0908- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0710-0711 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0712-0907 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0908- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0908- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 04 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 03 1 0712-0907 ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-0 01 1 0908- ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND,3RD 		1-37300-102-1 AR 1 0710-0711 ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND,3RD 		1-37300-102-1 AR 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0712-0805 ●
9 JOURNAL ASM; PROP SHAFT
MLD6W M/T(Y2C) 		1-37300-102-1 AR 1 0806-0905 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0806-0905 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0906-0907 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0906-0907 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0908- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
DBL CAB(FG**W*) 		1-37300-102-1 AR 1 0908- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0908- ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND,3RD 		1-37300-102-1 AR 1 0712- ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND,3RD 		1-37300-102-1 AR 1 0712- ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-0 02 1 0710-0711 ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-0 02 1 0712-0907 ● ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-0 02 1 0908- ● ● ● ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 0908- ●
14 COVER; DUST,SPIDER
1ST 		1-37319-012-0 04 1 0710-0711 ● ●
14 COVER; DUST,SPIDER
1ST 		1-37319-012-0 04 1 0712- ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0710-0711 ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0712-0907 ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0908- ● ● ● ●
14 COVER; DUST,SPIDER
2ND,3RD 		1-37319-012-0 08 1 0710- ●
14 COVER; DUST,SPIDER
2ND 		1-37319-012-0 04 1 0712-0907 ●
14 COVER; DUST,SPIDER
2ND 		1-37319-012-0 04 1 0908- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0710-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0908- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0711 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0712-0907 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0908- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0908- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 04 1 0710- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 0712-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0710-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0908- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0710-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0908- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0710-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0908- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0712-0907 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0712-0907 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0712-0907 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 16 1 0710- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 16 1 0710- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 16 1 0710- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 0712-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 0712-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 0712-0907 ●
20 BEARING ASM; CTR,PROP SHAFT
2ND,3RD 		1-37510-105-0 02 1 0710- ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		1-37510-105-0 01 1 0710-0711 ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		1-37510-105-0 01 1 0712- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		8-98020-881-0 01 1 0908- ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		1-37510-105-0 01 1 0712-0907 ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		1-37510-105-0 01 1 0908- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0710-0711 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0712-0907 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0712-0907 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0908- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0908- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 04 1 0710- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0710-0711 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0712-0907 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0712-0907 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0908- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0908- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 02 1 0710- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0710-0711 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0712-0907 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0712-0907 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0908- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0908- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 02 1 0710- ●
24 RETAINER; CENTER BRG,1ST
2ND,3RD 		1-37529-068-0 02 1 0710- ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-068-0 01 1 0710-0711 ● ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-068-0 01 1 0712- ● ● ●
24 RETAINER; CENTER BRG,1ST
1ST 		8-98020-882-0 01 1 0908- ●
24 RETAINER; CENTER BRG,1ST
2ND 		1-37529-068-0 01 1 0712-0907 ●
24 RETAINER; CENTER BRG,1ST
2ND 		1-37529-068-0 01 1 0908- ● ●
25 NIPPLE; GREASE,CENTER BRG
2ND,3RD MT6 STRAIGHT 		1-09380-006-0 02 1 0710- ●
25 NIPPLE; GREASE,CENTER BRG
1ST MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0711 ● ●
25 NIPPLE; GREASE,CENTER BRG
1ST MT6 STRAIGHT 		1-09380-006-0 01 1 0712- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
1ST 		8-98020-889-0 01 1 0908- ●
25 NIPPLE; GREASE,CENTER BRG
2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0712-0907 ●
25 NIPPLE; GREASE,CENTER BRG
2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0908- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0710-0711 ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0712-0906 ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0907- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND,3RD 		1-37245-071-0 02 1 0710- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-071-0 01 1 0710-0711 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-071-0 01 1 0712- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		8-98020-815-0 01 1 0908- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		1-37245-071-0 01 1 0712-0907 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		1-37245-071-0 01 1 0908- ● ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 0710-0711 ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 0712-0907 ● ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 0908- ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0710-0711 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0712-0907 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0712-0907 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0908- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0908- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 02 1 0710- ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0710-0711 ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0712-0907 ● ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0908- ● ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0710-0711 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0710-0711 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0712-0907 ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0712-0907 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0908- ● ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0908- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0711 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0711 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0711 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0712-0907 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0712-0907 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0712-0907 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0908- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0908- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0908- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712-0907 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712-0907 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712-0907 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0908- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0908- ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0908- ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0710-0711 ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0712-0906 ● ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0907- ● ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0710-0711 ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0712-0906 ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0907- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0710-0711 ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0712-0906 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0907- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0710-0711 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0710-0711 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0712-0907 ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0712-0907 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0908- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0908- ●
172 BRACKET; CENTER BRG
(A) 		8-98084-678-0 01 1 0710- ●
172 BRACKET; CENTER BRG
(C) 		1-37515-074-1 01 1 0710- ●
172 BRACKET; CENTER BRG
(F) 		1-37515-101-0 01 1 0909- ●
172 BRACKET; CENTER BRG
(D) 		1-37515-102-0 01 1 0710- ●
172 BRACKET; CENTER BRG
(E) 		1-37515-102-0 01 1 0712-0907 ●
172 BRACKET; CENTER BRG
(E) 		1-37515-102-0 01 1 0908- ● ●
172 BRACKET; CENTER BRG
(B) 		1-37515-135-0 01 1 0710- ●
172 BRACKET; CENTER BRG
(F) 		1-37515-135-0 01 1 0712- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0710-0711 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0710-0711 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0710-0711 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0712-0907 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0712-0907 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0712-0907 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0908- ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0908- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0908- ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712-0907 ● ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0908- ● ● ● ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0712-0907 ● ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0712-0907 ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0908- ● ● ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0908- ●
çizim 147050
174 172 173 64 45 20 51 46 63 21 24 71 72 25 23 1 22 21 9 74 8 9 8 1 57 128 106 56 225 9 8 9 104 17 56 14 57 74 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(A) L=1226 		8-98091-125-0 01 1 0710- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=969 		1-37153-526-0 01 1 0806- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=859 		8-98091-089-0 01 1 0710-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=859 		8-98091-089-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=859 		8-98091-089-0 01 1 0907- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=786 		1-37153-236-0 01 1 0710-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=786 		1-37153-236-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=786 		1-37153-236-0 01 1 0907- ●
1 SHAFT; PROP
(D) L=1084 		8-98091-088-0 01 1 0710- ●
1 SHAFT; PROP
(C) L=1079 		8-98091-099-0 01 1 0710- ●
1 SHAFT; PROP
(A) L=1301 		8-98091-126-0 01 1 0710- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=839 		8-98091-095-0 01 1 0806- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=736 		1-37153-247-0 01 1 0710-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=736 		1-37153-247-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=736 		1-37153-247-0 01 1 0907- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=656 		1-37153-130-0 01 1 0710-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=656 		1-37153-130-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=656 		1-37153-130-0 01 1 0907- ●
1 SHAFT; PROP
(C) L=1234 		8-98091-091-0 01 1 0712-0907 ●
1 SHAFT; PROP
(C) L=1234 		8-98091-091-0 01 1 0908- ● ●
1 SHAFT; PROP
(A) L=1351 		8-98091-128-0 01 1 0712-0907 ●
1 SHAFT; PROP
(A) L=1351 		8-98091-128-0 01 1 0908- ● ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=1339 		8-98119-468-0 01 1 0806- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1229 		8-98091-101-0 01 1 0712-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1229 		8-98091-101-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1229 		8-98091-101-0 01 1 0907- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1149 		8-98091-100-0 01 1 0712-0805 ●
1 SHAFT; PROP
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1149 		8-98091-100-0 01 1 0806-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1149 		8-98091-100-0 01 1 0907- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=839 		8-98069-569-0 01 1 0908- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=729 		8-98069-567-0 01 1 0908- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=654 		8-98090-947-0 01 1 0908- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0710-0907 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0908- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0710-0711 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0712-0907 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0908- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0908- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 04 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 03 1 0712-0907 ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-0 01 1 0908- ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND,3RD 		1-37300-102-1 AR 1 0710-0711 ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND,3RD 		1-37300-102-1 AR 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0712-0805 ●
9 JOURNAL ASM; PROP SHAFT
MLD6W M/T(Y2C) 		1-37300-102-1 AR 1 0806-0905 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0806-0905 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0906-0907 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0906-0907 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0908- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
DBL CAB(FG**W*) 		1-37300-102-1 AR 1 0908- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0908- ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND,3RD 		1-37300-102-1 AR 1 0712- ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND,3RD 		1-37300-102-1 AR 1 0712- ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-0 02 1 0710-0711 ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-0 02 1 0712-0907 ● ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-0 02 1 0908- ● ● ● ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 0908- ●
14 COVER; DUST,SPIDER
1ST 		1-37319-012-0 04 1 0710-0711 ● ●
14 COVER; DUST,SPIDER
1ST 		1-37319-012-0 04 1 0712- ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0710-0711 ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0712-0907 ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 0908- ● ● ● ●
14 COVER; DUST,SPIDER
2ND,3RD 		1-37319-012-0 08 1 0710- ●
14 COVER; DUST,SPIDER
2ND 		1-37319-012-0 04 1 0712-0907 ●
14 COVER; DUST,SPIDER
2ND 		1-37319-012-0 04 1 0908- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0710-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0908- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0711 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0712-0907 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0908- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0908- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 04 1 0710- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 0712-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0710-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0908- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0710-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0908- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0710-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0908- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0712-0907 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0712-0907 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0710-0711 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0712-0907 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 16 1 0710- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 16 1 0710- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 16 1 0710- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 0712-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 0712-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 0712-0907 ●
20 BEARING ASM; CTR,PROP SHAFT
2ND,3RD 		1-37510-105-0 02 1 0710- ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		1-37510-105-0 01 1 0710-0711 ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		1-37510-105-0 01 1 0712- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		8-98020-881-0 01 1 0908- ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		1-37510-105-0 01 1 0712-0907 ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		1-37510-105-0 01 1 0908- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0710-0711 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0712-0907 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0712-0907 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0908- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0908- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 04 1 0710- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0710-0711 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0712-0907 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0712-0907 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0908- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0908- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 02 1 0710- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0710-0711 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0712-0907 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0712-0907 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0908- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0908- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 02 1 0710- ●
24 RETAINER; CENTER BRG,1ST
2ND,3RD 		1-37529-068-0 02 1 0710- ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-068-0 01 1 0710-0711 ● ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-068-0 01 1 0712- ● ● ●
24 RETAINER; CENTER BRG,1ST
1ST 		8-98020-882-0 01 1 0908- ●
24 RETAINER; CENTER BRG,1ST
2ND 		1-37529-068-0 01 1 0712-0907 ●
24 RETAINER; CENTER BRG,1ST
2ND 		1-37529-068-0 01 1 0908- ● ●
25 NIPPLE; GREASE,CENTER BRG
2ND,3RD MT6 STRAIGHT 		1-09380-006-0 02 1 0710- ●
25 NIPPLE; GREASE,CENTER BRG
1ST MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0711 ● ●
25 NIPPLE; GREASE,CENTER BRG
1ST MT6 STRAIGHT 		1-09380-006-0 01 1 0712- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
1ST 		8-98020-889-0 01 1 0908- ●
25 NIPPLE; GREASE,CENTER BRG
2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0712-0907 ●
25 NIPPLE; GREASE,CENTER BRG
2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0908- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0710-0711 ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0712-0906 ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0907- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND,3RD 		1-37245-071-0 02 1 0710- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-071-0 01 1 0710-0711 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-071-0 01 1 0712- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		8-98020-815-0 01 1 0908- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		1-37245-071-0 01 1 0712-0907 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		1-37245-071-0 01 1 0908- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0710-0711 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0712-0907 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0712-0907 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0908- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0908- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 02 1 0710- ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0710-0711 ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0712-0906 ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0907- ● ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 0710- ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0710-0711 ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0712-0906 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0907- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0710- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0711 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0711 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0711 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0712-0907 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0712-0907 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0712-0907 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0908- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0908- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0908- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712-0907 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712-0907 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712-0907 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0908- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0908- ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0908- ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0710-0711 ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0712-0906 ● ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0907- ● ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0710-0711 ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0712-0906 ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0907- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0710-0711 ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0712-0906 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 0907- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0710-0711 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0710-0711 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0712-0907 ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0712-0907 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0908- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0908- ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0710-0711 ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0712-0907 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0908- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 0710-0711 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 0712-0907 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 0908- ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0710-0711 ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0712-0907 ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0908- ● ● ● ●
172 BRACKET; CENTER BRG
(A) 		8-98084-678-0 01 1 0710- ●
172 BRACKET; CENTER BRG
(C) 		1-37515-074-1 01 1 0710- ●
172 BRACKET; CENTER BRG
(F) 		1-37515-101-0 01 1 0909- ●
172 BRACKET; CENTER BRG
(D) 		1-37515-102-0 01 1 0710- ●
172 BRACKET; CENTER BRG
(E) 		1-37515-102-0 01 1 0712-0907 ●
172 BRACKET; CENTER BRG
(E) 		1-37515-102-0 01 1 0908- ● ●
172 BRACKET; CENTER BRG
(B) 		1-37515-135-0 01 1 0710- ●
172 BRACKET; CENTER BRG
(F) 		1-37515-135-0 01 1 0712- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0710-0711 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0710-0711 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0710-0711 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0712-0907 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0712-0907 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0712-0907 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0908- ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0908- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0908- ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712-0907 ● ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0908- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 0710-0711 ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 0712-0907 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 0908- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
