Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#58093) — 321 parça

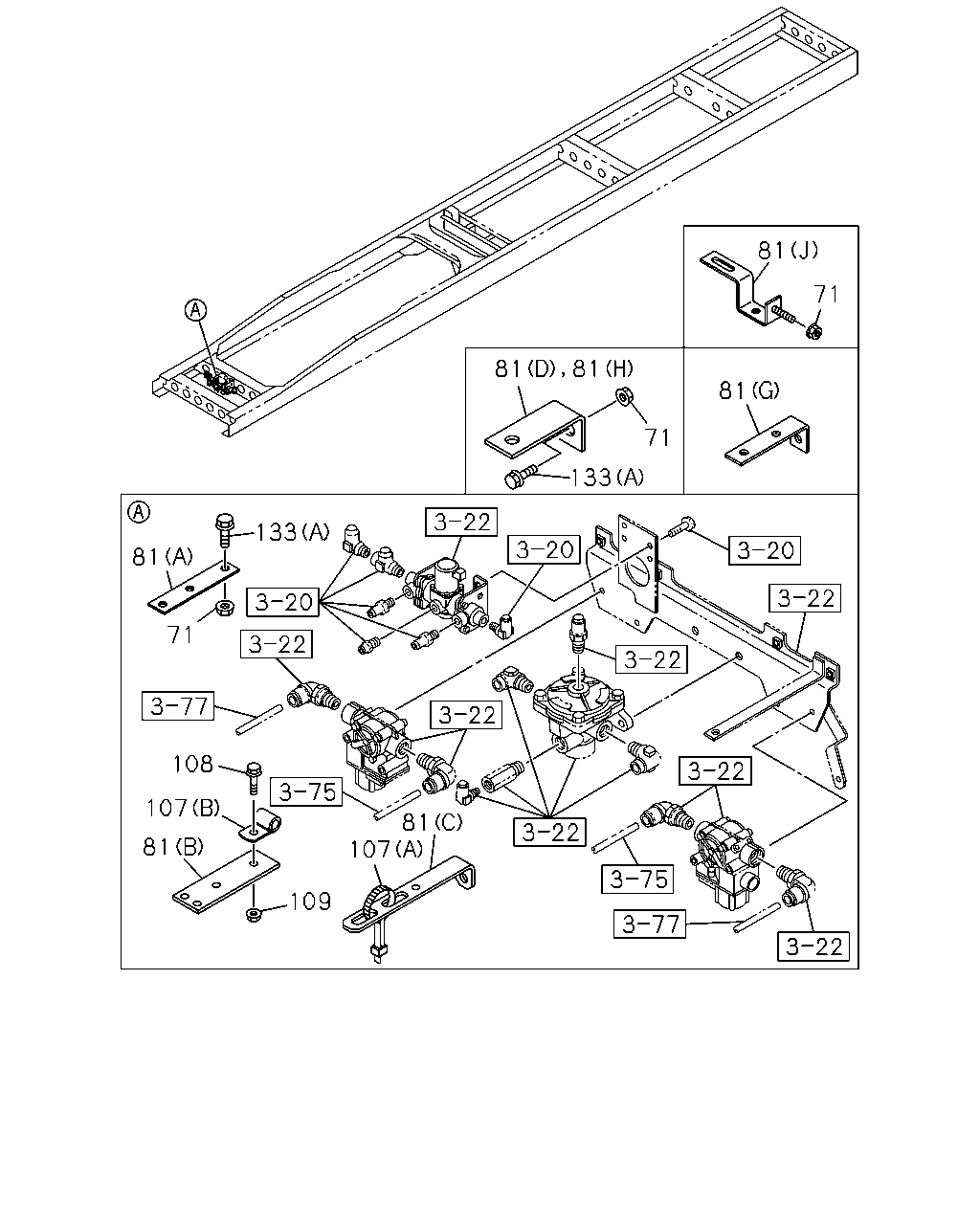

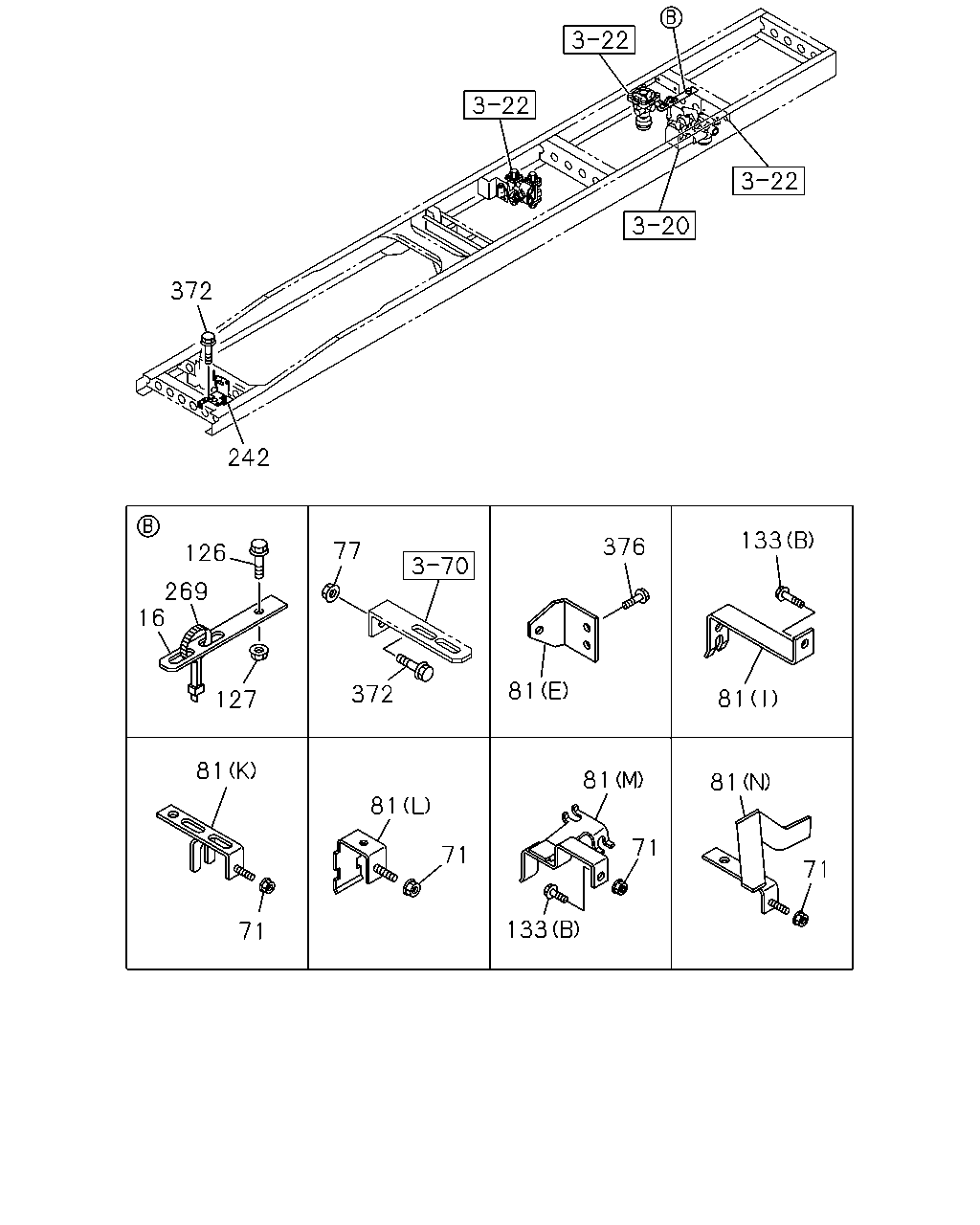

372 242 133 376 77 126 269 16 81 372 81 127 81 81 81 81 71 71 71 133 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	BRACKET; PIPE CLIP L=215	1-47479-288-0	01	1	0710-0711	●
16	BRACKET; PIPE CLIP L=215	1-47479-288-0	01	1	0712-	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	11	1	0710-0711	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	11	1	0712-0811	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0812-	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0811	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0812-	●
71	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0712		●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-0801	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-0811	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-0811	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0812-	●	●
77	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
77	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0803	●	●
77	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0804-	●	●
81	BRACKET; CLIP (M)	8-98182-760-0	01	1	1108-	●	●
81	BRACKET; CLIP (E)	1-47476-699-2	01	1	0710-0711	●
81	BRACKET; CLIP (E)	1-47476-699-2	01	1	0712-	●	●
81	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	04	1	0710-0711	●
81	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	04	1	0712-0806	●	●
81	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) (C) L=100 H=30	1-47477-645-2	03	1	0807-0812	●	●
81	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) (J)	8-98129-212-0	03	1	0901-0906	●	●
81	BRACKET; CLIP (J)	8-98129-212-0	03	1	0907-1012	●	●
81	BRACKET; CLIP (K)	8-98177-873-0	03	1	1101-1107	●	●
81	BRACKET; CLIP (K)	8-98177-873-0	02	1	1108-	●	●
81	BRACKET; CLIP (D) L=65	1-47477-713-0	01	1	0710-0711	●
81	BRACKET; CLIP (D) L=65	1-47477-713-0	01	1	0712-0902	●	●
81	BRACKET; CLIP (D) L=65 B=25	8-98135-584-0	01	1	0903-	●	●
81	BRACKET; CLIP (G) L=60 H=30	1-47477-716-1	02	1	0710-0711	●
81	BRACKET; CLIP (G) L=60 H=30	1-47477-716-1	02	1	0712-	●	●
81	BRACKET; CLIP (A) L=170	1-47479-380-0	01	1	0710-0711	●
81	BRACKET; CLIP (A) L=170	1-47479-380-0	01	1	0712-	●	●
81	BRACKET; CLIP (F)	1-47479-693-0	01	1	0710-0711	●
81	BRACKET; CLIP (F)	1-47479-693-0	01	1	0712-0712	●	●
81	BRACKET; CLIP (F)	1-47479-693-0	01	1	0801-0808	●	●
81	BRACKET; CLIP (F)	1-47479-693-0	01	1	0801-0808	●
81	BRACKET; CLIP (F)	1-47479-693-0	01	1	0809-0809	●	●
81	BRACKET; CLIP (F)	8-98119-184-1	01	1	0809-	●	●
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	0710-0711	●
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	0712-	●	●
81	BRACKET; CLIP (L)	8-98186-380-0	01	1	1106-	●	●
81	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) (I)	8-98118-865-0	01	1	0807-0906	●	●
81	BRACKET; CLIP (I)	8-98118-865-0	01	1	0907-1008	●	●
81	BRACKET; CLIP (I)	8-98169-434-0	01	1	1009-1107	●	●
81	BRACKET; CLIP (N)	8-98182-331-0	01	1	1108-	●	●
81	BRACKET; CLIP (H) L=55 B=25	1-47478-439-0	01	1	0712-0809		●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0710-0711	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0712-	●	●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0712-	●	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-0712	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	06	1	0710-0711	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	06	1	0712-0802	●	●
133	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	06	1	0803-0811	●	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0812-	●	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-0711	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0712-0712	●	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) (A) M8X25 FLANGE	0-28650-825-0	01	1	0712-0712	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0801-0803	●	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0801-0803	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) (A) M8X25 FLANGE	0-28650-825-0	01	1	0801-0803	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0804-0811	●	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0804-0811	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0804-0811	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) (A) M8X25 FLANGE	0-28650-825-0	01	1	0804-0811	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0812-	●	●
133	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	0710-0811	●
133	BOLT; BRKT MZX6P M/T(RSW),MLD6W M/T(Y2C) (B) M8X30 FLANGE	0-28650-830-0	03	1	0812-0906	●	●
133	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	0907-	●	●
133	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	0801-0811	●
133	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0812-	●	●
133	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0812-	●
133	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0804-0811	●
242	BRACKET; PIPE CLIP	8-98074-610-0	01	1	0710-0711	●
242	BRACKET; PIPE CLIP	8-98074-610-0	01	1	0712-0712	●	●
242	BRACKET; PIPE CLIP	8-98074-610-0	01	1	0712-	●
242	BRACKET; PIPE CLIP	8-98106-046-0	01	1	0712-		●
269	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	01	1	0710-0804	●
269	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	02	1	0710-0711	●
269	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	02	1	0712-0907	●	●
269	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	01	1	0908-	●	●
269	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	01	1	0908-	●
372	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
372	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
372	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-0712	●	●
372	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-0712	●	●
372	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	02	1	0801-0803	●	●
372	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	01	1	0804-0811	●	●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0812-	●	●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0801-	●	●
376	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0801-0803	●
376	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0804-0811	●	●
376	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0812-	●	●
376	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0803-	●

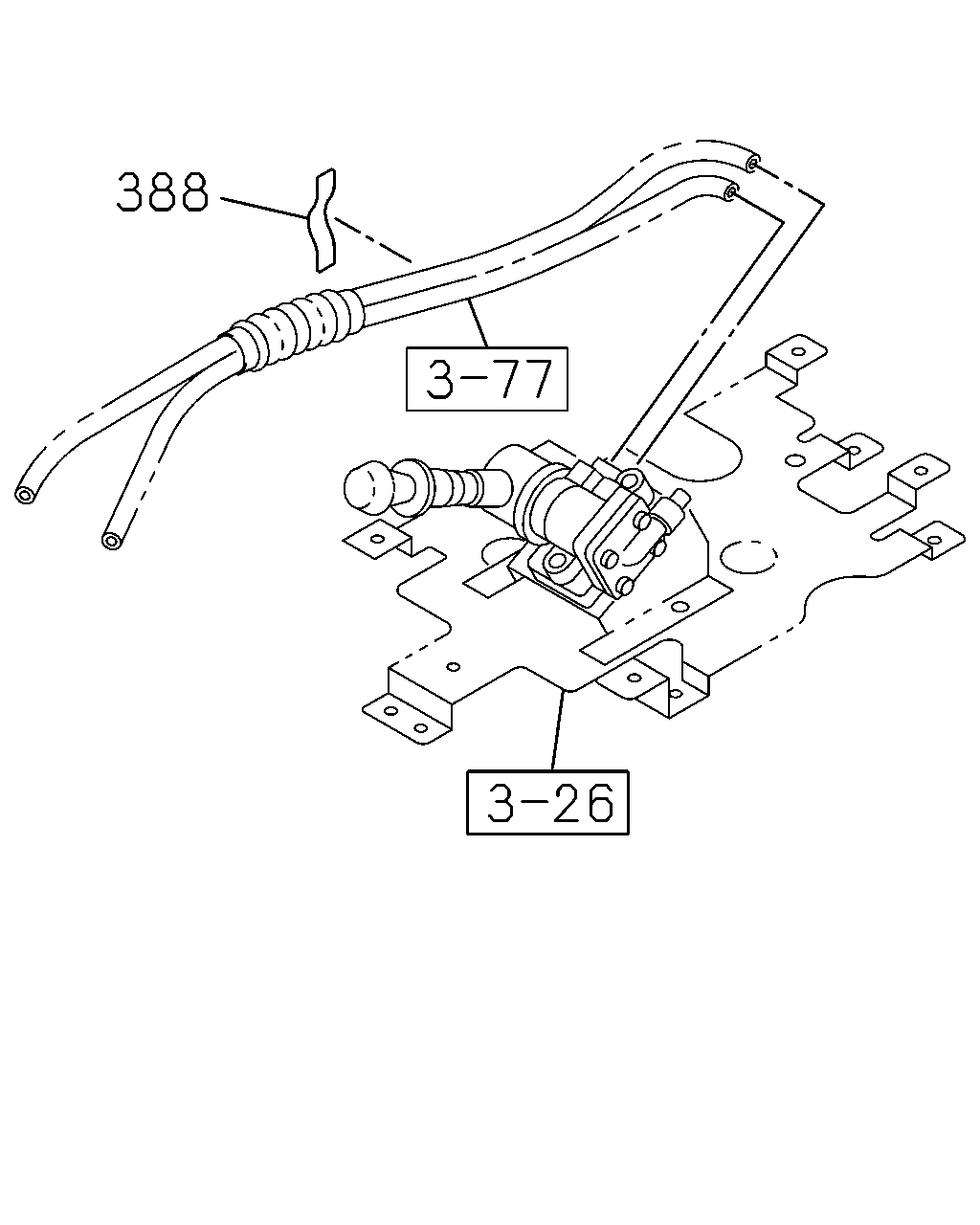

388

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	388	SEAL 100X40	1-72498-022-0	03	1	0710-0711	●
	388	SEAL 100X40	1-72498-022-1	03	1	0712-	●	●

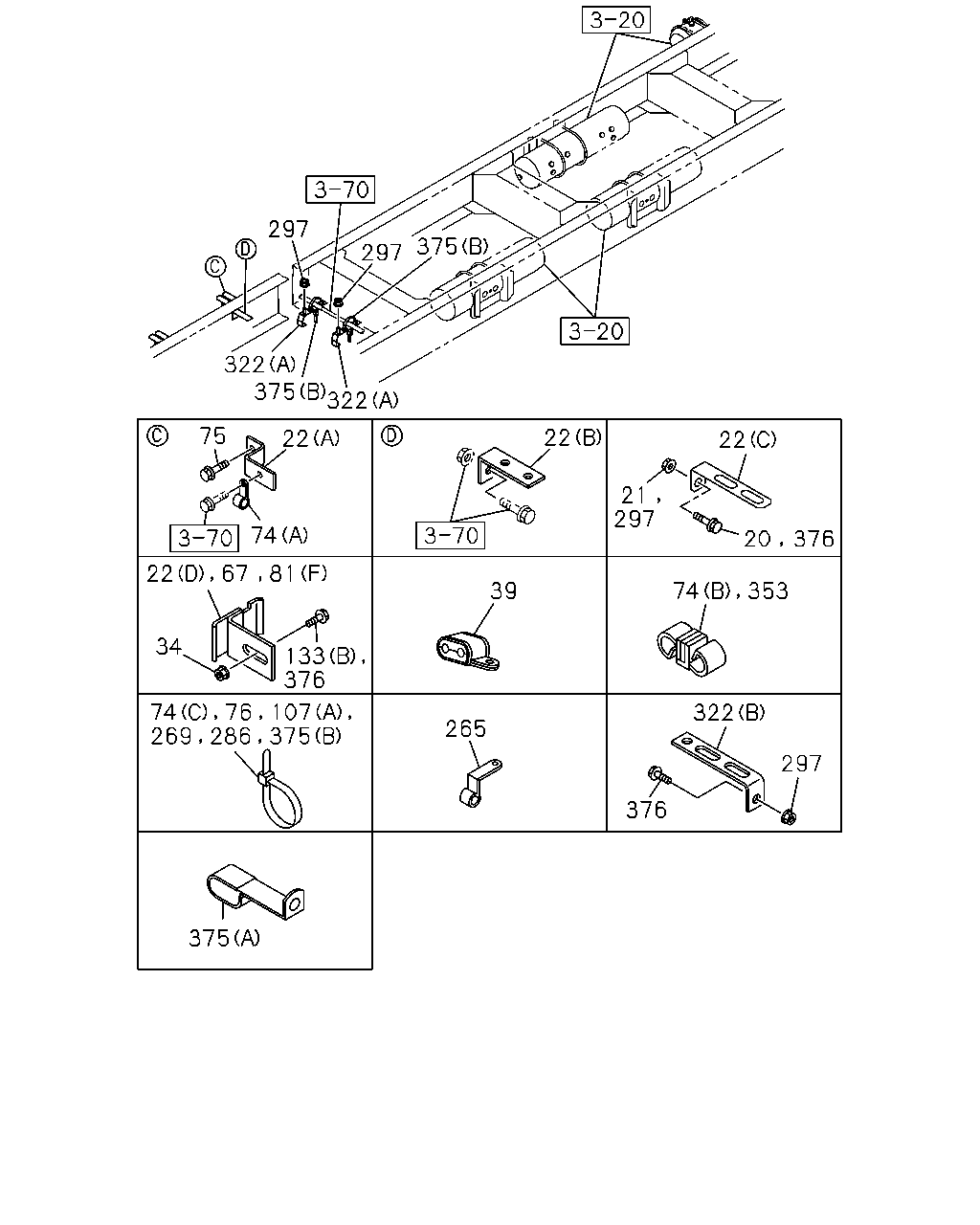

297 375 297 322 375 322 75 22 22 22 21 297 74 81 39 34 133 376 322 265 297 376 375 20 376 353 74 375 286 269 74 76 107 67 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0710-0710	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0710-0710	●
22	BRACKET; CLIP (A)	1-47475-881-0	01	1	0710-0711	●
22	BRACKET; CLIP (A)	1-47475-881-0	01	1	0712-	●	●
22	BRACKET; CLIP (B) L=60 H=30	1-47477-716-1	01	1	0710-0712	●
22	BRACKET; CLIP (D)	1-47479-693-0	01	1	0801-0803	●
22	BRACKET; CLIP (D)	1-47479-693-0	01	1	0804-0808	●	●
22	BRACKET; CLIP (D)	8-98119-184-1	01	1	0809-	●	●
22	BRACKET; CLIP WHEEL BASE 4200MM(42W) (C) L=100 H=30	1-47477-645-2	02	1	0711-	●
34	NUT; BRKT WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	0712-0712	●
34	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-0803	●
34	NUT; BRKT WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	0801-0803	●
34	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0804-0811	●	●
34	NUT; BRKT WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	0804-0811	●
34	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0812-	●	●
39	CLIP; AIR PIPE L=350	1-09707-183-0	04	1	0710-0711	●
39	CLIP; AIR PIPE L=350	1-09707-183-0	04	1	0712-0804	●	●
67	BRACKET; CLIP WHEEL BASE 6500MM(65W)	1-47479-693-0	01	1	0712-0808	●
74	CLIP; NYLON TUBE (A) ID=16 L=28	1-09700-872-0	01	1	0710-0711	●
74	CLIP; NYLON TUBE (A) ID=16 L=28	1-09700-872-0	01	1	0712-	●	●
74	CLIP; NYLON TUBE (B) ID=12 & 15	1-09709-281-1	01	1	0710-0711	●
74	CLIP; NYLON TUBE (B) ID=12 & 15	1-09709-281-1	01	1	0712-	●	●
74	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) (C) L=350	1-09707-183-0	12	1	0908-1009	●
74	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) (C) L=350	1-09707-183-0	09	1	0908-	●
74	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	01	1	0712-0712	●	●
74	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	01	1	0712-0811	●	●
74	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (C) L=350	1-09707-183-0	01	1	0712-0811	●
74	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (C) L=350	1-09707-183-0	06	1	0812-	●
74	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	10	1	0812-		●
74	CLIP; NYLON TUBE WHEEL BASE 6000MM(60W) (C) L=350	1-09707-183-0	10	1	0712-0802		●
74	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	10	1	0803-0811		●
74	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	10	1	0803-0811		●
74	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (C) L=350	1-09707-183-0	11	1	0812-	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0710-0711	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-	●	●
76	CLIP; NYLON TUBE L=350	1-09707-183-0	04	1	0710-0711	●
76	CLIP; NYLON TUBE L=350	1-09707-183-0	04	1	0712-0802	●	●
76	CLIP; NYLON TUBE L=350	1-09707-183-0	04	1	0803-0811	●
76	CLIP; NYLON TUBE L=350	1-09707-183-0	02	1	0812-	●	●
81	BRACKET; CLIP (M)	8-98182-760-0	01	1	1108-	●	●
81	BRACKET; CLIP (E)	1-47476-699-2	01	1	0710-0711	●
81	BRACKET; CLIP (E)	1-47476-699-2	01	1	0712-	●	●
81	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	04	1	0710-0711	●
81	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	04	1	0712-0806	●	●
81	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) (C) L=100 H=30	1-47477-645-2	03	1	0807-0812	●	●
81	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) (J)	8-98129-212-0	03	1	0901-0906	●	●
81	BRACKET; CLIP (J)	8-98129-212-0	03	1	0907-1012	●	●
81	BRACKET; CLIP (K)	8-98177-873-0	03	1	1101-1107	●	●
81	BRACKET; CLIP (K)	8-98177-873-0	02	1	1108-	●	●
81	BRACKET; CLIP (D) L=65	1-47477-713-0	01	1	0710-0711	●
81	BRACKET; CLIP (D) L=65	1-47477-713-0	01	1	0712-0902	●	●
81	BRACKET; CLIP (D) L=65 B=25	8-98135-584-0	01	1	0903-	●	●
81	BRACKET; CLIP (G) L=60 H=30	1-47477-716-1	02	1	0710-0711	●
81	BRACKET; CLIP (G) L=60 H=30	1-47477-716-1	02	1	0712-	●	●
81	BRACKET; CLIP (A) L=170	1-47479-380-0	01	1	0710-0711	●
81	BRACKET; CLIP (A) L=170	1-47479-380-0	01	1	0712-	●	●
81	BRACKET; CLIP (F)	1-47479-693-0	01	1	0710-0711	●
81	BRACKET; CLIP (F)	1-47479-693-0	01	1	0712-0712	●	●
81	BRACKET; CLIP (F)	1-47479-693-0	01	1	0801-0808	●	●
81	BRACKET; CLIP (F)	1-47479-693-0	01	1	0801-0808	●
81	BRACKET; CLIP (F)	1-47479-693-0	01	1	0809-0809	●	●
81	BRACKET; CLIP (F)	8-98119-184-1	01	1	0809-	●	●
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	0710-0711	●
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	0712-	●	●
81	BRACKET; CLIP (L)	8-98186-380-0	01	1	1106-	●	●
81	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) (I)	8-98118-865-0	01	1	0807-0906	●	●
81	BRACKET; CLIP (I)	8-98118-865-0	01	1	0907-1008	●	●
81	BRACKET; CLIP (I)	8-98169-434-0	01	1	1009-1107	●	●
81	BRACKET; CLIP (N)	8-98182-331-0	01	1	1108-	●	●
81	BRACKET; CLIP (H) L=55 B=25	1-47478-439-0	01	1	0712-0809		●
107	CLIP; NYLON TUBE H.S.A SYSTEM<6EP> (B) ID=35 L=33	1-09700-945-0	01	1	0710-0711	●
107	CLIP; NYLON TUBE H.S.A SYSTEM<6EP> (B) ID=35 L=33	1-09700-945-0	01	1	0712-	●	●
107	CLIP; NYLON TUBE EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33	8-98009-359-0	01	1	0710-0711	●
107	CLIP; NYLON TUBE EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33	8-98009-359-0	01	1	0712-	●	●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (A) L=350	1-09707-183-0	20	1	0710-0711	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	20	1	0710-0711	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	20	1	0712-0802	●	●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (A) L=350	1-09707-183-0	20	1	0712-0802	●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (A) L=350	1-09707-183-0	25	1	0803-0811	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	25	1	0803-0811	●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (A) L=350	1-09707-183-0	35	1	0812-	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	08	1	0806-0811	●	●
107	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (A) L=350	1-09707-183-0	42	1	0812-	●
107	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (A) L=350	1-09707-183-0	43	1	0812-0907	●
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) (A) L=350	1-09707-183-0	39	1	0908-	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	27	1	0712-0802		●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	38	1	0803-0804		●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	39	1	0805-0904		●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	36	1	0905-		●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-0712	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	06	1	0710-0711	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	06	1	0712-0802	●	●
133	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	06	1	0803-0811	●	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0812-	●	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-0711	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0712-0712	●	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) (A) M8X25 FLANGE	0-28650-825-0	01	1	0712-0712	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0801-0803	●	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0801-0803	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) (A) M8X25 FLANGE	0-28650-825-0	01	1	0801-0803	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0804-0811	●	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0804-0811	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0804-0811	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) (A) M8X25 FLANGE	0-28650-825-0	01	1	0804-0811	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0812-	●	●
133	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	0710-0811	●
133	BOLT; BRKT MZX6P M/T(RSW),MLD6W M/T(Y2C) (B) M8X30 FLANGE	0-28650-830-0	03	1	0812-0906	●	●
133	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	0907-	●	●
133	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	0801-0811	●
133	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0812-	●	●
133	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0812-	●
133	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0804-0811	●
265	CLIP; NYLON TUBE ID=21 H=25.5 L=26	8-94176-806-0	01	1	0710-0711	●
265	CLIP; NYLON TUBE ID=21 H=25.5 L=26	8-94176-806-0	01	1	0712-	●	●
269	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	01	1	0710-0804	●
269	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	02	1	0710-0711	●
269	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	02	1	0712-0907	●	●
269	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	01	1	0908-	●	●
269	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	01	1	0908-	●
286	CLIP; NYLON TUBE L=350	1-09707-183-0	01	1	0710-0804	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0710	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0803-	●
322	BRACKET; CLIP (A)	8-98047-730-0	02	1	0710-0710	●
322	BRACKET; CLIP (B)	1-47479-598-0	01	1	0803-1001	●
353	CLIP; AIR PIPE ID=18 & 18	8-94323-068-0	01	1	0710-0711	●
353	CLIP; AIR PIPE ID=18 & 18	8-94323-068-0	01	1	0712-	●	●
375	CLIP; AIR PIPE (A) ID=15 H=24 L=20	1-09700-606-0	02	1	0710-0803	●
375	CLIP; AIR PIPE (B) L=350	1-09707-183-0	02	1	0710-0710	●
375	CLIP; AIR PIPE (B) L=350	1-09707-183-0	04	1	0710-0711	●
375	CLIP; AIR PIPE (B) L=350	1-09707-183-0	04	1	0712-0811	●	●
375	CLIP; AIR PIPE (B) L=350	1-09707-183-0	02	1	0812-0907	●
375	CLIP; AIR PIPE (B) L=350	1-09707-183-0	02	1	0908-	●	●
376	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0801-0803	●
376	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0804-0811	●	●
376	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0812-	●	●
376	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0803-	●

81 71 81 71 133 133 81 71 108 107 81 107 81 109 81 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
71	NUT; BRKT M8 FLANGE	0-91180-108-0	11	1	0710-0711	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	11	1	0712-0811	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0812-	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0811	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0812-	●
71	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0712		●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-0801	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-0811	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-0811	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0812-	●	●
81	BRACKET; CLIP (M)	8-98182-760-0	01	1	1108-	●	●
81	BRACKET; CLIP (E)	1-47476-699-2	01	1	0710-0711	●
81	BRACKET; CLIP (E)	1-47476-699-2	01	1	0712-	●	●
81	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	04	1	0710-0711	●
81	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	04	1	0712-0806	●	●
81	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) (C) L=100 H=30	1-47477-645-2	03	1	0807-0812	●	●
81	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) (J)	8-98129-212-0	03	1	0901-0906	●	●
81	BRACKET; CLIP (J)	8-98129-212-0	03	1	0907-1012	●	●
81	BRACKET; CLIP (K)	8-98177-873-0	03	1	1101-1107	●	●
81	BRACKET; CLIP (K)	8-98177-873-0	02	1	1108-	●	●
81	BRACKET; CLIP (D) L=65	1-47477-713-0	01	1	0710-0711	●
81	BRACKET; CLIP (D) L=65	1-47477-713-0	01	1	0712-0902	●	●
81	BRACKET; CLIP (D) L=65 B=25	8-98135-584-0	01	1	0903-	●	●
81	BRACKET; CLIP (G) L=60 H=30	1-47477-716-1	02	1	0710-0711	●
81	BRACKET; CLIP (G) L=60 H=30	1-47477-716-1	02	1	0712-	●	●
81	BRACKET; CLIP (A) L=170	1-47479-380-0	01	1	0710-0711	●
81	BRACKET; CLIP (A) L=170	1-47479-380-0	01	1	0712-	●	●
81	BRACKET; CLIP (F)	1-47479-693-0	01	1	0710-0711	●
81	BRACKET; CLIP (F)	1-47479-693-0	01	1	0712-0712	●	●
81	BRACKET; CLIP (F)	1-47479-693-0	01	1	0801-0808	●	●
81	BRACKET; CLIP (F)	1-47479-693-0	01	1	0801-0808	●
81	BRACKET; CLIP (F)	1-47479-693-0	01	1	0809-0809	●	●
81	BRACKET; CLIP (F)	8-98119-184-1	01	1	0809-	●	●
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	0710-0711	●
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	0712-	●	●
81	BRACKET; CLIP (L)	8-98186-380-0	01	1	1106-	●	●
81	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) (I)	8-98118-865-0	01	1	0807-0906	●	●
81	BRACKET; CLIP (I)	8-98118-865-0	01	1	0907-1008	●	●
81	BRACKET; CLIP (I)	8-98169-434-0	01	1	1009-1107	●	●
81	BRACKET; CLIP (N)	8-98182-331-0	01	1	1108-	●	●
81	BRACKET; CLIP (H) L=55 B=25	1-47478-439-0	01	1	0712-0809		●
107	CLIP; NYLON TUBE H.S.A SYSTEM<6EP> (B) ID=35 L=33	1-09700-945-0	01	1	0710-0711	●
107	CLIP; NYLON TUBE H.S.A SYSTEM<6EP> (B) ID=35 L=33	1-09700-945-0	01	1	0712-	●	●
107	CLIP; NYLON TUBE EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33	8-98009-359-0	01	1	0710-0711	●
107	CLIP; NYLON TUBE EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33	8-98009-359-0	01	1	0712-	●	●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (A) L=350	1-09707-183-0	20	1	0710-0711	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	20	1	0710-0711	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	20	1	0712-0802	●	●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (A) L=350	1-09707-183-0	20	1	0712-0802	●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (A) L=350	1-09707-183-0	25	1	0803-0811	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	25	1	0803-0811	●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (A) L=350	1-09707-183-0	35	1	0812-	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	08	1	0806-0811	●	●
107	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (A) L=350	1-09707-183-0	42	1	0812-	●
107	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (A) L=350	1-09707-183-0	43	1	0812-0907	●
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) (A) L=350	1-09707-183-0	39	1	0908-	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	27	1	0712-0802		●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	38	1	0803-0804		●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	39	1	0805-0904		●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	36	1	0905-		●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0710-0711	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0712	●	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-0712	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	06	1	0710-0711	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	06	1	0712-0802	●	●
133	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	06	1	0803-0811	●	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0812-	●	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-0711	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0712-0712	●	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) (A) M8X25 FLANGE	0-28650-825-0	01	1	0712-0712	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0801-0803	●	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0801-0803	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) (A) M8X25 FLANGE	0-28650-825-0	01	1	0801-0803	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0804-0811	●	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0804-0811	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0804-0811	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) (A) M8X25 FLANGE	0-28650-825-0	01	1	0804-0811	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0812-	●	●
133	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	0710-0811	●
133	BOLT; BRKT MZX6P M/T(RSW),MLD6W M/T(Y2C) (B) M8X30 FLANGE	0-28650-830-0	03	1	0812-0906	●	●
133	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	0907-	●	●
133	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	0801-0811	●
133	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0812-	●	●
133	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0812-	●
133	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0804-0811	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
