◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11420 - FTR(AUST)EURO4 ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#58092) — 109 parça

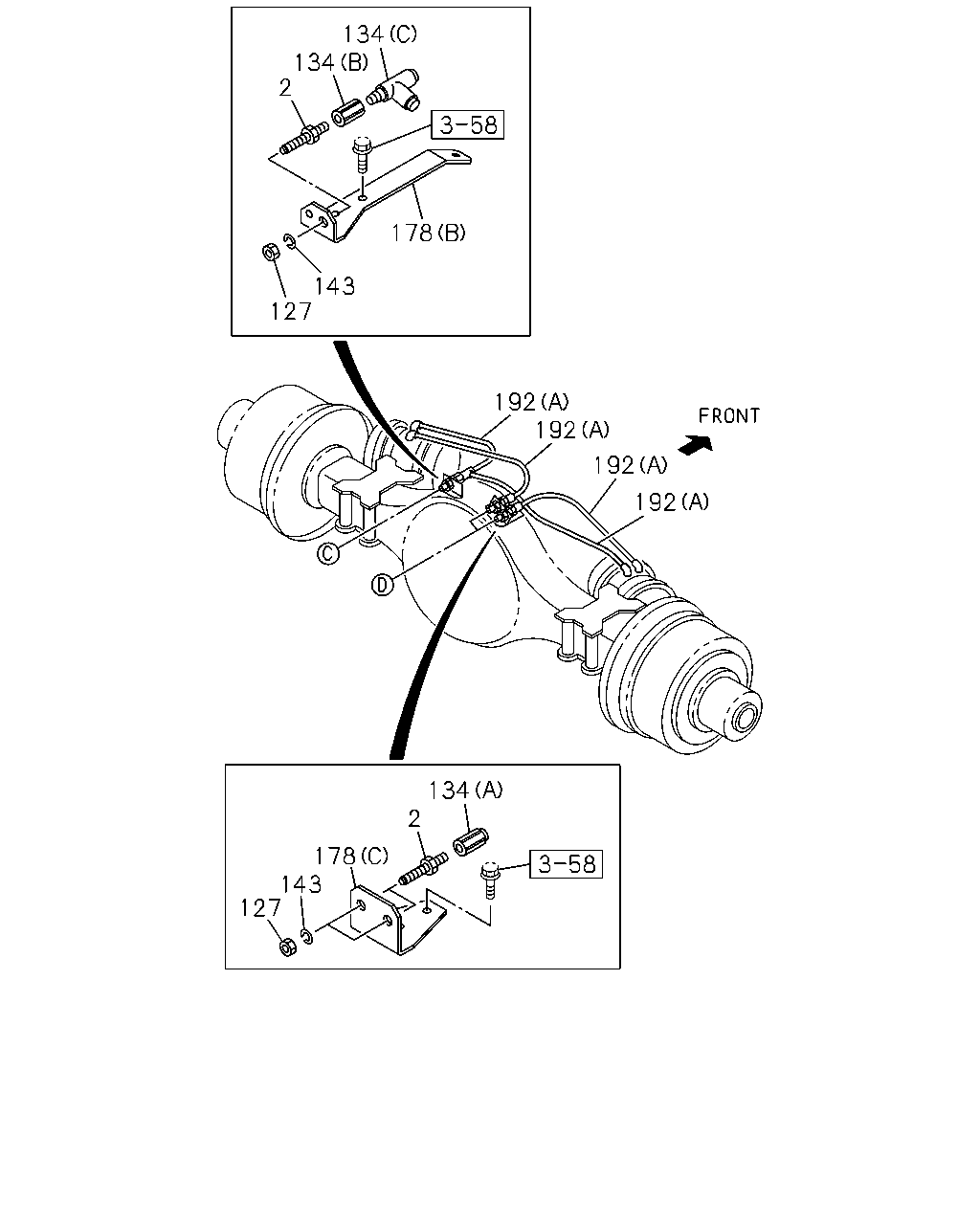

çizim 146859
134 134 2 178 143 127 192 192 192 192 134 2 178 143 127
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
M16 L=74 		0-92123-310-0 03 1 0710-0711 ●
2 UNION; AIR PIPE
M16 L=74 		0-92123-310-0 03 1 0712- ● ●
127 NUT; UNION
M16 		0-91111-516-0 03 1 0710-0711 ●
127 NUT; UNION
M16 		0-91111-516-0 03 1 0712- ● ●
134 CONNECTOR
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0710-0711 ●
134 CONNECTOR
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0712- ● ●
134 CONNECTOR
(B) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0710-0711 ●
134 CONNECTOR
(B) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0712- ● ●
134 CONNECTOR
(C) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 0710-0711 ●
134 CONNECTOR
(C) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 0712- ● ●
143 WASHER; LK,UNION
ID=16.2 		0-91510-816-0 03 1 0710-0711 ●
143 WASHER; LK,UNION
ID=16.2 		0-91510-816-0 03 1 0712- ● ●
178 BRACKET; UNION
(A) 		8-98017-054-0 01 1 0710-0711 ●
178 BRACKET; UNION
(A) 		8-98017-054-1 01 1 0712- ● ●
178 BRACKET; UNION
(C) 		8-98057-822-0 02 1 0710-0711 ●
178 BRACKET; UNION
(C) 		8-98057-822-0 02 1 0712-0804 ● ●
178 BRACKET; UNION
(C) 		8-98057-822-0 01 1 0805- ● ●
178 BRACKET; UNION
(B) 		8-98057-823-0 01 1 0710-0711 ●
178 BRACKET; UNION
(B) 		8-98057-823-0 01 1 0712- ● ●
192 TUBE; NYLON
(C) 		8-98099-892-0 01 1 0710-0711 ●
192 TUBE; NYLON
(C) 		8-98099-892-0 01 1 0712-0712 ● ●
192 TUBE; NYLON
(C) 		8-98109-777-0 01 1 0801- ● ●
192 TUBE; NYLON
(B) 		8-98099-893-0 01 1 0710-0711 ●
192 TUBE; NYLON
(B) 		8-98099-893-0 01 1 0712-0712 ● ●
192 TUBE; NYLON
(B) 		8-98109-778-0 01 1 0801- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●

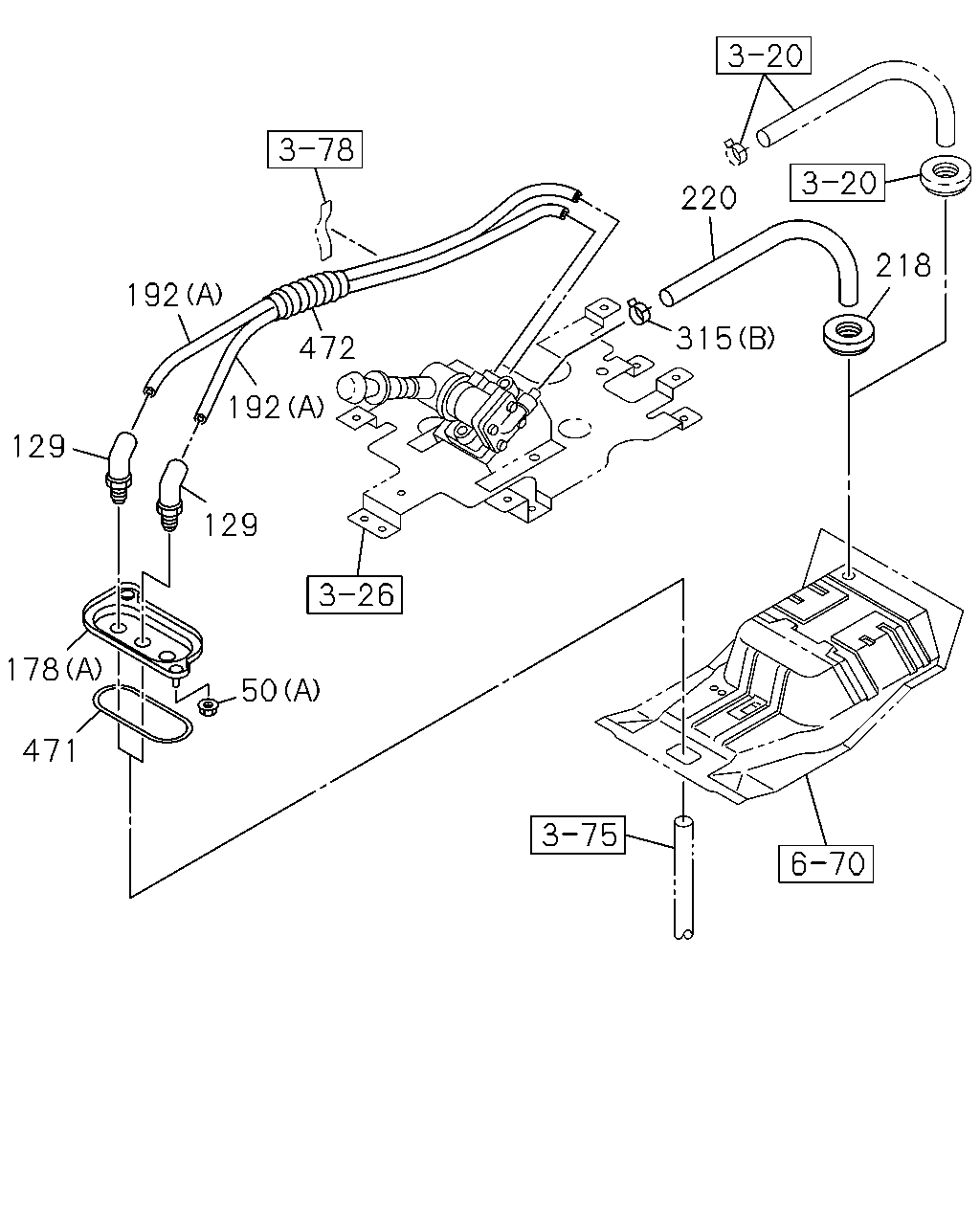

çizim 146867
220 218 192 315 472 192 129 129 178 50 471
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
(B) M12 		0-91111-512-0 02 1 0710-0711 ●
50 NUT; UNION BRKT
(B) M12 		0-91111-512-0 02 1 0712- ● ●
50 NUT; UNION BRKT
(C) M16 		0-91111-516-0 01 1 0710-0711 ●
50 NUT; UNION BRKT
(C) M16 		0-91111-516-0 01 1 0712- ● ●
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
129 CONNECTOR; NYLON TUBE 8-97611-963-0 01 1 0710-0711 ●
129 CONNECTOR; NYLON TUBE 8-97611-963-0 01 1 0710-0711 ●
129 CONNECTOR; NYLON TUBE 8-97611-963-1 01 1 0712- ● ●
129 CONNECTOR; NYLON TUBE 8-97611-963-1 01 1 0712- ● ●
178 BRACKET; UNION
(A) 		8-98017-054-0 01 1 0710-0711 ●
178 BRACKET; UNION
(A) 		8-98017-054-1 01 1 0712- ● ●
178 BRACKET; UNION
(C) 		8-98057-822-0 02 1 0710-0711 ●
178 BRACKET; UNION
(C) 		8-98057-822-0 02 1 0712-0804 ● ●
178 BRACKET; UNION
(C) 		8-98057-822-0 01 1 0805- ● ●
178 BRACKET; UNION
(B) 		8-98057-823-0 01 1 0710-0711 ●
178 BRACKET; UNION
(B) 		8-98057-823-0 01 1 0712- ● ●
192 TUBE; NYLON
(C) 		8-98099-892-0 01 1 0710-0711 ●
192 TUBE; NYLON
(C) 		8-98099-892-0 01 1 0712-0712 ● ●
192 TUBE; NYLON
(C) 		8-98109-777-0 01 1 0801- ● ●
192 TUBE; NYLON
(B) 		8-98099-893-0 01 1 0710-0711 ●
192 TUBE; NYLON
(B) 		8-98099-893-0 01 1 0712-0712 ● ●
192 TUBE; NYLON
(B) 		8-98109-778-0 01 1 0801- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 0912- ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0912- ● ●
315 CLIP
(A) ID=18 & 18 		8-94323-068-0 01 1 0710-0711 ●
315 CLIP
(A) ID=18 & 18 		8-94323-068-0 01 1 0712- ● ●
315 CLIP
(B) ID=14 		8-94238-572-0 01 1 0912- ● ●
471 SEAL; BRKT 1-79738-832-0 01 1 0710-0711 ●
471 SEAL; BRKT 1-79738-832-0 01 1 0712- ● ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 0710-0711 ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 0712- ● ●

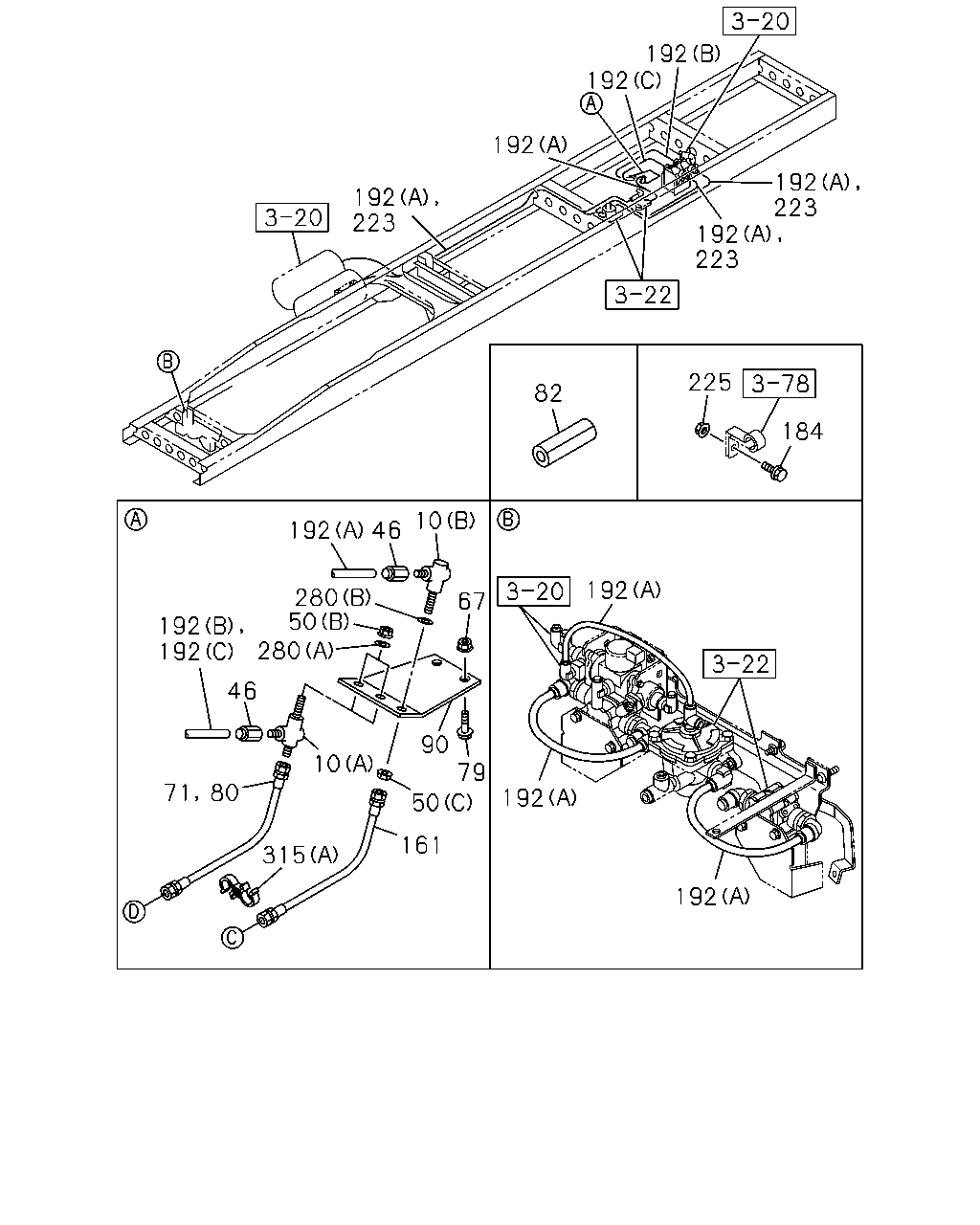

çizim 147026
192 192 192 192 223 192 223 192 223 225 82 184 10 192 46 192 280 50 280 67 192 192 46 90 79 10 71 80 192 50 161 315 192
BalonParca AdiParca NoAdetTipApplied Date A B
10 CONNECTOR; FLEX HOSE
(B) M16 ELBOW 		0-92135-210-0 01 1 0710-0711 ●
10 CONNECTOR; FLEX HOSE
(B) M16 ELBOW 		0-92135-210-0 01 1 0712- ● ●
10 CONNECTOR; FLEX HOSE
(A) M16 2WAY 		1-09650-182-1 02 1 0710-0711 ●
10 CONNECTOR; FLEX HOSE
(A) M16 2WAY 		1-09650-182-1 02 1 0712- ● ●
46 NIPPLE; AIR PIPE
DIN12 & M16 STRAIGHT 		1-09660-876-0 03 1 0710-0711 ●
46 NIPPLE; AIR PIPE
DIN12 & M16 STRAIGHT 		1-09660-876-0 03 1 0712- ● ●
50 NUT; UNION BRKT
(B) M12 		0-91111-512-0 02 1 0710-0711 ●
50 NUT; UNION BRKT
(B) M12 		0-91111-512-0 02 1 0712- ● ●
50 NUT; UNION BRKT
(C) M16 		0-91111-516-0 01 1 0710-0711 ●
50 NUT; UNION BRKT
(C) M16 		0-91111-516-0 01 1 0712- ● ●
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
71 HOSE; FLEX,RWD RR
L=580 		1-09363-772-0 02 1 0710-0711 ●
71 HOSE; FLEX,RWD RR
L=580 		1-09363-772-0 02 1 0712-0910 ● ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711 ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0712- ● ●
80 HOSE; FLEX,POWER CHAMBER
L=580 		1-09363-772-0 02 1 0911- ● ●
82 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 0710-0804 ●
90 BRACKET; PIPE UNION 1-47477-851-1 01 1 0710-0711 ●
90 BRACKET; PIPE UNION 1-47477-851-1 01 1 0712- ● ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=580 		1-09363-772-0 01 1 0710-0711 ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=580 		1-09363-772-0 01 1 0712- ● ●
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712- ● ●
192 TUBE; NYLON
(C) 		8-98099-892-0 01 1 0710-0711 ●
192 TUBE; NYLON
(C) 		8-98099-892-0 01 1 0712-0712 ● ●
192 TUBE; NYLON
(C) 		8-98109-777-0 01 1 0801- ● ●
192 TUBE; NYLON
(B) 		8-98099-893-0 01 1 0710-0711 ●
192 TUBE; NYLON
(B) 		8-98099-893-0 01 1 0712-0712 ● ●
192 TUBE; NYLON
(B) 		8-98109-778-0 01 1 0801- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0710- ● ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
280 WASHER; LK
(A) ID=12.2 		0-91510-812-0 02 1 0710-0711 ●
280 WASHER; LK
(A) ID=12.2 		0-91510-812-0 02 1 0712- ● ●
280 WASHER; LK
(B) ID=16.2 		0-91510-816-0 01 1 0710-0711 ●
280 WASHER; LK
(B) ID=16.2 		0-91510-816-0 01 1 0712- ● ●
315 CLIP
(A) ID=18 & 18 		8-94323-068-0 01 1 0710-0711 ●
315 CLIP
(A) ID=18 & 18 		8-94323-068-0 01 1 0712- ● ●
315 CLIP
(B) ID=14 		8-94238-572-0 01 1 0912- ● ●
