◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11420 - FTR(AUST)EURO4 ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#58091) — 107 parça

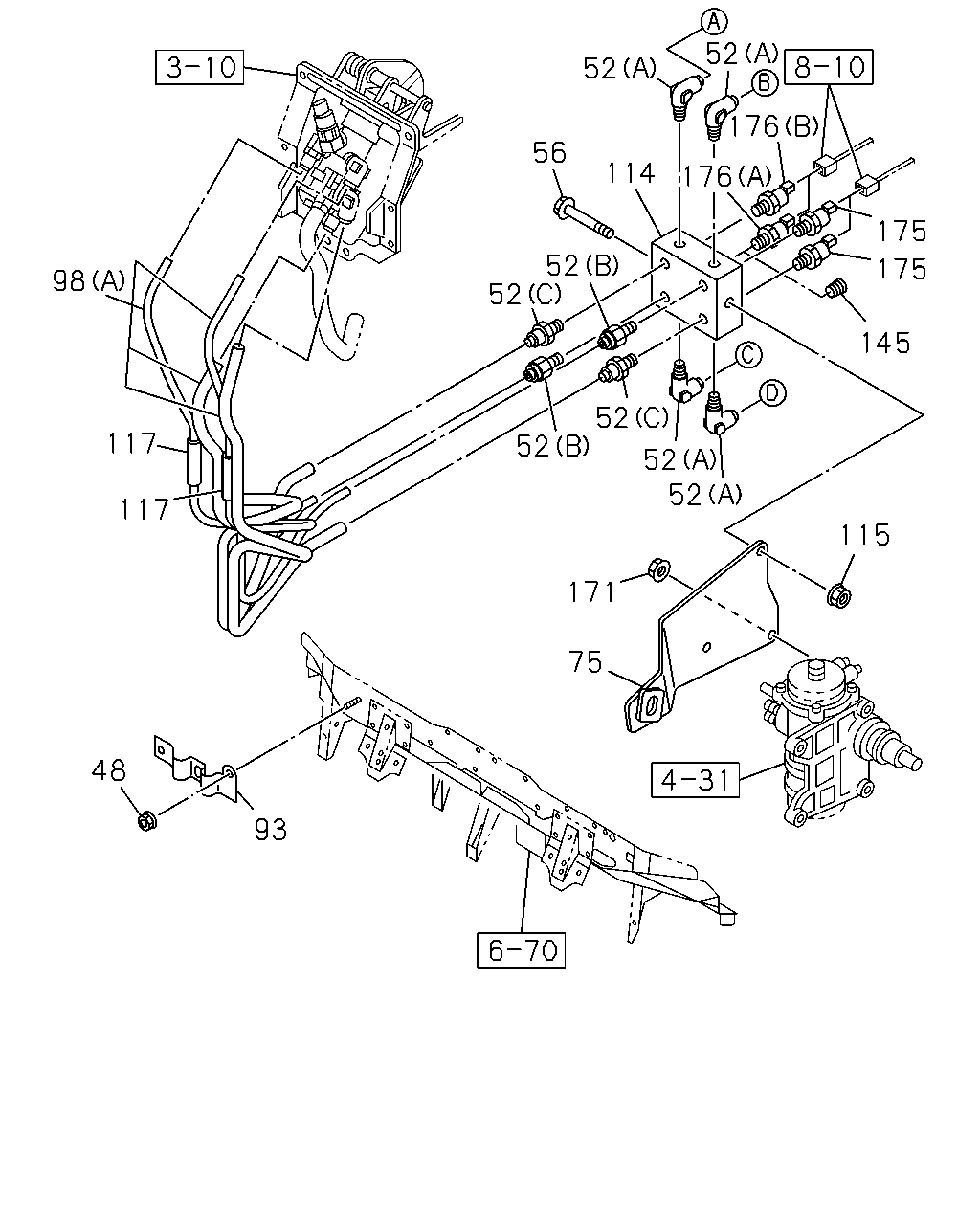

çizim 147028
52 52 176 176 56 114 175 52 52 175 98 145 52 52 117 52 52 117 115 171 75 48 93
BalonParca AdiParca NoAdetTipApplied Date A B
48 NUT; UNION BRKT
M6 FLANGE 		0-91180-106-0 02 1 0710-0711 ●
48 NUT; UNION BRKT
M6 FLANGE 		0-91180-106-0 02 1 0712- ● ●
52 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 04 1 0710-0711 ●
52 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 04 1 0712- ● ●
52 CONNECTOR; NYLON TUBE
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 0710-0711 ●
52 CONNECTOR; NYLON TUBE
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 0712- ● ●
52 CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 02 1 0710-0711 ●
52 CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 02 1 0712- ● ●
56 BOLT; UNION BRKT
M8X100 FLANGE 		0-28050-800-0 01 1 0710-0711 ●
56 BOLT; UNION BRKT
M8X100 FLANGE 		0-28050-800-0 01 1 0712- ● ●
75 BRACKET; UNION 8-98075-871-1 01 1 0710-0711 ●
75 BRACKET; UNION 8-98075-871-1 01 1 0712-0803 ● ●
75 BRACKET; UNION 8-98099-485-1 01 1 0804- ● ●
93 BRACKET; UNION,TUBE 8-98044-013-0 01 1 0710-0711 ●
93 BRACKET; UNION,TUBE 8-98044-013-0 01 1 0712- ● ●
98 TUBE; NYLON
(A) 		8-98091-307-0 01 1 0710- ●
98 TUBE; NYLON
(A) 		8-98091-308-0 01 1 0907- ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0710- ● ●
114 UNION; NYLON TUBE 8-98057-394-1 01 1 0710-0711 ●
114 UNION; NYLON TUBE 8-98057-394-1 01 1 0712- ● ●
115 NUT; TUBE UNION
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
115 NUT; TUBE UNION
M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0710- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0710- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0710- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0710- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0710- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=28 		1-87411-034-0 AR 1 0710- ● ●
145 PLUG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) PT1/4 		9-99204-513-0 01 1 0710-0711 ●
145 PLUG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) PT1/4 		9-99204-513-0 01 1 0712- ● ●
171 NUT; BRACKET
M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
171 NUT; BRACKET
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 0710-0711 ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 0712- ● ●
176 SWITCH; AIR PRESS
(B) 		8-98010-857-0 01 1 0710-0711 ●
176 SWITCH; AIR PRESS
(B) 		8-98010-857-0 01 1 0712- ● ●
176 SWITCH; AIR PRESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) STAMP 2.2 		8-98010-858-0 01 1 0710-0711 ●
176 SWITCH; AIR PRESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) STAMP 2.2 		8-98010-858-0 01 1 0712- ● ●

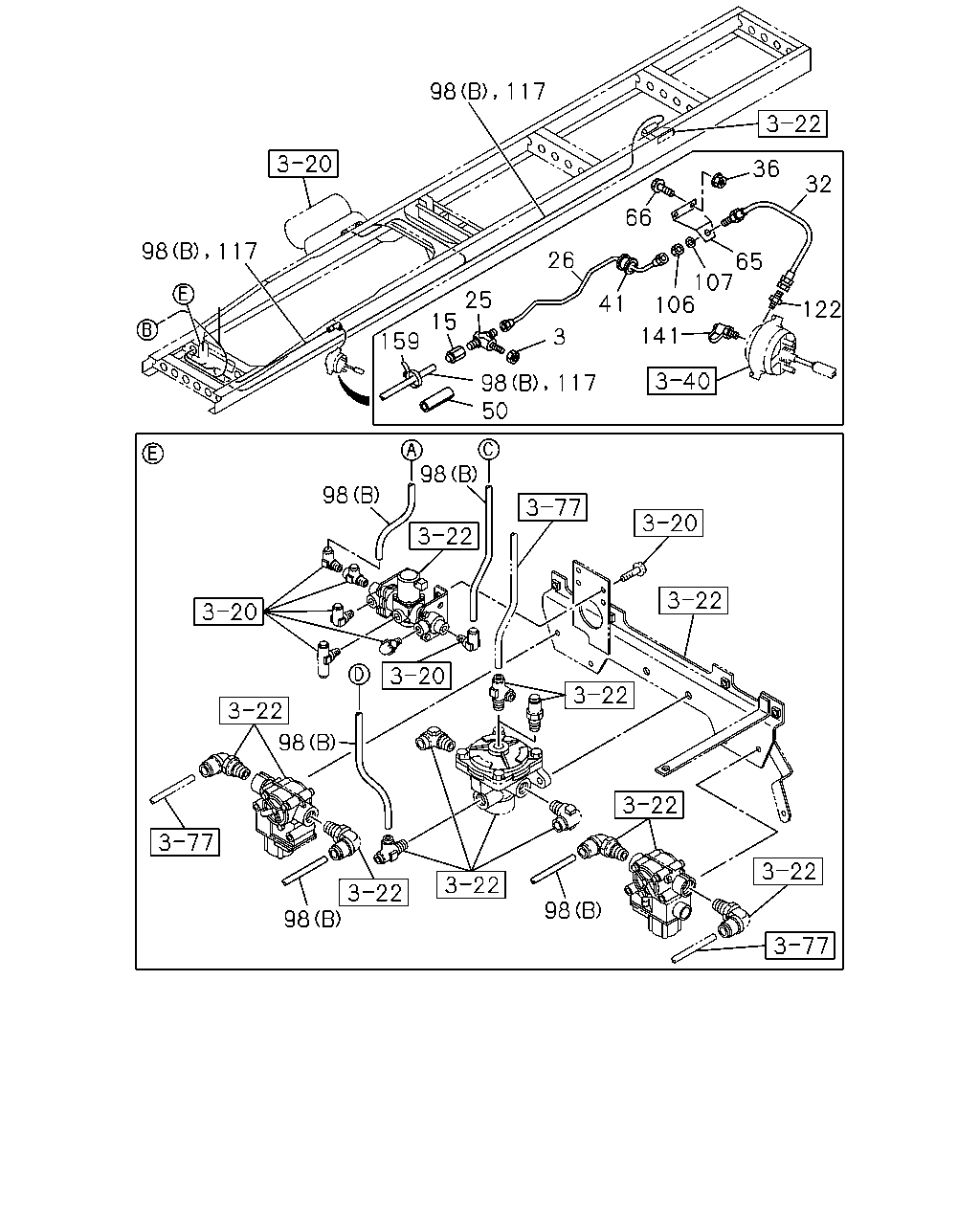

çizim 147029
98 117 36 32 66 98 117 26 65 107 106 25 15 41 122 141 3 159 98 50 117 98 98 98 98 98
BalonParca AdiParca NoAdetTipApplied Date A B
3 NUT; PIPE UNION
M12 		0-91111-512-0 02 1 0710-0711 ●
3 NUT; PIPE UNION
M12 		0-91111-512-0 02 1 0712- ● ●
15 CONNECTOR; AIR PIPE
DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0710-0711 ●
15 CONNECTOR; AIR PIPE
DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0712- ● ●
25 UNION; AIR PIPE
M16 		1-09654-148-1 02 1 0710-0711 ●
25 UNION; AIR PIPE
M16 		1-09654-148-1 02 1 0712- ● ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=659 		8-98091-273-0 01 1 0710-0806 ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=657 		8-98126-150-1 01 1 0807- ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=500 		8-98091-274-1 01 1 0710- ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=495 		8-98105-383-0 01 1 0712- ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=507 		8-98105-384-0 01 1 0712- ●
32 HOSE; FLEX,FRT 8-98090-844-0 02 1 0710-0711 ●
32 HOSE; FLEX,FRT 8-98090-844-0 02 1 0712- ● ●
36 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 04 1 0710-0711 ●
36 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 04 1 0712- ● ●
41 GROMMET; AIR PIPE
ID=28 OD=35 T=25 		1-09332-011-1 02 1 0710-0711 ●
41 GROMMET; AIR PIPE
ID=28 OD=35 T=25 		1-09332-011-1 02 1 0712- ● ●
50 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 04 1 0710-0711 ●
50 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 04 1 0712-0804 ● ●
50 SLEEVE; RUBBER,NYLON TUBE
WHEEL BASE 6500MM(65W) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0806-0811 ●
65 BRACKET; FLEX HOSE 1-47476-210-0 01 1 0710-0711 ●
65 BRACKET; FLEX HOSE 1-47476-210-0 01 1 0712- ● ●
65 BRACKET; FLEX HOSE 1-47476-211-0 01 1 0710-0711 ●
65 BRACKET; FLEX HOSE 1-47476-211-0 01 1 0712- ● ●
66 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0710-0711 ●
66 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0712- ● ●
98 TUBE; NYLON
(A) 		8-98091-307-0 01 1 0710- ●
98 TUBE; NYLON
(A) 		8-98091-308-0 01 1 0907- ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0710- ● ●
106 NUT; FLEX HOSE
M16 		0-91111-516-0 02 1 0710-0711 ●
106 NUT; FLEX HOSE
M16 		0-91111-516-0 02 1 0712- ● ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 02 1 0710-0711 ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 02 1 0712-1009 ● ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-816-0 02 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0710- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0710- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0710- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0710- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0710- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=28 		1-87411-034-0 AR 1 0710- ● ●
122 CONNECTOR; FLEX HOSE
M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 0710-0711 ●
122 CONNECTOR; FLEX HOSE
M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 0712- ● ●
122 CONNECTOR; FLEX HOSE
M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 0710-0711 ●
122 CONNECTOR; FLEX HOSE
M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 0712- ● ●
141 CONNECTOR; TEST 1-47459-013-1 01 1 0710-0711 ●
141 CONNECTOR; TEST 1-47459-013-1 01 1 0712- ● ●
159 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 0710-0711 ●
159 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 0712-0811 ● ●
159 CLIP; NYLON TUBE
L=350 		1-09707-183-0 02 1 0812- ● ●
