◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11420 - FTR(AUST)EURO4 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#58090) — 90 parça

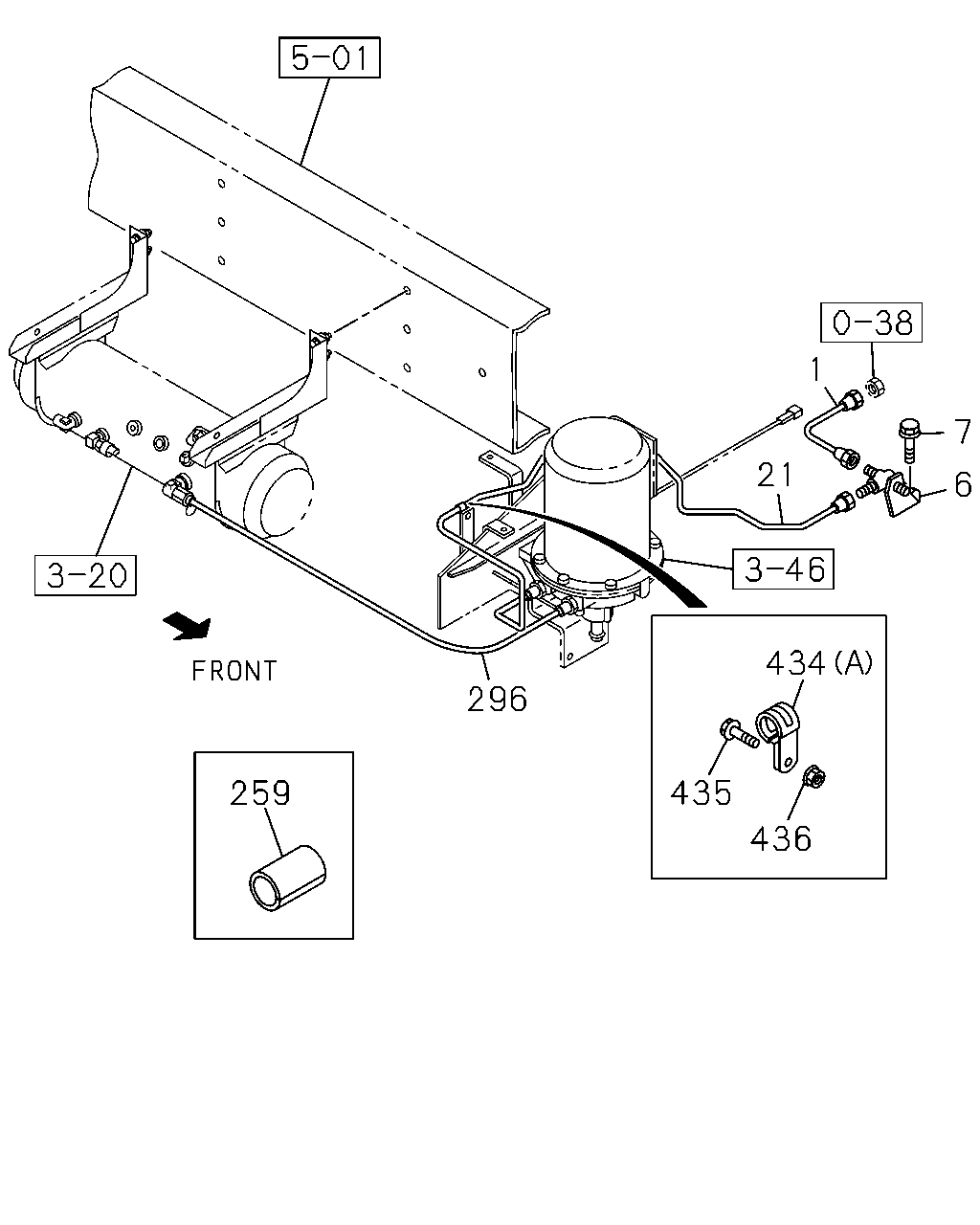

çizim 146856
1 7 21 6 434 296 435 259 436
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 0710-0711 ●
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 0712- ● ●
6 BRACKET; FLEX HOSE,AIR TANK 8-98076-344-0 01 1 0710-0711 ●
6 BRACKET; FLEX HOSE,AIR TANK 8-98076-344-0 01 1 0712- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0712- ● ●
21 PIPE; AIR,UNION TO AIR DRYER 8-98094-948-1 01 1 0710-0806 ●
21 PIPE; AIR,UNION TO AIR DRYER
L=2033 		8-98126-152-1 01 1 0807- ●
21 PIPE; AIR,UNION TO AIR DRYER
L=1782 		8-98105-419-1 01 1 0712-1010 ●
21 PIPE; AIR,UNION TO AIR DRYER
L=1772 		8-98181-782-0 01 1 1011- ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 0710-0711 ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 0712-0804 ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 0710-0711 ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 0712- ● ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0710-0711 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0712- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●

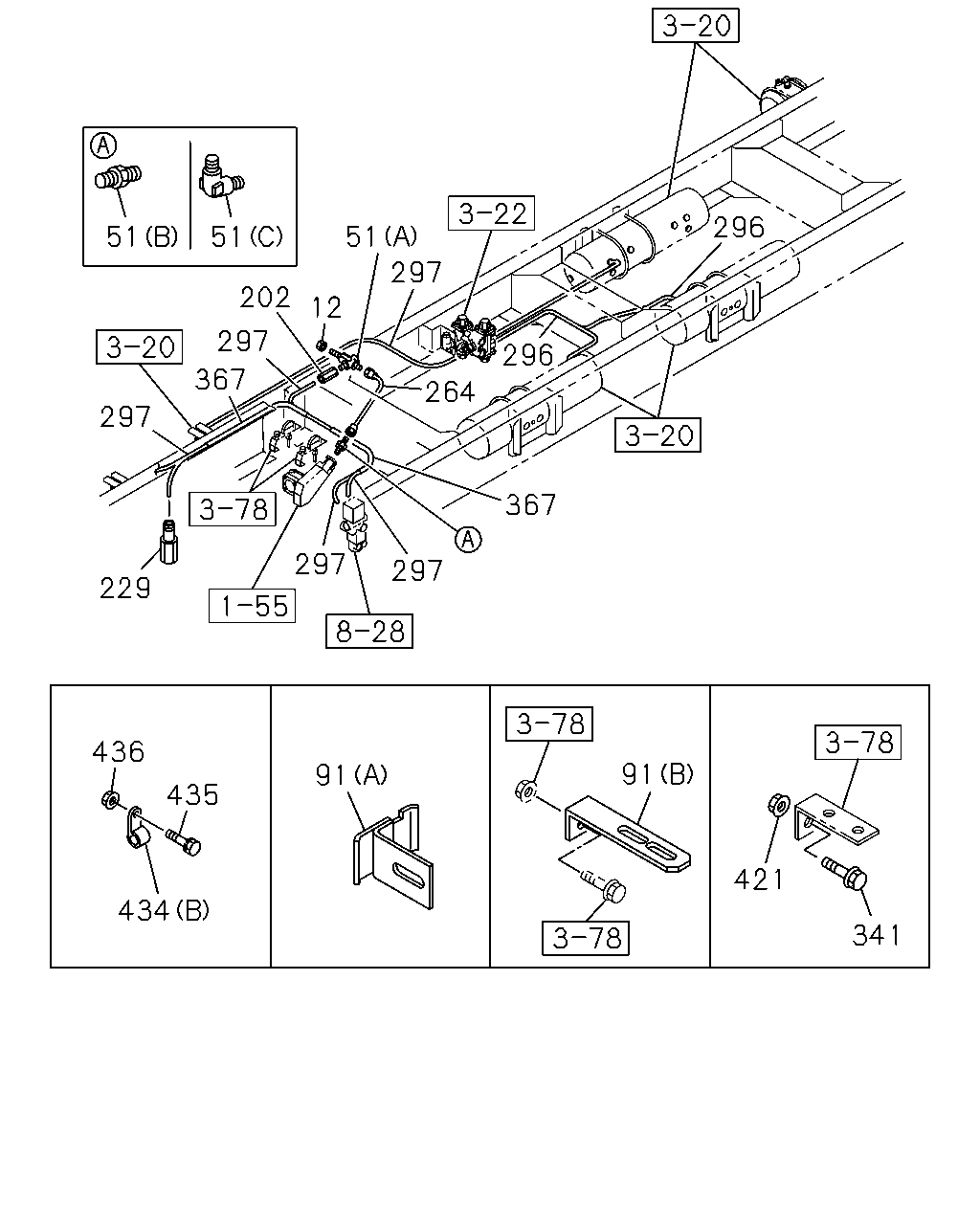

çizim 146863
296 51 51 51 297 202 12 297 296 367 264 297 367 297 297 229 436 91 91 435 421 434 341
BalonParca AdiParca NoAdetTipApplied Date A B
12 NUT; UNION
M12 		0-91111-512-0 01 1 0710-0711 ●
12 NUT; UNION
M12 		0-91111-512-0 01 1 0712- ● ●
51 UNION
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0710-0710 ●
51 UNION
WHEEL BASE 4200MM(42W) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0710-0711 ●
51 UNION
WHEEL BASE 4200MM(42W) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0712-0712 ●
51 UNION
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0712-0712 ●
51 UNION
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0801- ●
51 UNION
(A) M12 2WAY 		1-09654-059-2 01 1 0710-0711 ●
51 UNION
(A) M12 2WAY 		1-09654-059-2 01 1 0712- ● ●
51 UNION
WHEEL BASE 6500MM(65W) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0711 ●
51 UNION
WHEEL BASE 6500MM(65W) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0712 ●
51 UNION
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0712 ●
51 UNION
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0801- ●
91 BRACKET; TUBE CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0710-0711 ●
91 BRACKET; TUBE CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0712- ● ●
91 BRACKET; TUBE CLIP
(A) 		1-47479-693-0 01 1 0710-0711 ●
91 BRACKET; TUBE CLIP
(A) 		1-47479-693-0 01 1 0712-0803 ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0710-0711 ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0712- ● ●
229 ADAPTER; NYLON TUBE
MZX6P M/T(RSW),MLD6W M/T(Y2C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0812-0906 ● ●
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0907-1107 ● ●
229 ADAPTER; NYLON TUBE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1108- ● ●
264 HOSE; FLEX
L=350 		1-09363-877-0 01 1 0710-0710 ●
264 HOSE; FLEX
WHEEL BASE 4200MM(42W) L=250 		1-09363-618-0 01 1 0710- ●
264 HOSE; FLEX
WHEEL BASE 6500MM(65W) L=280 		1-09363-672-0 01 1 0710-0711 ●
264 HOSE; FLEX
WHEEL BASE 6500MM(65W) L=280 		1-09363-672-0 01 1 0712-0907 ●
264 HOSE; FLEX
L=280 		1-09363-672-0 01 1 0712-0907 ●
264 HOSE; FLEX
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=280 		1-09363-672-0 01 1 0908- ●
264 HOSE; FLEX
L=280 		1-09363-672-0 01 1 0908- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
341 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0710 ●
341 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0711-0712 ●
341 BOLT; BRKT
WHEEL BASE 4200MM(42W) M8X30 FLANGE 		0-28650-830-0 02 1 0711-0712 ●
341 BOLT; BRKT
WHEEL BASE 4200MM(42W) M8X30 FLANGE 		0-28650-830-0 02 1 0801- ●
341 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0801-0802 ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0803- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0710- ● ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0711-0712 ●
421 NUT; BRKT
WHEEL BASE 4200MM(42W) M8 FLANGE 		0-91180-108-0 02 1 0711-0712 ●
421 NUT; BRKT
WHEEL BASE 4200MM(42W) M8 FLANGE 		0-91180-108-0 02 1 0801- ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801-0802 ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0803- ● ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 0710-0711 ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 0712- ● ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0710-0711 ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0712- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
