◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 3 - Brakes, Brake System ▶ 3-80 - BRAKE PIPING; TRAILER ▶
3-80 — BRAKE PIPING; TRAILER (#5809) — 76 parça

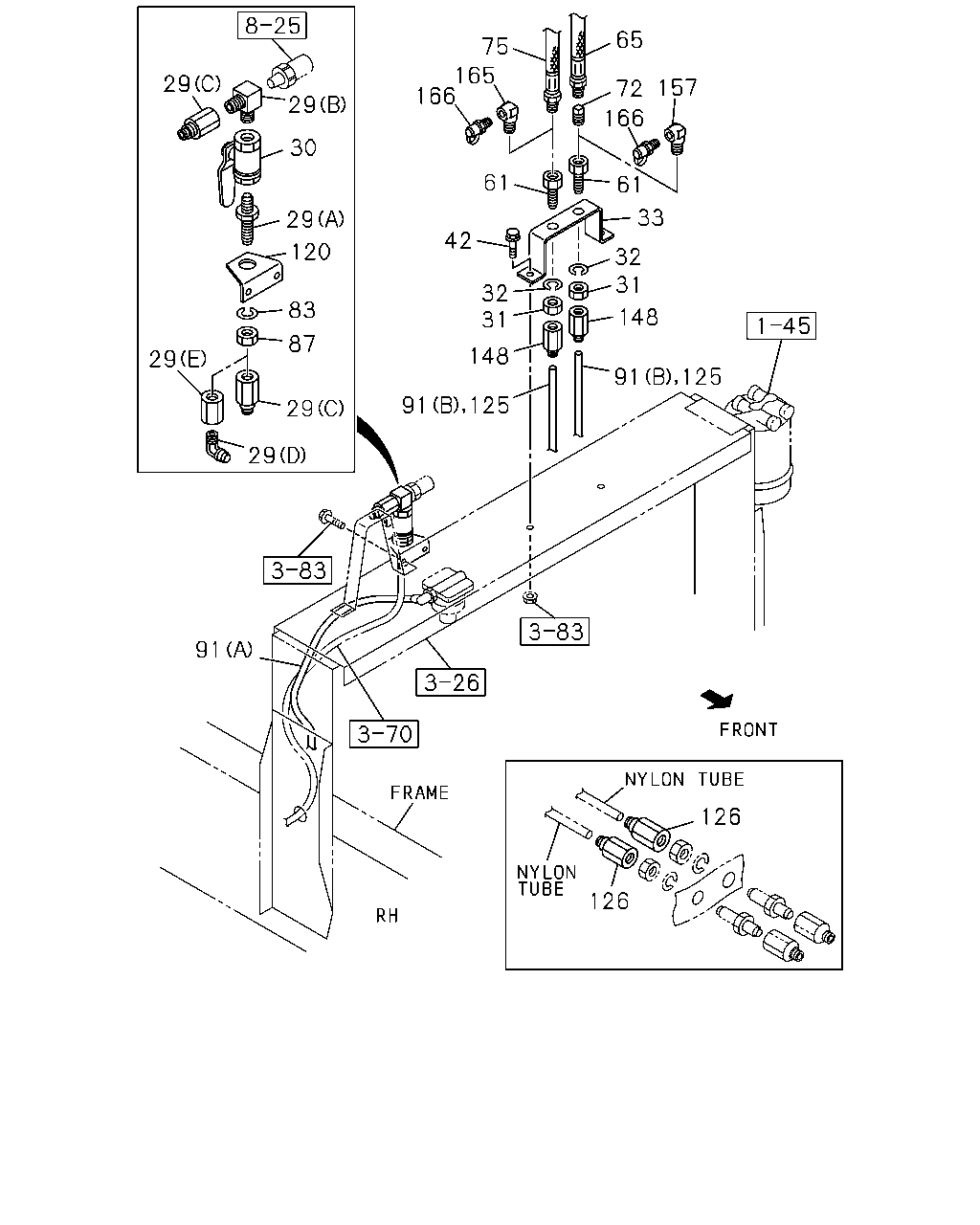

çizim 8559
65 75 165 166 29 157 72 29 166 30 61 61 33 29 42 120 32 31 32 31 83 148 87 148 29 29 29 91 126 126 91 125 91 125
BalonParca AdiParca NoAdetTipApplied Date A B
29 CONNECTOR; COCK
SILENCER SINGLE VERTICAL<N28> (D) DIN12 & R3/8 ELBOW 		1-09660-653-1 02 1 9605-9606 ●
29 CONNECTOR; COCK
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN12 & R3/8 ELBOW 		1-09660-653-1 02 1 9607-9611 ● ●
29 CONNECTOR; COCK
(D) DIN12 & R3/8 ELBOW 		1-09660-653-1 02 1 9612-9904 ● ●
29 CONNECTOR; COCK
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 9905- ● ●
29 CONNECTOR; COCK
SILENCER SINGLE VERTICAL<N28> (E) 		1-09660-884-0 02 1 9605-9606 ●
29 CONNECTOR; COCK
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (E) 		1-09660-884-0 02 1 9607-9611 ● ●
29 CONNECTOR; COCK
(E) 		1-09660-884-0 02 1 9612- ● ●
29 CONNECTOR; COCK
(A) M22 & PT1/2 STRAIGHT 		1-09650-220-1 01 1 9603- ● ●
29 CONNECTOR; COCK
(B) 		1-09656-332-1 01 1 9603- ● ●
29 CONNECTOR; COCK
(C) DIN12 & M12 STRAIGHT 		1-09660-878-0 02 1 9603-9604 ● ●
29 CONNECTOR; COCK
EXC. SILENCER SINGLE VERTICAL<N28> (C) DIN12 & M12 STRAIGHT 		1-09660-878-0 02 1 9605-9606 ●
29 CONNECTOR; COCK
(C) DIN12 & M12 STRAIGHT 		1-09660-878-0 02 1 9605-9606 ●
29 CONNECTOR; COCK
PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN12 & M12 STRAIGHT 		1-09660-878-0 02 1 9607-9611 ● ●
30 COCK; AIR HOSE
BLUE 		1-09680-078-0 01 1 9603-9704 ● ●
30 COCK; AIR HOSE
BLUE 		1-09680-087-0 01 1 9705-9711 ● ●
30 COCK; AIR HOSE
BLUE 		1-09680-092-0 01 1 9712- ● ●
31 NUT; UNION
M16 		9-99111-416-0 02 1 9603- ● ●
32 WASHER; LK,UNION
ID=16.2 		9-09150-516-0 02 1 9603- ● ●
33 BRACKET 1-47475-388-0 01 1 9603- ● ●
42 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 02 1 9603-9606 ● ●
42 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 9607- ● ●
61 UNION; NYLON TUBE 1-09650-222-1 02 1 9603- ● ●
65 HOSE; AIR
EXC. JUMPER HOSE & CABLE DELETE<SJK> L=5636 		1-09363-163-1 01 1 9603- ● ●
72 PLUG
JUMPER HOSE & CABLE DELETE<SJK> PT1/2 		9-09204-521-0 02 1 9603-9911 ● ●
75 HOSE; FLEX,TRAILER EMERGENCY
EXC. JUMPER HOSE & CABLE DELETE<SJK> L=5640 		1-09363-164-1 01 1 9603- ● ●
83 WASHER; LK,CONNECTOR
ID=22.5 		9-09150-522-0 01 1 9603- ● ●
87 NUT
M22 		9-09111-422-0 01 1 9603- ● ●
91 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9603- ●
91 TUBE; NYLON
PARKING BRAKE VALVE LEVER TYPE<W48> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 9603-9904 ● ●
91 TUBE; NYLON
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A),(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 03 1 9603-9904 ● ●
91 TUBE; NYLON
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A),(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 04 1 9905- ● ●
91 TUBE; NYLON
PARKING BRAKE VALVE LEVER TYPE<W48> (A),(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 03 1 9905- ● ●
120 BRACKET; COCK 1-48499-001-1 01 1 9603- ● ●
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9603- ●
126 CONNECTOR; NYLON TUBE
M16 DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9603-9910 ●
126 CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9911-9912 ●
126 CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 0001-0007 ●
126 CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 0001-0007 ●
126 CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008- ●
126 CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008- ●
126 CONNECTOR; NYLON TUBE
M14 DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9603-9910 ● ●
126 CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT 		1-09661-094-0 01 1 9911-9912 ● ●
126 CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT 		1-09661-094-0 01 1 0001-0007 ●
126 CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0008- ●
148 ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 9603-9904 ● ●
148 ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09661-096-0 02 1 9905-0007 ● ●
148 ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0008- ● ●
157 ADAPTER
JUMPER HOSE & CABLE DELETE<SJK> PT1/2 & NPTF1/2 2WAY 		1-09660-695-0 01 1 9912- ● ●
165 CONNECTOR; ELBOW
JUMPER HOSE & CABLE DELETE<SJK> PT1/2 & NPTF1/2 2WAY 		1-09660-695-0 01 1 9912- ● ●
166 CONNECTOR; TEST
JUMPER HOSE & CABLE DELETE<SJK> 		1-47459-013-0 02 1 9912- ● ●

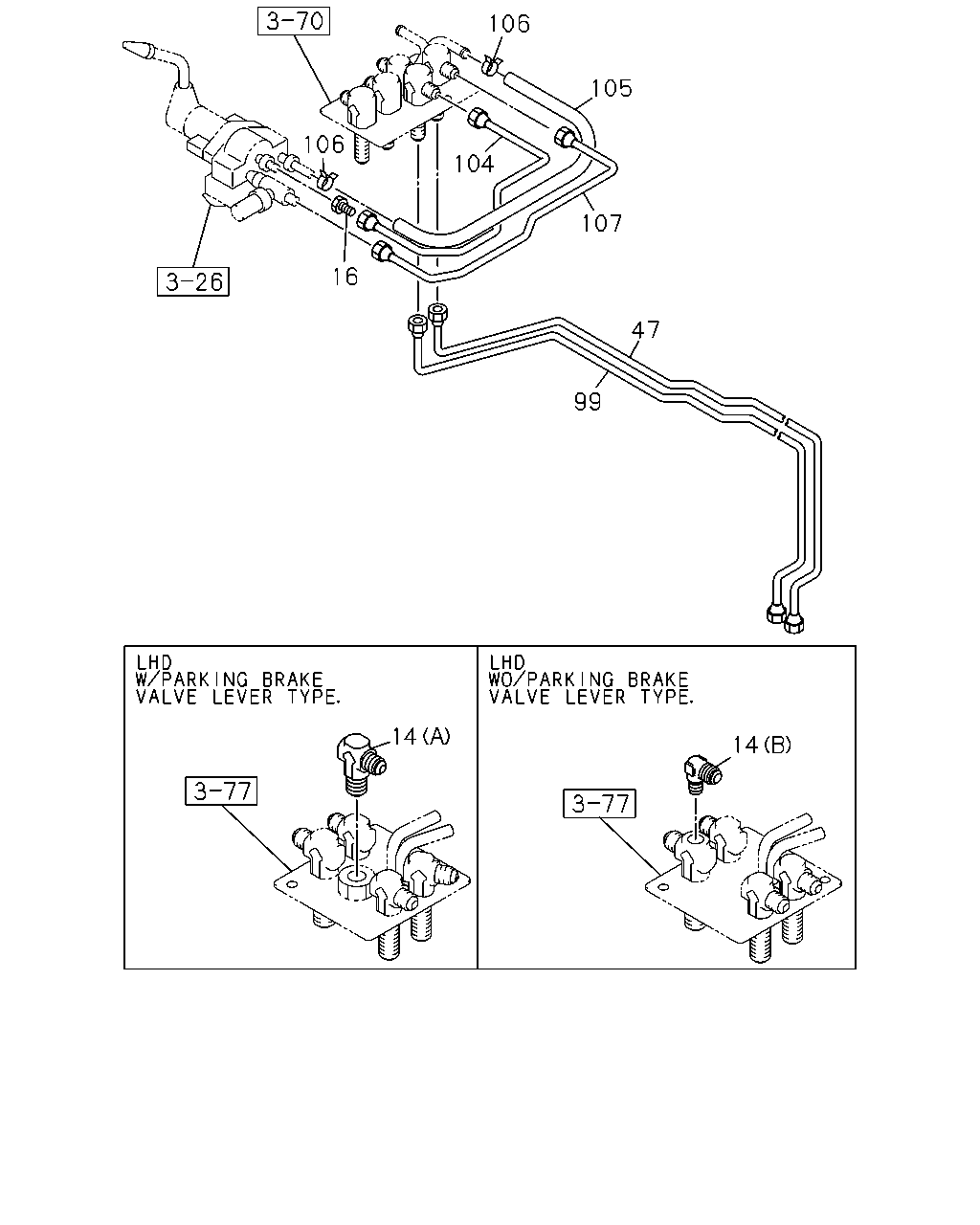

çizim 9888
106 105 106 104 107 16 47 99 14 14
BalonParca AdiParca NoAdetTipApplied Date A B
14 CONNECTOR; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-09650-325-1 01 1 9603- ●
14 CONNECTOR; AIR PIPE
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M16 & PT1/4 ELBOW 		1-09650-434-0 01 1 9603- ●
16 UNION; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-09654-258-1 01 1 9603- ●
47 PIPE; AIR,UNION TO UNION
L=1933 SERVICED BY L=1950 		1-47426-393-0 01 1 9603-9810 ●
47 PIPE; AIR,UNION TO UNION
L=1936 		1-49121-056-1 01 1 9811-9901 ●
47 PIPE; AIR,UNION TO UNION
L=1936 		1-49121-473-0 01 1 9902- ●
47 PIPE; AIR,UNION TO UNION
L=1901 SERVICED BY L=1950 		1-47426-393-0 01 1 9603- ●
99 PIPE; AIR,JOINT TO JOINT
PARKING BRAKE VALVE LEVER TYPE<W48> L=1764 		1-49114-294-0 01 1 9603-9810 ●
99 PIPE; AIR,JOINT TO JOINT
PARKING BRAKE VALVE LEVER TYPE<W48> L=1551 		1-49121-054-0 01 1 9811- ●
99 PIPE; AIR,JOINT TO JOINT
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49116-183-1 01 1 9603- ●
104 PIPE; AIR,JOINT TO PARKING BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49114-295-0 01 1 9603- ●
104 PIPE; AIR,JOINT TO PARKING BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-47495-159-0 01 1 9603- ●
104 PIPE; AIR,JOINT TO PARKING BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49116-329-0 01 1 9603- ●
104 PIPE; AIR,JOINT TO PARKING BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49114-643-1 01 1 9603- ●
105 PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 9603- ●
105 PIPE; VINYL,EXH,PARKING BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 9603- ●
105 PIPE; VINYL,EXH,PARKING BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 9603- ●
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 9603-9705 ● ●
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 9706-9904 ● ●
106 CLIP; PIPE
BRAKE REGULATION ECE<TDV> ID=14 		8-94238-572-0 02 1 9706-9904 ●
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 9905- ● ●
106 CLIP; PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> ID=14 		8-94238-572-0 02 1 9905- ● ●
107 PIPE; AIR,JOINT TO PARKING BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49114-296-0 01 1 9603- ●
107 PIPE; AIR,JOINT TO PARKING BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-47495-160-0 01 1 9603- ●
107 PIPE; AIR,JOINT TO PARKING BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49116-328-1 01 1 9603- ●
107 PIPE; AIR,JOINT TO PARKING BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49114-661-1 01 1 9603- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
