◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11420 - FTR(AUST)EURO4 ▶ 3 - Brakes, Brake System ▶ 3-46 - AIR DRYER ▶
3-46 — AIR DRYER (#58087) — 115 parça

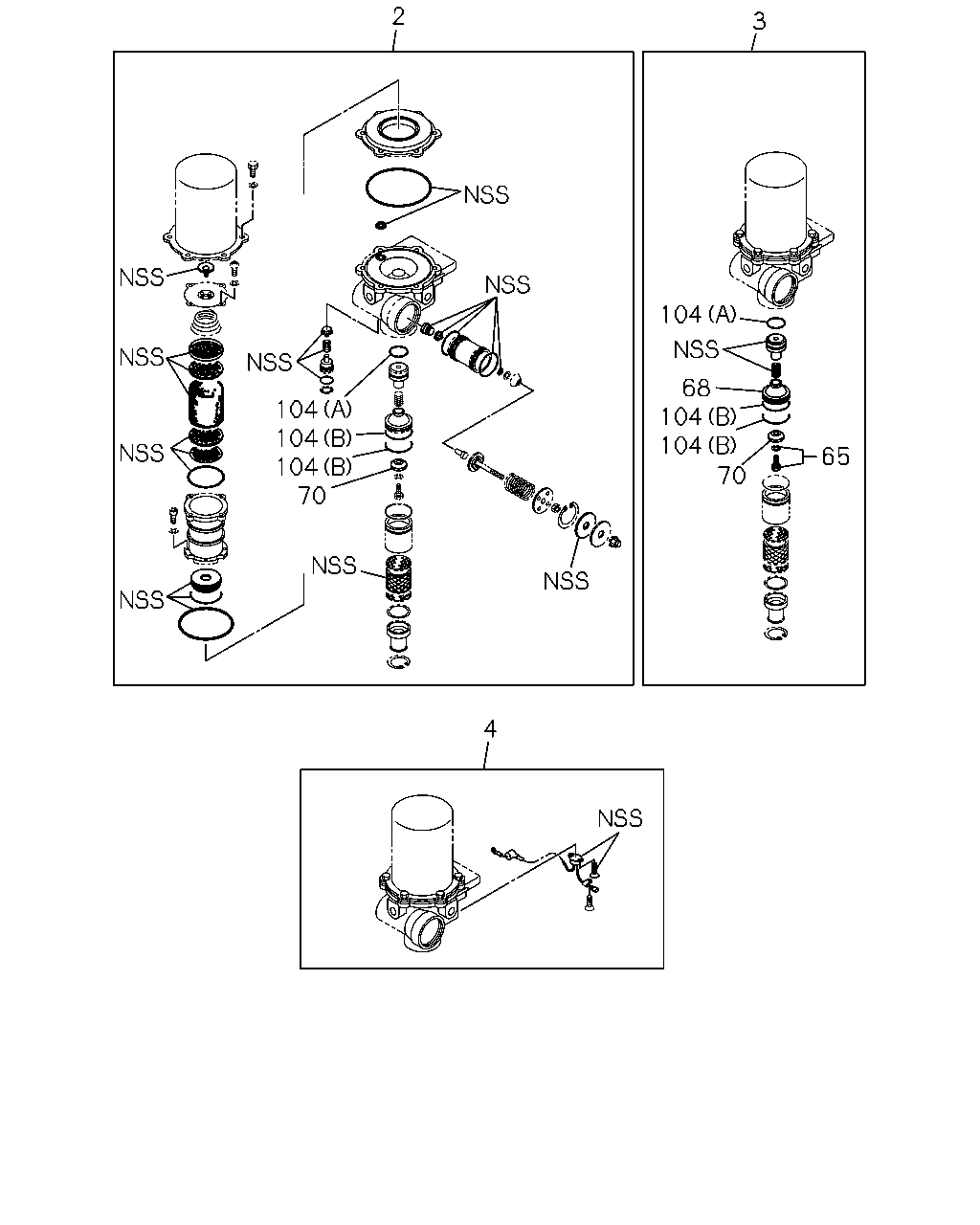

çizim 146861
2 104 104 104 70 4 70 104 104 68 104 65 3
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; AIR DRYER 1-85576-448-0 01 1 0710-0711 ●
2 REPAIR KIT; AIR DRYER 1-85576-448-0 01 1 0712-1211 ● ●
2 REPAIR KIT; AIR DRYER 8-98226-328-0 01 1 1212- ● ●
3 PISTON KIT; AIR DRYER 1-85576-383-0 01 1 0710-0711 ●
3 PISTON KIT; AIR DRYER 1-85576-383-0 01 1 0712-1211 ● ●
3 PISTON KIT; AIR DRYER 8-98226-322-0 01 1 1212- ● ●
4 THERMOSTAT KIT; AIR DRYER 1-85576-444-0 01 1 0710-0711 ●
4 THERMOSTAT KIT; AIR DRYER 1-85576-444-0 01 1 0712- ● ●
65 BOLT; PURGE VLV 1-48199-517-0 01 1 0710-0711 ●
65 BOLT; PURGE VLV 1-48199-517-0 01 1 0712- ● ●
68 BODY; VALVE 1-48199-515-0 01 1 0710-0711 ●
68 BODY; VALVE 1-48199-515-0 01 1 0712- ● ●
70 VALVE; AIR DRYER 1-48199-504-0 01 1 0710-0711 ●
70 VALVE; AIR DRYER 1-48199-504-0 01 1 0712- ● ●
104 GASKET
(A) 		1-48199-495-0 01 1 0710-0711 ●
104 GASKET
(A) 		1-48199-495-0 01 1 0712-1211 ● ●
104 GASKET
(A) 		8-98226-321-0 01 1 1212- ● ●
104 GASKET
(B) 		1-48199-496-0 02 1 0710-0711 ●
104 GASKET
(B) 		1-48199-496-0 02 1 0712-1211 ● ●
104 GASKET
(B) 		1-48199-496-0 01 1 1212- ● ●

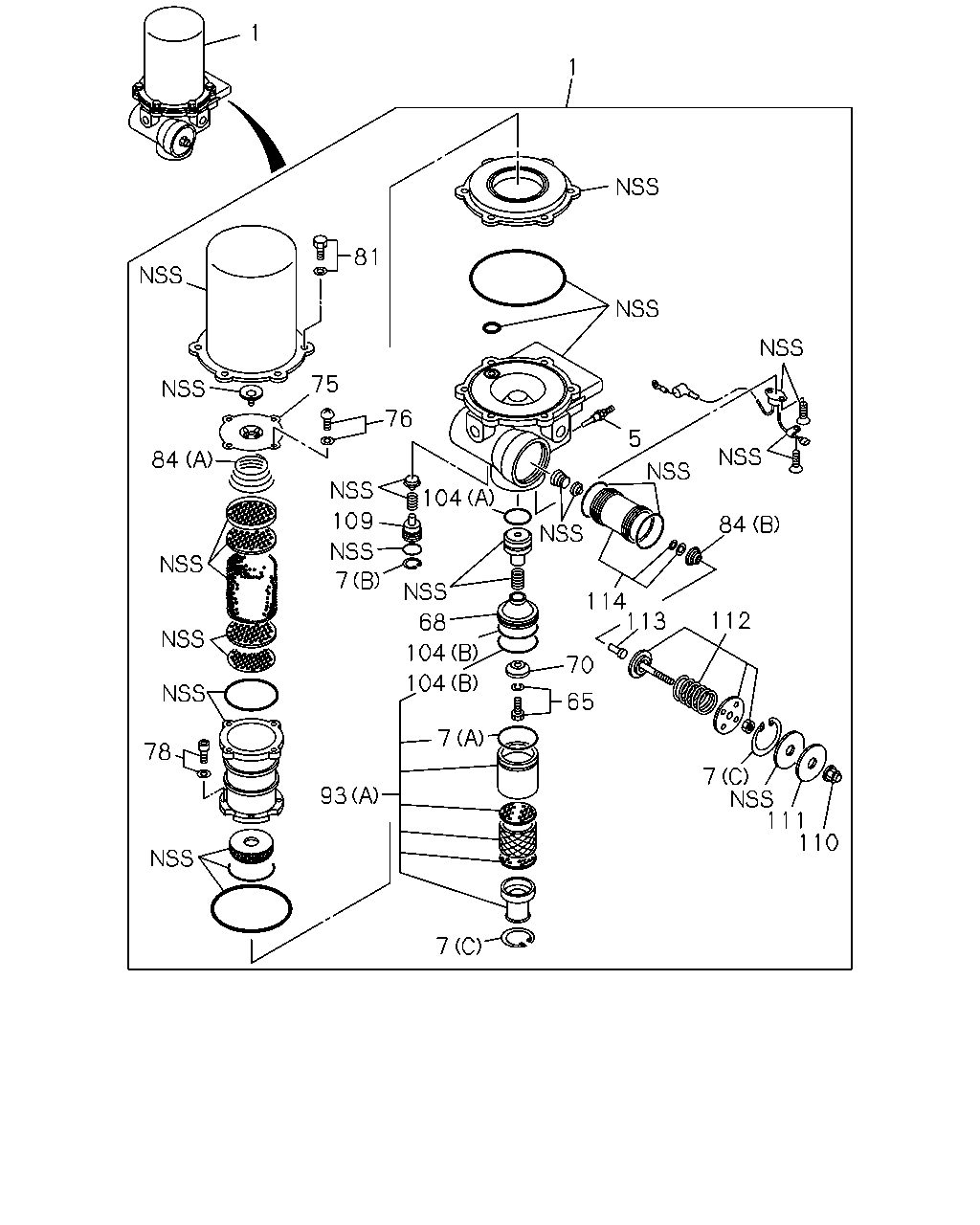

çizim 146866
111 110 7 112 84 1 5 114 113 70 65 104 104 7 7 93 78 84 75 76 104 109 7 68 81 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR 1-48190-371-1 01 1 0710-0711 ●
1 DRYER; AIR 1-48190-371-2 01 1 0712-1211 ● ●
1 DRYER; AIR 8-98225-292-0 01 1 1212- ● ●
5 HEATER ASM; AIR DRYER 1-48199-530-0 01 1 0710-0711 ●
5 HEATER ASM; AIR DRYER 1-48199-530-0 01 1 0712- ● ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0710-0711 ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0712- ● ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 0710-0711 ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 0712- ● ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 0710-0711 ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 0712- ● ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 0710-0711 ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 0712- ● ●
65 BOLT; PURGE VLV 1-48199-517-0 01 1 0710-0711 ●
65 BOLT; PURGE VLV 1-48199-517-0 01 1 0712- ● ●
68 BODY; VALVE 1-48199-515-0 01 1 0710-0711 ●
68 BODY; VALVE 1-48199-515-0 01 1 0712- ● ●
70 VALVE; AIR DRYER 1-48199-504-0 01 1 0710-0711 ●
70 VALVE; AIR DRYER 1-48199-504-0 01 1 0712- ● ●
75 COVER; CASE,AIR DRYER 1-48199-562-0 01 1 0710-0711 ●
75 COVER; CASE,AIR DRYER 1-48199-562-0 01 1 0712- ● ●
76 BOLT; COVER,AIR DRYER 1-48199-561-0 06 1 0710-0711 ●
76 BOLT; COVER,AIR DRYER 1-48199-561-0 06 1 0712- ● ●
78 BOLT; OIL FILTER,AIR DRYER 1-48199-557-0 04 1 0710-0711 ●
78 BOLT; OIL FILTER,AIR DRYER 1-48199-557-0 04 1 0712- ● ●
81 BOLT; CASE,AIR DRYER 1-48199-436-0 08 1 0710-0711 ●
81 BOLT; CASE,AIR DRYER 1-48199-436-0 08 1 0712- ● ●
84 SPRING; AIR DRYER
(B) 		1-48199-523-0 01 1 0710-0711 ●
84 SPRING; AIR DRYER
(B) 		1-48199-523-0 01 1 0712- ● ●
84 SPRING; AIR DRYER
(A) 		1-48199-564-0 01 1 0710-0711 ●
84 SPRING; AIR DRYER
(A) 		1-48199-564-0 01 1 0712- ● ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 0710-0711 ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 0712- ● ●
93 SILENCER; AIR DRYER
(A) 		1-48199-619-0 01 1 0710-0711 ●
93 SILENCER; AIR DRYER
(A) 		1-48199-619-0 01 1 0712- ● ●
104 GASKET
(A) 		1-48199-495-0 01 1 0710-0711 ●
104 GASKET
(A) 		1-48199-495-0 01 1 0712-1211 ● ●
104 GASKET
(A) 		8-98226-321-0 01 1 1212- ● ●
104 GASKET
(B) 		1-48199-496-0 02 1 0710-0711 ●
104 GASKET
(B) 		1-48199-496-0 02 1 0712-1211 ● ●
104 GASKET
(B) 		1-48199-496-0 01 1 1212- ● ●
109 STOPPER; CHECK VALVE 1-48199-539-0 01 1 0710-0711 ●
109 STOPPER; CHECK VALVE 1-48199-539-0 01 1 0712- ● ●
110 NUT; CAP 1-48199-527-0 01 1 0710-0711 ●
110 NUT; CAP 1-48199-527-0 01 1 0712- ● ●
111 PLATE; GOVERNOR 1-48199-526-0 01 1 0710-0711 ●
111 PLATE; GOVERNOR 1-48199-526-0 01 1 0712- ● ●
112 SCREW & SPRING ASM; AIR DRYER 1-48199-524-0 01 1 0710-0711 ●
112 SCREW & SPRING ASM; AIR DRYER 1-48199-524-0 01 1 0712- ● ●
113 STEM; EXHAUST 1-48199-522-0 01 1 0710-0711 ●
113 STEM; EXHAUST 1-48199-522-0 01 1 0712- ● ●
114 PISTON ASM; GOVERNOR 1-48199-521-0 01 1 0710-0711 ●
114 PISTON ASM; GOVERNOR 1-48199-521-0 01 1 0712- ● ●

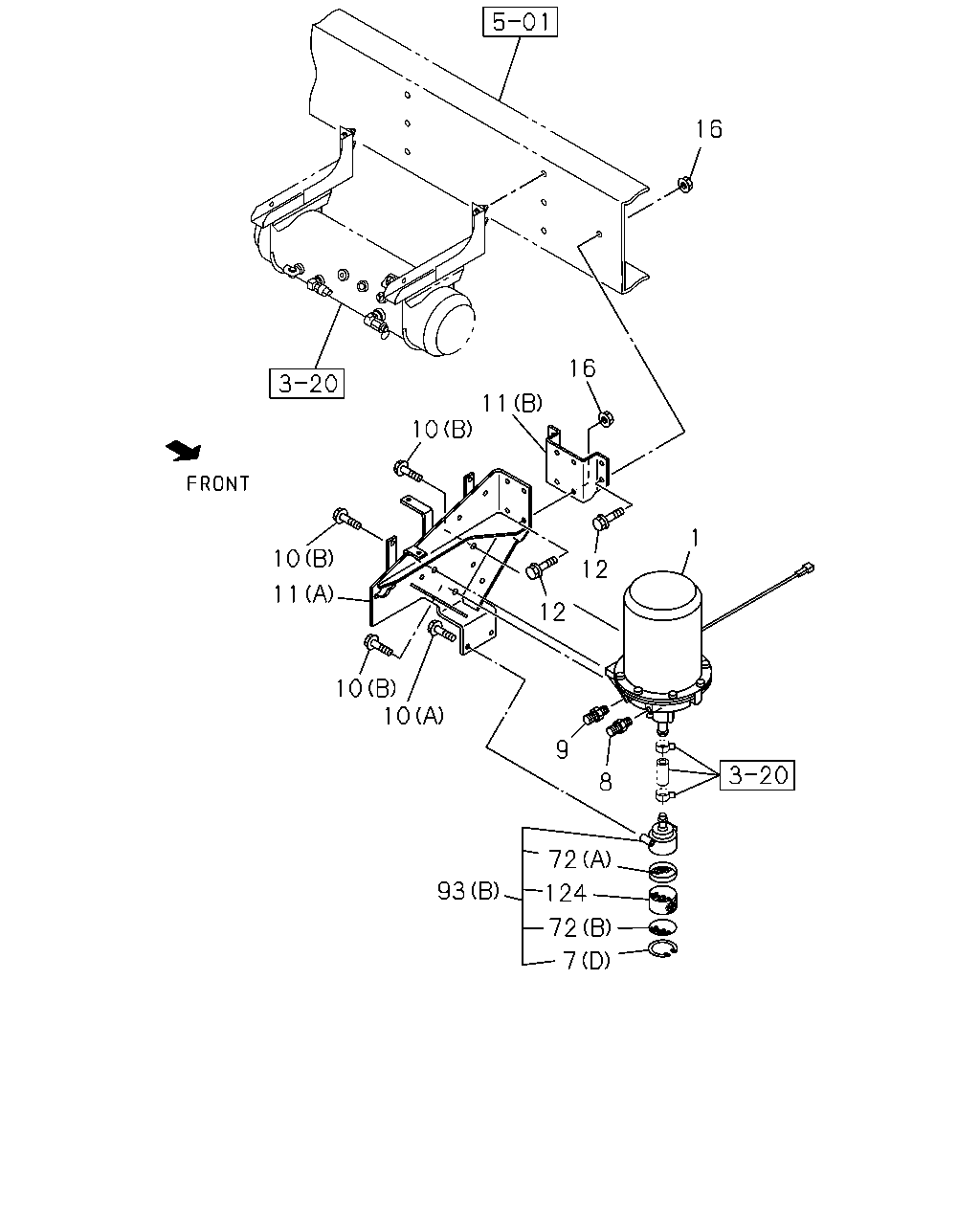

çizim 147034
16 16 11 10 1 10 12 11 12 10 10 9 8 72 3 124 72 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR 1-48190-371-1 01 1 0710-0711 ●
1 DRYER; AIR 1-48190-371-2 01 1 0712-1211 ● ●
1 DRYER; AIR 8-98225-292-0 01 1 1212- ● ●
3 PISTON KIT; AIR DRYER 1-85576-383-0 01 1 0710-0711 ●
3 PISTON KIT; AIR DRYER 1-85576-383-0 01 1 0712-1211 ● ●
3 PISTON KIT; AIR DRYER 8-98226-322-0 01 1 1212- ● ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0710-0711 ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0712- ● ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 0710-0711 ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 0712- ● ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 0710-0711 ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 0712- ● ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 0710-0711 ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 0712- ● ●
8 CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0710-0711 ●
8 CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0712- ● ●
9 CONNECTOR; PIPE,AIR DRYER
FLARE M22 PT1/2 		0-92121-815-0 01 1 0710-0711 ●
9 CONNECTOR; PIPE,AIR DRYER
FLARE M22 PT1/2 		0-92121-815-0 01 1 0712- ● ●
10 BOLT; AIR DRYER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
10 BOLT; AIR DRYER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
10 BOLT; AIR DRYER
(B) M12X25 FLANGE 		0-28651-225-0 03 1 0710-0711 ●
10 BOLT; AIR DRYER
(B) M12X25 FLANGE 		0-28651-225-0 03 1 0712-0906 ● ●
10 BOLT; AIR DRYER
(B) M12X25 FLANGE 		0-28051-225-0 03 1 0907- ● ●
11 BRACKET; AIR DRYER
(A) 		8-98073-219-1 01 1 0710-0711 ●
11 BRACKET; AIR DRYER
(A) 		8-98073-219-1 01 1 0712-0805 ● ●
11 BRACKET; AIR DRYER
(A) 		8-98119-704-0 01 1 0806-1009 ● ●
11 BRACKET; AIR DRYER
(A) 		8-98173-266-0 01 1 1010- ● ●
11 BRACKET; AIR DRYER
(B) 		8-98105-411-1 01 1 0712- ●
12 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710-0711 ●
12 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0712-0802 ● ●
12 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0803- ● ●
12 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0803- ●
12 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0712-0802 ●
16 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
16 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
16 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712- ●
72 PLATE; FILTER,AIR DRYER
(A) 		1-48199-585-0 01 1 0710-0711 ●
72 PLATE; FILTER,AIR DRYER
(A) 		1-48199-585-0 01 1 0712- ● ●
72 PLATE; FILTER,AIR DRYER
(B) 		1-48199-602-0 01 1 0710-0711 ●
72 PLATE; FILTER,AIR DRYER
(B) 		1-48199-602-0 01 1 0712- ● ●
124 FILTER; SILENCER 1-48199-465-0 01 1 0710-0711 ●
124 FILTER; SILENCER 1-48199-465-0 01 1 0712- ● ●
