Isuzu WW
▶
TRUCKS
▶
FTR
▶
11420 - FTR(AUST)EURO4
▶
3 - Brakes, Brake System
▶
3-41 - REAR BRAKE POWER CHAMBER
▶

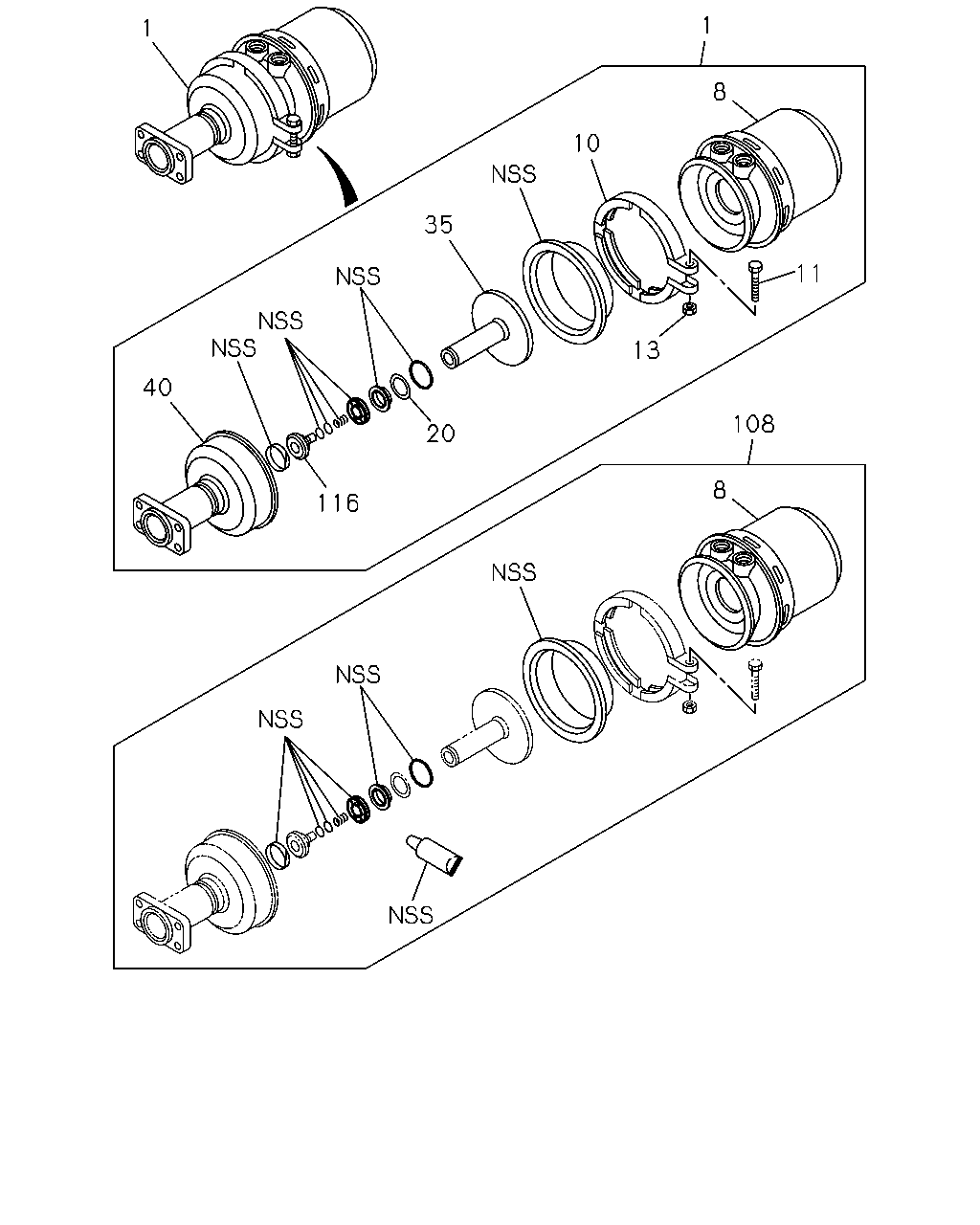

3-41 — REAR BRAKE POWER CHAMBER
(#58086) — 35 parça
Tümü
A - FGR5MV
B - FGR5WV
◀

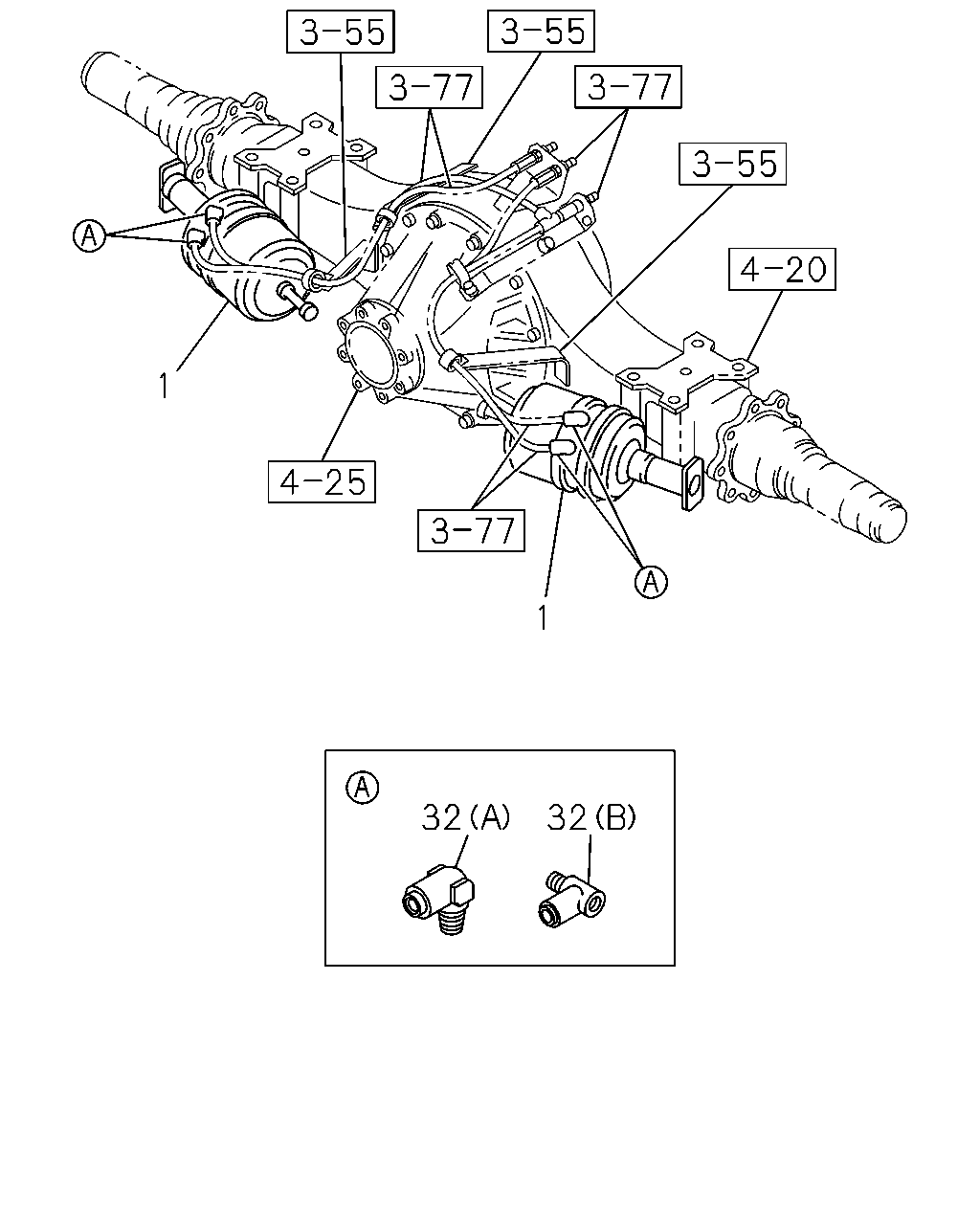

[341A] NO.2 (8 parça)
[341A] NO.1 (27 parça)
▶
1
1
32
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CHAMBER ASM; SPRING
1-48250-877-2
01
1
0710-0711
●
1
CHAMBER ASM; SPRING
1-48250-877-4
01
1
0712-
●
●
1
CHAMBER ASM; SPRING
1-48250-878-2
01
1
0710-0711
●
1
CHAMBER ASM; SPRING
1-48250-878-4
01
1
0712-
●
●
32
CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
03
1
0710-0711
●
32
CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
03
1
0712-
●
●
32
CONNECTOR; SPR CHAMBER
(B) DIN12 & RC1/4 & R3/8 3WAY
1-09661-132-0
01
1
0710-0711
●
32
CONNECTOR; SPR CHAMBER
(B) DIN12 & RC1/4 & R3/8 3WAY
1-09661-132-0
01
1
0712-
●
●
1
1
8
10
35
11
13
40
108
20
8
116
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CHAMBER ASM; SPRING
1-48250-877-2
01
1
0710-0711
●
1
CHAMBER ASM; SPRING
1-48250-877-4
01
1
0712-
●
●
1
CHAMBER ASM; SPRING
1-48250-878-2
01
1
0710-0711
●
1
CHAMBER ASM; SPRING
1-48250-878-4
01
1
0712-
●
●
8
SHELL; CYL,SPR CHAMBER
1-48251-173-1
01
1
0710-0711
●
8
SHELL; CYL,SPR CHAMBER
1-48251-173-2
01
1
0712-
●
●
8
SHELL; CYL,SPR CHAMBER
1-48251-174-1
01
1
0710-0711
●
8
SHELL; CYL,SPR CHAMBER
1-48251-174-2
01
1
0712-
●
●
10
RING; CLAMP,SPR CHAMBER
1-48269-231-0
02
1
0710-0711
●
10
RING; CLAMP,SPR CHAMBER
1-48269-231-0
02
1
0712-
●
●
11
BOLT; CLAMP RING
1-48269-232-0
02
1
0710-0711
●
11
BOLT; CLAMP RING
1-48269-232-0
02
1
0712-
●
●
13
NUT; CLAMP RING
1-48269-233-0
02
1
0710-0711
●
13
NUT; CLAMP RING
1-48269-233-0
02
1
0712-
●
●
20
RING; RET
1-48269-236-0
02
1
0710-0711
●
20
RING; RET
1-48269-236-0
02
1
0712-
●
●
35
PLATE; ROD END,SPR CHAMBER
1-48262-031-0
02
1
0710-0711
●
35
PLATE; ROD END,SPR CHAMBER
1-48262-031-0
02
1
0712-0809
●
●
35
PLATE; ROD END,SPR CHAMBER
1-48269-253-0
02
1
0810-
●
●
40
COVER ASM; LWR,SPR CHAMBER
1-48251-179-0
01
1
0710-0711
●
40
COVER ASM; LWR,SPR CHAMBER
1-48251-179-0
01
1
0712-
●
●
40
COVER ASM; LWR,SPR CHAMBER
1-48251-180-0
01
1
0710-0711
●
40
COVER ASM; LWR,SPR CHAMBER
1-48251-180-0
01
1
0712-
●
●
108
REPAIR KIT; SPR CHAMBER
1-85576-407-1
02
1
0710-0711
●
108
REPAIR KIT; SPR CHAMBER
1-85576-407-1
02
1
0712-
●
●
116
GUIDE; SPR CHAMBER
1-48269-237-0
02
1
0710-0711
●
116
GUIDE; SPR CHAMBER
1-48269-237-0
02
1
0712-
●
●
