3-22 — AIR CONTROL PARTS (#58082) — 210 parça
çizim 146842
188 204
BalonParca AdiParca NoAdetTipApplied Date A B
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-304-0 01 1 0710-0711 ●
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-304-1 01 1 0712- ● ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0710-0711 ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0712- ● ●

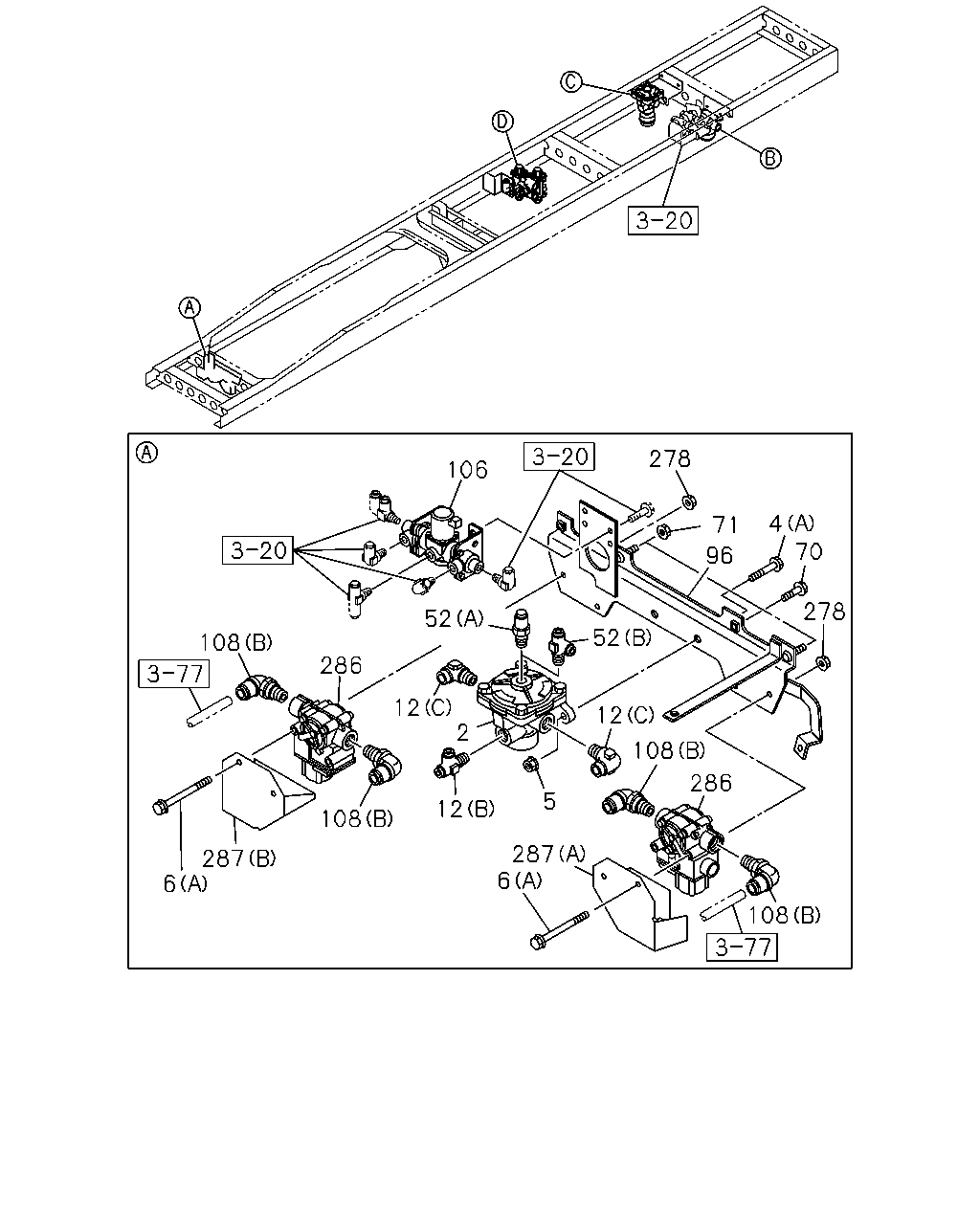

çizim 146847
278 106 4 70 71 96 278 52 52 108 286 12 2 12 108 286 5 12 108 287 6 287 6 108
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY 1-48210-997-0 01 1 0710-0711 ●
2 VALVE; RELAY 1-48210-997-0 01 1 0712- ● ●
4 BOLT; RELAY VLV TO BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0711 ●
4 BOLT; RELAY VLV TO BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0712-0805 ● ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0710-0711 ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0712- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
6 BOLT; VLV
(A) M8X80 FLANGE 		0-28050-880-0 04 1 0710-0711 ●
6 BOLT; VLV
(A) M8X80 FLANGE 		0-28050-880-0 04 1 0712-1408 ● ●
6 BOLT; VLV
(A) M8X85 		1-09044-074-0 04 1 1409- ● ●
6 BOLT; VLV
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ●
6 BOLT; VLV
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0712- ● ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-0711 ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0712- ● ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0711 ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0712- ● ●
12 CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710-0711 ●
12 CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0712- ● ●
12 CONNECTOR; RELAY VLV
(B) 		1-09661-207-0 01 1 0710-0711 ●
12 CONNECTOR; RELAY VLV
(B) 		1-09661-207-0 01 1 0712- ● ●
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0710-0711 ●
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0712- ● ●
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0710-0711 ●
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0712- ● ●
70 BOLT; AIR VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711 ●
70 BOLT; AIR VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0712- ● ●
71 NUT; AIR VLV
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
71 NUT; AIR VLV
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
96 BRACKET 8-98074-613-1 01 1 0710-0711 ●
96 BRACKET 8-98074-613-3 01 1 0712-1408 ● ●
96 BRACKET 8-98273-496-0 01 1 1409- ● ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-0 01 1 0710-0711 ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 0712- ● ●
108 CONNECTOR; ELBOW
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0711 ●
108 CONNECTOR; ELBOW
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0712- ● ●
108 CONNECTOR; ELBOW
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0710-0711 ●
108 CONNECTOR; ELBOW
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0712- ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 0710-0711 ●
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 0712- ● ●
278 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 04 1 0710-0711 ●
278 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 04 1 0712-0712 ● ●
286 MODULATOR; FRT 1-48240-115-0 02 1 0710-0711 ●
286 MODULATOR; FRT 1-48240-115-0 02 1 0712-1408 ● ●
286 MODULATOR; FRT 8-98215-454-0 02 1 1409- ● ●
287 COVER; MODULATOR
(A) 		1-47479-611-1 01 1 0710-0711 ●
287 COVER; MODULATOR
(A) 		1-47479-611-1 01 1 0712-1408 ● ●
287 COVER; MODULATOR
(A) 		8-98273-493-0 01 1 1409- ● ●
287 COVER; MODULATOR
(B) 		8-98073-401-0 01 1 0710-0711 ●
287 COVER; MODULATOR
(B) 		8-98073-401-0 01 1 0712-1408 ● ●
287 COVER; MODULATOR
(B) 		8-98273-494-0 01 1 1409- ● ●

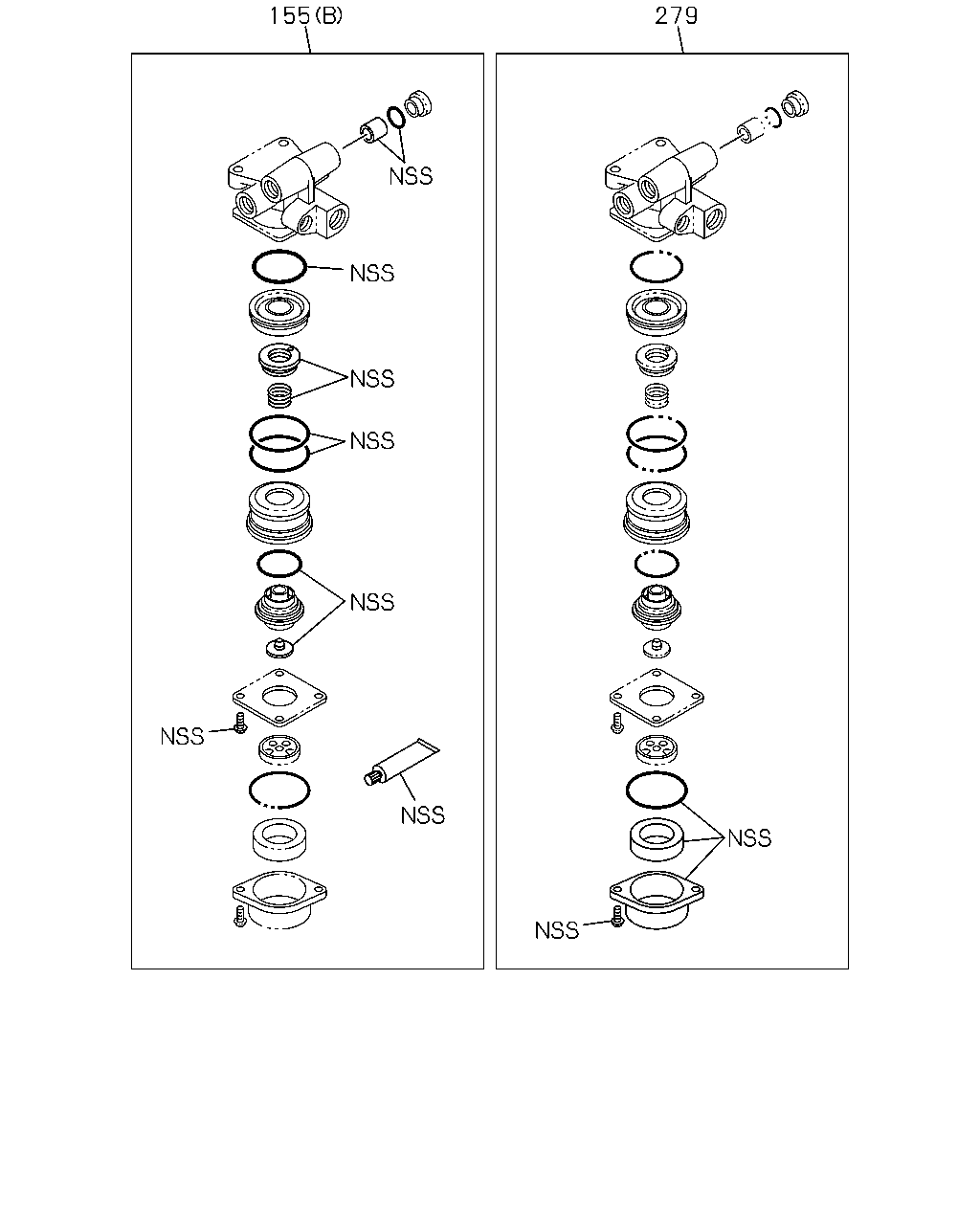

çizim 146848
155 279
BalonParca AdiParca NoAdetTipApplied Date A B
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 0710-0711 ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 0712- ● ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 0710-0711 ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 0712- ● ●
279 REPAIR KIT; SILENCER 1-85576-409-0 01 1 0710-0711 ●
279 REPAIR KIT; SILENCER 1-85576-409-0 01 1 0712- ● ●

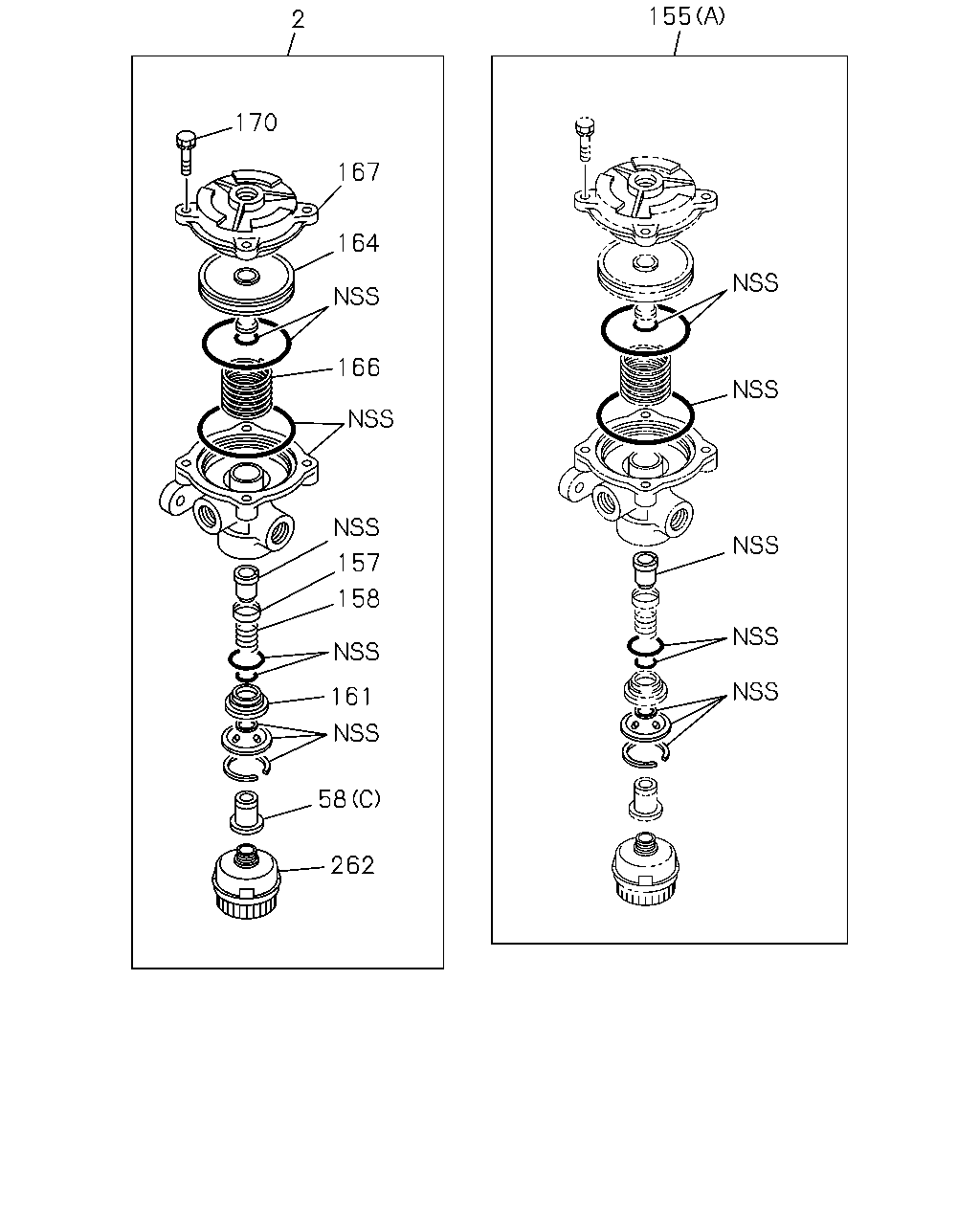

çizim 146853
155 2 170 167 164 166 157 158 161 58 262
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY 1-48210-997-0 01 1 0710-0711 ●
2 VALVE; RELAY 1-48210-997-0 01 1 0712- ● ●
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 0710-0711 ●
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 0712- ● ●
58 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 0710-0711 ●
58 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 0712- ● ●
58 ADAPTER
(D) PT3/8 		1-09664-210-0 01 1 0710-0711 ●
58 ADAPTER
(D) PT3/8 		1-09664-210-0 01 1 0712- ● ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 0710-0711 ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 0712- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 0710-0711 ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 0712- ● ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 0710-0711 ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 0712- ● ●
157 RETAINER; VALVE 1-48213-002-0 01 1 0710-0711 ●
157 RETAINER; VALVE 1-48213-002-0 01 1 0712- ● ●
158 SPRING; VALVE 1-47819-089-0 01 1 0710-0711 ●
158 SPRING; VALVE 1-47819-089-0 01 1 0712- ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0710-0711 ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0712- ● ●
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0710-0711 ●
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0712- ● ●
166 SPRING; PISTON 1-47819-090-0 01 1 0710-0711 ●
166 SPRING; PISTON 1-47819-090-0 01 1 0712- ● ●
167 COVER; VALVE 1-48219-070-0 01 1 0710-0711 ●
167 COVER; VALVE 1-48219-070-0 01 1 0712- ● ●
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 0710-0711 ●
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 0712- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0710-0711 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0712- ● ●

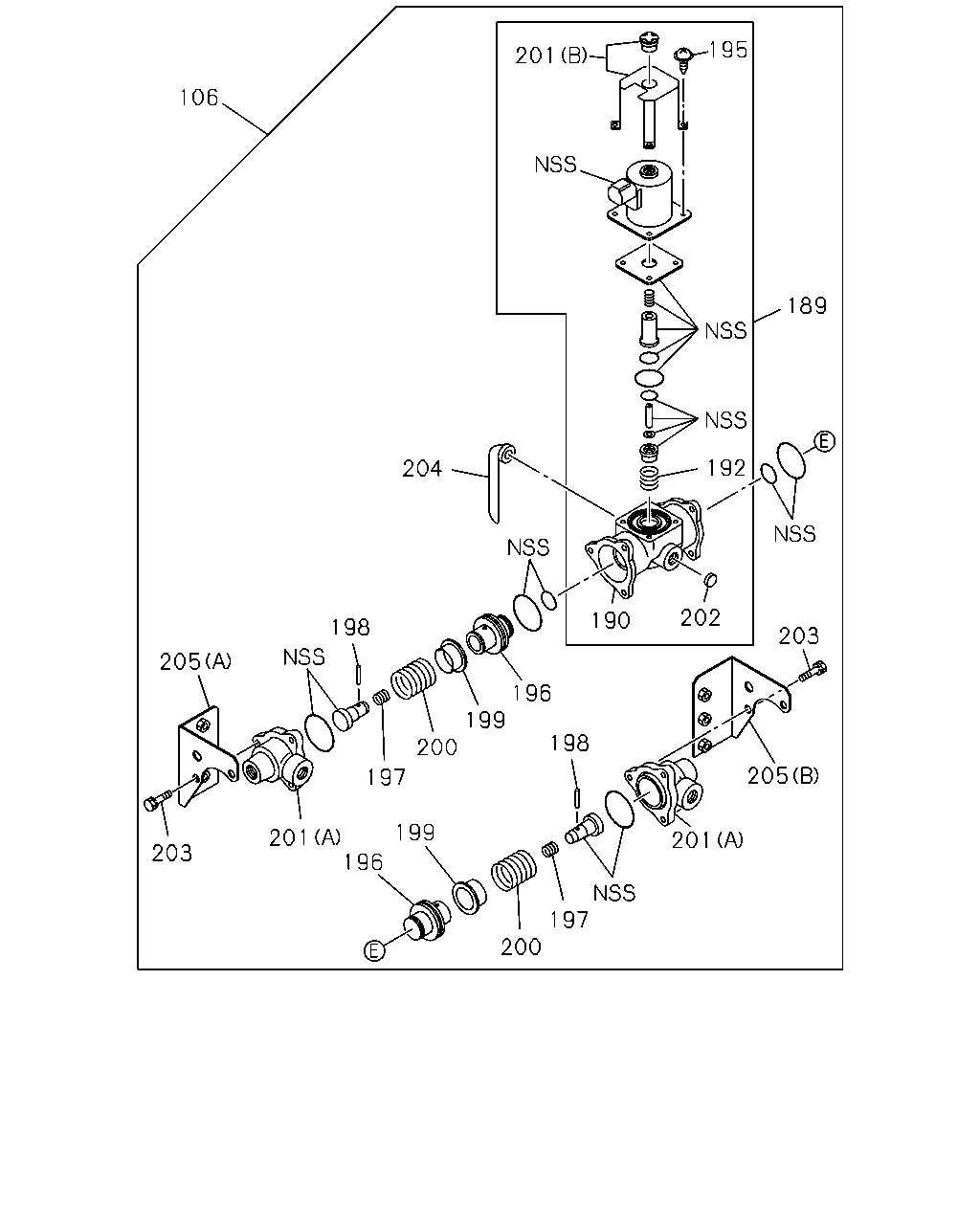

çizim 146854
195 201 106 189 192 204 202 190 198 203 205 196 199 200 198 205 197 201 199 201 196 203 197 200
BalonParca AdiParca NoAdetTipApplied Date A B
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-0 01 1 0710-0711 ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 0712- ● ●
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-247-0 01 1 0710-0711 ●
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-247-0 01 1 0712- ● ●
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-234-0 01 1 0710-0711 ●
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-234-0 01 1 0712- ● ●
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 0710-0711 ●
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 0712- ● ●
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 0710-0711 ●
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 0712- ● ●
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-232-0 02 1 0710-0711 ●
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-232-0 02 1 0712- ● ●
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 0710-0711 ●
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 0712- ● ●
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 0710-0711 ●
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 0712- ● ●
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 0710-0711 ●
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 0712- ● ●
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 0710-0711 ●
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 0712- ● ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 0710-0711 ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 0712- ● ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 0710-0711 ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 0712- ● ●
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 0710-0711 ●
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 0712- ● ●
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 0710-0711 ●
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 0712- ● ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0710-0711 ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0712- ● ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 0710-0711 ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 0712- ● ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 0710-0711 ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 0712- ● ●

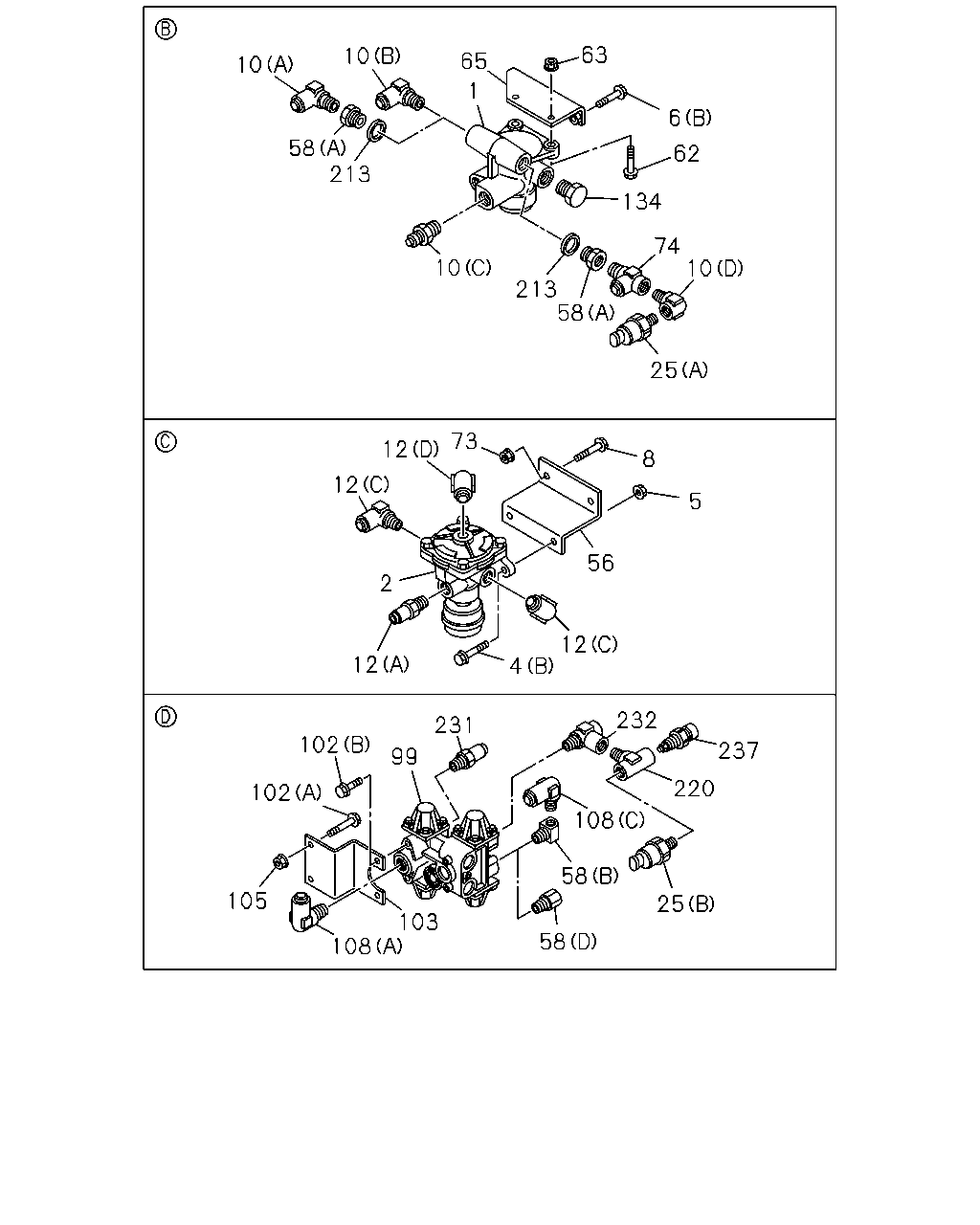

çizim 146860
63 10 65 10 1 6 58 213 62 134 74 10 10 213 58 25 73 12 8 12 5 56 2 12 4 12 232 231 102 237 99 220 102 108 58 105 25 103 58 108
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 0710-0711 ●
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 0712- ● ●
2 VALVE; RELAY 1-48210-997-0 01 1 0710-0711 ●
2 VALVE; RELAY 1-48210-997-0 01 1 0712- ● ●
4 BOLT; RELAY VLV TO BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0711 ●
4 BOLT; RELAY VLV TO BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0712-0805 ● ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0710-0711 ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0712- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
6 BOLT; VLV
(A) M8X80 FLANGE 		0-28050-880-0 04 1 0710-0711 ●
6 BOLT; VLV
(A) M8X80 FLANGE 		0-28050-880-0 04 1 0712-1408 ● ●
6 BOLT; VLV
(A) M8X85 		1-09044-074-0 04 1 1409- ● ●
6 BOLT; VLV
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ●
6 BOLT; VLV
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0712- ● ●
8 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710-0711 ●
8 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0712- ● ●
10 CONNECTOR
(D) PT1/4 2WAY 		1-09660-693-0 01 1 0710-0711 ●
10 CONNECTOR
(D) PT1/4 2WAY 		1-09660-693-0 01 1 0712- ● ●
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-0711 ●
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0712- ● ●
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-0711 ●
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0712- ● ●
10 CONNECTOR
(C) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0710-0711 ●
10 CONNECTOR
(C) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0712- ● ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-0711 ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0712- ● ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0711 ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0712- ● ●
12 CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710-0711 ●
12 CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0712- ● ●
12 CONNECTOR; RELAY VLV
(B) 		1-09661-207-0 01 1 0710-0711 ●
12 CONNECTOR; RELAY VLV
(B) 		1-09661-207-0 01 1 0712- ● ●
25 SWITCH; PRESSURE
(B) STAMP 5.5 		8-97609-249-0 01 1 0710-0711 ●
25 SWITCH; PRESSURE
(B) STAMP 5.5 		8-97609-249-0 01 1 0712- ● ●
25 SWITCH; PRESSURE
(A) 		8-98010-856-1 01 1 0710-0711 ●
25 SWITCH; PRESSURE
(A) 		8-98010-856-1 01 1 0712- ● ●
56 BRACKET; RELAY VLV 1-47478-233-0 01 1 0710-0711 ●
56 BRACKET; RELAY VLV 1-47478-233-0 01 1 0712- ● ●
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 0710-0711 ●
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 0712- ● ●
58 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 0710-0711 ●
58 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 0712- ● ●
58 ADAPTER
(D) PT3/8 		1-09664-210-0 01 1 0710-0711 ●
58 ADAPTER
(D) PT3/8 		1-09664-210-0 01 1 0712- ● ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 0710-0711 ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 0712- ● ●
62 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ●
62 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0712- ● ●
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
65 BRACKET; RELAY VLV RR 1-47471-032-0 01 1 0710-0711 ●
65 BRACKET; RELAY VLV RR 1-47471-032-0 01 1 0712- ● ●
73 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
73 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
74 CONNECTOR; 3WAY 1-09661-536-0 01 1 0710-0711 ●
74 CONNECTOR; 3WAY 1-09661-536-0 01 1 0712- ● ●
99 VALVE; PROTECTION 1-48110-294-0 01 1 0710-0711 ●
99 VALVE; PROTECTION 1-48110-294-2 01 1 0712- ● ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ● ●
102 BOLT; PROTECTION VALVE
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ●
102 BOLT; PROTECTION VALVE
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0712- ● ●
103 BRACKET; PROTECTION VALVE 8-98090-802-0 01 1 0710-0711 ●
103 BRACKET; PROTECTION VALVE 8-98090-802-0 01 1 0712- ● ●
105 NUT; BRKT,VALVE
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
105 NUT; BRKT,VALVE
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
108 CONNECTOR; ELBOW
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0711 ●
108 CONNECTOR; ELBOW
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0712- ● ●
108 CONNECTOR; ELBOW
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0710-0711 ●
108 CONNECTOR; ELBOW
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0712- ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 0710-0711 ●
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 0712- ● ●
134 PLUG; RELAY VALVE 1-09661-502-0 01 1 0710-0711 ●
134 PLUG; RELAY VALVE 1-09661-502-0 01 1 0712- ● ●
213 GASKET
ID=22.5 		9-09571-422-0 03 1 0710-0711 ●
213 GASKET
ID=22.5 		9-09571-422-0 03 1 0712- ● ●
220 CONNECTOR; 3WAY 1-09660-988-1 01 1 0710-0711 ●
220 CONNECTOR; 3WAY 1-09660-988-1 01 1 0712- ● ●
231 CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710-0711 ●
231 CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0712- ● ●
232 VALVE; CHECK 8-98032-527-0 01 1 0710-0711 ●
232 VALVE; CHECK 8-98032-527-0 01 1 0712- ● ●
237 VALVE; SAFETY 1-48320-012-2 01 1 0710-0711 ●
237 VALVE; SAFETY 1-48320-012-2 01 1 0712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
