Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#58081) — 350 parça

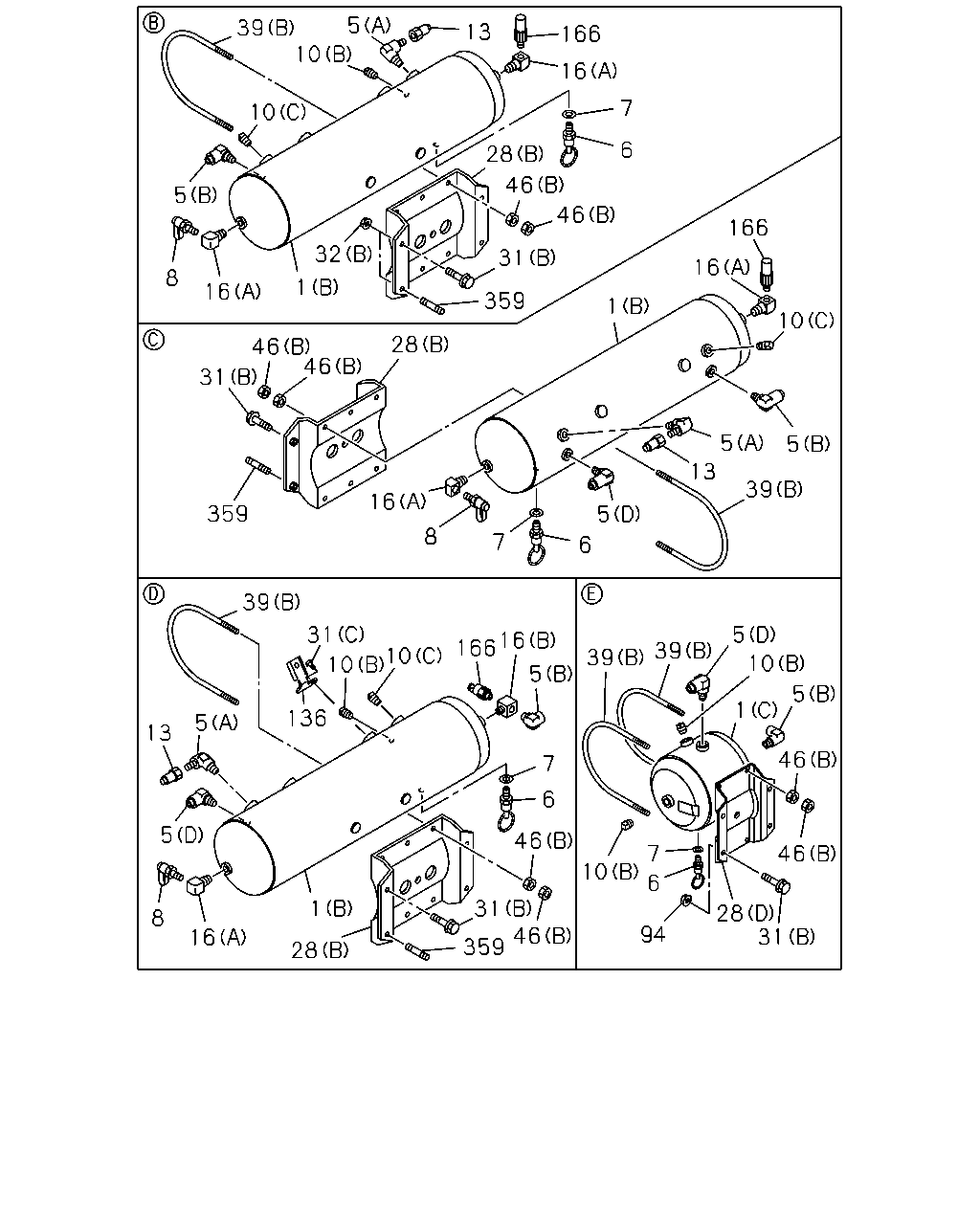

32 28 28 43 80 28 64 31 82 10 46 46 28 1 10 13 5 166 5 7 5 39 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (B)	1-48370-855-0	03	1	0710-0711	●
1	TANK ASM; AIR (B)	1-48370-855-0	02	1	0712-1101	●	●
1	TANK ASM; AIR (B)	8-98166-855-0	01	1	1102-	●	●
1	TANK ASM; AIR (A)	1-48370-856-0	01	1	0710-0711	●
1	TANK ASM; AIR (A)	1-48370-856-0	01	1	0712-1101	●	●
1	TANK ASM; AIR (B)	8-98166-855-0	02	1	1102-	●	●
1	TANK ASM; AIR (C)	8-98090-803-1	01	1	0710-0711	●
1	TANK ASM; AIR (C)	8-98090-803-1	01	1	0712-0906	●	●
1	TANK ASM; AIR (C)	8-98081-870-1	01	1	0907-	●	●
1	TANK ASM; AIR (B)	1-48370-855-0	01	1	0712-1101	●	●
1	TANK ASM; AIR (A)	8-98166-854-0	01	1	1102-	●	●
5	UNION; AIR TANK (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-0711	●
5	UNION; AIR TANK (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0712-	●	●
5	UNION; AIR TANK (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0710-0711	●
5	UNION; AIR TANK (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0712-	●	●
5	UNION; AIR TANK (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0710-0711	●
5	UNION; AIR TANK (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0712-	●	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0710-0711	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0712-	●	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-0711	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-0711	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0712-1101	●	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0712-1101	●	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0712-1101	●	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1102-	●	●
5	UNION; AIR TANK (A) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0710-0711	●
5	UNION; AIR TANK (A) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0712-1101	●	●
5	UNION; AIR TANK (A) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0712-1101	●	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1102-	●	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1102-	●	●
5	UNION; AIR TANK (A) M20 & PT3/4 ELBOW	8-98067-083-1	03	1	0710-0711	●
5	UNION; AIR TANK (A) M20 & PT3/4 ELBOW	8-98067-083-1	02	1	0712-1101	●	●
5	UNION; AIR TANK (A) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1102-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0710-0711	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	0712-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0710-0711	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0710-0711	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0712-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0712-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0712-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0710-0711	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	0712-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0710-0711	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0710-0711	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0712-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0712-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0712-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0710-0711	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0712-1101	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0712-1101	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0712-1101	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	1102-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	1102-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0710-0711	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0710-0711	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0712-1101	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1102-	●	●
10	PLUG; AIR TANK (C) PT3/4	9-09204-526-0	03	1	0710-0711	●
10	PLUG; AIR TANK (C) PT3/4	9-09204-526-0	02	1	0712-1101	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	01	1	0710-0711	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	01	1	0712-1101	●	●
10	PLUG; AIR TANK (C) PT3/4	9-09204-526-0	01	1	0712-1101	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	03	1	1102-	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0710-0711	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0712-1101	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0712-1101	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0710-0711	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0712-1101	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1102-	●	●
28	BRACKET; AIR TANK (A)	1-48317-324-2	02	1	0710-0711	●
28	BRACKET; AIR TANK (A)	1-48317-324-2	02	1	0712-	●	●
28	BRACKET; AIR TANK (B)	1-48317-441-0	03	1	0710-0711	●
28	BRACKET; AIR TANK (B)	1-48317-441-0	02	1	0712-0712	●	●
28	BRACKET; AIR TANK (B)	8-98104-686-0	02	1	0712-	●	●
28	BRACKET; AIR TANK (C)	1-48317-871-1	02	1	0710-0711	●
28	BRACKET; AIR TANK (C)	1-48317-871-1	02	1	0712-0712	●	●
28	BRACKET; AIR TANK (C)	8-98107-430-0	02	1	0801-	●	●
28	BRACKET; AIR TANK (D)	8-98088-205-0	01	1	0710-0710	●
28	BRACKET; AIR TANK (D)	8-98100-165-2	01	1	0710-0711	●
28	BRACKET; AIR TANK (D)	8-98100-165-3	01	1	0712-	●	●
28	BRACKET; AIR TANK (B)	8-98104-686-0	01	1	0712-	●	●
31	BOLT; BRKT TO FRAME (C) M8X16 FLANGE	0-28050-816-0	01	1	0710-0710	●
31	BOLT; BRKT TO FRAME (C) M8X16 FLANGE	0-28050-816-0	02	1	0711-0711	●
31	BOLT; BRKT TO FRAME (C) M8X16 FLANGE	0-28050-816-0	01	1	0712-0712	●	●
31	BOLT; BRKT TO FRAME (C) M8X16 FLANGE	0-28050-816-0	01	1	0712-0802	●	●
31	BOLT; BRKT TO FRAME (C) M8X16 FLANGE	0-28050-816-0	01	1	0712-0802	●	●
31	BOLT; BRKT TO FRAME (C) M8X16 FLANGE	0-28050-816-0	02	1	0803-	●	●
31	BOLT; BRKT TO FRAME (C) M8X16 FLANGE	0-28050-816-0	02	1	0803-	●	●
31	BOLT; BRKT TO FRAME (B) M10X35 FLANGE	0-28651-035-0	06	1	0710-0711	●
31	BOLT; BRKT TO FRAME (B) M10X35 FLANGE	0-28651-035-0	02	1	0712-	●
31	BOLT; BRKT TO FRAME (A) M12X40 FLANGE	0-28651-240-0	04	1	0710-0711	●
31	BOLT; BRKT TO FRAME (A) M12X40 FLANGE	0-28651-240-0	04	1	0712-	●	●
31	BOLT; BRKT TO FRAME (B) M10X35 FLANGE	0-28651-035-0	04	1	0712-	●	●
32	NUT; BRKT TO FRAME (B) M10 FLANGE	0-91180-110-0	06	1	0710-0711	●
32	NUT; BRKT TO FRAME (B) M10 FLANGE	0-91180-110-0	06	1	0712-	●	●
32	NUT; BRKT TO FRAME (A) M12 FLANGE	0-91180-112-0	04	1	0710-0711	●
32	NUT; BRKT TO FRAME (A) M12 FLANGE	0-91180-112-0	04	1	0712-	●	●
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0710-0711	●
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0712-	●	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0710-0711	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0712-	●	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0712-	●	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	06	1	0710-0711	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	04	1	0712-	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	0710-0711	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	0710-0711	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	0712-0712	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	0712-0712	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	0712-	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	0712-	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	0712-	●	●
46	NUT; U-BOLT (B) M8	0-91111-508-0	24	1	0710-0711	●
46	NUT; U-BOLT (B) M8	0-91111-508-0	16	1	0712-0712	●	●
46	NUT; U-BOLT (B) M8	0-91111-508-0	08	1	0712-0712	●	●
46	NUT; U-BOLT (B) M8	0-91110-508-0	16	1	0712-	●	●
64	STAY; AIR TANK,MAIN	1-48317-907-0	01	1	0710-0711	●
64	STAY; AIR TANK,MAIN	1-48317-907-0	01	1	0712-	●	●
80	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0710-0710	●
80	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0710-0711	●
80	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0710-0711	●
80	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0712-	●	●
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	0712-	●	●
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	8-97615-622-0	01	1	0710-0711	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	8-97615-622-0	01	1	0712-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	8-97615-622-0	01	1	0712-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	8-97615-622-0	03	1	0710-0711	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	8-97615-622-0	02	1	0712-	●	●

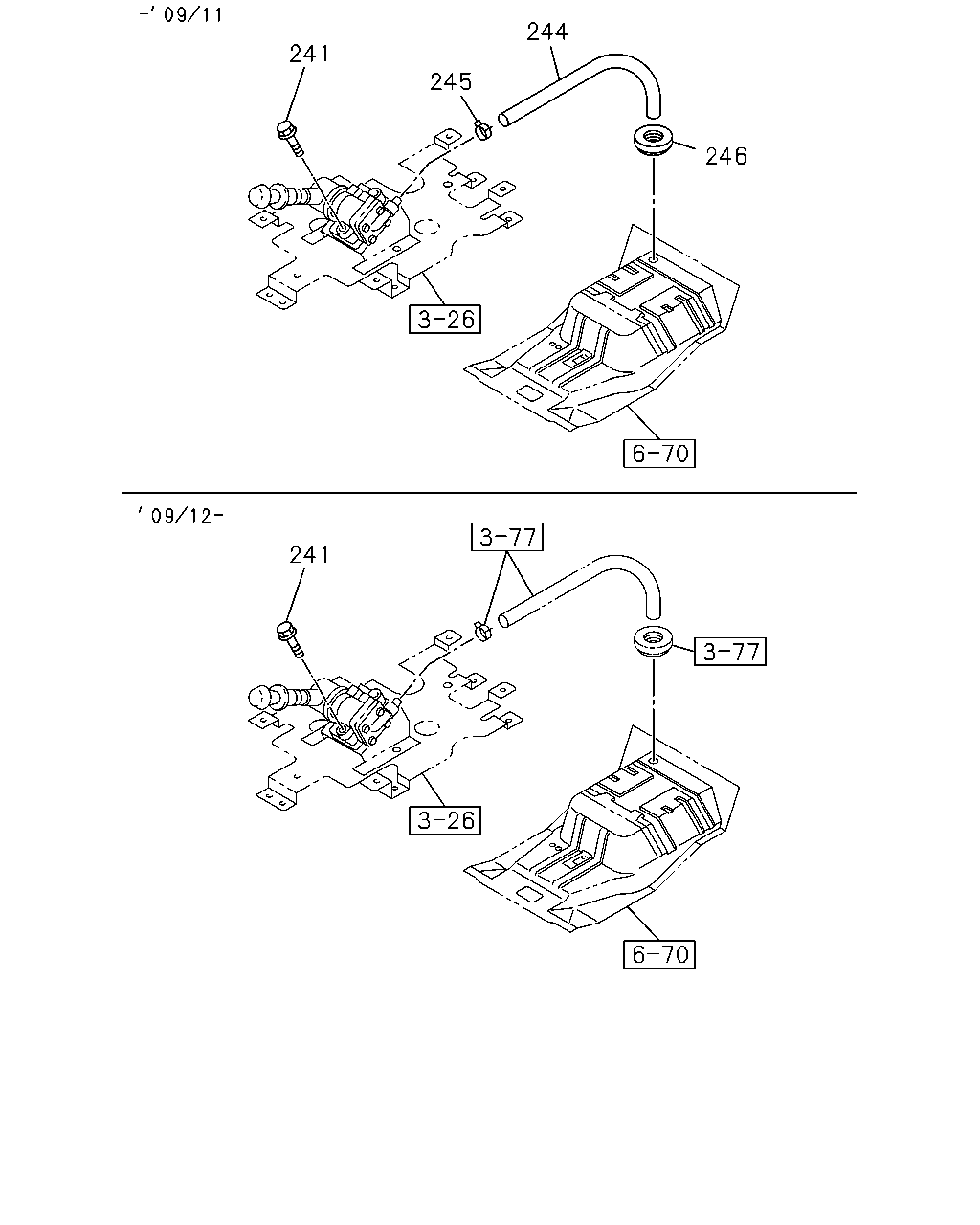

244 241 245 246 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	0710-0711	●
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	0712-	●	●
244	PIPE; VINYL,EXH L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0710-0711	●
244	PIPE; VINYL,EXH L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0712-0911	●	●
245	CLIP; VINYL PIPE ID=14	8-94238-572-0	01	1	0710-0711	●
245	CLIP; VINYL PIPE ID=14	8-94238-572-0	01	1	0712-0911	●	●
246	GROMMET; VINYL PIPE OD=24	9-61166-007-0	01	1	0710-0711	●
246	GROMMET; VINYL PIPE OD=24	9-61166-007-0	01	1	0712-0911	●	●

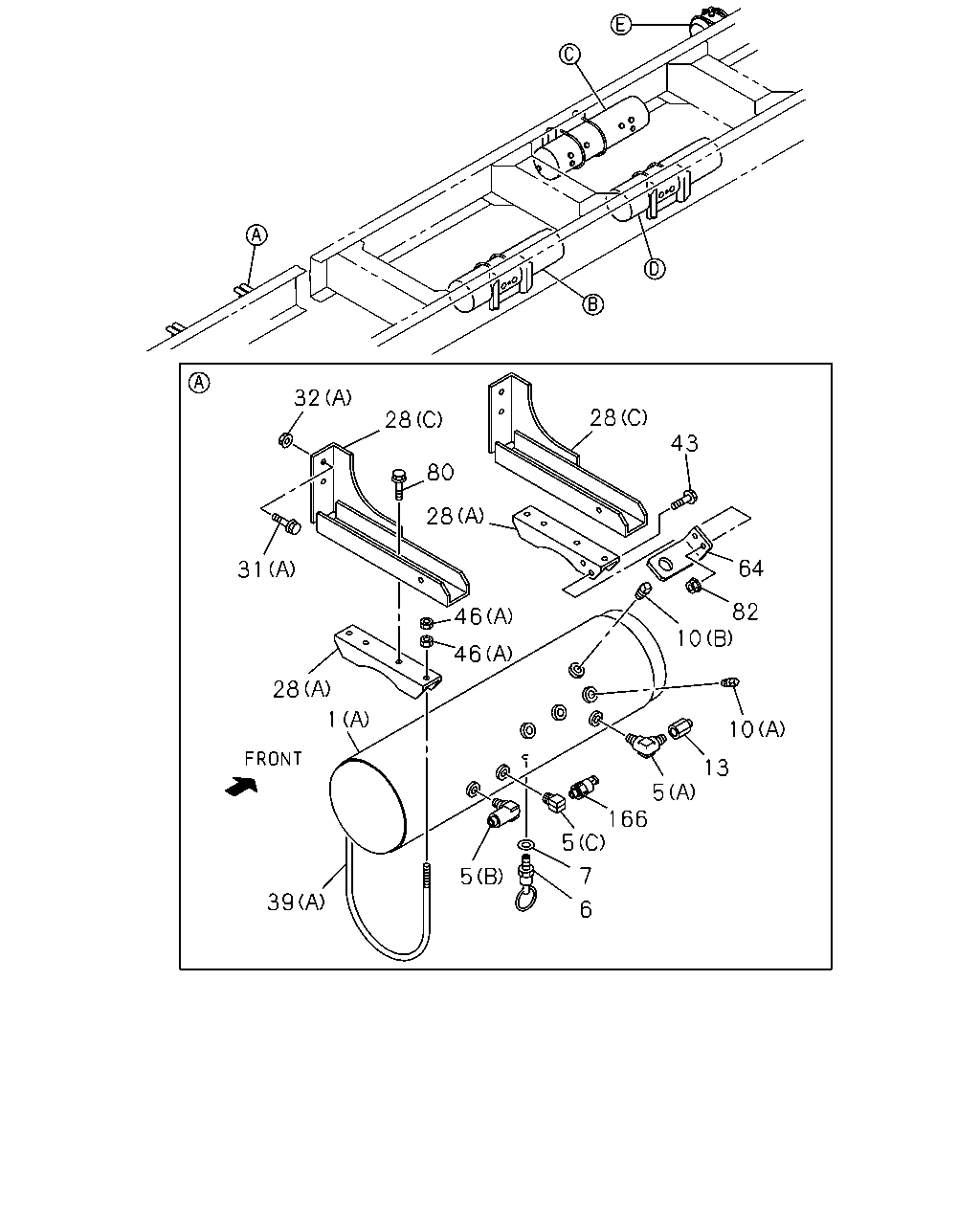

5 39 10 13 166 16 7 10 6 28 46 5 46 166 32 31 16 8 1 16 359 1 10 28 46 46 31 5 5 13 39 16 359 5 8 7 6 39 31 5 16 166 39 10 10 39 10 5 5 1 136 5 13 46 7 6 5 46 7 10 6 46 31 46 359 1 28 31 8 94 16 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (B)	1-48370-855-0	03	1	0710-0711	●
1	TANK ASM; AIR (B)	1-48370-855-0	02	1	0712-1101	●	●
1	TANK ASM; AIR (B)	8-98166-855-0	01	1	1102-	●	●
1	TANK ASM; AIR (A)	1-48370-856-0	01	1	0710-0711	●
1	TANK ASM; AIR (A)	1-48370-856-0	01	1	0712-1101	●	●
1	TANK ASM; AIR (B)	8-98166-855-0	02	1	1102-	●	●
1	TANK ASM; AIR (C)	8-98090-803-1	01	1	0710-0711	●
1	TANK ASM; AIR (C)	8-98090-803-1	01	1	0712-0906	●	●
1	TANK ASM; AIR (C)	8-98081-870-1	01	1	0907-	●	●
1	TANK ASM; AIR (B)	1-48370-855-0	01	1	0712-1101	●	●
1	TANK ASM; AIR (A)	8-98166-854-0	01	1	1102-	●	●
5	UNION; AIR TANK (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-0711	●
5	UNION; AIR TANK (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0712-	●	●
5	UNION; AIR TANK (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0710-0711	●
5	UNION; AIR TANK (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0712-	●	●
5	UNION; AIR TANK (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0710-0711	●
5	UNION; AIR TANK (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0712-	●	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0710-0711	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0712-	●	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-0711	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-0711	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0712-1101	●	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0712-1101	●	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0712-1101	●	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1102-	●	●
5	UNION; AIR TANK (A) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0710-0711	●
5	UNION; AIR TANK (A) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0712-1101	●	●
5	UNION; AIR TANK (A) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0712-1101	●	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1102-	●	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1102-	●	●
5	UNION; AIR TANK (A) M20 & PT3/4 ELBOW	8-98067-083-1	03	1	0710-0711	●
5	UNION; AIR TANK (A) M20 & PT3/4 ELBOW	8-98067-083-1	02	1	0712-1101	●	●
5	UNION; AIR TANK (A) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1102-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0710-0711	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	0712-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0710-0711	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0710-0711	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0712-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0712-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0712-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0710-0711	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	0712-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0710-0711	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0710-0711	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0712-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0712-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0712-	●	●
8	CONNECTOR; AIR TANK	1-47459-013-0	03	1	0710-0711	●
8	CONNECTOR; AIR TANK	1-47459-013-1	02	1	0712-	●	●
8	CONNECTOR; AIR TANK	1-47459-013-1	01	1	0712-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0710-0711	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0712-1101	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0712-1101	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0712-1101	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	1102-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	1102-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0710-0711	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0710-0711	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0712-1101	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1102-	●	●
10	PLUG; AIR TANK (C) PT3/4	9-09204-526-0	03	1	0710-0711	●
10	PLUG; AIR TANK (C) PT3/4	9-09204-526-0	02	1	0712-1101	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	01	1	0710-0711	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	01	1	0712-1101	●	●
10	PLUG; AIR TANK (C) PT3/4	9-09204-526-0	01	1	0712-1101	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	03	1	1102-	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0710-0711	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0712-1101	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0712-1101	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0710-0711	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0712-1101	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1102-	●	●
16	CONNECTOR; SWITCH (B)	1-09656-708-0	01	1	0710-0711	●
16	CONNECTOR; SWITCH (B)	1-09656-708-0	01	1	0712-1101	●	●
16	CONNECTOR; SWITCH (B)	8-98166-127-0	01	1	1102-	●	●
16	CONNECTOR; SWITCH (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	05	1	0710-0711	●
16	CONNECTOR; SWITCH (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	0712-	●	●
16	CONNECTOR; SWITCH (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0712-	●	●
28	BRACKET; AIR TANK (A)	1-48317-324-2	02	1	0710-0711	●
28	BRACKET; AIR TANK (A)	1-48317-324-2	02	1	0712-	●	●
28	BRACKET; AIR TANK (B)	1-48317-441-0	03	1	0710-0711	●
28	BRACKET; AIR TANK (B)	1-48317-441-0	02	1	0712-0712	●	●
28	BRACKET; AIR TANK (B)	8-98104-686-0	02	1	0712-	●	●
28	BRACKET; AIR TANK (C)	1-48317-871-1	02	1	0710-0711	●
28	BRACKET; AIR TANK (C)	1-48317-871-1	02	1	0712-0712	●	●
28	BRACKET; AIR TANK (C)	8-98107-430-0	02	1	0801-	●	●
28	BRACKET; AIR TANK (D)	8-98088-205-0	01	1	0710-0710	●
28	BRACKET; AIR TANK (D)	8-98100-165-2	01	1	0710-0711	●
28	BRACKET; AIR TANK (D)	8-98100-165-3	01	1	0712-	●	●
28	BRACKET; AIR TANK (B)	8-98104-686-0	01	1	0712-	●	●
31	BOLT; BRKT TO FRAME (C) M8X16 FLANGE	0-28050-816-0	01	1	0710-0710	●
31	BOLT; BRKT TO FRAME (C) M8X16 FLANGE	0-28050-816-0	02	1	0711-0711	●
31	BOLT; BRKT TO FRAME (C) M8X16 FLANGE	0-28050-816-0	01	1	0712-0712	●	●
31	BOLT; BRKT TO FRAME (C) M8X16 FLANGE	0-28050-816-0	01	1	0712-0802	●	●
31	BOLT; BRKT TO FRAME (C) M8X16 FLANGE	0-28050-816-0	01	1	0712-0802	●	●
31	BOLT; BRKT TO FRAME (C) M8X16 FLANGE	0-28050-816-0	02	1	0803-	●	●
31	BOLT; BRKT TO FRAME (C) M8X16 FLANGE	0-28050-816-0	02	1	0803-	●	●
31	BOLT; BRKT TO FRAME (B) M10X35 FLANGE	0-28651-035-0	06	1	0710-0711	●
31	BOLT; BRKT TO FRAME (B) M10X35 FLANGE	0-28651-035-0	02	1	0712-	●
31	BOLT; BRKT TO FRAME (A) M12X40 FLANGE	0-28651-240-0	04	1	0710-0711	●
31	BOLT; BRKT TO FRAME (A) M12X40 FLANGE	0-28651-240-0	04	1	0712-	●	●
31	BOLT; BRKT TO FRAME (B) M10X35 FLANGE	0-28651-035-0	04	1	0712-	●	●
32	NUT; BRKT TO FRAME (B) M10 FLANGE	0-91180-110-0	06	1	0710-0711	●
32	NUT; BRKT TO FRAME (B) M10 FLANGE	0-91180-110-0	06	1	0712-	●	●
32	NUT; BRKT TO FRAME (A) M12 FLANGE	0-91180-112-0	04	1	0710-0711	●
32	NUT; BRKT TO FRAME (A) M12 FLANGE	0-91180-112-0	04	1	0712-	●	●
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0710-0711	●
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0712-	●	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0710-0711	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0712-	●	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0712-	●	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	06	1	0710-0711	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	04	1	0712-	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	0710-0711	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	0710-0711	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	0712-0712	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	0712-0712	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	0712-	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	0712-	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	0712-	●	●
46	NUT; U-BOLT (B) M8	0-91111-508-0	24	1	0710-0711	●
46	NUT; U-BOLT (B) M8	0-91111-508-0	16	1	0712-0712	●	●
46	NUT; U-BOLT (B) M8	0-91111-508-0	08	1	0712-0712	●	●
46	NUT; U-BOLT (B) M8	0-91110-508-0	16	1	0712-	●	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	0710-0711	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	03	1	0712-0712	●	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	0801-	●	●
136	BRACKET; CLIP	1-47477-943-0	01	1	0710-0710	●
136	BRACKET; CLIP	1-47477-943-0	02	1	0711-0711	●
136	BRACKET; CLIP	1-47477-943-0	01	1	0712-0712	●	●
136	BRACKET; CLIP	1-47477-943-0	01	1	0712-0802	●	●
136	BRACKET; CLIP	1-47477-943-0	01	1	0712-0802	●	●
136	BRACKET; CLIP	8-98114-814-0	02	1	0803-	●	●
136	BRACKET; CLIP	8-98114-814-0	02	1	0803-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	8-97615-622-0	01	1	0710-0711	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	8-97615-622-0	01	1	0712-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	8-97615-622-0	01	1	0712-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	8-97615-622-0	03	1	0710-0711	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	8-97615-622-0	02	1	0712-	●	●
359	STUD; BRKT TO FRAME M10X28,M10X15 L=50	5-09300-050-0	06	1	0710-0711	●
359	STUD; BRKT TO FRAME M10X28,M10X15 L=50	5-09300-050-0	06	1	0712-	●	●

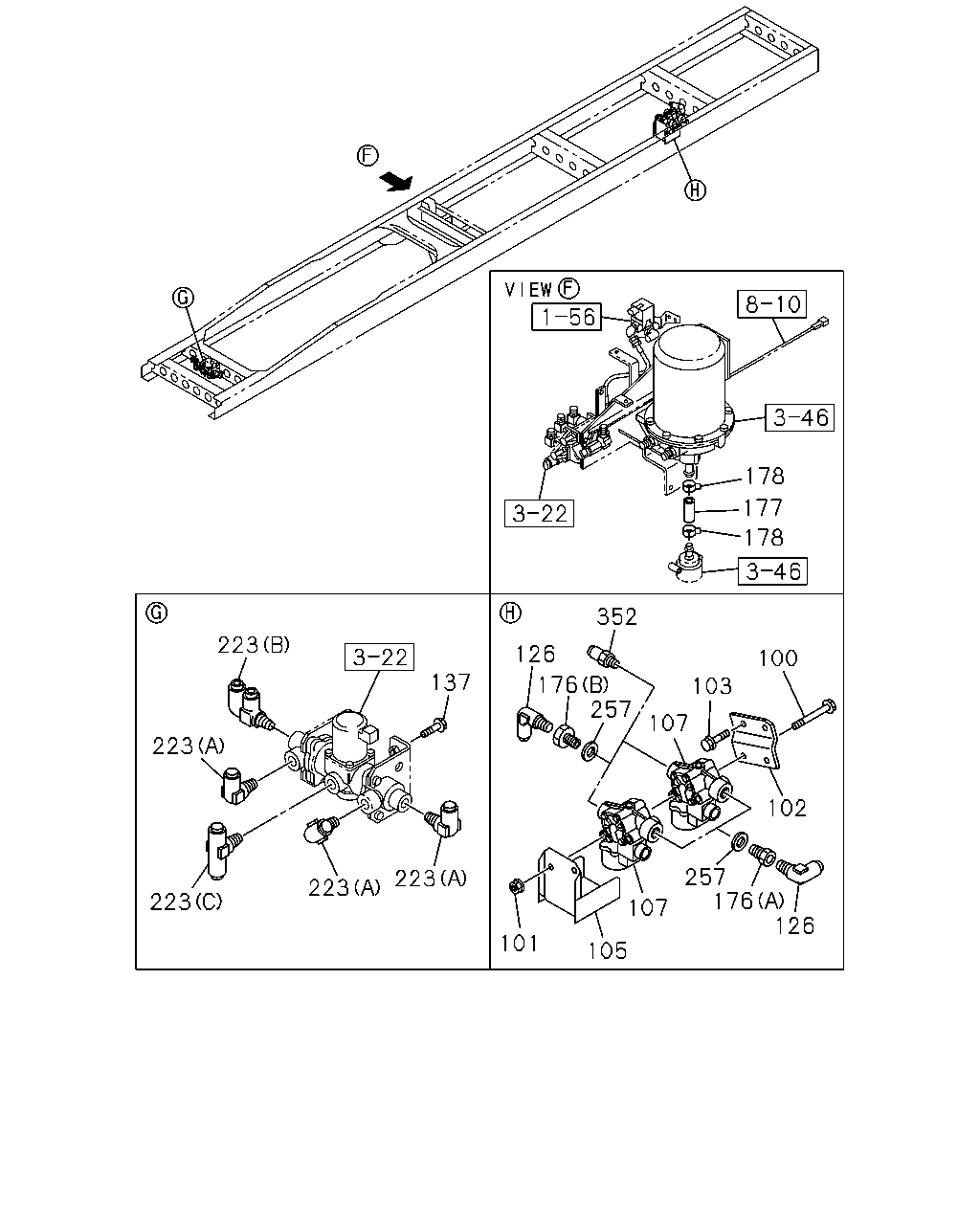

178 177 178 352 223 126 100 137 176 257 107 103 223 102 257 176 223 223 126 223 107 101 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	BOLT; MODULATOR M8X140 FLANGE	0-28055-814-0	02	1	0710-0711	●
100	BOLT; MODULATOR M8X140 FLANGE	0-28055-814-0	02	1	0712-0803	●	●
100	BOLT; MODULATOR M8X140 FLANGE	0-28055-814-0	02	1	0712-0803		●
100	BOLT; MODULATOR M8X140 FLANGE	0-28055-814-0	02	1	0804-0907	●	●
100	BOLT; MODULATOR M8X140 FLANGE	0-28055-814-0	02	1	0908-0908	●	●
100	BOLT; MODULATOR WHEEL BASE 5500MM(55W) M8X140 FLANGE	0-28055-814-0	02	1	0908-0908	●
100	BOLT; MODULATOR M8X140 FLANGE	0-28055-814-0	02	1	0909-	●	●
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	0712-0803	●	●
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	0712-0803		●
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	0804-0907	●	●
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	0908-0908	●	●
101	NUT; MODULATOR WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	02	1	0908-0908	●
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	0909-	●	●
102	BRACKET; MODULATOR	8-98075-781-0	01	1	0710-0711	●
102	BRACKET; MODULATOR	8-98075-781-0	01	1	0712-0803	●	●
102	BRACKET; MODULATOR	8-98075-781-0	01	1	0712-0803		●
102	BRACKET; MODULATOR	8-98075-781-0	01	1	0804-0907	●	●
102	BRACKET; MODULATOR	8-98075-781-0	01	1	0908-0908	●	●
102	BRACKET; MODULATOR WHEEL BASE 5500MM(55W)	8-98075-781-0	01	1	0908-0908	●
102	BRACKET; MODULATOR	8-98075-781-0	01	1	0909-1408	●	●
102	BRACKET; MODULATOR	8-98272-718-0	01	1	1409-	●	●
103	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
103	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●
105	COVER; MODULATOR	1-47479-792-0	01	1	0710-0711	●
105	COVER; MODULATOR	1-47479-792-0	01	1	0712-0803	●	●
105	COVER; MODULATOR	1-47479-792-0	01	1	0712-0803		●
105	COVER; MODULATOR	1-47479-792-0	01	1	0804-0907	●	●
105	COVER; MODULATOR	1-47479-792-0	01	1	0908-0908	●	●
105	COVER; MODULATOR WHEEL BASE 5500MM(55W)	1-47479-792-0	01	1	0908-0908	●
105	COVER; MODULATOR	1-47479-792-0	01	1	0909-1408	●	●
105	COVER; MODULATOR	8-98272-749-0	01	1	1409-	●	●
107	MODULATOR; RR	1-48240-115-0	02	1	0710-0711	●
107	MODULATOR; RR	1-48240-115-0	02	1	0712-0803	●	●
107	MODULATOR; RR	1-48240-115-0	02	1	0712-0803		●
107	MODULATOR; RR	1-48240-115-0	02	1	0804-0907	●	●
107	MODULATOR; RR	1-48240-115-0	02	1	0908-0908	●	●
107	MODULATOR; RR WHEEL BASE 5500MM(55W)	1-48240-115-0	02	1	0908-0908	●
107	MODULATOR; RR	1-48240-115-0	02	1	0909-1408	●	●
107	MODULATOR; RR	8-98215-454-0	02	1	1409-	●	●
126	CONNECTOR; ELBOW DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0710-0711	●
126	CONNECTOR; ELBOW DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0712-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 5500MM(55W) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0908-0908	●
126	CONNECTOR; ELBOW WHEEL BASE 6000MM(60W) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0712-0803		●
137	BOLT; BRKT H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	04	1	0710-0711	●
137	BOLT; BRKT H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	04	1	0712-	●	●
176	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0710-0711	●
176	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0712-	●	●
176	ADAPTER (A) PT3/8	1-09664-210-0	02	1	0710-0711	●
176	ADAPTER (A) PT3/8	1-09664-210-0	02	1	0712-	●	●
176	ADAPTER WHEEL BASE 5500MM(55W) (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	0908-0908	●
176	ADAPTER WHEEL BASE 5500MM(55W) (A) PT3/8	1-09664-210-0	01	1	0908-0908	●
176	ADAPTER WHEEL BASE 6000MM(60W) (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	0712-0803		●
176	ADAPTER WHEEL BASE 6000MM(60W) (A) PT3/8	1-09664-210-0	01	1	0712-0803		●
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0710-0711	●
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0712-	●	●
178	CLIP; HOSE ID=21	8-94242-034-0	02	1	0710-0711	●
178	CLIP; HOSE ID=21	8-94242-034-0	02	1	0712-	●	●
223	UNION H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	0710-0711	●
223	UNION H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	0712-	●	●
223	UNION H.S.A SYSTEM<6EP> (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-0711	●
223	UNION H.S.A SYSTEM<6EP> (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0712-	●	●
223	UNION H.S.A SYSTEM<6EP> (C)	1-09661-073-0	01	1	0710-0711	●
223	UNION H.S.A SYSTEM<6EP> (C)	1-09661-073-0	01	1	0712-	●	●
257	GASKET; PLUG ID=22.5	9-09571-422-0	04	1	0710-0711	●
257	GASKET; PLUG ID=22.5	9-09571-422-0	04	1	0712-	●	●
257	GASKET; PLUG WHEEL BASE 5500MM(55W) ID=22.5	9-09571-422-0	02	1	0908-0908	●
257	GASKET; PLUG WHEEL BASE 6000MM(60W) ID=22.5	9-09571-422-0	02	1	0712-0803		●
352	CONNECTOR; STRAIGHT WHEEL BASE 5500MM(55W) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	0908-0908	●
352	CONNECTOR; STRAIGHT WHEEL BASE 6000MM(60W) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	0712-0803		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
