Sayfa 3-78 - Isuzu EPC

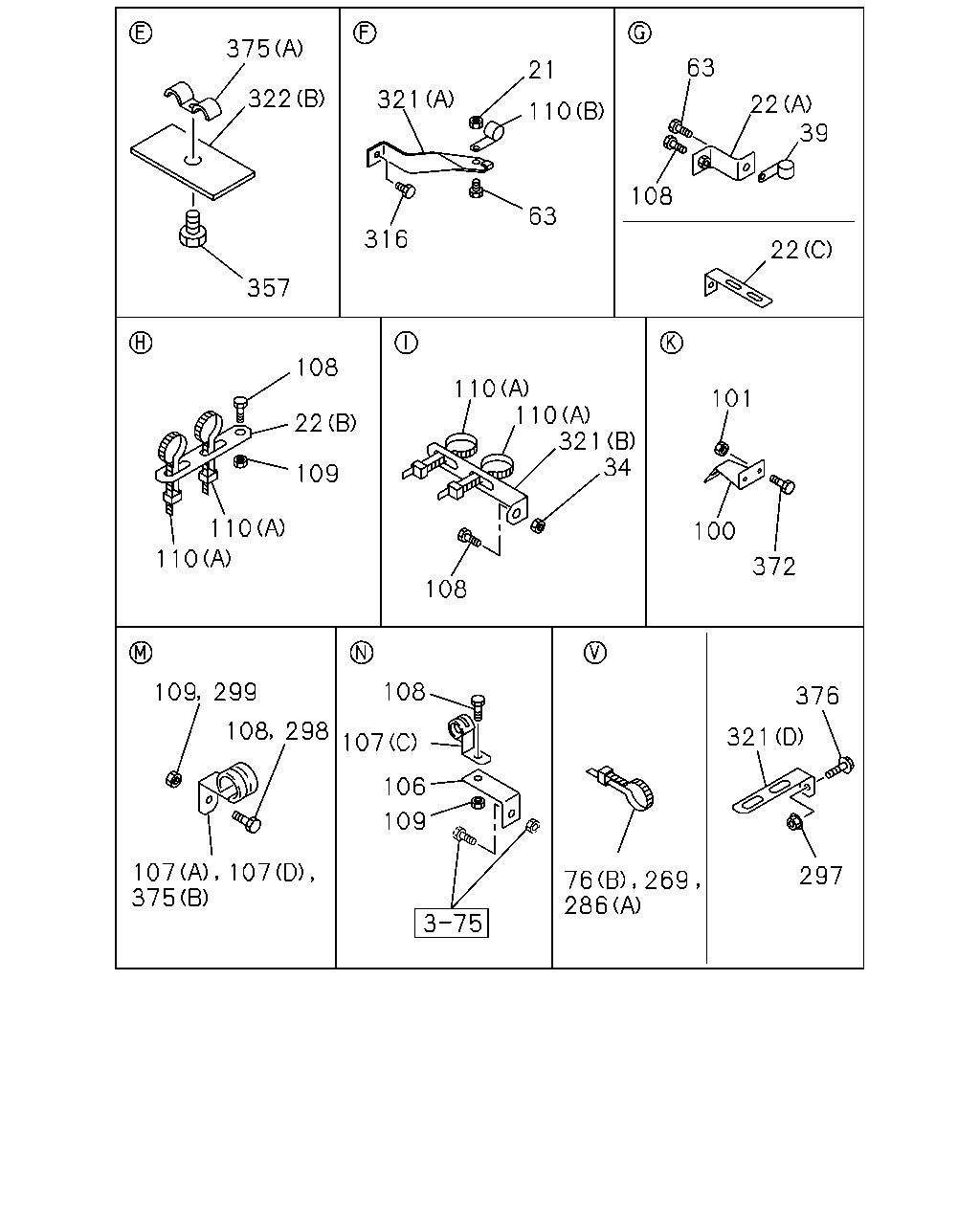

3-78 — FIXING PARTS; AIR PIPING (#5808) — 298 parça

375 63 21 322 321 22 39 110 108 63 316 22 357 108 110 110 321 34 101 22 109 110 100 110 372 108 108 109 299 376 108 298 321 107 106 109 107 375 107 297 286 76 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	NUT; CLIP M8	9-09110-408-0	01	1	9603-9606	●	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-	●	●
22	BRACKET; CLIP (A)	1-47475-689-0	01	1	9603-9603	●	●
22	BRACKET; CLIP ISUZU M/T<X9A>,FULLER M/T<X9B> (A)	1-47475-689-0	01	1	9604-	●	●
22	BRACKET; CLIP (B)	1-47477-514-3	02	1	9603-	●	●
22	BRACKET; CLIP ZF M/T<X9E> (A)	1-47477-088-1	01	1	9603-	●	●
22	BRACKET; CLIP ZF M/T<X9E> (C) L=100 H=30	1-47477-645-1	01	1	9603-9612	●	●
22	BRACKET; CLIP FULLER M/T<X9B>,ZF M/T<X9E> (C) L=100 H=30	1-47477-645-2	01	1	9701-	●	●
34	NUT; BRKT M8	9-09110-408-0	01	1	9603-9606	●	●
34	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9607-	●	●
39	CLIP; AIR PIPE L=250	1-09707-126-0	02	1	9603-	●	●
63	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
63	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-9708	●	●
63	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
63	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-	●	●
76	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> (C) ID=6 & 8.3	8-94167-742-0	02	1	9701-	●
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	9603-	●	●
76	CLIP; NYLON TUBE (B) L=350	8-94152-256-1	01	1	9603-	●	●
76	CLIP; NYLON TUBE AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	9603-	●	●
76	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	01	1	9603-	●	●
76	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3	8-94426-175-0	01	1	9605-		●
100	BRACKET; PIPE CLIP	1-47477-369-1	01	1	9603-9604	●	●
100	BRACKET; PIPE CLIP	1-47477-770-0	01	1	9605-	●	●
100	BRACKET; PIPE CLIP	1-47477-365-0	01	1	9603-	●	●
101	NUT; CLIP BRKT M8	9-09110-508-0	04	1	9603-9606	●	●
101	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	9607-	●	●
106	BRACKET; TUBE CLIP	1-47477-694-0	01	1	9603-	●
107	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09701-047-0	03	1	9603-	●	●
107	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (C) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	9603-9904	●	●
107	CLIP; NYLON TUBE ISUZU M/T<X9A>,FULLER M/T<X9B> DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 H=50 L=45.5	1-09701-027-0	03	1	9905-0005	●	●
107	CLIP; NYLON TUBE ISUZU M/T<X9A>,FULLER M/T<X9B> DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0006-	●	●
107	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (D) ID=31.5 H=23 L=25	1-09701-017-0	02	1	9603-9904	●	●
107	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (D) ID=39 H=28 L=32	1-09701-263-0	02	1	9905-	●	●
107	CLIP; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9905-	●	●
107	CLIP; NYLON TUBE FULL FLOATING CAB(W16) (B) ID=11.8 & 7.5	1-09709-182-0	01	1	9603-		●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	AR	1	9603-9606	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	AR	1	9607-	●	●
109	NUT; TUBE CLIP M8	9-09110-408-0	AR	1	9603-9606	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	AR	1	9607-	●	●
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	AR	1	9603-	●	●
110	CLIP; BAND,NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=35 L=33	1-09700-945-0	01	1	9603-	●	●
110	CLIP; BAND,NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=28 L=40	1-09700-995-1	01	1	9603-	●	●
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	13	1	9603-9904	●	●
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	14	1	9905-	●	●
286	CLIP; NYLON TUBE FULLER M/T<X9B> (A) L=250	1-09707-126-0	02	1	9603-	●
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (B) L=250	5-09707-030-1	01	1	9603-	●	●
286	CLIP; NYLON TUBE ZF M/T<X9E> (A) L=250	1-09707-126-0	05	1	9603-	●	●
297	NUT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	9701-9908	●	●
297	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9909-	●	●
297	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-110-0	02	1	9603-9606	●	●
297	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9607-	●	●
298	BOLT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●
299	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
316	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-	●	●
316	BOLT; CLIP M8X35 FLANGE	0-28080-835-0	01	1	9603-9606	●	●
316	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	9607-	●	●
321	BRACKET; CLIP (A)	1-47477-745-0	01	1	9603-9609	●
321	BRACKET; CLIP EXC. EURO2 SPECIFICATION<THN> (A)	1-47477-745-0	01	1	9610-9711	●
321	BRACKET; CLIP EXC. ELECTRONIC GOV RED3(KG5) (A)	1-47477-745-0	01	1	9712-9903	●
321	BRACKET; CLIP EURO2 SPECIFICATION<THN> (A)	1-47477-810-0	01	1	9610-9711	●
321	BRACKET; CLIP ELECTRONIC GOV RED3(KG5) (A)	1-47477-810-0	01	1	9712-9903	●
321	BRACKET; CLIP (A)	1-47477-810-0	01	1	9904-	●
321	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	9603-	●	●
321	BRACKET; CLIP EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> (D) L=100 H=30	1-47477-645-2	01	1	9701-9908	●	●
321	BRACKET; CLIP EXC. AIR DRYER<PS7> (D) L=100 H=30	1-47477-645-2	01	1	9909-	●	●
321	BRACKET; CLIP L TYPE ENG<90L> (C)	1-47477-386-1	01	1	9603-9904	●	●
321	BRACKET; CLIP L TYPE ENG<90L> CAB UP +110MM<TGG> (C)	1-47477-472-1	01	1	9905-	●	●
321	BRACKET; CLIP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C)	1-47477-386-2	01	1	9905-	●	●
321	BRACKET; CLIP (A)	1-47477-746-0	01	1	9603-		●
322	BRACKET; CLIP (A)	1-79996-311-1	01	1	9603-9612	●
322	BRACKET; CLIP (A)	1-79996-360-0	01	1	9701-	●
322	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	9603-9605	●	●
322	BRACKET; CLIP (B) WO/NUT L=50	1-47475-299-2	01	1	9606-	●	●
357	BOLT; CLIP FIX M8X16 FLANGE	0-28080-816-0	01	1	9603-	●	●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	04	1	9603-9606	●	●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-	●	●
375	CLIP; AIR PIPE (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9603-	●	●
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-	●	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-	●
376	BOLT; BRKT DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-		●
376	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	04	1	9603-	●	●
376	BOLT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	9701-9908	●	●
376	BOLT; BRKT EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	9909-	●	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9603-9904		●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9905-		●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9603-9904		●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9905-		●
376	BOLT; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9905-		●
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9603-9904		●
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9905-		●
376	BOLT; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9905-		●

60 2 288 18 24 305 3 24 60 333 13 1 290 3 3 1 2 296 20 79 76 107 20 293 35 367 292 36 80 42 69 41 296 292 20 293 288 279 297 279 376 288 133 76 286 361 333 320 367 321 290 297 69 41 42 78 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; AIR PIPE L TYPE ENG<90L> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9603-9609	●	●
1	CLIP; AIR PIPE L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9610-9706	●	●
1	CLIP; AIR PIPE L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9707-9904	●	●
1	CLIP; AIR PIPE L TYPE ENG<90L> (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9905-9910	●	●
1	CLIP; AIR PIPE L TYPE ENG<90L> (A) ID=7 L=20	9-09524-635-0	01	1	9911-	●	●
1	CLIP; AIR PIPE L TYPE ENG<90L> (B) ID=7 L=20	9-09524-635-0	01	1	9603-9609	●	●
1	CLIP; AIR PIPE L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (B) ID=7 L=20	9-09524-635-0	01	1	9610-9706	●	●
1	CLIP; AIR PIPE L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (B) ID=7 L=20	9-09524-635-0	01	1	9707-9904	●	●
1	CLIP; AIR PIPE V TYPE ENG<91L> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-9910	●	●
1	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9911-	●	●
2	BOLT; CLIP FIX L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
2	BOLT; CLIP FIX L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	02	1	9607-9609	●	●
2	BOLT; CLIP FIX L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28680-825-0	02	1	9610-9706	●	●
2	BOLT; CLIP FIX L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	9707-9904	●	●
2	BOLT; CLIP FIX L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
2	BOLT; CLIP FIX V TYPE ENG<91L> M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8	9-09110-508-0	02	1	9603-9606	●	●
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9607-9609	●	●
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	9610-9706	●	●
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9707-9904	●	●
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
3	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
13	CLIP; AIR PIPE 10PE1S(60L) ID=6 H=20 L=20	1-09700-603-0	01	1	9603-9904	●	●
13	CLIP; AIR PIPE 10PE1S(60L) ID=6 H=20 L=20	1-09700-603-0	01	1	9603-9904	●	●
13	CLIP; AIR PIPE V TYPE ENG<91L> ID=6 H=20 L=20	1-09700-603-0	02	1	9905-	●	●
18	NUT; CLIP V TYPE ENG<91L> M8	9-09110-508-0	02	1	9603-9606	●	●
18	NUT; CLIP V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9607-	●	●
20	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
20	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-9706	●	●
20	BOLT; CLIP L TYPE ENG<90L> EXC. AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●	●
20	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●	●
20	BOLT; CLIP L TYPE ENG<90L> EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28680-820-0	01	1	9607-9607	●	●
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9607-9607	●	●
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9608-	●	●
24	CLIP; PIPE ISUZU M/T<X9A> ID=16 L=20	9-09525-535-0	02	1	9603-	●	●
24	CLIP; PIPE ZF M/T<X9E> ID=16 L=40	9-09525-576-0	01	1	9603-9608	●	●
24	CLIP; PIPE ZF M/T<X9E> ID=16 L=20	9-09525-535-0	01	1	9609-9612	●	●
24	CLIP; PIPE ZF M/T<X9E> ID=16 L=28	9-09525-556-0	01	1	9701-	●	●
35	CLIP; AIR PIPE L TYPE ENG<90L> EXC. AIR DRYER<PS7> ID=16 L=28	9-09525-556-0	01	1	9603-9606	●	●
36	NUT; CLIP L TYPE ENG<90L> EXC. AIR DRYER<PS7> M8	9-09110-408-0	03	1	9603-9606	●	●
36	NUT; CLIP L TYPE ENG<90L> EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	03	1	9607-9607	●	●
41	CLIP; AIR PIPE L TYPE ENG<90L> ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9603-	●	●
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	01	1	9607-9904	●	●
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●
60	BOLT; CLIP FIX ISUZU M/T<X9A> M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
60	BOLT; CLIP FIX ISUZU M/T<X9A> M8X25 FLANGE	0-28680-825-0	02	1	9607-	●	●
60	BOLT; CLIP FIX TRANSMISSION-ZF 16S151 OD(Y2N) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
60	BOLT; CLIP FIX TRANSMISSION-ZF 16S151 OD(Y2N) M8X25 FLANGE	0-28680-825-0	01	1	9607-9904	●	●
60	BOLT; CLIP FIX ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●
69	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9603-	●	●
76	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> (C) ID=6 & 8.3	8-94167-742-0	02	1	9701-	●
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	9603-	●	●
76	CLIP; NYLON TUBE (B) L=350	8-94152-256-1	01	1	9603-	●	●
76	CLIP; NYLON TUBE AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	9603-	●	●
76	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	01	1	9603-	●	●
76	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3	8-94426-175-0	01	1	9605-		●
78	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=16 L=28	9-09525-556-0	01	1	9603-	●	●
79	BOLT; PIPE CLIP EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
79	BOLT; PIPE CLIP EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	9607-	●	●
80	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8	9-09110-508-0	01	1	9603-9606	●	●
80	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9607-	●	●
107	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09701-047-0	03	1	9603-	●	●
107	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (C) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	9603-9904	●	●
107	CLIP; NYLON TUBE ISUZU M/T<X9A>,FULLER M/T<X9B> DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 H=50 L=45.5	1-09701-027-0	03	1	9905-0005	●	●
107	CLIP; NYLON TUBE ISUZU M/T<X9A>,FULLER M/T<X9B> DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0006-	●	●
107	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (D) ID=31.5 H=23 L=25	1-09701-017-0	02	1	9603-9904	●	●
107	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (D) ID=39 H=28 L=32	1-09701-263-0	02	1	9905-	●	●
107	CLIP; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9905-	●	●
107	CLIP; NYLON TUBE FULL FLOATING CAB(W16) (B) ID=11.8 & 7.5	1-09709-182-0	01	1	9603-		●
133	BOLT; BRKT ZF M/T<X9E> M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
133	BOLT; BRKT L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
133	BOLT; BRKT FULLER M/T<X9B>,ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	02	1	9607-	●	●
133	BOLT; BRKT L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	02	1	9607-	●	●
279	NUT; BRKT M8	9-09110-508-0	02	1	9603-9606	●	●
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-110-0	02	1	9603-9606	●	●
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9607-	●	●
286	CLIP; NYLON TUBE FULLER M/T<X9B> (A) L=250	1-09707-126-0	02	1	9603-	●
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (B) L=250	5-09707-030-1	01	1	9603-	●	●
286	CLIP; NYLON TUBE ZF M/T<X9E> (A) L=250	1-09707-126-0	05	1	9603-	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	03	1	9603-9606	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	03	1	9607-9904	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	01	1	9607-9904	●	●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	04	1	9905-	●	●
290	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8	9-09110-508-0	03	1	9603-9606	●	●
290	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	03	1	9607-9904	●	●
290	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8	9-09110-508-0	01	1	9603-9606	●	●
290	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
290	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
292	CLIP; AIR PIPE ID=7 & 7 L=15 & 15	1-09700-652-0	01	1	9603-9706	●	●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9603-	●	●
293	NUT; CLIP M8	9-09110-508-0	01	1	9603-9606	●	●
293	NUT; CLIP M8	9-09110-508-0	05	1	9603-9606	●	●
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9706	●	●
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9706	●	●
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9707-	●	●
296	BRACKET; CLIP L=50	1-47475-299-2	01	1	9603-9603	●	●
296	BRACKET; CLIP L=50	1-47475-299-2	01	1	9603-9706	●	●
296	BRACKET; CLIP L=50	1-47475-299-2	01	1	9603-9706	●	●
296	BRACKET; CLIP L=50	1-47475-299-2	01	1	9707-	●	●
297	NUT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	9701-9908	●	●
297	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9909-	●	●
297	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-110-0	02	1	9603-9606	●	●
297	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9607-	●	●
305	BOLT; CLIP BRKT V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
305	BOLT; CLIP BRKT V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	02	1	9607-	●	●
320	CLIP; BAND,FLEX FIX L=100	5-09707-036-1	01	1	9603-	●	●
321	BRACKET; CLIP (A)	1-47477-745-0	01	1	9603-9609	●
321	BRACKET; CLIP EXC. EURO2 SPECIFICATION<THN> (A)	1-47477-745-0	01	1	9610-9711	●
321	BRACKET; CLIP EXC. ELECTRONIC GOV RED3(KG5) (A)	1-47477-745-0	01	1	9712-9903	●
321	BRACKET; CLIP EURO2 SPECIFICATION<THN> (A)	1-47477-810-0	01	1	9610-9711	●
321	BRACKET; CLIP ELECTRONIC GOV RED3(KG5) (A)	1-47477-810-0	01	1	9712-9903	●
321	BRACKET; CLIP (A)	1-47477-810-0	01	1	9904-	●
321	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	9603-	●	●
321	BRACKET; CLIP EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> (D) L=100 H=30	1-47477-645-2	01	1	9701-9908	●	●
321	BRACKET; CLIP EXC. AIR DRYER<PS7> (D) L=100 H=30	1-47477-645-2	01	1	9909-	●	●
321	BRACKET; CLIP L TYPE ENG<90L> (C)	1-47477-386-1	01	1	9603-9904	●	●
321	BRACKET; CLIP L TYPE ENG<90L> CAB UP +110MM<TGG> (C)	1-47477-472-1	01	1	9905-	●	●
321	BRACKET; CLIP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C)	1-47477-386-2	01	1	9905-	●	●
321	BRACKET; CLIP (A)	1-47477-746-0	01	1	9603-		●
333	BRACKET; BRK AIR PIPE (A)	1-79997-360-6	01	1	9603-	●
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (B)	1-47477-254-0	01	1	9603-9702	●	●
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (B)	1-47477-818-0	01	1	9703-	●	●
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (C)	1-47477-337-1	01	1	9603-	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=250	5-09707-030-1	01	1	9603-		●
367	BRACKET ASM (A)	1-42119-080-0	01	1	9603-	●	●
367	BRACKET ASM L TYPE ENG<90L> EXC. AIR DRYER<PS7> (B) L=55	1-47475-304-0	01	1	9603-9606	●	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-	●
376	BOLT; BRKT DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-		●
376	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	04	1	9603-	●	●
376	BOLT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	9701-9908	●	●
376	BOLT; BRKT EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	9909-	●	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9603-9904		●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9905-		●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9603-9904		●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9905-		●
376	BOLT; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9905-		●
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9603-9904		●
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9905-		●
376	BOLT; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9905-		●

352 376 392 388 376 270 81 376 389 81 376 348 348 303 303 230 348 348 230 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	9603-	●
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	9603-		●
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	9603-9904		●
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	9905-		●
81	BRACKET; CLIP PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-79996-127-2	01	1	9905-		●
230	CLIP; PIPE,AIR (A) ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	9603-	●
230	CLIP; PIPE,AIR PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=9 L=16	9-09524-822-0	02	1	9603-	●
230	CLIP; PIPE,AIR PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=9 L=16	9-09524-822-0	03	1	9603-		●
231	BOLT; CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-	●
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> ID=35 L=33	1-09700-945-0	02	1	9603-	●
270	CLIP; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> ID=28 L=32	1-09701-107-1	02	1	9603-	●
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> ID=35 L=33	1-09700-945-0	04	1	9603-9605		●
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> ID=35 L=33	1-09700-945-0	03	1	9606-		●
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> ID=26 L=26	1-09701-236-0	01	1	9606-		●
270	CLIP; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> ID=28 L=32	1-09701-107-1	04	1	9603-9904		●
270	CLIP; NYLON TUBE ID=28 L=32	1-09701-107-1	04	1	9905-		●
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-	●
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9603-		●
348	CLIP; AIR PIPE (A) ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	9603-	●
348	CLIP; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=13X2 L=16	9-09535-225-0	02	1	9603-	●
348	CLIP; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=13X2 L=16	9-09535-225-0	03	1	9603-9904		●
348	CLIP; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=13 L=28	9-09525-252-0	03	1	9905-		●
348	CLIP; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	9603-		●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	9603-	●	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-	●
376	BOLT; BRKT DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-		●
376	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	04	1	9603-	●	●
376	BOLT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	9701-9908	●	●
376	BOLT; BRKT EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	9909-	●	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9603-9904		●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9905-		●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9603-9904		●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9905-		●
376	BOLT; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9905-		●
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9603-9904		●
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9905-		●
376	BOLT; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9905-		●
388	SEAL L=215	1-79738-794-1	01	1	9603-		●
389	BRACKET; UNION DUAL AIR GAUGE<UG2>	1-79738-790-1	01	1	9603-		●
389	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2>	1-79738-795-1	01	1	9603-		●
392	COVER; BRKT DUAL AIR GAUGE<UG2>	1-73996-264-1	01	1	9603-		●

110 254 333 111 356 98 352 38 322 254 379

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9603-	●
98	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-	●	●
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	AR	1	9603-	●	●
110	CLIP; BAND,NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=35 L=33	1-09700-945-0	01	1	9603-	●	●
110	CLIP; BAND,NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=28 L=40	1-09700-995-1	01	1	9603-	●	●
111	CLIP; AIR PIPE ID=35 L=33	1-09700-945-0	01	1	9603-	●	●
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	05	1	9603-	●
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-	●	●
322	BRACKET; CLIP (A)	1-79996-311-1	01	1	9603-9612	●
322	BRACKET; CLIP (A)	1-79996-360-0	01	1	9701-	●
322	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	9603-9605	●	●
322	BRACKET; CLIP (B) WO/NUT L=50	1-47475-299-2	01	1	9606-	●	●
333	BRACKET; BRK AIR PIPE (A)	1-79997-360-6	01	1	9603-	●
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (B)	1-47477-254-0	01	1	9603-9702	●	●
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (B)	1-47477-818-0	01	1	9703-	●	●
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (C)	1-47477-337-1	01	1	9603-	●	●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	9603-	●	●
356	CLIP; AIR PIPE ZF M/T<X9E> BLACK	8-94222-876-0	01	1	9603-9904	●
356	CLIP; AIR PIPE BLACK	8-94222-876-0	01	1	9905-	●
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	9603-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
