Sayfa 2-53 - Isuzu EPC

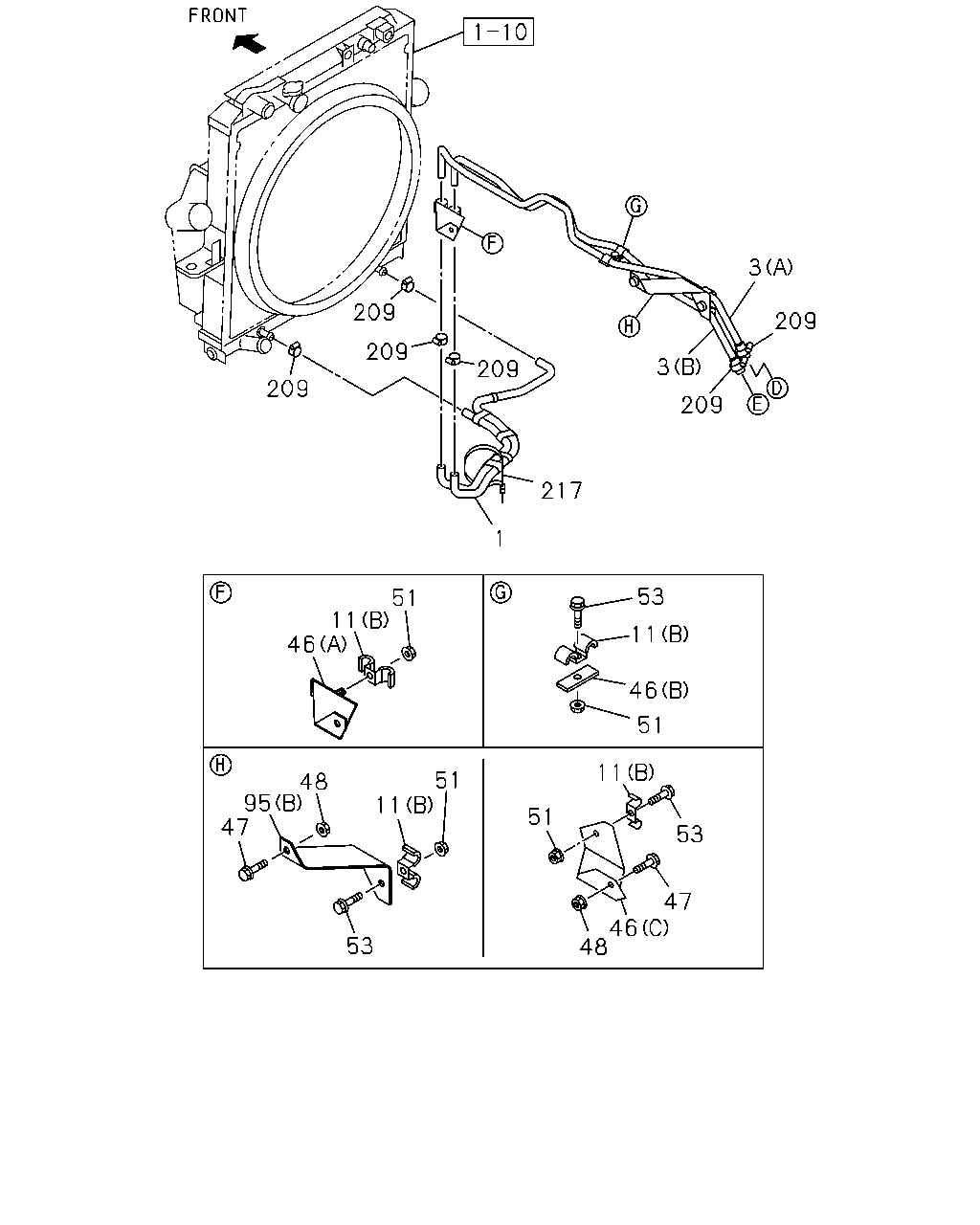

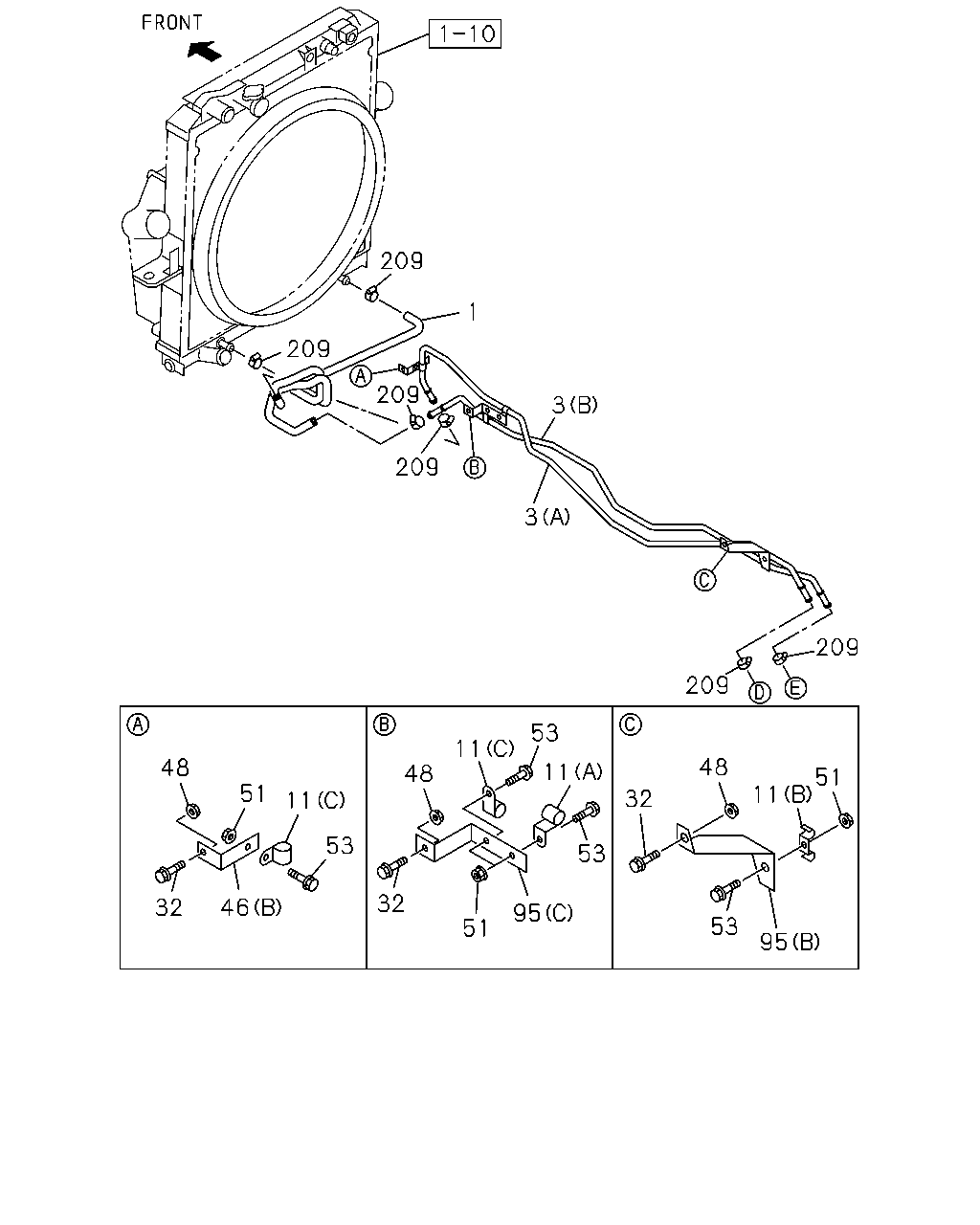

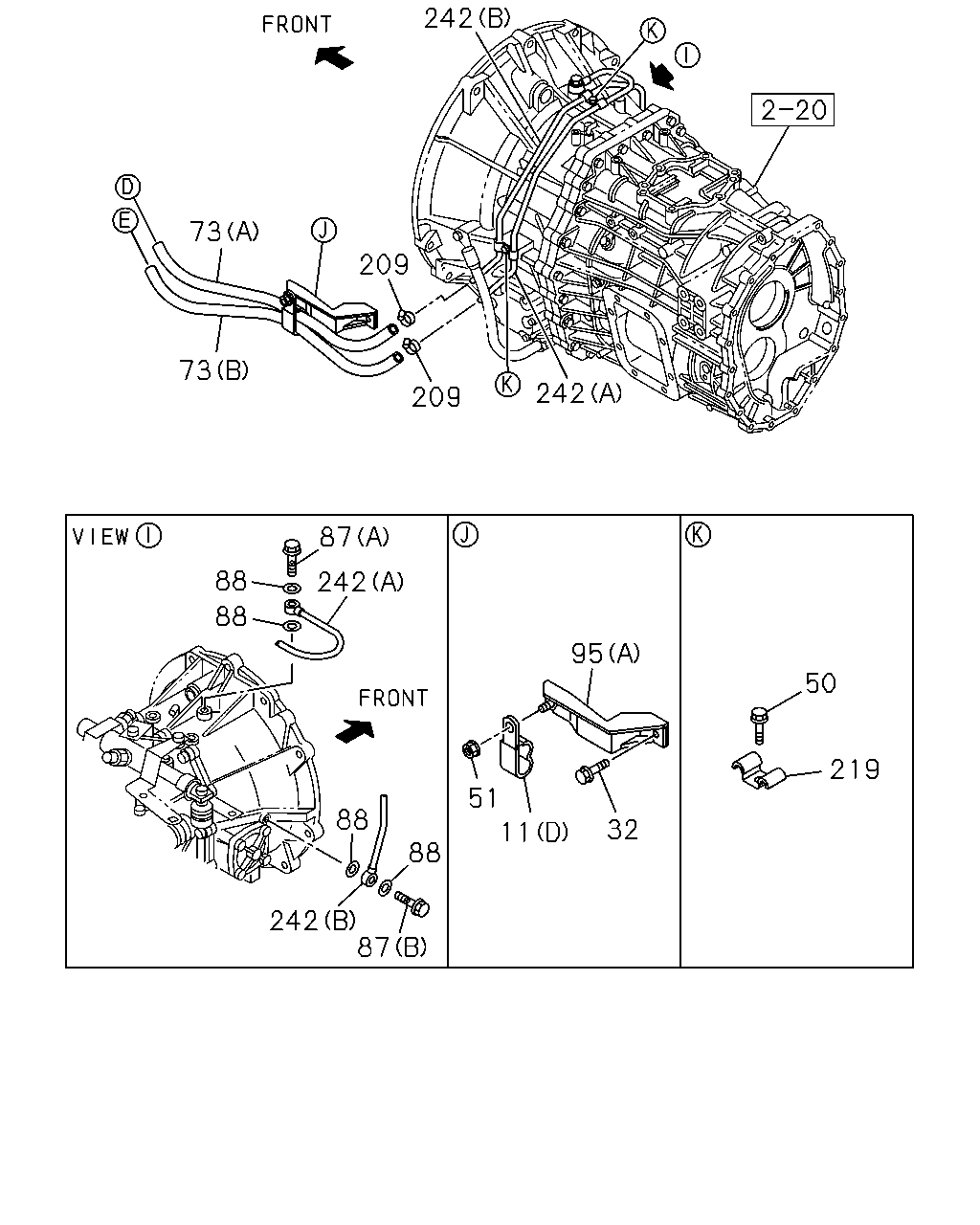

2-53 — TRANSMISSION OIL COOLER SYSTEM (#58074) — 150 parça

3 209 209 209 3 209 209 209 217 1 53 51 11 46 11 46 51 11 51 11 48 95 47 51 53 47 46 48 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98072-041-2	01	1	0710-0710	●
1	HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98081-599-0	01	1	0710-0711	●
1	HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98081-599-0	01	1	0712-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98079-649-0	01	1	0710-0710	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98096-811-0	01	1	0710-0711	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98096-811-0	01	1	0712-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98079-652-0	01	1	0710-0710	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98096-812-0	01	1	0710-0711	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98096-812-0	01	1	0712-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	0710-0710	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0710-0710	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	0710-0711	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	0712-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	0710-0710	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98084-148-0	01	1	0710-0711	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98084-148-0	01	1	0712-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	1-47471-051-0	01	1	0710-0710	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=50	1-47475-299-2	01	1	0710-0711	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=50	1-47475-299-2	01	1	0712-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98045-565-0	01	1	0710-0711	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98045-565-0	01	1	0712-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98072-018-0	01	1	0711-0711	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98072-018-0	01	1	0712-	●	●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	02	1	0710-0711	●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	02	1	0712-	●	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	03	1	0710-0710	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	0710-0710	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	03	1	0711-0711	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	03	1	0712-	●	●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	0710-0710	●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	04	1	0710-0711	●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	04	1	0712-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	04	1	0710-0710	●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98050-824-0	01	1	0710-0710	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	0710-0711	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	0712-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-018-0	01	1	0710-0710	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11-19.5	8-94426-597-0	08	1	0710-0711	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11-19.5	8-94426-597-0	08	1	0712-1005	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11-17	8-98173-762-0	08	1	1006-1106	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	08	1	1107-	●	●
217	CLIP; BAND,FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) L=350	1-09707-183-0	01	1	0710-0711	●
217	CLIP; BAND,FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) L=350	1-09707-183-0	01	1	0712-	●	●
255	GASKET; SENSOR MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) ID=12.2	9-09571-412-0	01	1	1405-	●	●
265	PLUG; HOLE MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) M12X9	0-92002-412-0	01	1	1405-	●	●

242 73 209 73 242 209 87 88 242 88 95 50 219 51 88 32 11 88 242 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	0710-0710	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0710-0710	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	0710-0711	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	0712-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	0710-0710	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98084-148-0	01	1	0710-0711	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98084-148-0	01	1	0712-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE	0-28650-825-0	04	1	0710-0710	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	01	1	0711-0711	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	01	1	0712-	●	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0712-0805	●	●
50	BOLT; CLIP MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0806-0906	●	●
50	BOLT; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0907-	●	●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	0710-0710	●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	04	1	0710-0711	●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	04	1	0712-	●	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=460	8-98044-711-0	01	1	0710-0710	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470	8-98081-844-0	01	1	0710-0711	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470	8-98081-844-0	01	1	0712-	●	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=510	8-98045-571-0	01	1	0710-0710	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=500	8-98081-853-0	01	1	0710-0711	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=500	8-98081-853-0	01	1	0712-	●	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	1-09675-146-0	01	1	0710-0711	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	1-09675-146-0	01	1	0712-0805	●	●
87	BOLT; EYE MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-0906	●	●
87	BOLT; EYE MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	0907-	●	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	0710-0711	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	0712-0805	●	●
87	BOLT; EYE MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	0806-0906	●	●
87	BOLT; EYE MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	0907-	●	●
88	GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	0710-0711	●
88	GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	0712-0805	●	●
88	GASKET; EYE BOLT MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	0806-0906	●	●
88	GASKET; EYE BOLT MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	0907-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98050-824-0	01	1	0710-0710	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	0710-0711	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	0712-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-018-0	01	1	0710-0710	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11-19.5	8-94426-597-0	08	1	0710-0711	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11-19.5	8-94426-597-0	08	1	0712-1005	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11-17	8-98173-762-0	08	1	1006-1106	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	08	1	1107-	●	●
219	CLIP; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0710-0711	●
219	CLIP; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0712-0805	●	●
219	CLIP; ATF PIPE MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0806-0906	●	●
219	CLIP; ATF PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0907-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	0710-0711	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	0712-0805	●	●
242	PIPE; COOLER MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	0806-0906	●	●
242	PIPE; COOLER MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	0907-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	0710-0711	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	0712-0805	●	●
242	PIPE; COOLER MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	0806-0906	●	●
242	PIPE; COOLER MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	0907-	●	●
255	GASKET; SENSOR MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) ID=12.2	9-09571-412-0	01	1	1405-	●	●
265	PLUG; HOLE MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) M12X9	0-92002-412-0	01	1	1405-	●	●

209 1 209 209 3 209 3 209 209 53 11 48 48 11 48 51 11 51 32 11 53 53 32 32 46 95 53 51 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98072-041-2	01	1	0710-0710	●
1	HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98081-599-0	01	1	0710-0711	●
1	HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98081-599-0	01	1	0712-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98079-649-0	01	1	0710-0710	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98096-811-0	01	1	0710-0711	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98096-811-0	01	1	0712-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98079-652-0	01	1	0710-0710	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98096-812-0	01	1	0710-0711	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98096-812-0	01	1	0712-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	0710-0710	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0710-0710	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	0710-0711	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	0712-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	0710-0710	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98084-148-0	01	1	0710-0711	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98084-148-0	01	1	0712-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE	0-28650-825-0	04	1	0710-0710	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	01	1	0711-0711	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	01	1	0712-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	1-47471-051-0	01	1	0710-0710	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=50	1-47475-299-2	01	1	0710-0711	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=50	1-47475-299-2	01	1	0712-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98045-565-0	01	1	0710-0711	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98045-565-0	01	1	0712-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98072-018-0	01	1	0711-0711	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98072-018-0	01	1	0712-	●	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	03	1	0710-0710	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	0710-0710	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	03	1	0711-0711	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	03	1	0712-	●	●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	0710-0710	●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	04	1	0710-0711	●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	04	1	0712-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	04	1	0710-0710	●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98050-824-0	01	1	0710-0710	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	0710-0711	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	0712-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-018-0	01	1	0710-0710	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11-19.5	8-94426-597-0	08	1	0710-0711	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11-19.5	8-94426-597-0	08	1	0712-1005	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11-17	8-98173-762-0	08	1	1006-1106	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	08	1	1107-	●	●
255	GASKET; SENSOR MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) ID=12.2	9-09571-412-0	01	1	1405-	●	●
265	PLUG; HOLE MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) M12X9	0-92002-412-0	01	1	1405-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
