◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11420 - FTR(AUST)EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#58071) — 47 parça

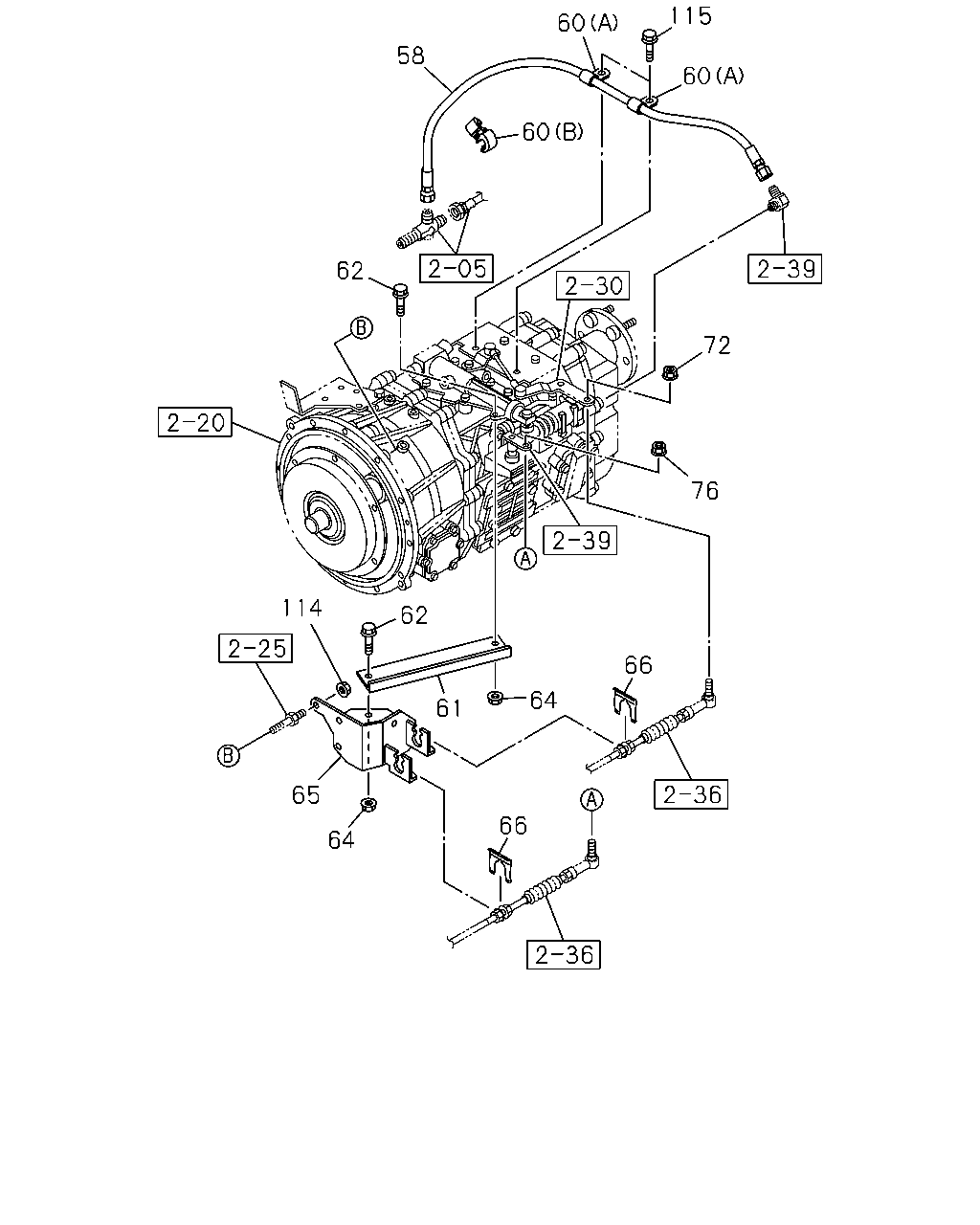

çizim 146837
115 60 58 60 60 62 72 76 114 62 66 64 61 65 66 64
BalonParca AdiParca NoAdetTipApplied Date A B
58 HOSE; FLEX,POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=640 		1-09363-626-1 01 1 0710-0711 ●
58 HOSE; FLEX,POWER ASSISTOR
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=640 		1-09363-626-1 01 1 0712-0906 ● ●
58 HOSE; FLEX,POWER ASSISTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=640 		1-09363-626-1 01 1 0907-1008 ● ●
58 HOSE; FLEX,POWER ASSISTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=640 		1-09363-626-1 01 1 1009- ● ●
58 HOSE; FLEX,POWER ASSISTOR
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=740 		1-09363-675-0 01 1 0806-1008 ● ●
58 HOSE; FLEX,POWER ASSISTOR
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=740 		1-09363-675-0 01 1 1009- ● ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=20 		0-95235-235-0 02 1 0710-0711 ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=20 		0-95235-235-0 02 1 0712-1008 ● ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20 		0-95235-235-0 02 1 1009- ● ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10 		1-09709-277-1 01 1 0710-0711 ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10 		1-09709-277-1 01 1 0712-1008 ● ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10 		1-09709-277-1 01 1 1009- ● ●
61 STAY; BRKT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-267-0 01 1 0710-0711 ●
61 STAY; BRKT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-267-0 01 1 0712-0805 ● ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-267-0 01 1 0806-0906 ● ●
61 STAY; BRKT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-267-0 01 1 0806-0906 ● ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-267-0 01 1 0907- ● ●
61 STAY; BRKT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-267-0 01 1 0907- ● ●
61 STAY; BRKT,TRANS CONT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 0806- ● ●
62 BOLT; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0711 ●
62 BOLT; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0712-0805 ● ●
62 BOLT; STAY
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0806-0906 ● ●
62 BOLT; STAY
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0806-0906 ● ●
62 BOLT; STAY
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ● ●
62 BOLT; STAY
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ● ●
62 BOLT; STAY
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 01 1 0806- ● ●
64 NUT; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
64 NUT; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98010-160-0 01 1 0710-0711 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98010-160-0 01 1 0712-0906 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98010-160-0 01 1 0907- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98017-428-0 01 1 0710-0711 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98017-428-0 01 1 0712-0906 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98017-428-0 01 1 0907- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-677-0 01 1 0806- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-672-1 01 1 0806- ● ●
66 CLIP; SELECT BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=22.2 		1-09701-209-1 02 1 0710-0711 ●
66 CLIP; SELECT BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=22.2 		1-09701-209-1 02 1 0712- ● ●
72 NUT; TRANS CONT,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0710-0711 ●
72 NUT; TRANS CONT,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0712- ● ●
76 NUT; BALL JOINT,SELECT WIRE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0710-0711 ●
76 NUT; BALL JOINT,SELECT WIRE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0712- ● ●
114 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
114 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
115 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ●
115 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE 		0-28050-816-0 02 1 0712-1008 ● ●
115 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 02 1 1009- ● ●
