Sayfa 3-77 - Isuzu EPC

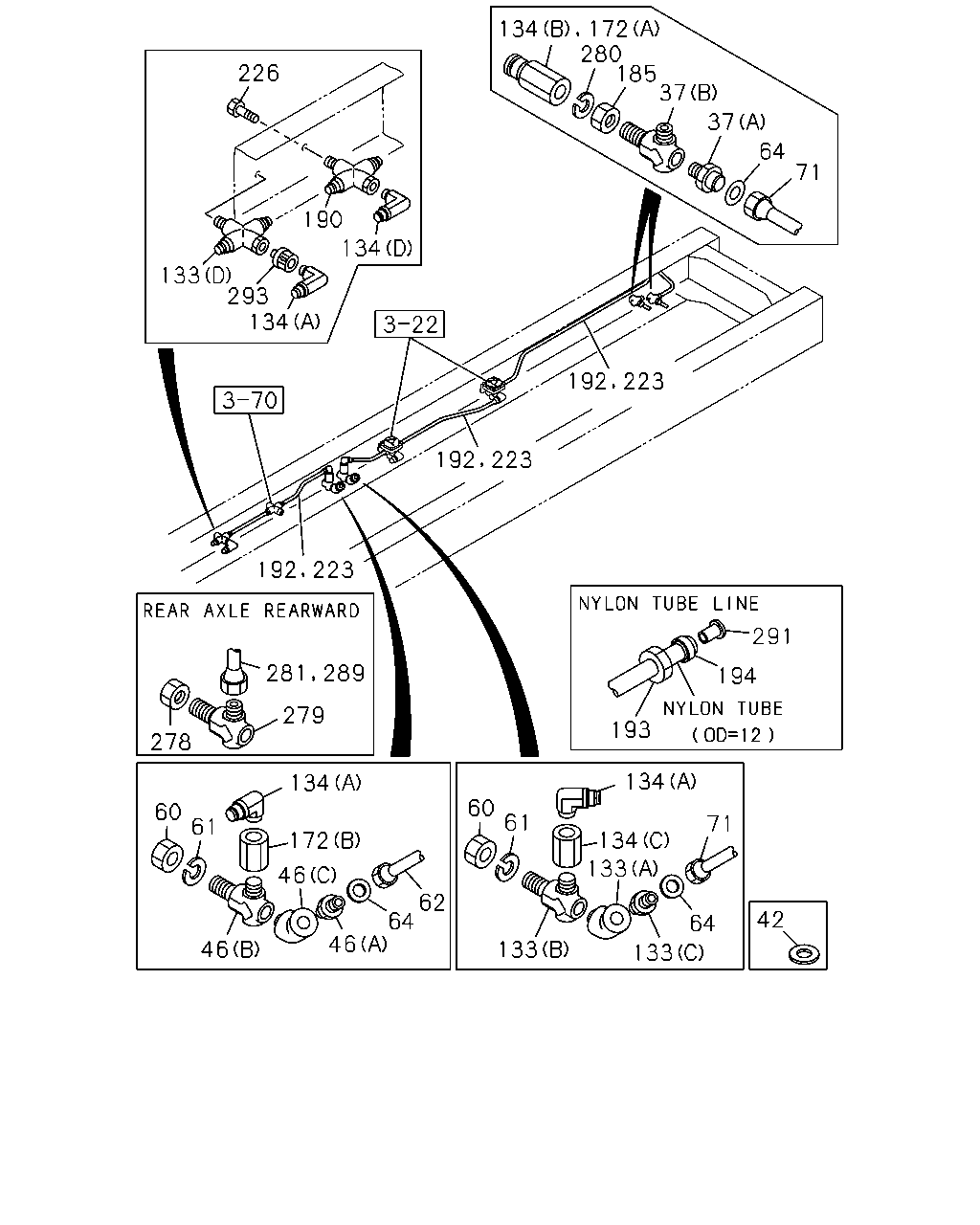

3-77 — BRAKE PIPING; AIR,REAR (#5807) — 365 parça

134 172 280 185 37 226 37 64 71 190 134 133 293 134 192 192 192 291 281 194 279 193 278 134 134 60 60 61 71 61 172 134 133 46 62 64 42 64 46 46 133 133 223 223 223 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9603-9904	●	●
37	UNION; AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),DUAL LICENCE CHINA & HONG KONG<TEZ> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9603-9904	●	●
37	UNION; AIR PIPE EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9905-	●	●
37	UNION; AIR PIPE (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9905-	●	●
37	UNION; AIR PIPE (B)	1-09650-251-1	01	1	9603-9904	●	●
37	UNION; AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),DUAL LICENCE CHINA & HONG KONG<TEZ> (B)	1-09650-251-1	01	1	9603-9904	●	●
37	UNION; AIR PIPE EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-09650-251-1	01	1	9905-	●	●
37	UNION; AIR PIPE (B)	1-09650-251-1	01	1	9905-	●	●
42	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	02	1	9603-9605	●	●
46	NIPPLE; AIR PIPE NEW ZEALAND EQUIPMENT(PK5) (B) M14X35	1-09650-272-2	01	1	9603-9904	●
46	NIPPLE; AIR PIPE BRAKE REGULATION ECE<TDV> (B) M14X35	1-09650-272-2	01	1	9905-	●
46	NIPPLE; AIR PIPE (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9603-9904	●	●
46	NIPPLE; AIR PIPE NEW ZEALAND EQUIPMENT(PK5) (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9603-9904	●
46	NIPPLE; AIR PIPE (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9905-	●	●
46	NIPPLE; AIR PIPE BRAKE REGULATION ECE<TDV> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9905-	●
46	NIPPLE; AIR PIPE (B)	1-09650-251-1	01	1	9603-	●	●
46	NIPPLE; AIR PIPE (C)	1-09664-209-0	01	1	9603-	●	●
60	NUT; NIPPLE,AIR PIPE M20	9-99111-420-0	04	1	9603-9808	●	●
60	NUT; NIPPLE,AIR PIPE M20	9-99111-420-0	02	1	9809-	●	●
60	NUT; NIPPLE,AIR PIPE M20	9-99111-420-0	02	1	9809-	●	●
61	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	03	1	9603-9606	●	●
62	HOSE; FLEX,FWD RR L=630	0-07909-630-0	01	1	9603-	●	●
64	GASKET; FLEX HOSE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=11 OD=18	9-09572-510-0	02	1	9603-9605	●
64	GASKET; FLEX HOSE DUAL LICENCE CHINA & HONG KONG<TEZ> ID=11 OD=18	9-09572-510-0	02	1	9603-9605		●
64	GASKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1) ID=11 OD=18	9-09572-510-0	02	1	9606-9904	●
64	GASKET; FLEX HOSE DUAL LICENCE CHINA & HONG KONG<TEZ> ID=11 OD=18	9-09572-510-0	02	1	9606-9904		●
64	GASKET; FLEX HOSE BRAKE REGULATION HONG KONG<TCZ> ID=11 OD=18	9-09572-510-0	02	1	9905-	●	●
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	06	1	9603-9904	●	●
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	04	1	9905-	●	●
64	GASKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),DUAL LICENCE CHINA & HONG KONG<TEZ> ID=17.5	9-09572-515-0	02	1	9603-9605	●	●
64	GASKET; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),DUAL LICENCE CHINA &HONG KONG<TEZ> ID=17.5	9-09572-515-0	02	1	9606-9808	●	●
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	02	1	9809-9904	●	●
64	GASKET; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),DUAL LICENCE CHINA &HONG KONG<TEZ> ID=17.5	9-09572-515-0	02	1	9809-9904	●	●
64	GASKET; FLEX HOSE EXC. BRAKE REGULATION HONG KONG<TCZ> ID=17.5	9-09572-515-0	02	1	9905-9905	●
64	GASKET; FLEX HOSE EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> ID=17.5	9-09572-515-0	02	1	9905-9905		●
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	02	1	9905-	●	●
64	GASKET; FLEX HOSE EXC. BRAKE REGULATION HONG KONG<TCZ> ID=17.5	9-09572-515-0	02	1	9905-	●
64	GASKET; FLEX HOSE EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> ID=17.5	9-09572-515-0	02	1	9905-		●
71	HOSE; FLEX,RWD RR NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) L=580	0-07847-580-1	01	1	9603-9605	●
71	HOSE; FLEX,RWD RR DUAL LICENCE CHINA & HONG KONG<TEZ> L=580	0-07847-580-1	01	1	9603-9605		●
71	HOSE; FLEX,RWD RR HONG KONG EQUIPMENT(PQ1) L=580	0-07847-580-1	01	1	9606-9904	●
71	HOSE; FLEX,RWD RR DUAL LICENCE CHINA & HONG KONG<TEZ> L=580	0-07847-580-1	01	1	9606-9904		●
71	HOSE; FLEX,RWD RR BRAKE REGULATION HONG KONG<TCZ> L=580	0-07847-580-1	01	1	9905-	●	●
71	HOSE; FLEX,RWD RR L=550	0-07909-550-0	01	1	9603-9605	●	●
71	HOSE; FLEX,RWD RR L=550	0-07909-550-0	01	1	9606-9608	●	●
71	HOSE; FLEX,RWD RR NEW ZEALAND EQUIPMENT(PK5) L=550	0-07909-550-0	01	1	9606-9608	●
71	HOSE; FLEX,RWD RR L=550	0-07909-550-0	01	1	9609-9904	●	●
71	HOSE; FLEX,RWD RR EXC. HONG KONG EQUIPMENT(PQ1),DUAL LICENCE CHINA &HONG KONG<TEZ> L=550	0-07909-550-0	01	1	9609-9904	●	●
71	HOSE; FLEX,RWD RR EXC. BRAKE REGULATION HONG KONG<TCZ> L=550	0-07909-550-0	01	1	9905-	●	●
71	HOSE; FLEX,RWD RR L=550	0-07909-550-0	01	1	9905-	●	●
71	HOSE; FLEX,RWD RR L=630	0-07909-630-0	01	1	9603-	●	●
71	HOSE; FLEX,RWD RR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),DUAL LICENCE CHINA & HONG KONG<TEZ> L=580	0-07909-580-0	01	1	9603-9608	●	●
133	UNION; NIPPLE (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9603-	●	●
133	UNION; NIPPLE (B)	1-09650-251-1	01	1	9603-	●	●
133	UNION; NIPPLE (C)	1-09664-209-0	01	1	9603-	●	●
133	UNION; NIPPLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),DUAL LICENCE CHINA & HONG KONG<TEZ> (D) DIN12 RC3/8 & M8 3WAY	1-09660-758-1	01	1	9603-9904	●	●
133	UNION; NIPPLE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	9905-	●	●
134	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9603-9904	●
134	CONNECTOR BRAKE REGULATION ECE<TDV> (B) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9905-0007	●
134	CONNECTOR (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-	●	●
134	CONNECTOR (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9605	●	●
134	CONNECTOR (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9605	●
134	CONNECTOR (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9904	●	●
134	CONNECTOR EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9606-9904	●
134	CONNECTOR BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9905	●	●
134	CONNECTOR (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9905	●	●
134	CONNECTOR EXC. BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9905	●
134	CONNECTOR BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-	●	●
134	CONNECTOR (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-	●	●
134	CONNECTOR (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-	●	●
134	CONNECTOR EXC. BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-	●
134	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9904	●	●
134	CONNECTOR NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9904	●	●
134	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9905-9905	●	●
134	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9603-9905	●	●
134	CONNECTOR (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	9603-	●	●
134	CONNECTOR EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9905-0007	●	●
134	CONNECTOR EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-	●	●
134	CONNECTOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),DUAL LICENCE CHINA & HONG KONG<TEZ> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9603-9904	●	●
134	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-	●	●
172	ADAPTER; UNION (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9603-9604	●	●
172	ADAPTER; UNION (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9605-9904	●	●
172	ADAPTER; UNION (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9905-0007	●	●
172	ADAPTER; UNION (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-	●	●
172	ADAPTER; UNION (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	9603-	●	●
185	NUT; NIPPLE EXC. HONG KONG EQUIPMENT(PQ1),DUAL LICENCE CHINA &HONG KONG<TEZ> M20	9-99111-420-0	01	1	9603-9904	●	●
185	NUT; NIPPLE EXC. BRAKE REGULATION HONG KONG<TCZ> M20	9-99111-420-0	01	1	9905-	●
185	NUT; NIPPLE EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M20	9-99111-420-0	01	1	9905-		●
190	UNION; 3 WAY DIN8 RC1/4 & M8	1-09660-735-1	01	1	9603-9605	●	●
190	UNION; 3 WAY DIN8 RC1/4 & M8	1-09660-735-1	01	1	9603-9605	●
190	UNION; 3 WAY DIN8 RC1/4 & M8	1-09660-735-1	01	1	9606-9904	●	●
190	UNION; 3 WAY EXC. NEW ZEALAND EQUIPMENT(PK5) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9606-9904	●
190	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	9905-	●	●
190	UNION; 3 WAY EXC. BRAKE REGULATION ECE<TDV> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	9905-	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9603-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9603-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9603-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9603-	●	●
193	NUT; SLEEVE ZF M/T<X9E> M18	1-09660-213-0	01	1	9603-	●	●
194	SLEEVE; TUBE ZF M/T<X9E> ID=12.15 OD=15 L=10	1-09666-043-0	01	1	9603-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9603-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9603-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9605-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9605-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9605-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9605-	●	●
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87410-099-0	AR	1	9606-	●	●
226	BOLT; UNION M8X25 FLANGE	0-28080-825-0	01	1	9603-9605	●
226	BOLT; UNION EXC. NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE	0-28080-825-0	01	1	9606-9606	●
226	BOLT; UNION M8X25 FLANGE	0-28080-825-0	01	1	9606-9606	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9603-	●
226	BOLT; UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
226	BOLT; UNION DUAL LICENCE CHINA & HONG KONG<TEZ> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606		●
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	9603-9606		●
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	9607-9904	●	●
226	BOLT; UNION EXC. NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28080-820-0	01	1	9607-9904	●
226	BOLT; UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28080-820-0	01	1	9607-9904	●
226	BOLT; UNION DUAL LICENCE CHINA & HONG KONG<TEZ> M8X20 FLANGE	0-28080-820-0	01	1	9607-9904		●
226	BOLT; UNION BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8X20 FLANGE	0-28080-820-0	01	1	9905-	●	●
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	9905-	●	●
226	BOLT; UNION EXC. BRAKE REGULATION ECE<TDV> M8X20 FLANGE	0-28080-820-0	01	1	9905-	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9603-		●
278	NUT; UNION M16	9-99111-416-0	01	1	9603-	●	●
278	NUT; UNION M20	9-99111-420-0	01	1	9603-	●	●
279	UNION; AIR PIPE M14X35	1-09650-272-2	01	1	9603-	●	●
279	UNION; AIR PIPE M16 & PT3/8 2WAY	1-09654-239-1	01	1	9603-	●	●
279	UNION; AIR PIPE DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9709-9904	●	●
279	UNION; AIR PIPE DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-	●	●
280	WASHER; LK ID=16.2	9-09150-516-0	01	1	9603-	●	●
280	WASHER; LK ID=20.2	9-09150-520-0	01	1	9603-9606	●	●
280	WASHER; LK EXC. HONG KONG EQUIPMENT(PQ1),DUAL LICENCE CHINA &HONG KONG<TEZ> ID=20.2	9-09150-520-0	01	1	9603-9606	●	●
280	WASHER; LK ID=20.2	9-09150-520-0	01	1	9607-	●	●
281	PIPE; AIR,EMERGENCY EMERGENCY	1-49117-109-0	01	1	9603-	●	●
289	PIPE; AIR,MODULATOR TO RELAY VLV SERVICE	1-49117-108-0	01	1	9603-	●	●
291	INSERT ZF M/T<X9E> ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	9603-	●	●
293	VALVE; CHECK NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),DUAL LICENCE CHINA & HONG KONG<TEZ>	1-48320-013-1	01	1	9603-9904	●	●
293	VALVE; CHECK BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48320-013-2	01	1	9905-	●	●

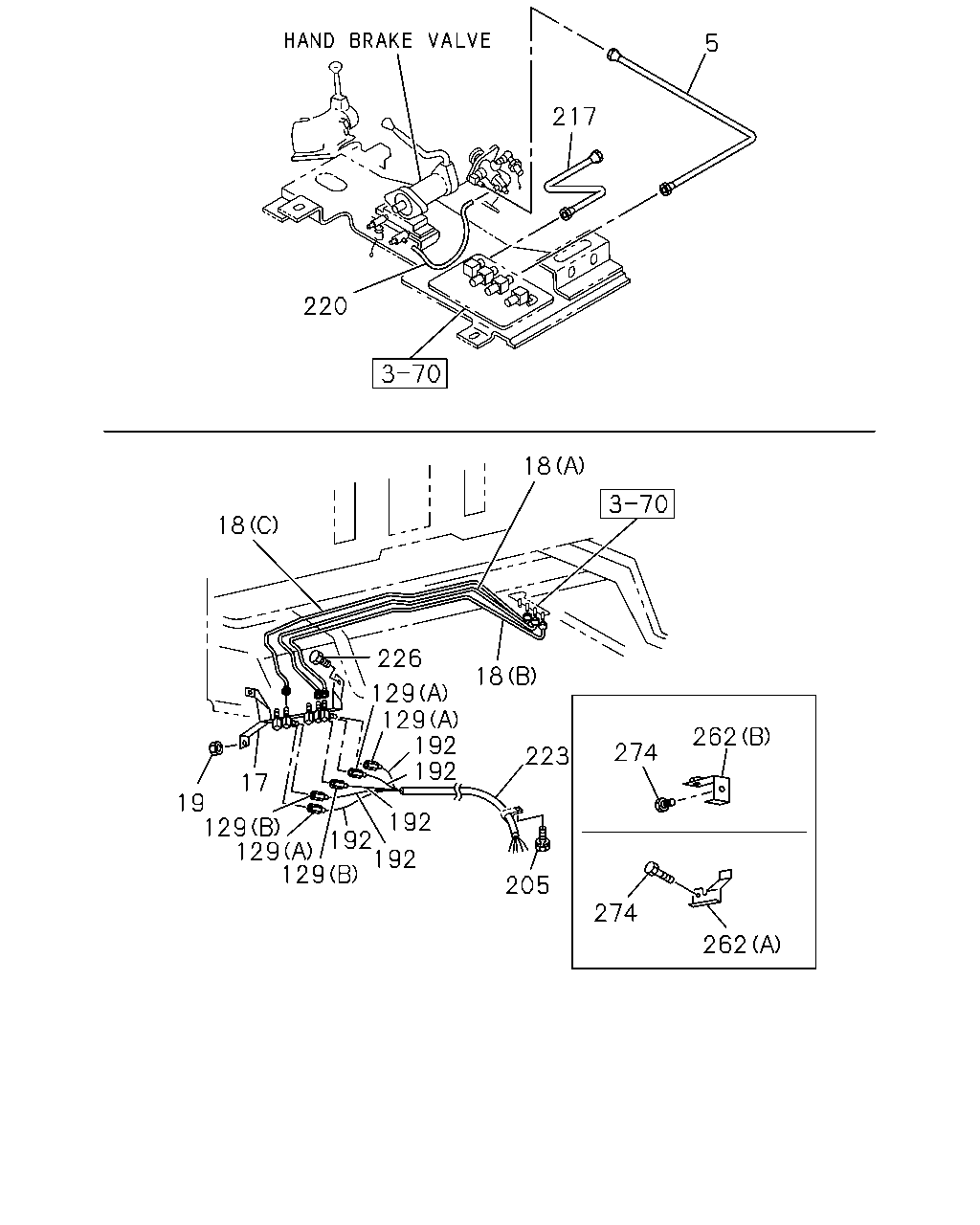

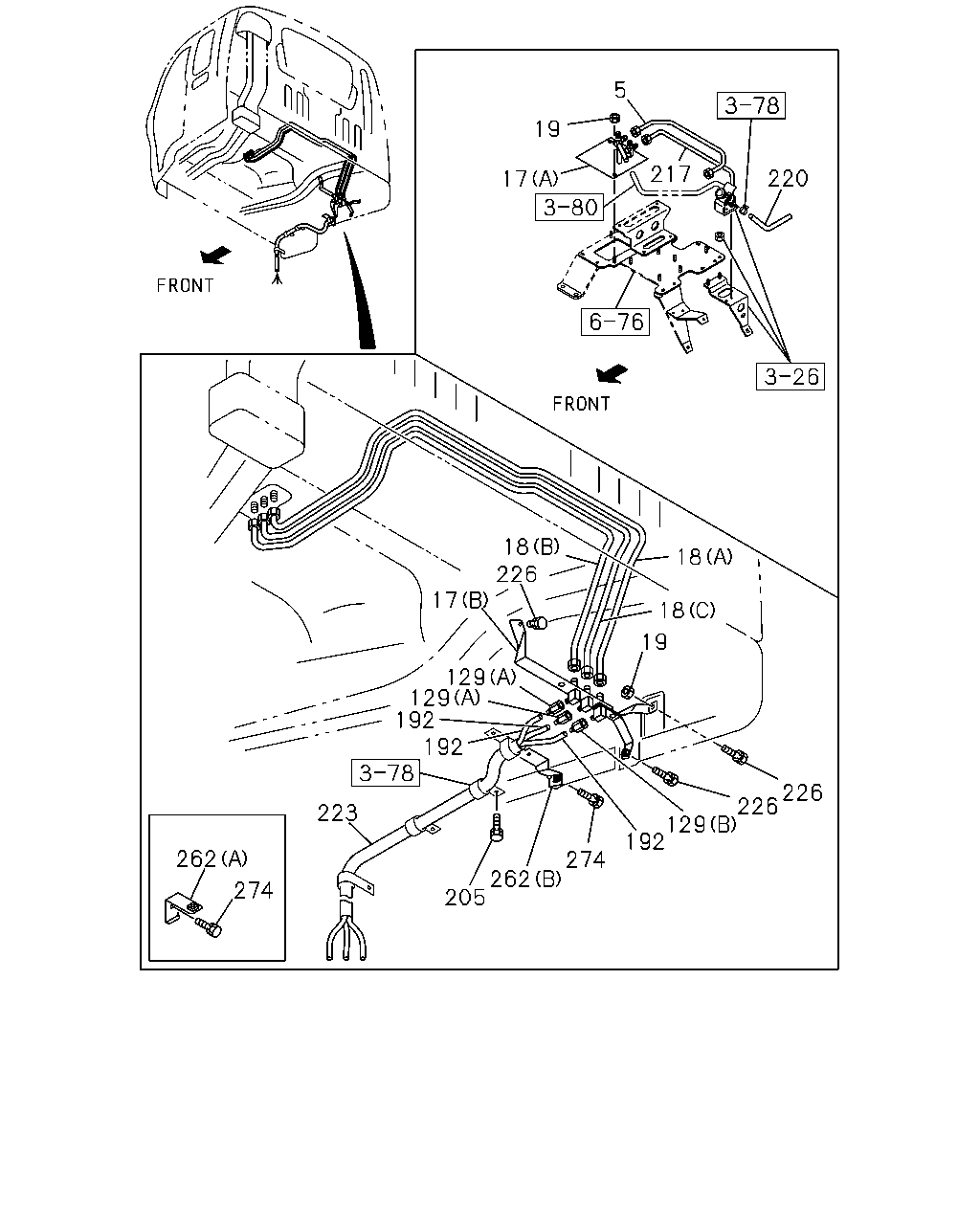

5 217 220 18 18 226 129 129 192 192 18 262 274 223 17 19 129 129 129 192 192 192 205 274 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	PIPE; AIR,UNION TO PARKING VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-47495-161-0	01	1	9603-	●
5	PIPE; AIR,UNION TO PARKING VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-49114-638-1	01	1	9603-		●
17	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48>	1-47470-453-2	01	1	9603-	●
17	UNION; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-47470-455-2	01	1	9603-	●
17	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-47470-490-2	01	1	9603-		●
17	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-47470-493-1	01	1	9603-		●
17	UNION; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-47470-443-2	01	1	9603-		●
17	UNION; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-47470-469-3	01	1	9603-		●
18	PIPE; AIR,UNION TO UNION (A) L=1677 SERVICED BY L=1700	1-47426-391-0	01	1	9603-9810	●
18	PIPE; AIR,UNION TO UNION (A) L=1800	1-49121-052-0	01	1	9811-	●
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (B) L=1726 SERVICED BY L=1800	1-47426-392-0	01	1	9603-9810	●
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (B) L=1982	1-49121-055-1	01	1	9811-	●
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=1874 SERVICED BY L=1900	1-47426-421-0	01	1	9603-9810	●
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=1854	1-49121-053-0	01	1	9811-	●
18	PIPE; AIR,UNION TO UNION EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=1869 SERVICED BY L=1900	1-47426-421-0	01	1	9603-9810	●
18	PIPE; AIR,UNION TO UNION EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=1942	1-49121-057-0	01	1	9811-	●
18	PIPE; AIR,UNION TO UNION (B) L=1937 SERVICED BY L=1950	1-47426-393-0	01	1	9603-9904		●
18	PIPE; AIR,UNION TO UNION (B) L=1937 SERVICED BY L=1950	1-47426-393-0	01	1	9905-		●
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (B) L=1937 SERVICED BY L=1950	1-47426-393-0	01	1	9905-		●
18	PIPE; AIR,UNION TO UNION (A) L=2108 SERVICED BY L=2500	1-47426-423-0	01	1	9603-9904		●
18	PIPE; AIR,UNION TO UNION (A) L=2108 SERVICED BY L=2500	1-47426-423-0	01	1	9905-		●
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=2108 SERVICED BY L=2500	1-47426-423-0	01	1	9905-		●
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=2332 SERVICED BY L=2400	1-47426-395-0	01	1	9603-		●
19	NUT; PIPE UNION M8	9-09110-408-0	01	1	9603-	●	●
19	NUT; PIPE UNION M8 FLANGE	0-91150-108-0	02	1	9603-		●
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9603-9904	●
129	CONNECTOR; NYLON TUBE DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9603-9904		●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9603-9904		●
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9905-9910	●	●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9905-9910		●
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9911-0007	●	●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9911-0007		●
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-	●	●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-		●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	9603-9904	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	9603-9904	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	9905-9910	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	9905-9910	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	02	1	9911-0007	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	02	1	9911-0007	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0008-	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0008-	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9603-9910	●	●
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9603-9910	●	●
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9911-0007	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9911-0007	●	●
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9603-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9603-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9603-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9603-	●	●
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9707-	●
205	BOLT; TUBE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9603-		●
205	BOLT; TUBE CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9603-9702		●
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9703-		●
205	BOLT; TUBE CLIP M8X16 W/LK WASHER	0-50040-816-0	03	1	9603-9702		●
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	03	1	9703-		●
217	PIPE; AIR,PARKING BRK VLV TO UNION EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-49114-456-0	01	1	9603-	●
217	PIPE; AIR,PARKING BRK VLV TO UNION EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-49114-639-0	01	1	9603-		●
220	HOSE; VINYL,EXH,PARKING BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9603-9608	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9609-	●
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9603-9603	●
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9604-9606	●
220	HOSE; VINYL,EXH,PARKING BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9604-9606		●
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9607-9608	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9607-9608		●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9609-		●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=850 SERVICED BY L=10000	9-09914-701-0	01	1	9603-9603		●
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=850 SERVICED BY L=10000	9-09914-701-0	01	1	9604-9606		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9603-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9603-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9605-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9605-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9605-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9605-	●	●
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87410-099-0	AR	1	9606-	●	●
226	BOLT; UNION M8X25 FLANGE	0-28080-825-0	01	1	9603-9605	●
226	BOLT; UNION EXC. NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE	0-28080-825-0	01	1	9606-9606	●
226	BOLT; UNION M8X25 FLANGE	0-28080-825-0	01	1	9606-9606	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9603-	●
226	BOLT; UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
226	BOLT; UNION DUAL LICENCE CHINA & HONG KONG<TEZ> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606		●
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	9603-9606		●
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	9607-9904	●	●
226	BOLT; UNION EXC. NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28080-820-0	01	1	9607-9904	●
226	BOLT; UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28080-820-0	01	1	9607-9904	●
226	BOLT; UNION DUAL LICENCE CHINA & HONG KONG<TEZ> M8X20 FLANGE	0-28080-820-0	01	1	9607-9904		●
226	BOLT; UNION BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8X20 FLANGE	0-28080-820-0	01	1	9905-	●	●
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	9905-	●	●
226	BOLT; UNION EXC. BRAKE REGULATION ECE<TDV> M8X20 FLANGE	0-28080-820-0	01	1	9905-	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9603-		●
262	BRACKET (B)	1-79996-144-0	01	1	9603-	●
262	BRACKET (A)	1-79996-143-0	01	1	9603-9705	●	●
262	BRACKET (A)	1-79996-143-0	01	1	9706-9904	●	●
262	BRACKET BRAKE REGULATION ECE<TDV> (A)	1-79996-143-0	01	1	9706-9904	●
262	BRACKET (A)	1-79996-143-0	01	1	9905-	●	●
262	BRACKET PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-79996-143-0	01	1	9905-	●	●
262	BRACKET (B)	1-79996-258-1	01	1	9603-9904		●
262	BRACKET (B)	1-79996-258-1	01	1	9905-		●
262	BRACKET PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-79996-258-1	01	1	9905-		●
274	BOLT; BRKT M6X16 W/LK WASHER	0-50040-616-0	01	1	9603-9705	●	●
274	BOLT; BRKT M6X16 W/LK WASHER	0-50040-616-0	01	1	9706-9904	●	●
274	BOLT; BRKT BRAKE REGULATION ECE<TDV> M6X16 W/LK WASHER	0-50040-616-0	01	1	9706-9904	●
274	BOLT; BRKT M6X16 W/LK WASHER	0-50040-616-0	01	1	9905-0102	●	●
274	BOLT; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> M6X16 W/LK WASHER	0-50040-616-0	01	1	9905-0102	●	●
274	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0103-	●	●
274	BOLT; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0103-	●	●
274	BOLT; BRKT M8X16 W/LK WASHER	0-50040-816-0	01	1	9603-9702	●	●
274	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9703-9705	●	●
274	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9706-9904	●	●
274	BOLT; BRKT BRAKE REGULATION ECE<TDV> M8X16 FLANGE	0-28080-816-0	01	1	9706-9904	●
274	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9905-	●	●
274	BOLT; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> M8X16 FLANGE	0-28080-816-0	01	1	9905-	●	●

5 19 217 220 17 18 226 17 18 18 19 129 129 192 192 226 226 129 192 223 262 274 262 205 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	PIPE; AIR,UNION TO PARKING VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-47495-161-0	01	1	9603-	●
5	PIPE; AIR,UNION TO PARKING VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-49114-638-1	01	1	9603-		●
17	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48>	1-47470-453-2	01	1	9603-	●
17	UNION; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-47470-455-2	01	1	9603-	●
17	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-47470-490-2	01	1	9603-		●
17	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-47470-493-1	01	1	9603-		●
17	UNION; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-47470-443-2	01	1	9603-		●
17	UNION; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-47470-469-3	01	1	9603-		●
18	PIPE; AIR,UNION TO UNION (A) L=1677 SERVICED BY L=1700	1-47426-391-0	01	1	9603-9810	●
18	PIPE; AIR,UNION TO UNION (A) L=1800	1-49121-052-0	01	1	9811-	●
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (B) L=1726 SERVICED BY L=1800	1-47426-392-0	01	1	9603-9810	●
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (B) L=1982	1-49121-055-1	01	1	9811-	●
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=1874 SERVICED BY L=1900	1-47426-421-0	01	1	9603-9810	●
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=1854	1-49121-053-0	01	1	9811-	●
18	PIPE; AIR,UNION TO UNION EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=1869 SERVICED BY L=1900	1-47426-421-0	01	1	9603-9810	●
18	PIPE; AIR,UNION TO UNION EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=1942	1-49121-057-0	01	1	9811-	●
18	PIPE; AIR,UNION TO UNION (B) L=1937 SERVICED BY L=1950	1-47426-393-0	01	1	9603-9904		●
18	PIPE; AIR,UNION TO UNION (B) L=1937 SERVICED BY L=1950	1-47426-393-0	01	1	9905-		●
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (B) L=1937 SERVICED BY L=1950	1-47426-393-0	01	1	9905-		●
18	PIPE; AIR,UNION TO UNION (A) L=2108 SERVICED BY L=2500	1-47426-423-0	01	1	9603-9904		●
18	PIPE; AIR,UNION TO UNION (A) L=2108 SERVICED BY L=2500	1-47426-423-0	01	1	9905-		●
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=2108 SERVICED BY L=2500	1-47426-423-0	01	1	9905-		●
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=2332 SERVICED BY L=2400	1-47426-395-0	01	1	9603-		●
19	NUT; PIPE UNION M8	9-09110-408-0	01	1	9603-	●	●
19	NUT; PIPE UNION M8 FLANGE	0-91150-108-0	02	1	9603-		●
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9603-9904	●
129	CONNECTOR; NYLON TUBE DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9603-9904		●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9603-9904		●
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9905-9910	●	●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9905-9910		●
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9911-0007	●	●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9911-0007		●
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-	●	●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-		●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	9603-9904	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	9603-9904	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	9905-9910	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	9905-9910	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	02	1	9911-0007	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	02	1	9911-0007	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0008-	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0008-	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9603-9910	●	●
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9603-9910	●	●
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9911-0007	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9911-0007	●	●
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9603-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9603-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9603-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9603-	●	●
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9707-	●
205	BOLT; TUBE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9603-		●
205	BOLT; TUBE CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9603-9702		●
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9703-		●
205	BOLT; TUBE CLIP M8X16 W/LK WASHER	0-50040-816-0	03	1	9603-9702		●
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	03	1	9703-		●
217	PIPE; AIR,PARKING BRK VLV TO UNION EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-49114-456-0	01	1	9603-	●
217	PIPE; AIR,PARKING BRK VLV TO UNION EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-49114-639-0	01	1	9603-		●
220	HOSE; VINYL,EXH,PARKING BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9603-9608	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9609-	●
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9603-9603	●
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9604-9606	●
220	HOSE; VINYL,EXH,PARKING BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9604-9606		●
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9607-9608	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9607-9608		●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9609-		●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=850 SERVICED BY L=10000	9-09914-701-0	01	1	9603-9603		●
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=850 SERVICED BY L=10000	9-09914-701-0	01	1	9604-9606		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9603-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9603-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9605-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9605-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9605-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9605-	●	●
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87410-099-0	AR	1	9606-	●	●
226	BOLT; UNION M8X25 FLANGE	0-28080-825-0	01	1	9603-9605	●
226	BOLT; UNION EXC. NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE	0-28080-825-0	01	1	9606-9606	●
226	BOLT; UNION M8X25 FLANGE	0-28080-825-0	01	1	9606-9606	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9603-	●
226	BOLT; UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
226	BOLT; UNION DUAL LICENCE CHINA & HONG KONG<TEZ> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606		●
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	9603-9606		●
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	9607-9904	●	●
226	BOLT; UNION EXC. NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28080-820-0	01	1	9607-9904	●
226	BOLT; UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28080-820-0	01	1	9607-9904	●
226	BOLT; UNION DUAL LICENCE CHINA & HONG KONG<TEZ> M8X20 FLANGE	0-28080-820-0	01	1	9607-9904		●
226	BOLT; UNION BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8X20 FLANGE	0-28080-820-0	01	1	9905-	●	●
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	9905-	●	●
226	BOLT; UNION EXC. BRAKE REGULATION ECE<TDV> M8X20 FLANGE	0-28080-820-0	01	1	9905-	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9603-		●
262	BRACKET (B)	1-79996-144-0	01	1	9603-	●
262	BRACKET (A)	1-79996-143-0	01	1	9603-9705	●	●
262	BRACKET (A)	1-79996-143-0	01	1	9706-9904	●	●
262	BRACKET BRAKE REGULATION ECE<TDV> (A)	1-79996-143-0	01	1	9706-9904	●
262	BRACKET (A)	1-79996-143-0	01	1	9905-	●	●
262	BRACKET PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-79996-143-0	01	1	9905-	●	●
262	BRACKET (B)	1-79996-258-1	01	1	9603-9904		●
262	BRACKET (B)	1-79996-258-1	01	1	9905-		●
262	BRACKET PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-79996-258-1	01	1	9905-		●
274	BOLT; BRKT M6X16 W/LK WASHER	0-50040-616-0	01	1	9603-9705	●	●
274	BOLT; BRKT M6X16 W/LK WASHER	0-50040-616-0	01	1	9706-9904	●	●
274	BOLT; BRKT BRAKE REGULATION ECE<TDV> M6X16 W/LK WASHER	0-50040-616-0	01	1	9706-9904	●
274	BOLT; BRKT M6X16 W/LK WASHER	0-50040-616-0	01	1	9905-0102	●	●
274	BOLT; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> M6X16 W/LK WASHER	0-50040-616-0	01	1	9905-0102	●	●
274	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0103-	●	●
274	BOLT; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0103-	●	●
274	BOLT; BRKT M8X16 W/LK WASHER	0-50040-816-0	01	1	9603-9702	●	●
274	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9703-9705	●	●
274	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9706-9904	●	●
274	BOLT; BRKT BRAKE REGULATION ECE<TDV> M8X16 FLANGE	0-28080-816-0	01	1	9706-9904	●
274	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9905-	●	●
274	BOLT; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> M8X16 FLANGE	0-28080-816-0	01	1	9905-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
