2-05 — CLUTCH PIPING (#58061) — 107 parça

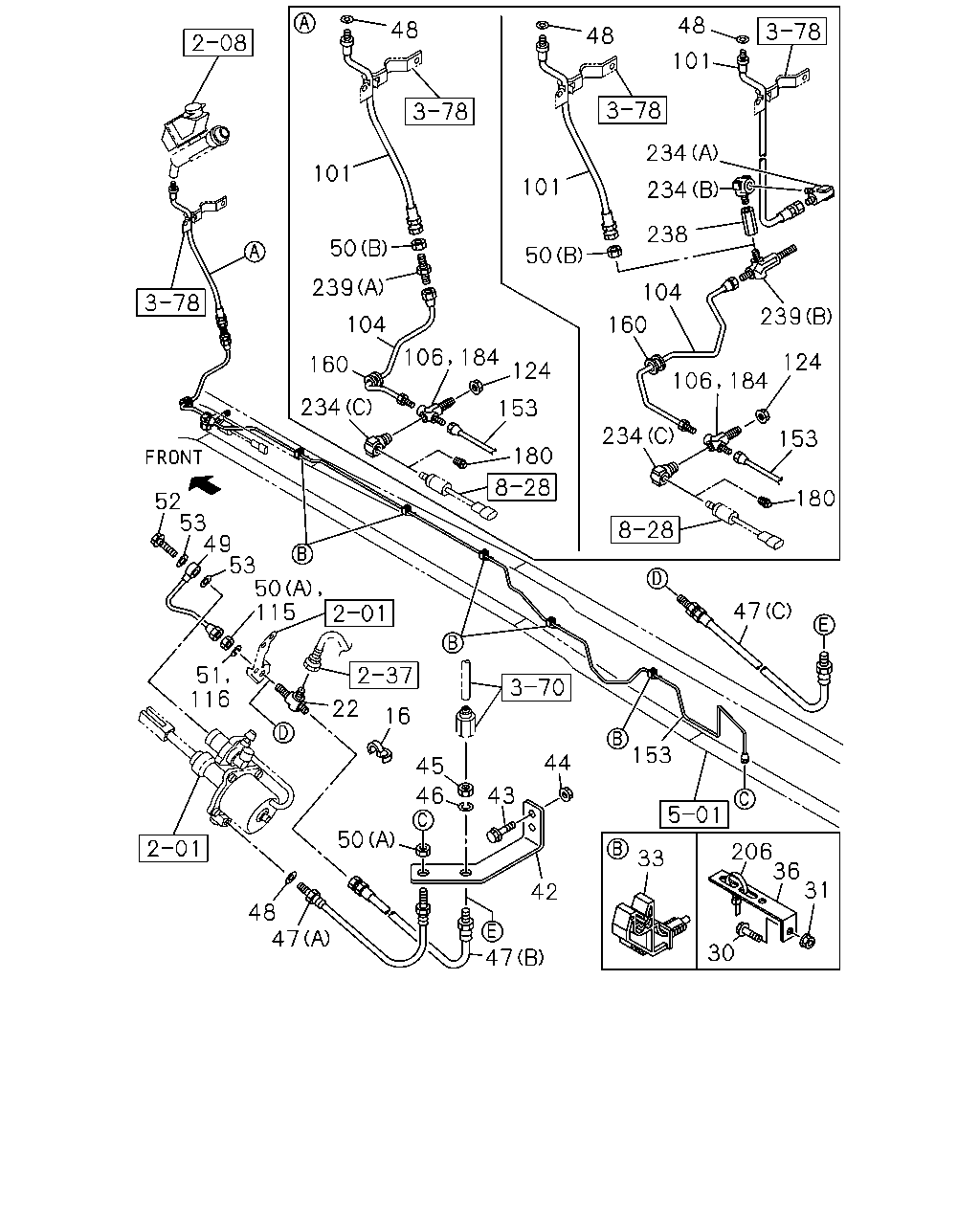

çizim 146798
48 48 48 101 234 101 101 234 238 50 50 239 104 239 104 160 124 160 124 234 153 234 153 180 180 52 53 49 53 50 115 47 51 116 22 16 153 44 45 43 46 50 206 36 31 33 42 48 47 47 30 106 184 106 184
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10 & 12 		1-09709-278-1 01 1 0710-0711 ●
16 CLIP; FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10 & 12 		1-09709-278-1 01 1 0712- ● ●
22 UNION; CLU PIPE
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 0710-0711 ●
22 UNION; CLU PIPE
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 0712- ● ●
30 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0712-0712 ●
30 BOLT; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE 		0-28650-830-0 01 1 0712- ●
31 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ●
31 NUT; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE 		0-91180-108-0 01 1 0712- ●
33 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=6.35 		1-09701-247-1 06 1 0710-0711 ●
33 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=6.35 		1-09701-247-1 06 1 0712-0802 ● ●
33 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=6.35 		1-09701-247-1 05 1 0803- ● ●
36 BRACKET; CLIP
L=100 H=30 		1-47477-645-2 01 1 0712-0712 ●
36 BRACKET; CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=100 H=30 		1-47477-645-2 01 1 0712- ●
42 BRACKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98093-568-0 01 1 0710-0710 ●
42 BRACKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98100-260-0 01 1 0710-0710 ●
42 BRACKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98100-603-0 01 1 0710-0711 ●
42 BRACKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98105-654-0 01 1 0712- ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE 		0-28650-830-0 02 1 0712- ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
45 NUT; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		9-09840-280-0 01 1 0710-0711 ●
45 NUT; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		9-09840-280-0 01 1 0712-0802 ● ●
45 NUT; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		9-09840-280-0 01 1 0803- ● ●
46 WASHER; LK,FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 0710-0711 ●
46 WASHER; LK,FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 0712-0802 ● ●
46 WASHER; LK,FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 0803-0906 ● ●
46 WASHER; LK,FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 0907-1009 ● ●
46 WASHER; LK,FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-812-0 01 1 1010-1011 ● ●
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=470 		1-09363-716-0 01 1 0804- ●
47 HOSE; FLEX,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=420 		1-09363-633-0 01 1 0710-0710 ●
47 HOSE; FLEX,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=380 		1-09363-884-0 01 1 0711-0711 ●
47 HOSE; FLEX,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=380 		1-09363-884-0 01 1 0712-0802 ● ●
47 HOSE; FLEX,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=380 		1-09363-884-0 01 1 0803-0803 ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=380 		1-09363-884-0 01 1 0804- ●
47 HOSE; FLEX,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=460 		1-09364-264-0 01 1 0710-0710 ●
47 HOSE; FLEX,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=340 		8-98072-354-0 01 1 0711-0711 ●
47 HOSE; FLEX,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=340 		8-98072-354-0 01 1 0712-0712 ● ●
47 HOSE; FLEX,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=375 		1-09364-407-0 01 1 0712- ● ●
47 HOSE; FLEX,CLU CONT
(B) L=360 		1-09363-823-0 01 1 0712-0712 ●
47 HOSE; FLEX,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=360 		1-09363-823-0 01 1 0712-0803 ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=360 		1-09363-823-0 01 1 0804- ●
48 GASKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0710-0711 ●
48 GASKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0712- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
15" CLUTCH(RE9) L=239 		1-49117-401-0 01 1 0710-0711 ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
15" CLUTCH(RE9) L=239 		1-49117-401-0 01 1 0712- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 0710-0711 ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 0712- ● ●
50 NUT; UNION
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 0710-0711 ●
50 NUT; UNION
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 0712-0803 ● ●
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0804- ● ●
50 NUT; UNION
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 0804- ● ●
51 WASHER; LK
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 01 1 0710-0711 ●
51 WASHER; LK
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 01 1 0712-0803 ● ●
51 WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 0804-1009 ● ●
51 WASHER; LK
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 01 1 0804-1009 ● ●
51 WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-812-0 01 1 1010- ● ●
51 WASHER; LK
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-812-0 01 1 1010- ● ●
52 BOLT; EYE,AIR PIPE
15" CLUTCH(RE9) M14X27 FLANGE 		1-09675-086-0 01 1 0710-0711 ●
52 BOLT; EYE,AIR PIPE
15" CLUTCH(RE9) M14X27 FLANGE 		1-09675-086-0 01 1 0712- ● ●
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0710-0711 ●
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0712-1312 ● ●
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=510 		8-98059-811-0 01 1 0710-0802 ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=500 		8-98072-350-0 01 1 0803- ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=480 		8-98072-349-0 01 1 0712-0802 ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=440 		8-98072-346-0 01 1 0803- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=409 		8-98093-402-0 01 1 0710-0711 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=409 		8-98093-402-0 01 1 0712-0802 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=554 		8-98114-452-0 01 1 0803- ● ●
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 3WAY 		8-98051-113-0 01 1 0710-0711 ●
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 3WAY 		8-98051-113-0 01 1 0712-0910 ● ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 3WAY 		8-98051-113-0 01 1 0911- ● ●
115 NUT; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		9-09840-280-0 01 1 0710-0711 ●
115 NUT; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		9-09840-280-0 01 1 0712- ● ●
116 WASHER; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 0710-0711 ●
116 WASHER; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 0712-0906 ● ●
116 WASHER; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 0907-1009 ● ●
116 WASHER; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-812-0 01 1 1010-1011 ● ●
124 NUT; PIPE UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		0-91111-512-0 01 1 0710-0711 ●
124 NUT; PIPE UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		0-91111-512-0 01 1 0712- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2700 SERVICED BY L=2900 		1-47428-744-0 01 1 0710-0710 ●
153 PIPE ASM; CLU,UNION TO FLEX
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98100-261-0 01 1 0710-0710 ●
153 PIPE ASM; CLU,UNION TO FLEX
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2726 SERVICED BY L=3000 		1-47428-773-0 01 1 0710-0711 ●
153 PIPE ASM; CLU,UNION TO FLEX
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2738 SERVICED BY L=2900 		1-47428-744-0 01 1 0712-0907 ●
153 PIPE ASM; CLU,UNION TO FLEX
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2749 		8-98152-243-0 01 1 0908- ●
153 PIPE ASM; CLU,UNION TO FLEX
L=2704 SERVICED BY L=2900 		1-47428-744-0 01 1 0712-0712 ●
153 PIPE ASM; CLU,UNION TO FLEX
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2704 SERVICED BY L=2900 		1-47428-744-0 01 1 0712-0802 ●
153 PIPE ASM; CLU,UNION TO FLEX
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2715 SERVICED BY L=2900 		1-47428-744-0 01 1 0803-1101 ●
153 PIPE ASM; CLU,UNION TO FLEX
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2726 SERVICED BY L=2900 		1-47428-744-0 01 1 1102- ●
160 GROMMET; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0710-0711 ●
160 GROMMET; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712- ● ●
180 PLUG; PIPE
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		9-09204-510-0 01 1 0710-0711 ●
180 PLUG; PIPE
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		9-09204-510-0 01 1 0712-0910 ● ●
184 UNION; FLEX HOSE
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98150-865-0 01 1 0911- ● ●
206 CLIP; TUBE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=350 		1-09707-183-0 01 1 0812- ●
206 CLIP; TUBE
L=350 		1-09707-183-0 02 1 0712-0712 ●
206 CLIP; TUBE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=350 		1-09707-183-0 02 1 0712- ●
234 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) PT1/8 ELBOW 		8-94338-418-1 01 1 0710-0711 ●
234 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) PT1/8 ELBOW 		8-94338-418-1 01 1 0712- ● ●
234 CONNECTOR; ELBOW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0711-0802 ●
234 CONNECTOR; ELBOW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) PT1/4 2WAY 		1-09660-693-0 01 1 0711-0802 ●
238 ADAPTER; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0711-0802 ●
239 UNION; CLU HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 2WAY 		1-09654-059-2 01 1 0710-0711 ●
239 UNION; CLU HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 2WAY 		1-09654-059-2 01 1 0712- ● ●
239 UNION; CLU HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 L=66.5 		0-92113-306-0 01 1 0711-0711 ●
239 UNION; CLU HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 L=66.5 		0-92113-306-0 01 1 0712-0712 ● ●
