Sayfa 3-75 - Isuzu EPC

3-75 — BRAKE PIPING; AIR,FRONT (#5806) — 184 parça

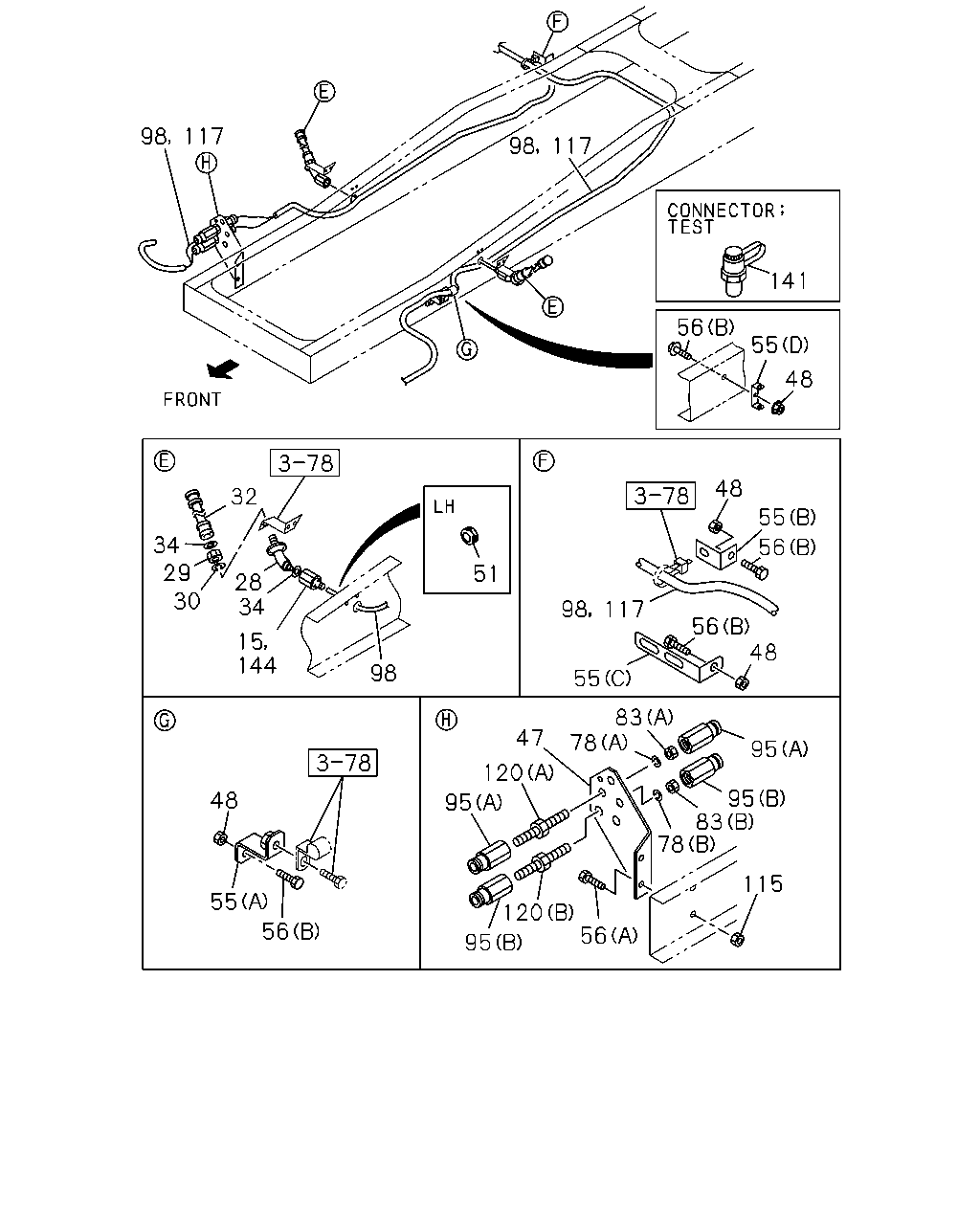

98 117 98 117 141 56 55 48 48 32 55 34 29 30 56 51 28 34 98 117 56 48 15 144 98 55 83 78 47 95 120 95 83 78 48 95 115 55 120 56 56 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9603-9904	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9905-0007	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-	●	●
28	NIPPLE; AIR PIPE M20	1-09654-199-2	02	1	9603-	●	●
29	NUT; NIPPLE M20	9-99111-420-0	02	1	9603-	●	●
30	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	02	1	9603-	●	●
32	HOSE; FLEX,FRT L=500	0-07847-500-1	02	1	9603-	●	●
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	9603-	●	●
47	BRACKET; PIPE UNION	1-47477-601-2	01	1	9603-	●
47	BRACKET; PIPE UNION	1-47477-600-2	01	1	9603-		●
48	NUT; UNION BRKT M8	9-09110-408-0	01	1	9603-9606	●	●
48	NUT; UNION BRKT V TYPE ENG<91L> M8	9-09110-408-0	01	1	9603-9606	●	●
48	NUT; UNION BRKT V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9607-	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	01	1	9607-		●
48	NUT; UNION BRKT M8	9-09110-508-0	01	1	9603-9606	●	●
48	NUT; UNION BRKT M12 FLANGE	0-91150-212-0	01	1	9611-	●	●
51	GROMMET; NYLON TUBE ID=28 OD=35 T=25	1-09332-011-1	02	1	9607-	●	●
55	BRACKET; TUBE UNION (B)	1-47477-694-0	01	1	9603-	●	●
55	BRACKET; TUBE UNION (D)	1-47477-895-1	01	1	9611-	●	●
55	BRACKET; TUBE UNION V TYPE ENG<91L> (C) L=100 H=30	1-47477-645-2	01	1	9603-	●	●
55	BRACKET; TUBE UNION (A)	1-47476-200-0	01	1	9603-		●
56	BOLT; UNION BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	9607-	●
56	BOLT; UNION BRKT (B) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
56	BOLT; UNION BRKT (B) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606		●
56	BOLT; UNION BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-	●	●
56	BOLT; UNION BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-		●
56	BOLT; UNION BRKT (A) M10X35 FLANGE	0-28081-035-0	02	1	9603-9606	●	●
56	BOLT; UNION BRKT (A) M10X40 FLANGE	0-28681-040-0	02	1	9607-	●	●
56	BOLT; UNION BRKT V TYPE ENG<91L> (B) M8X30 FLANGE	0-28080-830-0	01	1	9603-9606	●	●
56	BOLT; UNION BRKT (B) M8X30 FLANGE	0-28080-830-0	01	1	9603-9606	●
56	BOLT; UNION BRKT V TYPE ENG<91L> (B) M8X35 FLANGE	0-28680-835-0	01	1	9607-	●	●
78	WASHER; LK,PIPE UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (A) ID=14.2	9-09150-514-0	03	1	9603-9904	●	●
78	WASHER; LK,PIPE UNION PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=14.2	9-09150-514-0	03	1	9905-	●	●
78	WASHER; LK,PIPE UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (B) ID=16.2	9-09150-516-0	02	1	9603-9904	●	●
78	WASHER; LK,PIPE UNION PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=16.2	9-09150-516-0	02	1	9905-	●	●
78	WASHER; LK,PIPE UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (A) ID=14.2	9-09150-514-0	02	1	9603-9904	●	●
78	WASHER; LK,PIPE UNION EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=14.2	9-09150-514-0	02	1	9905-	●	●
78	WASHER; LK,PIPE UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (B) ID=16.2	9-09150-516-0	01	1	9603-9904	●	●
78	WASHER; LK,PIPE UNION EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=16.2	9-09150-516-0	01	1	9905-	●	●
83	NUT; PIPE UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (A) M14	9-99111-414-0	03	1	9603-9904	●	●
83	NUT; PIPE UNION PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	9-99111-414-0	03	1	9905-	●	●
83	NUT; PIPE UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (B) M16	9-99111-416-0	02	1	9603-9904	●	●
83	NUT; PIPE UNION PARKING BRAKE VALVE LEVER TYPE<W48> (B) M16	9-99111-416-0	02	1	9905-	●	●
83	NUT; PIPE UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (A) M14	9-99111-414-0	02	1	9603-9904	●	●
83	NUT; PIPE UNION EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	9-99111-414-0	02	1	9905-	●	●
83	NUT; PIPE UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (B) M16	9-99111-416-0	01	1	9603-9904	●	●
83	NUT; PIPE UNION EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M16	9-99111-416-0	01	1	9905-	●	●
95	ADAPTER; BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	06	1	9603-9904	●	●
95	ADAPTER; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	06	1	9905-0007	●	●
95	ADAPTER; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	06	1	0008-	●	●
95	ADAPTER; BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	04	1	9603-9904	●	●
95	ADAPTER; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09661-096-0	04	1	9905-0007	●	●
95	ADAPTER; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	04	1	0008-	●	●
95	ADAPTER; BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	9603-9904	●	●
95	ADAPTER; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	04	1	9905-0007	●	●
95	ADAPTER; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	0008-	●	●
95	ADAPTER; BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9603-9904	●	●
95	ADAPTER; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09661-096-0	02	1	9905-0007	●	●
95	ADAPTER; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0008-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	9603-	●	●
115	NUT; TUBE UNION M8	9-09110-408-0	01	1	9603-9606	●	●
115	NUT; TUBE UNION M8 FLANGE	0-91150-108-0	01	1	9607-9708	●	●
115	NUT; TUBE UNION M10	9-09110-410-0	02	1	9603-9606	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87410-099-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=25	1-87410-101-0	AR	1	9603-9704	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9705-	●	●
120	UNION; AIR PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (A) M14	9-09223-308-1	03	1	9603-9904	●	●
120	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	9-09223-308-1	03	1	9905-	●	●
120	UNION; AIR PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (B) M16 L=74	9-09233-310-1	02	1	9603-9904	●	●
120	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> (B) M16 L=74	9-09233-310-1	02	1	9905-	●	●
120	UNION; AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (A) M14	9-09223-308-1	02	1	9603-9904	●	●
120	UNION; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	9-09223-308-1	02	1	9905-	●	●
120	UNION; AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (B) M16 L=74	9-09233-310-1	01	1	9603-9904	●	●
120	UNION; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M16 L=74	9-09233-310-1	01	1	9905-	●	●
141	CONNECTOR; TEST INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. THAILAND EQUIPMENT(PM9),KENYA EQUIPMENT(PQ2), WHEEL 8STUD 7.50VX20 165-13<Q62>	1-47459-013-0	01	1	9603-9904	●
141	CONNECTOR; TEST INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-47459-013-0	01	1	9905-9912	●	●
141	CONNECTOR; TEST BRAKE REGULATION ECE<TDV> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-47459-013-0	01	1	0001-	●	●
144	ADAPTER DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9603-9904	●	●
144	ADAPTER DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9905-0007	●	●
144	ADAPTER DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-	●	●

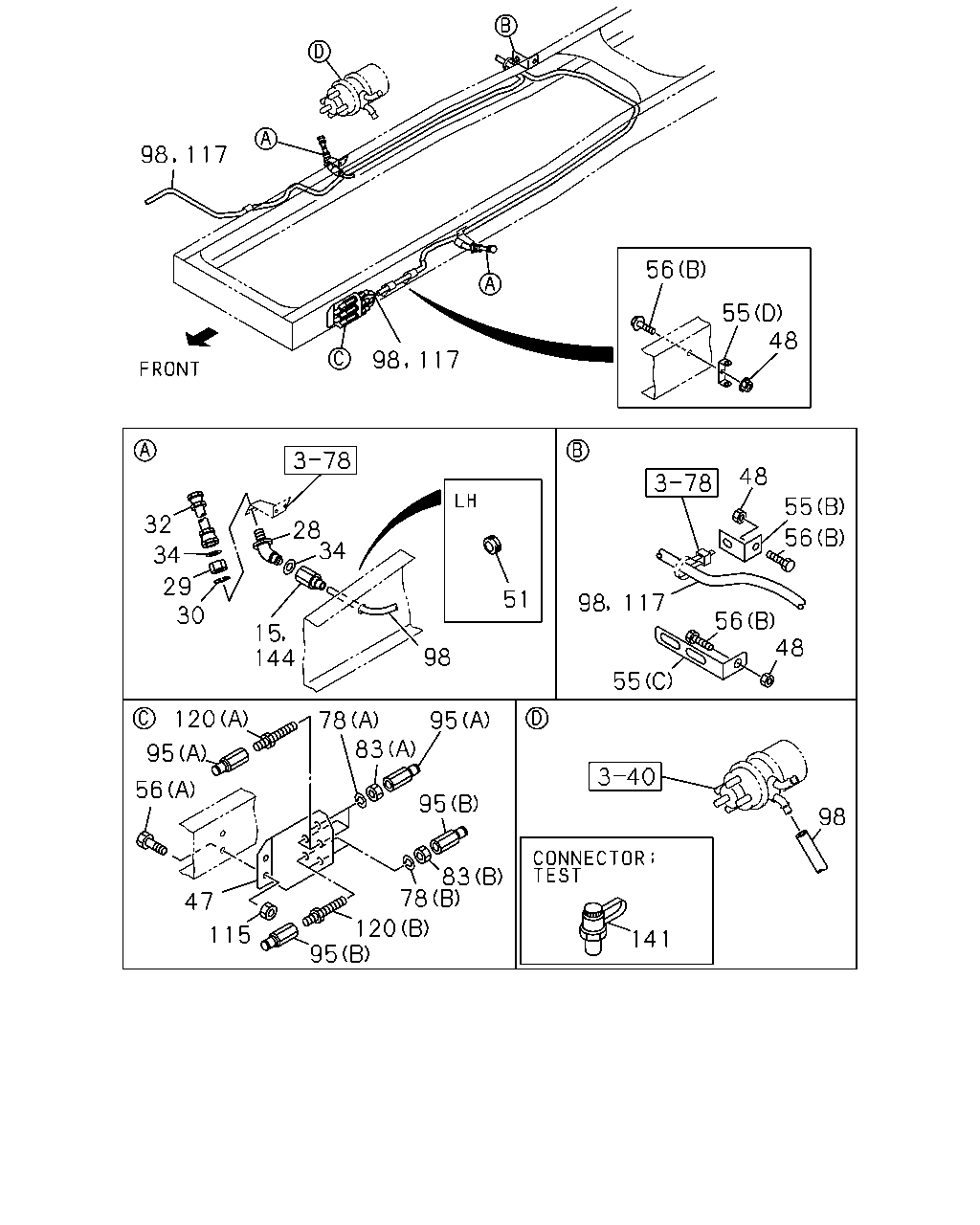

98 117 56 55 48 98 117 48 55 32 28 34 56 34 29 30 51 98 117 56 48 15 144 98 55 120 78 83 95 95 56 95 98 83 78 47 120 95 115 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9603-9904	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9905-0007	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-	●	●
28	NIPPLE; AIR PIPE M20	1-09654-199-2	02	1	9603-	●	●
29	NUT; NIPPLE M20	9-99111-420-0	02	1	9603-	●	●
30	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	02	1	9603-	●	●
32	HOSE; FLEX,FRT L=500	0-07847-500-1	02	1	9603-	●	●
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	9603-	●	●
47	BRACKET; PIPE UNION	1-47477-601-2	01	1	9603-	●
47	BRACKET; PIPE UNION	1-47477-600-2	01	1	9603-		●
48	NUT; UNION BRKT M8	9-09110-408-0	01	1	9603-9606	●	●
48	NUT; UNION BRKT V TYPE ENG<91L> M8	9-09110-408-0	01	1	9603-9606	●	●
48	NUT; UNION BRKT V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9607-	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	01	1	9607-		●
48	NUT; UNION BRKT M8	9-09110-508-0	01	1	9603-9606	●	●
48	NUT; UNION BRKT M12 FLANGE	0-91150-212-0	01	1	9611-	●	●
51	GROMMET; NYLON TUBE ID=28 OD=35 T=25	1-09332-011-1	02	1	9607-	●	●
55	BRACKET; TUBE UNION (B)	1-47477-694-0	01	1	9603-	●	●
55	BRACKET; TUBE UNION (D)	1-47477-895-1	01	1	9611-	●	●
55	BRACKET; TUBE UNION V TYPE ENG<91L> (C) L=100 H=30	1-47477-645-2	01	1	9603-	●	●
55	BRACKET; TUBE UNION (A)	1-47476-200-0	01	1	9603-		●
56	BOLT; UNION BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	9607-	●
56	BOLT; UNION BRKT (B) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
56	BOLT; UNION BRKT (B) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606		●
56	BOLT; UNION BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-	●	●
56	BOLT; UNION BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-		●
56	BOLT; UNION BRKT (A) M10X35 FLANGE	0-28081-035-0	02	1	9603-9606	●	●
56	BOLT; UNION BRKT (A) M10X40 FLANGE	0-28681-040-0	02	1	9607-	●	●
56	BOLT; UNION BRKT V TYPE ENG<91L> (B) M8X30 FLANGE	0-28080-830-0	01	1	9603-9606	●	●
56	BOLT; UNION BRKT (B) M8X30 FLANGE	0-28080-830-0	01	1	9603-9606	●
56	BOLT; UNION BRKT V TYPE ENG<91L> (B) M8X35 FLANGE	0-28680-835-0	01	1	9607-	●	●
78	WASHER; LK,PIPE UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (A) ID=14.2	9-09150-514-0	03	1	9603-9904	●	●
78	WASHER; LK,PIPE UNION PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=14.2	9-09150-514-0	03	1	9905-	●	●
78	WASHER; LK,PIPE UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (B) ID=16.2	9-09150-516-0	02	1	9603-9904	●	●
78	WASHER; LK,PIPE UNION PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=16.2	9-09150-516-0	02	1	9905-	●	●
78	WASHER; LK,PIPE UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (A) ID=14.2	9-09150-514-0	02	1	9603-9904	●	●
78	WASHER; LK,PIPE UNION EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=14.2	9-09150-514-0	02	1	9905-	●	●
78	WASHER; LK,PIPE UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (B) ID=16.2	9-09150-516-0	01	1	9603-9904	●	●
78	WASHER; LK,PIPE UNION EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=16.2	9-09150-516-0	01	1	9905-	●	●
83	NUT; PIPE UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (A) M14	9-99111-414-0	03	1	9603-9904	●	●
83	NUT; PIPE UNION PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	9-99111-414-0	03	1	9905-	●	●
83	NUT; PIPE UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (B) M16	9-99111-416-0	02	1	9603-9904	●	●
83	NUT; PIPE UNION PARKING BRAKE VALVE LEVER TYPE<W48> (B) M16	9-99111-416-0	02	1	9905-	●	●
83	NUT; PIPE UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (A) M14	9-99111-414-0	02	1	9603-9904	●	●
83	NUT; PIPE UNION EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	9-99111-414-0	02	1	9905-	●	●
83	NUT; PIPE UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (B) M16	9-99111-416-0	01	1	9603-9904	●	●
83	NUT; PIPE UNION EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M16	9-99111-416-0	01	1	9905-	●	●
95	ADAPTER; BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	06	1	9603-9904	●	●
95	ADAPTER; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	06	1	9905-0007	●	●
95	ADAPTER; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	06	1	0008-	●	●
95	ADAPTER; BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	04	1	9603-9904	●	●
95	ADAPTER; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09661-096-0	04	1	9905-0007	●	●
95	ADAPTER; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	04	1	0008-	●	●
95	ADAPTER; BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	9603-9904	●	●
95	ADAPTER; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	04	1	9905-0007	●	●
95	ADAPTER; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	0008-	●	●
95	ADAPTER; BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9603-9904	●	●
95	ADAPTER; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09661-096-0	02	1	9905-0007	●	●
95	ADAPTER; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0008-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9603-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	9603-	●	●
115	NUT; TUBE UNION M8	9-09110-408-0	01	1	9603-9606	●	●
115	NUT; TUBE UNION M8 FLANGE	0-91150-108-0	01	1	9607-9708	●	●
115	NUT; TUBE UNION M10	9-09110-410-0	02	1	9603-9606	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87410-099-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=25	1-87410-101-0	AR	1	9603-9704	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9705-	●	●
120	UNION; AIR PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (A) M14	9-09223-308-1	03	1	9603-9904	●	●
120	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	9-09223-308-1	03	1	9905-	●	●
120	UNION; AIR PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (B) M16 L=74	9-09233-310-1	02	1	9603-9904	●	●
120	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> (B) M16 L=74	9-09233-310-1	02	1	9905-	●	●
120	UNION; AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (A) M14	9-09223-308-1	02	1	9603-9904	●	●
120	UNION; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	9-09223-308-1	02	1	9905-	●	●
120	UNION; AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (B) M16 L=74	9-09233-310-1	01	1	9603-9904	●	●
120	UNION; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M16 L=74	9-09233-310-1	01	1	9905-	●	●
141	CONNECTOR; TEST INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. THAILAND EQUIPMENT(PM9),KENYA EQUIPMENT(PQ2), WHEEL 8STUD 7.50VX20 165-13<Q62>	1-47459-013-0	01	1	9603-9904	●
141	CONNECTOR; TEST INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-47459-013-0	01	1	9905-9912	●	●
141	CONNECTOR; TEST BRAKE REGULATION ECE<TDV> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-47459-013-0	01	1	0001-	●	●
144	ADAPTER DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9603-9904	●	●
144	ADAPTER DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9905-0007	●	●
144	ADAPTER DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
