◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11420 - FTR(AUST)EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#58058) — 37 parça

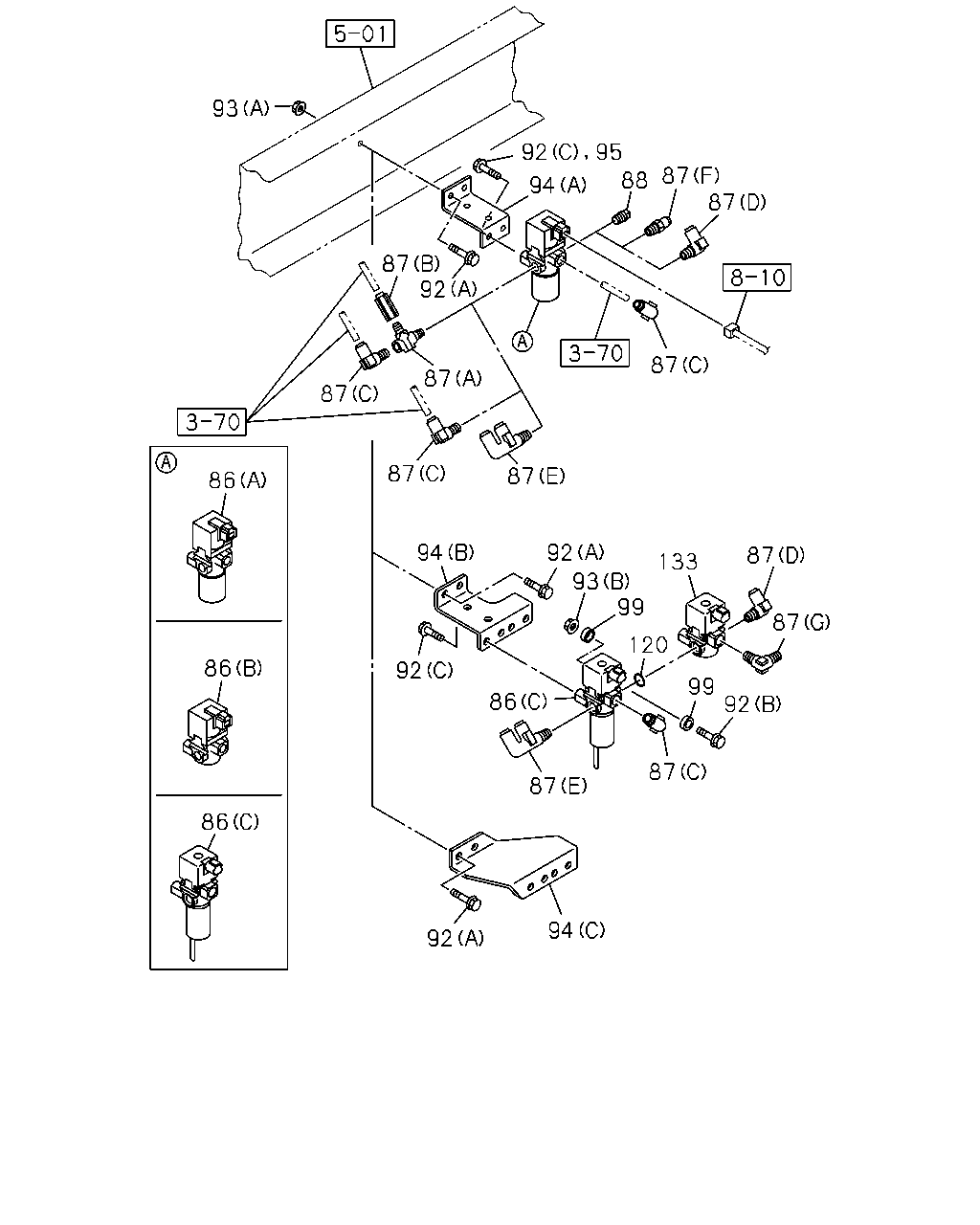

çizim 146786
93 87 87 88 94 87 92 87 87 87 87 87 86 94 92 87 133 93 99 87 120 86 92 99 86 92 87 87 86 94 92 92 95
BalonParca AdiParca NoAdetTipApplied Date
86 VALVE; MAG,EXH BRK
(C) 		8-97633-075-0 01 1 1112-
86 VALVE; MAG,EXH BRK
SGL CAB(FG**M*) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		1-82563-871-2 01 1 0710-0711
86 VALVE; MAG,EXH BRK
DBL CAB(FG**W*) (B) 		1-82563-871-2 01 1 0710-0711
86 VALVE; MAG,EXH BRK
(B) 		1-82563-871-2 01 1 0712-
86 VALVE; MAG,EXH BRK
SGL CAB(FG**M*) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97376-939-3 01 1 0710-0711
87 CONNECTOR
PTO CONTROL<SV6> (G) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112-
87 CONNECTOR
SGL CAB(FG**M*) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112-
87 CONNECTOR
DBL CAB(FG**W*) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112-
87 CONNECTOR
(C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-
87 CONNECTOR
(E) 		8-98179-708-0 01 1 1112-
87 CONNECTOR
DBL CAB(FG**W*) EXC. PTO CONTROL<SV6> (F) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 1112-
87 CONNECTOR
(C) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0710-
87 CONNECTOR
SGL CAB(FG**M*) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0710-0711
87 CONNECTOR
SGL CAB(FG**M*) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0712-0712
87 CONNECTOR
DBL CAB(FG**W*) (A) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0712-0712
87 CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0712-
87 CONNECTOR
SGL CAB(FG**M*) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0710-0711
87 CONNECTOR
SGL CAB(FG**M*) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0712-0712
87 CONNECTOR
DBL CAB(FG**W*) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0712-0712
87 CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0712-
88 PLUG
PT1/4 		9-99204-513-0 01 1 0710-
92 BOLT; MAG VLV
PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 1112-
92 BOLT; MAG VLV
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1112-
92 BOLT; MAG VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0710-
93 NUT; MAG VLV
PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 1112-
93 NUT; MAG VLV
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-0710
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-
94 BRACKET; MAG VLV,EXH BRAKE
SGL CAB(FG**M*) PTO CONTROL<SV6> (B) 		8-98101-296-0 01 1 1112-
94 BRACKET; MAG VLV,EXH BRAKE
DBL CAB(FG**W*) (C) 		8-98114-298-0 01 1 1112-
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		1-47471-374-1 01 1 0710-1004
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		8-98154-633-0 01 1 1005-1111
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		8-98154-633-0 01 1 1112-
94 BRACKET; MAG VLV,EXH BRAKE
SGL CAB(FG**M*) EXC. PTO CONTROL<SV6> (A) 		8-98154-633-0 01 1 1112-
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
99 WASHER; MAG VLV
PTO CONTROL<SV6> 		1-82569-266-0 02 1 1112-
120 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 1112-
133 VALVE; MAG,PTO CONT
PTO CONTROL<SV6> 		1-82563-871-2 01 1 1112-
