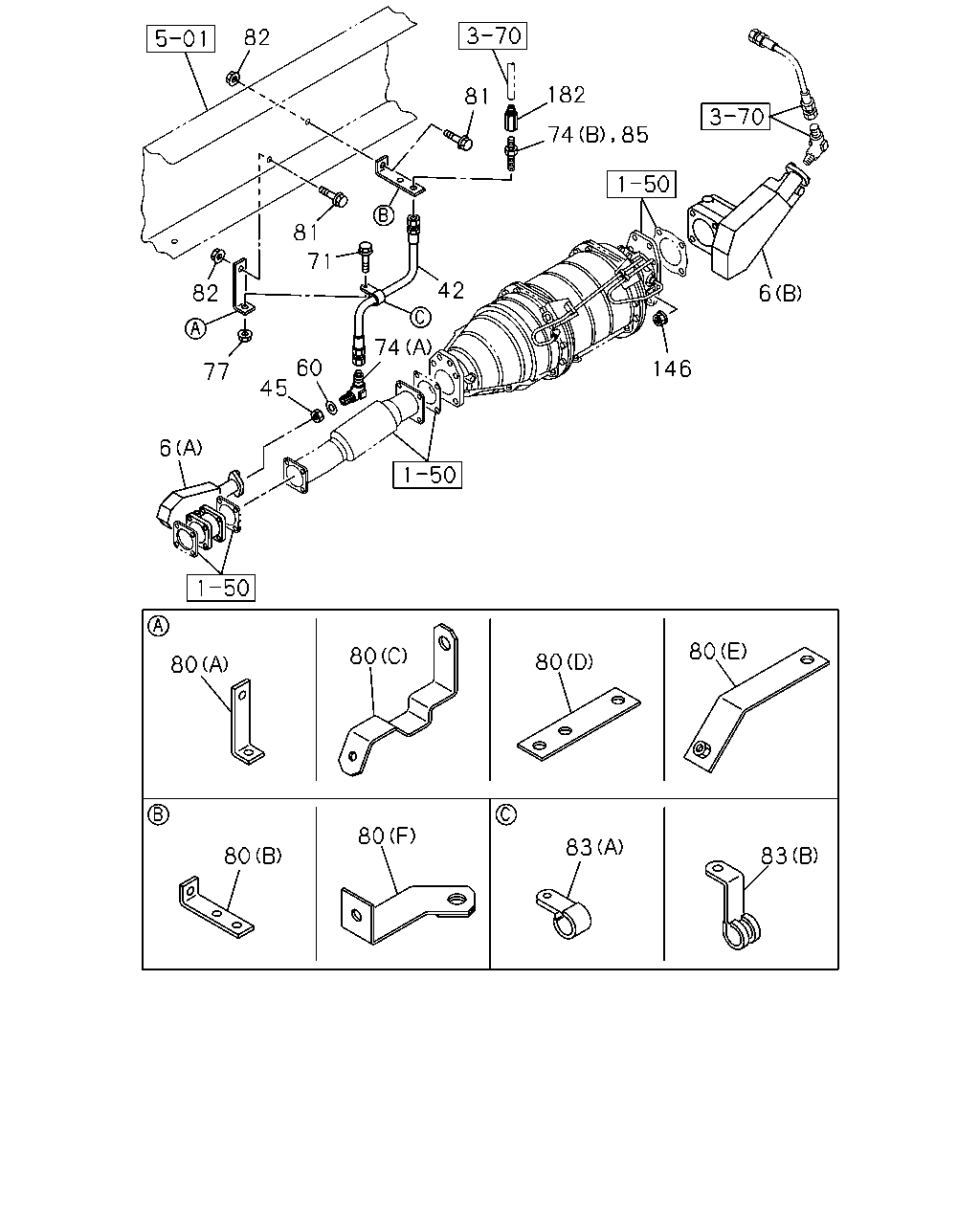

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#58057) — 45 parça

82 182 81 81 71 42 82 6 74 60 45 146 77 6 80 80 80 80 80 83 83 80 74 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	VALVE; EXH BRAKE (A)	8-98054-173-6	01	1	0710-1302
6	VALVE; EXH BRAKE (A)	8-98233-801-0	01	1	1303-
6	VALVE; EXH BRAKE (B)	8-98054-186-6	01	1	0710-
42	HOSE; FLEX,EXH BRK L=680	8-98097-508-0	01	1	0710-0710
42	HOSE; FLEX,EXH BRK SGL CAB(FG*M) L=720	8-98100-570-0	01	1	0710-0712
42	HOSE; FLEX,EXH BRK SGL CAB(FG*M) L=600	8-98107-431-0	01	1	0801-
42	HOSE; FLEX,EXH BRK DBL CAB(FG*W) L=780	8-98106-396-0	01	1	0712-0802
42	HOSE; FLEX,EXH BRK DBL CAB(FG*W) L=780	8-98114-706-0	01	1	0803-
45	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0710-
60	WASHER; PL ID=12.2	0-91510-512-0	01	1	0710-
71	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0710-0711
71	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-0712
71	BOLT; CLIP SGL CAB(FG*M) M8X25 FLANGE	0-28650-825-0	01	1	0801-
71	BOLT; CLIP DBL CAB(FG*W) M8X25 FLANGE	0-28650-825-0	02	1	0801-
74	CONNECTOR; EXH BRK VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-
74	CONNECTOR; EXH BRK VLV (B) M12 L=56.5	0-92113-106-0	01	1	0801-
77	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0710-0711
77	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0712
77	NUT; CLIP DBL CAB(FG*W) M8 FLANGE	0-91180-108-0	01	1	0801-
80	BRACKET; FLEX HOSE (C)	8-98078-153-0	01	1	0710-0710
80	BRACKET; FLEX HOSE (B)	8-98100-228-0	01	1	0710-0711
80	BRACKET; FLEX HOSE (B)	8-98100-228-0	01	1	0712-0802
80	BRACKET; FLEX HOSE SGL CAB(FG*M) (B)	8-98100-228-0	01	1	0803-
80	BRACKET; FLEX HOSE SGL CAB(FG*M) MZX6P M/T(RSW) (A) L=105 B=25	1-47476-161-0	01	1	0710-0712
80	BRACKET; FLEX HOSE DBL CAB(FG*W) (D) L=105	1-47477-409-0	01	1	0712-0802
80	BRACKET; FLEX HOSE DBL CAB(FG*W) (E)	8-98113-377-0	01	1	0803-
80	BRACKET; FLEX HOSE DBL CAB(FG*W) (F)	8-98114-273-0	01	1	0803-
81	BOLT; HOSE BRKT M10X30 FLANGE	0-28651-030-0	01	1	0710-0710
81	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0710-0712
81	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0710-0712
81	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0801-
81	BOLT; HOSE BRKT DBL CAB(FG*W) M8X30 FLANGE	0-28650-830-0	01	1	0801-
82	NUT; HOSE BRKT M10 FLANGE	0-91180-210-0	01	1	0710-0710
82	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	01	1	0710-0712
82	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	01	1	0710-0712
82	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	01	1	0801-0802
82	NUT; HOSE BRKT DBL CAB(FG*W) M8 FLANGE	0-91180-108-0	01	1	0801-0802
82	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	01	1	0803-
83	CLIP; FLEX HOSE SGL CAB(FG*M) (A) ID=13	1-09701-030-1	01	1	0710-
83	CLIP; FLEX HOSE DBL CAB(FG*W) (B) ID=15 L=22 H=30	1-09701-215-1	01	1	0712-0712
83	CLIP; FLEX HOSE DBL CAB(FG*W) (A) ID=13	1-09701-030-1	02	1	0801-
85	UNION; FLEX HOSE,EXH BRAKE SGL CAB(FG*M)	1-09654-381-0	01	1	0710-0712
146	NUT; EXH BRK VLV M10	0-91110-510-0	04	1	0710-0712
146	NUT; EXH BRK VLV M10 FLANGE	0-91180-210-0	04	1	0801-
182	CONNECTOR DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0801-
