Sayfa 1-50 - Isuzu EPC

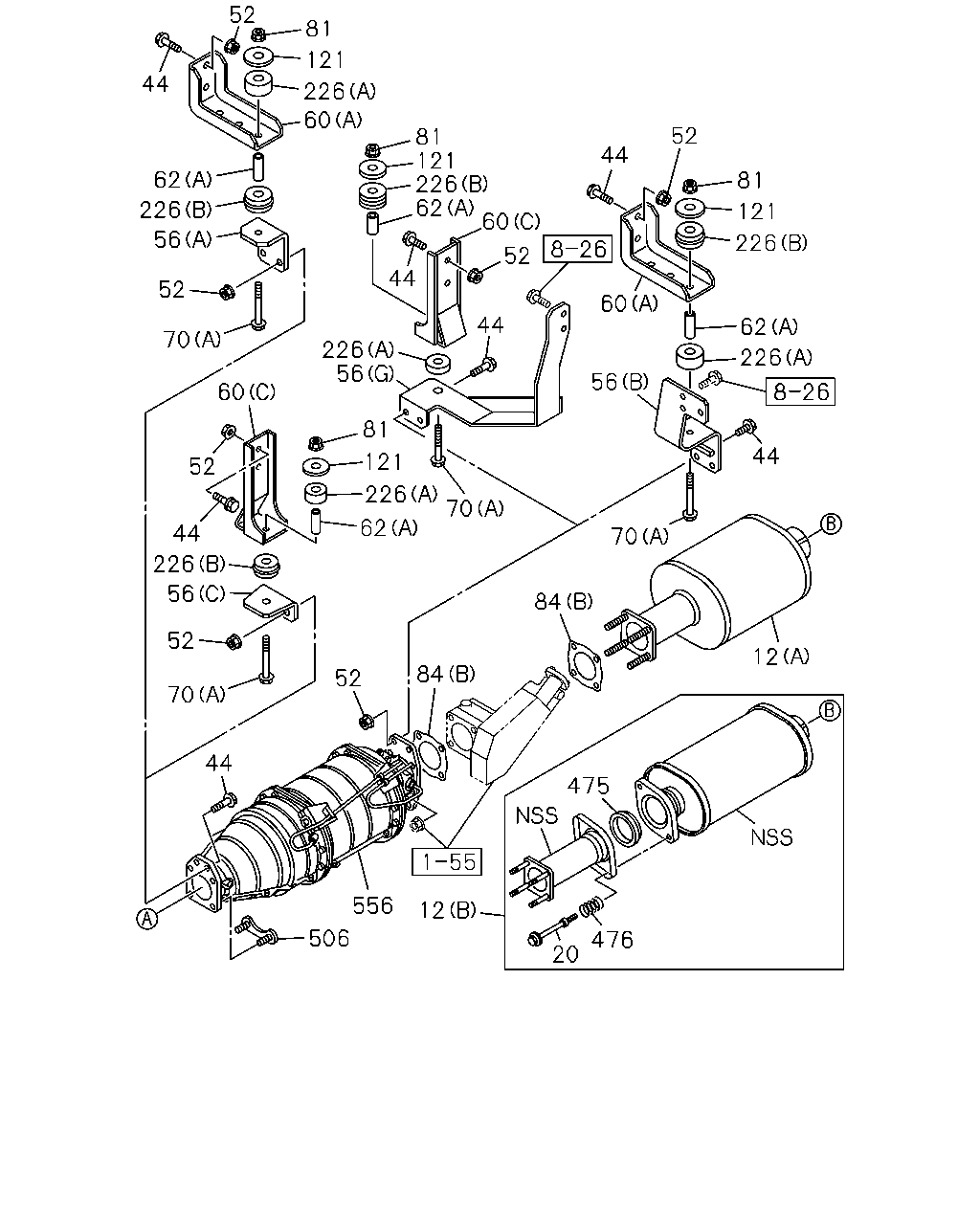

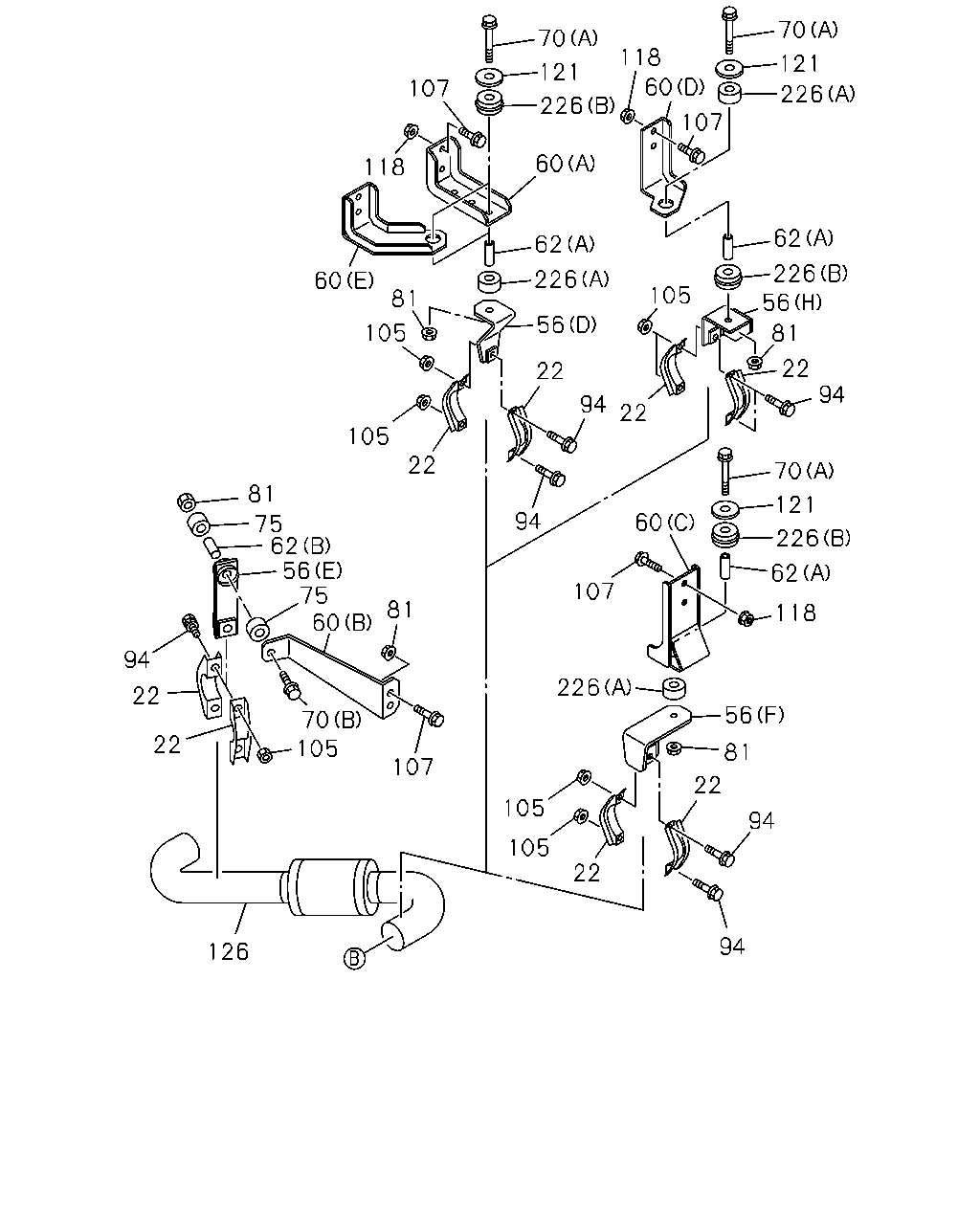

1-50 — EXHAUST PIPE AND SILENCER (#58056) — 552 parça

118 62 226 121 70 94 22 81 56 226 62 226 121 70 107 60 118 70 121 226 60 62 226 56 22 94 22 105 60 107 56 81 94 22 94 22 105 105 226 94 22 105 105 81 60 118 107 81 75 62 56 75 60 81 107 70 105 22 22 94 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0806-	●	●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0806-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (F)	8-98070-639-0	01	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (F)	8-98101-361-0	01	1	0712-0906	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (F)	8-98101-361-0	01	1	0907-1301	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (C)	1-22152-324-0	01	1	0710-0906	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (C)	1-22152-324-0	01	1	0907-0907	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	1-22152-324-0	01	1	0908-	●
56	BRACKET; CLAMP,EXH PIPE (E) L=180	1-22131-521-1	01	1	0710-0710	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W) (E) L=180	1-22131-521-1	01	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W) (E) L=180	1-22131-521-1	01	1	0712-	●
56	BRACKET; CLAMP,EXH PIPE (E) L=180	1-22131-521-1	01	1	0712-		●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98078-088-1	01	1	0710-0710	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W) (A)	8-98078-088-1	01	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W) (A)	8-98078-088-1	01	1	0712-	●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98078-088-1	01	1	0712-		●
56	BRACKET; CLAMP,EXH PIPE (D)	8-98071-312-0	01	1	0710-0710	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W) (D)	8-98071-312-0	01	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W) (D)	8-98071-312-0	01	1	0712-1309	●
56	BRACKET; CLAMP,EXH PIPE (D)	8-98071-312-0	01	1	0712-1309		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W) (D)	8-98245-537-0	01	1	1310-	●
56	BRACKET; CLAMP,EXH PIPE (D)	8-98245-537-0	01	1	1310-		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W) (B)	8-98077-361-0	01	1	0710-0710	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W) (B)	8-98077-361-0	01	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W) (B)	8-98077-361-0	01	1	0712-	●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98077-361-0	01	1	0712-		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W) (F)	8-98070-639-0	01	1	0908-1301	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (H)	8-98233-450-0	01	1	1302-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (E) L=204	1-22131-520-1	01	1	0710-0906	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (E) L=204	1-22131-520-1	01	1	0907-0907	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) L=204	1-22131-520-1	01	1	0908-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (G)	8-98072-104-0	01	1	0710-0906	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (G)	8-98072-104-0	01	1	0907-0907	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (G)	8-98072-104-0	01	1	0908-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (E)	8-98233-552-0	01	1	1302-	●
60	BRACKET; FRAME TO BRKT (E)	8-98233-552-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W) (D)	8-98233-451-0	01	1	1302-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 6500MM(65W) (D)	8-98234-014-0	01	1	1302-	●
60	BRACKET; FRAME TO BRKT (B)	8-98070-640-0	01	1	0710-0710	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (B)	8-98070-640-0	01	1	0710-0711	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (B)	8-98070-640-0	01	1	0712-1309	●
60	BRACKET; FRAME TO BRKT (B)	8-98070-640-0	01	1	0712-1309		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (B)	8-98245-521-0	01	1	1310-	●
60	BRACKET; FRAME TO BRKT (B)	8-98245-521-0	01	1	1310-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	8-98070-622-0	01	1	0710-0710	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	0710-0710	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	0710-0710	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	8-98070-622-0	01	1	0710-0711	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	8-98070-622-0	01	1	0710-0711	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	8-98070-622-0	01	1	0710-0711	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	8-98070-622-0	01	1	0712-1301	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	8-98070-622-0	01	1	0712-1301	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	8-98070-622-0	01	1	0712-1301	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	0712-1301		●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	0712-1301		●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	0712-1301		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	8-98070-622-0	01	1	1302-1309	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	8-98070-622-0	01	1	1302-1309	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	1302-1309		●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	1302-1309		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	8-98245-531-0	01	1	1310-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	8-98245-531-0	01	1	1310-	●
60	BRACKET; FRAME TO BRKT (A)	8-98245-531-0	01	1	1310-		●
60	BRACKET; FRAME TO BRKT (A)	8-98245-531-0	01	1	1310-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 6500MM(65W) (C)	8-98070-628-0	01	1	0710-0907	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 6500MM(65W) (C)	8-98070-628-0	01	1	0710-0907	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 6500MM(65W) (C)	8-98070-628-0	01	1	0710-0907	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98070-628-0	01	1	0908-1301	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98070-628-0	01	1	0908-1301	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98070-628-0	01	1	0908-1301	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98070-628-0	01	1	1302-1309	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98070-628-0	01	1	1302-1309	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98245-532-0	01	1	1310-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98245-532-0	01	1	1310-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 6500MM(65W) (B)	8-98070-641-0	01	1	0710-0906	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 6500MM(65W) (B)	8-98070-641-0	01	1	0907-0907	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98070-641-0	01	1	0908-	●
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0710-0711	●
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0712-0906	●	●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-	●	●
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W) (A)	8-98060-852-0	01	1	0710-0710	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0710-0710	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0710-0710	●
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A)	8-98060-852-0	01	1	0710-0711	●
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A)	8-98060-852-0	01	1	0710-0711	●
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A)	8-98060-852-0	01	1	0710-0711	●
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A)	8-98060-852-0	01	1	0712-0805	●
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A)	8-98060-852-0	01	1	0712-0805	●
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A)	8-98060-852-0	01	1	0712-0805	●
62	TUBE; DIST,BRKT WHEEL BASE 6000MM(60W) (A)	8-98060-852-0	01	1	0712-0805		●
62	TUBE; DIST,BRKT WHEEL BASE 6000MM(60W) (A)	8-98060-852-0	01	1	0712-0805		●
62	TUBE; DIST,BRKT WHEEL BASE 6000MM(60W) (A)	8-98060-852-0	01	1	0712-0805		●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0806-	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0806-	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0806-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0710-0711	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0712-	●	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0710-0710	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0710-0710	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0710-0710	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0710-0711	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0710-0711	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0710-0711	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0712-0805	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0712-0805	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0712-0805	●
70	BOLT; BRKT WHEEL BASE 6000MM(60W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0712-0805		●
70	BOLT; BRKT WHEEL BASE 6000MM(60W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0712-0805		●
70	BOLT; BRKT WHEEL BASE 6000MM(60W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0712-0805		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0806-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0806-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0806-	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-193-0	02	1	0710-0711	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-193-0	02	1	0712-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0710	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0710	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0710	●
81	NUT; BRKT WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	0710-0711	●
81	NUT; BRKT WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	0710-0711	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	0710-0711	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	0710-0711	●
81	NUT; BRKT WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	0712-0805	●
81	NUT; BRKT WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	0712-0805	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	0712-0805	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	0712-0805	●
81	NUT; BRKT WHEEL BASE 6000MM(60W) M10 FLANGE	0-91180-210-0	01	1	0712-0805		●
81	NUT; BRKT WHEEL BASE 6000MM(60W) M10 FLANGE	0-91180-210-0	01	1	0712-0805		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0806-0907	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0806-0907	●	●
81	NUT; BRKT WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	0806-0907	●
81	NUT; BRKT WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	0806-0907	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0908-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0908-	●	●
81	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	0908-	●
81	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	0908-	●
81	NUT; BRKT WHEEL BASE 4200MM(42W) M10 FLANGE	0-91180-210-0	01	1	0710-0710	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0710-0710	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
81	NUT; BRKT WHEEL BASE 4200MM(42W) M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0712-0805	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0712-0805	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) M10 FLANGE	0-91180-210-0	02	1	0712-0805	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0806-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0806-	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W) M10 FLANGE	0-91180-210-0	02	1	0806-	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0806-		●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0710-0710	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0710-0710	●
94	BOLT; CLAMP WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) M10X40 FLANGE	0-28651-040-0	02	1	0710-0711	●
94	BOLT; CLAMP WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) M10X40 FLANGE	0-28651-040-0	02	1	0710-0711	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0806-	●	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0806-	●	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0710-0710	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0710-0710	●
105	NUT; CLAMP WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
105	NUT; CLAMP WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0806-	●	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0806-	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0710-0711	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0710-0711	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0712-	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0712-	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	0712-	●	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W) ID=8.4 OD=22	1-09503-154-1	01	1	0710-0710	●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-1	01	1	0710-0710	●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-1	01	1	0710-0710	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) ID=8.4 OD=22	1-09503-154-1	01	1	0710-0711	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) ID=8.4 OD=22	1-09503-154-1	01	1	0710-0711	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) ID=8.4 OD=22	1-09503-154-1	01	1	0710-0711	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) ID=8.4 OD=22	1-09503-154-2	01	1	0712-0805	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) ID=8.4 OD=22	1-09503-154-2	01	1	0712-0805	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) ID=8.4 OD=22	1-09503-154-2	01	1	0712-0805	●
121	WASHER; PL,BRKT WHEEL BASE 6000MM(60W) ID=8.4 OD=22	1-09503-154-2	01	1	0712-0805		●
121	WASHER; PL,BRKT WHEEL BASE 6000MM(60W) ID=8.4 OD=22	1-09503-154-2	01	1	0712-0805		●
121	WASHER; PL,BRKT WHEEL BASE 6000MM(60W) ID=8.4 OD=22	1-09503-154-2	01	1	0712-0805		●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	0806-	●	●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	0806-	●	●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	0806-	●	●
126	PIPE; EXH,RR	8-98043-365-1	01	1	0710-0710	●
126	PIPE; EXH,RR WHEEL BASE 4200MM(42W)	8-98043-365-2	01	1	0710-0711	●
126	PIPE; EXH,RR WHEEL BASE 4200MM(42W)	8-98043-365-2	01	1	0712-1301	●
126	PIPE; EXH,RR	8-98043-365-2	01	1	0712-1301		●
126	PIPE; EXH,RR WHEEL BASE 4200MM(42W)	8-98233-516-0	01	1	1302-	●
126	PIPE; EXH,RR	8-98233-516-0	01	1	1302-		●
126	PIPE; EXH,RR WHEEL BASE 6500MM(65W)	1-22126-646-2	01	1	0710-0907	●
126	PIPE; EXH,RR WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	1-22126-646-2	01	1	0908-1301	●
126	PIPE; EXH,RR WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	8-98233-519-0	01	1	1302-	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W) (A)	8-94457-277-1	01	1	0710-0710	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0710-0710	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0710-0710	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A)	8-94457-277-1	01	1	0710-0711	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A)	8-94457-277-1	01	1	0710-0711	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A)	8-94457-277-1	01	1	0710-0711	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A)	8-94457-277-1	01	1	0712-0805	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A)	8-94457-277-1	01	1	0712-0805	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A)	8-94457-277-1	01	1	0712-0805	●
226	RUBBER; CUSHION WHEEL BASE 6000MM(60W) (A)	8-94457-277-1	01	1	0712-0805		●
226	RUBBER; CUSHION WHEEL BASE 6000MM(60W) (A)	8-94457-277-1	01	1	0712-0805		●
226	RUBBER; CUSHION WHEEL BASE 6000MM(60W) (A)	8-94457-277-1	01	1	0712-0805		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0806-	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0806-	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0806-	●	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W) (B)	8-94457-278-1	01	1	0710-0710	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0710-0710	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0710-0710	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (B)	8-94457-278-1	01	1	0710-0711	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (B)	8-94457-278-1	01	1	0710-0711	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (B)	8-94457-278-1	01	1	0710-0711	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (B)	8-94457-278-1	01	1	0712-0805	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (B)	8-94457-278-1	01	1	0712-0805	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (B)	8-94457-278-1	01	1	0712-0805	●
226	RUBBER; CUSHION WHEEL BASE 6000MM(60W) (B)	8-94457-278-1	01	1	0712-0805		●
226	RUBBER; CUSHION WHEEL BASE 6000MM(60W) (B)	8-94457-278-1	01	1	0712-0805		●
226	RUBBER; CUSHION WHEEL BASE 6000MM(60W) (B)	8-94457-278-1	01	1	0712-0805		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0806-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0806-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0806-	●	●

12 44 226 62 226 121 81 52 44 60 56 70 84 44 52 60 62 226 121 81 60 226 121 81 52 44 62 226 56 52 70 60 52 44 226 56 52 70 44 52 84 62 70 226 121 81 56 226 44 556 12 20 476 475 506

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH (A)	8-98041-925-1	01	1	0710-0711	●
12	SILENCER ASM; EXH (A)	8-98041-925-1	01	1	0712-1301	●	●
12	SILENCER ASM; EXH (B)	8-98234-507-0	01	1	1302-	●	●
20	BOLT; FLANGE,EXH PIPE	8-98233-481-0	02	1	1302-	●	●
20	BOLT; FLANGE,EXH PIPE	8-98233-481-0	02	1	1302-	●	●
44	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	08	1	0710-0711	●
44	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	08	1	0712-	●	●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	0710-0711	●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	0712-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (F)	8-98070-639-0	01	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (F)	8-98101-361-0	01	1	0712-0906	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (F)	8-98101-361-0	01	1	0907-1301	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (C)	1-22152-324-0	01	1	0710-0906	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (C)	1-22152-324-0	01	1	0907-0907	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	1-22152-324-0	01	1	0908-	●
56	BRACKET; CLAMP,EXH PIPE (E) L=180	1-22131-521-1	01	1	0710-0710	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W) (E) L=180	1-22131-521-1	01	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W) (E) L=180	1-22131-521-1	01	1	0712-	●
56	BRACKET; CLAMP,EXH PIPE (E) L=180	1-22131-521-1	01	1	0712-		●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98078-088-1	01	1	0710-0710	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W) (A)	8-98078-088-1	01	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W) (A)	8-98078-088-1	01	1	0712-	●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98078-088-1	01	1	0712-		●
56	BRACKET; CLAMP,EXH PIPE (D)	8-98071-312-0	01	1	0710-0710	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W) (D)	8-98071-312-0	01	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W) (D)	8-98071-312-0	01	1	0712-1309	●
56	BRACKET; CLAMP,EXH PIPE (D)	8-98071-312-0	01	1	0712-1309		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W) (D)	8-98245-537-0	01	1	1310-	●
56	BRACKET; CLAMP,EXH PIPE (D)	8-98245-537-0	01	1	1310-		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W) (B)	8-98077-361-0	01	1	0710-0710	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W) (B)	8-98077-361-0	01	1	0710-0711	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W) (B)	8-98077-361-0	01	1	0712-	●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98077-361-0	01	1	0712-		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W) (F)	8-98070-639-0	01	1	0908-1301	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (H)	8-98233-450-0	01	1	1302-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (E) L=204	1-22131-520-1	01	1	0710-0906	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (E) L=204	1-22131-520-1	01	1	0907-0907	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) L=204	1-22131-520-1	01	1	0908-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (G)	8-98072-104-0	01	1	0710-0906	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (G)	8-98072-104-0	01	1	0907-0907	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (G)	8-98072-104-0	01	1	0908-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (E)	8-98233-552-0	01	1	1302-	●
60	BRACKET; FRAME TO BRKT (E)	8-98233-552-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W) (D)	8-98233-451-0	01	1	1302-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 6500MM(65W) (D)	8-98234-014-0	01	1	1302-	●
60	BRACKET; FRAME TO BRKT (B)	8-98070-640-0	01	1	0710-0710	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (B)	8-98070-640-0	01	1	0710-0711	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (B)	8-98070-640-0	01	1	0712-1309	●
60	BRACKET; FRAME TO BRKT (B)	8-98070-640-0	01	1	0712-1309		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (B)	8-98245-521-0	01	1	1310-	●
60	BRACKET; FRAME TO BRKT (B)	8-98245-521-0	01	1	1310-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	8-98070-622-0	01	1	0710-0710	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	0710-0710	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	0710-0710	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	8-98070-622-0	01	1	0710-0711	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	8-98070-622-0	01	1	0710-0711	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	8-98070-622-0	01	1	0710-0711	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	8-98070-622-0	01	1	0712-1301	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	8-98070-622-0	01	1	0712-1301	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	8-98070-622-0	01	1	0712-1301	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	0712-1301		●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	0712-1301		●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	0712-1301		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	8-98070-622-0	01	1	1302-1309	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	8-98070-622-0	01	1	1302-1309	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	1302-1309		●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	1302-1309		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	8-98245-531-0	01	1	1310-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	8-98245-531-0	01	1	1310-	●
60	BRACKET; FRAME TO BRKT (A)	8-98245-531-0	01	1	1310-		●
60	BRACKET; FRAME TO BRKT (A)	8-98245-531-0	01	1	1310-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 6500MM(65W) (C)	8-98070-628-0	01	1	0710-0907	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 6500MM(65W) (C)	8-98070-628-0	01	1	0710-0907	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 6500MM(65W) (C)	8-98070-628-0	01	1	0710-0907	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98070-628-0	01	1	0908-1301	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98070-628-0	01	1	0908-1301	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98070-628-0	01	1	0908-1301	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98070-628-0	01	1	1302-1309	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98070-628-0	01	1	1302-1309	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98245-532-0	01	1	1310-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98245-532-0	01	1	1310-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 6500MM(65W) (B)	8-98070-641-0	01	1	0710-0906	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 6500MM(65W) (B)	8-98070-641-0	01	1	0907-0907	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98070-641-0	01	1	0908-	●
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0710-0711	●
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0712-0906	●	●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-	●	●
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W) (A)	8-98060-852-0	01	1	0710-0710	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0710-0710	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0710-0710	●
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A)	8-98060-852-0	01	1	0710-0711	●
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A)	8-98060-852-0	01	1	0710-0711	●
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A)	8-98060-852-0	01	1	0710-0711	●
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A)	8-98060-852-0	01	1	0712-0805	●
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A)	8-98060-852-0	01	1	0712-0805	●
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A)	8-98060-852-0	01	1	0712-0805	●
62	TUBE; DIST,BRKT WHEEL BASE 6000MM(60W) (A)	8-98060-852-0	01	1	0712-0805		●
62	TUBE; DIST,BRKT WHEEL BASE 6000MM(60W) (A)	8-98060-852-0	01	1	0712-0805		●
62	TUBE; DIST,BRKT WHEEL BASE 6000MM(60W) (A)	8-98060-852-0	01	1	0712-0805		●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0806-	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0806-	●	●
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	0806-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0710-0711	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0712-	●	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0710-0710	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0710-0710	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0710-0710	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0710-0711	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0710-0711	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0710-0711	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0712-0805	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0712-0805	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0712-0805	●
70	BOLT; BRKT WHEEL BASE 6000MM(60W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0712-0805		●
70	BOLT; BRKT WHEEL BASE 6000MM(60W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0712-0805		●
70	BOLT; BRKT WHEEL BASE 6000MM(60W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0712-0805		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0806-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0806-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0806-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0710	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0710	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0710	●
81	NUT; BRKT WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	0710-0711	●
81	NUT; BRKT WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	0710-0711	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	0710-0711	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	0710-0711	●
81	NUT; BRKT WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	0712-0805	●
81	NUT; BRKT WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	0712-0805	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	0712-0805	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	0712-0805	●
81	NUT; BRKT WHEEL BASE 6000MM(60W) M10 FLANGE	0-91180-210-0	01	1	0712-0805		●
81	NUT; BRKT WHEEL BASE 6000MM(60W) M10 FLANGE	0-91180-210-0	01	1	0712-0805		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0806-0907	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0806-0907	●	●
81	NUT; BRKT WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	0806-0907	●
81	NUT; BRKT WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	0806-0907	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0908-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0908-	●	●
81	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	0908-	●
81	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	0908-	●
81	NUT; BRKT WHEEL BASE 4200MM(42W) M10 FLANGE	0-91180-210-0	01	1	0710-0710	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0710-0710	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
81	NUT; BRKT WHEEL BASE 4200MM(42W) M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0712-0805	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0712-0805	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) M10 FLANGE	0-91180-210-0	02	1	0712-0805	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0806-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0806-	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W) M10 FLANGE	0-91180-210-0	02	1	0806-	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0806-		●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	0710-0711	●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	0712-	●	●
84	GASKET; EXH PIPE (B)	1-22116-043-0	02	1	0710-0711	●
84	GASKET; EXH PIPE (B)	1-22116-043-0	02	1	0712-	●	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W) ID=8.4 OD=22	1-09503-154-1	01	1	0710-0710	●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-1	01	1	0710-0710	●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-1	01	1	0710-0710	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) ID=8.4 OD=22	1-09503-154-1	01	1	0710-0711	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) ID=8.4 OD=22	1-09503-154-1	01	1	0710-0711	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) ID=8.4 OD=22	1-09503-154-1	01	1	0710-0711	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) ID=8.4 OD=22	1-09503-154-2	01	1	0712-0805	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) ID=8.4 OD=22	1-09503-154-2	01	1	0712-0805	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) ID=8.4 OD=22	1-09503-154-2	01	1	0712-0805	●
121	WASHER; PL,BRKT WHEEL BASE 6000MM(60W) ID=8.4 OD=22	1-09503-154-2	01	1	0712-0805		●
121	WASHER; PL,BRKT WHEEL BASE 6000MM(60W) ID=8.4 OD=22	1-09503-154-2	01	1	0712-0805		●
121	WASHER; PL,BRKT WHEEL BASE 6000MM(60W) ID=8.4 OD=22	1-09503-154-2	01	1	0712-0805		●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	0806-	●	●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	0806-	●	●
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	0806-	●	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W) (A)	8-94457-277-1	01	1	0710-0710	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0710-0710	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0710-0710	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A)	8-94457-277-1	01	1	0710-0711	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A)	8-94457-277-1	01	1	0710-0711	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A)	8-94457-277-1	01	1	0710-0711	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A)	8-94457-277-1	01	1	0712-0805	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A)	8-94457-277-1	01	1	0712-0805	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A)	8-94457-277-1	01	1	0712-0805	●
226	RUBBER; CUSHION WHEEL BASE 6000MM(60W) (A)	8-94457-277-1	01	1	0712-0805		●
226	RUBBER; CUSHION WHEEL BASE 6000MM(60W) (A)	8-94457-277-1	01	1	0712-0805		●
226	RUBBER; CUSHION WHEEL BASE 6000MM(60W) (A)	8-94457-277-1	01	1	0712-0805		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0806-	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0806-	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0806-	●	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W) (B)	8-94457-278-1	01	1	0710-0710	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0710-0710	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0710-0710	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (B)	8-94457-278-1	01	1	0710-0711	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (B)	8-94457-278-1	01	1	0710-0711	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (B)	8-94457-278-1	01	1	0710-0711	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (B)	8-94457-278-1	01	1	0712-0805	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (B)	8-94457-278-1	01	1	0712-0805	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (B)	8-94457-278-1	01	1	0712-0805	●
226	RUBBER; CUSHION WHEEL BASE 6000MM(60W) (B)	8-94457-278-1	01	1	0712-0805		●
226	RUBBER; CUSHION WHEEL BASE 6000MM(60W) (B)	8-94457-278-1	01	1	0712-0805		●
226	RUBBER; CUSHION WHEEL BASE 6000MM(60W) (B)	8-94457-278-1	01	1	0712-0805		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0806-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0806-	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0806-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE	8-98233-479-0	01	1	1302-	●	●
476	SPRING; VIBNON,EXH PIPE	8-98233-482-0	02	1	1302-	●	●
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	0710-0711	●
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	0712-	●	●
556	DPD ASM	8-97613-331-3	01	1	0710-0711	●
556	DPD ASM	8-97613-331-6	01	1	0712-1010	●	●
556	DPD ASM	8-97622-883-3	01	1	1011-	●	●

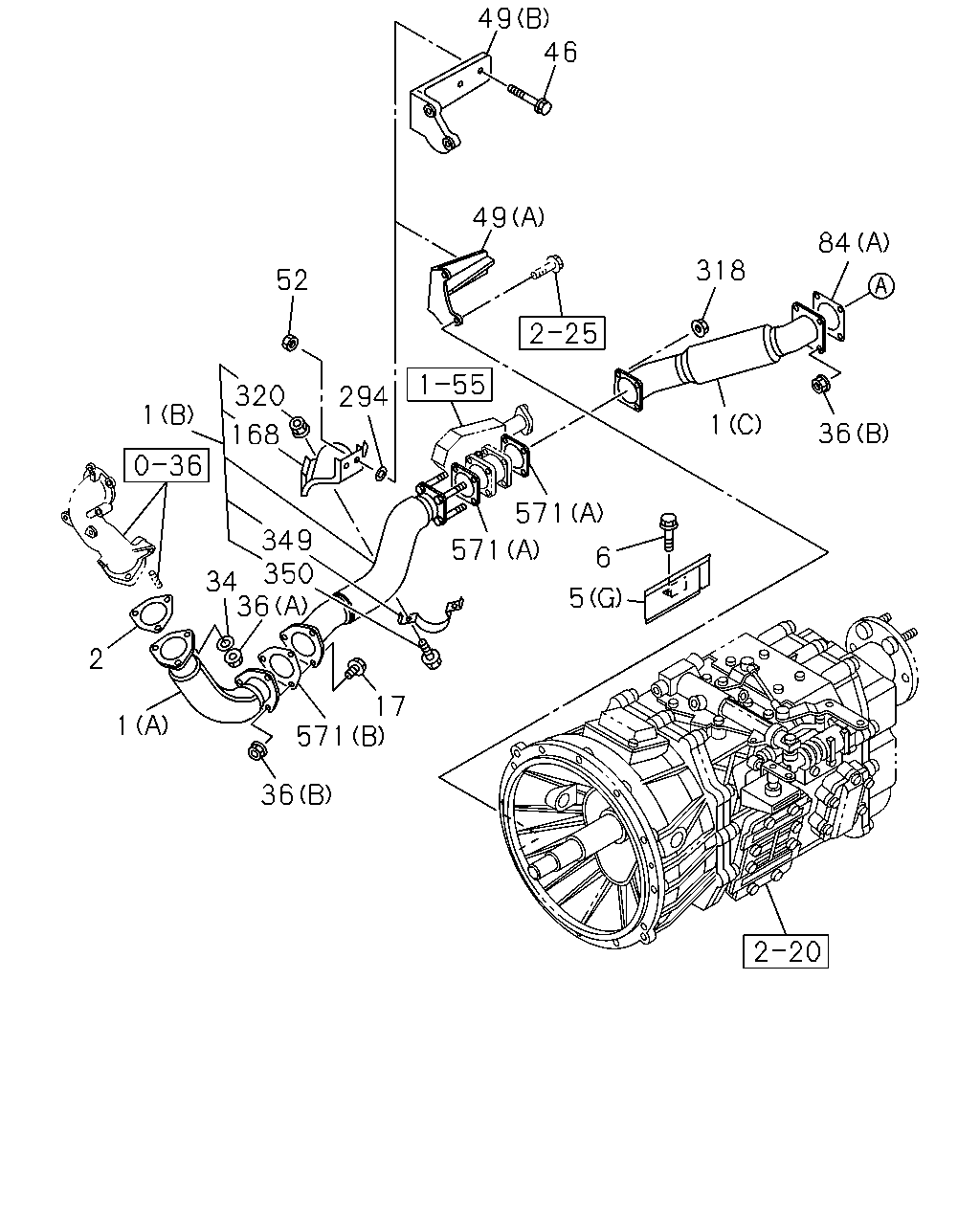

49 46 49 84 318 52 320 168 294 1 1 36 571 349 350 34 36 571 6 5 2 17 571 1 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH (C)	1-22123-892-1	01	1	0710-0710	●
1	PIPE; EXH WHEEL BASE 4200MM(42W) (C)	1-22123-892-1	01	1	0710-0711	●
1	PIPE; EXH WHEEL BASE 4200MM(42W) (C)	1-22123-892-1	01	1	0712-	●
1	PIPE; EXH (C)	1-22123-892-1	01	1	0712-		●
1	PIPE; EXH (A)	8-98061-088-1	01	1	0710-0711	●
1	PIPE; EXH (A)	8-98061-088-1	01	1	0712-0902	●	●
1	PIPE; EXH (A)	8-98120-560-0	01	1	0903-1209	●	●
1	PIPE; EXH (A)	8-98215-406-0	01	1	1210-	●	●
1	PIPE; EXH (B)	8-98070-601-0	01	1	0710-0711	●
1	PIPE; EXH (B)	8-98070-601-0	01	1	0712-0906	●	●
1	PIPE; EXH MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-98070-601-0	01	1	0907-1209	●	●
1	PIPE; EXH (B)	8-98220-351-0	01	1	1210-	●	●
1	PIPE; EXH WHEEL BASE 6500MM(65W) (C)	1-22123-984-1	01	1	0710-0907	●
1	PIPE; EXH WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	1-22123-984-1	01	1	0908-	●
1	PIPE; EXH MLD6W M/T(Y2C) (B)	8-98115-164-0	01	1	0806-1209	●	●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-98043-481-0	01	1	0710-0711	●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-98043-481-0	01	1	0712-	●	●
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	0710-0711	●
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	0712-	●	●
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	0710-0711	●
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	0712-	●	●
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	0710-0711	●
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	0712-	●	●
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	0710-0711	●
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	0712-	●	●
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	0710-0711	●
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	0712-	●	●
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	0710-0711	●
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	0712-	●	●
5	PROTECTOR; HEAT (G)	8-98073-436-0	01	1	0802-1406	●	●
5	PROTECTOR; HEAT	8-98255-001-0	01	1	1407-	●	●
6	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28650-825-0	02	1	0802-	●	●
17	BOLT; EXH PIPE M12X35 FLANGE	0-28051-235-0	03	1	0710-0711	●
17	BOLT; EXH PIPE M12X35 FLANGE	0-28051-235-0	03	1	0712-	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0710-0711	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0712-	●	●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	0710-0711	●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	0712-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	0710-0711	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	0712-	●	●
46	BOLT; BRKT,EXH PIPE MLD6W M/T(Y2C) M10X25 L=40	0-44011-025-0	02	1	0806-1209	●	●
46	BOLT; BRKT,EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1210-	●	●
49	BRACKET; EXH PIPE TO TRANS MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98120-495-0	01	1	1210-	●
49	BRACKET; EXH PIPE TO TRANS (A)	8-98084-127-0	01	1	0710-0711	●
49	BRACKET; EXH PIPE TO TRANS (A)	8-98084-127-0	01	1	0712-0906	●	●
49	BRACKET; EXH PIPE TO TRANS MZX6P M/T(RSW),MZW6P M/T(RSZ) (A)	8-98084-127-0	01	1	0907-1209	●	●
49	BRACKET; EXH PIPE TO TRANS MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98120-493-0	01	1	1210-	●
49	BRACKET; EXH PIPE TO TRANS MLD6W M/T(Y2C) (B)	8-98113-012-0	01	1	0806-	●	●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	0710-0711	●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	0712-	●	●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	0710-0711	●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	0712-	●	●
84	GASKET; EXH PIPE (B)	1-22116-043-0	02	1	0710-0711	●
84	GASKET; EXH PIPE (B)	1-22116-043-0	02	1	0712-	●	●
168	BRACKET; EXH PIPE,FRT	8-98071-144-0	01	1	0710-0711	●
168	BRACKET; EXH PIPE,FRT	8-98071-144-0	01	1	0712-1209	●	●
168	BRACKET; EXH PIPE,FRT	8-98221-369-1	01	1	1210-	●	●
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE ID=10.5	8-98073-091-0	02	1	0710-0711	●
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE ID=10.5	8-98073-091-0	02	1	0712-	●	●
318	NUT; EXH PIPE,FRT M10	0-91110-510-0	04	1	0710-0711	●
318	NUT; EXH PIPE,FRT M10	0-91110-510-0	04	1	0712-0712	●	●
318	NUT; EXH PIPE,FRT M10 FLANGE	0-91180-210-0	04	1	0801-	●	●
320	NUT; CLAMP,EXH PIPE M10 FLANGE	0-91180-210-0	02	1	0710-0711	●
320	NUT; CLAMP,EXH PIPE M10 FLANGE	0-91180-210-0	02	1	0712-	●	●
349	CLAMP; EXH PIPE	8-98058-351-0	01	1	0710-0711	●
349	CLAMP; EXH PIPE	8-98058-351-0	01	1	0712-0906	●	●
349	CLAMP; EXH PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ)	8-98058-351-0	01	1	0907-1209	●	●
349	CLAMP; EXH PIPE MLD6W M/T(Y2C)	8-98115-162-0	01	1	0806-1209	●	●
349	CLAMP; EXH PIPE	8-98115-162-0	01	1	1210-	●	●
350	BOLT; CLAMP,EXH PIPE M10X30 FLANGE	0-28651-030-0	02	1	0710-0711	●
350	BOLT; CLAMP,EXH PIPE M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●
571	GASKET (A)	1-22116-043-0	02	1	0710-0711	●
571	GASKET (A)	1-22116-043-0	02	1	0712-	●	●
571	GASKET (B)	8-98043-481-0	01	1	0710-0711	●
571	GASKET (B)	8-98043-481-0	01	1	0712-	●	●

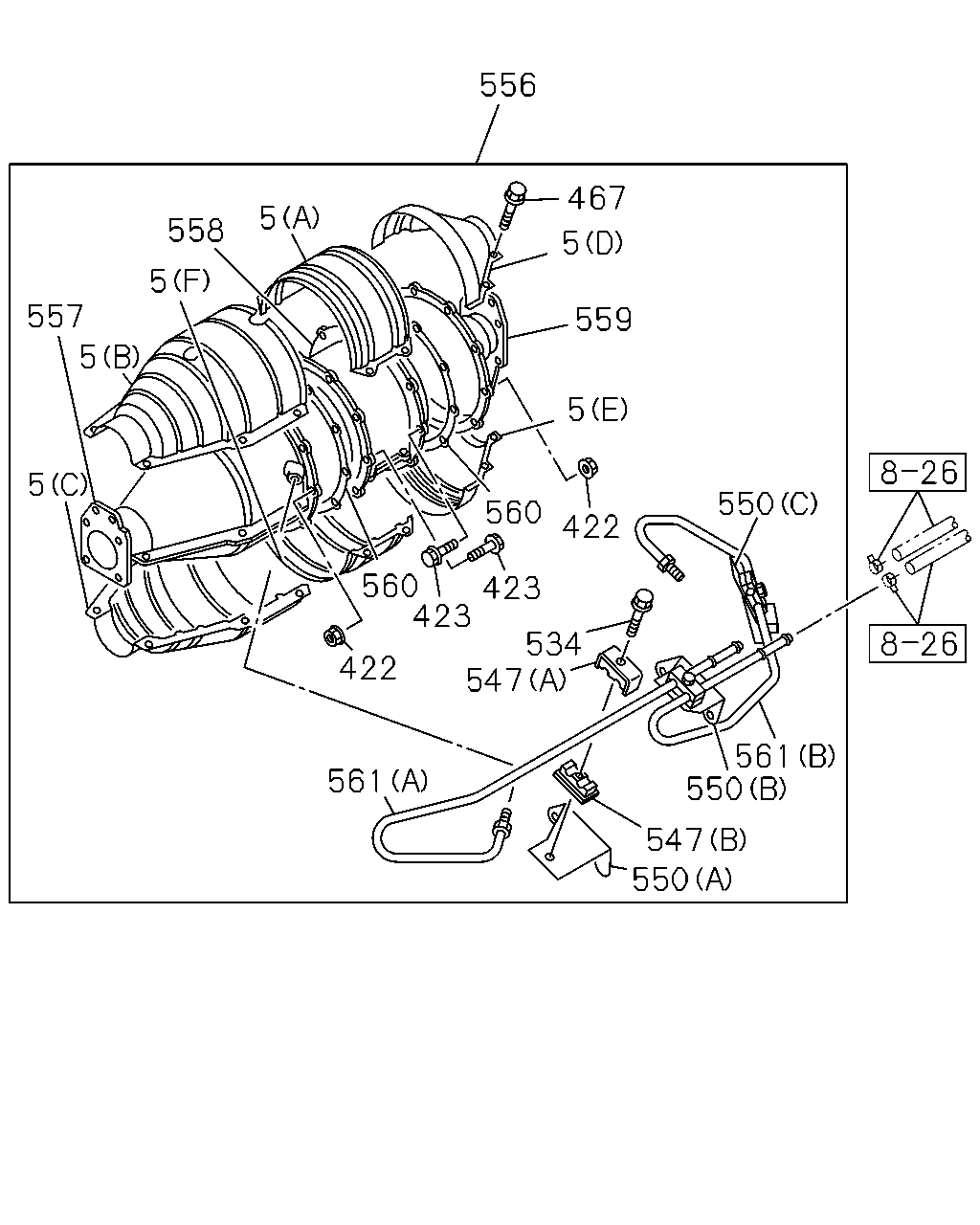

556 467 5 558 5 5 557 559 5 5 5 550 560 422 560 423 423 534 547 422 561 550 561 547 550

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	0710-0711	●
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	0712-	●	●
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	0710-0711	●
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	0712-	●	●
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	0710-0711	●
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	0712-	●	●
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	0710-0711	●
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	0712-	●	●
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	0710-0711	●
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	0712-	●	●
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	0710-0711	●
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	0712-	●	●
5	PROTECTOR; HEAT (G)	8-98073-436-0	01	1	0802-1406	●	●
5	PROTECTOR; HEAT	8-98255-001-0	01	1	1407-	●	●
422	NUT; PIPE M8 FLANGE	0-91180-108-0	20	1	0710-0711	●
422	NUT; PIPE M8 FLANGE	0-91180-108-0	20	1	0712-	●	●
423	BOLT; PIPE M8X35 FLANGE	0-28650-835-0	20	1	0710-0711	●
423	BOLT; PIPE M8X35 FLANGE	0-28650-835-0	20	1	0712-	●	●
467	BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0710-0711	●
467	BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0712-	●	●
534	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	03	1	0710-0711	●
534	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	03	1	0712-	●	●
547	CLIP; PIPE (A)	8-97381-635-0	03	1	0710-0711	●
547	CLIP; PIPE (A)	8-97381-635-0	03	1	0712-	●	●
547	CLIP; PIPE (B)	8-97381-636-0	03	1	0710-0711	●
547	CLIP; PIPE (B)	8-97381-636-0	03	1	0712-	●	●
550	BRACKET; DPD (A)	8-97611-083-0	01	1	0710-0711	●
550	BRACKET; DPD (A)	8-97611-083-0	01	1	0712-	●	●
550	BRACKET; DPD (B)	8-97611-084-0	01	1	0710-0711	●
550	BRACKET; DPD (B)	8-97611-084-0	01	1	0712-	●	●
550	BRACKET; DPD (C)	8-97611-085-0	01	1	0710-0711	●
550	BRACKET; DPD (C)	8-97611-085-0	01	1	0712-	●	●
556	DPD ASM	8-97613-331-3	01	1	0710-0711	●
556	DPD ASM	8-97613-331-6	01	1	0712-1010	●	●
556	DPD ASM	8-97622-883-3	01	1	1011-	●	●
557	CATALYST ASM	8-97608-055-2	01	1	0710-0711	●
557	CATALYST ASM	8-97608-055-7	01	1	0712-	●	●
558	FILTER ASM	8-97608-057-2	01	1	0710-0711	●
558	FILTER ASM	8-97608-057-3	01	1	0712-	●	●
559	COVER; RR	8-97611-078-0	01	1	0710-0711	●
559	COVER; RR	8-97611-078-0	01	1	0712-1010	●	●
559	COVER; RR	8-97622-887-0	01	1	1011-	●	●
560	GASKET; DPD	8-97611-080-0	02	1	0710-0711	●
560	GASKET; DPD	8-97611-080-0	02	1	0712-	●	●
561	PIPE; DPD (A)	8-97611-081-0	01	1	0710-0711	●
561	PIPE; DPD (A)	8-97611-081-0	01	1	0712-1010	●	●
561	PIPE; DPD (A)	8-97622-888-0	01	1	1011-	●	●
561	PIPE; DPD (B)	8-97611-082-0	01	1	0710-0711	●
561	PIPE; DPD (B)	8-97611-082-0	01	1	0712-1010	●	●
561	PIPE; DPD (B)	8-97622-889-0	01	1	1011-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
