1-41 — FUEL PIPING; CHASSIS (#58054) — 91 parça

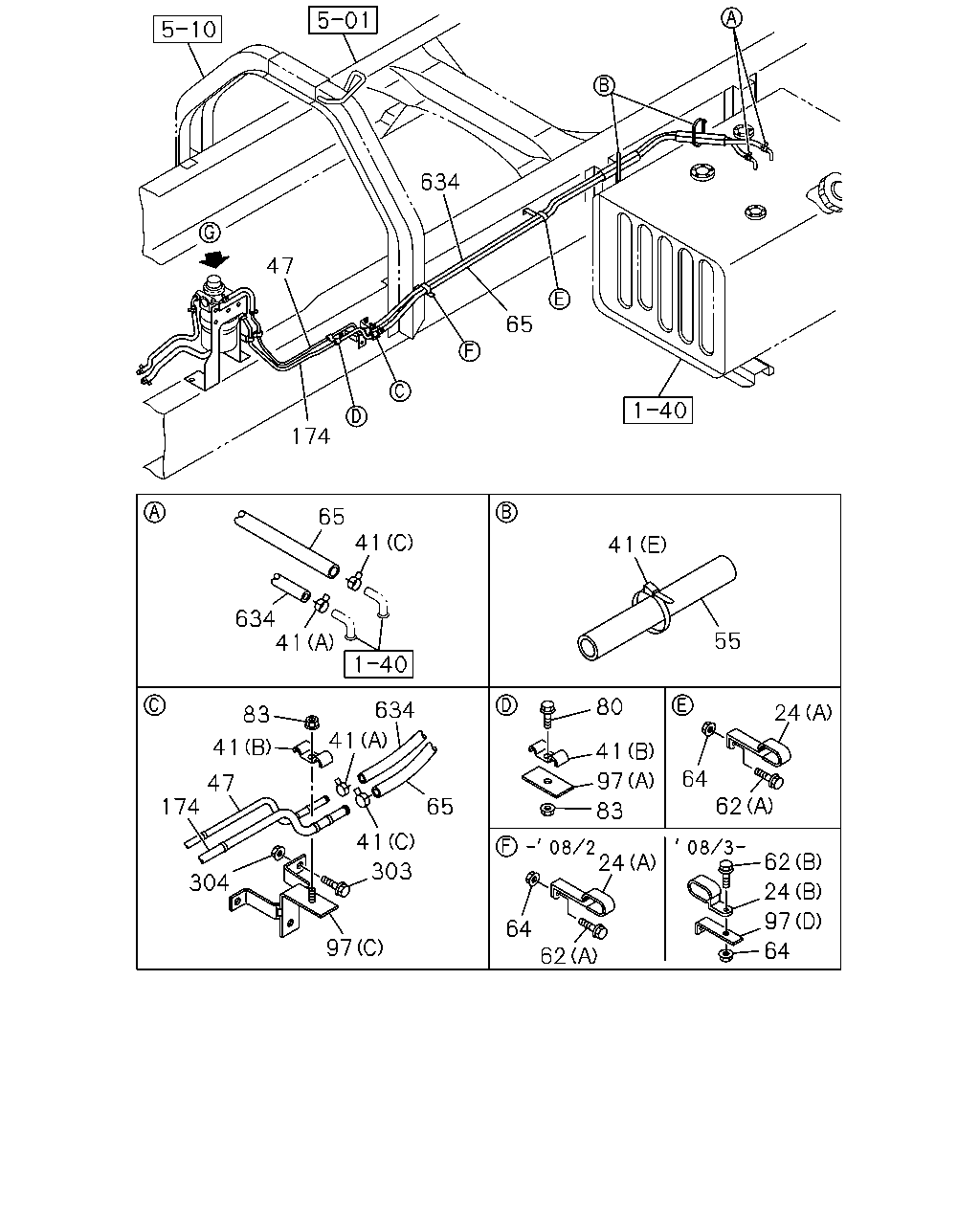

çizim 146777
634 47 65 174 65 41 41 634 41 55 80 634 24 83 41 41 41 64 62 97 47 174 65 83 41 24 62 303 304 24 97 64 62 97 64
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; FUEL HOSE
(A) ID=20 L=70 		1-09701-033-0 02 1 0712-0802 ●
24 CLIP; FUEL HOSE
(A) ID=20 L=70 		1-09701-033-0 01 1 0803- ●
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0803- ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 0712- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0712- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 0710-0710 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 0711-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 0712-0803 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 0804- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0712- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0712- ● ●
47 PIPE; FUEL,RETURN
L=717 		8-98086-241-0 01 1 0710-0711 ●
47 PIPE; FUEL,RETURN
L=717 		8-98086-241-0 01 1 0712- ● ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 0710-0710 ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0711-0711 ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0712-0803 ● ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 0804- ● ●
62 BOLT; CLIP FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0802 ●
62 BOLT; CLIP FIX
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0803- ●
62 BOLT; CLIP FIX
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0803- ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0712- ●
65 HOSE; FUEL,DELIVERY PIPE
L=860 SERVICED BY L=3000 		0-01260-300-0 01 1 0710- ●
65 HOSE; FUEL,DELIVERY PIPE
L=1600 SERVICED BY L=3000 		0-01260-300-0 01 1 0712- ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 03 1 0710-0711 ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 03 1 0712- ● ●
97 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 0710-0711 ●
97 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 0712- ● ●
97 BRACKET; CLIP
(B) 		8-98053-654-0 01 1 0710-0711 ●
97 BRACKET; CLIP
(B) 		8-98053-654-0 01 1 0712- ● ●
97 BRACKET; CLIP
(C) 		8-98076-024-0 01 1 0710-0711 ●
97 BRACKET; CLIP
(C) 		8-98076-024-0 01 1 0712- ● ●
97 BRACKET; CLIP
(D) L=68.5 		1-47475-591-0 01 1 0803- ●
174 PIPE; FUEL,FEED,FRT
L=724 		8-98086-240-0 01 1 0710-0711 ●
174 PIPE; FUEL,FEED,FRT
L=724 		8-98086-240-0 01 1 0712- ● ●
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0710-0710 ●
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0711-0711 ●
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0712-1008 ● ●
303 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1009- ● ●
303 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0803- ●
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0710-0711 ●
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0712- ● ●
634 HOSE; RUBBER RETURN
L=900 SERVICED BY L=3000 		0-01558-300-0 01 1 0710-0809 ●
634 HOSE; RUBBER RETURN
L=900 SERVICED BY L=3000 		0-01558-300-0 01 1 0810- ●
634 HOSE; RUBBER RETURN
L=1600 SERVICED BY L=3000 		0-01558-300-0 01 1 0712- ●

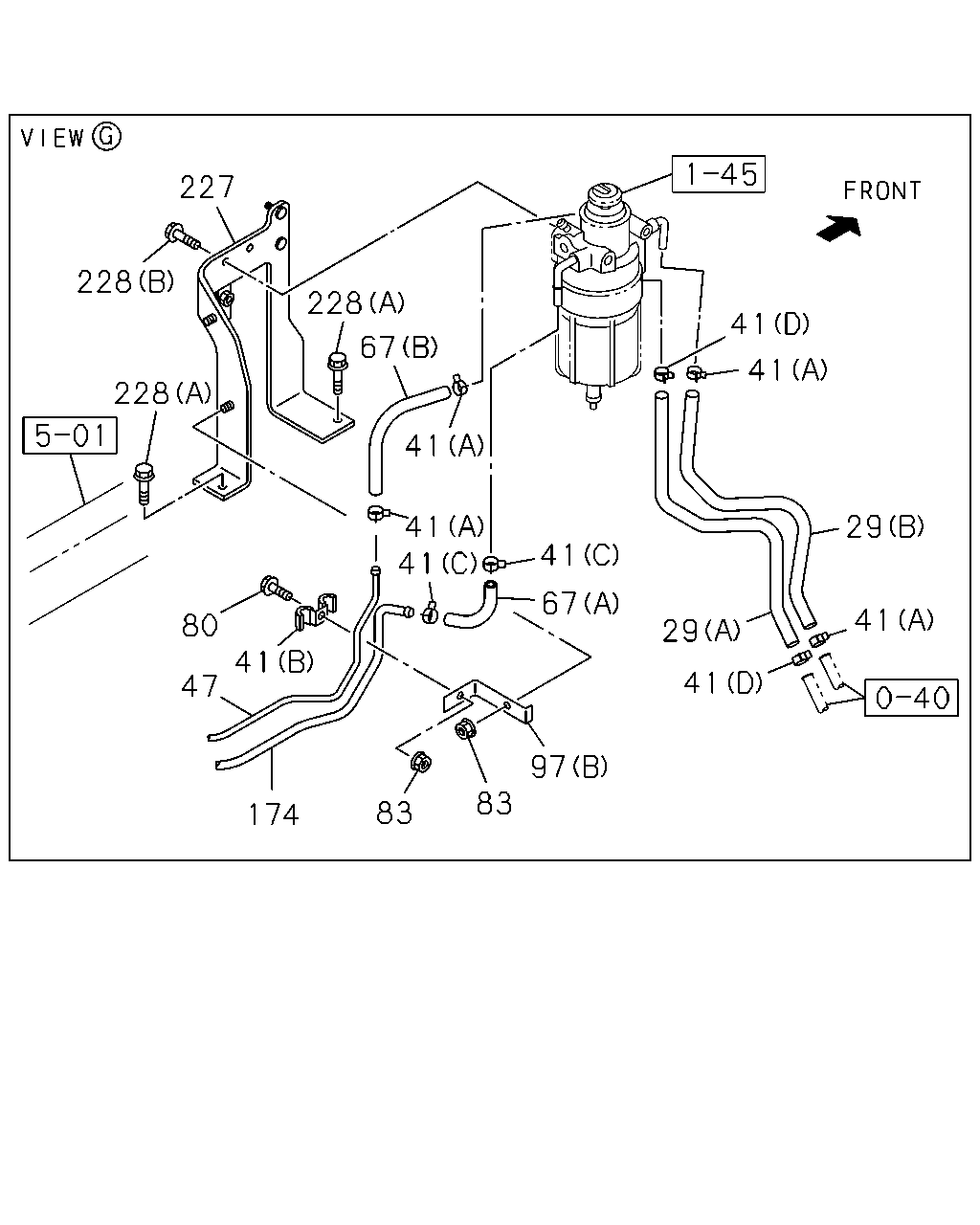

çizim 146784
228 227 228 80 47 174 41 83 83 97 67 41 41 41 41 67 228 29 41 41 29 41 41
BalonParca AdiParca NoAdetTipApplied Date A B
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 0710-0711 ●
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 0712- ● ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 0710-0711 ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 0712- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 0712- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0712- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 0710-0710 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 0711-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 0712-0803 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 0804- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0712- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0710-0711 ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0712- ● ●
47 PIPE; FUEL,RETURN
L=717 		8-98086-241-0 01 1 0710-0711 ●
47 PIPE; FUEL,RETURN
L=717 		8-98086-241-0 01 1 0712- ● ●
67 HOSE; FUEL,DELIVERY
(A) L=110 SERVICED BY L=3000 		0-01260-300-0 01 1 0710-0711 ●
67 HOSE; FUEL,DELIVERY
(A) L=110 SERVICED BY L=3000 		0-01260-300-0 01 1 0712- ● ●
67 HOSE; FUEL,DELIVERY
(B) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 0710-0711 ●
67 HOSE; FUEL,DELIVERY
(B) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 0712- ● ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 03 1 0710-0711 ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 03 1 0712- ● ●
97 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 0710-0711 ●
97 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 0712- ● ●
97 BRACKET; CLIP
(B) 		8-98053-654-0 01 1 0710-0711 ●
97 BRACKET; CLIP
(B) 		8-98053-654-0 01 1 0712- ● ●
97 BRACKET; CLIP
(C) 		8-98076-024-0 01 1 0710-0711 ●
97 BRACKET; CLIP
(C) 		8-98076-024-0 01 1 0712- ● ●
97 BRACKET; CLIP
(D) L=68.5 		1-47475-591-0 01 1 0803- ●
174 PIPE; FUEL,FEED,FRT
L=724 		8-98086-240-0 01 1 0710-0711 ●
174 PIPE; FUEL,FEED,FRT
L=724 		8-98086-240-0 01 1 0712- ● ●
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 0710-0711 ●
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 0712- ● ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0710-0711 ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0712- ● ●
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
