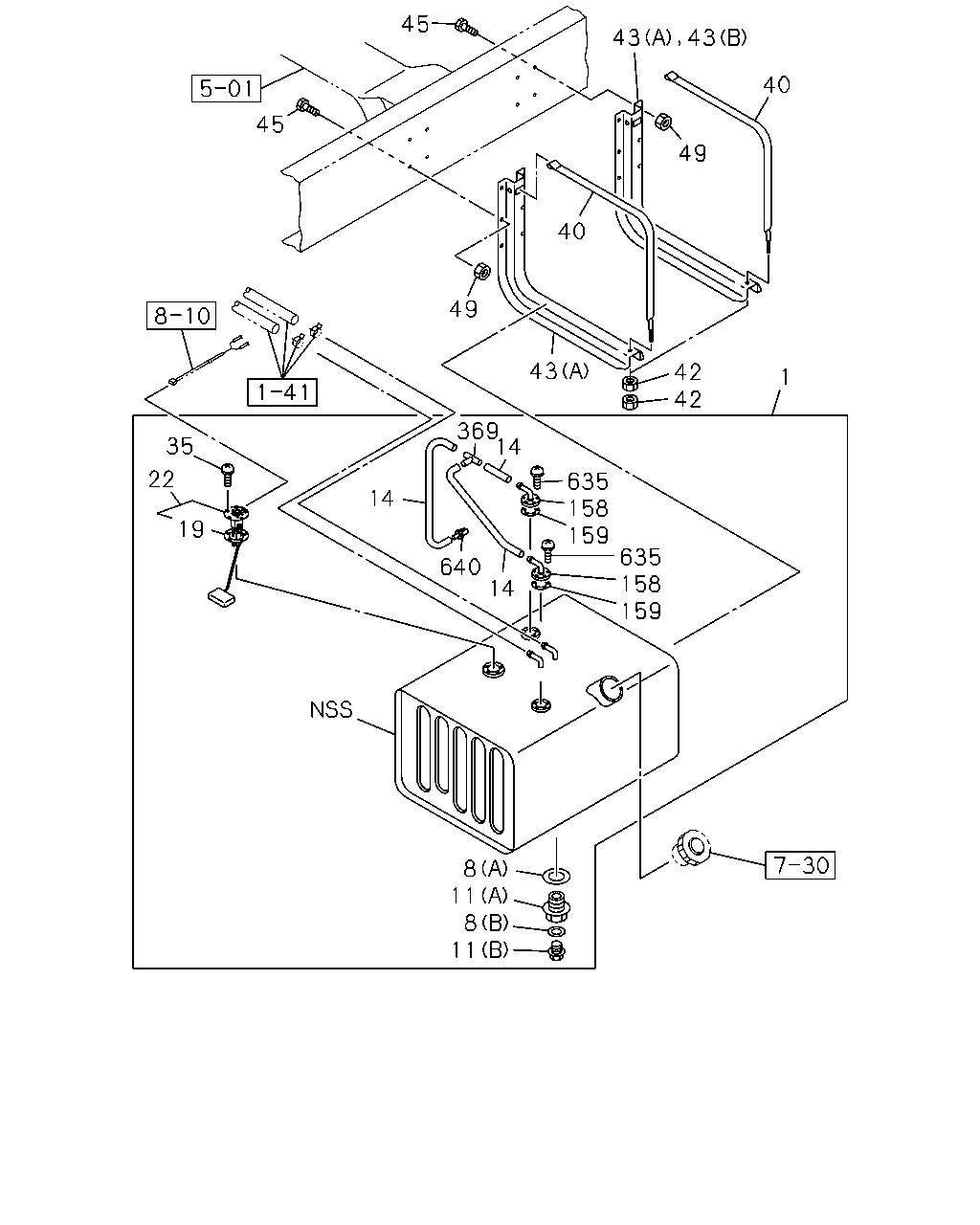

1 |
TANK; FUEL
855X603X453 200L
|
8-98097-036-0 |
01 |
1 |
0710-0710 |
● |
|
| |
1 |
TANK; FUEL
855X603X453 200L
|
8-98099-833-0 |
01 |
1 |
0710-0711 |
● |
|
| |
1 |
TANK; FUEL
855X603X453 200L
|
8-98099-833-0 |
01 |
1 |
0712-0809 |
● |
● |
| |
1 |
TANK; FUEL
855X603X453 200L
|
8-98122-995-1 |
01 |
1 |
0810-1211 |
● |
● |
| |
1 |
TANK; FUEL
885X603X453 200L
|
8-98187-002-1 |
01 |
1 |
1212- |
● |
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
(A)
ID=30
|
8-98067-041-0 |
01 |
1 |
0710-0711 |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
(A)
ID=30
|
8-98067-041-0 |
01 |
1 |
0712- |
● |
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
(B)
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
0710-0711 |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
(B)
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
0712- |
● |
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
(A)
M30
|
8-98067-038-0 |
01 |
1 |
0710-0711 |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
(A)
M30
|
8-98067-038-0 |
01 |
1 |
0712- |
● |
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
(B)
M14X14
|
9-09862-156-0 |
01 |
1 |
0710-0711 |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
(B)
M14X14
|
9-09862-156-0 |
01 |
1 |
0712- |
● |
● |
| |
14 |
HOSE; BREATHER,OUTLET
L=270
SERVICED BY L=3000
|
0-01256-300-0 |
02 |
1 |
0710-0711 |
● |
|
| |
14 |
HOSE; BREATHER,OUTLET
L=270
SERVICED BY L=3000
|
0-01256-300-0 |
02 |
1 |
0712-0809 |
● |
● |
| |
14 |
HOSE; BREATHER,OUTLET
L=90
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0810- |
● |
● |
| |
14 |
HOSE; BREATHER,OUTLET
L=600
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0710-0711 |
● |
|
| |
14 |
HOSE; BREATHER,OUTLET
L=600
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0712-1003 |
● |
● |
| |
14 |
HOSE; BREATHER,OUTLET
L=540
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
1004- |
● |
● |
| |
14 |
HOSE; BREATHER,OUTLET
L=170
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0810- |
● |
● |
| |
19 |
GASKET; FUEL TANK UNIT
|
5-83148-001-0 |
01 |
1 |
0710-0711 |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
|
5-83148-001-0 |
01 |
1 |
0712- |
● |
● |
| |
22 |
UNIT; FUEL TANK
|
8-98096-922-0 |
01 |
1 |
0710-0710 |
● |
|
| |
22 |
UNIT; FUEL TANK
|
8-98099-321-0 |
01 |
1 |
0710-0711 |
● |
|
| |
22 |
UNIT; FUEL TANK
|
8-98099-321-0 |
01 |
1 |
0712- |
● |
● |
| |
35 |
SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER
|
0-36220-512-0 |
05 |
1 |
0710-0711 |
● |
|
| |
35 |
SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER
|
0-36220-512-0 |
05 |
1 |
0712- |
● |
● |
| |
40 |
BELT; SUPPORT,FUEL TANK
|
8-98067-501-0 |
02 |
1 |
0710-0711 |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
|
8-98067-501-1 |
02 |
1 |
0712- |
● |
● |
| |
42 |
NUT; SUPPORT BELT
M12
|
0-91110-512-0 |
04 |
1 |
0710-0711 |
● |
|
| |
42 |
NUT; SUPPORT BELT
M12
|
0-91110-512-0 |
04 |
1 |
0712- |
● |
● |
| |
43 |
BRACKET; FUEL TANK
(A)
|
8-98010-733-0 |
02 |
1 |
0710-0711 |
● |
|
| |
43 |
BRACKET; FUEL TANK
(A)
|
8-98010-733-0 |
02 |
1 |
0712-0809 |
● |
● |
| |
43 |
BRACKET; FUEL TANK
(A)
|
8-98010-733-0 |
01 |
1 |
0810- |
● |
● |
| |
43 |
BRACKET; FUEL TANK
(B)
|
8-98122-884-0 |
01 |
1 |
0810- |
● |
● |
| |
45 |
BOLT; BRKT,FUEL TANK
M12X35 FLANGE
|
0-28651-235-0 |
08 |
1 |
0710-0711 |
● |
|
| |
45 |
BOLT; BRKT,FUEL TANK
M12X35 FLANGE
|
0-28651-235-0 |
08 |
1 |
0712- |
● |
● |
| |
49 |
NUT; BRKT
M12 FLANGE
|
0-91180-212-0 |
08 |
1 |
0710-0711 |
● |
|
| |
49 |
NUT; BRKT
M12 FLANGE
|
0-91180-212-0 |
08 |
1 |
0712- |
● |
● |
| |
158 |
VALVE; ROLL OVER & FLOAT
|
8-98067-039-0 |
02 |
1 |
0710-0711 |
● |
|
| |
158 |
VALVE; ROLL OVER & FLOAT
|
8-98067-039-0 |
02 |
1 |
0712- |
● |
● |
| |
159 |
SEAL; ROLL OVER & FLOAT VALVE
|
1-83149-003-0 |
02 |
1 |
0710-0711 |
● |
|
| |
159 |
SEAL; ROLL OVER & FLOAT VALVE
|
1-83149-003-0 |
02 |
1 |
0712- |
● |
● |
| |
369 |
JOINT; HOSE
|
8-98067-080-0 |
01 |
1 |
0710-0711 |
● |
|
| |
369 |
JOINT; HOSE
|
8-98067-080-0 |
01 |
1 |
0712- |
● |
● |
| |
635 |
SCREW; ROLL OVER & FLOAT VALVE
M5X12 W/LK WASHER
|
0-36220-512-0 |
10 |
1 |
0710-0711 |
● |
|
| |
635 |
SCREW; ROLL OVER & FLOAT VALVE
M5X12 W/LK WASHER
|
0-36220-512-0 |
10 |
1 |
0712- |
● |
● |
| |
640 |
VENTILATOR; HOSE,BREATHER
|
8-98092-398-0 |
01 |
1 |
0810- |
● |
● |
