◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11420 - FTR(AUST)EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#58051) — 150 parça

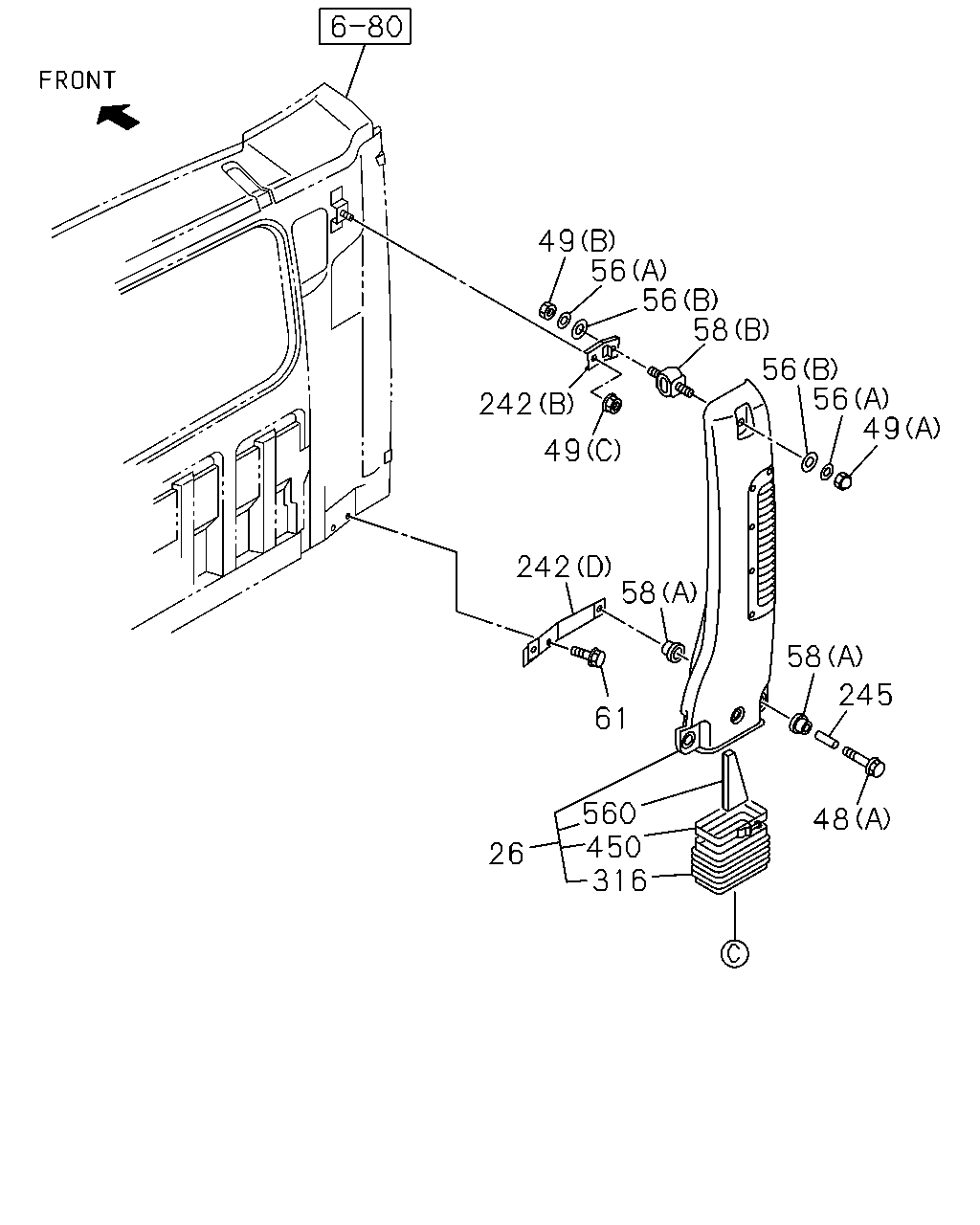

çizim 146775
49 56 56 58 56 56 49 242 49 242 58 58 245 61 560 450 316 48 26
BalonParca AdiParca NoAdetTipApplied Date
26 DUCT; AIR INT 8-98010-361-2 01 1 0710-
48 BOLT; AIR DUCT
(A) M10X26 		1-09030-044-1 02 1 0710-
48 BOLT; AIR DUCT
DBL CAB(FG**W*) (B) M10X25 FLANGE 		0-28651-025-0 04 1 0712-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 0710-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 0710-
49 NUT; AIR DUCT
SGL CAB(FG**M*) (C) M8 FLANGE 		8-94279-517-0 02 1 0710-
49 NUT; AIR DUCT
DBL CAB(FG**W*) (C) M8 FLANGE 		8-94279-517-0 01 1 0712-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 0710-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 0710-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0710-
58 SUPPORT; AIR INL DUCT
(B) 		1-14119-452-0 01 1 0710-0810
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 0811-
61 BOLT; BRKT,AIR DUCT
M8X20 FLANGE 		8-98061-920-0 02 1 0710-0807
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 0808-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 0710-
242 BRACKET; AIR DUCT
SGL CAB(FG**M*) (C) 		8-98019-302-1 01 1 0710-
242 BRACKET; AIR DUCT
SGL CAB(FG**M*) (A) 		8-98019-304-1 01 1 0710-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (D) 		8-98050-679-1 01 1 0712-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (E) 		8-98089-457-1 01 1 0712-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (F) 		8-98092-772-0 01 1 0712-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0710-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 0908-
450 CLAMP; HOSE 9-09915-504-1 01 1 0710-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 0710-

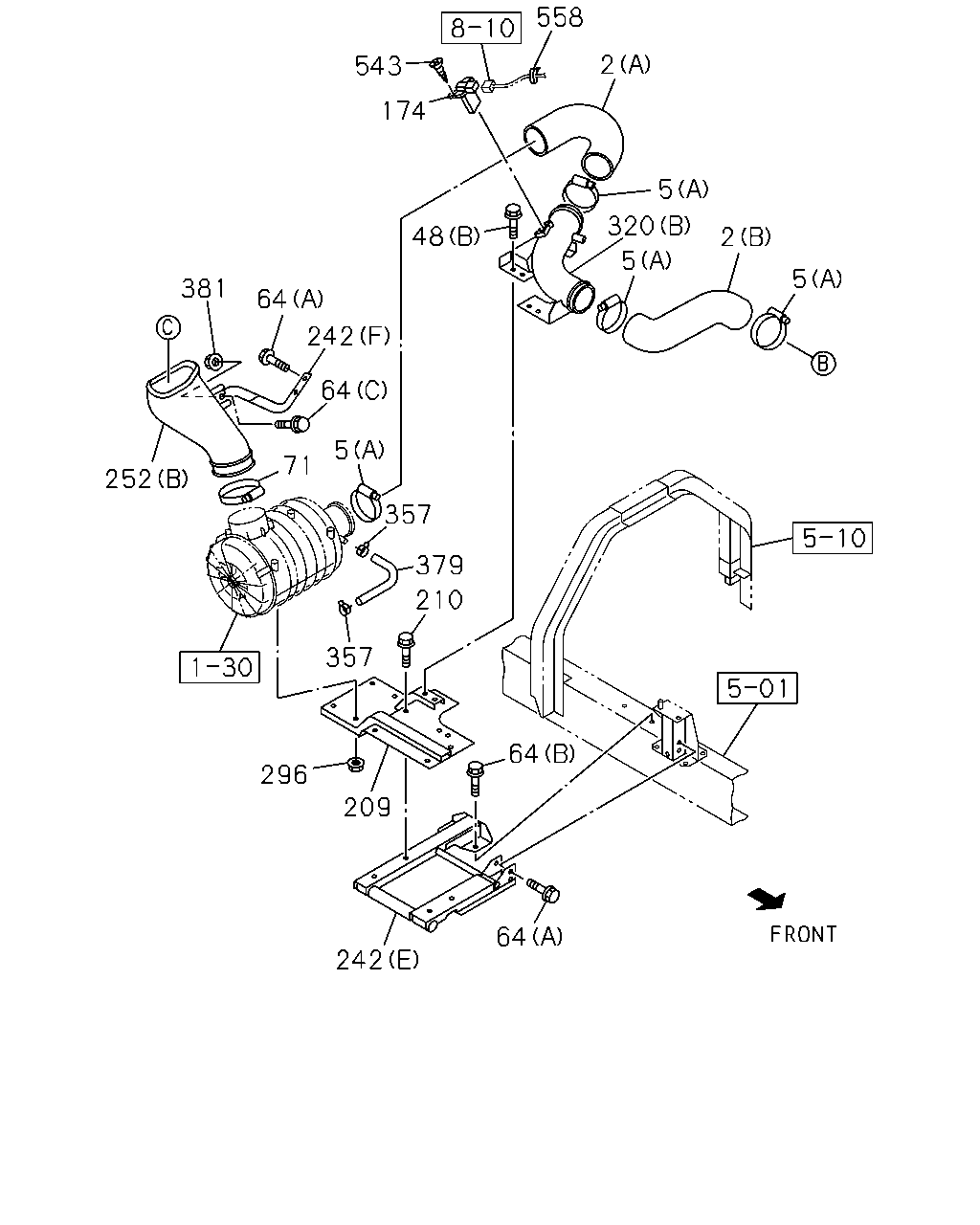

çizim 146776
558 2 543 174 5 320 48 2 5 5 381 64 242 64 5 71 252 357 379 210 357 64 296 209 64 242
BalonParca AdiParca NoAdetTipApplied Date
2 HOSE; ACL
DBL CAB(FG**W*) (A) 		8-98050-682-0 01 1 0712-
2 HOSE; ACL
DBL CAB(FG**W*) (B) 		8-98068-254-0 01 1 0712-
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0710-0711
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0710-0711
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0712-0812
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0712-0812
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 0901-1001
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1002-
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1002-
5 CLIP; AIR DUCT
(B) ID=114 		8-15178-030-0 01 1 0710-
5 CLIP; AIR DUCT
(A) ID=100-120 		8-98133-366-0 01 1 0901-1001
5 CLIP; AIR DUCT
DBL CAB(FG**W*) (A) ID=104-139 		1-09707-200-0 02 1 0712-0812
5 CLIP; AIR DUCT
DBL CAB(FG**W*) (A) ID=100-120 		8-98133-366-0 02 1 0901-0904
5 CLIP; AIR DUCT
DBL CAB(FG**W*) (A) ID=110-130 		8-98133-359-0 02 1 0905-1001
5 CLIP; AIR DUCT
DBL CAB(FG**W*) (A) ID=104-142 		1-09707-139-0 02 1 1002-
48 BOLT; AIR DUCT
(A) M10X26 		1-09030-044-1 02 1 0710-
48 BOLT; AIR DUCT
DBL CAB(FG**W*) (B) M10X25 FLANGE 		0-28651-025-0 04 1 0712-
64 BOLT; BRKT,AIR DUCT
DBL CAB(FG**W*) (A) M10X25 FLANGE 		0-28651-025-0 05 1 0712-
64 BOLT; BRKT,AIR DUCT
DBL CAB(FG**W*) (B) M10X35 FLANGE 		0-28651-035-0 02 1 0712-
64 BOLT; BRKT,AIR DUCT
DBL CAB(FG**W*) (C) M8X25 W/LK&PL WASHER 		1-09030-074-0 01 1 0712-0805
64 BOLT; BRKT,AIR DUCT
DBL CAB(FG**W*) (C) M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 0806-
71 CLIP; AIR DUCT
ID=104-139 		1-09707-200-0 01 1 0710-0812
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 0901-
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0710-
209 BRACKET; ACL
SGL CAB(FG**M*) 		8-98021-995-1 01 1 0710-
209 BRACKET; ACL
DBL CAB(FG**W*) 		8-98089-455-1 01 1 0712-
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0710-0711
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0712-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 0710-
242 BRACKET; AIR DUCT
SGL CAB(FG**M*) (C) 		8-98019-302-1 01 1 0710-
242 BRACKET; AIR DUCT
SGL CAB(FG**M*) (A) 		8-98019-304-1 01 1 0710-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (D) 		8-98050-679-1 01 1 0712-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (E) 		8-98089-457-1 01 1 0712-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (F) 		8-98092-772-0 01 1 0712-
252 DUCT; AIR INT
SGL CAB(FG**M*) (A) 		8-98012-861-1 01 1 0710-
252 DUCT; AIR INT
DBL CAB(FG**W*) (B) 		8-98050-681-0 01 1 0712-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0710-
320 HOSE; CONN,ACL
SGL CAB(FG**M*) (A) 		8-98012-859-2 01 1 0710-
320 HOSE; CONN,ACL
DBL CAB(FG**W*) (B) 		8-98092-944-1 01 1 0712-
357 CLIP; RUBBER HOSE
ID=26 		1-09707-091-0 02 1 0710-
379 HOSE; RUBBER
SGL CAB(FG**M*) 		8-98077-469-0 01 1 0710-
379 HOSE; RUBBER
DBL CAB(FG**W*) 		8-98081-489-0 01 1 0712-
381 NUT; BRKT,AIR DUCT
DBL CAB(FG**W*) M8 FLANGE 		0-91180-108-0 01 1 0712-
543 SCREW; SENSOR
M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 03 1 0710-0711
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 0712-
558 CLIP; AIR FLOW SENSOR
SGL CAB(FG**M*) L=250 		5-09707-030-1 02 1 0712-
558 CLIP; AIR FLOW SENSOR
DBL CAB(FG**W*) L=250 		5-09707-030-1 01 1 0712-

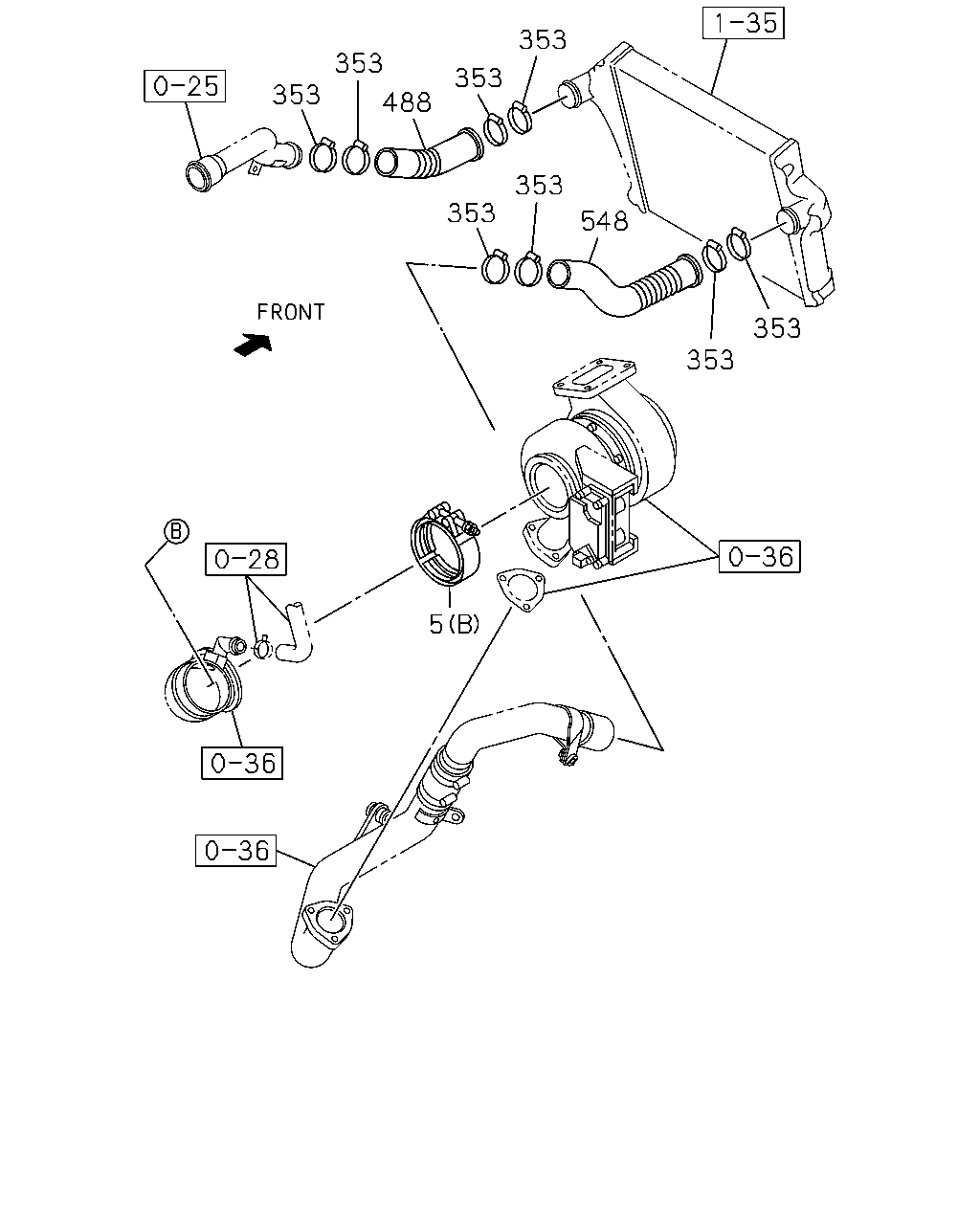

çizim 146780
353 353 353 353 488 353 353 548 353 353 5
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0710-0711
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0710-0711
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0712-0812
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0712-0812
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 0901-1001
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1002-
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1002-
5 CLIP; AIR DUCT
(B) ID=114 		8-15178-030-0 01 1 0710-
5 CLIP; AIR DUCT
(A) ID=100-120 		8-98133-366-0 01 1 0901-1001
5 CLIP; AIR DUCT
DBL CAB(FG**W*) (A) ID=104-139 		1-09707-200-0 02 1 0712-0812
5 CLIP; AIR DUCT
DBL CAB(FG**W*) (A) ID=100-120 		8-98133-366-0 02 1 0901-0904
5 CLIP; AIR DUCT
DBL CAB(FG**W*) (A) ID=110-130 		8-98133-359-0 02 1 0905-1001
5 CLIP; AIR DUCT
DBL CAB(FG**W*) (A) ID=104-142 		1-09707-139-0 02 1 1002-
353 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 08 1 0710-0811
353 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 08 1 0812-1001
353 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 08 1 1002-
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 0710-
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98065-044-0 01 1 0710-

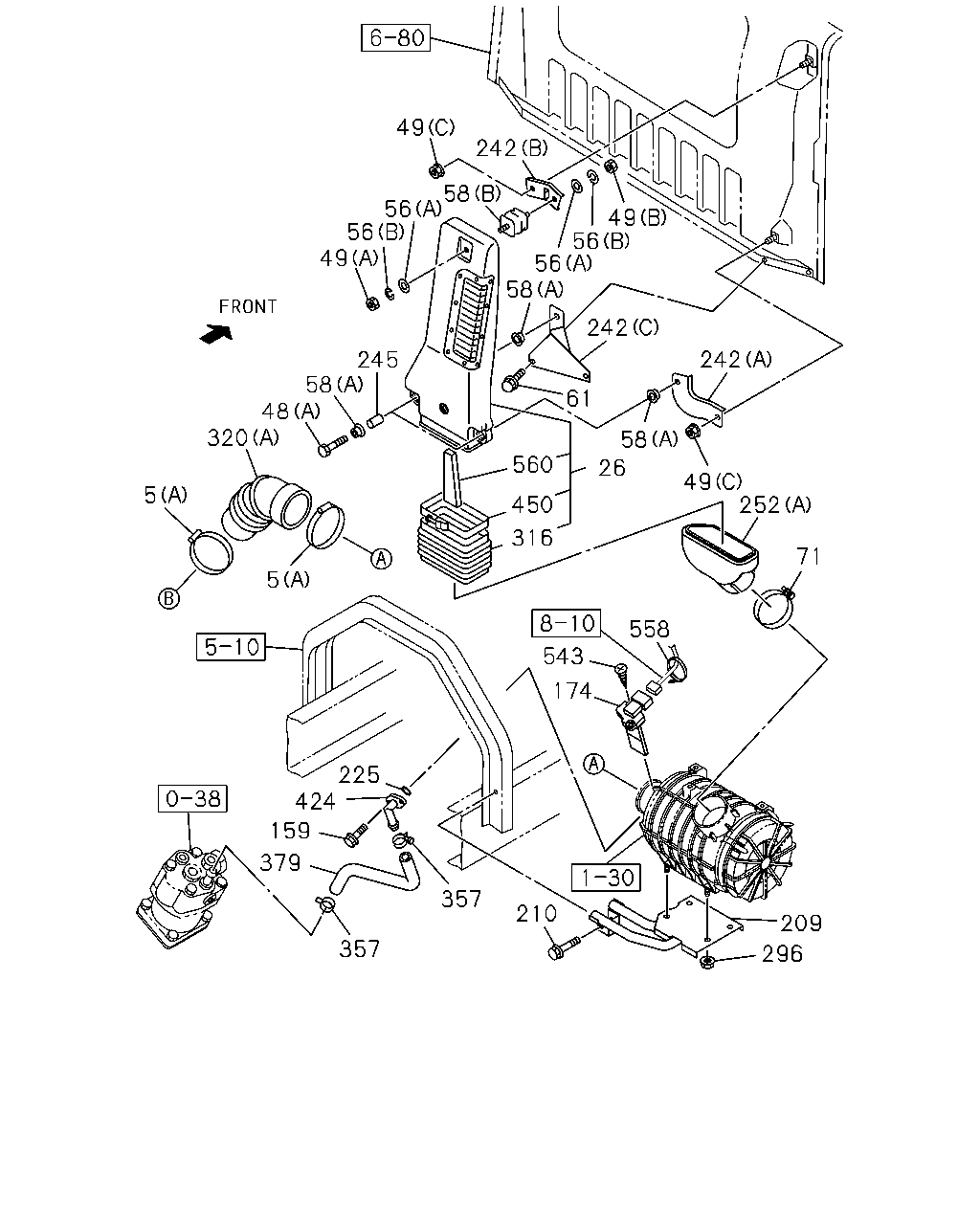

çizim 146782
49 242 58 56 56 49 49 56 56 58 242 242 245 61 58 48 320 58 560 26 49 252 5 450 316 71 5 558 543 174 225 424 159 379 357 210 209 357 296
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0710-0711
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0710-0711
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0712-0812
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0712-0812
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 0901-1001
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1002-
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1002-
5 CLIP; AIR DUCT
(B) ID=114 		8-15178-030-0 01 1 0710-
5 CLIP; AIR DUCT
(A) ID=100-120 		8-98133-366-0 01 1 0901-1001
5 CLIP; AIR DUCT
DBL CAB(FG**W*) (A) ID=104-139 		1-09707-200-0 02 1 0712-0812
5 CLIP; AIR DUCT
DBL CAB(FG**W*) (A) ID=100-120 		8-98133-366-0 02 1 0901-0904
5 CLIP; AIR DUCT
DBL CAB(FG**W*) (A) ID=110-130 		8-98133-359-0 02 1 0905-1001
5 CLIP; AIR DUCT
DBL CAB(FG**W*) (A) ID=104-142 		1-09707-139-0 02 1 1002-
26 DUCT; AIR INT 8-98010-361-2 01 1 0710-
48 BOLT; AIR DUCT
(A) M10X26 		1-09030-044-1 02 1 0710-
48 BOLT; AIR DUCT
DBL CAB(FG**W*) (B) M10X25 FLANGE 		0-28651-025-0 04 1 0712-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 0710-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 0710-
49 NUT; AIR DUCT
SGL CAB(FG**M*) (C) M8 FLANGE 		8-94279-517-0 02 1 0710-
49 NUT; AIR DUCT
DBL CAB(FG**W*) (C) M8 FLANGE 		8-94279-517-0 01 1 0712-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 0710-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 0710-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0710-
58 SUPPORT; AIR INL DUCT
(B) 		1-14119-452-0 01 1 0710-0810
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 0811-
61 BOLT; BRKT,AIR DUCT
M8X20 FLANGE 		8-98061-920-0 02 1 0710-0807
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 0808-
71 CLIP; AIR DUCT
ID=104-139 		1-09707-200-0 01 1 0710-0812
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 0901-
159 BOLT; AIR PIPE
SGL CAB(FG**M*) M6X16 FLANGE 		0-28050-616-0 02 1 0710-
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0710-
209 BRACKET; ACL
SGL CAB(FG**M*) 		8-98021-995-1 01 1 0710-
209 BRACKET; ACL
DBL CAB(FG**W*) 		8-98089-455-1 01 1 0712-
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0710-0711
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0712-
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 0710-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 0710-
242 BRACKET; AIR DUCT
SGL CAB(FG**M*) (C) 		8-98019-302-1 01 1 0710-
242 BRACKET; AIR DUCT
SGL CAB(FG**M*) (A) 		8-98019-304-1 01 1 0710-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (D) 		8-98050-679-1 01 1 0712-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (E) 		8-98089-457-1 01 1 0712-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (F) 		8-98092-772-0 01 1 0712-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0710-
252 DUCT; AIR INT
SGL CAB(FG**M*) (A) 		8-98012-861-1 01 1 0710-
252 DUCT; AIR INT
DBL CAB(FG**W*) (B) 		8-98050-681-0 01 1 0712-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0710-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 0908-
320 HOSE; CONN,ACL
SGL CAB(FG**M*) (A) 		8-98012-859-2 01 1 0710-
320 HOSE; CONN,ACL
DBL CAB(FG**W*) (B) 		8-98092-944-1 01 1 0712-
357 CLIP; RUBBER HOSE
ID=26 		1-09707-091-0 02 1 0710-
379 HOSE; RUBBER
SGL CAB(FG**M*) 		8-98077-469-0 01 1 0710-
379 HOSE; RUBBER
DBL CAB(FG**W*) 		8-98081-489-0 01 1 0712-
424 PIPE; AIR,INL
SGL CAB(FG**M*) 		8-98081-834-0 01 1 0710-
450 CLAMP; HOSE 9-09915-504-1 01 1 0710-
543 SCREW; SENSOR
M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 03 1 0710-0711
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 0712-
558 CLIP; AIR FLOW SENSOR
SGL CAB(FG**M*) L=250 		5-09707-030-1 02 1 0712-
558 CLIP; AIR FLOW SENSOR
DBL CAB(FG**W*) L=250 		5-09707-030-1 01 1 0712-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 0710-
