3-70 — BRAKE PIPING; AIR,AIR MASTER (#5805) — 994 parça

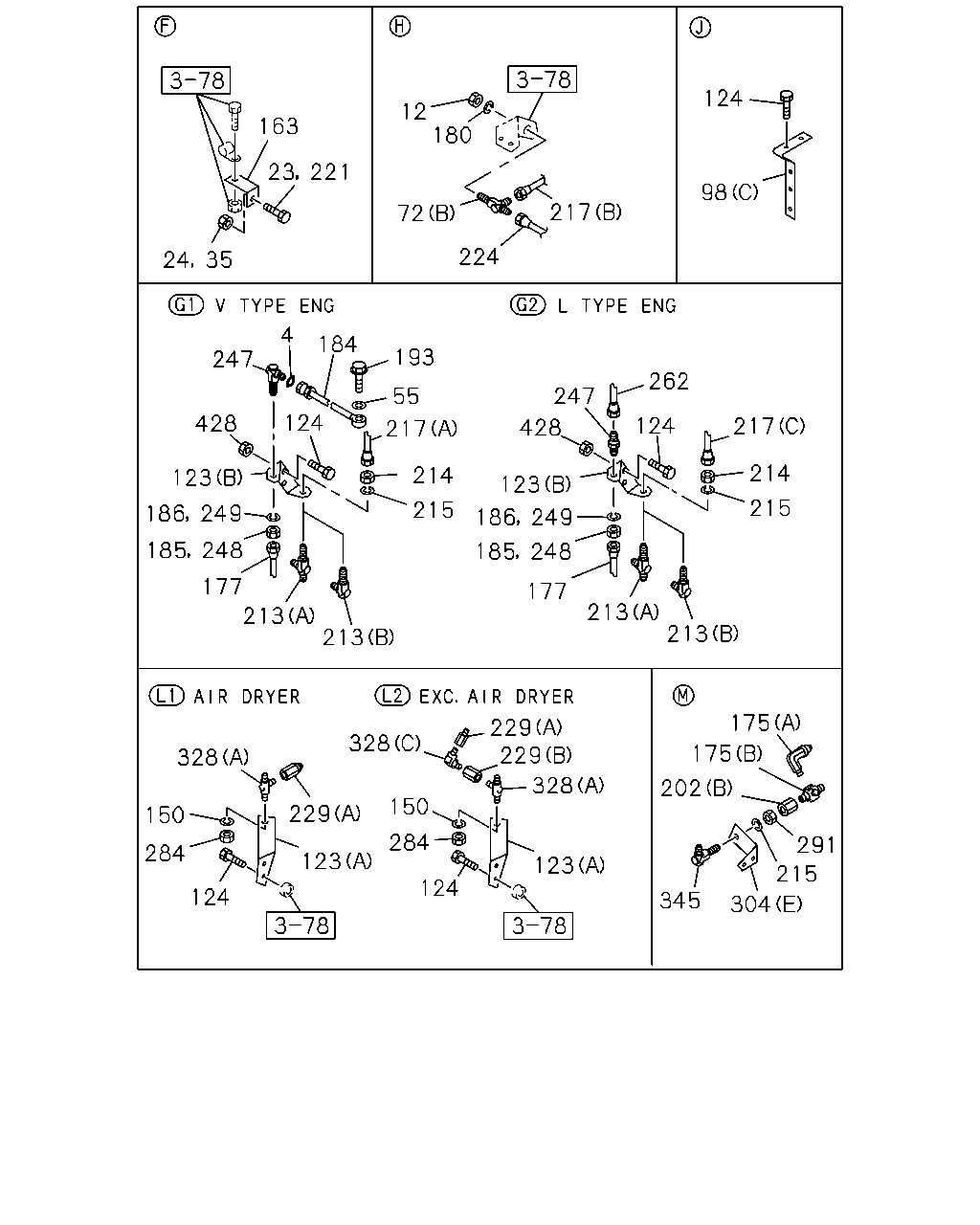

çizim 5866
124 12 180 163 23 221 98 217 72 224 24 35 4 184 193 247 262 247 55 124 428 124 217 428 217 214 214 123 123 215 215 186 249 249 186 185 248 185 248 177 177 213 213 213 213 175 229 229 328 175 328 328 202 150 229 150 284 291 284 123 123 215 124 124 345 304
BalonParca AdiParca NoAdetTipApplied Date A B
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 9603-9606 ● ●
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 9607-9706 ● ●
4 GASKET; FLEX HOSE
V TYPE ENG<91L> ID=11 OD=18 		9-09572-510-0 01 1 9607-9706 ● ●
4 GASKET; FLEX HOSE
V TYPE ENG<91L> ID=11 OD=18 		9-09572-510-0 01 1 9707- ● ●
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 9707- ● ●
12 NUT; UNION
ISUZU M/T<X9A>,FULLER M/T<X9B> M20 		9-99111-420-0 01 1 9603- ● ●
12 NUT; UNION
V TYPE ENG<91L> M12 		9-09840-280-0 01 1 9703- ● ●
12 NUT; UNION
ZF M/T<X9E> M14 		9-99111-414-0 01 1 9603- ● ●
23 BOLT; BRKT,AIR PIPE
L TYPE ENG<90L> EXC. AIR DRYER<PS7> M8X30 FLANGE 		0-28080-830-0 01 1 9603-9606 ● ●
23 BOLT; BRKT,AIR PIPE
L TYPE ENG<90L> EXC. AIR DRYER<PS7> M8X35 FLANGE 		0-28680-835-0 01 1 9607-9607 ● ●
24 NUT; BRKT,AIR PIPE
L TYPE ENG<90L> EXC. AIR DRYER<PS7> M8 		9-09110-408-0 01 1 9603-9606 ● ●
24 NUT; BRKT,AIR PIPE
L TYPE ENG<90L> EXC. AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 9607-9607 ● ●
35 NUT; BRKT
EXC. AIR DRYER<PS7> M8 		9-09110-508-0 01 1 9603-9606 ● ●
35 NUT; BRKT
EXC. AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 9607- ● ●
55 GASKET; AIR PIPE
V TYPE ENG<91L> ID=14.2 OD=19.2 		1-09630-085-0 02 1 9603- ● ●
72 UNION; AIR PIPE
L TYPE ENG<90L> (A) 		1-09654-318-1 01 1 9603- ● ●
72 UNION; AIR PIPE
V TYPE ENG<91L> (A) 		1-09654-097-1 01 1 9603- ● ●
72 UNION; AIR PIPE
V TYPE ENG<91L> (B) 		1-09656-292-1 01 1 9603-9702 ● ●
72 UNION; AIR PIPE
V TYPE ENG<91L> (B) M12 3WAY 		9-09228-906-1 01 1 9703- ● ●
98 BRACKET; AIR PIPE
ISUZU M/T<X9A> (B) 		1-47477-190-2 02 1 9603-9612 ● ●
98 BRACKET; AIR PIPE
ISUZU M/T<X9A> (B) 		1-47477-840-0 02 1 9701-9908 ● ●
98 BRACKET; AIR PIPE
MJA7U M/T(X6G),MJA6A M/T(X6V) (B) 		1-47477-840-0 02 1 9909- ● ●
98 BRACKET; AIR PIPE
L TYPE ENG<90L> (C) 		1-47477-385-0 01 1 9603-9904 ● ●
98 BRACKET; AIR PIPE
L TYPE ENG<90L> (C) 		1-47477-471-0 01 1 9905- ● ●
98 BRACKET; AIR PIPE
ZF M/T<X9E> (A) 		1-47477-693-0 01 1 9603-9612 ● ●
98 BRACKET; AIR PIPE
ZF M/T<X9E> (A) 		1-47477-902-0 01 1 9701- ● ●
123 BRACKET; UNION
FULLER M/T<X9B> (C) 		1-47477-536-0 01 1 9603-9802 ●
123 BRACKET; UNION
FULLER M/T<X9B> (C) 		1-47477-536-0 01 1 9803-9904 ● ●
123 BRACKET; UNION
FULLER M/T<X9B> (C) 		1-47477-536-0 01 1 9905- ●
123 BRACKET; UNION
(B) 		1-47477-045-0 01 1 9603- ● ●
123 BRACKET; UNION
(A) 		1-47477-654-1 01 1 9603- ● ●
123 BRACKET; UNION
ISUZU M/T<X9A> (D) 		1-47477-187-0 01 1 9603- ● ●
123 BRACKET; UNION
ZF M/T<X9E> (E) 		1-47477-588-0 01 1 9603- ● ●
124 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ● ●
124 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9607- ● ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28080-830-0 02 1 9603-9606 ● ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 9607- ● ●
124 BOLT; BRKT
L TYPE ENG<90L> M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ● ●
124 BOLT; BRKT
L TYPE ENG<90L> M8X25 FLANGE 		0-28680-825-0 01 1 9607- ● ●
150 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 9603- ● ●
163 BRACKET; AIR PIPE
EXC. AIR DRYER<PS7> L=55 		1-47475-304-0 01 1 9603- ● ●
175 CONNECTOR; AIR PIPE
(B) 		1-09650-070-3 01 1 9603- ● ●
175 CONNECTOR; AIR PIPE
(A) DIN12 & R1/4 ELBOW 		1-09660-655-1 01 1 9603-9904 ● ●
175 CONNECTOR; AIR PIPE
(A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 9905- ● ●
177 PIPE; AIR,UNION TO UNION
L=568 SERVICED BY L=600 		1-47428-809-0 01 1 9603-9904 ● ●
177 PIPE; AIR,UNION TO UNION
L=565 		1-49121-898-0 01 1 9905-9908 ● ●
177 PIPE; AIR,UNION TO UNION
L=548 		1-49122-243-0 01 1 9909- ● ●
180 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 01 1 9603- ● ●
180 WASHER; LK,UNION
V TYPE ENG<91L> ID=20.2 		9-09150-520-0 01 1 9603-9702 ● ●
180 WASHER; LK,UNION
V TYPE ENG<91L> ID=12.2 		9-09150-512-0 01 1 9703- ● ●
184 HOSE; FLEX,AIR GOV
V TYPE ENG<91L> L=370 		0-07532-370-1 01 1 9603- ● ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9603-9711 ● ●
185 NUT; FLEX HOSE,AIR GOV
L TYPE ENG<90L> M12 		9-09840-280-0 01 1 9712- ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9603-9711 ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
L TYPE ENG<90L> ID=12.2 		9-09150-512-0 01 1 9712- ● ●
193 BOLT; EYE,FLEX HOSE,GOV LINE
V TYPE ENG<91L> M14X27 FLANGE 		1-09675-086-0 01 1 9603- ● ●
202 ADAPTER
DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9603-9702 ●
202 ADAPTER
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9703-9904 ●
202 ADAPTER
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9905-0005 ●
202 ADAPTER
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0006-0006 ●
202 ADAPTER
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006- ●
202 ADAPTER
DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 9603-9702 ●
202 ADAPTER
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 9703-0005 ●
202 ADAPTER
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0006- ●
202 ADAPTER
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9603-9904 ● ●
202 ADAPTER
ISUZU M/T<X9A>,ZF M/T<X9E> (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9603-9904 ● ●
202 ADAPTER
(A) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9905-0007 ● ●
202 ADAPTER
ISUZU M/T<X9A>,ZF M/T<X9E> (A) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9905-0007 ● ●
202 ADAPTER
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008- ● ●
202 ADAPTER
ISUZU M/T<X9A>,ZF M/T<X9E> (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008- ● ●
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) (A) M12 3WAY 		9-09228-906-1 01 1 9603- ●
213 UNION; AIR PIPE
V TYPE ENG<91L> FULL FLOATING CAB(W16) (A) M12 3WAY 		9-09228-906-1 01 1 9603- ●
213 UNION; AIR PIPE
EXC. FULL FLOATING CAB(W16) (B) M12 ELBOW 		9-09225-206-1 01 1 9603- ● ●
213 UNION; AIR PIPE
L TYPE ENG<90L> FULL FLOATING CAB(W16) (B) M12 ELBOW 		9-09225-206-1 01 1 9603- ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 9603- ● ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 01 1 9603- ● ●
217 PIPE; VAC,UNION TO MAG VLV
L TYPE ENG<90L> (C) L=1670 SERVICED BY L=1700 		1-47426-357-0 01 1 9603-9609 ● ●
217 PIPE; VAC,UNION TO MAG VLV
L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (C) L=1670 SERVICED BY L=1700 		1-47426-357-0 01 1 9610-9701 ● ●
217 PIPE; VAC,UNION TO MAG VLV
L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (C) L=1663 SERVICED BY L=1700 		1-47428-821-0 01 1 9702-9706 ● ●
217 PIPE; VAC,UNION TO MAG VLV
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (C) L=1663 SERVICED BY L=1700 		1-47428-821-0 01 1 9707-9904 ● ●
217 PIPE; VAC,UNION TO MAG VLV
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C) L=1663 SERVICED BY L=1700 		1-47428-821-0 01 1 9905-9909 ● ●
217 PIPE; VAC,UNION TO MAG VLV
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C) L=666 		1-49121-249-0 01 1 9910-9910 ● ●
217 PIPE; VAC,UNION TO MAG VLV
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C) L=1643 		1-49122-249-0 01 1 9911- ● ●
217 PIPE; VAC,UNION TO MAG VLV
V TYPE ENG<91L> (B) L=748 SERVICED BY L=800 		1-47428-812-0 01 1 9603-9702 ● ●
217 PIPE; VAC,UNION TO MAG VLV
V TYPE ENG<91L> (B) L=752 SERVICED BY L=800 		1-47428-812-0 01 1 9703-9904 ● ●
217 PIPE; VAC,UNION TO MAG VLV
V TYPE ENG<91L> (A) L=620 		1-49121-778-0 01 1 9905- ● ●
217 PIPE; VAC,UNION TO MAG VLV
V TYPE ENG<91L> (A) L=336 		1-47499-145-0 01 1 9603-9904 ● ●
217 PIPE; VAC,UNION TO MAG VLV
V TYPE ENG<91L> (B) L=552 		1-49121-876-0 01 1 9905- ● ●
221 BOLT; BRKT
EXC. AIR DRYER<PS7> M8X30 FLANGE 		0-28080-830-0 01 1 9603-9606 ● ●
221 BOLT; BRKT
EXC. AIR DRYER<PS7> M8X35 FLANGE 		0-28680-835-0 01 1 9607- ● ●
221 BOLT; BRKT
DUAL AIR GAUGE<UG2> ZF M/T<X9E> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9603-9904 ● ●
221 BOLT; BRKT
DUAL AIR GAUGE<UG2> ZF M/T<X9E> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905-9912 ● ●
221 BOLT; BRKT
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905-9912 ●
221 BOLT; BRKT
DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0001- ●
221 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0001- ●
221 BOLT; BRKT
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0001- ●
221 BOLT; BRKT
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0001- ●
224 PIPE; AIR,UNION TO FLEX HOSE
V TYPE ENG<91L> L=480 SERVICED BY L=500 		1-47428-807-0 01 1 9603-9702 ● ●
224 PIPE; AIR,UNION TO FLEX HOSE
V TYPE ENG<91L> L=494 SERVICED BY L=500 		1-47428-807-0 01 1 9703- ● ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9603-9904 ● ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9905-0005 ● ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006- ● ●
229 ADAPTER; NYLON TUBE
EXC. AIR DRYER<PS7> (B) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 9603- ● ●
247 UNION; AIR PIPE
L TYPE ENG<90L> M12 L=66.5 		9-09223-306-1 01 1 9603- ● ●
247 UNION; AIR PIPE
V TYPE ENG<91L> M12 		1-09654-087-1 01 1 9603- ● ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 9603- ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 9603- ● ●
262 PIPE; AIR,UNION TO FLEX
6WG1 TC-N(71L) 		1-49116-729-0 01 1 9707-9904 ●
262 PIPE; AIR,UNION TO FLEX
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> L=896 		1-49121-787-0 01 1 9905- ● ●
262 PIPE; AIR,UNION TO FLEX
6WA1 TC-S(56L) L=871 		1-49114-257-0 01 1 9603-9804 ● ●
262 PIPE; AIR,UNION TO FLEX
6WA1 TC-C(55L),6WA1 TC-S(56L) L=871 		1-49114-257-0 01 1 9805-9904 ● ●
262 PIPE; AIR,UNION TO FLEX
L TYPE ENG<90L> CAB UP +110MM<TGG> 		1-49121-783-0 01 1 9905- ● ●
284 NUT; UNION
M12 		9-99111-412-0 01 1 9603- ● ●
291 NUT; UNION
M12 		9-09840-280-0 01 1 9603- ● ●
304 BRACKET; UNION
DUAL AIR GAUGE<UG2> (A) 		1-71117-211-0 01 1 9603- ●
304 BRACKET; UNION
(E) 		1-47476-556-0 01 1 9603- ● ●
304 BRACKET; UNION
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (C) 		1-47477-183-1 01 1 9905- ● ●
304 BRACKET; UNION
FULLER M/T<X9B> (B) 		1-47477-405-0 01 1 9803-9904 ● ●
304 BRACKET; UNION
FULLER M/T<X9B> (B) 		1-47477-405-0 01 1 9905- ●
304 BRACKET; UNION
ISUZU M/T<X9A> (C) 		1-47477-182-1 01 1 9603-9904 ● ●
304 BRACKET; UNION
ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C) 		1-47477-182-1 01 1 9905- ● ●
304 BRACKET; UNION
ZF M/T<X9E> (D) 		1-47477-436-0 01 1 9603-9704 ● ●
304 BRACKET; UNION
ZF M/T<X9E> (D) 		1-47477-757-1 01 1 9705- ● ●
304 BRACKET; UNION
(A) 		1-71117-210-0 01 1 9603- ●
328 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> (B) 		1-47470-442-0 01 1 9603- ●
328 UNION; AIR PIPE
(A) M12 2WAY 		1-09654-059-2 01 1 9603- ● ●
328 UNION; AIR PIPE
EXC. AIR DRYER<PS7> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9603- ● ●
345 UNION; AIR PIPE 1-09654-280-1 01 1 9603- ● ●
428 NUT; BRKT
M8 		9-09110-508-0 02 1 9603-9605 ● ●
428 NUT; BRKT
M8 		9-09110-508-0 02 1 9603-9605 ● ●
428 NUT; BRKT
M8 		9-09110-508-0 02 1 9606-9606 ● ●
428 NUT; BRKT
V TYPE ENG<91L> M8 		9-09110-508-0 02 1 9606-9606 ● ●
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607- ● ●
428 NUT; BRKT
V TYPE ENG<91L> M8 FLANGE 		0-91150-108-0 02 1 9607- ● ●

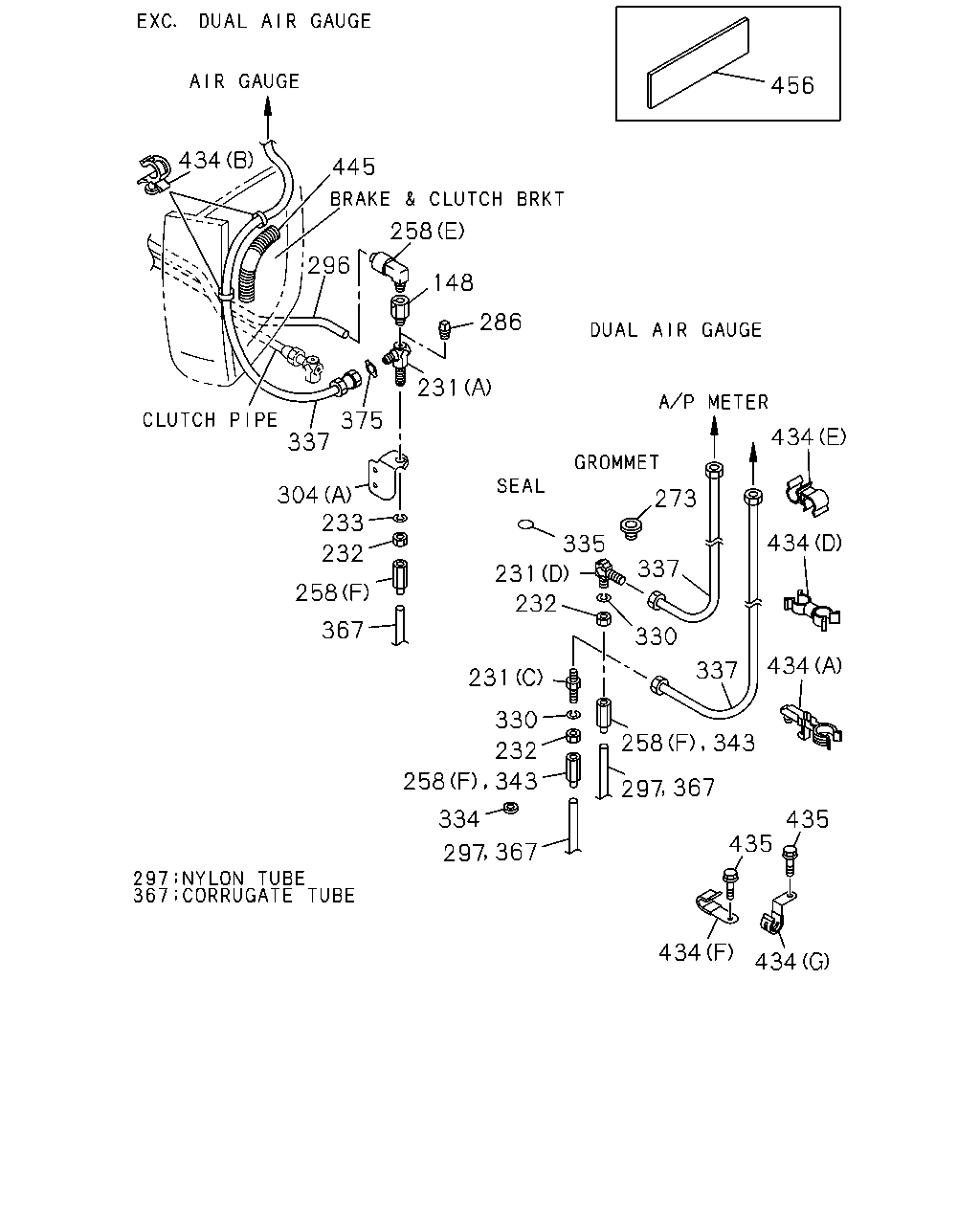

çizim 5867
456 434 445 258 296 148 286 231 375 337 434 304 233 273 434 335 232 337 231 258 232 367 330 434 337 231 330 232 334 435 435 434 434 297 367 258 343 297 367 343 258
BalonParca AdiParca NoAdetTipApplied Date A B
148 CONNECTOR; UNION
ZF M/T<X9E> 		8-94338-417-0 01 1 9603-9912 ● ●
148 CONNECTOR; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) 		8-94338-417-0 01 1 0001- ● ●
231 UNION; AIR PIPE
ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),DUAL AIR GAUGE<UG2> (A) 		1-09654-356-0 01 1 9603-9904 ●
231 UNION; AIR PIPE
ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),DUAL AIR GAUGE<UG2> (A) 		1-09654-356-0 01 1 9905-9912 ●
231 UNION; AIR PIPE
TRANSMISSION-ZF 8S151 OD(Y3N) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),DUAL AIR GAUGE<UG2> (A) 		1-09654-356-0 01 1 0001- ●
231 UNION; AIR PIPE
ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),DUAL AIR GAUGE<UG2> (A) 		1-09654-356-0 01 1 0001- ●
231 UNION; AIR PIPE
ZF M/T<X9E> EXC. DUAL AIR GAUGE<UG2> (A) 		1-09656-682-0 01 1 9603-9912 ●
231 UNION; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),DUAL AIR GAUGE<UG2> (A) 		1-09656-682-0 01 1 0001- ●
231 UNION; AIR PIPE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DUAL AIR GAUGE<UG2> (A) 		1-09656-682-0 01 1 0001- ●
231 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> (B) 		1-09656-713-2 01 1 9603-9912 ● ●
231 UNION; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-09656-713-2 01 1 0001- ● ●
231 UNION; AIR PIPE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (B) 		1-09656-713-2 01 1 0001- ● ●
231 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> (D) M10 ELBOW 		1-09654-186-2 01 1 9603- ●
231 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> (C) M10 STRAIGHT 		1-09654-361-0 01 1 9603- ●
231 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> (A) 		1-09654-347-0 01 1 9603- ●
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> M10 H=8 		1-09400-029-0 01 1 9603-9912 ● ●
232 NUT; UNION,AIR PIPE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9603-9912 ● ●
232 NUT; UNION,AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0001- ● ●
232 NUT; UNION,AIR PIPE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0001- ● ●
232 NUT; UNION,AIR PIPE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0001- ● ●
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 02 1 9603- ●
233 WASHER; LK,UNION,AIR PIPE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> ID=10.2 		9-09150-510-0 01 1 9603-9912 ● ●
233 WASHER; LK,UNION,AIR PIPE
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9603-9912 ● ●
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0001- ● ●
233 WASHER; LK,UNION,AIR PIPE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0001- ● ●
233 WASHER; LK,UNION,AIR PIPE
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0001- ● ●
258 CONNECTOR; NYLON TUBE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> (F) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9603-9811 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (F) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9603-9811 ● ●
258 CONNECTOR; NYLON TUBE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> (F) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9912 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (F) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9912 ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0001-0007 ● ●
258 CONNECTOR; NYLON TUBE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (F) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0001-0007 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (F) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0001-0007 ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (F) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (F) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9603-9608 ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9603-9608 ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9904 ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9904 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-0005 ● ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-0005 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A>,FULLER M/T<X9B> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-0005 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0006- ● ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0006- ● ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (D) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9603-9702 ● ●
258 CONNECTOR; NYLON TUBE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9603-9702 ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (D) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9703-9904 ● ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9905- ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (G) DIN12 & R1/4 ELBOW 		1-09660-655-1 01 1 9603-9904 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (G) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 9905- ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 9603-9904 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT 		1-09661-097-0 01 1 9905-0007 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9811 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9811 ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9812-9904 ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A>,FULLER M/T<X9B> TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9812-9904 ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9603-9904 ● ●
258 CONNECTOR; NYLON TUBE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9905- ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (H) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9603-9608 ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (H) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9603-9608 ●
258 CONNECTOR; NYLON TUBE
(F) 		1-09660-796-1 01 1 9603- ●
273 GROMMET
DUAL AIR GAUGE<UG2> 		1-09332-135-0 01 1 9603- ●
273 GROMMET 1-09332-102-0 01 1 9603- ●
286 PLUG; AIR PIPE
ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 9603-9904 ●
286 PLUG; AIR PIPE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 9603-9904 ●
286 PLUG; AIR PIPE
ZF M/T<X9E> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 9905-9912 ●
286 PLUG; AIR PIPE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 9905-9912 ●
286 PLUG; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 0001- ●
286 PLUG; AIR PIPE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 0001- ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=6 		1-09366-235-0 AR 1 9603- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9603- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9603- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 9603- ● ●
296 TUBE; NYLON
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0002- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9603- ● ●
297 TUBE; NYLON
DUAL AIR GAUGE<UG2> SERVICED BY L=2000 OD=6 		1-87410-081-0 02 1 9603- ●
304 BRACKET; UNION
DUAL AIR GAUGE<UG2> (A) 		1-71117-211-0 01 1 9603- ●
304 BRACKET; UNION
(E) 		1-47476-556-0 01 1 9603- ● ●
304 BRACKET; UNION
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (C) 		1-47477-183-1 01 1 9905- ● ●
304 BRACKET; UNION
FULLER M/T<X9B> (B) 		1-47477-405-0 01 1 9803-9904 ● ●
304 BRACKET; UNION
FULLER M/T<X9B> (B) 		1-47477-405-0 01 1 9905- ●
304 BRACKET; UNION
ISUZU M/T<X9A> (C) 		1-47477-182-1 01 1 9603-9904 ● ●
304 BRACKET; UNION
ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C) 		1-47477-182-1 01 1 9905- ● ●
304 BRACKET; UNION
ZF M/T<X9E> (D) 		1-47477-436-0 01 1 9603-9704 ● ●
304 BRACKET; UNION
ZF M/T<X9E> (D) 		1-47477-757-1 01 1 9705- ● ●
304 BRACKET; UNION
(A) 		1-71117-210-0 01 1 9603- ●
330 WASHER; LK,UNION,AIR PIPE
DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 02 1 9603- ●
334 SPACER; PIPE UNION
DUAL AIR GAUGE<UG2> ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 9605- ●
335 SEAL; UNION
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 9603-9904 ● ●
335 SEAL; UNION
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 9905-9912 ● ●
335 SEAL; UNION
TRANSMISSION-ZF 8S151 OD(Y3N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 0001- ● ●
335 SEAL; UNION
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 0001- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=520 		0-07210-520-0 02 1 9603- ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=850 		0-07210-850-0 01 1 9603- ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 02 1 9603- ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 01 1 9603- ●
343 UNION; NYLON TUBE
DUAL AIR GAUGE<UG2> 		1-09660-796-1 02 1 9603- ● ●
343 UNION; NYLON TUBE 1-09660-796-1 01 1 9603- ●
367 TUBE; CORRUGATE
AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=13 		1-87410-091-0 02 1 9603- ●
367 TUBE; CORRUGATE
AIR DRYER<PS7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 02 1 9603- ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> SERVICED BY L=2000 ID=28 		1-87410-098-0 02 1 9603- ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) AIR DRYER<PS7> SERVICED BY L=2000 ID=28 		1-87410-098-0 02 1 9603- ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7> SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9603-9605 ●
367 TUBE; CORRUGATE
AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9603-9605 ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9603-9605 ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. AIR DRYER<PS7> SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9603-9605 ●
367 TUBE; CORRUGATE
AIR DRYER<PS7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9603-9605 ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9603-9605 ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7> SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9606- ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9606- ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. AIR DRYER<PS7> SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9606- ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9606- ●
367 TUBE; CORRUGATE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=32 		1-87410-104-0 01 1 9603- ●
367 TUBE; CORRUGATE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=32 		1-87410-104-0 01 1 9603- ●
367 TUBE; CORRUGATE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9603-9904 ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9603-9904 ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9603-9904 ●
367 TUBE; CORRUGATE
EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9603-9904 ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9603-9904 ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9905-9910 ●
367 TUBE; CORRUGATE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9905-9910 ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9905-9910 ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9905-9910 ●
367 TUBE; CORRUGATE
EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9905-9910 ●
367 TUBE; CORRUGATE
TRANSMISSION-ZF 16S151 OD(Y2N) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9911-9911 ● ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9911-9911 ●
367 TUBE; CORRUGATE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9911-9911 ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9911-9911 ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9911-9911 ●
367 TUBE; CORRUGATE
EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9911-9911 ●
367 TUBE; CORRUGATE
TRANSMISSION-ZF 16S151 OD(Y2N) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9912-0002 ● ●
367 TUBE; CORRUGATE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9912-0002 ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9912-0002 ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9912-0002 ●
367 TUBE; CORRUGATE
EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9912-0002 ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9912-0002 ●
367 TUBE; CORRUGATE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0003- ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0003- ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0003- ●
367 TUBE; CORRUGATE
EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0003- ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0003- ●
367 TUBE; CORRUGATE
EXC. AIR DRYER<PS7> SERVICED BY L=2000 ID=28 		1-87410-098-0 01 1 9603- ● ●
367 TUBE; CORRUGATE
AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=28 		1-87410-098-0 01 1 9603- ●
367 TUBE; CORRUGATE
AIR DRYER<PS7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=28 		1-87410-098-0 01 1 9603- ●
367 TUBE; CORRUGATE
TRANSMISSION-ZF 8S151 OD(Y3N) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9911-0002 ● ●
367 TUBE; CORRUGATE
ZF M/T<X9E> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0003- ● ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> L=250 ID=7 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9603-9604 ●
367 TUBE; CORRUGATE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9603-9904 ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9603-9904 ●
367 TUBE; CORRUGATE
EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9603-9904 ●
367 TUBE; CORRUGATE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9905-9912 ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9905-9912 ●
367 TUBE; CORRUGATE
EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9905-9912 ●
367 TUBE; CORRUGATE
TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 0001- ●
367 TUBE; CORRUGATE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 0001- ●
367 TUBE; CORRUGATE
EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 0001- ●
375 GASKET
DUAL AIR GAUGE<UG2> ZF M/T<X9E> ID=11 OD=18 		9-09572-510-0 01 1 9603-9811 ● ●
375 GASKET
EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9603-9811 ● ●
434 CLIP
DUAL AIR GAUGE<UG2> (F) 		1-09701-222-0 01 1 9701-9704 ●
434 CLIP
DUAL AIR GAUGE<UG2> (G) ID=17 		8-94449-734-1 01 1 9705- ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (B) 		8-94297-486-0 02 1 9603- ●
434 CLIP
L TYPE ENG<90L> (C) L=140 		5-09707-031-0 01 1 9603-9609 ●
434 CLIP
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (C) L=140 		5-09707-031-1 01 1 9610- ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (A) ID=17 		1-09987-105-1 01 1 9603- ● ●
434 CLIP
(D) ID=8.3 & 8.3 		8-94426-175-0 03 1 9603- ●
434 CLIP
DUAL AIR GAUGE<UG2> (E) ID=10 & 10 		1-09709-221-0 01 1 9812- ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (B) 		8-94297-486-0 01 1 9603- ●
434 CLIP
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) (C) L=300 		1-09707-001-0 01 1 9603-9609 ●
434 CLIP
L TYPE ENG<90L> (C) L=300 		1-09707-001-0 01 1 9603-9609 ●
434 CLIP
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) (C) L=300 		1-09707-001-1 01 1 9610-0001 ●
434 CLIP
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (C) L=300 		1-09707-001-1 01 1 9610-0001 ●
434 CLIP
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (C) L=300 		1-09707-001-1 01 1 0002- ●
434 CLIP
V TYPE ENG<91L> (C) L=300 		1-09707-001-1 01 1 0002- ●
435 BOLT; CLIP
DUAL AIR GAUGE<UG2> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9701-9704 ●
435 BOLT; CLIP
DUAL AIR GAUGE<UG2> M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9705- ●
445 GUARD
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-83129-031-1 01 1 9603-9904 ●
445 GUARD
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-83129-031-1 01 1 9905- ●
456 SEAL; NYLON TUBE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40 		1-72498-022-0 01 1 9905- ●

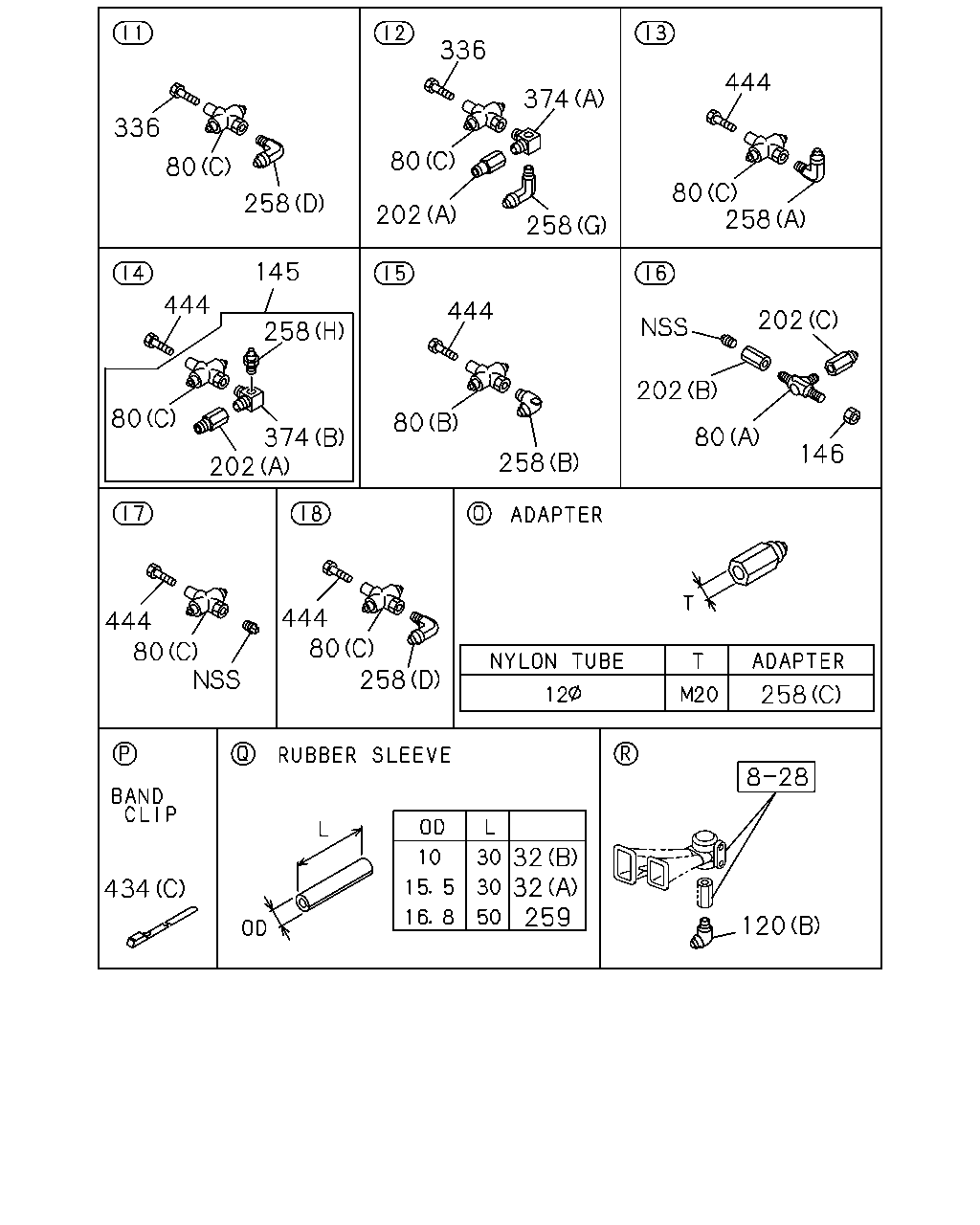

çizim 6585
336 444 374 336 80 80 80 258 258 202 258 145 444 444 202 258 202 80 80 80 374 202 146 258 8 444 80 258 444 80 258 32 32 259 434 120
BalonParca AdiParca NoAdetTipApplied Date A B
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 		9-09110-508-0 02 1 9603-9606 ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 02 1 9607- ● ●
32 SLEEVE; RUBBER,AIR PIPE
(A) ID=12.5 OD=15.5 L=30 		9-09714-002-0 02 1 9603- ● ●
32 SLEEVE; RUBBER,AIR PIPE
L TYPE ENG<90L> (B) ID=6 L=30 		5-09360-352-0 01 1 9603-9609 ● ●
32 SLEEVE; RUBBER,AIR PIPE
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) (B) ID=6 L=30 		5-09360-352-0 01 1 9603-9609 ●
32 SLEEVE; RUBBER,AIR PIPE
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (B) ID=6 L=30 		5-09360-352-0 01 1 9610-9910 ● ●
32 SLEEVE; RUBBER,AIR PIPE
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) (B) ID=6 L=30 		5-09360-352-0 01 1 9610-9910 ●
32 SLEEVE; RUBBER,AIR PIPE
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (B) ID=6 L=30 		5-09360-352-0 01 1 9911- ●
32 SLEEVE; RUBBER,AIR PIPE
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) (A) ID=6 OD=10 L=70 		1-09376-512-0 01 1 9911-0001 ●
32 SLEEVE; RUBBER,AIR PIPE
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (A) ID=6 OD=10 L=70 		1-09376-512-0 01 1 9911-0001 ●
32 SLEEVE; RUBBER,AIR PIPE
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (A) ID=6 OD=10 L=70 		1-09376-512-0 01 1 0002- ●
32 SLEEVE; RUBBER,AIR PIPE
V TYPE ENG<91L> (A) ID=6 OD=10 L=70 		1-09376-512-0 01 1 0002- ●
80 UNION; 3 WAY
DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M12 2WAY 		1-09654-059-2 01 1 9603-9702 ●
80 UNION; 3 WAY
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M12 2WAY 		1-09654-059-2 01 1 9703-0005 ●
80 UNION; 3 WAY
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M12 2WAY 		1-09654-059-2 01 1 0006- ●
80 UNION; 3 WAY
(C) 		1-09660-757-0 01 1 9603-9904 ● ●
80 UNION; 3 WAY
(C) 		1-09660-757-0 01 1 9603-9904 ● ●
80 UNION; 3 WAY
(C) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 9905- ● ●
80 UNION; 3 WAY
(C) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 9905- ● ●
80 UNION; 3 WAY
FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9603-9702 ● ●
80 UNION; 3 WAY
ZF M/T<X9E> (B) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9603-9702 ●
80 UNION; 3 WAY
FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9703-9904 ● ●
80 UNION; 3 WAY
FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 9905- ● ●
120 CONNECTOR; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-47470-402-3 01 1 9603- ●
120 CONNECTOR; AIR PIPE
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-47470-405-1 01 1 9603- ●
120 CONNECTOR; AIR PIPE
EXC. FULL FLOATING CAB(W16) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9603-9904 ●
120 CONNECTOR; AIR PIPE
EXC. FULL FLOATING CAB(W16) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9905- ●
145 UNION; NYLON TUBE
ZF M/T<X9E> 		1-09660-933-0 01 1 9603-9608 ● ●
145 UNION; NYLON TUBE
ZF M/T<X9E> 		1-09660-933-0 01 1 9603-9608 ●
146 NUT; UNION
DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-99110-512-0 01 1 9603-9606 ●
146 NUT; UNION
DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 FLANGE 		0-91150-212-0 01 1 9607-0005 ●
146 NUT; UNION
DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 FLANGE 		0-91150-212-0 01 1 0006- ●
202 ADAPTER
DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9603-9702 ●
202 ADAPTER
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9703-9904 ●
202 ADAPTER
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9905-0005 ●
202 ADAPTER
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0006-0006 ●
202 ADAPTER
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006- ●
202 ADAPTER
DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 9603-9702 ●
202 ADAPTER
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 9703-0005 ●
202 ADAPTER
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0006- ●
202 ADAPTER
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9603-9904 ● ●
202 ADAPTER
ISUZU M/T<X9A>,ZF M/T<X9E> (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9603-9904 ● ●
202 ADAPTER
(A) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9905-0007 ● ●
202 ADAPTER
ISUZU M/T<X9A>,ZF M/T<X9E> (A) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9905-0007 ● ●
202 ADAPTER
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008- ● ●
202 ADAPTER
ISUZU M/T<X9A>,ZF M/T<X9E> (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> (F) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9603-9811 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (F) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9603-9811 ● ●
258 CONNECTOR; NYLON TUBE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> (F) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9912 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (F) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9912 ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0001-0007 ● ●
258 CONNECTOR; NYLON TUBE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (F) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0001-0007 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (F) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0001-0007 ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (F) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (F) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9603-9608 ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9603-9608 ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9904 ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9904 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-0005 ● ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-0005 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A>,FULLER M/T<X9B> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-0005 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0006- ● ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0006- ● ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (D) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9603-9702 ● ●
258 CONNECTOR; NYLON TUBE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9603-9702 ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (D) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9703-9904 ● ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9905- ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (G) DIN12 & R1/4 ELBOW 		1-09660-655-1 01 1 9603-9904 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (G) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 9905- ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 9603-9904 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT 		1-09661-097-0 01 1 9905-0007 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9811 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9811 ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9812-9904 ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A>,FULLER M/T<X9B> TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9812-9904 ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9603-9904 ● ●
258 CONNECTOR; NYLON TUBE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9905- ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (H) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9603-9608 ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (H) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9603-9608 ●
258 CONNECTOR; NYLON TUBE
(F) 		1-09660-796-1 01 1 9603- ●
259 SLEEVE; RUBBER,NYLON TUBE
FULLER M/T<X9B> OD=16.8 L=50 		1-09369-010-0 02 1 9603- ●
336 BOLT; PIPE UNION
M8X20 FLANGE 		0-28080-820-0 01 1 9603- ● ●
374 CONNECTOR
ISUZU M/T<X9A> (A) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 9603- ● ●
374 CONNECTOR
ISUZU M/T<X9A>,FULLER M/T<X9B> (C) M20 & M22 STRAIGHT 		1-09654-166-1 01 1 9603- ● ●
374 CONNECTOR
ZF M/T<X9E> (D) 		1-09654-203-1 01 1 9603- ● ●
374 CONNECTOR
ZF M/T<X9E> (B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 9603-9702 ● ●
374 CONNECTOR
ZF M/T<X9E> (B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 9603-9702 ●
374 CONNECTOR
ZF M/T<X9E> (B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 9703-9904 ● ●
374 CONNECTOR
ZF M/T<X9E> (B) M16 PT3/8X2 3WAY 		1-09656-418-2 01 1 9905-9909 ● ●
374 CONNECTOR
ZF M/T<X9E> (B) M16 PT3/8X2 3WAY 		1-09656-418-2 01 1 9910- ● ●
434 CLIP
DUAL AIR GAUGE<UG2> (F) 		1-09701-222-0 01 1 9701-9704 ●
434 CLIP
DUAL AIR GAUGE<UG2> (G) ID=17 		8-94449-734-1 01 1 9705- ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (B) 		8-94297-486-0 02 1 9603- ●
434 CLIP
L TYPE ENG<90L> (C) L=140 		5-09707-031-0 01 1 9603-9609 ●
434 CLIP
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (C) L=140 		5-09707-031-1 01 1 9610- ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (A) ID=17 		1-09987-105-1 01 1 9603- ● ●
434 CLIP
(D) ID=8.3 & 8.3 		8-94426-175-0 03 1 9603- ●
434 CLIP
DUAL AIR GAUGE<UG2> (E) ID=10 & 10 		1-09709-221-0 01 1 9812- ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (B) 		8-94297-486-0 01 1 9603- ●
434 CLIP
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) (C) L=300 		1-09707-001-0 01 1 9603-9609 ●
434 CLIP
L TYPE ENG<90L> (C) L=300 		1-09707-001-0 01 1 9603-9609 ●
434 CLIP
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) (C) L=300 		1-09707-001-1 01 1 9610-0001 ●
434 CLIP
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (C) L=300 		1-09707-001-1 01 1 9610-0001 ●
434 CLIP
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (C) L=300 		1-09707-001-1 01 1 0002- ●
434 CLIP
V TYPE ENG<91L> (C) L=300 		1-09707-001-1 01 1 0002- ●
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 9603- ● ●

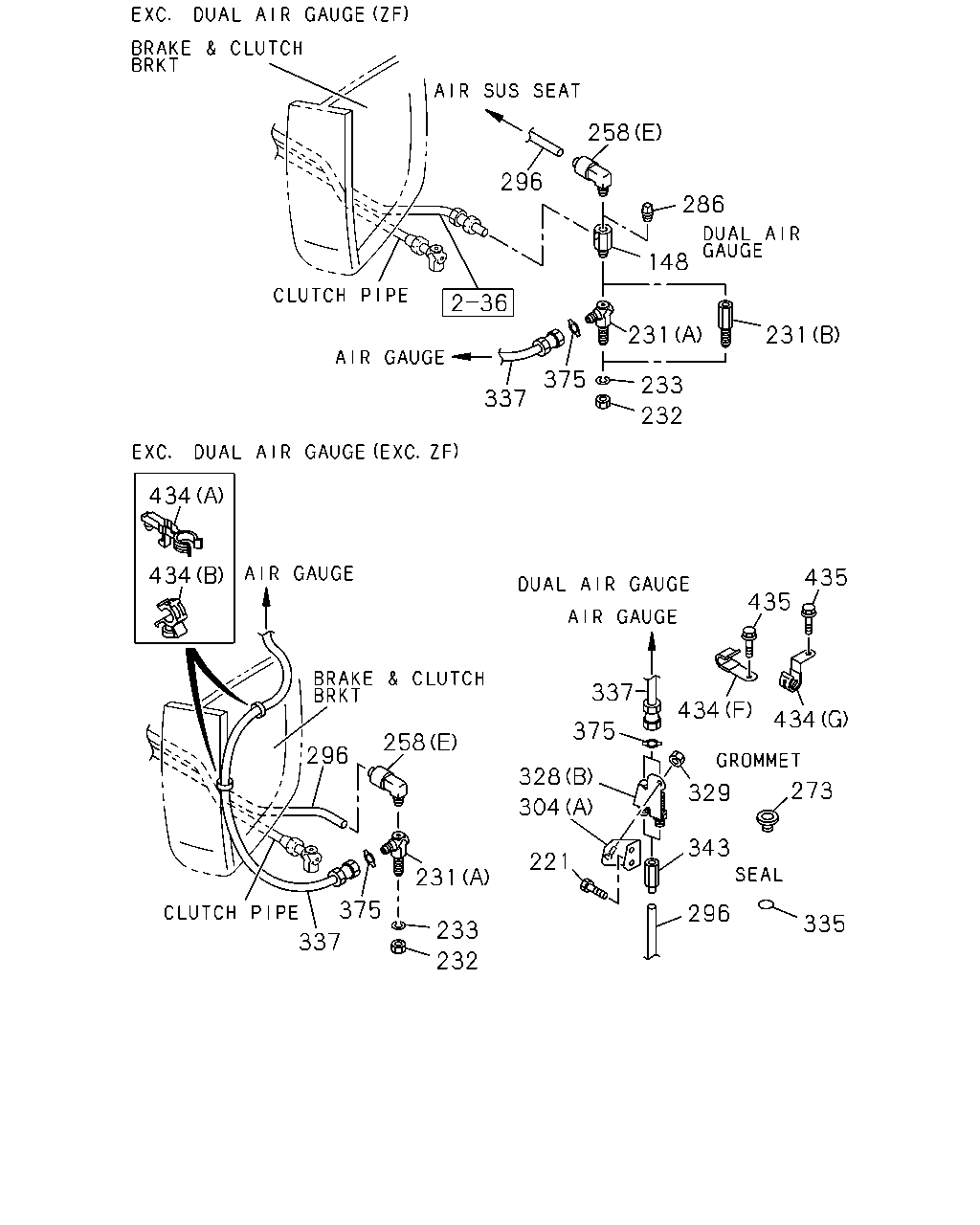

çizim 7865
258 296 286 148 231 231 375 233 337 232 434 434 435 435 337 434 434 375 258 296 328 273 329 304 343 221 231 375 296 335 233 337 232
BalonParca AdiParca NoAdetTipApplied Date A B
148 CONNECTOR; UNION
ZF M/T<X9E> 		8-94338-417-0 01 1 9603-9912 ● ●
148 CONNECTOR; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) 		8-94338-417-0 01 1 0001- ● ●
221 BOLT; BRKT
EXC. AIR DRYER<PS7> M8X30 FLANGE 		0-28080-830-0 01 1 9603-9606 ● ●
221 BOLT; BRKT
EXC. AIR DRYER<PS7> M8X35 FLANGE 		0-28680-835-0 01 1 9607- ● ●
221 BOLT; BRKT
DUAL AIR GAUGE<UG2> ZF M/T<X9E> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9603-9904 ● ●
221 BOLT; BRKT
DUAL AIR GAUGE<UG2> ZF M/T<X9E> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905-9912 ● ●
221 BOLT; BRKT
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905-9912 ●
221 BOLT; BRKT
DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0001- ●
221 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0001- ●
221 BOLT; BRKT
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0001- ●
221 BOLT; BRKT
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0001- ●
231 UNION; AIR PIPE
ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),DUAL AIR GAUGE<UG2> (A) 		1-09654-356-0 01 1 9603-9904 ●
231 UNION; AIR PIPE
ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),DUAL AIR GAUGE<UG2> (A) 		1-09654-356-0 01 1 9905-9912 ●
231 UNION; AIR PIPE
TRANSMISSION-ZF 8S151 OD(Y3N) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),DUAL AIR GAUGE<UG2> (A) 		1-09654-356-0 01 1 0001- ●
231 UNION; AIR PIPE
ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),DUAL AIR GAUGE<UG2> (A) 		1-09654-356-0 01 1 0001- ●
231 UNION; AIR PIPE
ZF M/T<X9E> EXC. DUAL AIR GAUGE<UG2> (A) 		1-09656-682-0 01 1 9603-9912 ●
231 UNION; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),DUAL AIR GAUGE<UG2> (A) 		1-09656-682-0 01 1 0001- ●
231 UNION; AIR PIPE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DUAL AIR GAUGE<UG2> (A) 		1-09656-682-0 01 1 0001- ●
231 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> (B) 		1-09656-713-2 01 1 9603-9912 ● ●
231 UNION; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-09656-713-2 01 1 0001- ● ●
231 UNION; AIR PIPE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (B) 		1-09656-713-2 01 1 0001- ● ●
231 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> (D) M10 ELBOW 		1-09654-186-2 01 1 9603- ●
231 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> (C) M10 STRAIGHT 		1-09654-361-0 01 1 9603- ●
231 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> (A) 		1-09654-347-0 01 1 9603- ●
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> M10 H=8 		1-09400-029-0 01 1 9603-9912 ● ●
232 NUT; UNION,AIR PIPE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9603-9912 ● ●
232 NUT; UNION,AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0001- ● ●
232 NUT; UNION,AIR PIPE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0001- ● ●
232 NUT; UNION,AIR PIPE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0001- ● ●
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 02 1 9603- ●
233 WASHER; LK,UNION,AIR PIPE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> ID=10.2 		9-09150-510-0 01 1 9603-9912 ● ●
233 WASHER; LK,UNION,AIR PIPE
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9603-9912 ● ●
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0001- ● ●
233 WASHER; LK,UNION,AIR PIPE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0001- ● ●
233 WASHER; LK,UNION,AIR PIPE
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0001- ● ●
258 CONNECTOR; NYLON TUBE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> (F) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9603-9811 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (F) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9603-9811 ● ●
258 CONNECTOR; NYLON TUBE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> (F) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9912 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (F) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9912 ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0001-0007 ● ●
258 CONNECTOR; NYLON TUBE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (F) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0001-0007 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (F) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0001-0007 ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (F) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (F) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9603-9608 ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9603-9608 ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9904 ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9904 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-0005 ● ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-0005 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A>,FULLER M/T<X9B> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-0005 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0006- ● ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0006- ● ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (D) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9603-9702 ● ●
258 CONNECTOR; NYLON TUBE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9603-9702 ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (D) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9703-9904 ● ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9905- ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (G) DIN12 & R1/4 ELBOW 		1-09660-655-1 01 1 9603-9904 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (G) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 9905- ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 9603-9904 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT 		1-09661-097-0 01 1 9905-0007 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9811 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9811 ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9812-9904 ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A>,FULLER M/T<X9B> TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9812-9904 ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9603-9904 ● ●
258 CONNECTOR; NYLON TUBE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9905- ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (H) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9603-9608 ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (H) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9603-9608 ●
258 CONNECTOR; NYLON TUBE
(F) 		1-09660-796-1 01 1 9603- ●
273 GROMMET
DUAL AIR GAUGE<UG2> 		1-09332-135-0 01 1 9603- ●
273 GROMMET 1-09332-102-0 01 1 9603- ●
286 PLUG; AIR PIPE
ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 9603-9904 ●
286 PLUG; AIR PIPE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 9603-9904 ●
286 PLUG; AIR PIPE
ZF M/T<X9E> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 9905-9912 ●
286 PLUG; AIR PIPE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 9905-9912 ●
286 PLUG; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 0001- ●
286 PLUG; AIR PIPE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 0001- ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=6 		1-09366-235-0 AR 1 9603- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9603- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9603- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 9603- ● ●
296 TUBE; NYLON
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0002- ● ●
304 BRACKET; UNION
DUAL AIR GAUGE<UG2> (A) 		1-71117-211-0 01 1 9603- ●
304 BRACKET; UNION
(E) 		1-47476-556-0 01 1 9603- ● ●
304 BRACKET; UNION
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (C) 		1-47477-183-1 01 1 9905- ● ●
304 BRACKET; UNION
FULLER M/T<X9B> (B) 		1-47477-405-0 01 1 9803-9904 ● ●
304 BRACKET; UNION
FULLER M/T<X9B> (B) 		1-47477-405-0 01 1 9905- ●
304 BRACKET; UNION
ISUZU M/T<X9A> (C) 		1-47477-182-1 01 1 9603-9904 ● ●
304 BRACKET; UNION
ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C) 		1-47477-182-1 01 1 9905- ● ●
304 BRACKET; UNION
ZF M/T<X9E> (D) 		1-47477-436-0 01 1 9603-9704 ● ●
304 BRACKET; UNION
ZF M/T<X9E> (D) 		1-47477-757-1 01 1 9705- ● ●
304 BRACKET; UNION
(A) 		1-71117-210-0 01 1 9603- ●
328 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> (B) 		1-47470-442-0 01 1 9603- ●
328 UNION; AIR PIPE
(A) M12 2WAY 		1-09654-059-2 01 1 9603- ● ●
328 UNION; AIR PIPE
EXC. AIR DRYER<PS7> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9603- ● ●
329 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> M6 FLANGE 		0-91150-106-0 01 1 9603- ●
335 SEAL; UNION
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 9603-9904 ● ●
335 SEAL; UNION
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 9905-9912 ● ●
335 SEAL; UNION
TRANSMISSION-ZF 8S151 OD(Y3N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 0001- ● ●
335 SEAL; UNION
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 0001- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=520 		0-07210-520-0 02 1 9603- ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=850 		0-07210-850-0 01 1 9603- ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 02 1 9603- ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 01 1 9603- ●
343 UNION; NYLON TUBE
DUAL AIR GAUGE<UG2> 		1-09660-796-1 02 1 9603- ● ●
343 UNION; NYLON TUBE 1-09660-796-1 01 1 9603- ●
375 GASKET
DUAL AIR GAUGE<UG2> ZF M/T<X9E> ID=11 OD=18 		9-09572-510-0 01 1 9603-9811 ● ●
375 GASKET
EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9603-9811 ● ●
434 CLIP
DUAL AIR GAUGE<UG2> (F) 		1-09701-222-0 01 1 9701-9704 ●
434 CLIP
DUAL AIR GAUGE<UG2> (G) ID=17 		8-94449-734-1 01 1 9705- ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (B) 		8-94297-486-0 02 1 9603- ●
434 CLIP
L TYPE ENG<90L> (C) L=140 		5-09707-031-0 01 1 9603-9609 ●
434 CLIP
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (C) L=140 		5-09707-031-1 01 1 9610- ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (A) ID=17 		1-09987-105-1 01 1 9603- ● ●
434 CLIP
(D) ID=8.3 & 8.3 		8-94426-175-0 03 1 9603- ●
434 CLIP
DUAL AIR GAUGE<UG2> (E) ID=10 & 10 		1-09709-221-0 01 1 9812- ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (B) 		8-94297-486-0 01 1 9603- ●
434 CLIP
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) (C) L=300 		1-09707-001-0 01 1 9603-9609 ●
434 CLIP
L TYPE ENG<90L> (C) L=300 		1-09707-001-0 01 1 9603-9609 ●
434 CLIP
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) (C) L=300 		1-09707-001-1 01 1 9610-0001 ●
434 CLIP
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (C) L=300 		1-09707-001-1 01 1 9610-0001 ●
434 CLIP
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (C) L=300 		1-09707-001-1 01 1 0002- ●
434 CLIP
V TYPE ENG<91L> (C) L=300 		1-09707-001-1 01 1 0002- ●
435 BOLT; CLIP
DUAL AIR GAUGE<UG2> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9701-9704 ●
435 BOLT; CLIP
DUAL AIR GAUGE<UG2> M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9705- ●
çizim 8448
296 367 297 367 262 224 217 184 217 217 287
BalonParca AdiParca NoAdetTipApplied Date A B
184 HOSE; FLEX,AIR GOV
V TYPE ENG<91L> L=370 		0-07532-370-1 01 1 9603- ● ●
217 PIPE; VAC,UNION TO MAG VLV
L TYPE ENG<90L> (C) L=1670 SERVICED BY L=1700 		1-47426-357-0 01 1 9603-9609 ● ●
217 PIPE; VAC,UNION TO MAG VLV
L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (C) L=1670 SERVICED BY L=1700 		1-47426-357-0 01 1 9610-9701 ● ●
217 PIPE; VAC,UNION TO MAG VLV
L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (C) L=1663 SERVICED BY L=1700 		1-47428-821-0 01 1 9702-9706 ● ●
217 PIPE; VAC,UNION TO MAG VLV
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (C) L=1663 SERVICED BY L=1700 		1-47428-821-0 01 1 9707-9904 ● ●
217 PIPE; VAC,UNION TO MAG VLV
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C) L=1663 SERVICED BY L=1700 		1-47428-821-0 01 1 9905-9909 ● ●
217 PIPE; VAC,UNION TO MAG VLV
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C) L=666 		1-49121-249-0 01 1 9910-9910 ● ●
217 PIPE; VAC,UNION TO MAG VLV
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C) L=1643 		1-49122-249-0 01 1 9911- ● ●
217 PIPE; VAC,UNION TO MAG VLV
V TYPE ENG<91L> (B) L=748 SERVICED BY L=800 		1-47428-812-0 01 1 9603-9702 ● ●
217 PIPE; VAC,UNION TO MAG VLV
V TYPE ENG<91L> (B) L=752 SERVICED BY L=800 		1-47428-812-0 01 1 9703-9904 ● ●
217 PIPE; VAC,UNION TO MAG VLV
V TYPE ENG<91L> (A) L=620 		1-49121-778-0 01 1 9905- ● ●
217 PIPE; VAC,UNION TO MAG VLV
V TYPE ENG<91L> (A) L=336 		1-47499-145-0 01 1 9603-9904 ● ●
217 PIPE; VAC,UNION TO MAG VLV
V TYPE ENG<91L> (B) L=552 		1-49121-876-0 01 1 9905- ● ●
224 PIPE; AIR,UNION TO FLEX HOSE
V TYPE ENG<91L> L=480 SERVICED BY L=500 		1-47428-807-0 01 1 9603-9702 ● ●
224 PIPE; AIR,UNION TO FLEX HOSE
V TYPE ENG<91L> L=494 SERVICED BY L=500 		1-47428-807-0 01 1 9703- ● ●
262 PIPE; AIR,UNION TO FLEX
6WG1 TC-N(71L) 		1-49116-729-0 01 1 9707-9904 ●
262 PIPE; AIR,UNION TO FLEX
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> L=896 		1-49121-787-0 01 1 9905- ● ●
262 PIPE; AIR,UNION TO FLEX
6WA1 TC-S(56L) L=871 		1-49114-257-0 01 1 9603-9804 ● ●
262 PIPE; AIR,UNION TO FLEX
6WA1 TC-C(55L),6WA1 TC-S(56L) L=871 		1-49114-257-0 01 1 9805-9904 ● ●
262 PIPE; AIR,UNION TO FLEX
L TYPE ENG<90L> CAB UP +110MM<TGG> 		1-49121-783-0 01 1 9905- ● ●
287 PIPE; AIR,MAG VLV
6WG1 TC-C(72L) CAB UP +110MM<TGG> 		1-49121-786-0 01 1 9905-9910 ●
287 PIPE; AIR,MAG VLV
6WG1 TC-C(72L) CAB UP +110MM<TGG> 		1-49122-365-0 01 1 9911- ●
287 PIPE; AIR,MAG VLV
6WG1 TC-N(71L) L=1310 		1-49116-707-0 01 1 9707-9904 ●
287 PIPE; AIR,MAG VLV
6WA1 TC-C(55L) CAB UP +110MM<TGG> 		1-49121-785-0 01 1 9905-9910 ● ●
287 PIPE; AIR,MAG VLV
6WA1 TC-C(55L) CAB UP +110MM<TGG> 		1-49122-364-0 01 1 9911- ● ●
287 PIPE; AIR,MAG VLV
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> L=1220 		1-49121-788-0 01 1 9905- ● ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=6 		1-09366-235-0 AR 1 9603- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9603- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9603- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 9603- ● ●
296 TUBE; NYLON
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0002- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9603- ● ●
297 TUBE; NYLON
DUAL AIR GAUGE<UG2> SERVICED BY L=2000 OD=6 		1-87410-081-0 02 1 9603- ●
367 TUBE; CORRUGATE
AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=13 		1-87410-091-0 02 1 9603- ●
367 TUBE; CORRUGATE
AIR DRYER<PS7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 02 1 9603- ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> SERVICED BY L=2000 ID=28 		1-87410-098-0 02 1 9603- ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) AIR DRYER<PS7> SERVICED BY L=2000 ID=28 		1-87410-098-0 02 1 9603- ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7> SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9603-9605 ●
367 TUBE; CORRUGATE
AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9603-9605 ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9603-9605 ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. AIR DRYER<PS7> SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9603-9605 ●
367 TUBE; CORRUGATE
AIR DRYER<PS7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9603-9605 ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9603-9605 ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7> SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9606- ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9606- ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. AIR DRYER<PS7> SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9606- ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9606- ●
367 TUBE; CORRUGATE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=32 		1-87410-104-0 01 1 9603- ●
367 TUBE; CORRUGATE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=32 		1-87410-104-0 01 1 9603- ●
367 TUBE; CORRUGATE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9603-9904 ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9603-9904 ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9603-9904 ●
367 TUBE; CORRUGATE
EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9603-9904 ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9603-9904 ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9905-9910 ●
367 TUBE; CORRUGATE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9905-9910 ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9905-9910 ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9905-9910 ●
367 TUBE; CORRUGATE
EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9905-9910 ●
367 TUBE; CORRUGATE
TRANSMISSION-ZF 16S151 OD(Y2N) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9911-9911 ● ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9911-9911 ●
367 TUBE; CORRUGATE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9911-9911 ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9911-9911 ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9911-9911 ●
367 TUBE; CORRUGATE
EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9911-9911 ●
367 TUBE; CORRUGATE
TRANSMISSION-ZF 16S151 OD(Y2N) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9912-0002 ● ●
367 TUBE; CORRUGATE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9912-0002 ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9912-0002 ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9912-0002 ●
367 TUBE; CORRUGATE
EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9912-0002 ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9912-0002 ●
367 TUBE; CORRUGATE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0003- ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0003- ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0003- ●
367 TUBE; CORRUGATE
EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0003- ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0003- ●
367 TUBE; CORRUGATE
EXC. AIR DRYER<PS7> SERVICED BY L=2000 ID=28 		1-87410-098-0 01 1 9603- ● ●
367 TUBE; CORRUGATE
AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=28 		1-87410-098-0 01 1 9603- ●
367 TUBE; CORRUGATE
AIR DRYER<PS7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=28 		1-87410-098-0 01 1 9603- ●
367 TUBE; CORRUGATE
TRANSMISSION-ZF 8S151 OD(Y3N) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9911-0002 ● ●
367 TUBE; CORRUGATE
ZF M/T<X9E> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0003- ● ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> L=250 ID=7 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9603-9604 ●
367 TUBE; CORRUGATE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9603-9904 ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9603-9904 ●
367 TUBE; CORRUGATE
EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9603-9904 ●
367 TUBE; CORRUGATE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9905-9912 ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9905-9912 ●
367 TUBE; CORRUGATE
EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9905-9912 ●
367 TUBE; CORRUGATE
TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 0001- ●
367 TUBE; CORRUGATE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 0001- ●
367 TUBE; CORRUGATE
EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 0001- ●
çizim 8450
8 6 6 25 51 7 7 8 237 8 21 2 3 3 2 4 51 6 21 4 3 26 27 7 1 51 4 1 1 1 123 123 1 374 4 377 377 123 4 12 18 18 12 376 376 98 98 374 376 72 304 376 304 421 376 341 17 16 237 180 179 72 72 341 180 179 180 179 304
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
FULLER M/T<X9B> L=440 		0-07846-440-1 01 1 9603-9802 ●
1 HOSE; FLEX,AIR TANK
FULLER M/T<X9B> L=440 		0-07846-440-1 01 1 9803-9903 ● ●
1 HOSE; FLEX,AIR TANK
L TYPE ENG<90L> FULLER M/T<X9B> EXC. AIR DRYER<PS7> L=440 		0-07846-440-1 01 1 9904- ● ●
1 HOSE; FLEX,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> ISUZU M/T<X9A> 		0-07847-360-1 01 1 9609-9609 ● ●
1 HOSE; FLEX,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> ISUZU M/T<X9A> 		0-07846-360-1 01 1 9610- ● ●
1 HOSE; FLEX,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> ZF M/T<X9E> L=400 		0-07846-400-1 01 1 9603-9903 ● ●
1 HOSE; FLEX,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> L=400 		0-07846-400-1 01 1 9904-0006 ● ●
1 HOSE; FLEX,AIR TANK
L TYPE ENG<90L> FULLER M/T<X9B>,ZF M/T<X9E> AIR DRYER<PS7> L=400 		0-07846-400-1 01 1 0007- ● ●
1 HOSE; FLEX,AIR TANK
L TYPE ENG<90L> ISUZU M/T<X9A>,ZF M/T<X9E> EXC. AIR DRYER<PS7> L=490 		0-07846-490-1 01 1 9603- ● ●
1 HOSE; FLEX,AIR TANK
V TYPE ENG<91L> L=530 		0-07846-530-1 01 1 9603-9609 ● ●
1 HOSE; FLEX,AIR TANK
V TYPE ENG<91L> ISUZU M/T<X9A> L=530 		0-07846-530-1 01 1 9610-9906 ● ●
1 HOSE; FLEX,AIR TANK
V TYPE ENG<91L> L=530 		0-07846-530-1 01 1 9907- ● ●
1 HOSE; FLEX,AIR TANK
V TYPE ENG<91L> ZF M/T<X9E> EXC. AIR DRYER<PS7> L=630 		0-07846-630-1 01 1 9610-9709 ● ●
1 HOSE; FLEX,AIR TANK
V TYPE ENG<91L> ZF M/T<X9E> L=630 		0-07846-630-1 01 1 9710-9906 ● ●
2 NUT; FLEX HOSE,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> M22 		9-09111-422-0 01 1 9603-9609 ● ●
2 NUT; FLEX HOSE,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> M22 		9-09111-422-0 01 1 9610-9709 ● ●
2 NUT; FLEX HOSE,AIR TANK
V TYPE ENG<91L> ZF M/T<X9E> EXC. AIR DRYER<PS7> M22 		9-09111-422-0 01 1 9610-9709 ● ●
2 NUT; FLEX HOSE,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> M22 		9-09111-422-0 01 1 9710-9903 ● ●
2 NUT; FLEX HOSE,AIR TANK
V TYPE ENG<91L> ZF M/T<X9E> M22 		9-09111-422-0 01 1 9710-9903 ● ●
2 NUT; FLEX HOSE,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> EXC. FULLER M/T<X9B> M22 		9-09111-422-0 01 1 9904-9904 ● ●
2 NUT; FLEX HOSE,AIR TANK
V TYPE ENG<91L> ZF M/T<X9E> M22 		9-09111-422-0 01 1 9904-9904 ● ●
2 NUT; FLEX HOSE,AIR TANK
V TYPE ENG<91L> ZF M/T<X9E> M22 		9-09111-422-0 01 1 9905-9906 ● ●
2 NUT; FLEX HOSE,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> M22 		9-09111-422-0 01 1 9905-9906 ● ●
2 NUT; FLEX HOSE,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> EXC. FULLER M/T<X9B> M22 		9-09111-422-0 01 1 9907- ●
2 NUT; FLEX HOSE,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> M22 		9-09111-422-0 01 1 9907- ●
2 NUT; FLEX HOSE,AIR TANK
V TYPE ENG<91L> AIR DRYER<PS7> M20 		9-99111-420-0 01 1 9603-9903 ● ●
2 NUT; FLEX HOSE,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> FULLER M/T<X9B> M20 		9-99111-420-0 01 1 9904-9904 ● ●
2 NUT; FLEX HOSE,AIR TANK
V TYPE ENG<91L> AIR DRYER<PS7> M20 		9-99111-420-0 01 1 9904-9904 ● ●
2 NUT; FLEX HOSE,AIR TANK
V TYPE ENG<91L> AIR DRYER<PS7> M20 		9-99111-420-0 01 1 9905- ● ●
2 NUT; FLEX HOSE,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> FULLER M/T<X9B> M20 		9-99111-420-0 01 1 9905- ●
3 WASHER; LK,FLEX HOSE,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> ID=22.5 		9-09150-522-0 01 1 9603-9609 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> ID=22.5 		9-09150-522-0 01 1 9610-9709 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
V TYPE ENG<91L> ZF M/T<X9E> EXC. AIR DRYER<PS7> ID=22.5 		9-09150-522-0 01 1 9610-9709 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
V TYPE ENG<91L> ZF M/T<X9E> ID=22.5 		9-09150-522-0 01 1 9710-9906 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> ID=22.5 		9-09150-522-0 01 1 9710-9906 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> EXC. FULLER M/T<X9B> ID=22.5 		9-09150-522-0 01 1 9907- ●
3 WASHER; LK,FLEX HOSE,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> ID=22.5 		9-09150-522-0 01 1 9907- ●
3 WASHER; LK,FLEX HOSE,AIR TANK
V TYPE ENG<91L> AIR DRYER<PS7> ID=20.2 		9-09150-520-0 01 1 9603-9903 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> FULLER M/T<X9B> ID=20.2 		9-09150-520-0 01 1 9904-9904 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
V TYPE ENG<91L> AIR DRYER<PS7> ID=20.2 		9-09150-520-0 01 1 9904-9904 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
V TYPE ENG<91L> AIR DRYER<PS7> ID=20.2 		9-09150-520-0 01 1 9905- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> FULLER M/T<X9B> ID=20.2 		9-09150-520-0 01 1 9905- ●
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 9603-9606 ● ●
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 9607-9706 ● ●
4 GASKET; FLEX HOSE
V TYPE ENG<91L> ID=11 OD=18 		9-09572-510-0 01 1 9607-9706 ● ●
4 GASKET; FLEX HOSE
V TYPE ENG<91L> ID=11 OD=18 		9-09572-510-0 01 1 9707- ● ●
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 9707- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> (A) 		1-47477-432-0 01 1 9603-9903 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
L TYPE ENG<90L> ISUZU M/T<X9A>,ZF M/T<X9E> AIR DRYER<PS7> (A) 		1-47477-432-0 01 1 9904- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
L TYPE ENG<90L> EXC. AIR DRYER<PS7> (B) 		1-47477-606-0 01 1 9603- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
V TYPE ENG<91L> (A) 		1-47477-232-0 01 1 9603-9609 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
V TYPE ENG<91L> EXC. ZF M/T<X9E> (A) 		1-47477-232-0 01 1 9610-9903 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> FULLER M/T<X9B> (A) 		1-47477-232-0 01 1 9904-9904 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
V TYPE ENG<91L> EXC. ZF M/T<X9E> (A) 		1-47477-232-0 01 1 9904-9904 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
V TYPE ENG<91L> EXC. ZF M/T<X9E> (A) 		1-47477-232-0 01 1 9905-9906 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> FULLER M/T<X9B> (A) 		1-47477-232-0 01 1 9905-9906 ●
6 BRACKET; FLEX HOSE,AIR TANK
V TYPE ENG<91L> (A) 		1-47477-232-0 01 1 9907- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> FULLER M/T<X9B> (A) 		1-47477-232-0 01 1 9907- ●
6 BRACKET; FLEX HOSE,AIR TANK
V TYPE ENG<91L> AIR DRYER<PS7> ZF M/T<X9E> (A) 		1-47478-053-0 01 1 9710-9906 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
V TYPE ENG<91L> ZF M/T<X9E> EXC. AIR DRYER<PS7> (B) 		1-47477-888-0 01 1 9610-9906 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9607- ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 		9-09110-508-0 02 1 9603-9606 ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 02 1 9607- ● ●
12 NUT; UNION
ISUZU M/T<X9A>,FULLER M/T<X9B> M20 		9-99111-420-0 01 1 9603- ● ●
12 NUT; UNION
V TYPE ENG<91L> M12 		9-09840-280-0 01 1 9703- ● ●
12 NUT; UNION
ZF M/T<X9E> M14 		9-99111-414-0 01 1 9603- ● ●
16 UNION; AIR PIPE
EXC. AIR DRYER<PS7> M22 		9-09233-315-1 01 1 9603-9909 ● ●
16 UNION; AIR PIPE
EXC. AIR DRYER<PS7> M22 		9-09233-315-1 01 1 9910- ● ●
17 NUT; UNION
EXC. AIR DRYER<PS7> M22 		9-09111-422-0 01 1 9603-9909 ● ●
17 NUT; UNION
EXC. AIR DRYER<PS7> M22 		9-09111-422-0 01 1 9910- ● ●
18 WASHER; LK,UNION
ISUZU M/T<X9A>,FULLER M/T<X9B> ID=20.2 		9-09150-520-0 01 1 9603- ● ●
18 WASHER; LK,UNION
ZF M/T<X9E> ID=14.2 		9-09150-514-0 01 1 9603- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49116-141-0 01 1 9603-9709 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L TYPE ENG<90L> AIR DRYER<PS7> 		1-49116-141-0 01 1 9710-9906 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
V TYPE ENG<91L> AIR DRYER<PS7> EXC. ZF M/T<X9E> 		1-49116-141-0 01 1 9710-9906 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49116-141-0 01 1 9907- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
V TYPE ENG<91L> AIR DRYER<PS7> ZF M/T<X9E> 		1-49118-840-0 01 1 9710-9906 ● ●
25 VALVE; CHECK
EXC. AIR DRYER<PS7> 		1-48410-138-1 01 1 9603-9609 ● ●
25 VALVE; CHECK
L TYPE ENG<90L> EXC. AIR DRYER<PS7> 		1-48410-138-1 01 1 9610-9906 ● ●
25 VALVE; CHECK
V TYPE ENG<91L> EXC. AIR DRYER<PS7>,ZF M/T<X9E> 		1-48410-138-1 01 1 9610-9906 ● ●
25 VALVE; CHECK
EXC. AIR DRYER<PS7> 		1-48410-138-2 01 1 9907- ● ●
26 NUT; CHECK VLV
EXC. AIR DRYER<PS7> M20 		9-99111-420-0 01 1 9603-9609 ● ●
26 NUT; CHECK VLV
L TYPE ENG<90L> EXC. AIR DRYER<PS7> M20 		9-99111-420-0 01 1 9610-9906 ● ●
26 NUT; CHECK VLV
V TYPE ENG<91L> EXC. AIR DRYER<PS7>,ZF M/T<X9E> M20 		9-99111-420-0 01 1 9610-9906 ● ●
26 NUT; CHECK VLV
EXC. AIR DRYER<PS7> M20 		9-99111-420-0 01 1 9907- ● ●
27 WASHER; LK,CHECK VLV
EXC. AIR DRYER<PS7> ID=20.2 		9-09150-520-0 01 1 9603-9609 ● ●
27 WASHER; LK,CHECK VLV
L TYPE ENG<90L> EXC. AIR DRYER<PS7> ID=20.2 		9-09150-520-0 01 1 9610-9906 ● ●
27 WASHER; LK,CHECK VLV
V TYPE ENG<91L> EXC. AIR DRYER<PS7>,ZF M/T<X9E> ID=20.2 		9-09150-520-0 01 1 9610-9906 ● ●
27 WASHER; LK,CHECK VLV
EXC. AIR DRYER<PS7> ID=20.2 		9-09150-520-0 01 1 9907- ● ●
51 UNION
AIR DRYER<PS7> V TYPE ENG<91L> (B) M20 & M22 STRAIGHT 		1-09654-166-1 01 1 9603-9903 ● ●
51 UNION
L TYPE ENG<90L> AIR DRYER<PS7> FULLER M/T<X9B> (B) M20 & M22 STRAIGHT 		1-09654-166-1 01 1 9904-9904 ● ●
51 UNION
V TYPE ENG<91L> AIR DRYER<PS7> (B) M20 & M22 STRAIGHT 		1-09654-166-1 01 1 9904-9904 ● ●
51 UNION
V TYPE ENG<91L> AIR DRYER<PS7> (B) M20 & M22 STRAIGHT 		1-09654-166-1 01 1 9905- ● ●
51 UNION
L TYPE ENG<90L> AIR DRYER<PS7> FULLER M/T<X9B> (B) M20 & M22 STRAIGHT 		1-09654-166-1 01 1 9905- ●
51 UNION
L TYPE ENG<90L> AIR DRYER<PS7> (A) 		1-09654-202-1 01 1 9603-9609 ● ●
51 UNION
L TYPE ENG<90L> AIR DRYER<PS7> (A) 		1-09654-202-1 01 1 9610-9709 ● ●
51 UNION
V TYPE ENG<91L> ZF M/T<X9E> EXC. AIR DRYER<PS7> (A) 		1-09654-202-1 01 1 9610-9709 ● ●
51 UNION
L TYPE ENG<90L> AIR DRYER<PS7> (A) 		1-09654-202-1 01 1 9710-9903 ● ●
51 UNION
V TYPE ENG<91L> ZF M/T<X9E> (A) 		1-09654-202-1 01 1 9710-9903 ● ●
51 UNION
L TYPE ENG<90L> AIR DRYER<PS7> EXC. FULLER M/T<X9B> (A) 		1-09654-202-1 01 1 9904-9904 ● ●
51 UNION
V TYPE ENG<91L> ZF M/T<X9E> (A) 		1-09654-202-1 01 1 9904-9904 ● ●
51 UNION
V TYPE ENG<91L> ZF M/T<X9E> (A) 		1-09654-202-1 01 1 9905-9906 ● ●
51 UNION
L TYPE ENG<90L> AIR DRYER<PS7> EXC. FULLER M/T<X9B> (A) 		1-09654-202-1 01 1 9905-9906 ●
51 UNION
L TYPE ENG<90L> AIR DRYER<PS7> (A) 		1-09654-202-1 01 1 9905-9906 ●
51 UNION
L TYPE ENG<90L> AIR DRYER<PS7> EXC. FULLER M/T<X9B> (A) 		1-09654-202-1 01 1 9907- ●
51 UNION
L TYPE ENG<90L> AIR DRYER<PS7> (A) 		1-09654-202-1 01 1 9907- ●
72 UNION; AIR PIPE
L TYPE ENG<90L> (A) 		1-09654-318-1 01 1 9603- ● ●
72 UNION; AIR PIPE
V TYPE ENG<91L> (A) 		1-09654-097-1 01 1 9603- ● ●
72 UNION; AIR PIPE
V TYPE ENG<91L> (B) 		1-09656-292-1 01 1 9603-9702 ● ●
72 UNION; AIR PIPE
V TYPE ENG<91L> (B) M12 3WAY 		9-09228-906-1 01 1 9703- ● ●
98 BRACKET; AIR PIPE
ISUZU M/T<X9A> (B) 		1-47477-190-2 02 1 9603-9612 ● ●
98 BRACKET; AIR PIPE
ISUZU M/T<X9A> (B) 		1-47477-840-0 02 1 9701-9908 ● ●
98 BRACKET; AIR PIPE
MJA7U M/T(X6G),MJA6A M/T(X6V) (B) 		1-47477-840-0 02 1 9909- ● ●
98 BRACKET; AIR PIPE
L TYPE ENG<90L> (C) 		1-47477-385-0 01 1 9603-9904 ● ●
98 BRACKET; AIR PIPE
L TYPE ENG<90L> (C) 		1-47477-471-0 01 1 9905- ● ●
98 BRACKET; AIR PIPE
ZF M/T<X9E> (A) 		1-47477-693-0 01 1 9603-9612 ● ●
98 BRACKET; AIR PIPE
ZF M/T<X9E> (A) 		1-47477-902-0 01 1 9701- ● ●
123 BRACKET; UNION
FULLER M/T<X9B> (C) 		1-47477-536-0 01 1 9603-9802 ●
123 BRACKET; UNION
FULLER M/T<X9B> (C) 		1-47477-536-0 01 1 9803-9904 ● ●
123 BRACKET; UNION
FULLER M/T<X9B> (C) 		1-47477-536-0 01 1 9905- ●
123 BRACKET; UNION
(B) 		1-47477-045-0 01 1 9603- ● ●
123 BRACKET; UNION
(A) 		1-47477-654-1 01 1 9603- ● ●
123 BRACKET; UNION
ISUZU M/T<X9A> (D) 		1-47477-187-0 01 1 9603- ● ●
123 BRACKET; UNION
ZF M/T<X9E> (E) 		1-47477-588-0 01 1 9603- ● ●
179 NUT; UNION
M22 		9-09111-422-0 01 1 9603- ● ●
180 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 01 1 9603- ● ●
180 WASHER; LK,UNION
V TYPE ENG<91L> ID=20.2 		9-09150-520-0 01 1 9603-9702 ● ●
180 WASHER; LK,UNION
V TYPE ENG<91L> ID=12.2 		9-09150-512-0 01 1 9703- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
L TYPE ENG<90L> EXC. AIR DRYER<PS7> L=373 		1-49116-157-1 01 1 9603-9609 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
L TYPE ENG<90L> EXC. AIR DRYER<PS7> L=373 		1-49116-157-1 01 1 9610-9906 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
V TYPE ENG<91L> ZF M/T<X9E> EXC. AIR DRYER<PS7> L=373 		1-49116-157-1 01 1 9610-9906 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
L TYPE ENG<90L> EXC. AIR DRYER<PS7> L=373 		1-49116-157-1 01 1 9907-9909 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
L TYPE ENG<90L> EXC. AIR DRYER<PS7> L=373 		1-49116-157-1 01 1 9910- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
V TYPE ENG<91L> EXC. AIR DRYER<PS7> L=495 		1-49117-170-0 01 1 9603-9609 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
V TYPE ENG<91L> EXC. AIR DRYER<PS7>,ZF M/T<X9E> L=495 		1-49117-170-0 01 1 9610-9906 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
V TYPE ENG<91L> EXC. AIR DRYER<PS7> L=495 		1-49117-170-0 01 1 9907- ● ●
304 BRACKET; UNION
DUAL AIR GAUGE<UG2> (A) 		1-71117-211-0 01 1 9603- ●
304 BRACKET; UNION
(E) 		1-47476-556-0 01 1 9603- ● ●
304 BRACKET; UNION
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (C) 		1-47477-183-1 01 1 9905- ● ●
304 BRACKET; UNION
FULLER M/T<X9B> (B) 		1-47477-405-0 01 1 9803-9904 ● ●
304 BRACKET; UNION
FULLER M/T<X9B> (B) 		1-47477-405-0 01 1 9905- ●
304 BRACKET; UNION
ISUZU M/T<X9A> (C) 		1-47477-182-1 01 1 9603-9904 ● ●
304 BRACKET; UNION
ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C) 		1-47477-182-1 01 1 9905- ● ●
304 BRACKET; UNION
ZF M/T<X9E> (D) 		1-47477-436-0 01 1 9603-9704 ● ●
304 BRACKET; UNION
ZF M/T<X9E> (D) 		1-47477-757-1 01 1 9705- ● ●
304 BRACKET; UNION
(A) 		1-71117-210-0 01 1 9603- ●
341 BOLT; BRKT
FULLER M/T<X9B> (B) M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ●
341 BOLT; BRKT
FULLER M/T<X9B> (B) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9802 ●
341 BOLT; BRKT
FULLER M/T<X9B> (B) M8X25 FLANGE 		0-28680-825-0 02 1 9803-9904 ● ●
341 BOLT; BRKT
FULLER M/T<X9B> (B) M8X25 FLANGE 		0-28680-825-0 02 1 9905- ●
341 BOLT; BRKT
ZF M/T<X9E> (A) M16X35 FLANGE 		0-28881-635-0 02 1 9603-9704 ● ●
374 CONNECTOR
ISUZU M/T<X9A> (A) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 9603- ● ●
374 CONNECTOR
ISUZU M/T<X9A>,FULLER M/T<X9B> (C) M20 & M22 STRAIGHT 		1-09654-166-1 01 1 9603- ● ●
374 CONNECTOR
ZF M/T<X9E> (D) 		1-09654-203-1 01 1 9603- ● ●
374 CONNECTOR
ZF M/T<X9E> (B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 9603-9702 ● ●
374 CONNECTOR
ZF M/T<X9E> (B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 9603-9702 ●
374 CONNECTOR
ZF M/T<X9E> (B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 9703-9904 ● ●
374 CONNECTOR
ZF M/T<X9E> (B) M16 PT3/8X2 3WAY 		1-09656-418-2 01 1 9905-9909 ● ●
374 CONNECTOR
ZF M/T<X9E> (B) M16 PT3/8X2 3WAY 		1-09656-418-2 01 1 9910- ● ●
376 PIPE; AIR,FLEX HOSE
FULLER M/T<X9B> 		1-49114-857-0 01 1 9603-9606 ●
376 PIPE; AIR,FLEX HOSE
FULLER M/T<X9B> 		1-49117-491-0 01 1 9607- ●
376 PIPE; AIR,FLEX HOSE
ISUZU M/T<X9A> L=639 		1-49112-566-0 01 1 9603- ● ●
376 PIPE; AIR,FLEX HOSE
ZF M/T<X9E> 		1-49116-862-0 01 1 9603-9608 ● ●
376 PIPE; AIR,FLEX HOSE
ZF M/T<X9E> L=552 		1-49117-764-0 01 1 9609- ● ●
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28080-830-0 02 1 9603-9606 ● ●
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28680-835-0 02 1 9607- ● ●
377 BOLT; BRKT FIX
ZF M/T<X9E> M12X16 		0-28181-216-0 01 1 9603- ● ●
421 NUT; BRKT
ISUZU M/T<X9A> M10 FLANGE 		0-91150-110-0 02 1 9603-9606 ● ●
421 NUT; BRKT
ISUZU M/T<X9A> M10 FLANGE 		0-91150-210-0 02 1 9607-9704 ● ●
421 NUT; BRKT
ISUZU M/T<X9A>,ZF M/T<X9E> M10 FLANGE 		0-91150-210-0 02 1 9705- ● ●
çizim 41810
296 296 367 296 367 367 296 296 258 321 88 323 322 326 372 120
BalonParca AdiParca NoAdetTipApplied Date A B
88 GASKET; NYLON TUBE
ASSISTER SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=11 OD=18 		9-09572-510-0 01 1 9603- ● ●
120 CONNECTOR; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-47470-402-3 01 1 9603- ●
120 CONNECTOR; AIR PIPE
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-47470-405-1 01 1 9603- ●
120 CONNECTOR; AIR PIPE
EXC. FULL FLOATING CAB(W16) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9603-9904 ●
120 CONNECTOR; AIR PIPE
EXC. FULL FLOATING CAB(W16) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9905- ●
258 CONNECTOR; NYLON TUBE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> (F) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9603-9811 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (F) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9603-9811 ● ●
258 CONNECTOR; NYLON TUBE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> (F) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9912 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (F) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9912 ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0001-0007 ● ●
258 CONNECTOR; NYLON TUBE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (F) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0001-0007 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (F) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0001-0007 ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (F) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (F) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9603-9608 ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9603-9608 ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9904 ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9904 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-0005 ● ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-0005 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A>,FULLER M/T<X9B> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-0005 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0006- ● ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0006- ● ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (D) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9603-9702 ● ●
258 CONNECTOR; NYLON TUBE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9603-9702 ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (D) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9703-9904 ● ●
258 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9905- ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (G) DIN12 & R1/4 ELBOW 		1-09660-655-1 01 1 9603-9904 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (G) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 9905- ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 9603-9904 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT 		1-09661-097-0 01 1 9905-0007 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9811 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9811 ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9812-9904 ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A>,FULLER M/T<X9B> TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9812-9904 ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9603-9904 ● ●
258 CONNECTOR; NYLON TUBE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9905- ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (H) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9603-9608 ● ●
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (H) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9603-9608 ●
258 CONNECTOR; NYLON TUBE
(F) 		1-09660-796-1 01 1 9603- ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=6 		1-09366-235-0 AR 1 9603- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9603- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9603- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 9603- ● ●
296 TUBE; NYLON
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0002- ● ●
321 JOINT; FLEX HOSE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> 		1-09654-362-1 01 1 9603-9811 ● ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9603-9811 ● ●
321 JOINT; FLEX HOSE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> 		1-09656-738-0 01 1 9812-9912 ● ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 9812-9912 ● ●
321 JOINT; FLEX HOSE
TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09656-738-0 01 1 0001- ● ●
321 JOINT; FLEX HOSE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 0001- ● ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 0001- ● ●
322 NUT; JOINT,FLEX HOSE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> M10 H=8 		1-09400-029-0 01 1 9603-9912 ● ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9603-9912 ● ●
322 NUT; JOINT,FLEX HOSE
TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0001- ● ●
322 NUT; JOINT,FLEX HOSE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0001- ● ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0001- ● ●
323 WASHER; LK,JOINT
DUAL AIR GAUGE<UG2> ZF M/T<X9E> ID=10.2 		9-09150-510-0 01 1 9603-9912 ● ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9603-9912 ● ●
323 WASHER; LK,JOINT
TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0001- ● ●
323 WASHER; LK,JOINT
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0001- ● ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0001- ● ●
326 PIPE; AIR,FLEX HOSE
ZF M/T<X9E> L=529 		1-47494-216-3 01 1 9603-9904 ●
326 PIPE; AIR,FLEX HOSE
L=529 		1-47494-216-3 01 1 9905- ●
367 TUBE; CORRUGATE
AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=13 		1-87410-091-0 02 1 9603- ●
367 TUBE; CORRUGATE
AIR DRYER<PS7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 02 1 9603- ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> SERVICED BY L=2000 ID=28 		1-87410-098-0 02 1 9603- ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) AIR DRYER<PS7> SERVICED BY L=2000 ID=28 		1-87410-098-0 02 1 9603- ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7> SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9603-9605 ●
367 TUBE; CORRUGATE
AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9603-9605 ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9603-9605 ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. AIR DRYER<PS7> SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9603-9605 ●
367 TUBE; CORRUGATE
AIR DRYER<PS7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9603-9605 ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9603-9605 ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. AIR DRYER<PS7> SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9606- ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9606- ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. AIR DRYER<PS7> SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9606- ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 9606- ●
367 TUBE; CORRUGATE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=32 		1-87410-104-0 01 1 9603- ●
367 TUBE; CORRUGATE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=32 		1-87410-104-0 01 1 9603- ●
367 TUBE; CORRUGATE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9603-9904 ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9603-9904 ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9603-9904 ●
367 TUBE; CORRUGATE
EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9603-9904 ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9603-9904 ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9905-9910 ●
367 TUBE; CORRUGATE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9905-9910 ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9905-9910 ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9905-9910 ●
367 TUBE; CORRUGATE
EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9905-9910 ●
367 TUBE; CORRUGATE
TRANSMISSION-ZF 16S151 OD(Y2N) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9911-9911 ● ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9911-9911 ●
367 TUBE; CORRUGATE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9911-9911 ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9911-9911 ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9911-9911 ●
367 TUBE; CORRUGATE
EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9911-9911 ●
367 TUBE; CORRUGATE
TRANSMISSION-ZF 16S151 OD(Y2N) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9912-0002 ● ●
367 TUBE; CORRUGATE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9912-0002 ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9912-0002 ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9912-0002 ●
367 TUBE; CORRUGATE
EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9912-0002 ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9912-0002 ●
367 TUBE; CORRUGATE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AIR DRYER<PS7> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0003- ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0003- ●
367 TUBE; CORRUGATE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0003- ●
367 TUBE; CORRUGATE
EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0003- ●
367 TUBE; CORRUGATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0003- ●
367 TUBE; CORRUGATE
EXC. AIR DRYER<PS7> SERVICED BY L=2000 ID=28 		1-87410-098-0 01 1 9603- ● ●
367 TUBE; CORRUGATE
AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 ID=28 		1-87410-098-0 01 1 9603- ●
367 TUBE; CORRUGATE
AIR DRYER<PS7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=2000 ID=28 		1-87410-098-0 01 1 9603- ●
367 TUBE; CORRUGATE
TRANSMISSION-ZF 8S151 OD(Y3N) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9911-0002 ● ●
367 TUBE; CORRUGATE
ZF M/T<X9E> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0003- ● ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> L=250 ID=7 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9603-9604 ●
367 TUBE; CORRUGATE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9603-9904 ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9603-9904 ●
367 TUBE; CORRUGATE
EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9603-9904 ●
367 TUBE; CORRUGATE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9905-9912 ●
367 TUBE; CORRUGATE
DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9905-9912 ●
367 TUBE; CORRUGATE
EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9905-9912 ●
367 TUBE; CORRUGATE
TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 0001- ●
367 TUBE; CORRUGATE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 0001- ●
367 TUBE; CORRUGATE
EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 0001- ●
372 NUT
M8 FLANGE 		0-91150-108-0 02 1 9603- ●
çizim 44390
217 224 21 217 1 177 1 376 26 21 1 177 33 237 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
FULLER M/T<X9B> L=440 		0-07846-440-1 01 1 9603-9802 ●
1 HOSE; FLEX,AIR TANK
FULLER M/T<X9B> L=440 		0-07846-440-1 01 1 9803-9903 ● ●
1 HOSE; FLEX,AIR TANK
L TYPE ENG<90L> FULLER M/T<X9B> EXC. AIR DRYER<PS7> L=440 		0-07846-440-1 01 1 9904- ● ●
1 HOSE; FLEX,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> ISUZU M/T<X9A> 		0-07847-360-1 01 1 9609-9609 ● ●
1 HOSE; FLEX,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> ISUZU M/T<X9A> 		0-07846-360-1 01 1 9610- ● ●
1 HOSE; FLEX,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> ZF M/T<X9E> L=400 		0-07846-400-1 01 1 9603-9903 ● ●
1 HOSE; FLEX,AIR TANK
L TYPE ENG<90L> AIR DRYER<PS7> L=400 		0-07846-400-1 01 1 9904-0006 ● ●
1 HOSE; FLEX,AIR TANK
L TYPE ENG<90L> FULLER M/T<X9B>,ZF M/T<X9E> AIR DRYER<PS7> L=400 		0-07846-400-1 01 1 0007- ● ●
1 HOSE; FLEX,AIR TANK
L TYPE ENG<90L> ISUZU M/T<X9A>,ZF M/T<X9E> EXC. AIR DRYER<PS7> L=490 		0-07846-490-1 01 1 9603- ● ●
1 HOSE; FLEX,AIR TANK
V TYPE ENG<91L> L=530 		0-07846-530-1 01 1 9603-9609 ● ●
1 HOSE; FLEX,AIR TANK
V TYPE ENG<91L> ISUZU M/T<X9A> L=530 		0-07846-530-1 01 1 9610-9906 ● ●
1 HOSE; FLEX,AIR TANK
V TYPE ENG<91L> L=530 		0-07846-530-1 01 1 9907- ● ●
1 HOSE; FLEX,AIR TANK
V TYPE ENG<91L> ZF M/T<X9E> EXC. AIR DRYER<PS7> L=630 		0-07846-630-1 01 1 9610-9709 ● ●
1 HOSE; FLEX,AIR TANK
V TYPE ENG<91L> ZF M/T<X9E> L=630 		0-07846-630-1 01 1 9710-9906 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49116-141-0 01 1 9603-9709 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L TYPE ENG<90L> AIR DRYER<PS7> 		1-49116-141-0 01 1 9710-9906 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
V TYPE ENG<91L> AIR DRYER<PS7> EXC. ZF M/T<X9E> 		1-49116-141-0 01 1 9710-9906 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49116-141-0 01 1 9907- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
V TYPE ENG<91L> AIR DRYER<PS7> ZF M/T<X9E> 		1-49118-840-0 01 1 9710-9906 ● ●
26 NUT; CHECK VLV
EXC. AIR DRYER<PS7> M20 		9-99111-420-0 01 1 9603-9609 ● ●
26 NUT; CHECK VLV
L TYPE ENG<90L> EXC. AIR DRYER<PS7> M20 		9-99111-420-0 01 1 9610-9906 ● ●
26 NUT; CHECK VLV
V TYPE ENG<91L> EXC. AIR DRYER<PS7>,ZF M/T<X9E> M20 		9-99111-420-0 01 1 9610-9906 ● ●
26 NUT; CHECK VLV
EXC. AIR DRYER<PS7> M20 		9-99111-420-0 01 1 9907- ● ●
33 PIPE; AIR,UNION TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49116-788-0 01 1 9603-9605 ● ●
33 PIPE; AIR,UNION TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49117-526-0 01 1 9606-9912 ● ●
33 PIPE; AIR,UNION TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49122-443-0 01 1 0001- ● ●
177 PIPE; AIR,UNION TO UNION
L=568 SERVICED BY L=600 		1-47428-809-0 01 1 9603-9904 ● ●
177 PIPE; AIR,UNION TO UNION
L=565 		1-49121-898-0 01 1 9905-9908 ● ●
177 PIPE; AIR,UNION TO UNION
L=548 		1-49122-243-0 01 1 9909- ● ●
217 PIPE; VAC,UNION TO MAG VLV
L TYPE ENG<90L> (C) L=1670 SERVICED BY L=1700 		1-47426-357-0 01 1 9603-9609 ● ●
217 PIPE; VAC,UNION TO MAG VLV
L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (C) L=1670 SERVICED BY L=1700 		1-47426-357-0 01 1 9610-9701 ● ●
217 PIPE; VAC,UNION TO MAG VLV
L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (C) L=1663 SERVICED BY L=1700 		1-47428-821-0 01 1 9702-9706 ● ●
217 PIPE; VAC,UNION TO MAG VLV
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (C) L=1663 SERVICED BY L=1700 		1-47428-821-0 01 1 9707-9904 ● ●
217 PIPE; VAC,UNION TO MAG VLV
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C) L=1663 SERVICED BY L=1700 		1-47428-821-0 01 1 9905-9909 ● ●
217 PIPE; VAC,UNION TO MAG VLV
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C) L=666 		1-49121-249-0 01 1 9910-9910 ● ●
217 PIPE; VAC,UNION TO MAG VLV
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C) L=1643 		1-49122-249-0 01 1 9911- ● ●
217 PIPE; VAC,UNION TO MAG VLV
V TYPE ENG<91L> (B) L=748 SERVICED BY L=800 		1-47428-812-0 01 1 9603-9702 ● ●
217 PIPE; VAC,UNION TO MAG VLV
V TYPE ENG<91L> (B) L=752 SERVICED BY L=800 		1-47428-812-0 01 1 9703-9904 ● ●
217 PIPE; VAC,UNION TO MAG VLV
V TYPE ENG<91L> (A) L=620 		1-49121-778-0 01 1 9905- ● ●
217 PIPE; VAC,UNION TO MAG VLV
V TYPE ENG<91L> (A) L=336 		1-47499-145-0 01 1 9603-9904 ● ●
217 PIPE; VAC,UNION TO MAG VLV
V TYPE ENG<91L> (B) L=552 		1-49121-876-0 01 1 9905- ● ●
224 PIPE; AIR,UNION TO FLEX HOSE
V TYPE ENG<91L> L=480 SERVICED BY L=500 		1-47428-807-0 01 1 9603-9702 ● ●
224 PIPE; AIR,UNION TO FLEX HOSE
V TYPE ENG<91L> L=494 SERVICED BY L=500 		1-47428-807-0 01 1 9703- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
L TYPE ENG<90L> EXC. AIR DRYER<PS7> L=373 		1-49116-157-1 01 1 9603-9609 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
L TYPE ENG<90L> EXC. AIR DRYER<PS7> L=373 		1-49116-157-1 01 1 9610-9906 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
V TYPE ENG<91L> ZF M/T<X9E> EXC. AIR DRYER<PS7> L=373 		1-49116-157-1 01 1 9610-9906 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
L TYPE ENG<90L> EXC. AIR DRYER<PS7> L=373 		1-49116-157-1 01 1 9907-9909 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
L TYPE ENG<90L> EXC. AIR DRYER<PS7> L=373 		1-49116-157-1 01 1 9910- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
V TYPE ENG<91L> EXC. AIR DRYER<PS7> L=495 		1-49117-170-0 01 1 9603-9609 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
V TYPE ENG<91L> EXC. AIR DRYER<PS7>,ZF M/T<X9E> L=495 		1-49117-170-0 01 1 9610-9906 ● ●
237 PIPE; AIR,FLEX HOSE TO UNION
V TYPE ENG<91L> EXC. AIR DRYER<PS7> L=495 		1-49117-170-0 01 1 9907- ● ●
376 PIPE; AIR,FLEX HOSE
FULLER M/T<X9B> 		1-49114-857-0 01 1 9603-9606 ●
376 PIPE; AIR,FLEX HOSE
FULLER M/T<X9B> 		1-49117-491-0 01 1 9607- ●
376 PIPE; AIR,FLEX HOSE
ISUZU M/T<X9A> L=639 		1-49112-566-0 01 1 9603- ● ●
376 PIPE; AIR,FLEX HOSE
ZF M/T<X9E> 		1-49116-862-0 01 1 9603-9608 ● ●
376 PIPE; AIR,FLEX HOSE
ZF M/T<X9E> L=552 		1-49117-764-0 01 1 9609- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
