Sayfa 0-61 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11420 - FTR(AUST)EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶

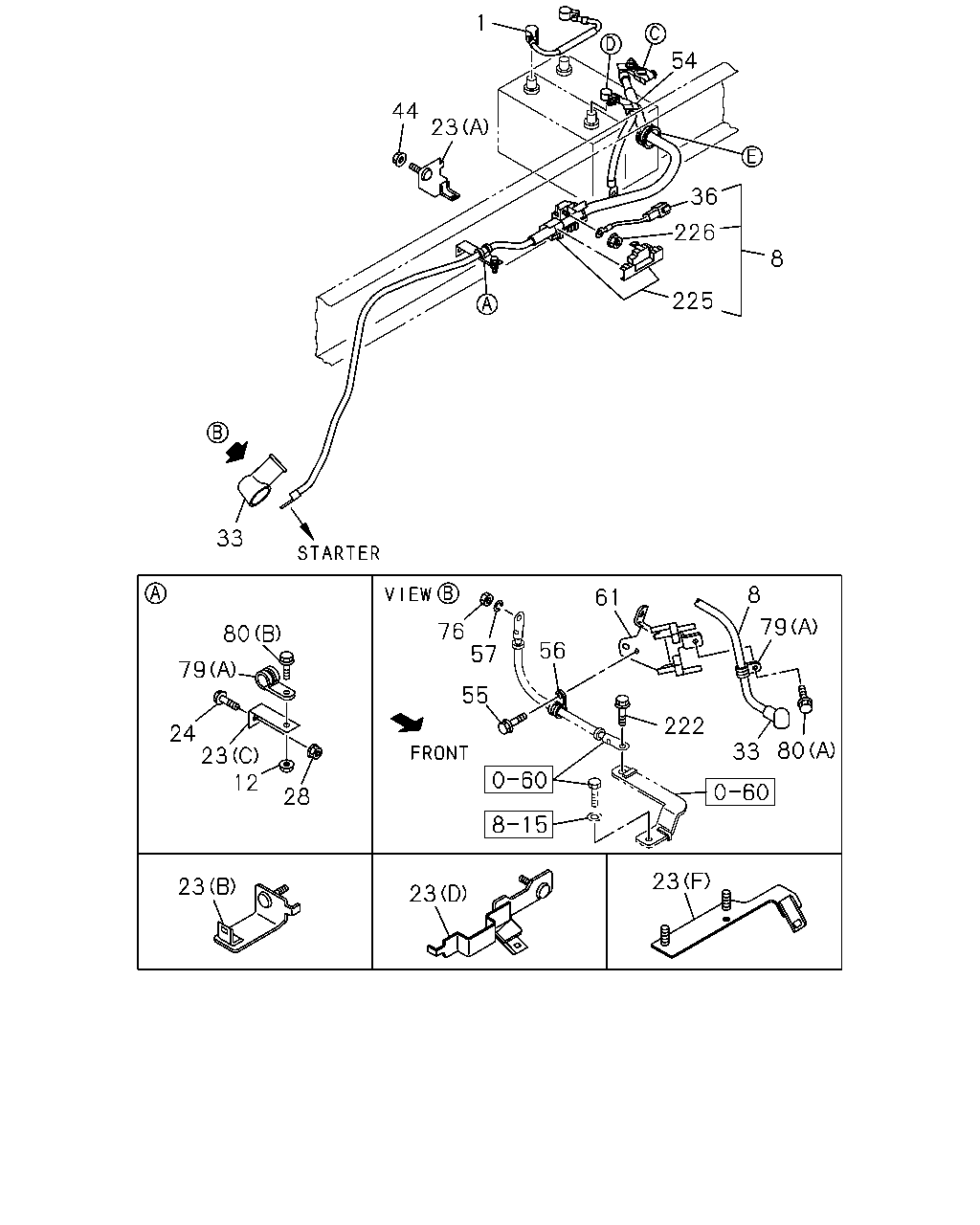

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#58044) — 148 parça

1 54 44 23 36 226 8 225 33 8 61 79 76 57 80 56 79 55 222 24 23 12 80 33 28 23 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY L=280	8-98025-412-1	01	1	0710-0711	●
1	CABLE; BATTERY L=280	8-98025-412-3	01	1	0712-	●	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1530	8-98069-150-3	01	1	0710-1004	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98160-904-0	01	1	1005-	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98069-156-1	01	1	0712-1004		●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98159-416-0	01	1	1005-		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0712	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0712	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	02	1	0801-0809	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0810-	●	●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	02	1	0710-0711	●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	02	1	0712-0809	●	●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	01	1	0810-	●	●
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98044-882-0	01	1	0710-0711	●
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98044-882-0	01	1	0712-	●	●
23	BRACKET; CABLE CLIP TO FRAME (D)	8-98085-160-2	01	1	0710-0711	●
23	BRACKET; CABLE CLIP TO FRAME (D)	8-98085-160-2	01	1	0712-0712	●	●
23	BRACKET; CABLE CLIP TO FRAME (D)	8-98085-160-4	01	1	0712-1111	●
23	BRACKET; CABLE CLIP TO FRAME (F)	8-98201-025-0	01	1	1112-	●
23	BRACKET; CABLE CLIP TO FRAME (E)	8-97612-957-1	01	1	0712-		●
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98091-358-0	01	1	0712-		●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	01	1	0710-0711	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	01	1	0710-0711	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	01	1	0712-0712	●	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	01	1	0712-0712	●	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	0801-0809	●	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	01	1	0810-	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0712-0712	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0712-0712	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0712-0712		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	0801-0809	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0810-1111	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0810-1111	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0810-1111		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1112-	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1112-	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1112-	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	0712-0712	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0801-0809	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0801-0809		●
28	NUT; BRKT TO FRAME M10 FLANGE	0-91180-110-0	01	1	0712-0804		●
28	NUT; BRKT TO FRAME M10 FLANGE	0-91180-210-0	01	1	0805-		●
33	CAP; INSULATOR	1-82699-431-0	01	1	0710-0711	●
33	CAP; INSULATOR	1-82699-431-0	01	1	0712-	●	●
36	FUSIBLE LINK; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-97615-498-1	01	1	0710-0711	●
36	FUSIBLE LINK; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-97615-498-1	01	1	0712-	●	●
44	NUT; BRKT M10 FLANGE	0-91180-110-0	01	1	0710-0711	●
44	NUT; BRKT M10 FLANGE	0-91180-110-0	01	1	0712-0804	●	●
44	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0805-	●	●
54	CLIP; BAND,BATTERY CABLE BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=175	1-09707-176-1	01	1	0710-0711	●
54	CLIP; BAND,BATTERY CABLE BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=175	1-09707-176-1	01	1	0712-1004	●	●
55	BOLT; CLIP,BATTERY CABLE M8X16 FLANGE	0-28050-816-0	01	1	0710-0711	●
55	BOLT; CLIP,BATTERY CABLE M8X16 FLANGE	0-28050-816-0	01	1	0712-	●	●
56	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	0710-0711	●
56	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	0712-	●	●
57	WASHER; PL,BATTERY CABLE ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	0710-0711	●
57	WASHER; PL,BATTERY CABLE ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	0712-	●	●
61	BRACKET; BATTERY CABLE	8-98051-379-1	01	1	0710-0711	●
61	BRACKET; BATTERY CABLE	8-98051-379-1	01	1	0712-	●	●
76	NUT; BATTERY CABLE M10 FLANGE	0-91180-210-0	01	1	0710-0711	●
76	NUT; BATTERY CABLE M10 FLANGE	0-91180-210-0	01	1	0712-	●	●
79	CLIP; BATTERY CABLE (B) ID=19 L=24 H=21	1-09700-109-1	01	1	0710-0711	●
79	CLIP; BATTERY CABLE (B) ID=19 L=24 H=21	1-09700-109-1	01	1	0712-0712	●	●
79	CLIP; BATTERY CABLE (C) ID=13-18 L=26	1-09709-293-0	02	1	0801-0810	●	●
79	CLIP; BATTERY CABLE (A) ID=16 L=28	1-09700-872-0	01	1	0710-0711	●
79	CLIP; BATTERY CABLE (A) ID=16 L=28	1-09700-872-0	01	1	0712-1004	●	●
79	CLIP; BATTERY CABLE (A) ID=15 L=28	1-09701-216-0	01	1	1005-	●	●
79	CLIP; BATTERY CABLE (A) ID=21 L=24	8-98019-191-0	01	1	0710-0711	●
79	CLIP; BATTERY CABLE (A) ID=21 L=24	8-98019-191-0	01	1	0712-0712	●	●
79	CLIP; BATTERY CABLE (A) ID=21 L=24	8-98019-191-0	02	1	0801-0809	●	●
79	CLIP; BATTERY CABLE (A) ID=21 L=24	8-98019-191-0	01	1	0810-	●	●
80	BOLT; BATTERY CABLE CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	0710-0711	●
80	BOLT; BATTERY CABLE CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	0712-	●	●
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-0711	●
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-0711	●
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	0712-0712	●	●
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	0712-0712	●	●
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	0801-0809	●	●
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	0810-	●	●
222	BOLT; EARTH CABLE M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	0710-0711	●
222	BOLT; EARTH CABLE M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	0712-	●	●
225	BLOCK; TERMINAL BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA>	8-98029-689-0	01	1	0710-0710	●
225	BLOCK; TERMINAL BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98029-689-0	01	1	0710-0711	●
225	BLOCK; TERMINAL BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98029-689-0	01	1	0712-	●	●
226	NUT; FUSIBLE LINK BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M6 W/LK WASHER	8-94424-179-0	01	1	0710-0710	●
226	NUT; FUSIBLE LINK BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M6 W/LK WASHER	8-94424-179-0	01	1	0710-0711	●
226	NUT; FUSIBLE LINK BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M6 W/LK WASHER	8-94424-179-0	01	1	0712-	●	●

8 13 10 11 2 112 79 107 217 79 28 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	CABLE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280	8-98035-647-0	01	1	0710-0711	●
2	CABLE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280	8-98035-647-1	01	1	0712-	●	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1530	8-98069-150-3	01	1	0710-1004	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98160-904-0	01	1	1005-	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98069-156-1	01	1	0712-1004		●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98159-416-0	01	1	1005-		●
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	0710-0711	●
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	0712-	●	●
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0806-	●	●
13	GROMMET; BATTERY CABLE ID=32 OD=40 T=23	1-09332-112-0	01	1	0710-0711	●
13	GROMMET; BATTERY CABLE ID=32 OD=40 T=23	1-09332-112-0	01	1	0712-	●	●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	02	1	0710-0711	●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	02	1	0712-0809	●	●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	01	1	0810-	●	●
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98044-882-0	01	1	0710-0711	●
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98044-882-0	01	1	0712-	●	●
23	BRACKET; CABLE CLIP TO FRAME (D)	8-98085-160-2	01	1	0710-0711	●
23	BRACKET; CABLE CLIP TO FRAME (D)	8-98085-160-2	01	1	0712-0712	●	●
23	BRACKET; CABLE CLIP TO FRAME (D)	8-98085-160-4	01	1	0712-1111	●
23	BRACKET; CABLE CLIP TO FRAME (F)	8-98201-025-0	01	1	1112-	●
23	BRACKET; CABLE CLIP TO FRAME (E)	8-97612-957-1	01	1	0712-		●
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98091-358-0	01	1	0712-		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0712-0712	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0712-0712	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0712-0712		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	0801-0809	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0810-1111	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0810-1111	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0810-1111		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1112-	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1112-	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1112-	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	0712-0712	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0801-0809	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0801-0809		●
28	NUT; BRKT TO FRAME M10 FLANGE	0-91180-110-0	01	1	0712-0804		●
28	NUT; BRKT TO FRAME M10 FLANGE	0-91180-210-0	01	1	0805-		●
79	CLIP; BATTERY CABLE (B) ID=19 L=24 H=21	1-09700-109-1	01	1	0710-0711	●
79	CLIP; BATTERY CABLE (B) ID=19 L=24 H=21	1-09700-109-1	01	1	0712-0712	●	●
79	CLIP; BATTERY CABLE (C) ID=13-18 L=26	1-09709-293-0	02	1	0801-0810	●	●
79	CLIP; BATTERY CABLE (A) ID=16 L=28	1-09700-872-0	01	1	0710-0711	●
79	CLIP; BATTERY CABLE (A) ID=16 L=28	1-09700-872-0	01	1	0712-1004	●	●
79	CLIP; BATTERY CABLE (A) ID=15 L=28	1-09701-216-0	01	1	1005-	●	●
79	CLIP; BATTERY CABLE (A) ID=21 L=24	8-98019-191-0	01	1	0710-0711	●
79	CLIP; BATTERY CABLE (A) ID=21 L=24	8-98019-191-0	01	1	0712-0712	●	●
79	CLIP; BATTERY CABLE (A) ID=21 L=24	8-98019-191-0	02	1	0801-0809	●	●
79	CLIP; BATTERY CABLE (A) ID=21 L=24	8-98019-191-0	01	1	0810-	●	●
107	CLIP; BAND L=140	5-09707-031-1	01	1	0710-0711	●
107	CLIP; BAND L=140	5-09707-031-1	01	1	0712-	●	●
112	TERMINAL; BATTERY <+>	8-97365-771-0	01	1	0710-0711	●
112	TERMINAL; BATTERY <+>	8-97365-771-0	01	1	0712-	●	●
217	CLIP; BAND,CABLE L=250	5-09707-030-1	02	1	0710-0809	●
217	CLIP; BAND,CABLE L=250	5-09707-030-1	02	1	0810-0907	●	●
217	CLIP; BAND,CABLE L=250	5-09707-030-1	02	1	0810-0907	●
217	CLIP; BAND,CABLE L=250	5-09707-030-1	02	1	0908-	●	●
