0-60 — ENGINE ELECTRICAL CONTROL PARTS (#58043) — 145 parça

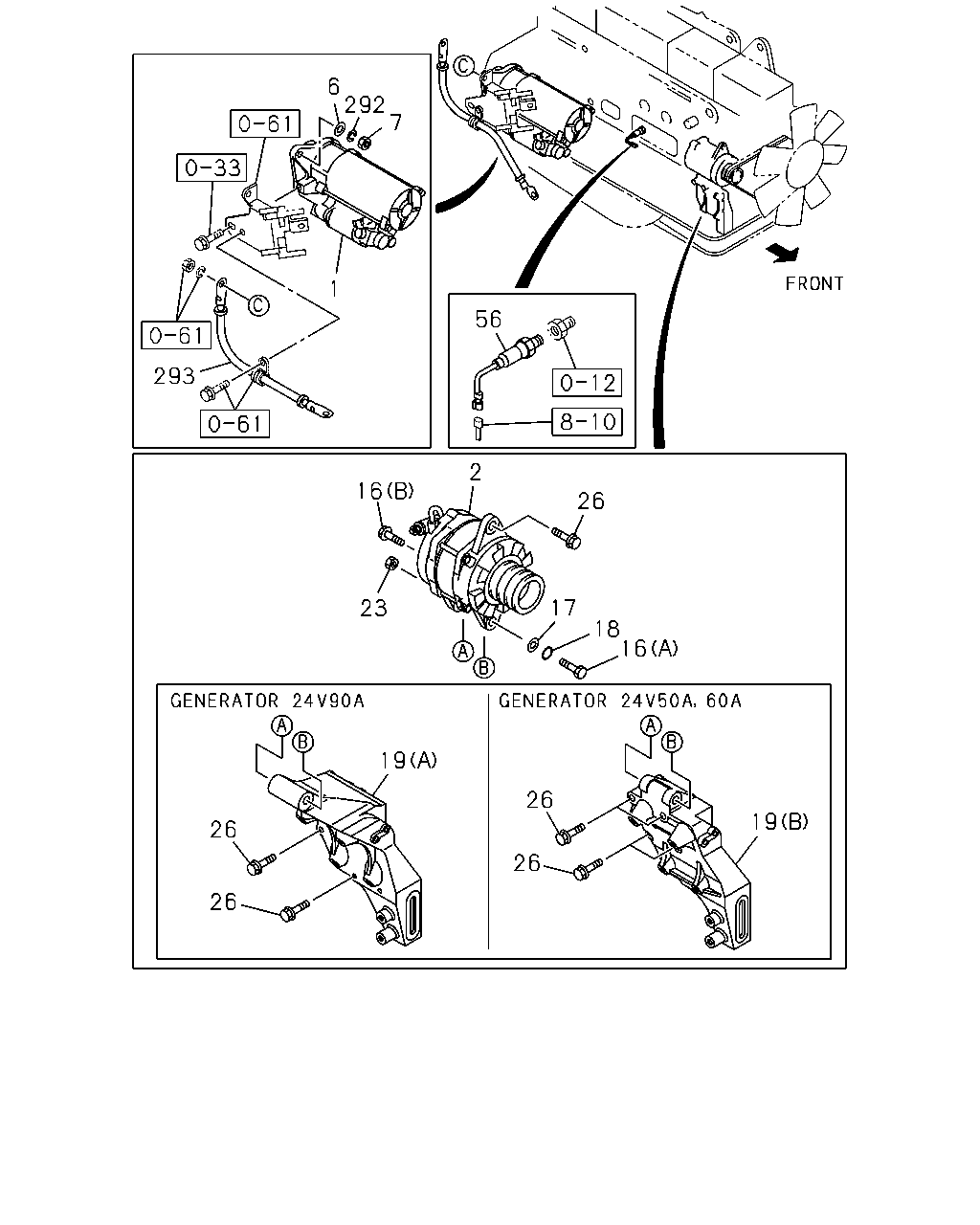

6 292 7 1 56 293 2 16 26 17 23 18 16 19 26 19 26 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98060-854-0	01	1	0710-0711	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98060-854-0	01	1	0712-0909	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98141-206-3	01	1	0910-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-461-1	01	1	0710-0711	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-461-4	01	1	0712-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-462-1	01	1	0710-0711	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-462-4	01	1	0712-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98013-463-0	01	1	0710-0711	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98013-463-2	01	1	0712-	●	●
6	WASHER; PL,STARTER ID=15	0-91610-514-0	01	1	0710-0711	●
6	WASHER; PL,STARTER ID=15	0-91610-514-0	01	1	0712-	●	●
7	NUT; STARTER M14	0-91110-514-0	02	1	0710-0711	●
7	NUT; STARTER M14	0-91110-514-0	02	1	0712-	●	●
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	0710-0711	●
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	0712-	●	●
16	BOLT; GEN AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE	0-28050-610-0	02	1	0710-0711	●
16	BOLT; GEN AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE	0-28050-610-0	02	1	0712-	●	●
16	BOLT; GEN HEATER & DEFROSTER(C41) (B) M6X10 FLANGE	0-28050-610-0	01	1	0710-0711	●
16	BOLT; GEN HEATER & DEFROSTER(C41) (B) M6X10 FLANGE	0-28050-610-0	01	1	0712-	●	●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	0710-0711	●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	0712-	●	●
18	WASHER; LK,GEN ID=14.2	0-91510-514-0	01	1	0710-0711	●
18	WASHER; LK,GEN ID=14.2	0-91510-514-0	01	1	0712-	●	●
19	BRACKET; GEN GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B)	8-97609-149-0	01	1	0710-0711	●
19	BRACKET; GEN GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B)	8-97609-149-0	01	1	0712-0803	●	●
19	BRACKET; GEN GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B)	8-98082-615-1	01	1	0804-	●	●
19	BRACKET; GEN GENERATOR 24V90A(K44) (A)	8-98082-617-0	01	1	0710-0711	●
19	BRACKET; GEN GENERATOR 24V90A(K44) (A)	8-98082-617-0	01	1	0712-	●	●
23	NUT; GEN M14	0-91110-514-0	01	1	0710-0711	●
23	NUT; GEN M14	0-91110-514-0	01	1	0712-	●	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28151-040-0	02	1	0710-0711	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28151-040-0	02	1	0712-	●	●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28151-080-0	02	1	0710-0711	●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28151-080-0	02	1	0712-	●	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) M10X25 FLANGE	0-28151-025-0	01	1	0710-0711	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) M10X25 FLANGE	0-28151-025-0	01	1	0712-	●	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) M10X135	8-94397-139-1	01	1	0710-0711	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) M10X135	8-94397-139-1	01	1	0712-	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-1	01	1	0710-0711	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-1	01	1	0712-	●	●
292	WASHER; LK,STARTER ID=14.2	0-91510-514-0	01	1	0710-0711	●
292	WASHER; LK,STARTER ID=14.2	0-91510-514-0	01	1	0712-	●	●
293	CABLE; STARTER EARTH L=430	8-97621-357-0	01	1	0710-0711	●
293	CABLE; STARTER EARTH L=430	8-97621-357-0	01	1	0712-	●	●

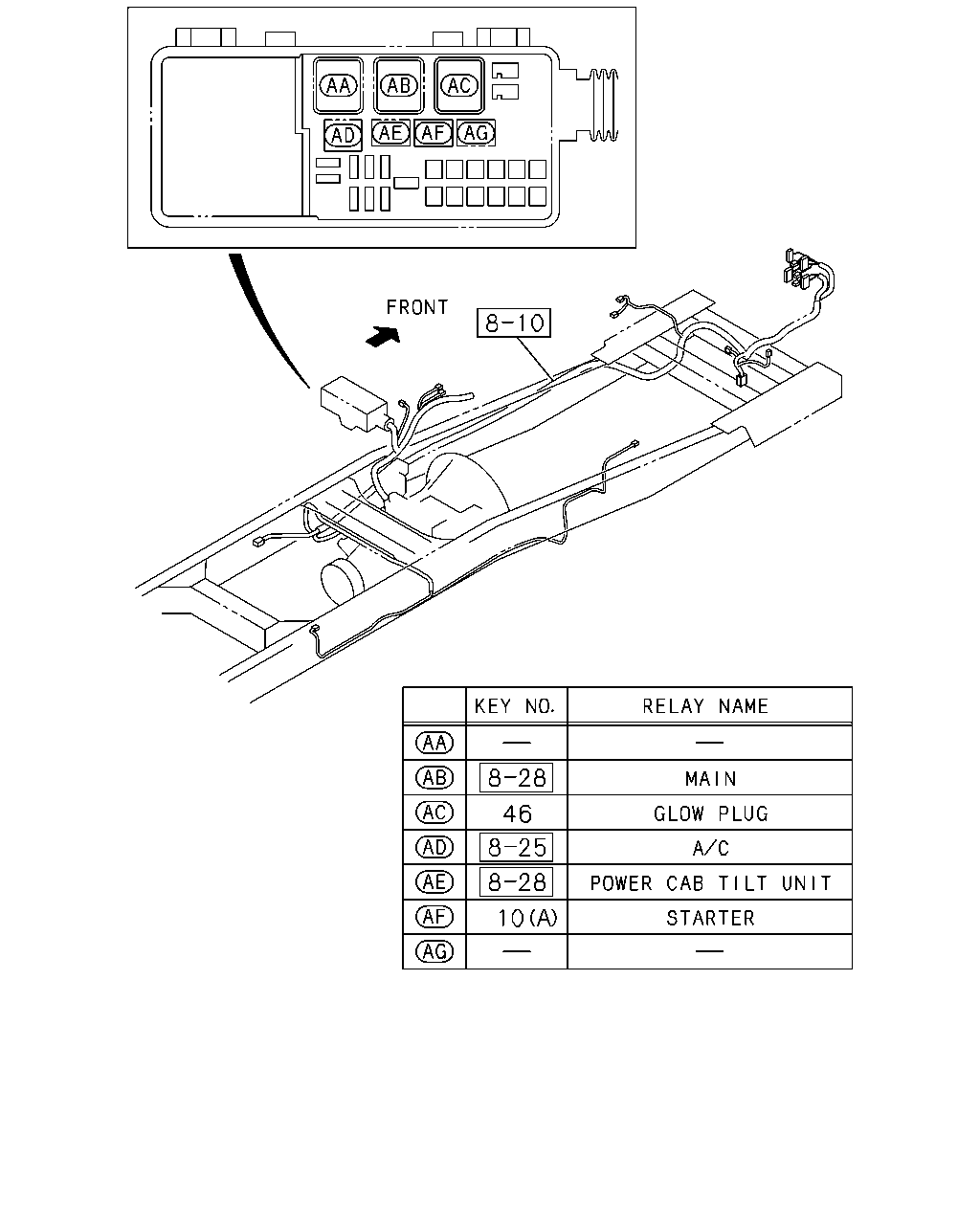

46 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER (A) 24V 10A MATSUSHITA	8-97173-035-1	01	1	0710-0711	●
10	RELAY; STARTER (A) 24V 10A MATSUSHITA	8-97173-035-1	01	1	0712-1005	●	●
10	RELAY; STARTER (A) 24V 10A	8-98167-173-0	01	1	1006-	●	●
10	RELAY; STARTER (B) 24V NIKKO	8-98005-631-0	01	1	0710-0711	●
10	RELAY; STARTER (B) 24V NIKKO	8-98005-631-1	01	1	0712-	●	●
46	RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	0710-0711	●
46	RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	0712-	●	●

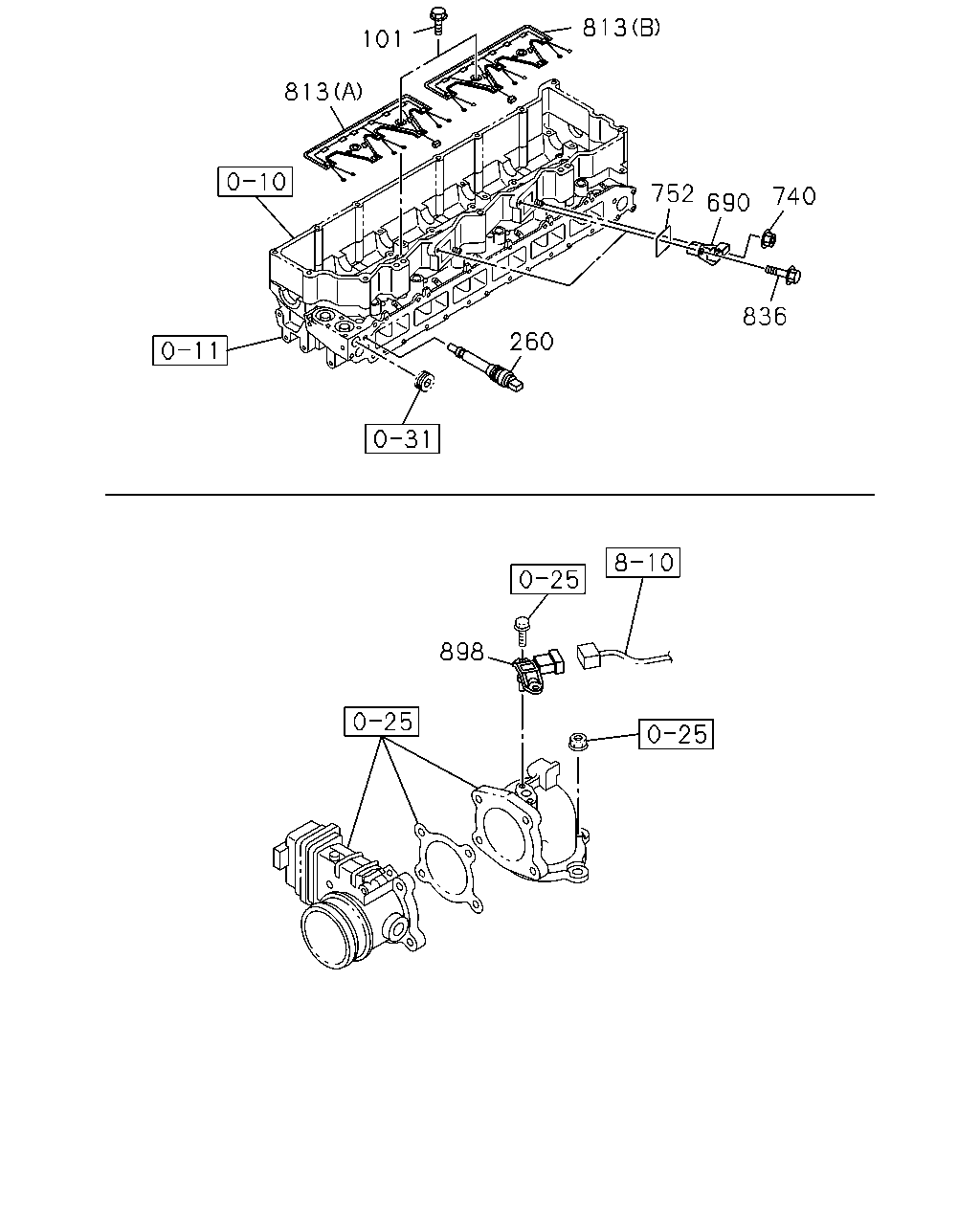

813 101 813 752 740 690 836 260 898

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BOLT; HARNESS M8X40 FLANGE	0-28650-840-0	04	1	0710-0711	●
101	BOLT; HARNESS M8X40 FLANGE	0-28650-840-0	04	1	0712-	●	●
260	SENSOR; WATER TEMP MITSUBISHI	8-98023-883-0	01	1	0710-0711	●
260	SENSOR; WATER TEMP MITSUBISHI	8-98023-883-0	01	1	0712-	●	●
690	CONNECTOR	8-94390-858-1	02	1	0710-0711	●
690	CONNECTOR	8-94390-858-1	02	1	0712-	●	●
740	NUT M8 FLANGE	0-91180-108-0	04	1	0710-0711	●
740	NUT M8 FLANGE	0-91180-108-0	04	1	0712-1011	●	●
740	NUT M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	8-94391-310-0	02	1	0710-0711	●
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	8-94391-310-0	02	1	0712-	●	●
813	HARNESS; INJECTOR (A) FRONT	8-97602-748-2	01	1	0710-0711	●
813	HARNESS; INJECTOR (A) FRONT	8-97602-748-2	01	1	0712-1008	●	●
813	HARNESS; INJECTOR (A) FRONT	8-98177-447-0	01	1	1009-1112	●	●
813	HARNESS; INJECTOR (A) FRONT	8-98204-717-0	01	1	1201-	●	●
813	HARNESS; INJECTOR (B) REAR	8-97602-749-2	01	1	0710-0711	●
813	HARNESS; INJECTOR (B) REAR	8-97602-749-2	01	1	0712-1008	●	●
813	HARNESS; INJECTOR (B) REAR	8-98177-448-0	01	1	1009-1112	●	●
813	HARNESS; INJECTOR (B) REAR	8-98204-718-0	01	1	1201-	●	●
836	BOLT; CONNECTOR M8X12 FLANGE	0-28050-812-0	02	1	1012-	●	●
898	SENSOR; BOOST	8-98009-418-0	01	1	0710-0711	●
898	SENSOR; BOOST	8-98009-418-0	01	1	0712-	●	●

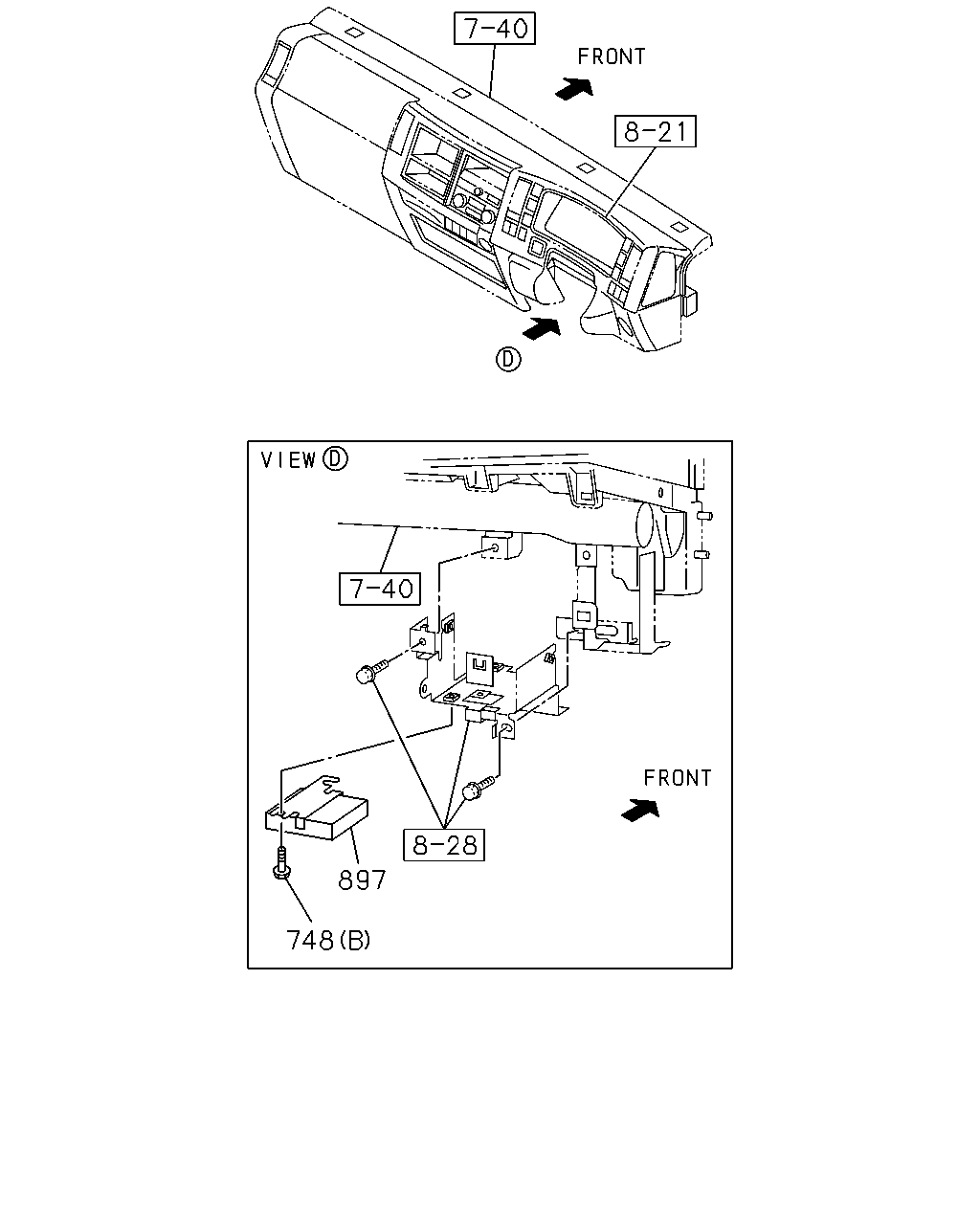

897 748

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	0710-0711	●
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	0712-	●	●
748	BOLT; CONT UNIT EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE	0-28650-616-0	02	1	0710-0711	●
748	BOLT; CONT UNIT EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE	0-28650-616-0	02	1	0712-	●	●
897	DRM EXC. MULTI INFORMATION DISPLAY<7NY>	8-98013-144-6	01	1	0710-0711	●
897	DRM EXC. MULTI INFORMATION DISPLAY<7NY>	8-98013-144-8	01	1	0712-1401	●	●
897	DRM EXC. MULTI INFORMATION DISPLAY<7NY>	8-98260-912-0	01	1	1402-	●	●

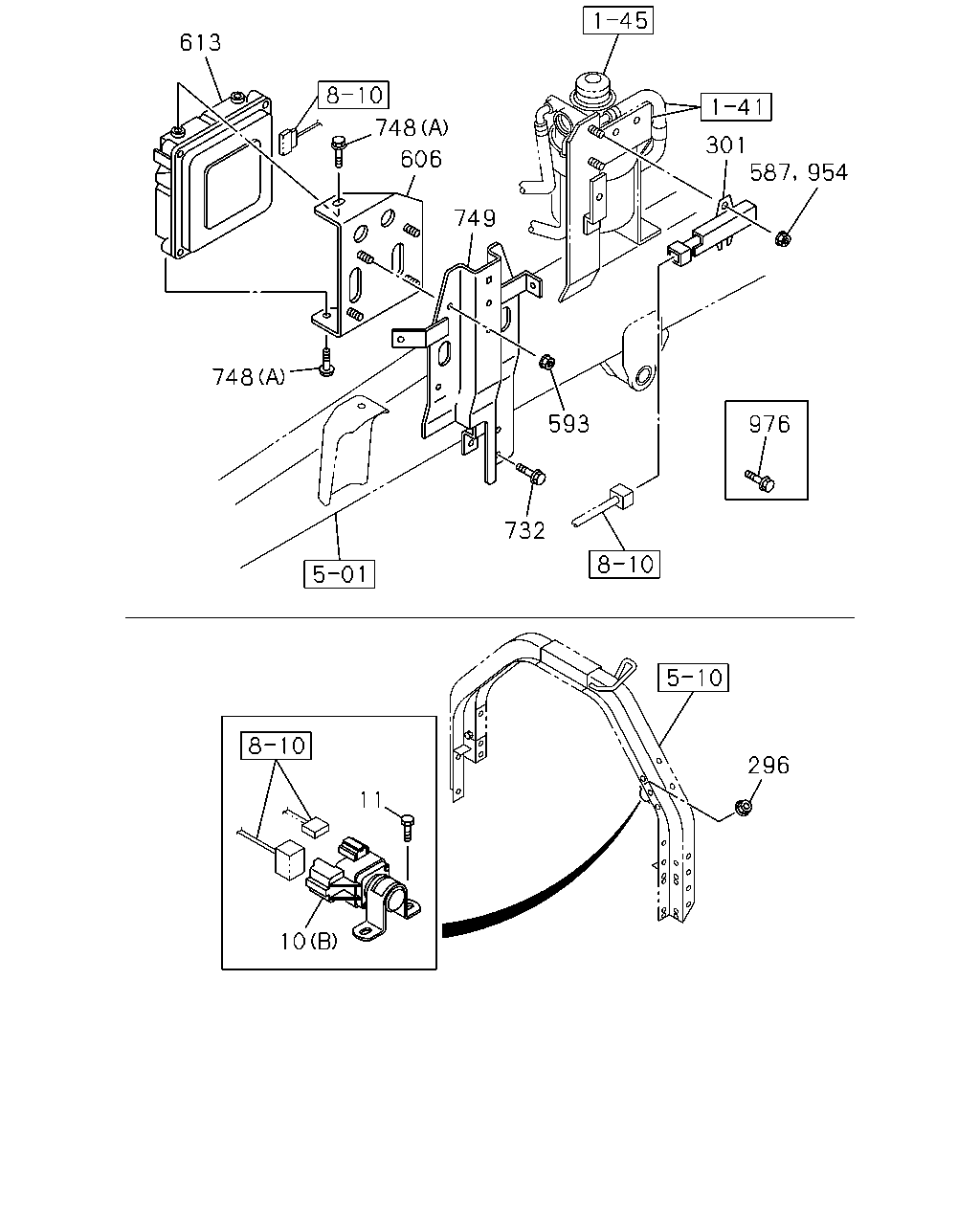

613 748 301 587 606 954 749 748 593 976 732 296 11 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER (A) 24V 10A MATSUSHITA	8-97173-035-1	01	1	0710-0711	●
10	RELAY; STARTER (A) 24V 10A MATSUSHITA	8-97173-035-1	01	1	0712-1005	●	●
10	RELAY; STARTER (A) 24V 10A	8-98167-173-0	01	1	1006-	●	●
10	RELAY; STARTER (B) 24V NIKKO	8-98005-631-0	01	1	0710-0711	●
10	RELAY; STARTER (B) 24V NIKKO	8-98005-631-1	01	1	0712-	●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
301	RESISTOR; DROPPING	8-97357-613-0	01	1	0710-0711	●
301	RESISTOR; DROPPING	8-97357-613-0	01	1	0712-	●	●
587	NUT; RESISTOR & RELAY M6 FLANGE	0-91180-106-0	02	1	0710-0711	●
587	NUT; RESISTOR & RELAY M6 FLANGE	0-91180-106-0	02	1	0712-	●	●
593	NUT; BRKT M6 FLANGE	0-91180-106-0	04	1	0710-0711	●
593	NUT; BRKT M6 FLANGE	0-91180-106-0	04	1	0712-	●	●
606	BRACKET; CONT UNIT	1-53194-675-0	01	1	0710-0711	●
606	BRACKET; CONT UNIT	1-53194-675-0	01	1	0712-	●	●
613	CONTROL UNIT; ENG AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98160-230-0	01	1	0911-0911	●
613	CONTROL UNIT; ENG AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98160-229-0	01	1	0911-1004	●
613	CONTROL UNIT; ENG AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98163-640-1	01	1	1005-	●
613	CONTROL UNIT; ENG MZX6P M/T(RSW) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98074-896-2	01	1	0710-0804	●
613	CONTROL UNIT; ENG MZX6P M/T(RSW) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98105-577-0	01	1	0805-0805	●
613	CONTROL UNIT; ENG MZX6P M/T(RSW),MLD6W M/T(Y2C) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98105-577-1	01	1	0806-0906	●
613	CONTROL UNIT; ENG AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98105-577-1	01	1	0907-1004	●
613	CONTROL UNIT; ENG AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98163-632-1	01	1	1005-	●
613	CONTROL UNIT; ENG MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98080-869-2	01	1	0710-0804	●
613	CONTROL UNIT; ENG MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98105-572-0	01	1	0805-0805	●
613	CONTROL UNIT; ENG MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98105-572-1	01	1	0806-0906	●
613	CONTROL UNIT; ENG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98105-572-1	01	1	0907-1004	●
613	CONTROL UNIT; ENG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98163-627-1	01	1	1005-	●
613	CONTROL UNIT; ENG MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>	8-98074-894-2	01	1	0710-0804	●
613	CONTROL UNIT; ENG MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>	8-98105-575-0	01	1	0805-0805	●
613	CONTROL UNIT; ENG MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>	8-98105-575-1	01	1	0806-0906	●
613	CONTROL UNIT; ENG TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>	8-98105-575-1	01	1	0907-1004	●
613	CONTROL UNIT; ENG TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>	8-98163-630-1	01	1	1005-	●
613	CONTROL UNIT; ENG AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98160-229-0	01	1	0911-0911		●
613	CONTROL UNIT; ENG AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98160-230-0	01	1	0911-1004		●
613	CONTROL UNIT; ENG AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98163-641-1	01	1	1005-		●
613	CONTROL UNIT; ENG MZX6P M/T(RSW) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98081-733-2	01	1	0712-0804		●
613	CONTROL UNIT; ENG MZX6P M/T(RSW) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98105-579-0	01	1	0805-0805		●
613	CONTROL UNIT; ENG MZX6P M/T(RSW),MLD6W M/T(Y2C) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98105-579-1	01	1	0806-0906		●
613	CONTROL UNIT; ENG AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98105-579-1	01	1	0907-1004		●
613	CONTROL UNIT; ENG AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98163-634-1	01	1	1005-		●
613	CONTROL UNIT; ENG MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98080-870-2	01	1	0712-0804		●
613	CONTROL UNIT; ENG MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98105-573-0	01	1	0805-0805		●
613	CONTROL UNIT; ENG MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98105-573-1	01	1	0806-0906		●
613	CONTROL UNIT; ENG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98105-573-1	01	1	0907-1004		●
613	CONTROL UNIT; ENG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98163-628-1	01	1	1005-		●
613	CONTROL UNIT; ENG MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>	8-98074-898-2	01	1	0712-0804		●
613	CONTROL UNIT; ENG MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>	8-98105-578-0	01	1	0805-0805		●
613	CONTROL UNIT; ENG MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>	8-98105-578-1	01	1	0806-0906		●
613	CONTROL UNIT; ENG TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>	8-98105-578-1	01	1	0907-1004		●
613	CONTROL UNIT; ENG TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>	8-98163-633-0	01	1	1005-		●
732	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	0710-0711	●
732	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	0712-	●	●
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	0710-0711	●
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	0712-	●	●
748	BOLT; CONT UNIT EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE	0-28650-616-0	02	1	0710-0711	●
748	BOLT; CONT UNIT EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE	0-28650-616-0	02	1	0712-	●	●
749	STAY; CONT UNIT	1-53194-595-3	01	1	0710-0711	●
749	STAY; CONT UNIT	1-53194-595-3	01	1	0712-	●	●
954	NUT; RESISTOR M6 FLANGE	0-91180-106-0	02	1	0710-0711	●
954	NUT; RESISTOR M6 FLANGE	0-91180-106-0	02	1	0712-0906	●	●
976	BOLT; RESISTOR M6X20 FLANGE	0-28050-620-0	02	1	0710-0711	●
976	BOLT; RESISTOR M6X20 FLANGE	0-28050-620-0	02	1	0712-0906	●	●
