0-40 — FUEL INJECTION SYSTEM (#58037) — 103 parça

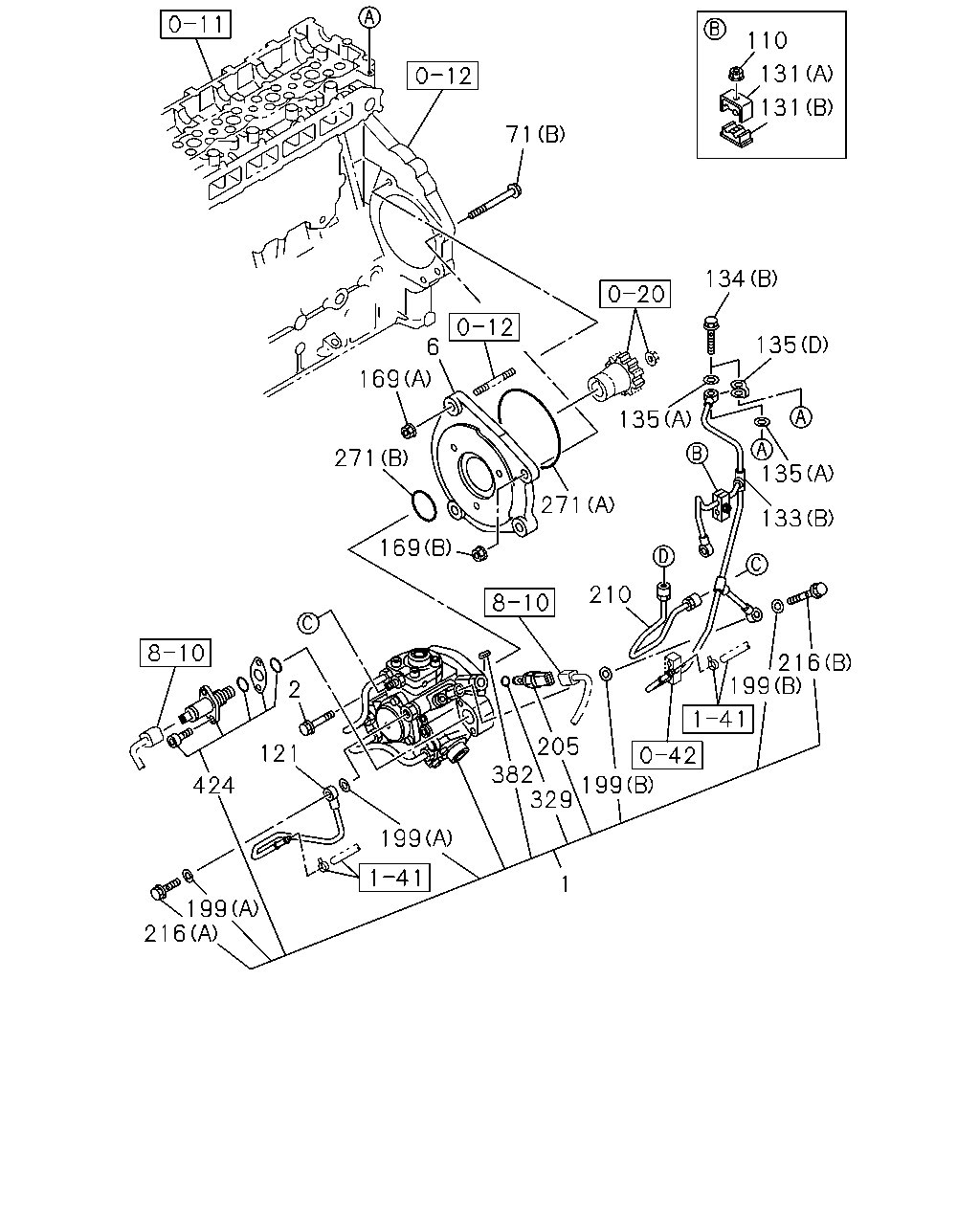

çizim 146746
110 131 131 71 134 135 6 169 135 135 271 271 133 169 210 216 199 2 205 382 329 121 199 424 199 1 199 216
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-97605-946-7 01 1 0710-
2 BOLT; INJ PUMP
M8X28 		8-94399-256-0 03 1 0710-
6 BRACKET; INJ PUMP TO C/BL 8-97601-154-1 01 1 0710-
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0710-
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 0710-
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 0710-
121 PIPE; FUEL,FEED PUMP,SUCTION 8-97610-502-0 01 1 0710-0808
121 PIPE; FUEL,FEED PUMP,SUCTION 8-98126-331-0 01 1 0809-
131 CLIP; OVERFLOW LEAK OFF
(A) 		8-98000-010-2 01 1 0710-
131 CLIP; OVERFLOW LEAK OFF
(B) 		8-98000-011-2 01 1 0710-
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0710-1206
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1207-
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 0710-
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0710-
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 0710-
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0710-0908
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=17 		8-98079-755-0 01 1 0909-
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-97240-975-0 01 1 0710-1301
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1302-
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0710-0908
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-98065-992-0 06 1 0909-
169 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 02 1 0710-
169 NUT; BRKT
(B) M12 FLANGE 		0-91180-112-0 01 1 0710-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0710-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 0710-
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0710-
210 PIPE; INJ,C/R 8-97608-480-1 01 1 0710-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0710-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0710-
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0710-
271 GASKET; INJ PUMP
(A) ID=139.6 		1-09623-464-0 01 1 0710-
271 GASKET; INJ PUMP
(B) ID=52 		8-98031-844-0 01 1 0710-
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 0710-1201
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0710-0910
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 0911-
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98143-870-0 01 1 0710-0905
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-449-1 01 1 0906-

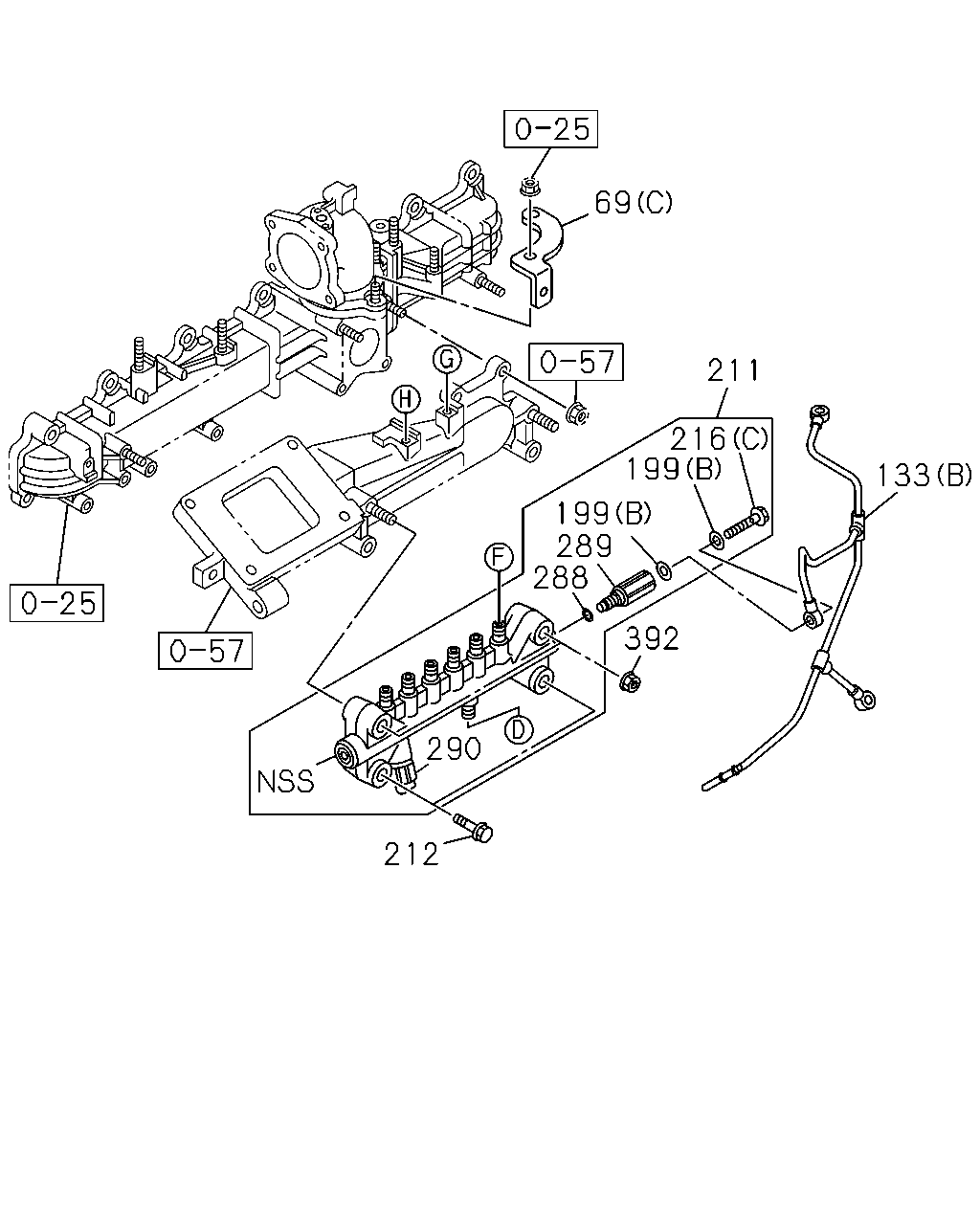

çizim 146748
69 211 216 199 133 199 289 288 392 290 212
BalonParca AdiParca NoAdetTipApplied Date
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 0710-
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 0710-
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 0710-
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0710-1206
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1207-
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 0710-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0710-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 0710-
211 RAIL ASM; COMMON 8-97609-980-2 01 1 0710-
212 BOLT; RAIL ASM
M10X50 FLANGE 		8-97372-243-0 02 1 0710-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0710-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0710-
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0710-
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0710-
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0710-
290 SENSOR; PRESS 8-97318-684-0 01 1 0710-0808
290 SENSOR; PRESS 8-98119-790-0 01 1 0809-
392 NUT; RAIL ASM
M10 FLANGE 		0-91180-110-0 02 1 0710-

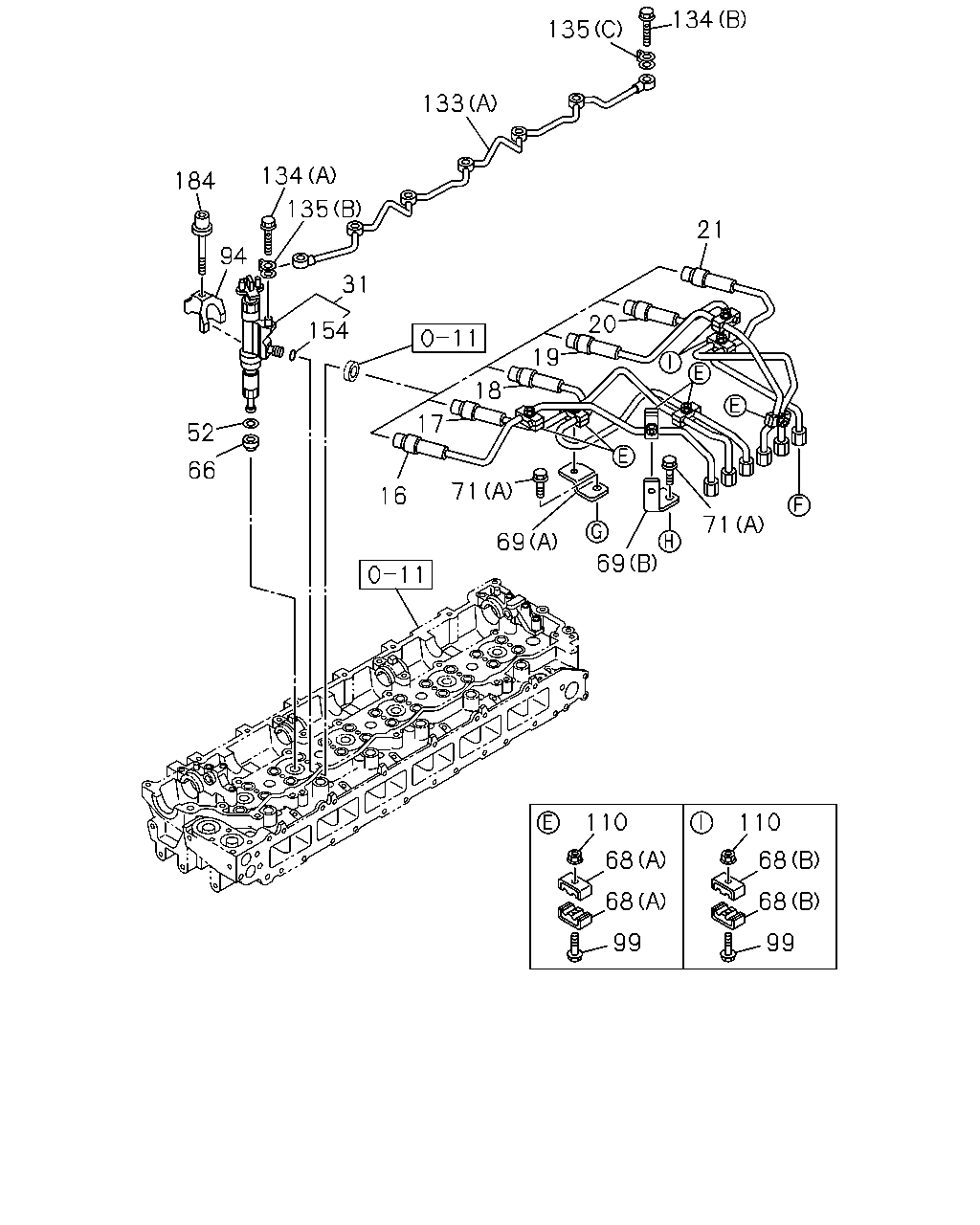

çizim 146750
134 135 133 134 184 135 21 94 31 20 154 19 18 17 52 66 71 71 69 69 110 110 68 68 68 68 99 99 16
BalonParca AdiParca NoAdetTipApplied Date
16 PIPE; INJ NO.1 8-98038-936-0 01 1 0710-1102
16 PIPE; INJ NO.1 8-98185-362-0 01 1 1103-1403
16 PIPE; INJ NO.1 8-98271-207-0 01 1 1404-
17 PIPE; INJ NO.2 8-98039-770-0 01 1 0710-1102
17 PIPE; INJ NO.2 8-98185-363-0 01 1 1103-1403
17 PIPE; INJ NO.2 8-98271-208-0 01 1 1404-
18 PIPE; INJ NO.3 8-98038-937-0 01 1 0710-1102
18 PIPE; INJ NO.3 8-98185-364-0 01 1 1103-1403
18 PIPE; INJ NO.3 8-98271-209-0 01 1 1404-
19 PIPE; INJ NO.4 8-98057-085-0 01 1 0710-1102
19 PIPE; INJ NO.4 8-98185-365-0 01 1 1103-1403
19 PIPE; INJ NO.4 8-98271-210-0 01 1 1404-
20 PIPE; INJ NO.5 8-98038-939-0 01 1 0710-1102
20 PIPE; INJ NO.5 8-98185-366-0 01 1 1103-1403
20 PIPE; INJ NO.5 8-98271-211-0 01 1 1404-
21 PIPE; INJ NO.6 8-98039-771-0 01 1 0710-1102
21 PIPE; INJ NO.6 8-98185-367-0 01 1 1103-1403
21 PIPE; INJ NO.6 8-98271-212-0 01 1 1404-
31 NOZZLE ASM; INJ 8-97609-788-6 06 1 0710-
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3 		8-94173-412-0 06 1 0710-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0710-0909
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-98079-248-0 06 1 0910-
68 CLIP; INJ PIPE
(A) 		8-98039-293-0 14 1 0710-0909
68 CLIP; INJ PIPE
(A) 		8-98039-293-0 10 1 0910-1405
68 CLIP; INJ PIPE
(B) 		8-98148-996-2 04 1 0910-1405
68 CLIP; INJ PIPE
(B) 		8-98148-996-2 14 1 1406-
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 0710-
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 0710-
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 0710-
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0710-
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 0710-
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 0710-
99 BOLT; CLIP,INJ,PIPE
M6X35 FLANGE 		0-28050-635-0 03 1 0710-
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 0710-
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0710-1206
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1207-
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 0710-
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0710-
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 0710-
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0710-0908
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=17 		8-98079-755-0 01 1 0909-
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-97240-975-0 01 1 0710-1301
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1302-
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0710-0908
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-98065-992-0 06 1 0909-
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 0710-1106
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1107-
184 BOLT; NOZZLE HOLDER
M8X54 		8-98008-895-0 06 1 0710-
